Diode Tutorial Video URL https www youtube comwatch
Diode Tutorial Video URL: https: //www. youtube. com/watch? v=cyhzp. Fq. Xwd. A Questions based on the first 4 minutes
• What is a diode? • How do you know which way to put a diode in your circuit? • a device that allows current to flow in only one direction • check the little stripe on the end for correct orientation

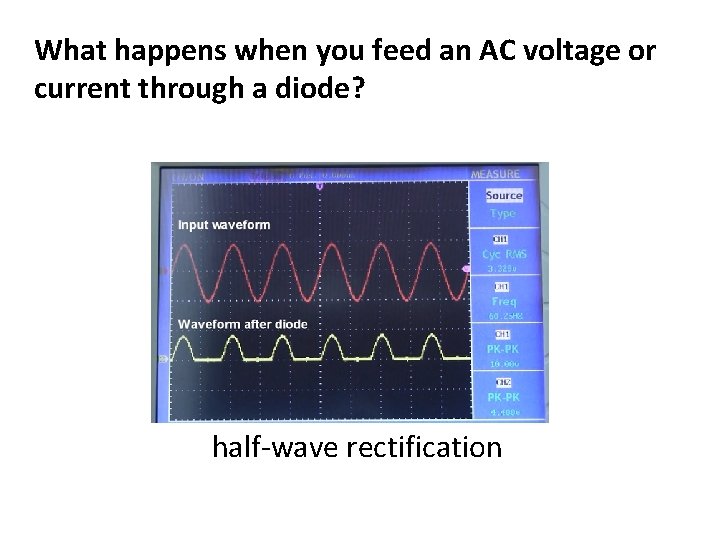

What happens when you feed an AC voltage or current through a diode? half-wave rectification
Why is there a missing voltage in the second picture? There is no such thing as a perfect diode!
• What is the usual value of Vf? • Which criteria will determine the exact value of Vf? Vf ~ 0. 7 V Exact value determined by: • temperature • current • type of diode

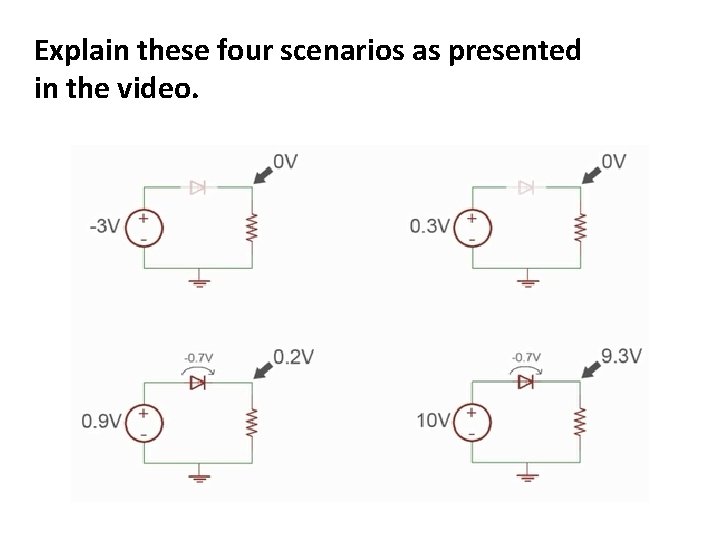

Explain these four scenarios as presented in the video.
How can you predict whether a diode is going to melt on you? • by calculating the power wasted in the diode Reading equations: • The power wasted in a diode is given by Vf times the current flowing through it.

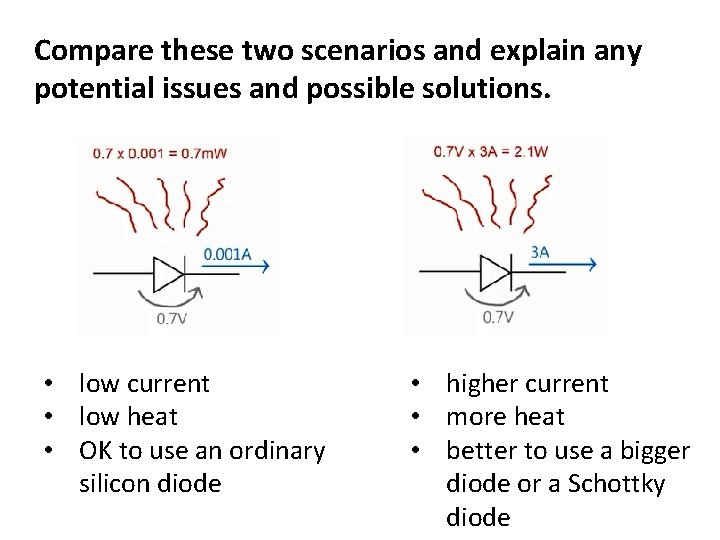

Compare these two scenarios and explain any potential issues and possible solutions. • low current • low heat • OK to use an ordinary silicon diode • higher current • more heat • better to use a bigger diode or a Schottky diode
What do these diagrams tell us about diodes? Placing diodes in parallel is not a reliable option.

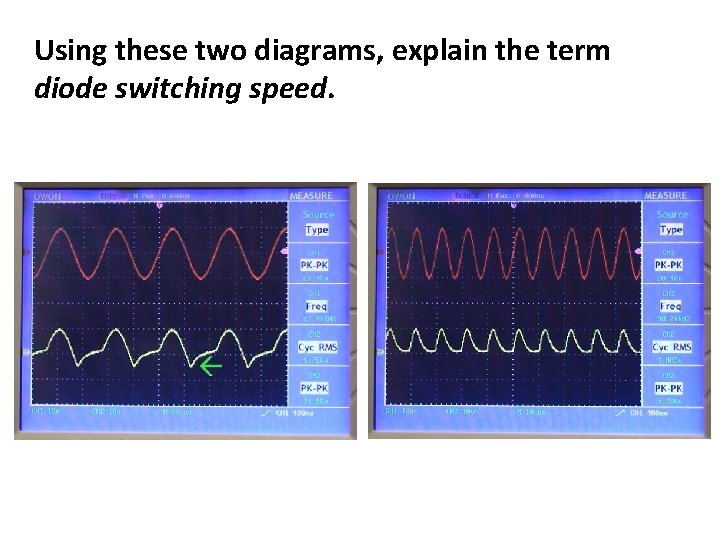

Using these two diagrams, explain the term diode switching speed.
What are the four important things to keep in mind about a diode before using it? • • maximum rated voltage forward voltage current rating switching speed
