DINOFLAGELLATES I PHYLOGENY ALVEOLATES Ciliates Dinoflagellates Apicomplexans ALVEOLATES

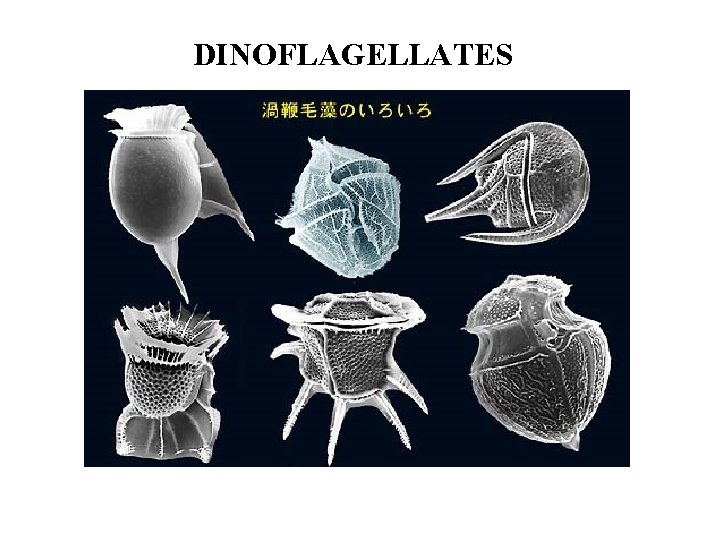

DINOFLAGELLATES

I) PHYLOGENY

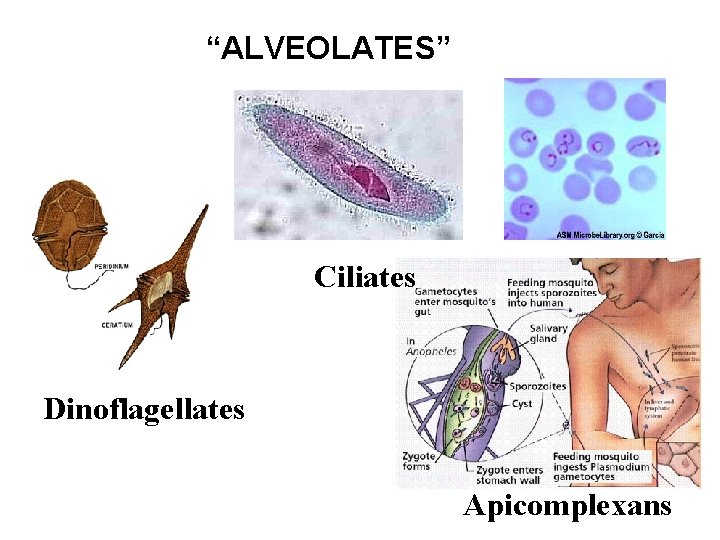

“ALVEOLATES” Ciliates Dinoflagellates Apicomplexans

ALVEOLATES

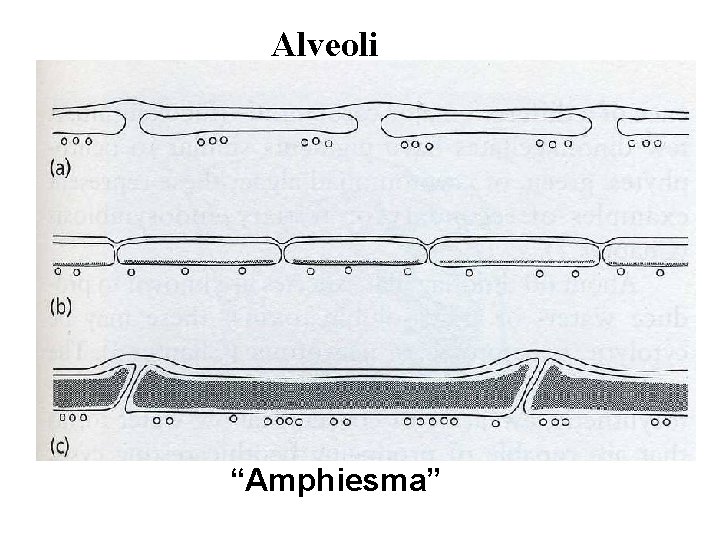

Alveoli “Amphiesma”

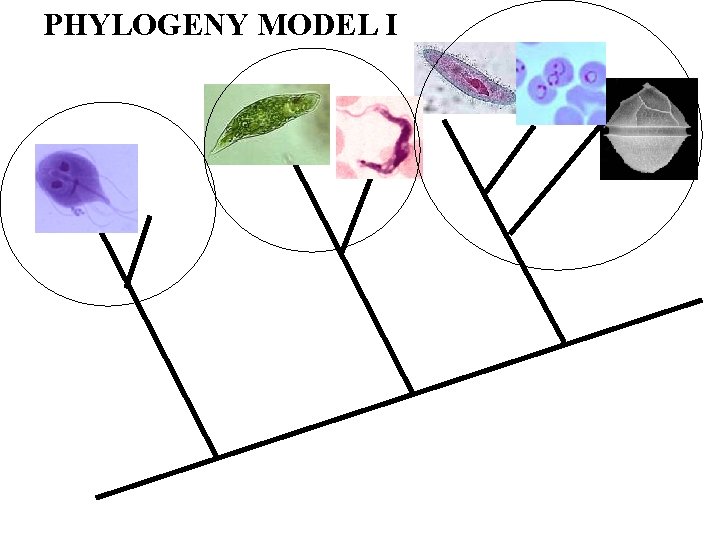

PHYLOGENY MODEL I

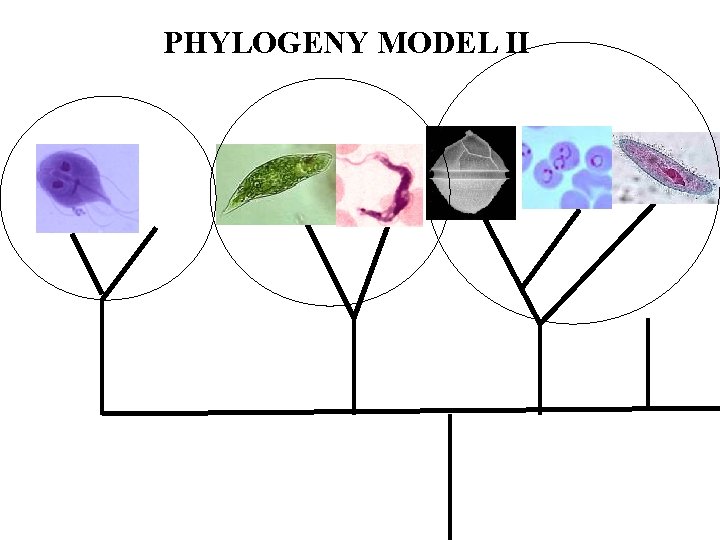

PHYLOGENY MODEL II

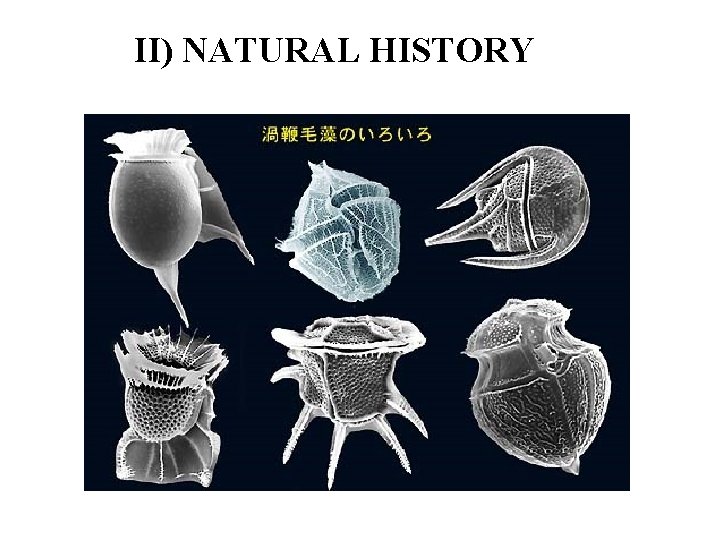

II) NATURAL HISTORY

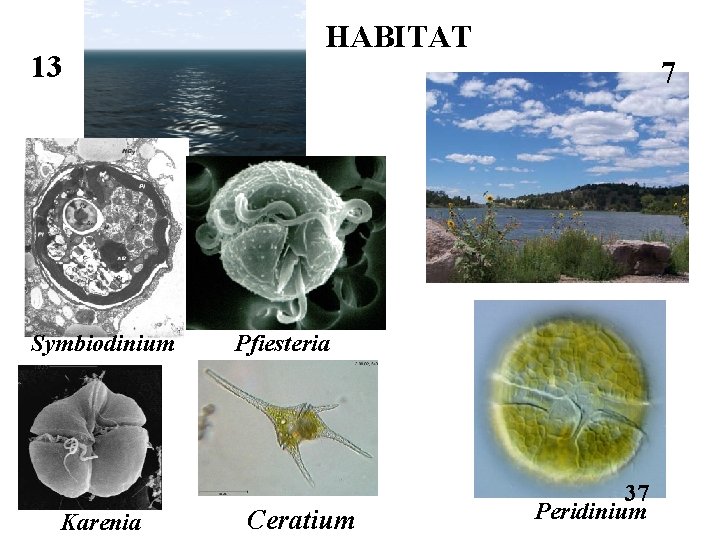

13 Symbiodinium Karenia HABITAT 7 Pfiesteria Ceratium 37 Peridinium

ENDOSYMBIONTS: “ZOOXANTHELLAE” 17 16 Symbiodinium

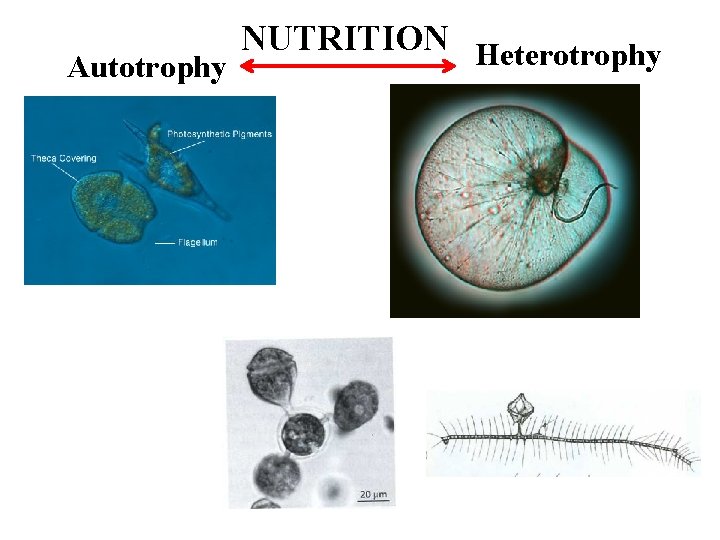

NUTRITION Heterotrophy Autotrophy

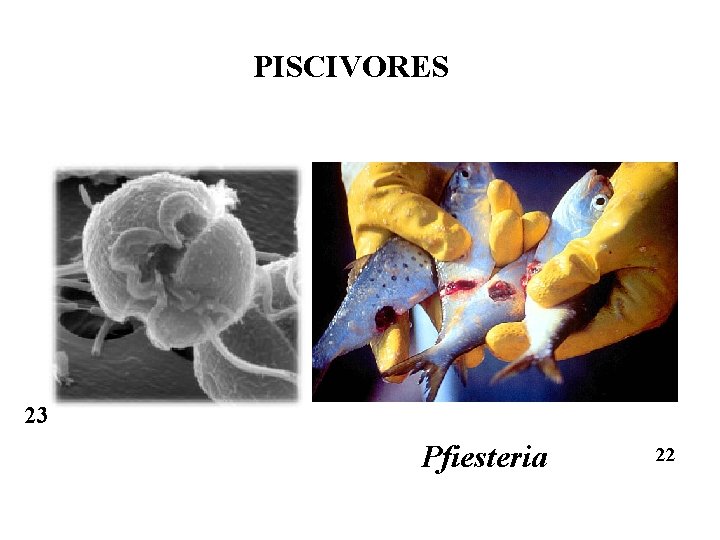

PISCIVORES 23 Pfiesteria 22

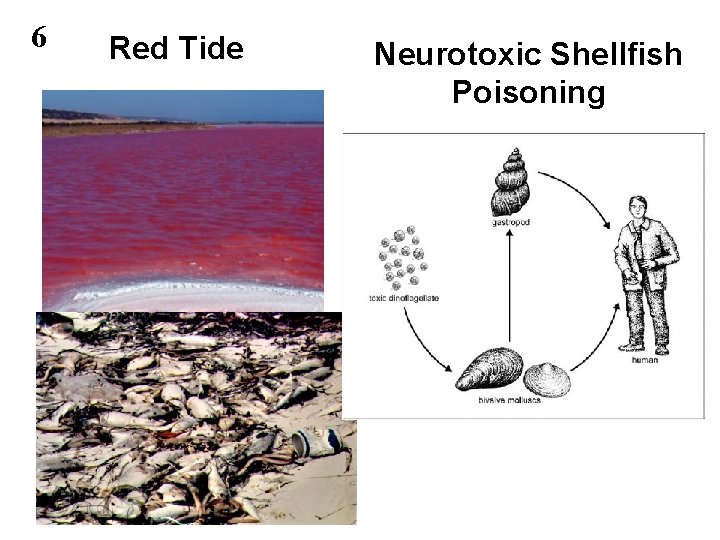

6 Red Tide Neurotoxic Shellfish Poisoning

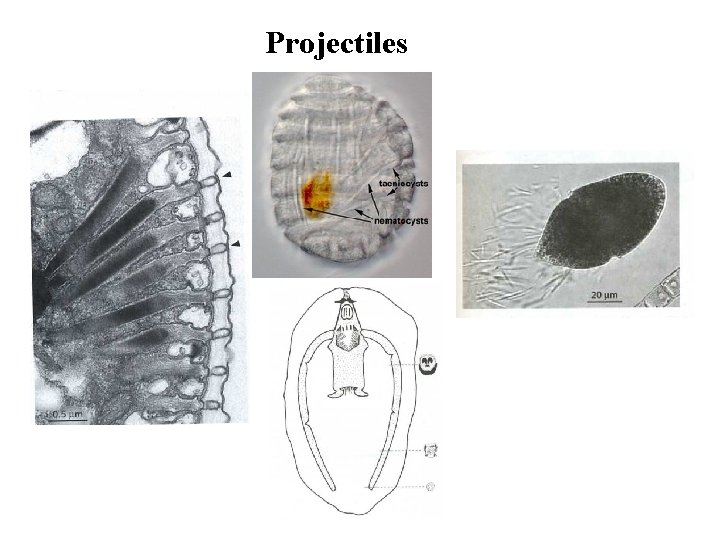

Projectiles

BIOLUMINESCENCE 15

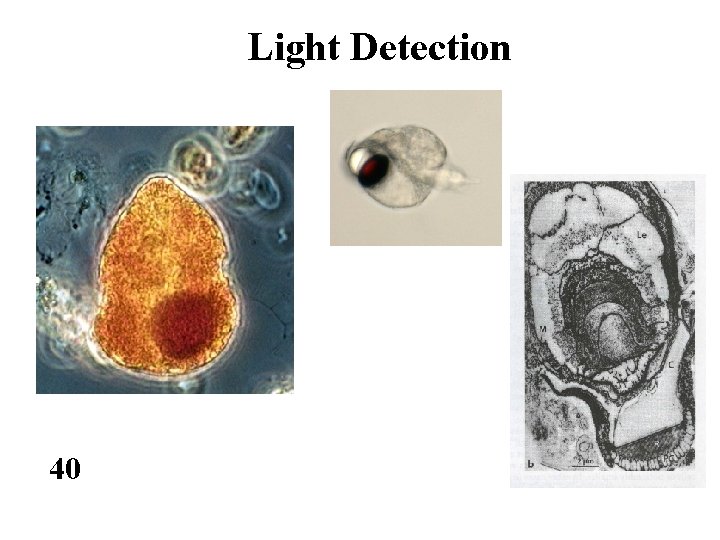

Light Detection 40

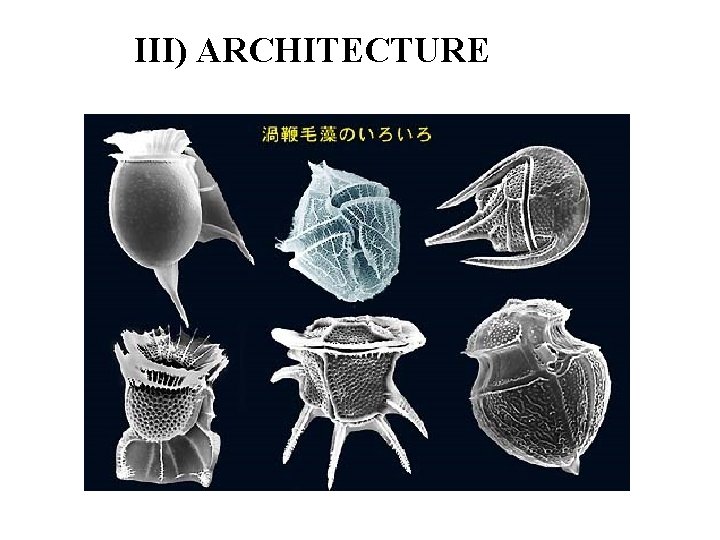

III) ARCHITECTURE

“Shells” 2

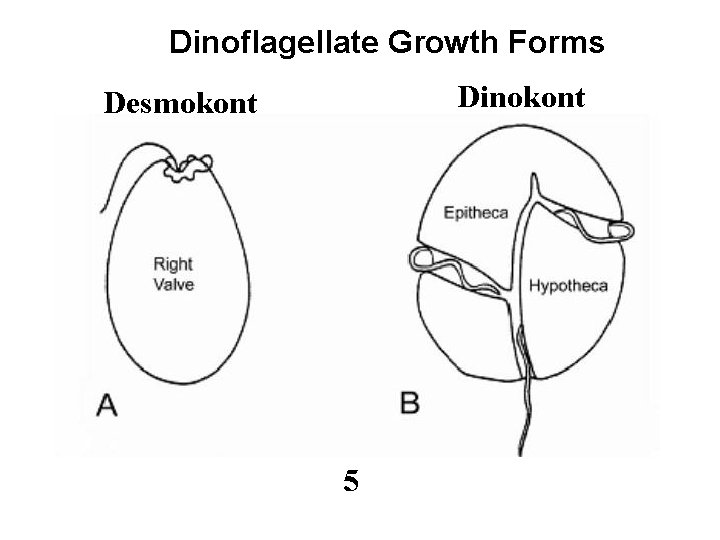

Dinoflagellate Growth Forms Dinokont Desmokont 5

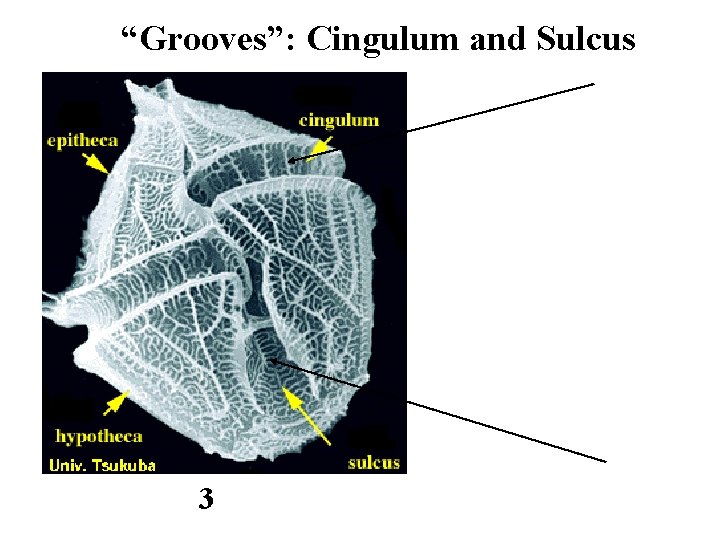

“Grooves”: Cingulum and Sulcus 3

Flagellae: Transverse and Longitudinal

Transverse Flagellum (Axoneme, Striated Filament = Centrin Filament) Fig. 7. 8 in Lee 1999

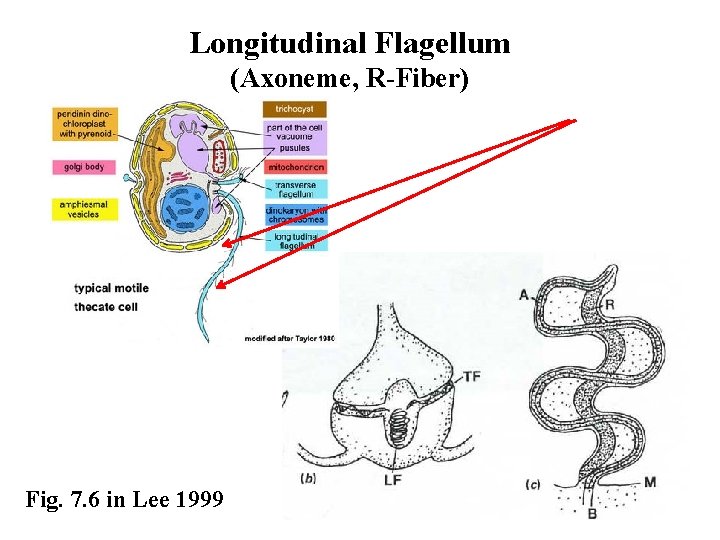

Longitudinal Flagellum (Axoneme, R-Fiber) Fig. 7. 6 in Lee 1999

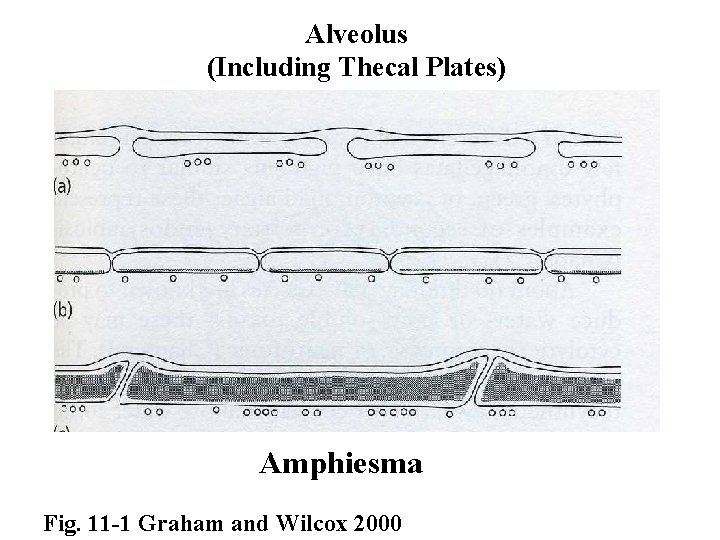

Alveolus (Including Thecal Plates) Amphiesma Fig. 11 -1 Graham and Wilcox 2000

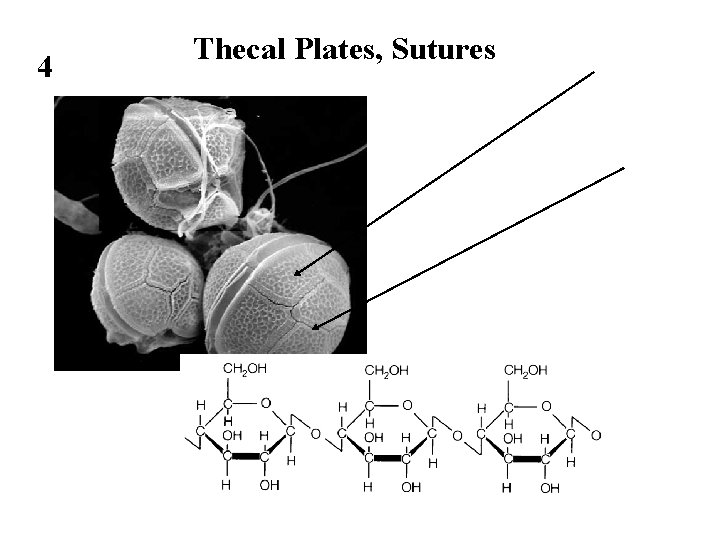

4 Thecal Plates, Sutures

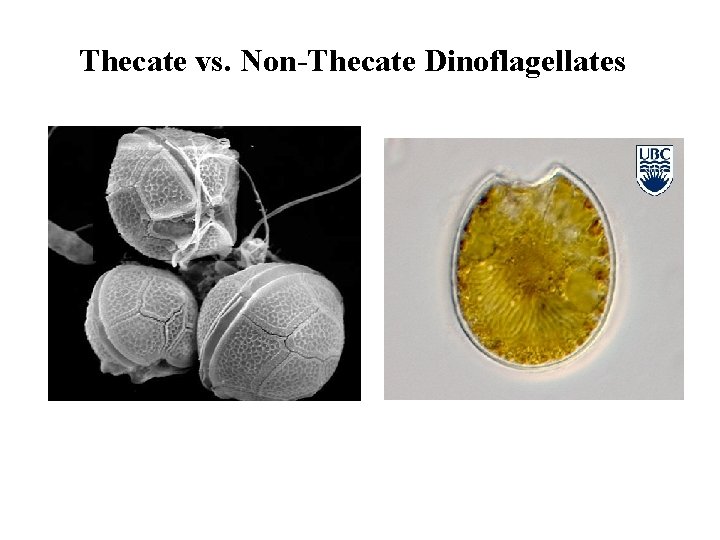

Thecate vs. Non-Thecate Dinoflagellates

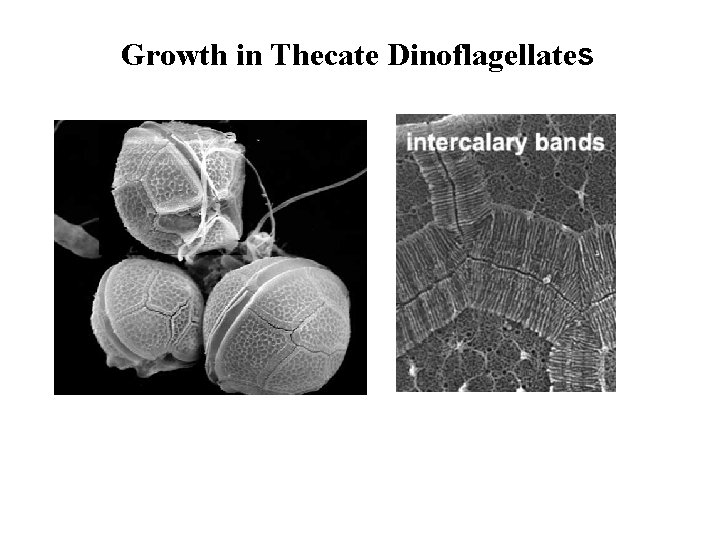

Growth in Thecate Dinoflagellates

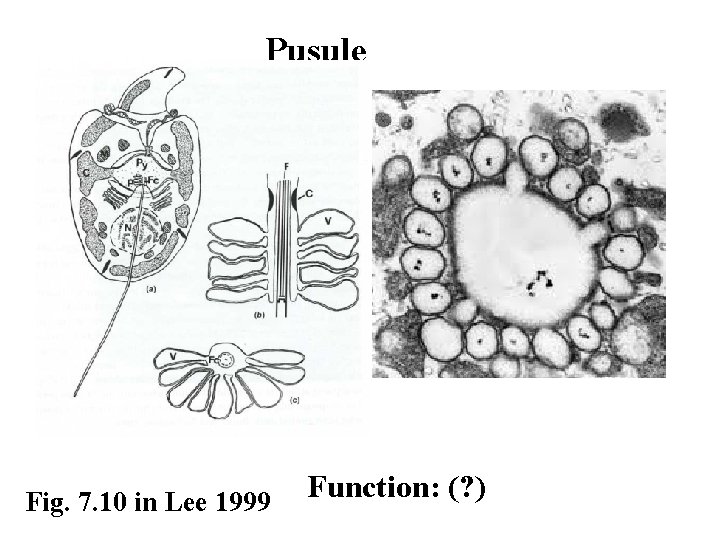

Pusule Fig. 7. 10 in Lee 1999 Function: (? )

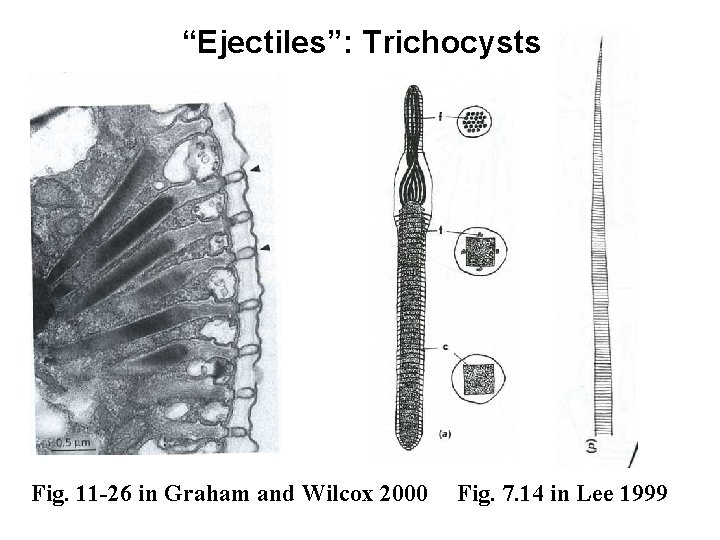

“Ejectiles”: Trichocysts Fig. 11 -26 in Graham and Wilcox 2000 Fig. 7. 14 in Lee 1999

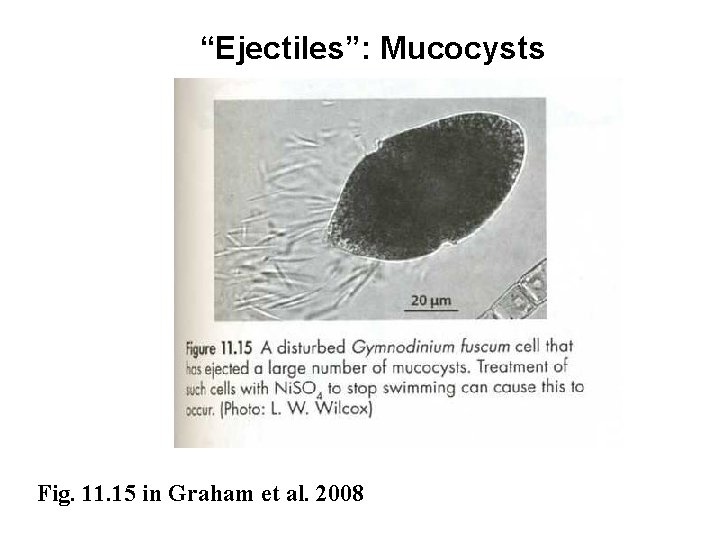

“Ejectiles”: Mucocysts Fig. 11. 15 in Graham et al. 2008

“Ejectiles”: Nematocysts (~ “Cnidocysts”) Fig. 11. 16 in Graham et al. 2009 49

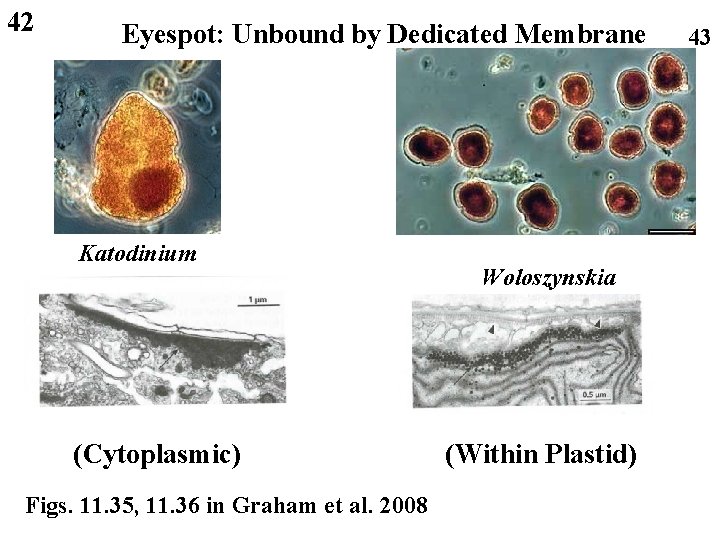

42 Eyespot: Unbound by Dedicated Membrane Katodinium (Cytoplasmic) Figs. 11. 35, 11. 36 in Graham et al. 2008 Woloszynskia (Within Plastid) 43

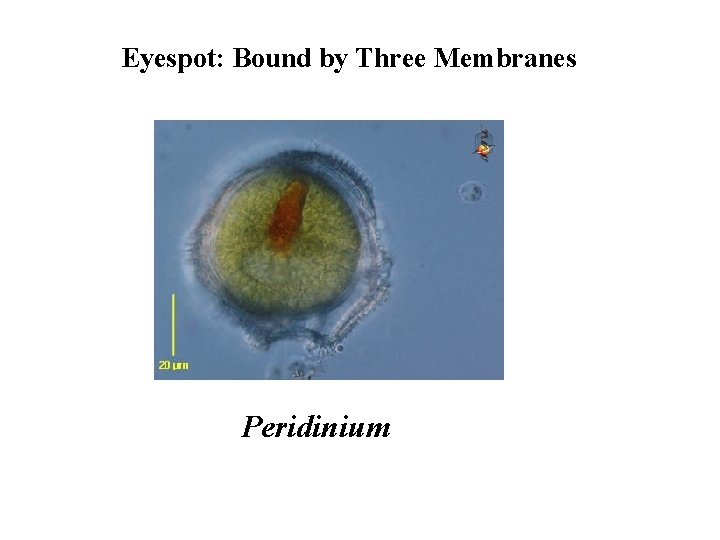

Eyespot: Bound by Three Membranes Peridinium

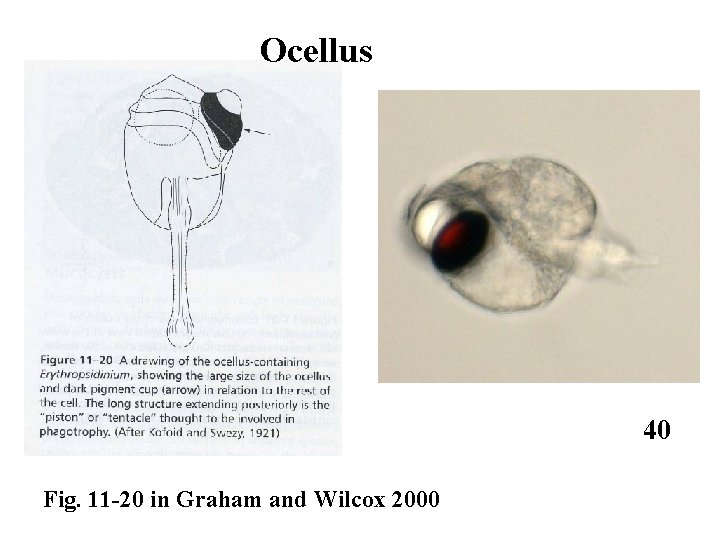

Ocellus 40 Fig. 11 -20 in Graham and Wilcox 2000

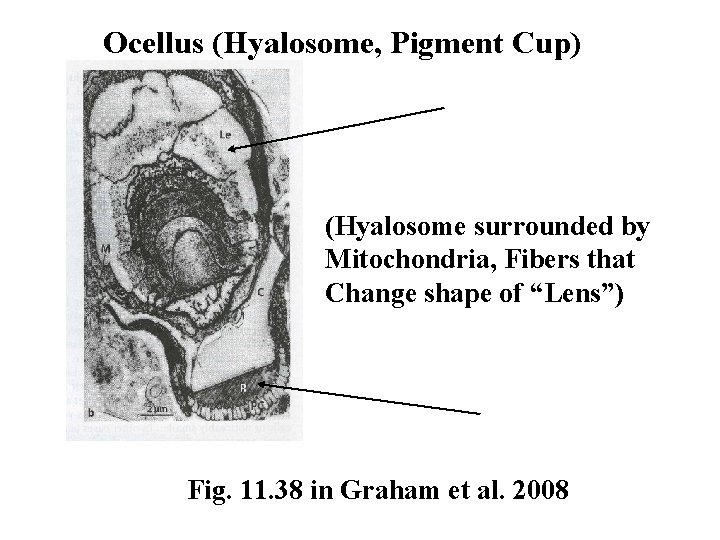

Ocellus (Hyalosome, Pigment Cup) (Hyalosome surrounded by Mitochondria, Fibers that Change shape of “Lens”) Fig. 11. 38 in Graham et al. 2008

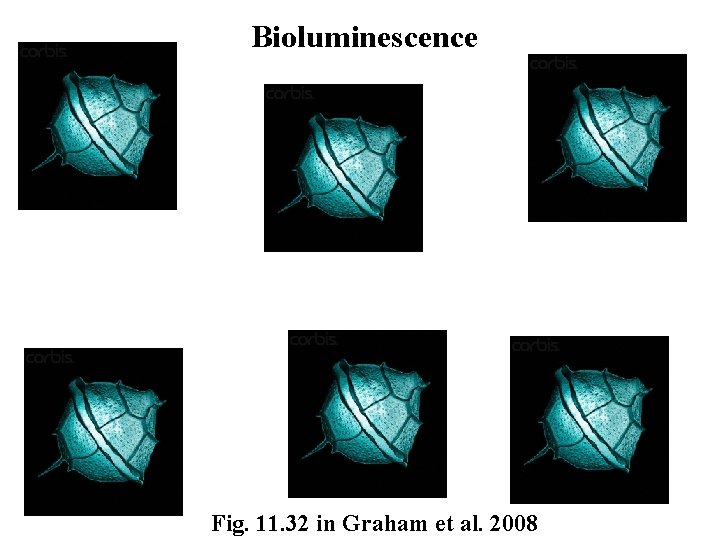

Bioluminescence Fig. 11. 32 in Graham et al. 2008

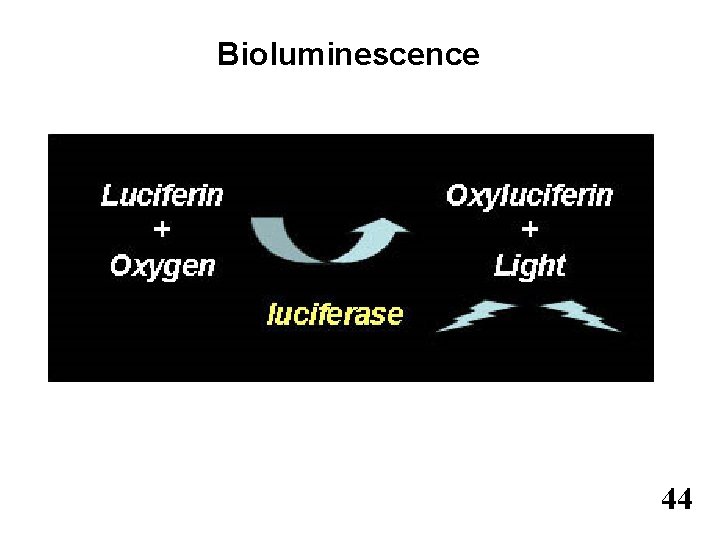

Bioluminescence 44

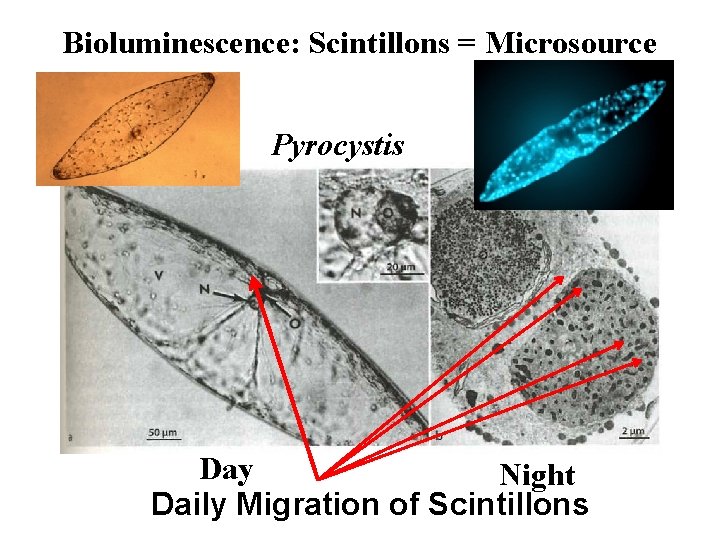

Bioluminescence: Scintillons = Microsource Pyrocystis Day Night Daily Migration of Scintillons

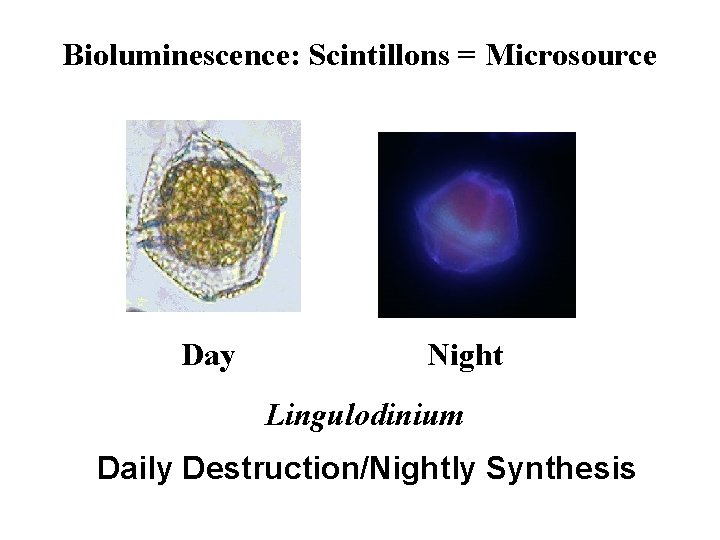

Bioluminescence: Scintillons = Microsource Day Night Lingulodinium Daily Destruction/Nightly Synthesis

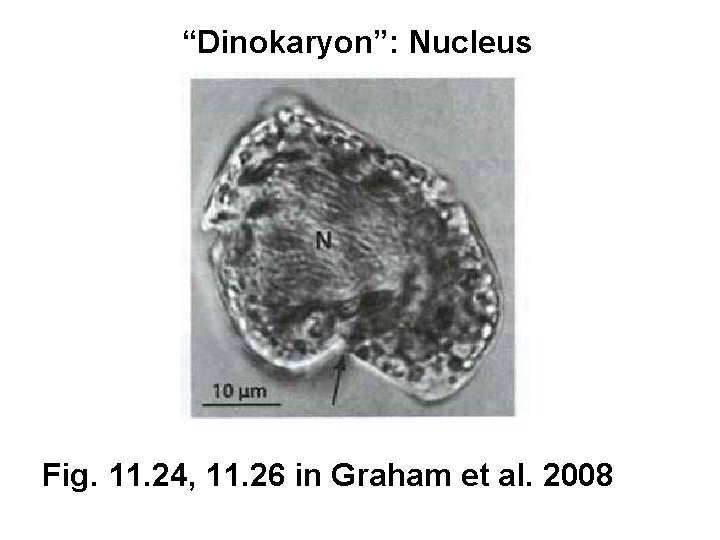

“Dinokaryon”: Nucleus Fig. 11. 24, 11. 26 in Graham et al. 2008

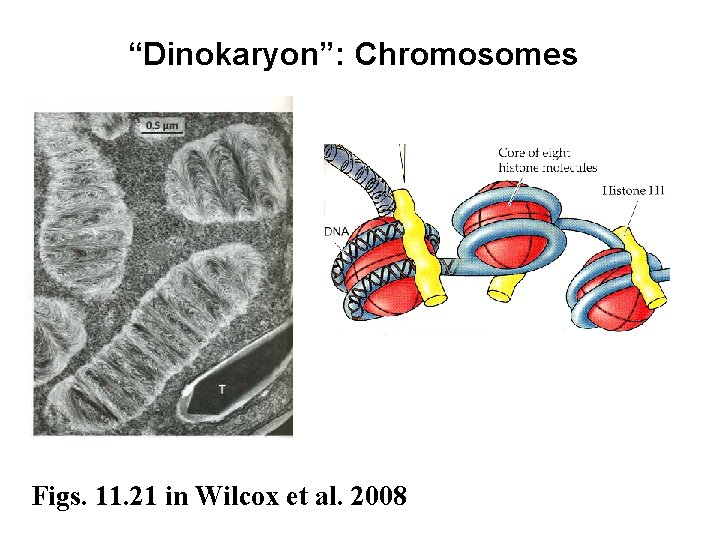

“Dinokaryon”: Chromosomes Figs. 11. 21 in Wilcox et al. 2008

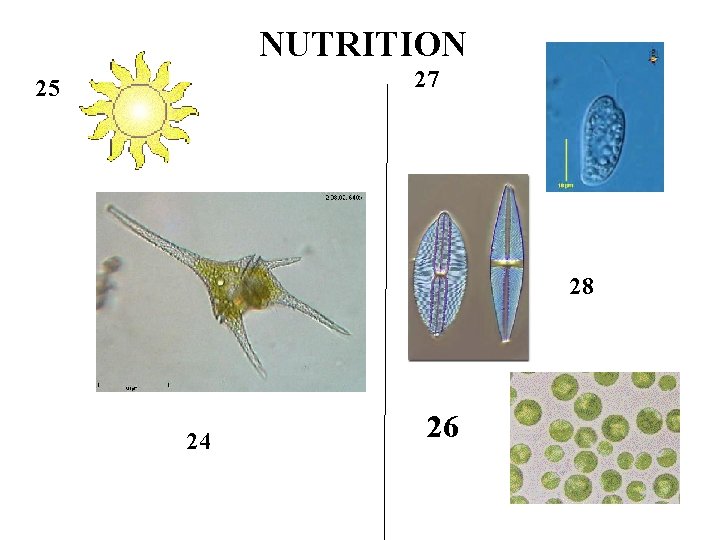

NUTRITION 27 25 28 24 26

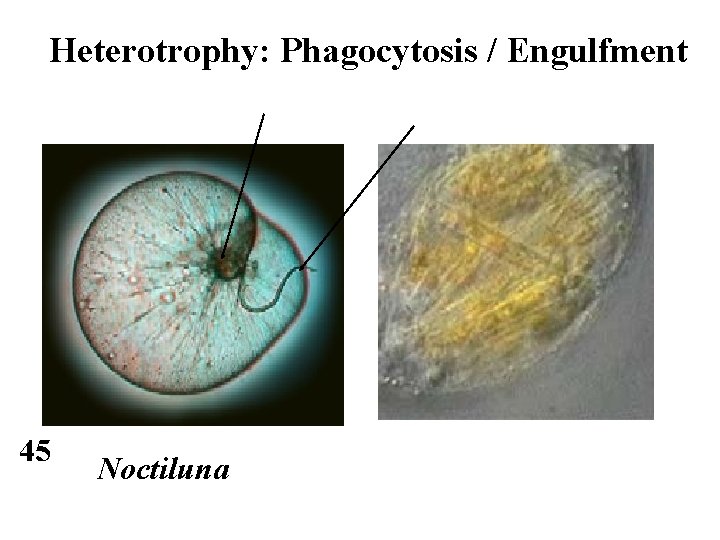

Heterotrophy: Phagocytosis / Engulfment 45 Noctiluna

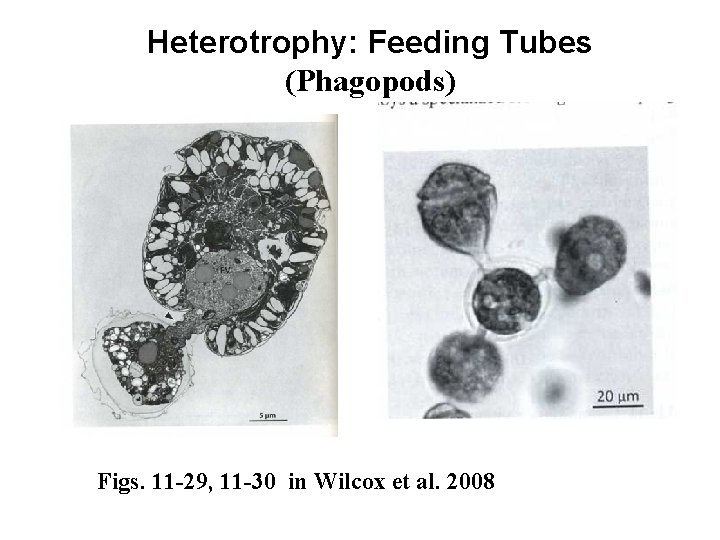

Heterotrophy: Feeding Tubes (Phagopods) Figs. 11 -29, 11 -30 in Wilcox et al. 2008

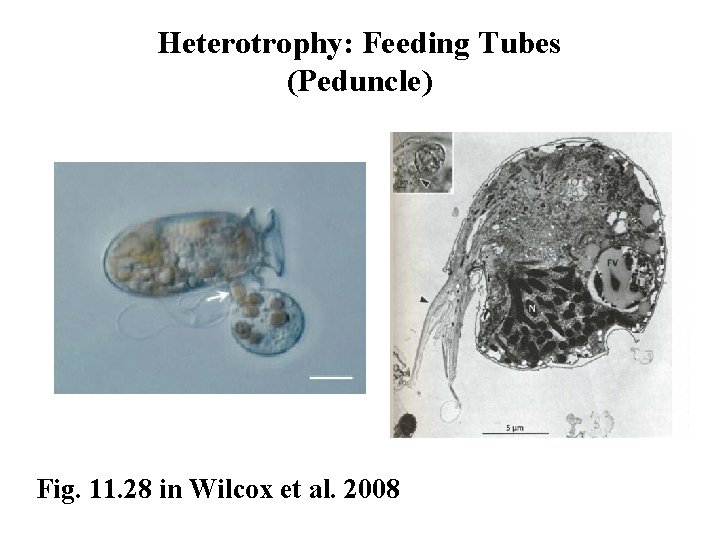

Heterotrophy: Feeding Tubes (Peduncle) Fig. 11. 28 in Wilcox et al. 2008

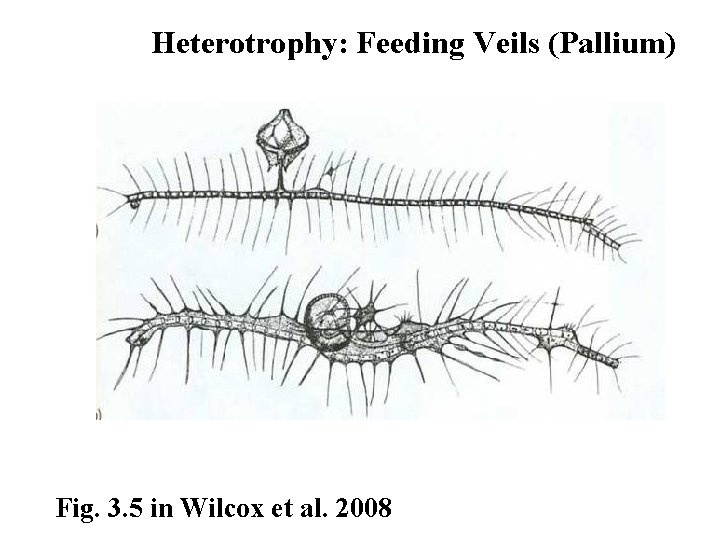

Heterotrophy: Feeding Veils (Pallium) Fig. 3. 5 in Wilcox et al. 2008

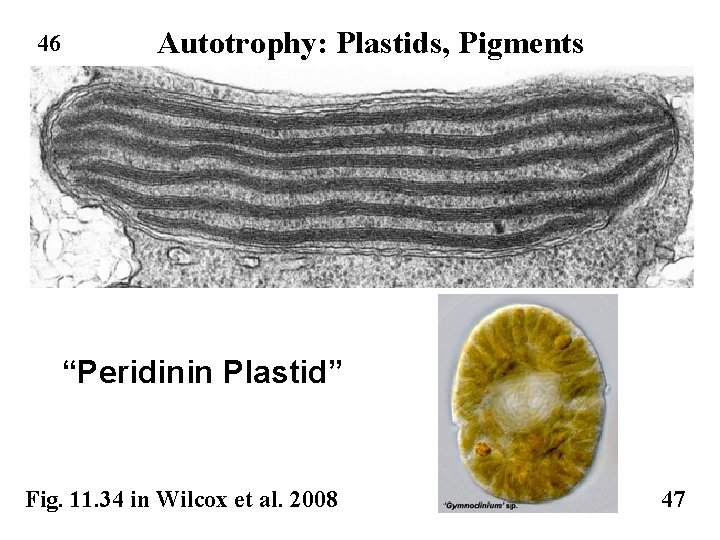

46 Autotrophy: Plastids, Pigments “Peridinin Plastid” Fig. 11. 34 in Wilcox et al. 2008 47

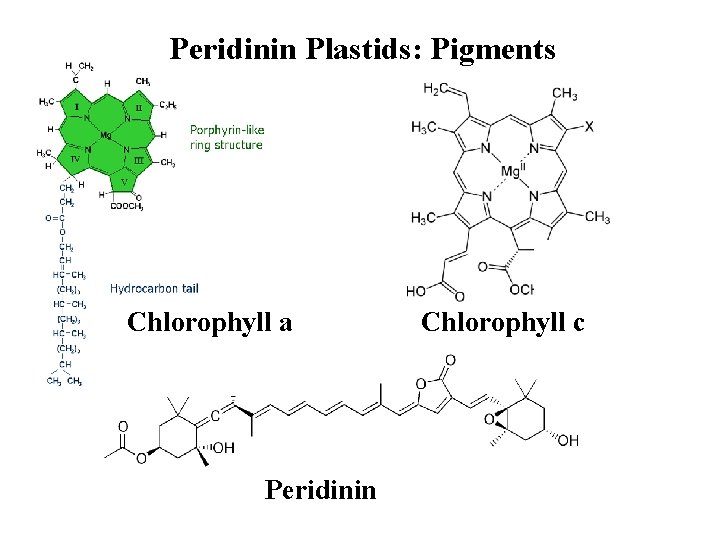

Peridinin Plastids: Pigments Chlorophyll a Peridinin Chlorophyll c

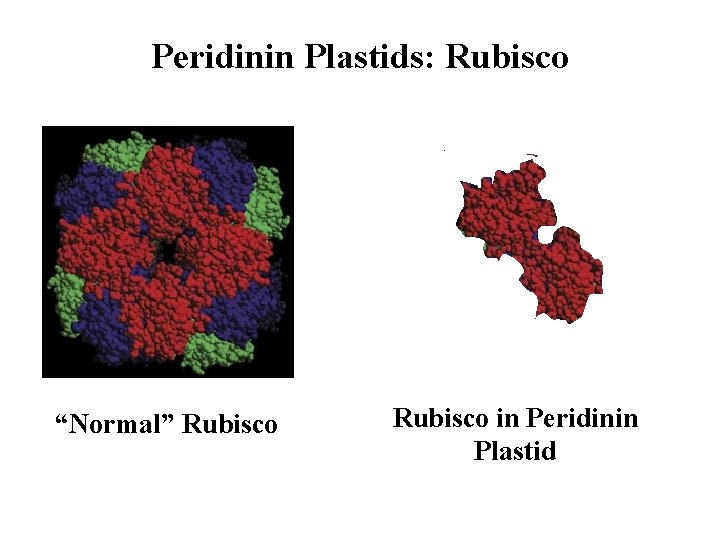

Peridinin Plastids: Rubisco “Normal” Rubisco in Peridinin Plastid

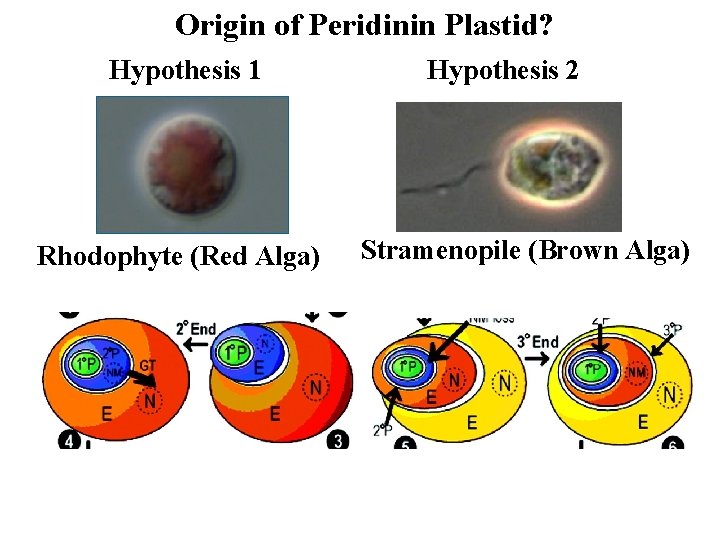

Origin of Peridinin Plastid? Hypothesis 1 Rhodophyte (Red Alga) Hypothesis 2 Stramenopile (Brown Alga)

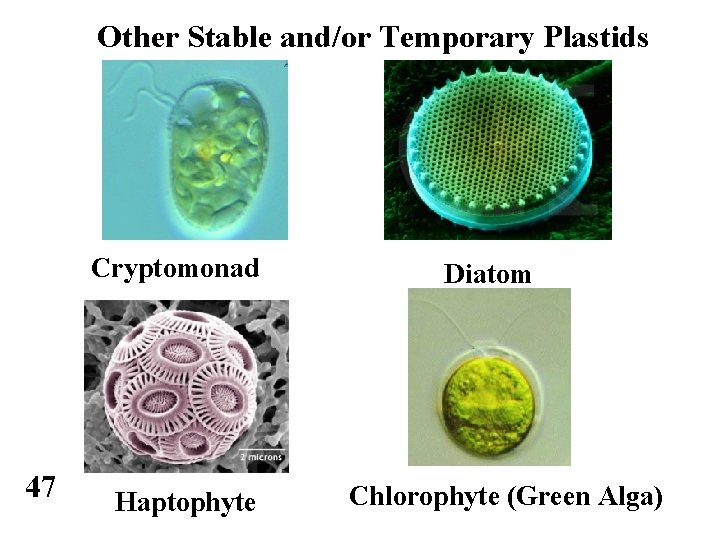

Other Stable and/or Temporary Plastids Cryptomonad 47 Haptophyte Diatom Chlorophyte (Green Alga)

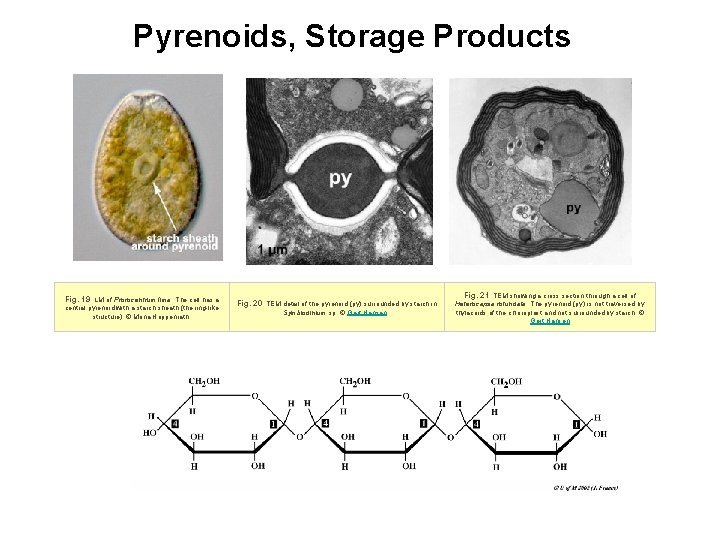

Pyrenoids, Storage Products Fig. 19. LM of Prorocentrum lima. The cell has a central pyrenoid with a starch sheath (the ring-like structure). © Mona Hoppenrath Fig. 20. TEM detail of the pyrenoid (py) surrounded by starch in Symbiodinium sp. © Gert Hansen Fig. 21. TEM showing a cross section through a cell of Heterocapsa rotundata. The pyrenoid (py) is not traversed by thylacoids of the chloroplast and not surrounded by starch. © Gert Hansen

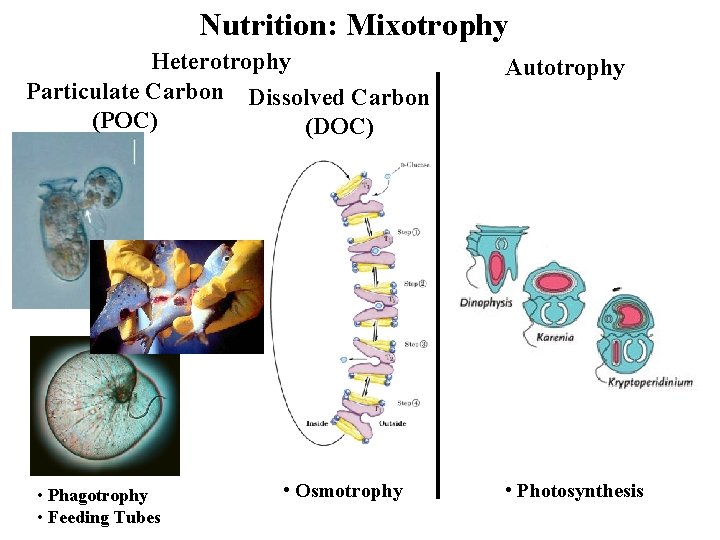

Nutrition: Mixotrophy Heterotrophy Particulate Carbon Dissolved Carbon (POC) (DOC) • Phagotrophy • Feeding Tubes • Osmotrophy Autotrophy • Photosynthesis

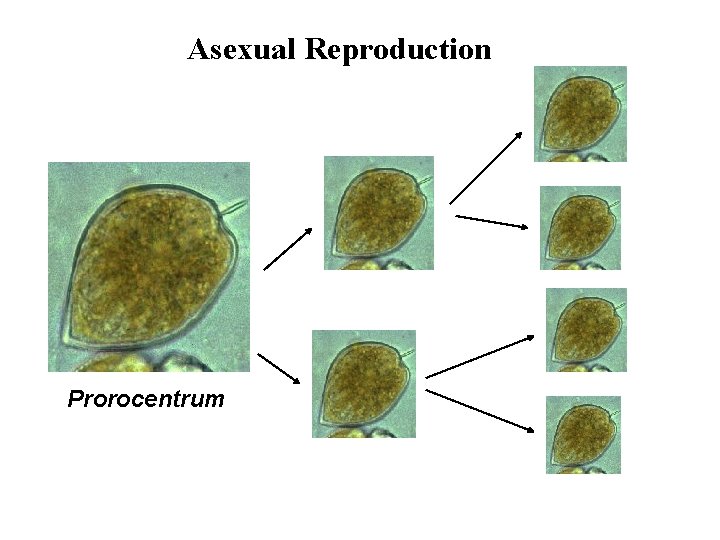

Asexual Reproduction Prorocentrum

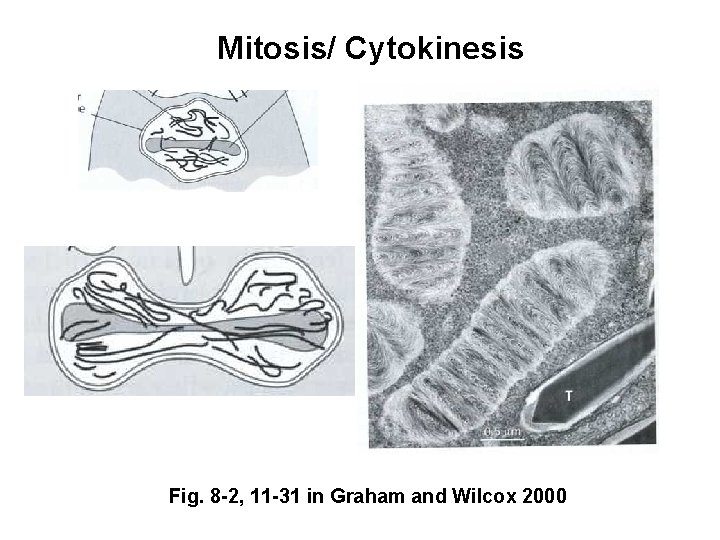

Mitosis/ Cytokinesis Fig. 8 -2, 11 -31 in Graham and Wilcox 2000

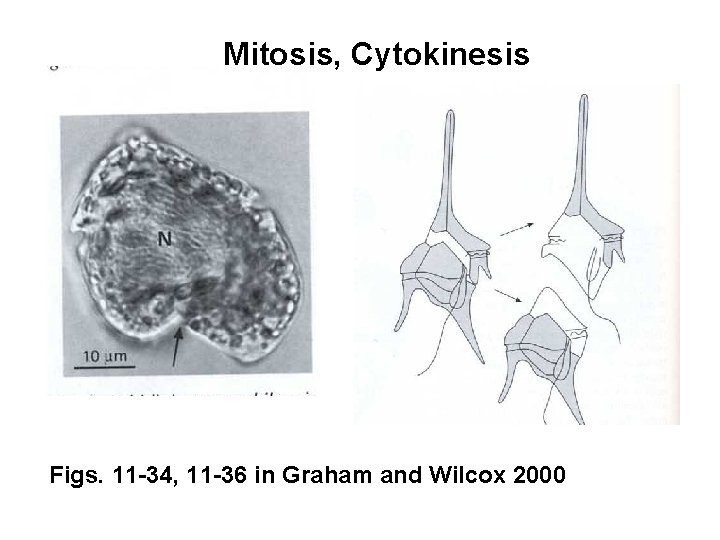

Mitosis, Cytokinesis Figs. 11 -34, 11 -36 in Graham and Wilcox 2000

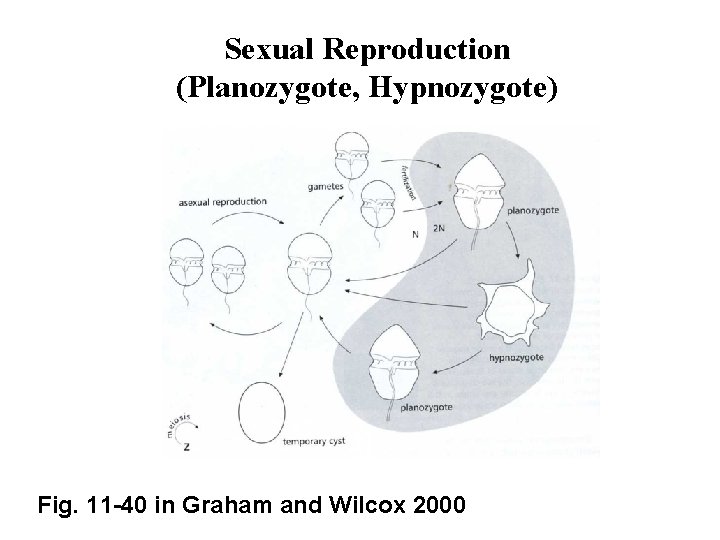

Sexual Reproduction (Planozygote, Hypnozygote) Fig. 11 -40 in Graham and Wilcox 2000

Importance of Cysts (Dormant Forms) Fig. 11 -41 in Graham and Wilcox 2000

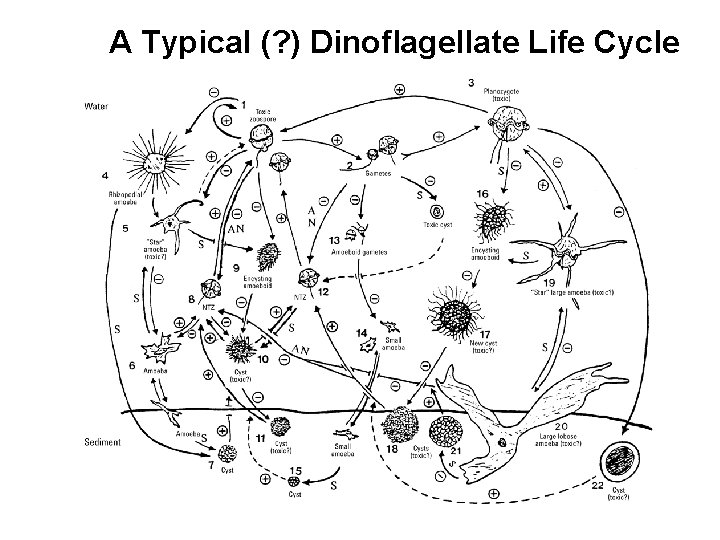

A Typical (? ) Dinoflagellate Life Cycle

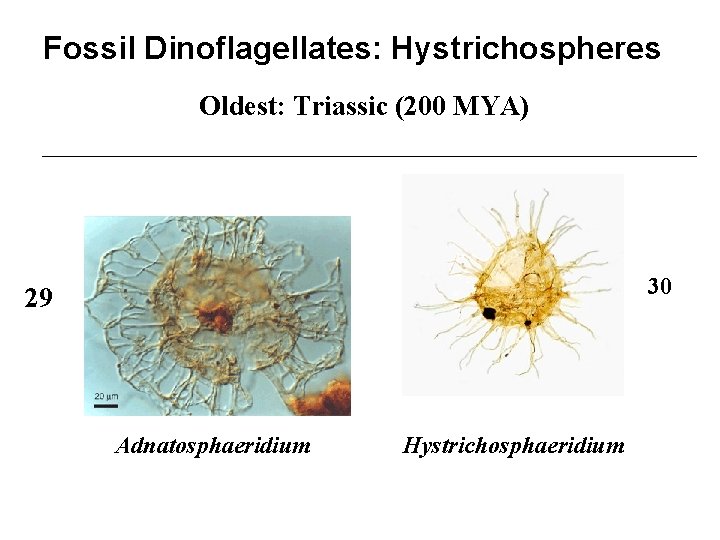

Fossil Dinoflagellates: Hystrichospheres Oldest: Triassic (200 MYA) 30 29 Adnatosphaeridium Hystrichosphaeridium

• New data from numerous detailed mass-spectrometric studies have detected triaromatic dinosteroids in Precambrian (600 MYA) to Cenozoic rock samples. • Triaromatic dinosteroids are organic geochemicals derived from dinosterols, compounds known in modern organisms to be the nearly exclusive widely occurring products of dinoflagellates. Moldowan et al. 1996. Hemostratigraphic reconstruction of biofacies: Molecular evidence linking cyst-forming dinoflagellates with pre-Triassic ancestors. Geology: 159 -162.

Blooms

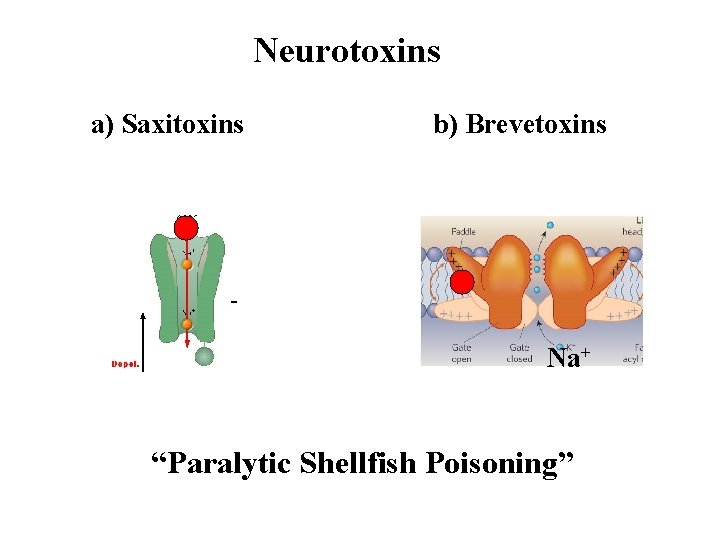

Neurotoxins a) Saxitoxins b) Brevetoxins Na+ “Paralytic Shellfish Poisoning”

Cytotoxins c) Okadaic Acid “Diarrhetic Shellfish Poisoning”

Moral of the Story
