Dimensiynu Dimensioning BS 8888 Dimensiynu Cyfochrog Parallel Dimensioning

Dimensiynu Dimensioning ………………. BS 8888

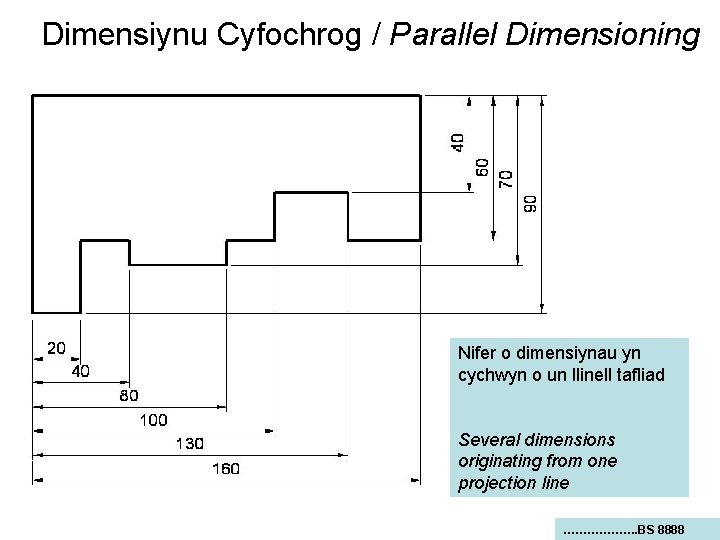

Dimensiynu Cyfochrog / Parallel Dimensioning Nifer o dimensiynau yn cychwyn o un llinell tafliad Several dimensions originating from one projection line ………………. BS 8888

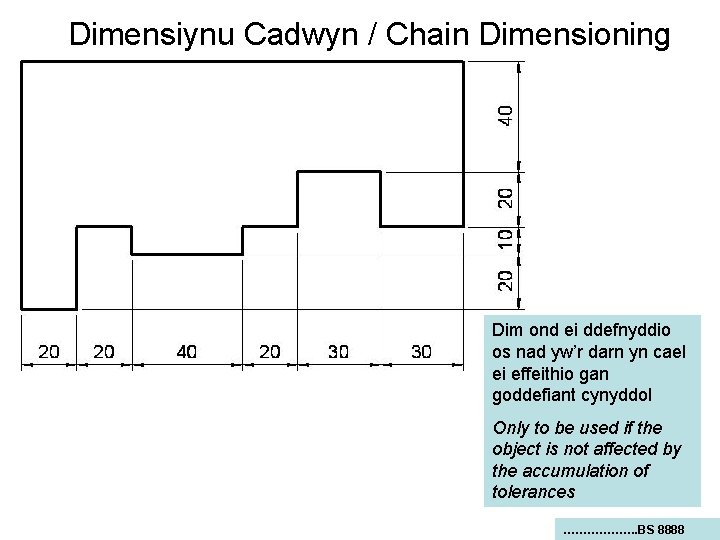

Dimensiynu Cadwyn / Chain Dimensioning Dim ond ei ddefnyddio os nad yw’r darn yn cael ei effeithio gan goddefiant cynyddol Only to be used if the object is not affected by the accumulation of tolerances ………………. BS 8888

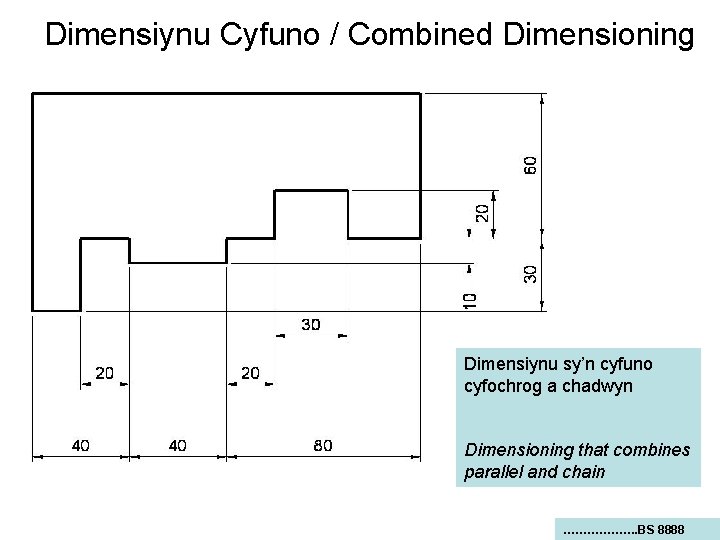

Dimensiynu Cyfuno / Combined Dimensioning Dimensiynu sy’n cyfuno cyfochrog a chadwyn Dimensioning that combines parallel and chain ………………. BS 8888

Dimensiynu Cylchoedd / Dimensioning Circles A) Dimensiynu tu fewn i’r cylch / dimensioning internally B) Dimensiynu tu allan i’r cylch / dimensioning externally C) + D) Dimensiynu tu allan os yw’r cylch rhy fychan / 1. External dimensioning if the circle is too small ………………. BS 8888

Dimensiynu Radiws / Dimensioning Radii A) Dimensiynu gyda canol y radiws ar y gwaith / dimensioning with the centre of the radius on the work B) Dimensiynu radiws heb angen lleoliad canol y radiws / dimensioning a radius that doesn’t require the location of the radius centre C) Dimensiynu radiws sfferaidd / Spherical radius dimesioning ………………. BS 8888

Dimensiynu Tyllau / Dimensioning Holes ………………. BS 8888

Dylunio Edau / Drawing Threads A) Pan yn dylnuio edau or pen, maer llinell adau yn cael ei ddangos gan cylch sydd wedi torri A) When drawing threads end on, the threaded line is shown by a broken circle B) Yn aml fydd edau yn cael ei ddangos tu fewn i rhan gan llinell wedi torri B) Frequently a thread will be shown inside a part by a broken line C) Dyma sut i ddylunio edau ar ddyluniad trychiadol c) This is how to show a thread on a sectional drawing ………………. BS 8888

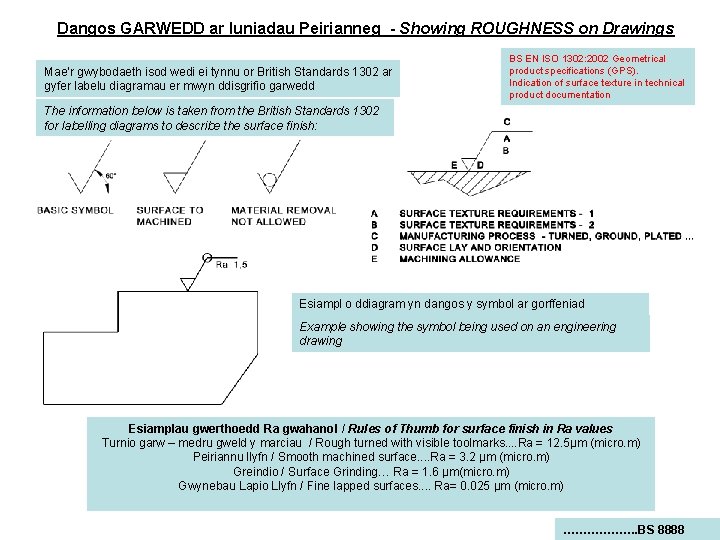

Dangos GARWEDD ar luniadau Peirianneg - Showing ROUGHNESS on Drawings Mae’r gwybodaeth isod wedi ei tynnu or British Standards 1302 ar gyfer labelu diagramau er mwyn ddisgrifio garwedd BS EN ISO 1302: 2002 Geometrical product specifications (GPS). Indication of surface texture in technical product documentation The information below is taken from the British Standards 1302 for labelling diagrams to describe the surface finish: Esiampl o ddiagram yn dangos y symbol ar gorffeniad Example showing the symbol being used on an engineering drawing Esiamplau gwerthoedd Ra gwahanol / Rules of Thumb for surface finish in Ra values Turnio garw – medru gweld y marciau / Rough turned with visible toolmarks. . Ra = 12. 5μm (micro. m) Peiriannu llyfn / Smooth machined surface. . Ra = 3. 2 μm (micro. m) Greindio / Surface Grinding… Ra = 1. 6 μm(micro. m) Gwynebau Lapio Llyfn / Fine lapped surfaces. . Ra= 0. 025 μm (micro. m) ………………. BS 8888
