Dimensions A LENGTH WITH BUCKET ON GROUND 20

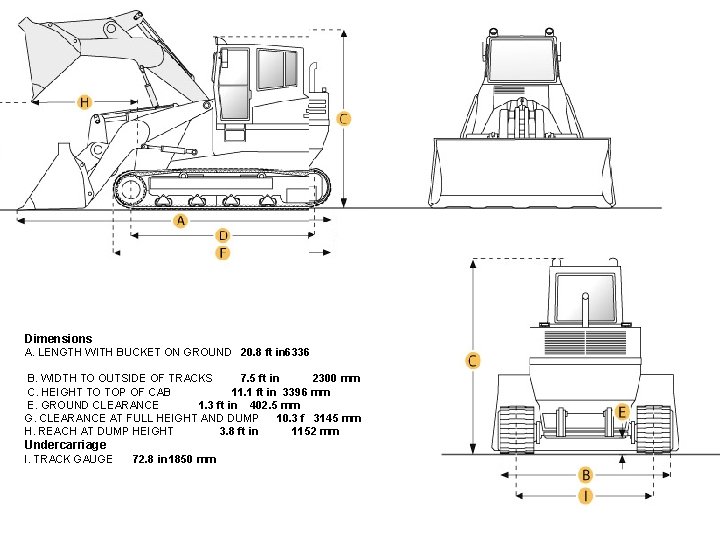

Dimensions A. LENGTH WITH BUCKET ON GROUND 20. 8 ft in 6336 B. WIDTH TO OUTSIDE OF TRACKS 7. 5 ft in 2300 mm C. HEIGHT TO TOP OF CAB 11. 1 ft in 3396 mm E. GROUND CLEARANCE 1. 3 ft in 402. 5 mm G. CLEARANCE AT FULL HEIGHT AND DUMP 10. 3 f 3145 mm H. REACH AT DUMP HEIGHT 3. 8 ft in 1152 mm Undercarriage I. TRACK GAUGE 72. 8 in 1850 mm

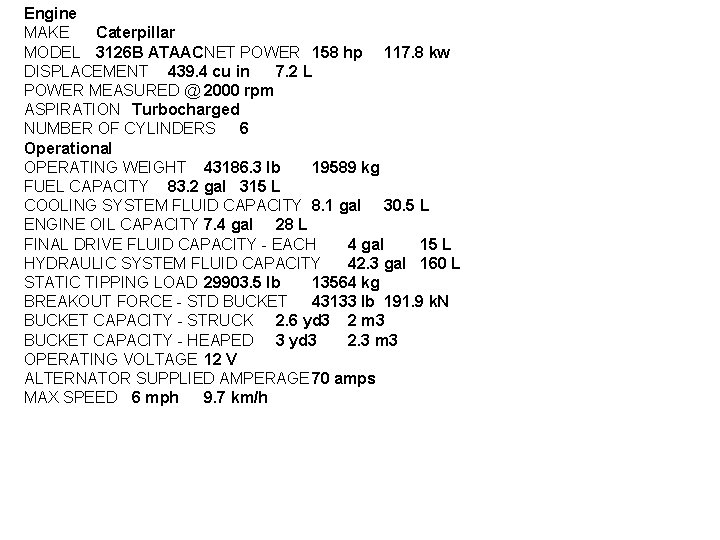

Engine MAKE Caterpillar MODEL 3126 B ATAACNET POWER 158 hp 117. 8 kw DISPLACEMENT 439. 4 cu in 7. 2 L POWER MEASURED @ 2000 rpm ASPIRATION Turbocharged NUMBER OF CYLINDERS 6 Operational OPERATING WEIGHT 43186. 3 lb 19589 kg FUEL CAPACITY 83. 2 gal 315 L COOLING SYSTEM FLUID CAPACITY 8. 1 gal 30. 5 L ENGINE OIL CAPACITY 7. 4 gal 28 L FINAL DRIVE FLUID CAPACITY - EACH 4 gal 15 L HYDRAULIC SYSTEM FLUID CAPACITY 42. 3 gal 160 L STATIC TIPPING LOAD 29903. 5 lb 13564 kg BREAKOUT FORCE - STD BUCKET 43133 lb 191. 9 k. N BUCKET CAPACITY - STRUCK 2. 6 yd 3 2 m 3 BUCKET CAPACITY - HEAPED 3 yd 3 2. 3 m 3 OPERATING VOLTAGE 12 V ALTERNATOR SUPPLIED AMPERAGE 70 amps MAX SPEED 6 mph 9. 7 km/h

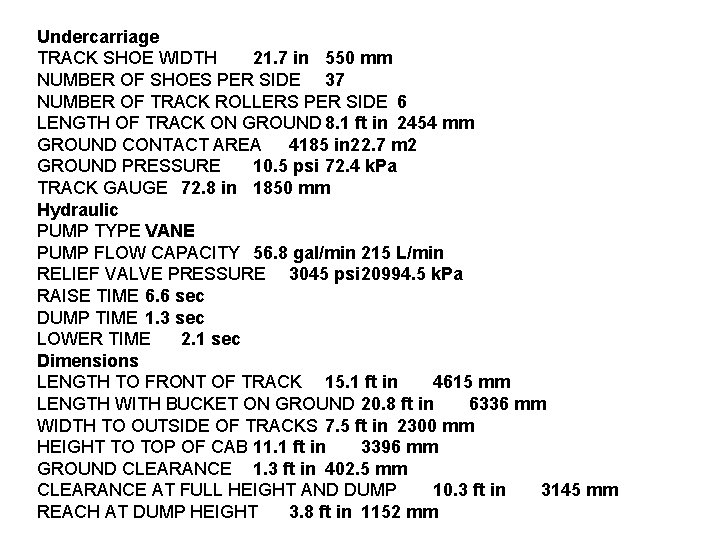

Undercarriage TRACK SHOE WIDTH 21. 7 in 550 mm NUMBER OF SHOES PER SIDE 37 NUMBER OF TRACK ROLLERS PER SIDE 6 LENGTH OF TRACK ON GROUND 8. 1 ft in 2454 mm GROUND CONTACT AREA 4185 in 22. 7 m 2 GROUND PRESSURE 10. 5 psi 72. 4 k. Pa TRACK GAUGE 72. 8 in 1850 mm Hydraulic PUMP TYPE VANE PUMP FLOW CAPACITY 56. 8 gal/min 215 L/min RELIEF VALVE PRESSURE 3045 psi 20994. 5 k. Pa RAISE TIME 6. 6 sec DUMP TIME 1. 3 sec LOWER TIME 2. 1 sec Dimensions LENGTH TO FRONT OF TRACK 15. 1 ft in 4615 mm LENGTH WITH BUCKET ON GROUND 20. 8 ft in 6336 mm WIDTH TO OUTSIDE OF TRACKS 7. 5 ft in 2300 mm HEIGHT TO TOP OF CAB 11. 1 ft in 3396 mm GROUND CLEARANCE 1. 3 ft in 402. 5 mm CLEARANCE AT FULL HEIGHT AND DUMP 10. 3 ft in 3145 mm REACH AT DUMP HEIGHT 3. 8 ft in 1152 mm

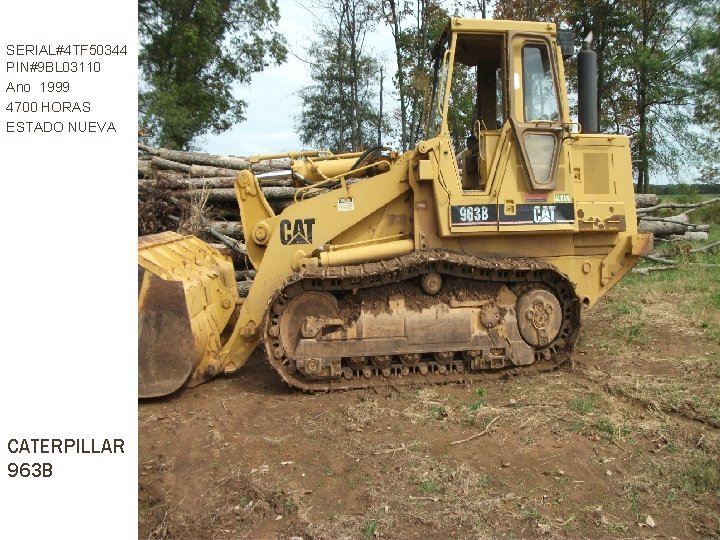

SERIAL#4 TF 50344 PIN#9 BL 03110 Ano 1999 4700 HORAS ESTADO NUEVA CATERPILLAR 963 B
