Digitalinx IP Review Pipeline 2020 Presented by Dory

Digitalinx. IP Review / Pipeline 2020

Presented by Dory Hornsby, CTS Product Management and Development Technical Services Director

1 G 10 G <1 Gbps port speed <10 Gbps port speed

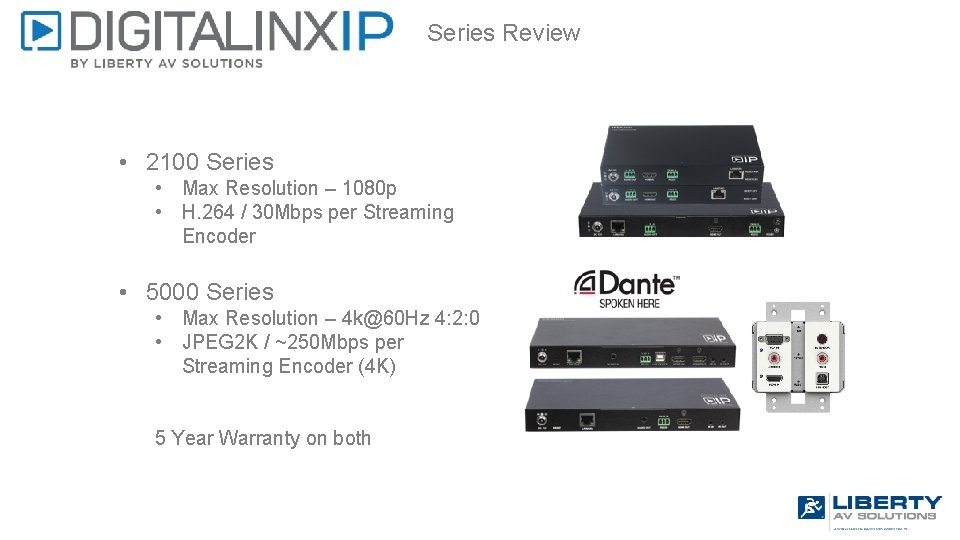

Series Review • 2100 Series • Max Resolution – 1080 p • H. 264 / 30 Mbps per Streaming Encoder • 5000 Series • Max Resolution – 4 k@60 Hz 4: 2: 0 • JPEG 2 K / ~250 Mbps per Streaming Encoder (4 K) 5 Year Warranty on both

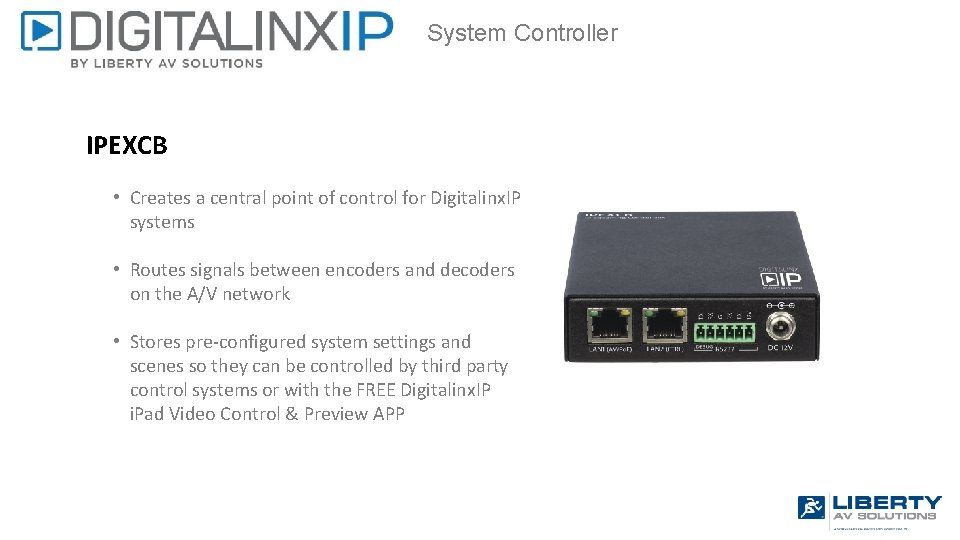

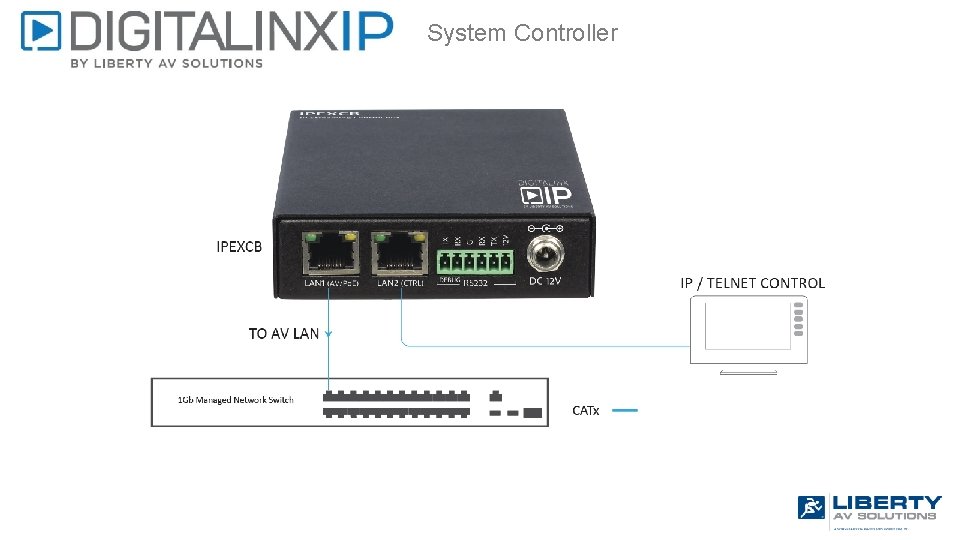

System Controller IPEXCB • Creates a central point of control for Digitalinx. IP systems • Routes signals between encoders and decoders on the A/V network • Stores pre-configured system settings and scenes so they can be controlled by third party control systems or with the FREE Digitalinx. IP i. Pad Video Control & Preview APP

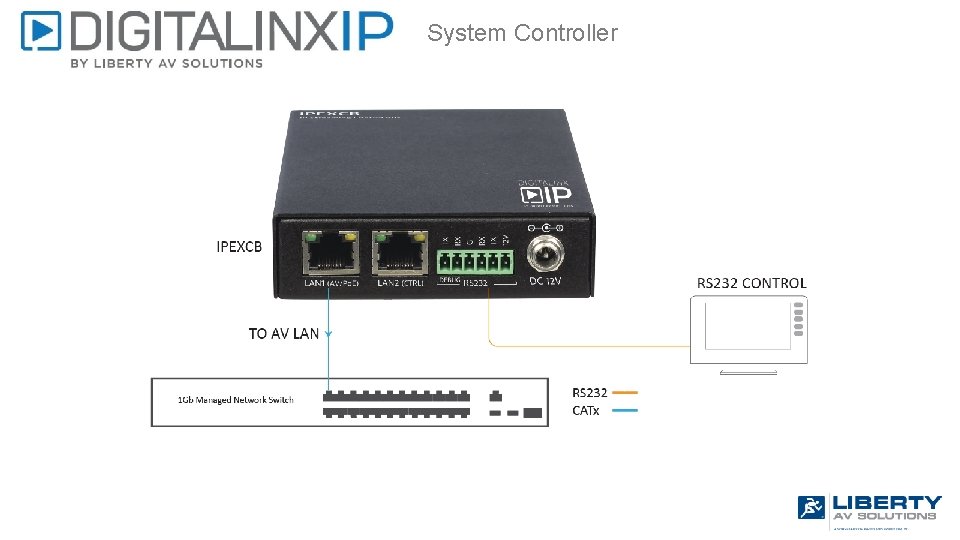

System Controller

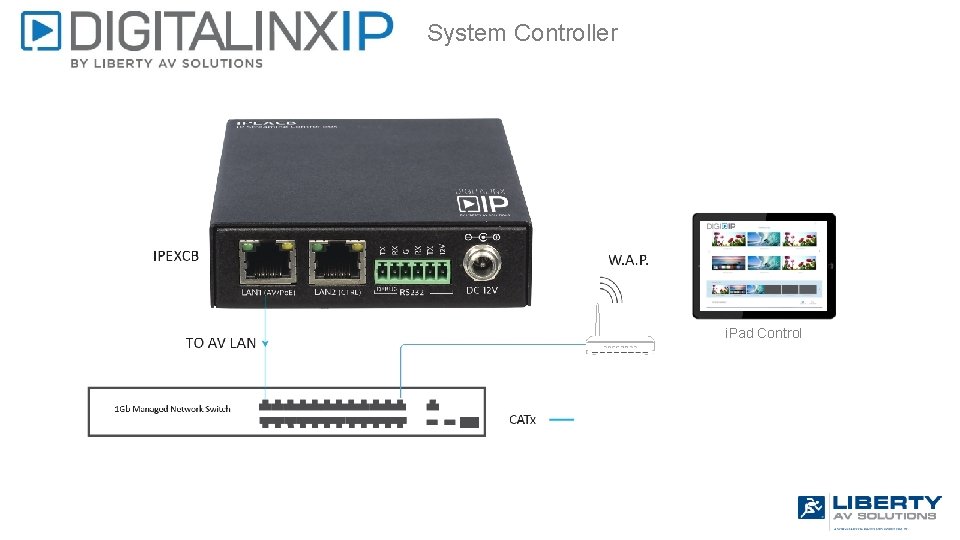

System Controller i. Pad Control

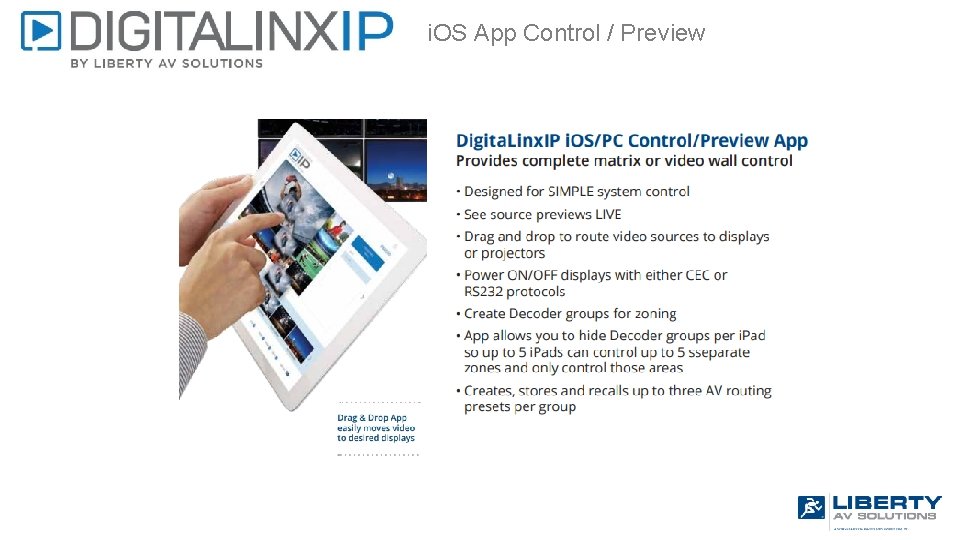

i. OS App Control / Preview

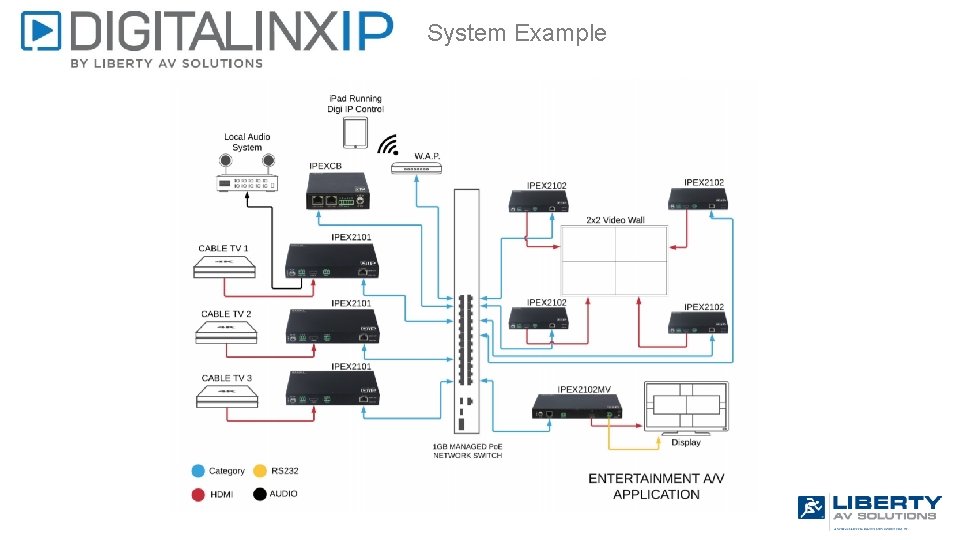

System Example

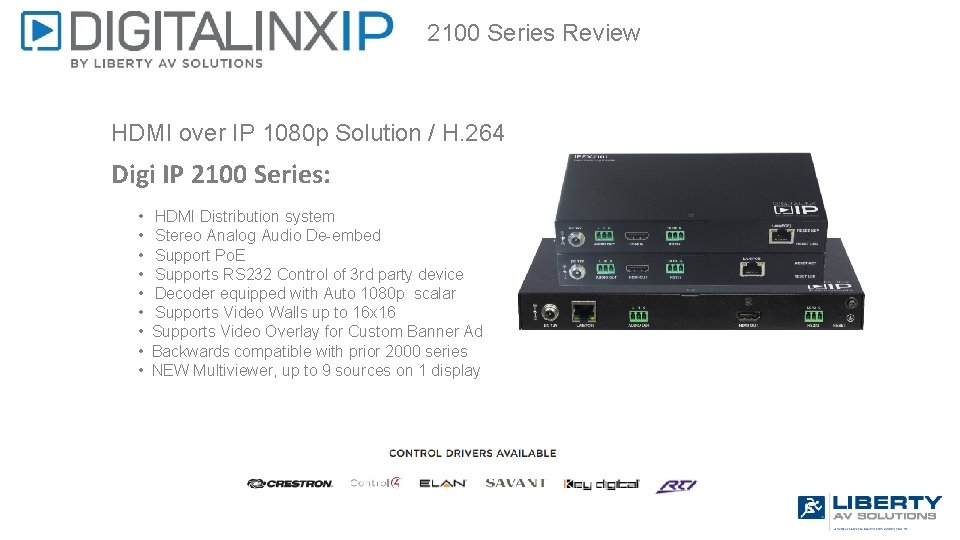

2100 Series Review HDMI over IP 1080 p Solution / H. 264 Digi IP 2100 Series: • • • HDMI Distribution system Stereo Analog Audio De-embed Support Po. E Supports RS 232 Control of 3 rd party device Decoder equipped with Auto 1080 p scalar Supports Video Walls up to 16 x 16 Supports Video Overlay for Custom Banner Ad Backwards compatible with prior 2000 series NEW Multiviewer, up to 9 sources on 1 display

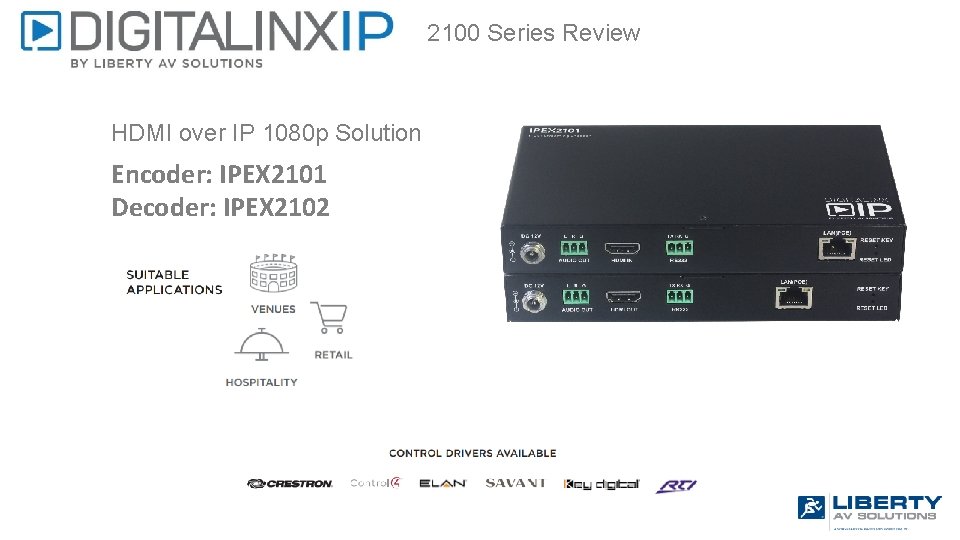

2100 Series Review HDMI over IP 1080 p Solution Encoder: IPEX 2101 Decoder: IPEX 2102

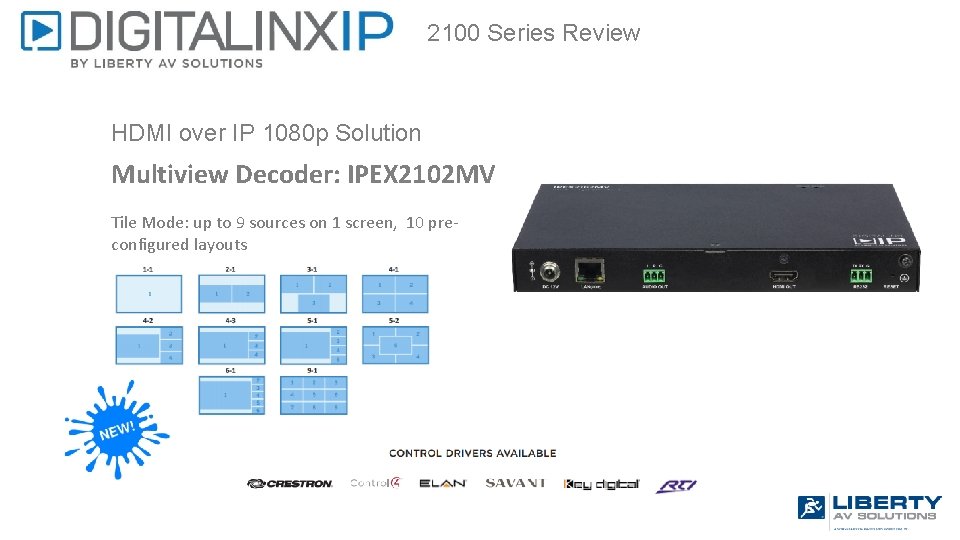

2100 Series Review HDMI over IP 1080 p Solution Multiview Decoder: IPEX 2102 MV Tile Mode: up to 9 sources on 1 screen, 10 preconfigured layouts

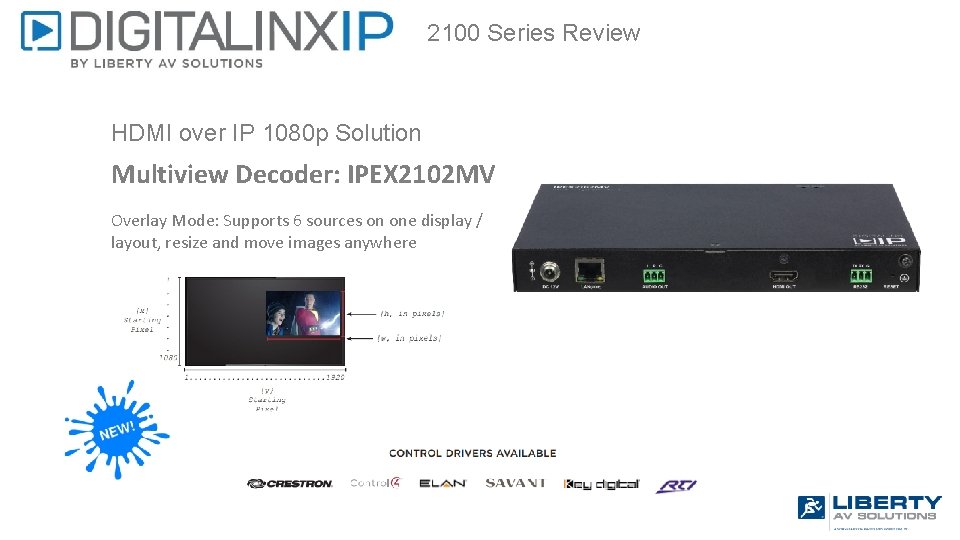

2100 Series Review HDMI over IP 1080 p Solution Multiview Decoder: IPEX 2102 MV Overlay Mode: Supports 6 sources on one display / layout, resize and move images anywhere

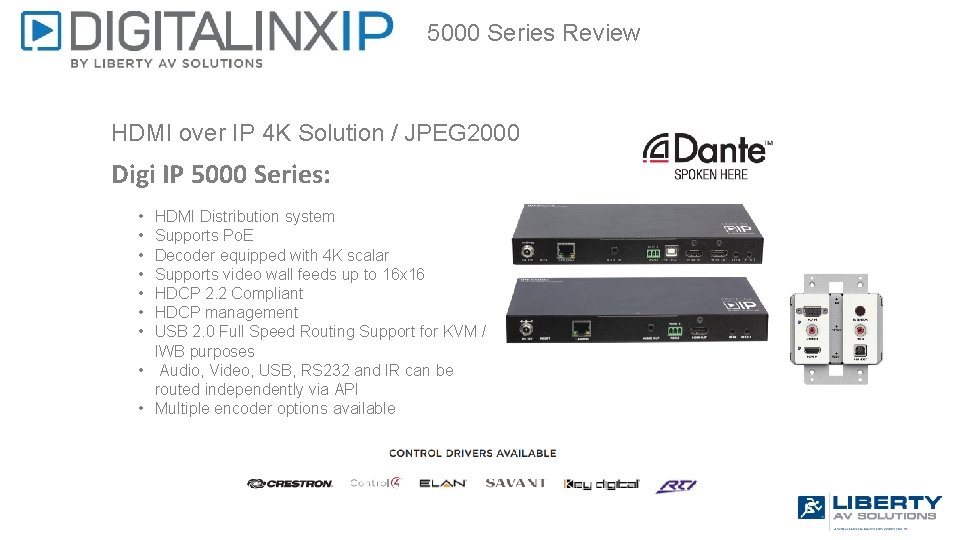

5000 Series Review HDMI over IP 4 K Solution / JPEG 2000 Digi IP 5000 Series: • • HDMI Distribution system Supports Po. E Decoder equipped with 4 K scalar Supports video wall feeds up to 16 x 16 HDCP 2. 2 Compliant HDCP management USB 2. 0 Full Speed Routing Support for KVM / IWB purposes • Audio, Video, USB, RS 232 and IR can be routed independently via API • Multiple encoder options available

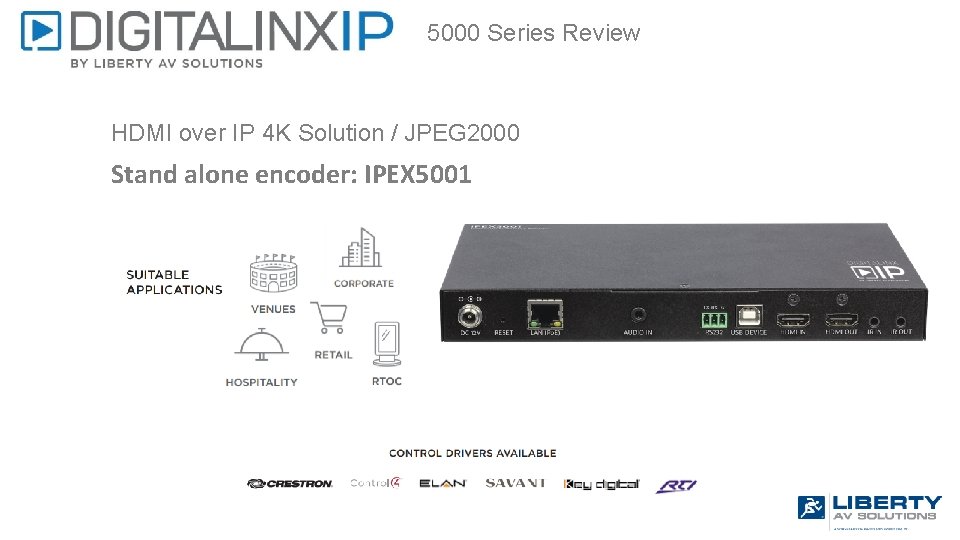

5000 Series Review HDMI over IP 4 K Solution / JPEG 2000 Stand alone encoder: IPEX 5001

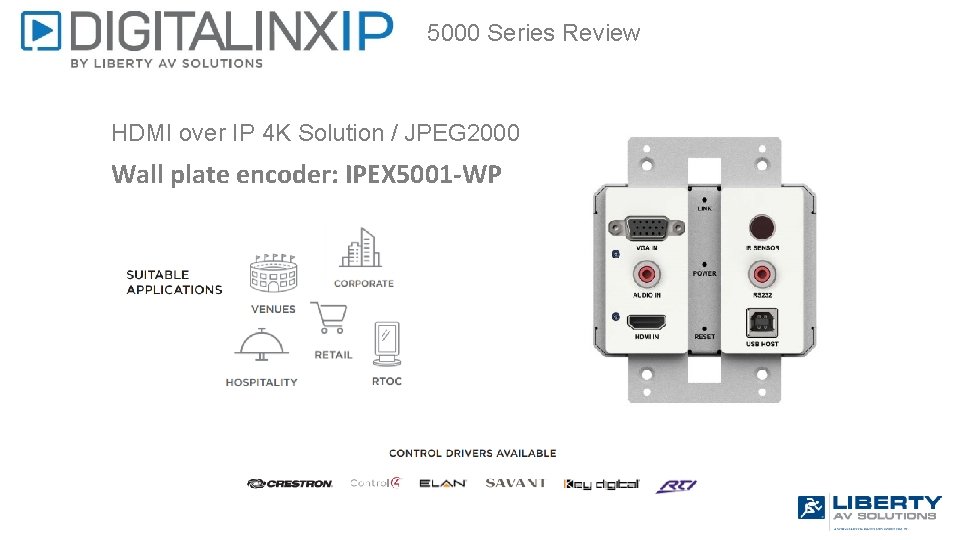

5000 Series Review HDMI over IP 4 K Solution / JPEG 2000 Wall plate encoder: IPEX 5001 -WP

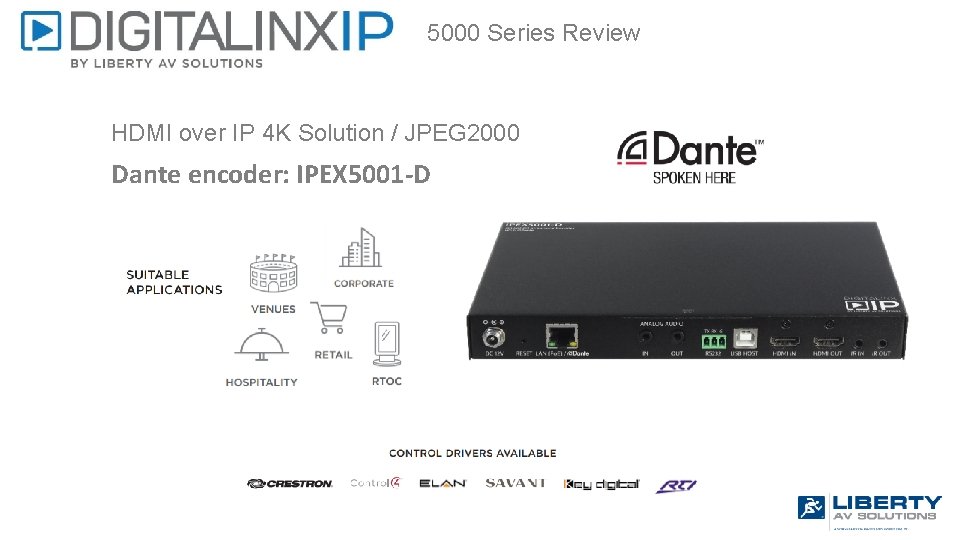

5000 Series Review HDMI over IP 4 K Solution / JPEG 2000 Dante encoder: IPEX 5001 -D

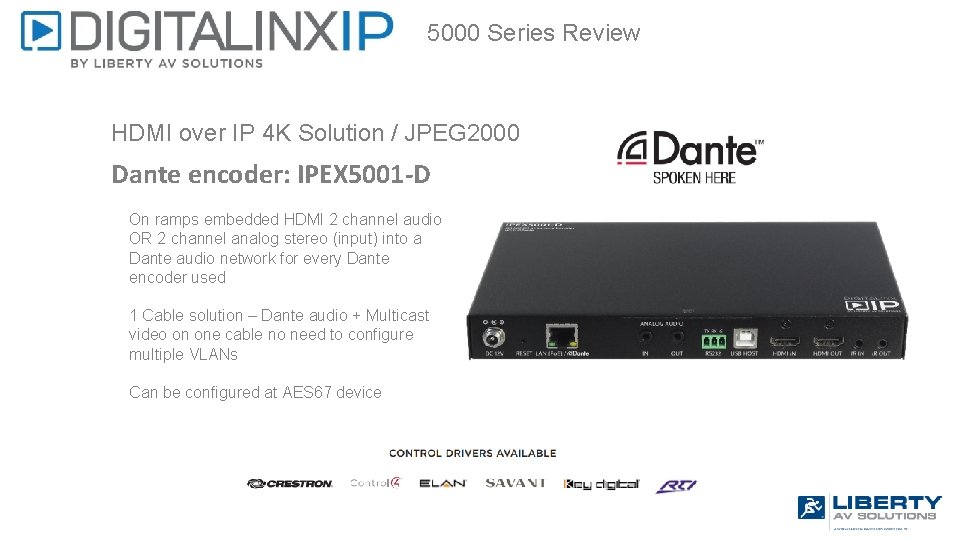

5000 Series Review HDMI over IP 4 K Solution / JPEG 2000 Dante encoder: IPEX 5001 -D On ramps embedded HDMI 2 channel audio OR 2 channel analog stereo (input) into a Dante audio network for every Dante encoder used 1 Cable solution – Dante audio + Multicast video on one cable no need to configure multiple VLANs Can be configured at AES 67 device

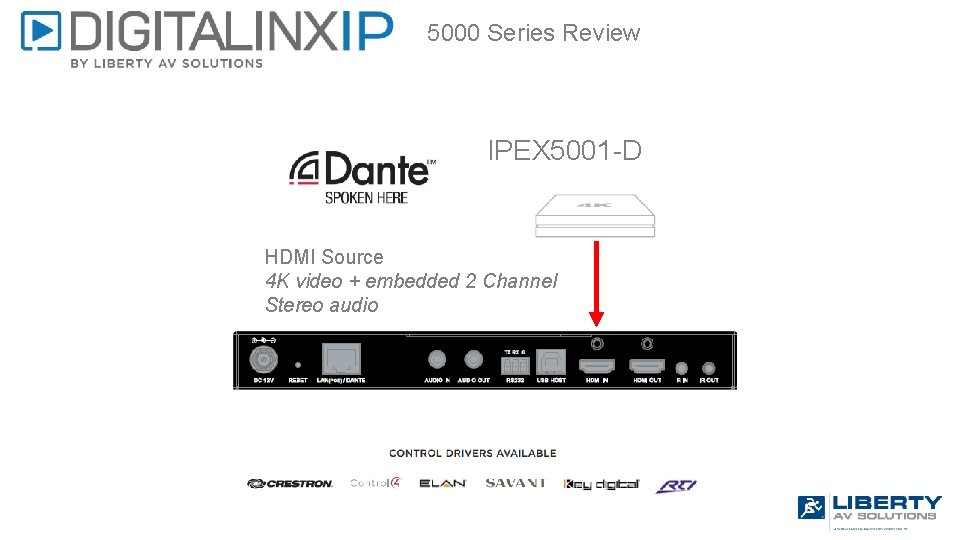

5000 Series Review IPEX 5001 -D HDMI Source 4 K video + embedded 2 Channel Stereo audio

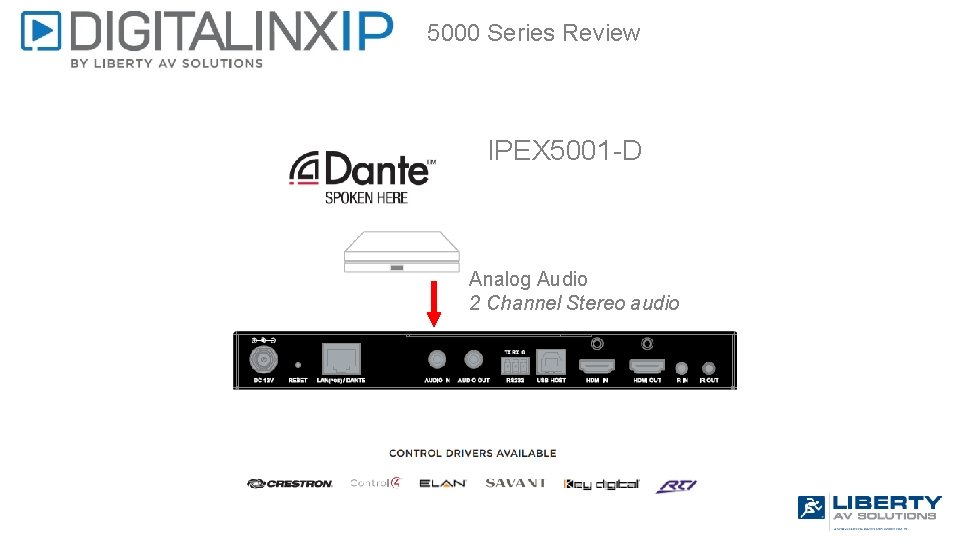

5000 Series Review IPEX 5001 -D Analog Audio 2 Channel Stereo audio

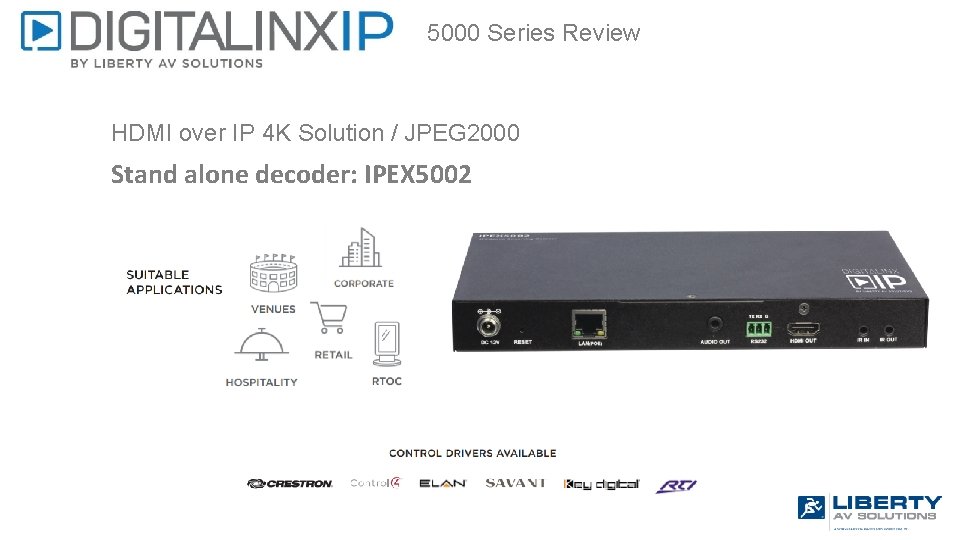

5000 Series Review HDMI over IP 4 K Solution / JPEG 2000 Stand alone decoder: IPEX 5002

Pre configured SERVICES Available • Create pre configured AV over IP kits • Encoders / decoders can be preconfigured and labeled • On site deployment and supplemental labor • Bundle Niveo Networking switches and devices, Digi IP Devices and Liberty Wire and Cable products for a 1 PALLET / PACKAGE LOGISTICS SOLUTION • Contact your sales rep today!

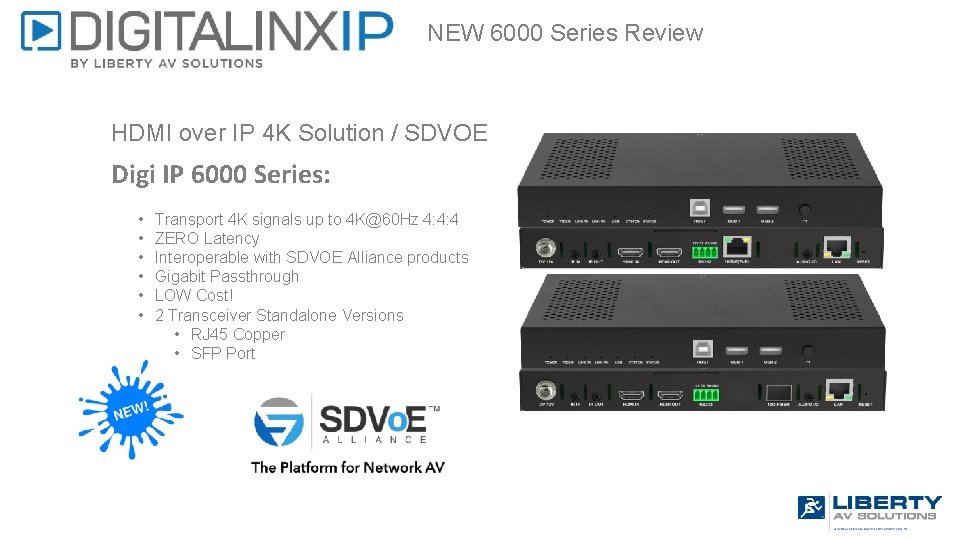

NEW 6000 Series Review HDMI over IP 4 K Solution / SDVOE Digi IP 6000 Series: • • • Transport 4 K signals up to 4 K@60 Hz 4: 4: 4 ZERO Latency Interoperable with SDVOE Alliance products Gigabit Passthrough LOW Cost! 2 Transceiver Standalone Versions • RJ 45 Copper • SFP Port

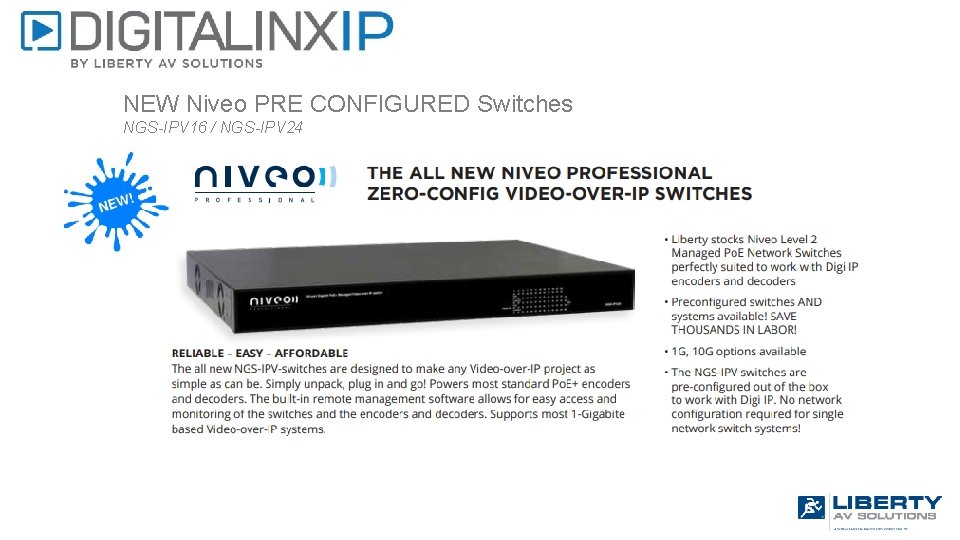

NEW Niveo PRE CONFIGURED Switches NGS-IPV 16 / NGS-IPV 24

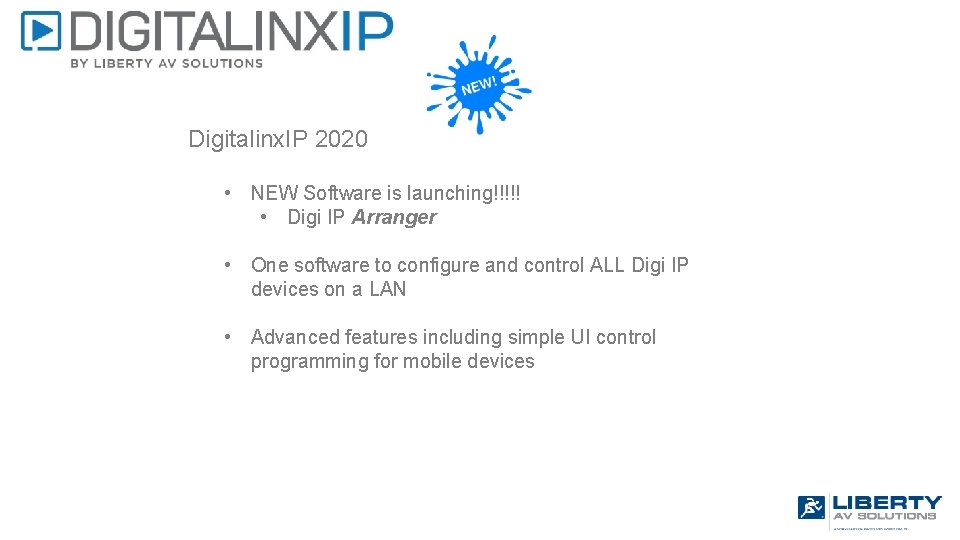

Digitalinx. IP 2020 • NEW Software is launching!!!!! • Digi IP Arranger • One software to configure and control ALL Digi IP devices on a LAN • Advanced features including simple UI control programming for mobile devices

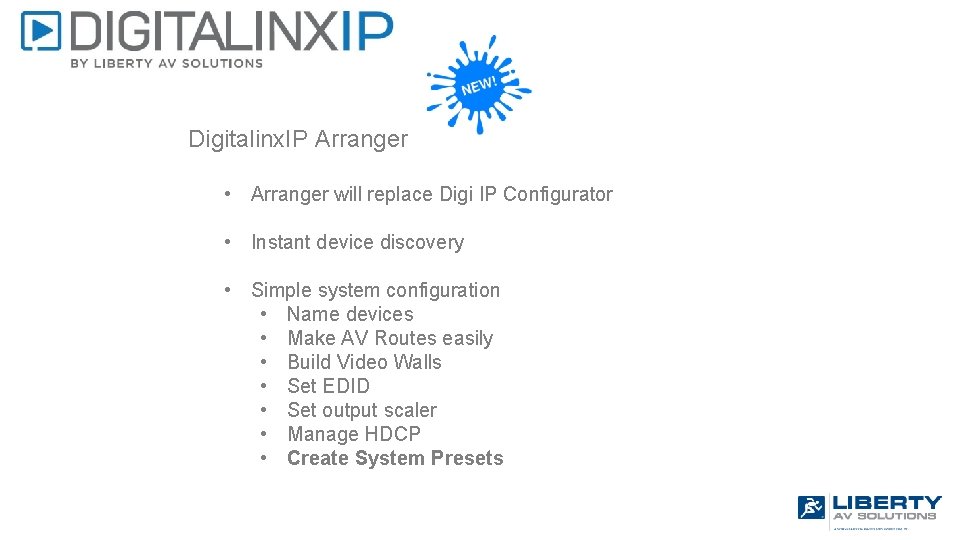

Digitalinx. IP Arranger • Arranger will replace Digi IP Configurator • Instant device discovery • Simple system configuration • Name devices • Make AV Routes easily • Build Video Walls • Set EDID • Set output scaler • Manage HDCP • Create System Presets

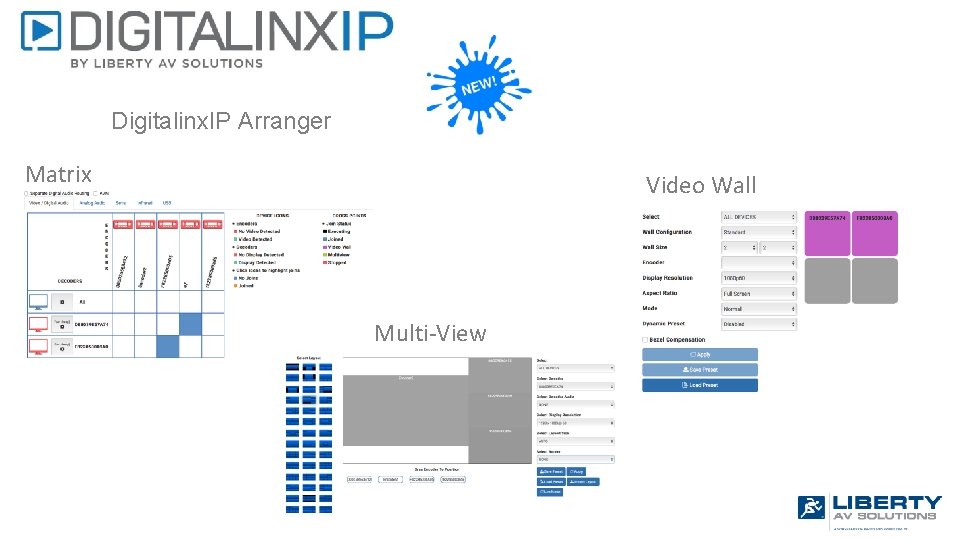

Digitalinx. IP Arranger Matrix Video Wall Multi-View

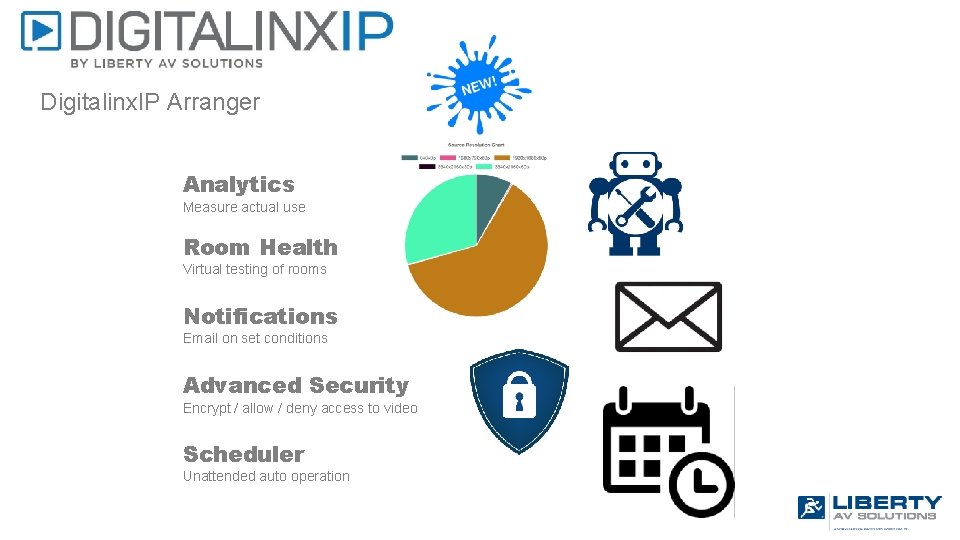

Digitalinx. IP Arranger Analytics Measure actual use Room Health Virtual testing of rooms Notifications Email on set conditions Advanced Security Encrypt / allow / deny access to video Scheduler Unattended auto operation

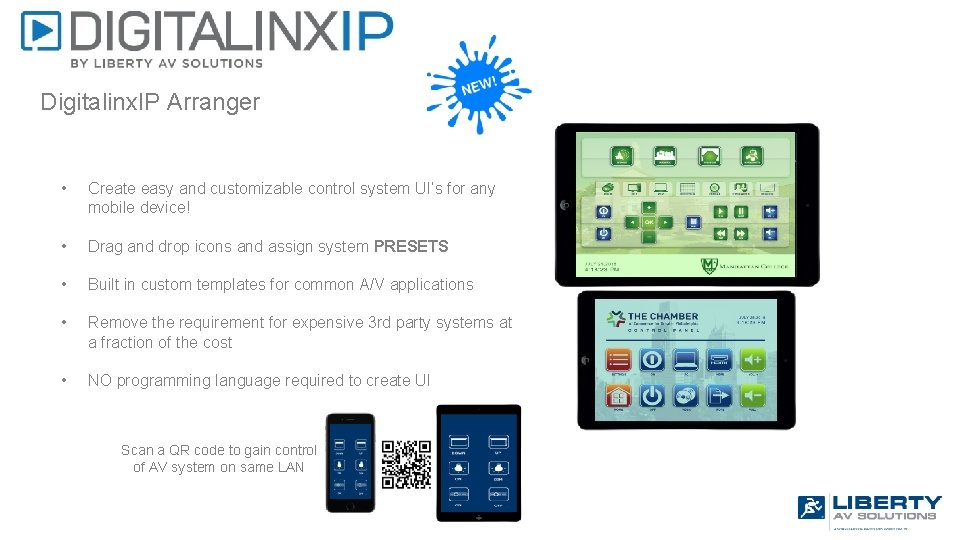

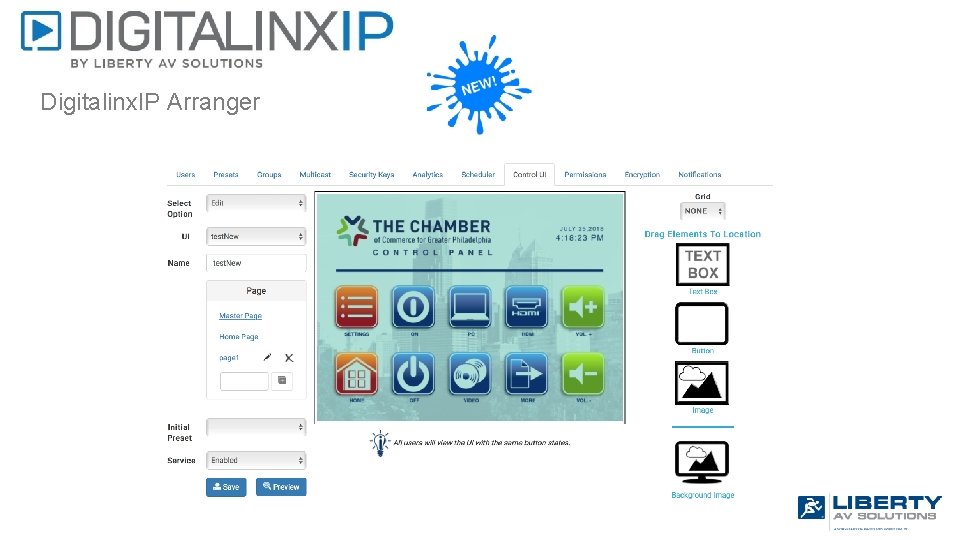

Digitalinx. IP Arranger • Create easy and customizable control system UI’s for any mobile device! • Drag and drop icons and assign system PRESETS • Built in custom templates for common A/V applications • Remove the requirement for expensive 3 rd party systems at a fraction of the cost • NO programming language required to create UI Scan a QR code to gain control of AV system on same LAN

Digitalinx. IP Arranger

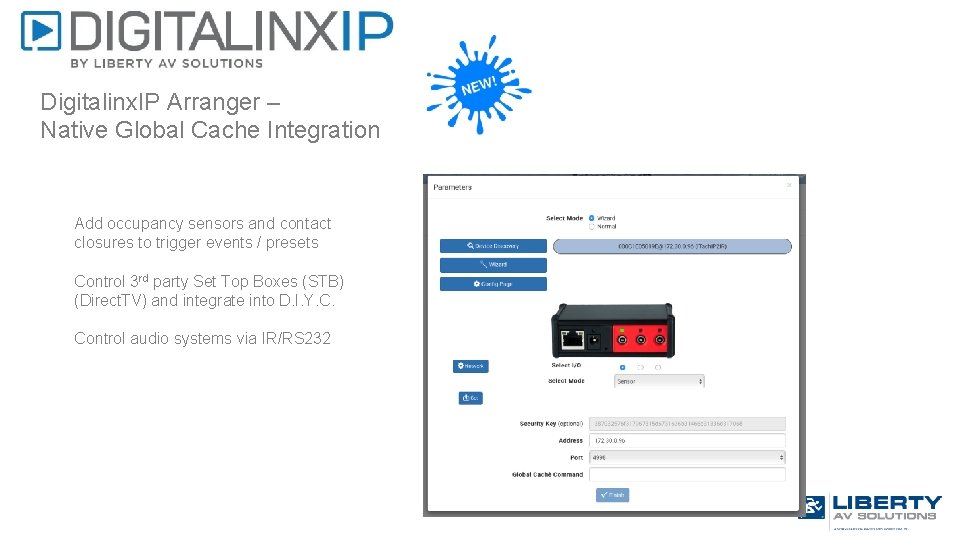

Digitalinx. IP Arranger – Native Global Cache Integration Add occupancy sensors and contact closures to trigger events / presets Control 3 rd party Set Top Boxes (STB) (Direct. TV) and integrate into D. I. Y. C. Control audio systems via IR/RS 232

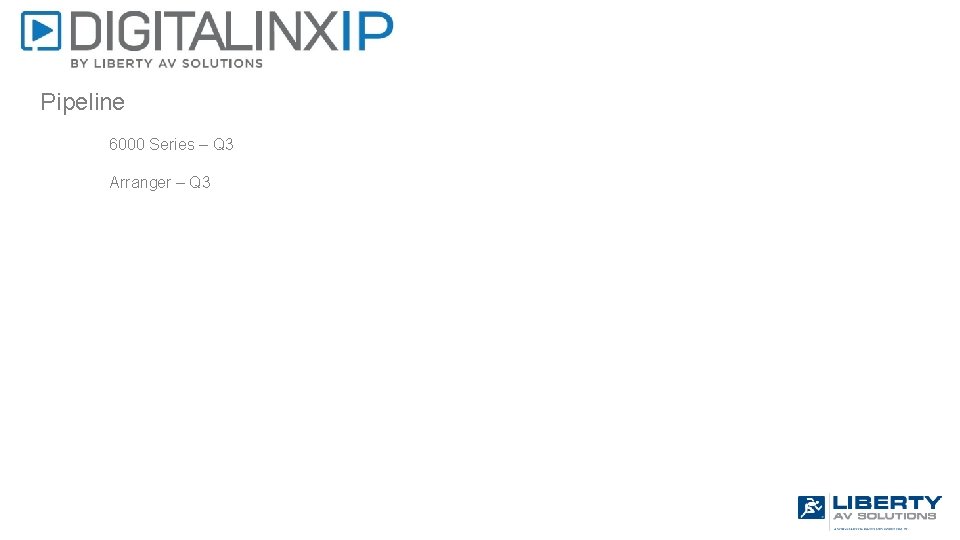

Pipeline 6000 Series – Q 3 Arranger – Q 3

THANK YOU! Every-AV-Thing Connecting Source to Display
