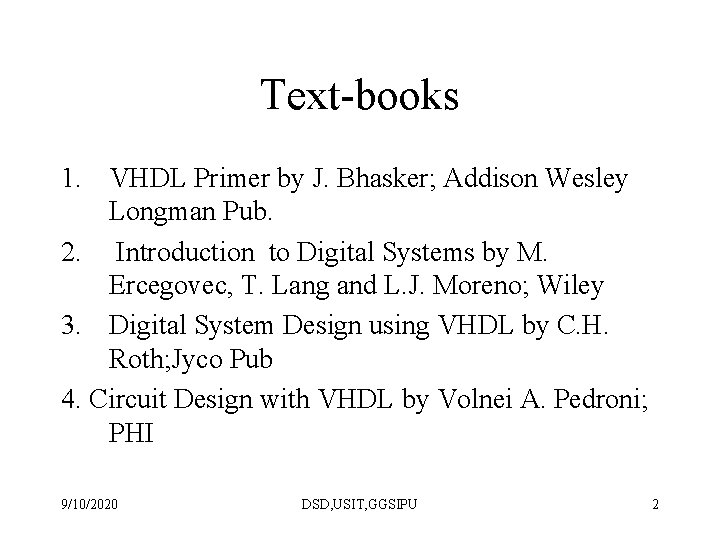

Text-books 1. VHDL Primer by J. Bhasker; Addison Wesley Longman Pub. 2. Introduction to Digital Systems by M. Ercegovec, T. Lang and L. J. Moreno; Wiley 3. Digital System Design using VHDL by C. H. Roth; Jyco Pub 4. Circuit Design with VHDL by Volnei A. Pedroni; PHI 9/10/2020 DSD, USIT, GGSIPU 2

Reference Book 1. VHDL: Analysis & Modeling of Digital Systems by Z. Navabi; MGH 2. VHDL Programming by Examples by Douglas L. Perry; TMH 3. VHDL by Douglas Perry 4. The Designer Guide to VHDL by P. J. Ashendem; Morgan Kaufmann Pub. 5. Digital System Design with VHDL by Mark Zwolinski; Prentice Hall Pub. 6. Digital Design Principles and Practices by John F. Wakerly, Prentice Hall (third Edition) 2001 includes Xilinx student edition). 9/10/2020 DSD, USIT, GGSIPU 3

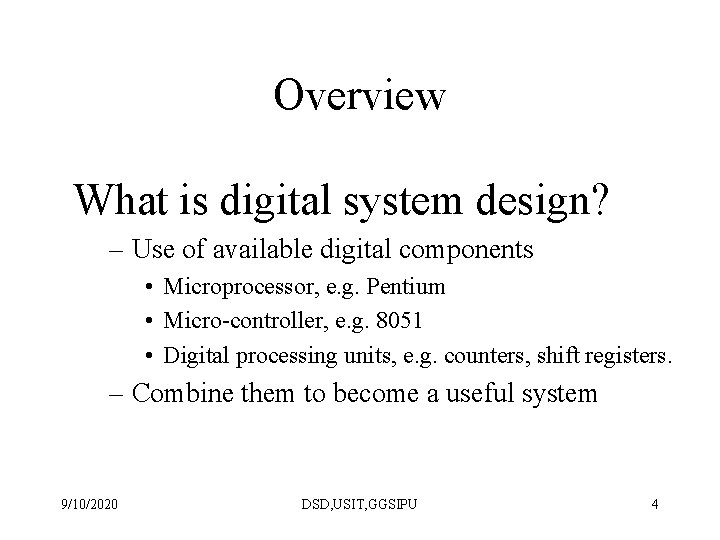

Overview What is digital system design? – Use of available digital components • Microprocessor, e. g. Pentium • Micro-controller, e. g. 8051 • Digital processing units, e. g. counters, shift registers. – Combine them to become a useful system 9/10/2020 DSD, USIT, GGSIPU 4

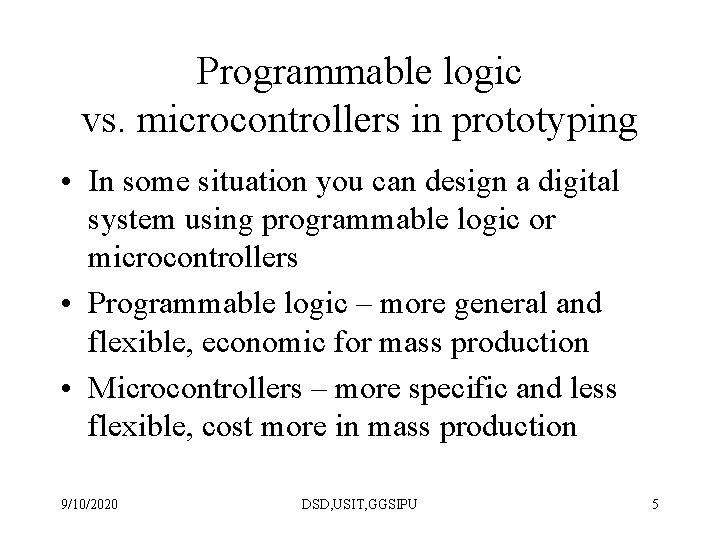

Programmable logic vs. microcontrollers in prototyping • In some situation you can design a digital system using programmable logic or microcontrollers • Programmable logic – more general and flexible, economic for mass production • Microcontrollers – more specific and less flexible, cost more in mass production 9/10/2020 DSD, USIT, GGSIPU 5

Introduction • VHDL is a hardware description language that can be used to model a digital system • VHDL is often quoted to be an acronym for Very High Speed Integration Circuit Hardware Description Language or VHSIC Hardware Description Language • VHDL is an IEEE standard as well as an ANSI standard for describing digital systems 9/10/2020 DSD, USIT, GGSIPU 6

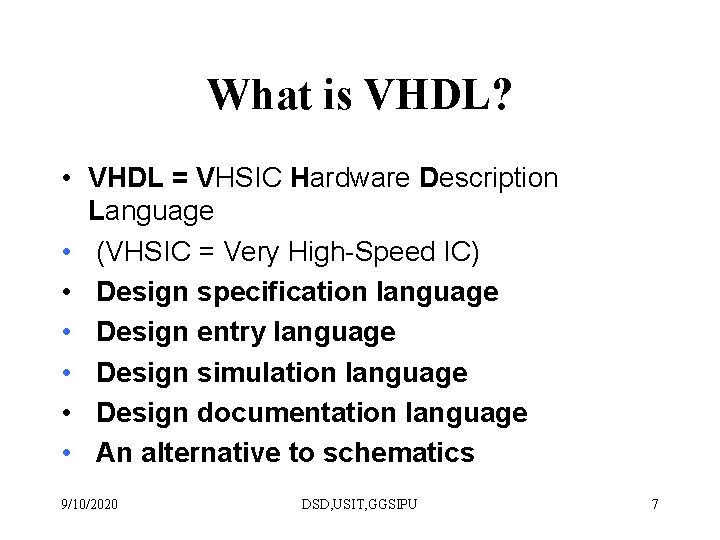

What is VHDL? • VHDL = VHSIC Hardware Description Language • (VHSIC = Very High-Speed IC) • Design specification language • Design entry language • Design simulation language • Design documentation language • An alternative to schematics 9/10/2020 DSD, USIT, GGSIPU 7

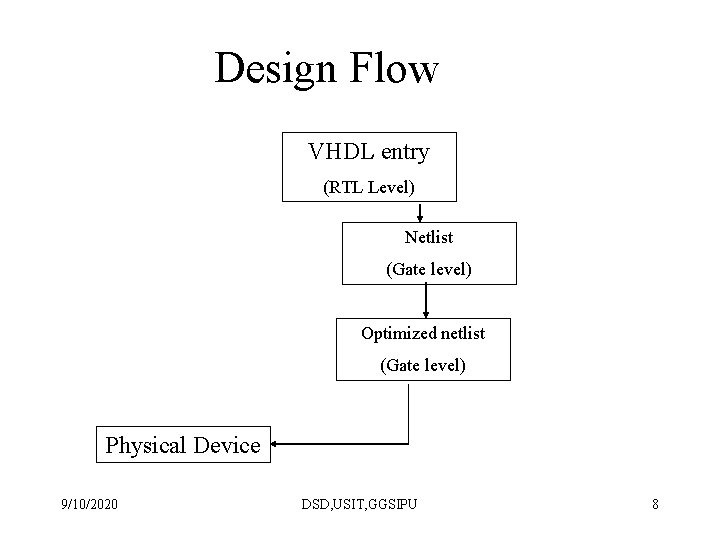

Design Flow VHDL entry (RTL Level) Netlist (Gate level) Optimized netlist (Gate level) Physical Device 9/10/2020 DSD, USIT, GGSIPU 8

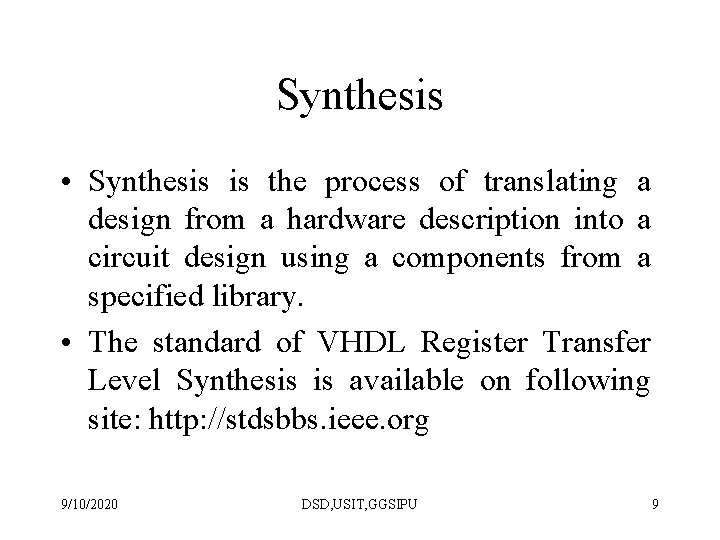

Synthesis • Synthesis is the process of translating a design from a hardware description into a circuit design using a components from a specified library. • The standard of VHDL Register Transfer Level Synthesis is available on following site: http: //stdsbbs. ieee. org 9/10/2020 DSD, USIT, GGSIPU 9

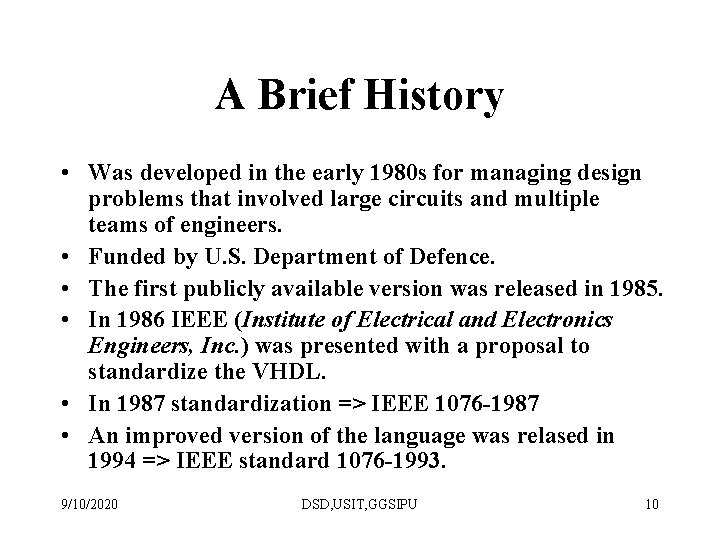

A Brief History • Was developed in the early 1980 s for managing design problems that involved large circuits and multiple teams of engineers. • Funded by U. S. Department of Defence. • The first publicly available version was released in 1985. • In 1986 IEEE (Institute of Electrical and Electronics Engineers, Inc. ) was presented with a proposal to standardize the VHDL. • In 1987 standardization => IEEE 1076 -1987 • An improved version of the language was relased in 1994 => IEEE standard 1076 -1993. 9/10/2020 DSD, USIT, GGSIPU 10

VHDL Environment 9/10/2020 DSD, USIT, GGSIPU 11

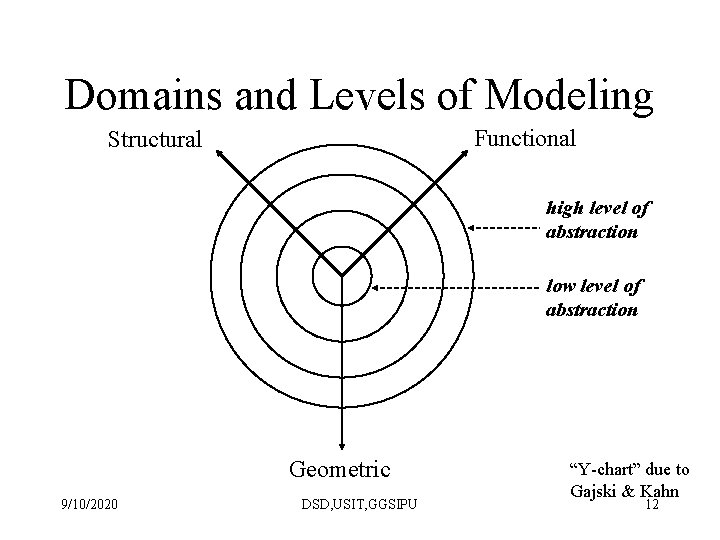

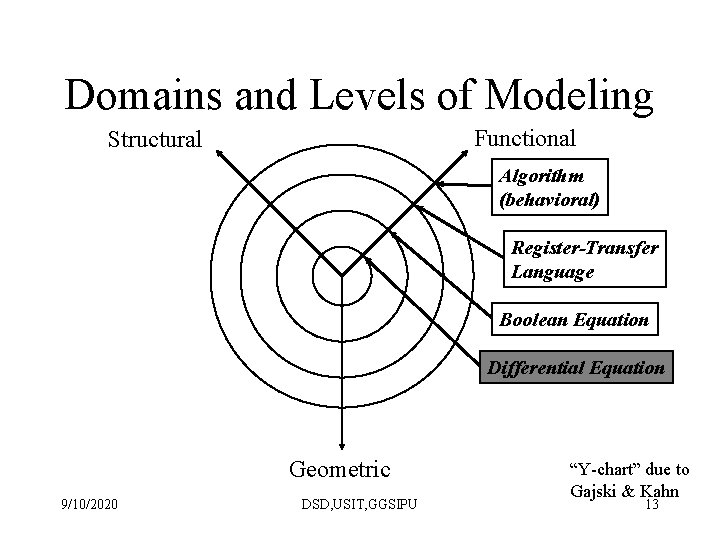

Domains and Levels of Modeling Functional Structural high level of abstraction low level of abstraction Geometric 9/10/2020 DSD, USIT, GGSIPU “Y-chart” due to Gajski & Kahn 12

Domains and Levels of Modeling Functional Structural Algorithm (behavioral) Register-Transfer Language Boolean Equation Differential Equation Geometric 9/10/2020 DSD, USIT, GGSIPU “Y-chart” due to Gajski & Kahn 13

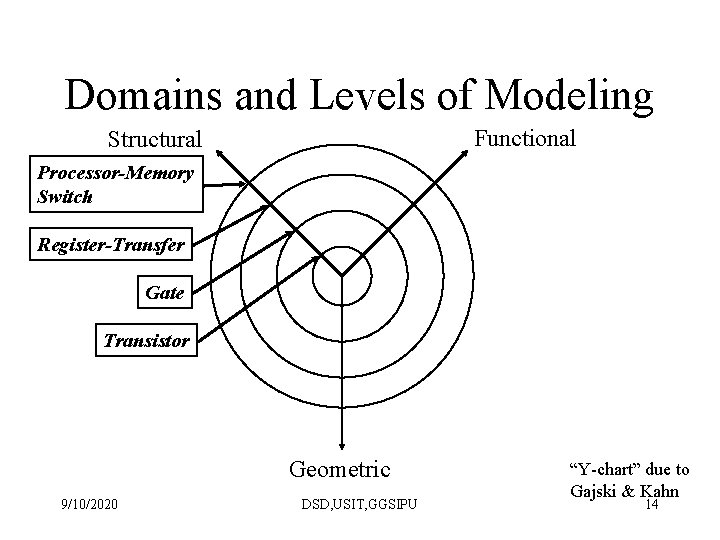

Domains and Levels of Modeling Functional Structural Processor-Memory Switch Register-Transfer Gate Transistor Geometric 9/10/2020 DSD, USIT, GGSIPU “Y-chart” due to Gajski & Kahn 14

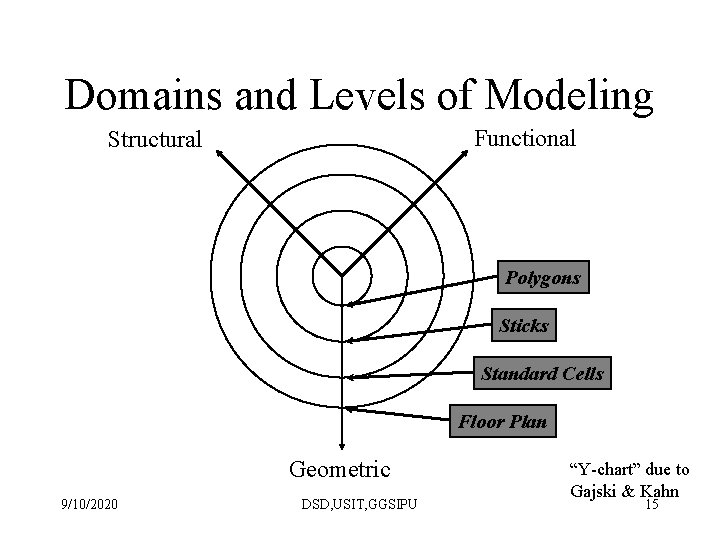

Domains and Levels of Modeling Functional Structural Polygons Sticks Standard Cells Floor Plan Geometric 9/10/2020 DSD, USIT, GGSIPU “Y-chart” due to Gajski & Kahn 15

Major Capabilities • It contains elements that can be used to describe the behavior, dataflow, and structure of the digital systems • It provides support for modeling the system hierarchically and also supports top-down and bottom -up design methodologies • Models written by this language can be verified using a VHDL simulator. • The language is not technology-specific • It supports both synchronous and asynchronous timing models • Test benches can be written using the same language to test other VHDL models 9/10/2020 DSD, USIT, GGSIPU 16

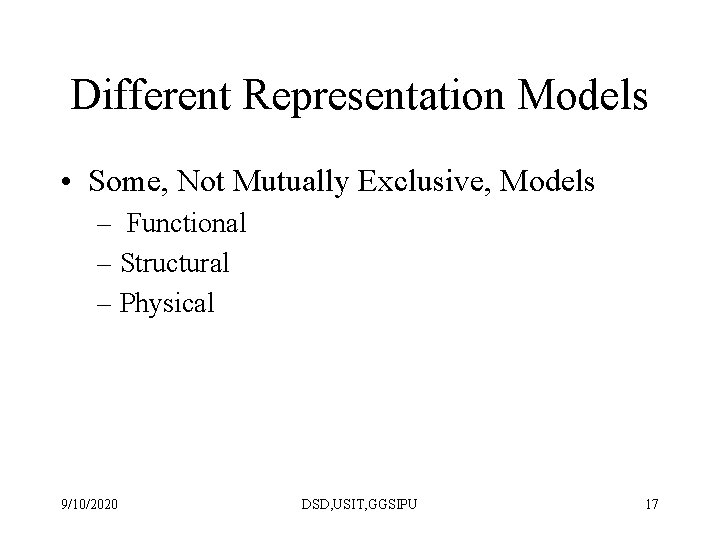

Different Representation Models • Some, Not Mutually Exclusive, Models – Functional – Structural – Physical 9/10/2020 DSD, USIT, GGSIPU 17

Basic VHDL Concepts • • • Interface Behavior Structure Test Benches Analysis, elaboration, simulation Synthesis 9/10/2020 DSD, USIT, GGSIPU 18

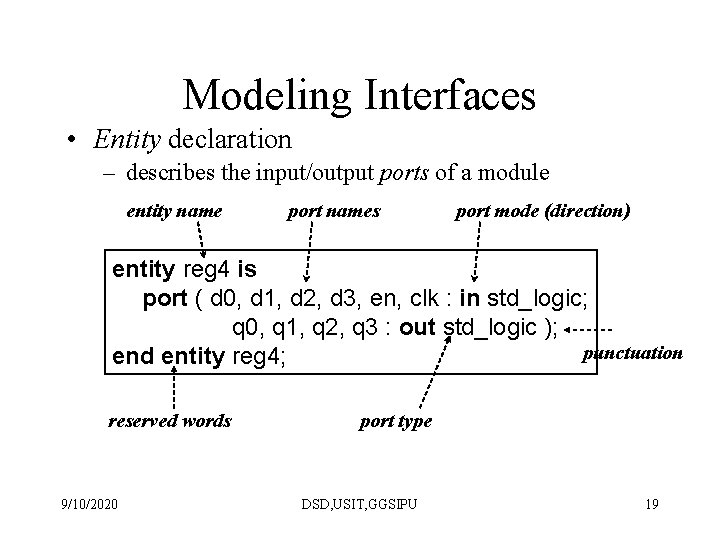

Modeling Interfaces • Entity declaration – describes the input/output ports of a module entity name port names port mode (direction) entity reg 4 is port ( d 0, d 1, d 2, d 3, en, clk : in std_logic; q 0, q 1, q 2, q 3 : out std_logic ); punctuation end entity reg 4; reserved words 9/10/2020 port type DSD, USIT, GGSIPU 19

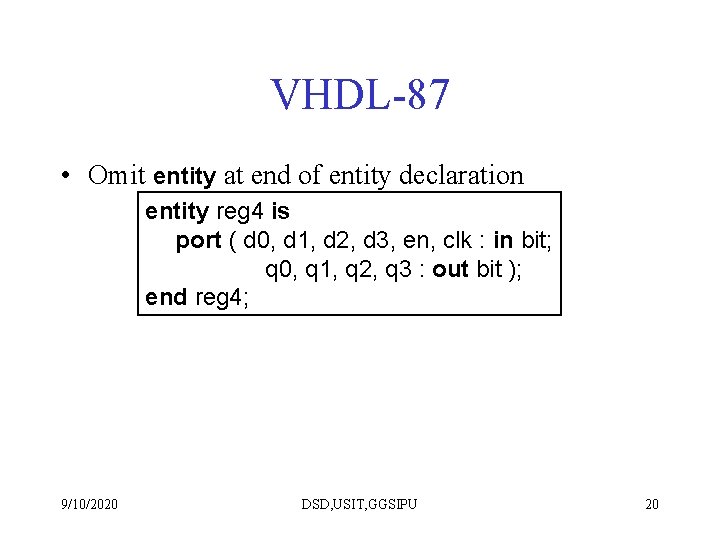

VHDL-87 • Omit entity at end of entity declaration entity reg 4 is port ( d 0, d 1, d 2, d 3, en, clk : in bit; q 0, q 1, q 2, q 3 : out bit ); end reg 4; 9/10/2020 DSD, USIT, GGSIPU 20

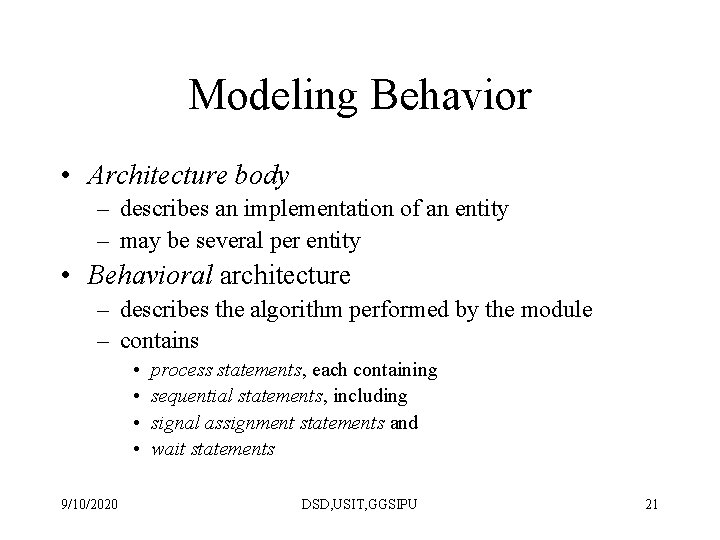

Modeling Behavior • Architecture body – describes an implementation of an entity – may be several per entity • Behavioral architecture – describes the algorithm performed by the module – contains • • 9/10/2020 process statements, each containing sequential statements, including signal assignment statements and wait statements DSD, USIT, GGSIPU 21

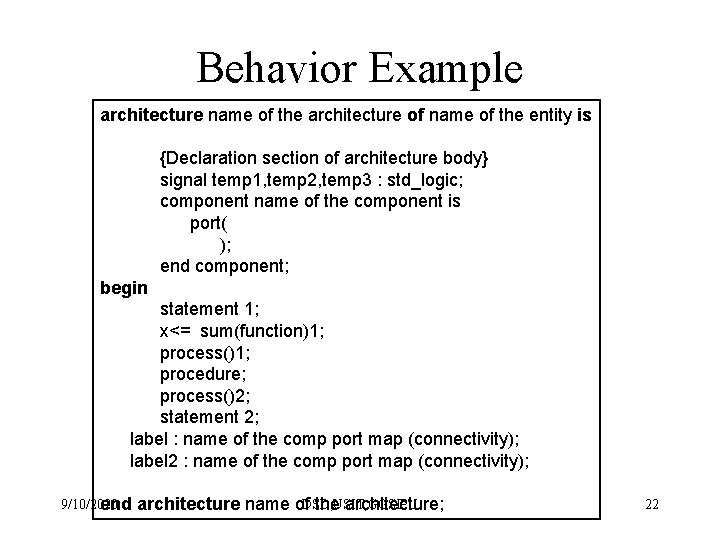

Behavior Example architecture name of the architecture of name of the entity is {Declaration section of architecture body} signal temp 1, temp 2, temp 3 : std_logic; component name of the component is port( ); end component; begin statement 1; x<= sum(function)1; process()1; procedure; process()2; statement 2; label : name of the comp port map (connectivity); label 2 : name of the comp port map (connectivity); 9/10/2020 end architecture name of. DSD, USIT, GGSIPU the architecture; 22

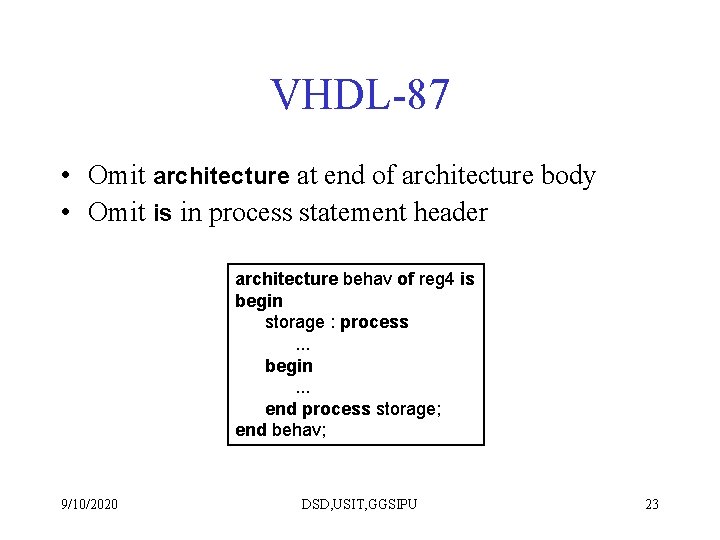

VHDL-87 • Omit architecture at end of architecture body • Omit is in process statement header architecture behav of reg 4 is begin storage : process. . . begin. . . end process storage; end behav; 9/10/2020 DSD, USIT, GGSIPU 23

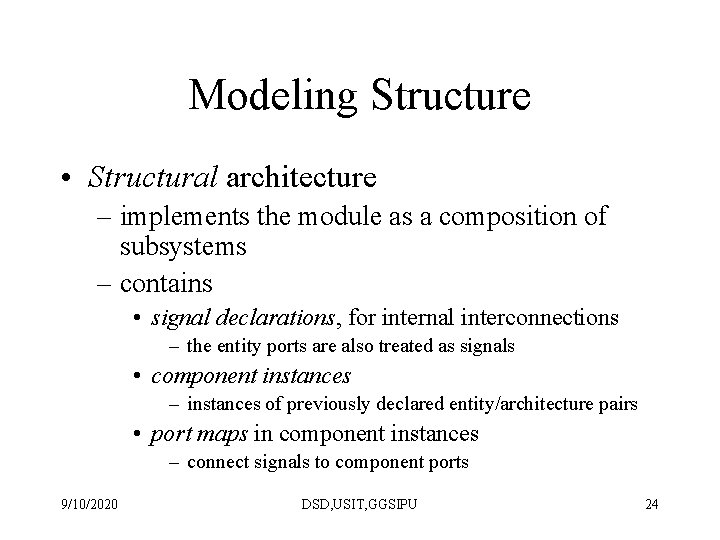

Modeling Structure • Structural architecture – implements the module as a composition of subsystems – contains • signal declarations, for internal interconnections – the entity ports are also treated as signals • component instances – instances of previously declared entity/architecture pairs • port maps in component instances – connect signals to component ports 9/10/2020 DSD, USIT, GGSIPU 24
