Digital System Design Subject Name Course Code Digital

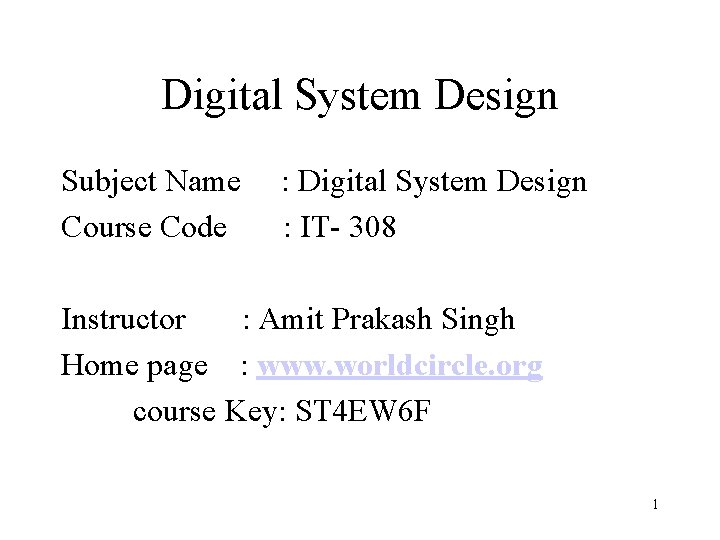

Digital System Design Subject Name Course Code : Digital System Design : IT- 308 Instructor : Amit Prakash Singh Home page : www. worldcircle. org course Key: ST 4 EW 6 F 1

Text-books 1. VHDL Primer by J. Bhasker; Addison Wesley Longman Pub. 2. Introduction to Digital Systems by M. Ercegovec, T. Lang and L. J. Moreno; Wiley 3. Digital System Design using VHDL by C. H. Roth; Jyco Pub 4. Circuit Design with VHDL by Volnei A. Pedroni; PHI 2

Reference Book 1. 2. 3. 4. 5. 6. VHDL: Analysis & Modeling of Digital Systems by Z. Navabi; MGH VHDL Programming by Examples by Douglas L. Perry; TMH VHDL by Douglas Perry The Designer Guide to VHDL by P. J. Ashendem; Morgan Kaufmann Pub. Digital System Design with VHDL by Mark Zwolinski; Prentice Hall Pub. Digital Design Principles and Practices by John F. Wakerly, Prentice Hall (third Edition) 2001 includes Xilinx student edition). 3

Overview What is digital system design? – Use of available digital components • Microprocessor, e. g. Pentium • Micro-controller, e. g. 8051 • Digital processing units, e. g. counters, shift registers. – Combine them to become a useful system 4

Programmable logic vs. microcontrollers in prototyping • In some situation you can design a digital system using programmable logic or microcontrollers • Programmable logic – more general and flexible, economic for mass production • Microcontrollers – more specific and less flexible, cost more in mass production 5

Introduction • VHDL is a hardware description language that can be used to model a digital system • VHDL is often quoted to be an acronym for Very High Speed Integration Circuit Hardware Description Language or VHSIC Hardware Description Language • VHDL is an IEEE standard as well as an ANSI standard for describing digital systems 6

What is VHDL? • VHDL = VHSIC Hardware Description Language • (VHSIC = Very High-Speed IC) • Design specification language • Design entry language • Design simulation language • Design documentation language • An alternative to schematics 7

Design Flow VHDL entry (RTL Level) Netlist (Gate level) Optimized netlist (Gate level) Physical Device 8

Synthesis • Synthesis is the process of translating a design from a hardware description into a circuit design using a components from a specified library. • The standard of VHDL Register Transfer Level Synthesis is available on following site: http: //stdsbbs. ieee. org 9

A Brief History • Was developed in the early 1980 s for managing design problems that involved large circuits and multiple teams of engineers. • Funded by U. S. Department of Defence. • The first publicly available version was released in 1985. • In 1986 IEEE (Institute of Electrical and Electronics Engineers, Inc. ) was presented with a proposal to standardize the VHDL. • In 1987 standardization => IEEE 1076 -1987 • An improved version of the language was relased in 1994 => IEEE standard 1076 -1993. 10

VHDL Environment 11

Domains and Levels of Modeling Functional Structural high level of abstraction low level of abstraction Geometric “Y-chart” due to Gajski & Kahn 12

Domains and Levels of Modeling Functional Structural Algorithm (behavioral) Register-Transfer Language Boolean Equation Differential Equation Geometric “Y-chart” due to Gajski & Kahn 13

Domains and Levels of Modeling Functional Structural Processor-Memory Switch Register-Transfer Gate Transistor Geometric “Y-chart” due to Gajski & Kahn 14

Domains and Levels of Modeling Functional Structural Polygons Sticks Standard Cells Floor Plan Geometric “Y-chart” due to Gajski & Kahn 15

Major Capabilities • It contains elements that can be used to describe the behavior, dataflow, and structure of the digital systems • It provides support for modeling the system hierarchically and also supports top-down and bottom -up design methodologies • Models written by this language can be verified using a VHDL simulator. • The language is not technology-specific • It supports both synchronous and asynchronous timing models • Test benches can be written using the same language to test other VHDL models 16

Different Representation Models • Some, Not Mutually Exclusive, Models – Functional – Structural – Physical 17

Basic VHDL Concepts • • • Interface Behavior Structure Test Benches Analysis, elaboration, simulation Synthesis 18

Modeling Interfaces • Entity declaration – describes the input/output ports of a module entity name port names port mode (direction) entity reg 4 is port ( d 0, d 1, d 2, d 3, en, clk : in std_logic; q 0, q 1, q 2, q 3 : out std_logic ); punctuation end entity reg 4; reserved words port type 19

VHDL-87 • Omit entity at end of entity declaration entity reg 4 is port ( d 0, d 1, d 2, d 3, en, clk : in bit; q 0, q 1, q 2, q 3 : out bit ); end reg 4; 20

Modeling Behavior • Architecture body – describes an implementation of an entity – may be several per entity • Behavioral architecture – describes the algorithm performed by the module – contains • • process statements, each containing sequential statements, including signal assignment statements and wait statements 21

Behavior Example architecture name of the architecture of name of the entity is {Declaration section of architecture body} signal temp 1, temp 2, temp 3 : std_logic; component name of the component is port( ); end component; begin statement 1; x<= sum(function)1; process()1; procedure; process()2; statement 2; label : name of the comp port map (connectivity); label 2 : name of the comp port map (connectivity); end architecture name of the architecture; 22

VHDL-87 • Omit architecture at end of architecture body • Omit is in process statement header architecture behav of reg 4 is begin storage : process. . . begin. . . end process storage; end behav; 23
