Digital Switching Principles Digital Switching The digital signals

Digital Switching Principles

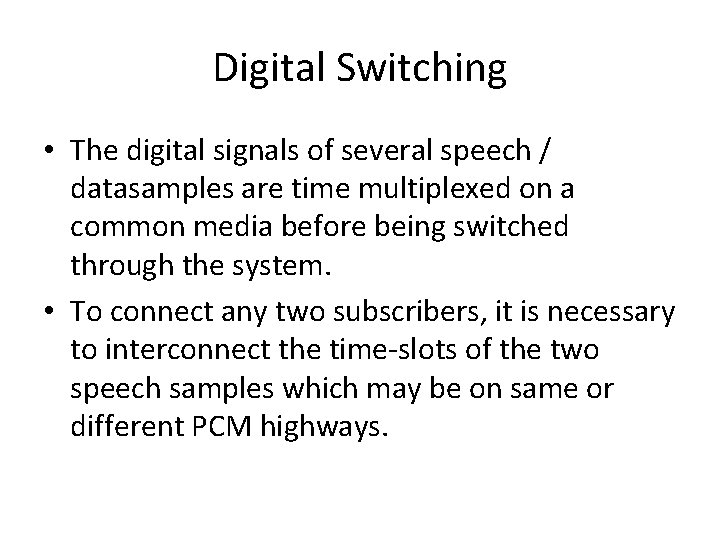

Digital Switching • The digital signals of several speech / datasamples are time multiplexed on a common media before being switched through the system. • To connect any two subscribers, it is necessary to interconnect the time-slots of the two speech samples which may be on same or different PCM highways.

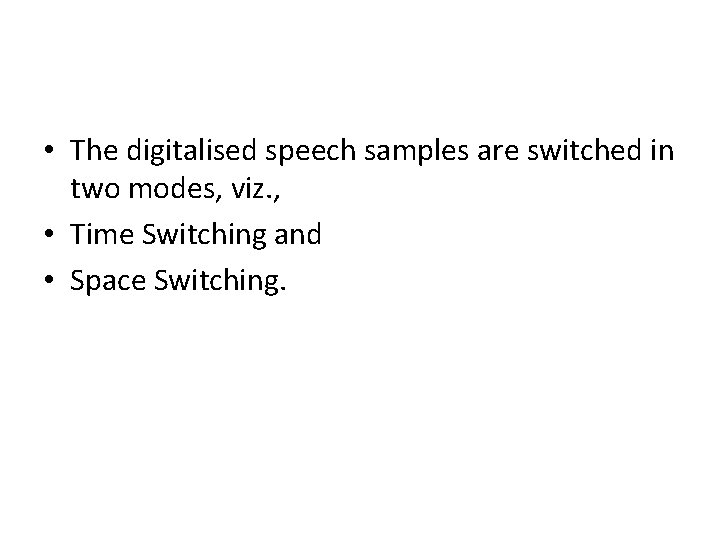

• The digitalised speech samples are switched in two modes, viz. , • Time Switching and • Space Switching.

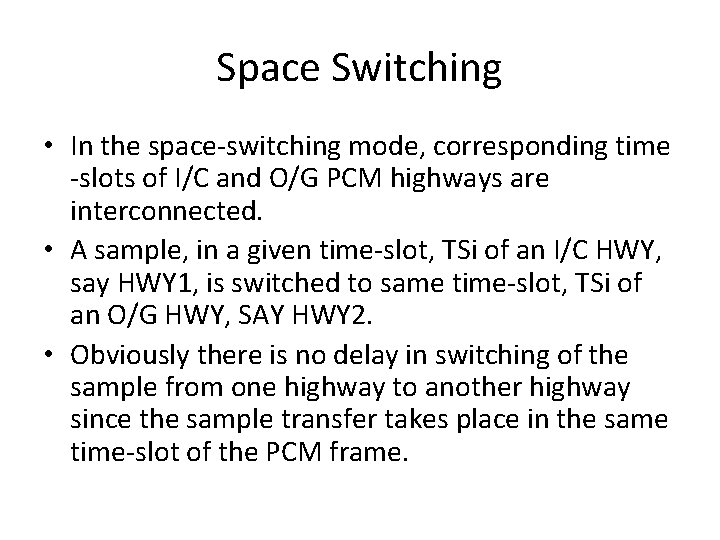

Space Switching • In the space-switching mode, corresponding time -slots of I/C and O/G PCM highways are interconnected. • A sample, in a given time-slot, TSi of an I/C HWY, say HWY 1, is switched to same time-slot, TSi of an O/G HWY, SAY HWY 2. • Obviously there is no delay in switching of the sample from one highway to another highway since the sample transfer takes place in the same time-slot of the PCM frame.

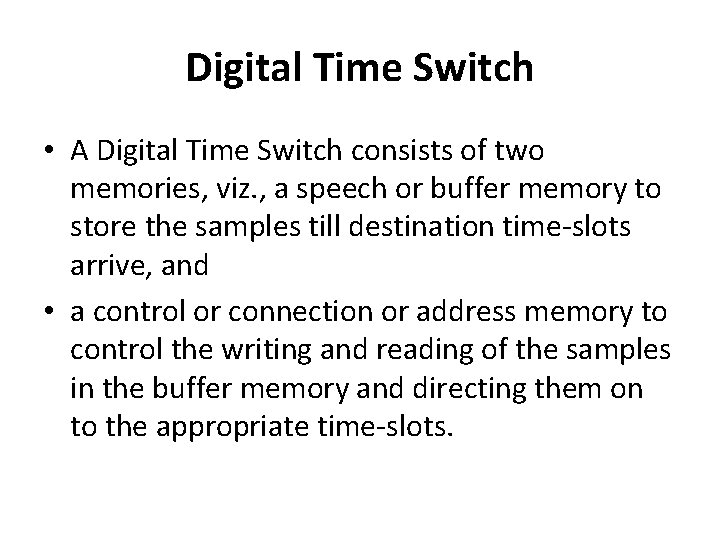

Digital Time Switch • A Digital Time Switch consists of two memories, viz. , a speech or buffer memory to store the samples till destination time-slots arrive, and • a control or connection or address memory to control the writing and reading of the samples in the buffer memory and directing them on to the appropriate time-slots.

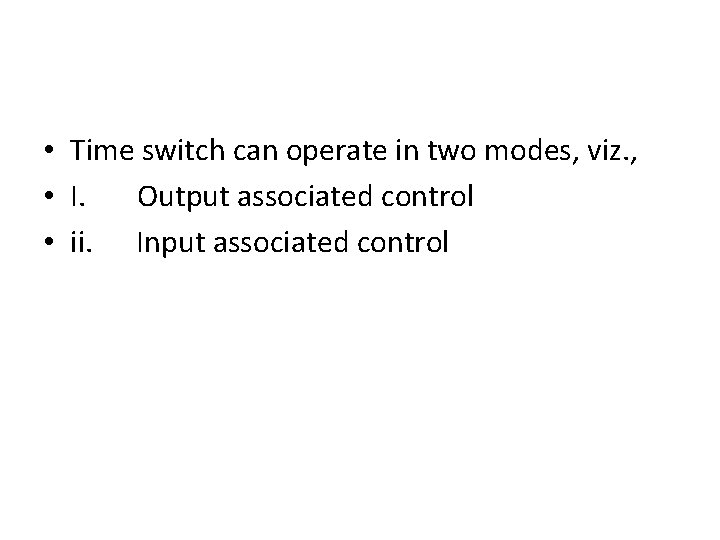

• Time switch can operate in two modes, viz. , • I. Output associated control • ii. Input associated control

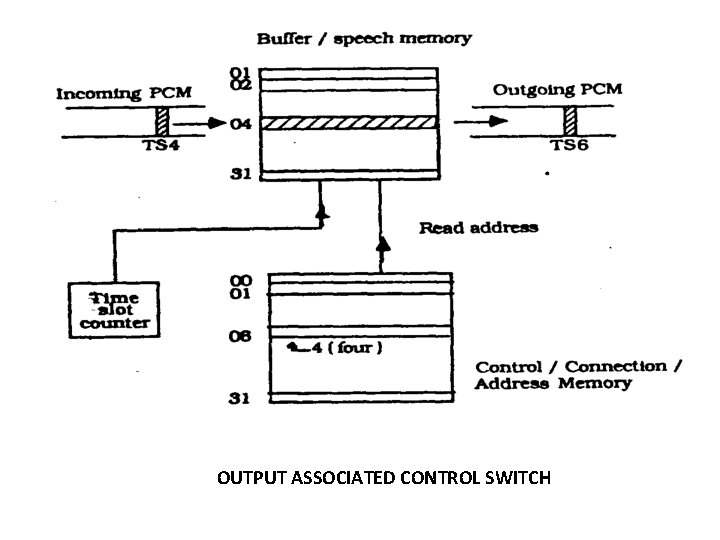

OUTPUT ASSOCIATED CONTROL SWITCH

INPUT ASSOCIATED CONTROL SWITCH

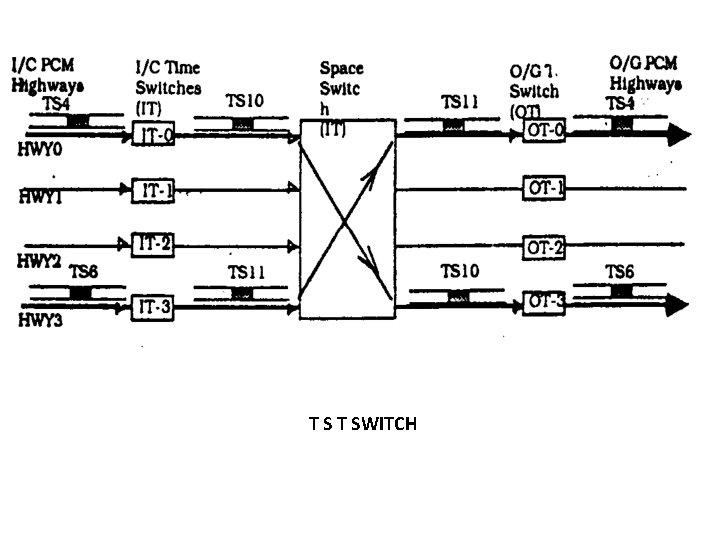

T S T SWITCH

T S T SWITCH STRUCTURE
