DIGITAL SIGNAL PROCESSOR • • FIXED POINT/FLOATING POINT DSP HARVARD/VON NEUMANN ARCHITECTURE RISC/CISC ARCHITECTURE PIPELINING • Architecture of TMS 320 C 5 X (Features. Description) • Addressing Modes
Introduction • Application specific Processor. • Manufacturers: Texas Instruments, Analog Devices, Motorola • Two types: 16 bit fixed point and 32 bit floating point TMS 320 C 5 X: • Fifth generation • 16 bit fixed point processor • Instruction sets are upward compatible.
FIXED/FLOATING POINT PROCESSOR • 16 BIT FIXED POINT PROCESSOR: C 1 X, C 2 XX, C 5 X • 32 BIT FLOATING POINT PROCESSOR: C 3 X, C 4 X
HARVARD/VON NEUMANN ARCHITECTURE
VON NEUMANN
HARVARD ARCHITECTURE
MODIFIED HARVARD ARCHITECTURE
RISC/CISC ARCHITECTURE CISC MULT 2: 3, 5: 2 RISC LOAD A, 2: 3 LOAD B, 5: 2 PROD A, B STORE 2: 3, A

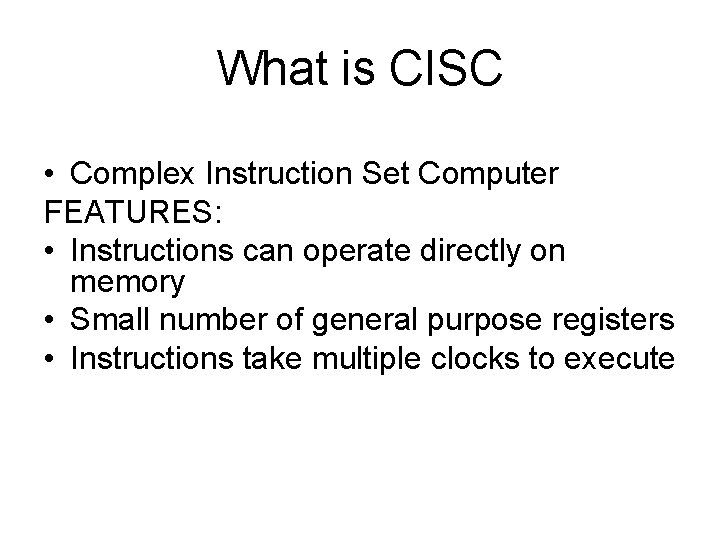

What is CISC • Complex Instruction Set Computer FEATURES: • Instructions can operate directly on memory • Small number of general purpose registers • Instructions take multiple clocks to execute
What is RISC? • Reduced Instruction Set Computer • RISC is a CPU design that recognizes only a limited number of instructions – Simple instructions – Instructions are executed quickly
Features of RISC n n • • “Reduced” instruction set Executes a series of simple instruction instead of a complex instruction Instructions are executed within one clock cycle Incorporates a large number of general registers for arithmetic operations to avoid storing variables on a stack in memory Only the load and store instructions operate directly onto memory Pipelining = speed
PIPELINING Fetching the next instruction while the current instruction is decoding. The fundamental idea is to split the processing of a computer instruction into a series of independent steps. • • FETCH DECODE MEMORY READ EXECUTE
• Instruction cycle: Fetching, decoding, memory read and execution of one instruction • Machine Cycle: Memory or I/O operation requires a particular time period • T-States: Each machine cycle consists of 3 to 6 clock cycles • Program counter: Points the address of the next instruction to be fetched • Stack Pointer: Points the return address.
ADDRESSING MODES • • • Direct addressing Indirect addressing Immediate addressing Memory Mapped register addressing Circular addressing
Immediate addressing • Load either a 16 bit constant or a constant of length 13, 9 0 r 7. • Accordingly it is referred to as long immediate or Short immediate addressing mode. • Indicated by symbol # • Eg • ADD #56 h ; ADD #4321 h
DIRECT ADDRESSING • Eg: ADD 98 h, 5
INDIRECT ADDRESING
MEMORY MAPPED REGISTER ADDRESSING • • LAMM LMMR SAMM SMMR
CIRCULAR ADDRESSING • Algorithms such as convolution, Correlation and FIR use Circular buffers in Memory
ARCHITECTURE DESCRIPTIONS • Running at 40 MHz • Execution time of single instruction is 50 nsec • On-Chip memory include 10 k words of RAM and 2 K words of the ROM. • The Function block is divided into 4 sub blocks. – BUS STRUCTURE – CPU – ONCHIP MEMORY – ONCHIP PERIPHERALS
BUS STRUCTURE • PROGRAM BUS interconnects CPU and Program memory • PROGRAM ADDRESS BUS Provides address to program memory space for read and write. • DATA BUS Interconnects various elements in CPU and data memory • DATA ADDRESS BUS Provides address to access the data memory space
CPU • Central Arithmetic Logic Unit MAC [16 x 16 parallel multiplier, 32 bit Accumulator, 32 - bit ACC Buffer, Product register, additional shifter] • Parallel Logic Unit – logical operation • Auxiliary register arithmetic Unit – [AR 0 – AR 7, ARP, indirect addressing] • Memory Mapped registers - [SFR, page 0 (00 -5 F)] • Program Controller – – Program counter Status and Control register – 4 status and control registers. Hardware stack - 8 levels deep, 16 bit wide Program memory Address generation logic - address gen by program counter – Instruction register – hold the opcode.
ONCHIP MEMORY • Memory address range: 224 kwordsx 16 bits • Memory space is divided into 4 memory segments: 64 k words - program memory space 64 k words - local data memory space 64 k words - input/ output ports 32 k words – Global data memory space On chip memory includes: – PROM - MP/MC – Data/Program single access RAM - [configured as program/data or both] – Data/Program dual access RAM [B 0 – program /Data]
ON-CHIP PERIPHERALS • Clock generator. -internal oscillator &PLL • Hardware timer. -generate CPU interrupts • Software programmable wait state generator. -Can extend external bus cycles up to 7 m/c cycles • General purpose I/O pins. - Branch control i/p(BIO) to monitor pheripheral device status -XF pin signals to external devices via S/w • Parallel I/O ports. -64 parallel i/o ports • Serial port interface. • Buffered serial port. • TDM serial port. • Host port interface. - to interface host device to c 5 x • User unmaskable interrupts. - interrupt due to external devices
