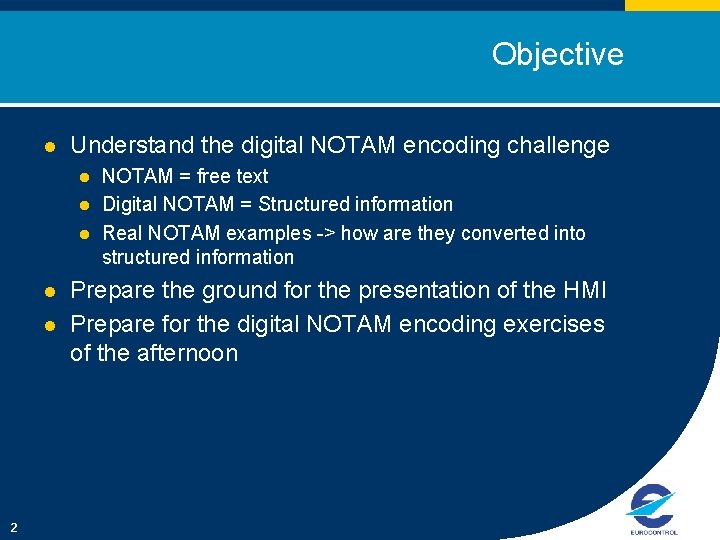

Objective l Understand the digital NOTAM encoding challenge l l l 2 NOTAM = free text Digital NOTAM = Structured information Real NOTAM examples -> how are they converted into structured information Prepare the ground for the presentation of the HMI Prepare for the digital NOTAM encoding exercises of the afternoon

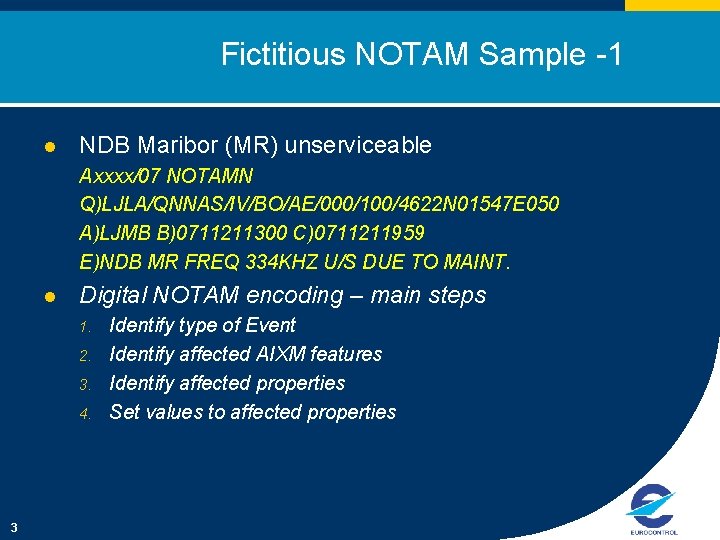

Fictitious NOTAM Sample -1 l NDB Maribor (MR) unserviceable Axxxx/07 NOTAMN Q)LJLA/QNNAS/IV/BO/AE/000/100/4622 N 01547 E 050 A)LJMB B)0711211300 C)0711211959 E)NDB MR FREQ 334 KHZ U/S DUE TO MAINT. l Digital NOTAM encoding – main steps 1. 2. 3. 4. 3 Identify type of Event Identify affected AIXM features Identify affected properties Set values to affected properties

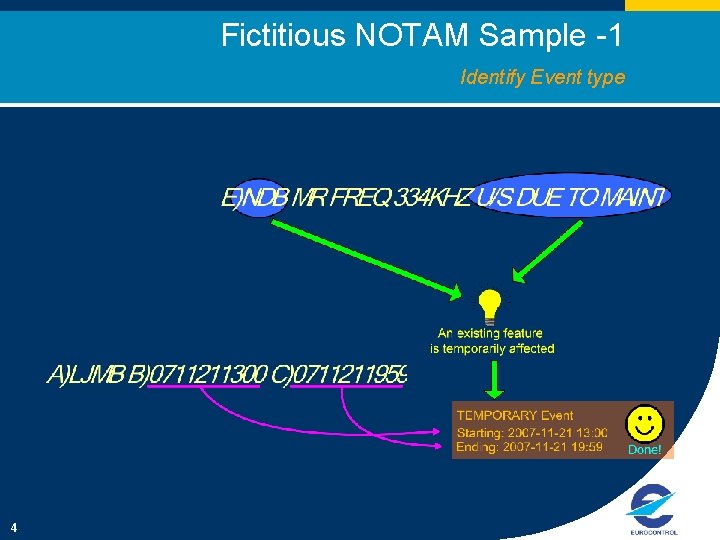

Fictitious NOTAM Sample -1 Identify Event type 4

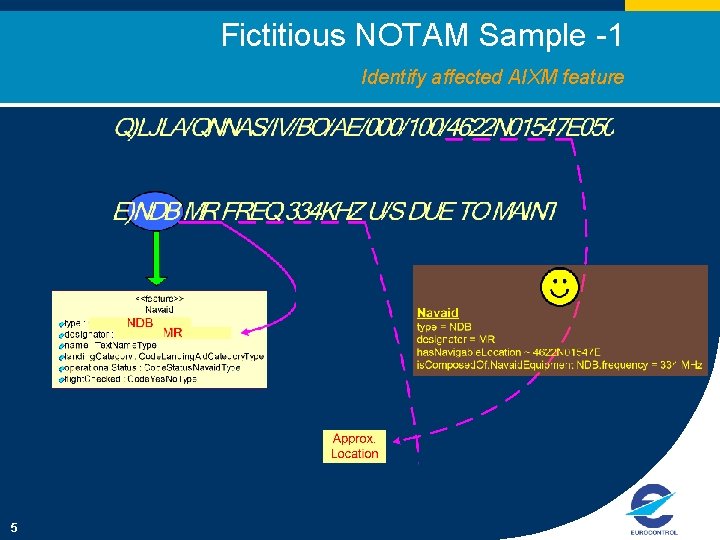

Fictitious NOTAM Sample -1 Identify affected AIXM feature 5

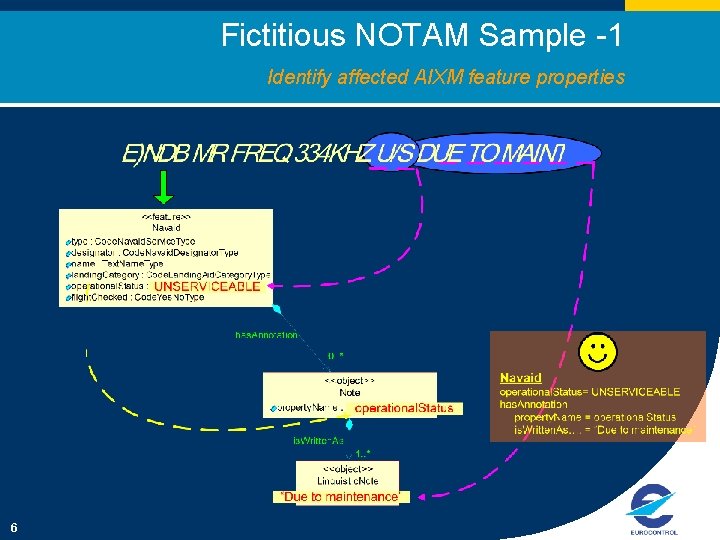

Fictitious NOTAM Sample -1 Identify affected AIXM feature properties 6

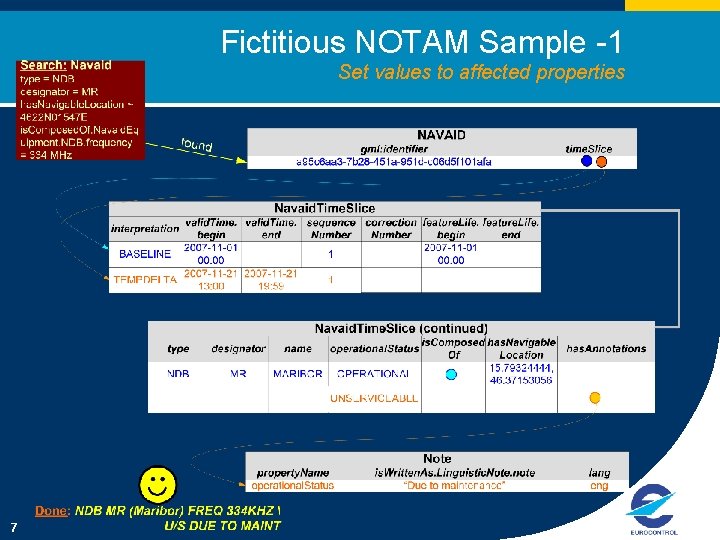

Fictitious NOTAM Sample -1 Set values to affected properties 7

Questions ? 8

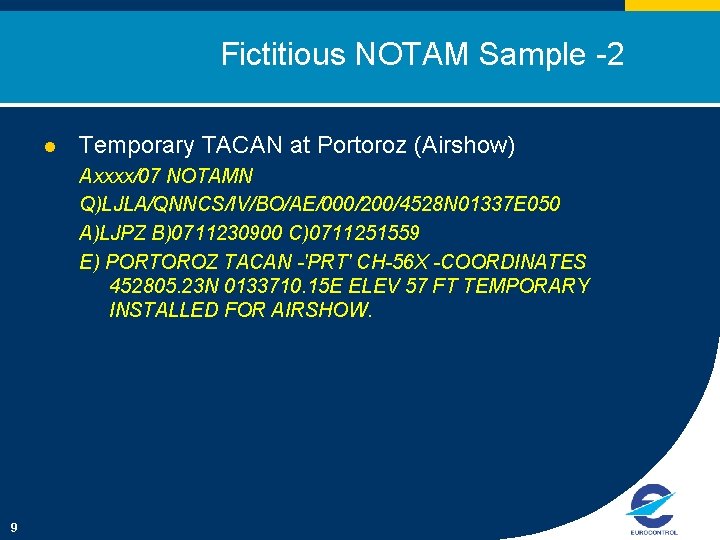

Fictitious NOTAM Sample -2 l Temporary TACAN at Portoroz (Airshow) Axxxx/07 NOTAMN Q)LJLA/QNNCS/IV/BO/AE/000/200/4528 N 01337 E 050 A)LJPZ B)0711230900 C)0711251559 E) PORTOROZ TACAN -'PRT' CH-56 X -COORDINATES 452805. 23 N 0133710. 15 E ELEV 57 FT TEMPORARY INSTALLED FOR AIRSHOW. 9

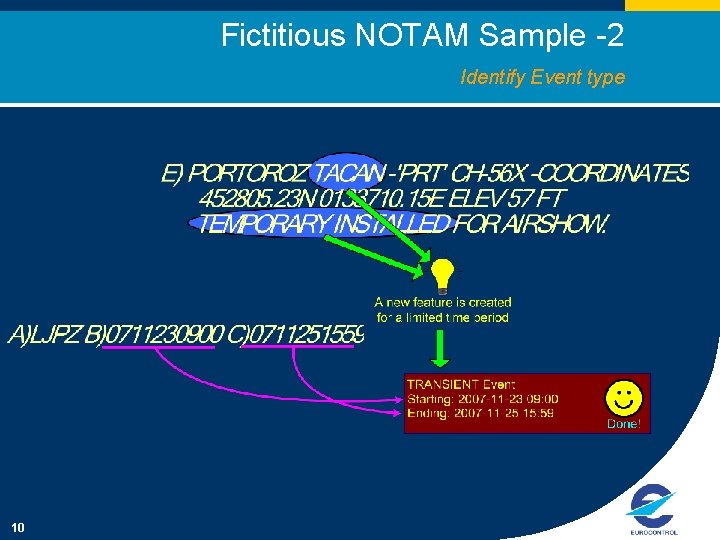

Fictitious NOTAM Sample -2 Identify Event type 10

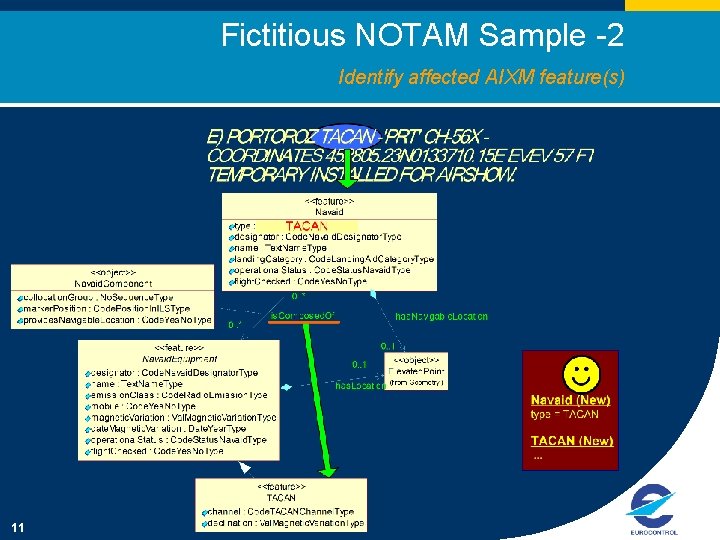

Fictitious NOTAM Sample -2 Identify affected AIXM feature(s) 11

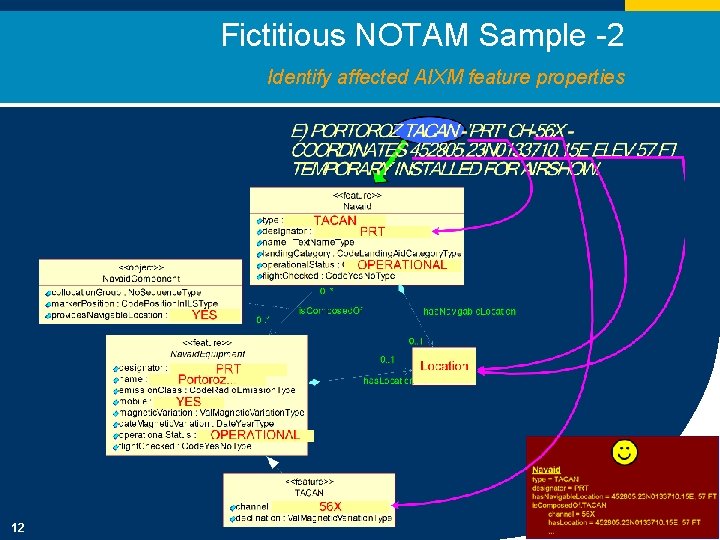

Fictitious NOTAM Sample -2 Identify affected AIXM feature properties 12

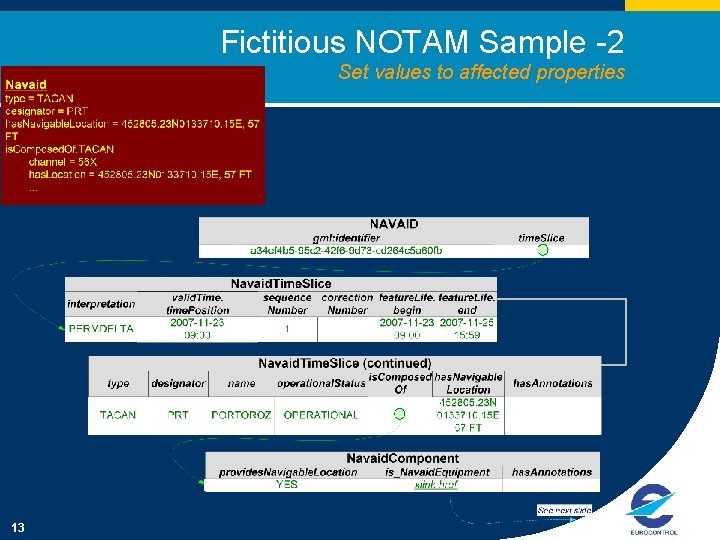

Fictitious NOTAM Sample -2 Set values to affected properties 13

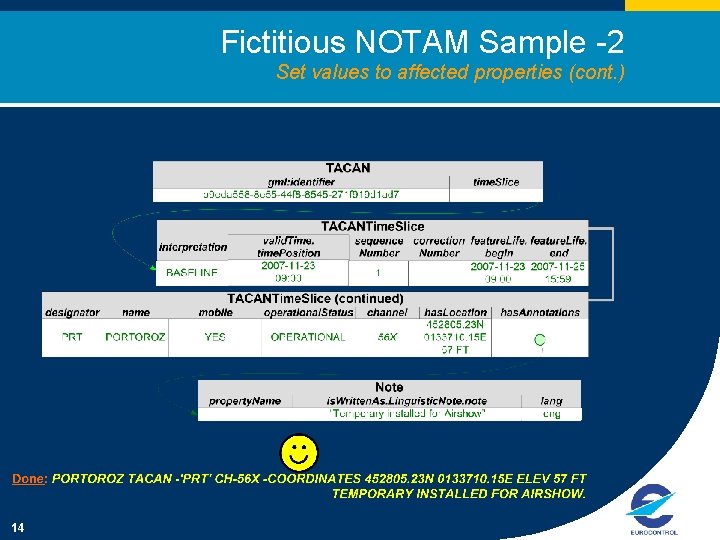

Fictitious NOTAM Sample -2 Set values to affected properties (cont. ) 14

Questions ? 15

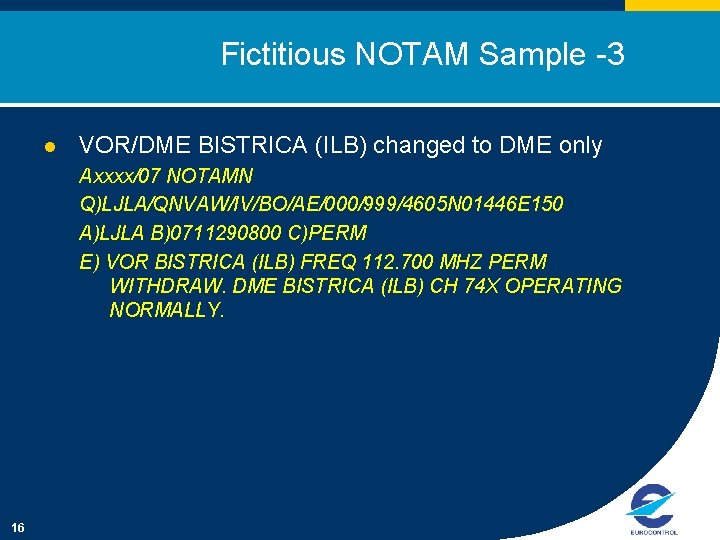

Fictitious NOTAM Sample -3 l VOR/DME BISTRICA (ILB) changed to DME only Axxxx/07 NOTAMN Q)LJLA/QNVAW/IV/BO/AE/000/999/4605 N 01446 E 150 A)LJLA B)0711290800 C)PERM E) VOR BISTRICA (ILB) FREQ 112. 700 MHZ PERM WITHDRAW. DME BISTRICA (ILB) CH 74 X OPERATING NORMALLY. 16

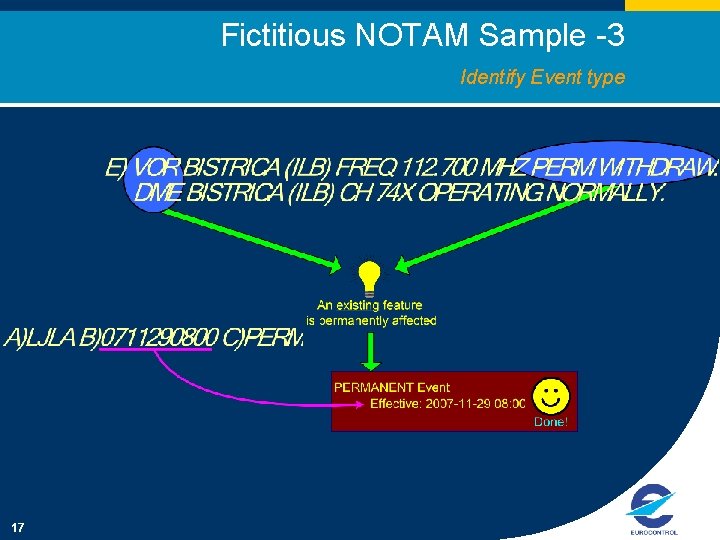

Fictitious NOTAM Sample -3 Identify Event type 17

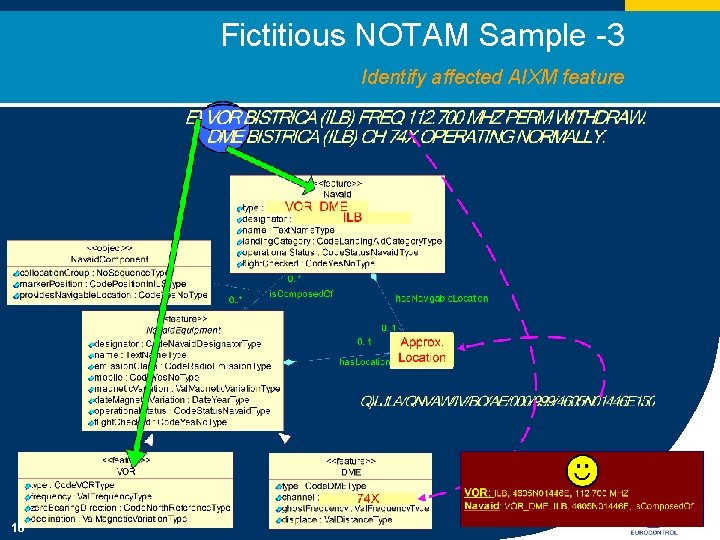

Fictitious NOTAM Sample -3 Identify affected AIXM feature 18

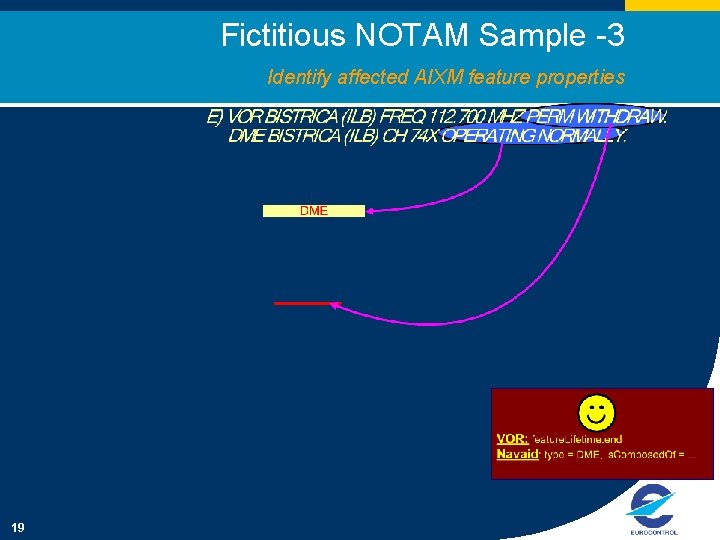

Fictitious NOTAM Sample -3 Identify affected AIXM feature properties 19

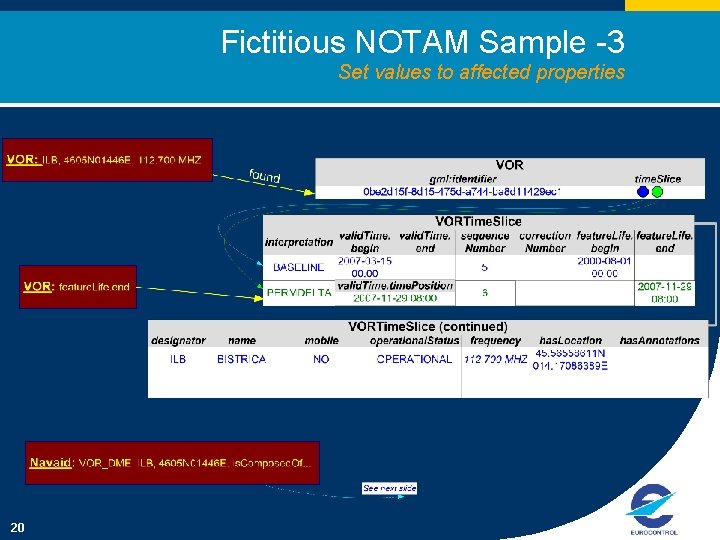

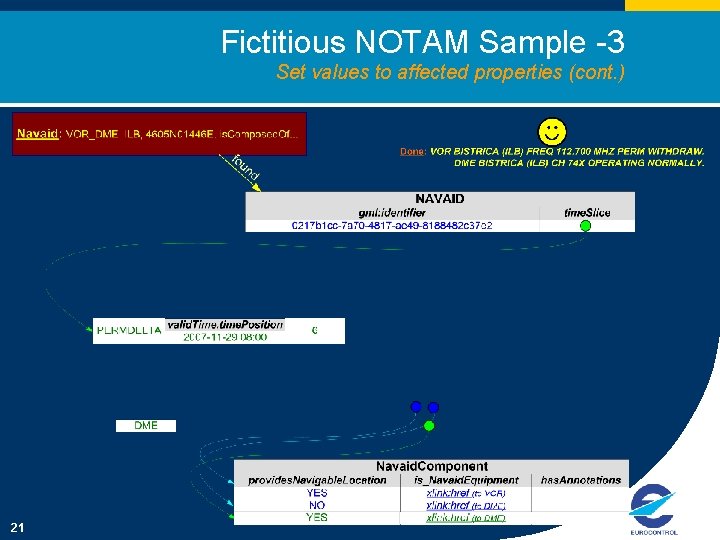

Fictitious NOTAM Sample -3 Set values to affected properties 20

Fictitious NOTAM Sample -3 Set values to affected properties (cont. ) 21

Questions ? 22

AIP SUP Sample -1 23

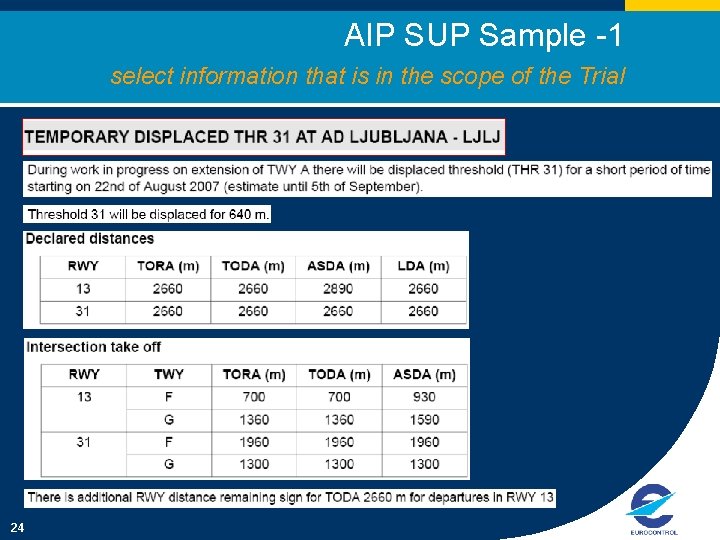

AIP SUP Sample -1 select information that is in the scope of the Trial 24

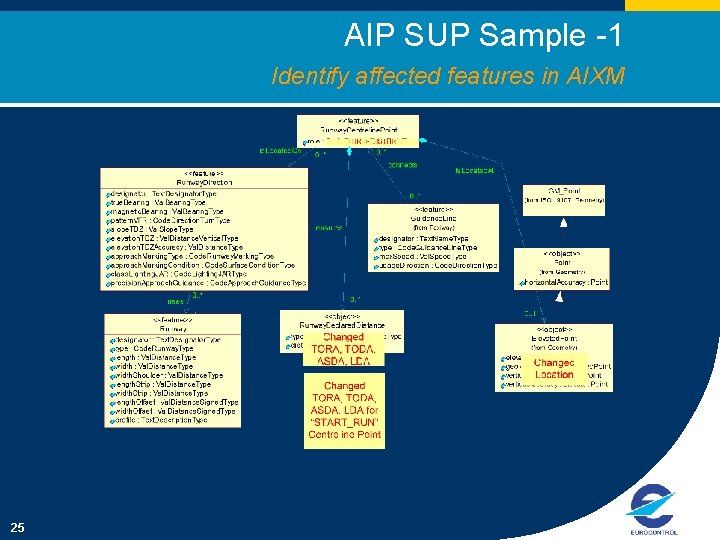

AIP SUP Sample -1 Identify affected features in AIXM 25

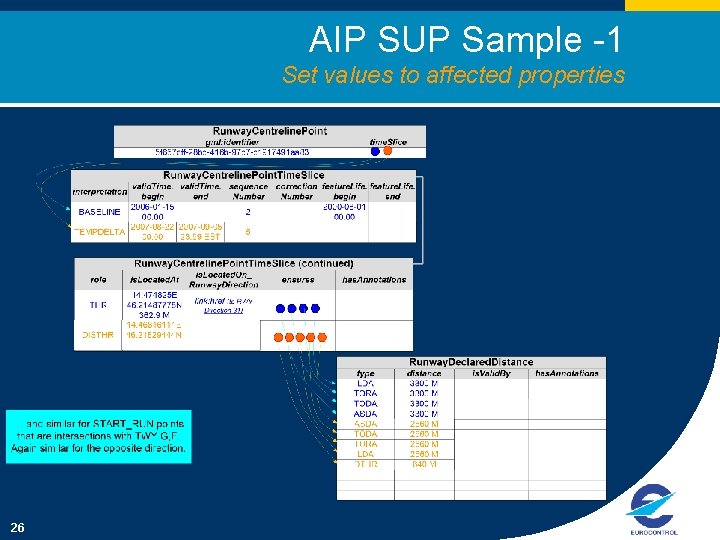

AIP SUP Sample -1 Set values to affected properties 26
