DIGITAL MULTIMETER DMG 600 610 DIGITAL MULTIMETER DMG

DIGITAL MULTIMETER DMG 600 -610

DIGITAL MULTIMETER DMG 600 -610 NEW DMG 600 -610 MULTIMETER TARGET • Great performances/cost ratio • Introduction of CX 01 – CX 02 (with app Sam 1) • Competitive product against ØSocomec Diris A 20 ØSocomec Diris A 17 DMG 600610 ØJanitza UMG-96 ØCircutor NRG-96 e CVM-C 5 ØSchneider PM 200 CX 0 2 CX 0 1 ØGavazzi EM 26 -96 • M 63 GB 19 06 14 • 2

DIGITAL MULTIMETER DMG 600 -610 MAIN CHARACTERISTICS 72 x 46 mm backlighted LCD display with icons Size 96 x 65 mm With or without EXP DMG 600: standard version DMG 610: version with built-in RS 485 Front optical port • M 63 GB 19 06 14 1 s l o t • 3

DIGITAL MULTIMETER DMG 600 -610 DISPLAY (LCD WITH ICON) Operating temperature -20…+60°C Bar graph Percentage of a full scale value Units Measurement value Measurement type (ex. V L 3 -L 1) Flashing icon for alarms Subpage indication: instantaneous measures, maximum, minimum, average values, maximum Active energy demand counters always available in all the pages Scrolling text in case of alarms, messages for the user or parameter setup Texts available in 5 languages • M 63 GB 19 06 14 • 4

DIGITAL MULTIMETER DMG 600 -610 OPTICAL PORT ON FRONT Advantages • No need to disconnect the panel power supply to connect with the device. • Electrical safety (no physical connection). • • IP 54 protection degree Comfortable access to the unit from the front. • M 63 GB 19 06 14 • 5

DIGITAL MULTIMETER DMG 600 -610 OPTICAL PORT ON FRONT CX 0 1 PC link through USB (CX 01) or Wi. Fi (CX 02) for: • Programming CX 01 (USB) for: • Firmware upgrade. CX 02 (Wi. Fi) for: • • Project upload/download Controller cloning. • M 63 GB 19 06 14 CX 0 2 • 6

DIGITAL MULTIMETER DMG 600 -610 LINK TO APP SAM 1 Link to SAM 1 app: • to see on smartphones or tablets all the measures of the multimeter • to send commands, such as counters reset or enabling and disabling of multimeter outputs • to set the parameters, save a copy in a file and retrieve it in case of need (the file can be sent via e-mail as well) • to see the user alarms which are active. • M 63 GB 19 06 14 • 7

DIGITAL MULTIMETER DMG 600 -610 COMPATIBILITY WITH SYNERGY SOFTWARE • M 63 GB 19 06 14 • 8

DIGITAL MULTIMETER DMG 600 -610 EXPANDABILITY • EXP 1000 (4 digital inputs) • EXP 1001 (4 digital outputs) • EXP 1002 (2 inputs + 2 static outputs) • EXP 1003 (2 relay outputs) • EXP 1008 (2 inputs + 2 relay ouputs) • EXP 1010 (USB) • EXP 1011 (RS 232) • EXP 1012 (RS 485) • EXP 1013 (Ethernet), with static or dynamic 1 EXP MODULE IP address support • M 63 GB 19 06 14 • 9

DIGITAL MULTIMETER DMG 600 -610 CHARACTERISTICS • • • Auxiliary power supply: 100… 440 VAC - 120… 250 VDC 3 -phase + N voltage input: 50… 720 VAC (600 VAC rated) 3 -phase current input: 25 m. A. . . 6 AAC, programmable CT 5 A / 1 A, Accuracy for voltage and current: 0. 5% Accuracy for energy: class 1 EN 62053 -21 (active energy) - class 2 EN 62053 -23 (reactive energy) • • 4 -quadrant measurements IP 54 protection degree Compatibility with Synergy supervision software Compatibility with SAM 1 app • M 63 GB 19 06 14 • 10

DIGITAL MULTIMETER DMG 600 -610 MEASUREMENTS • • • 3 Ph + N voltages 3 Ph + N currents (N current is calculated) Active, reactive and apparent power (4 quadrants) Power factor Active, reactive and apparent energy (total and per phase) Frequency Total harmonic distortion (THD) Hour counter Asymmetry (voltage and current) Phase active power unbalance • M 63 GB 19 06 14 • 11

DIGITAL MULTIMETER DMG 600 -610 FUNCTION • • Monitor relay function (with EXP 1003) 4 limit thresholds on all the available measures 4 digital inputs (with EXP module) to: • • execute commands (for example alarm reset) syncronise the average calculation. 4 alarms • • • generate alarms activated by digital inputs or limit thresholds overcoming with possibility to make the display backlight flash for indication from a distance. 4 digital outputs (with EXP module) to: • • indicate the limit threshold overcoming signal the alarm conditions generate pulse energy to remotely operate through a software. • M 63 GB 19 06 14 • 12

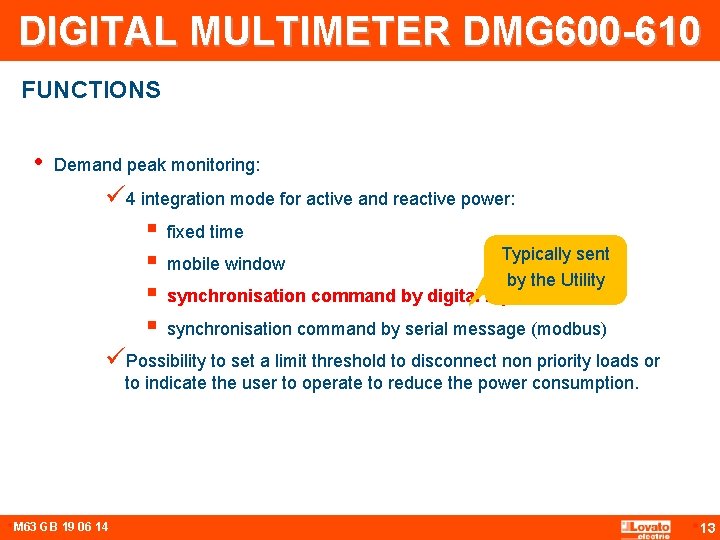

DIGITAL MULTIMETER DMG 600 -610 FUNCTIONS • Demand peak monitoring: ü 4 integration mode for active and reactive power: § fixed time Typically sent § mobile window by the Utility § synchronisation command by digital input § synchronisation command by serial message (modbus) üPossibility to set a limit threshold to disconnect non priority loads or to indicate the user to operate to reduce the power consumption. • M 63 GB 19 06 14 • 13

DIGITAL MULTIMETER DMG 600 -610 SELLING POINTS • • CX 01 and CX 02 support Built-in RS 485 serial port (DMG 610) Expandability with EXP… modules Alarm notification through backlight flashing Active power maximum demand management Compatibility with SAM 1 app Compatibility with Synergy software. • M 63 GB 19 06 14 • 14

DIGITAL MULTIMETER DMG 600 -610 COMPETITION Lovato DMG 600 Housing Dimensions (terminals included) Dimensions with modules Protection degree LCD type Lovato DMG 700 Schneider PM 200 Socomec Diris A 20 96 x 65 m 96 x 60 m 96 x 50 m 96 x 60 m m m Socomec Diris A 17 Circutor CVM-NRG 96 CVM-C 5 Janitza UMG 96 -L 72 x 72 96 x 63 96 x 42 - - 96 x 65 m 96 x 96 x 80 m Not m m expandable IP 54 IP 65 n. a. IP 52 n. a. IP 51 IP 50 icon Graphic 128 x 80 pxls icon icon Auxiliary supply AC voltage DC voltage 100… 440 VA 100… 415 VA 110… 400 VA 200… 277 VA 100… 240 VA 220… 240 VC C C C 120… 250 V 125… 250 V 120… 350 V 95… 300 VD n. a. DC DC C Voltage/Curre nt • M 63 GB 19 06 14 50… 720 VA 20… 830 VA 10… 576 VA 50… 500 VA Max • 15 86… 442 VA

DIGITAL MULTIMETER DMG 600 -610 COMPETITION Accuracy Voltage Current (with /5 CTs) Active energy Reactive energy Other characteristic s 4 quadrants measurements Hours counter THD measurements Harmonic • M 63 GB 19 06 14 Lovato DMG 600 Lovato DMG 700 Schneider PM 200 Socomec Diris A 20 Socomec Diris A 17 Circutor CVM-NRG 96 CVM-C 5 0. 5% 0. 2% n. a. 0. 5% 2% Class 2 Janitza UMG 96 -L Class 1 Class 0. 5 S n. a. 96: class 0. 5 S C 5: class 1 Class 2 n. a. ● ● - - ● ● ● Option - - - - - • 16

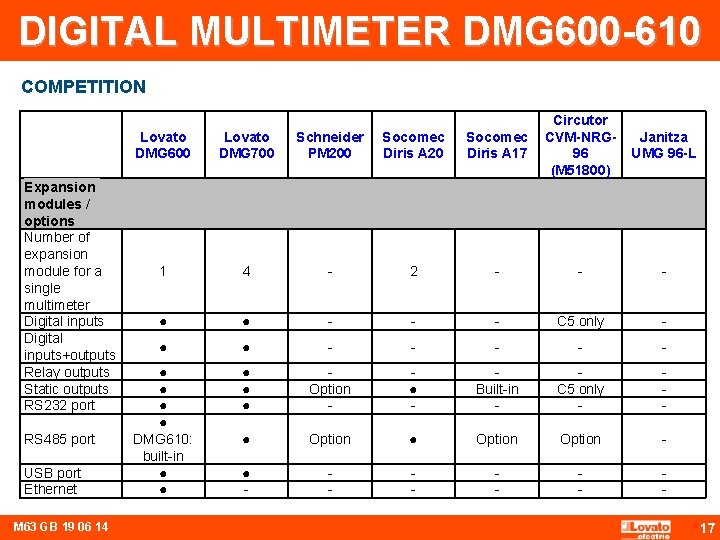

DIGITAL MULTIMETER DMG 600 -610 COMPETITION Expansion modules / options Number of expansion module for a single multimeter Digital inputs+outputs Relay outputs Static outputs RS 232 port RS 485 port USB port Ethernet • M 63 GB 19 06 14 Lovato DMG 600 Lovato DMG 700 Schneider PM 200 Socomec Diris A 20 Socomec Diris A 17 Circutor CVM-NRG 96 (M 51800) 1 4 - 2 - - - ● ● - - - C 5 only - ● ● - - - ● ● DMG 610: built-in ● ● ● Option - ● - Built-in - C 5 only - - ● Option - ● - - - Janitza UMG 96 -L • 17

DIGITAL MULTIMETER DMG 600 -610 Thank you for the attention! • www. Lovato. Electric. com
