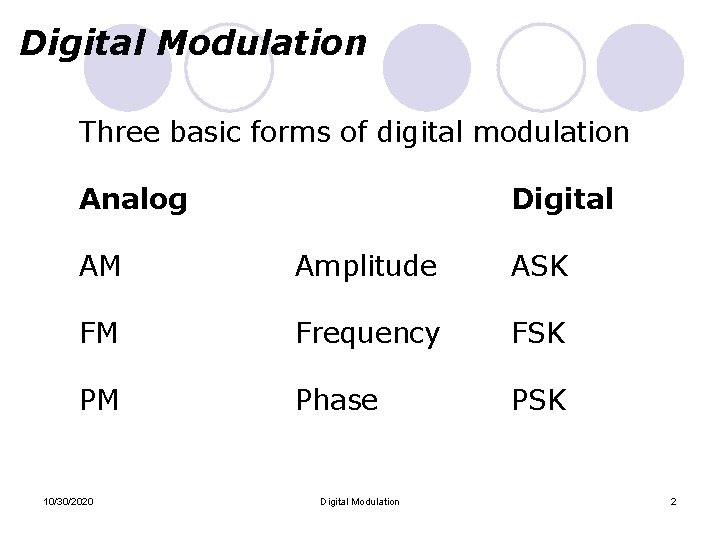

Digital Modulation Three basic forms of digital modulation Analog Digital AM Amplitude ASK FM Frequency FSK PM Phase PSK 10/30/2020 Digital Modulation 2

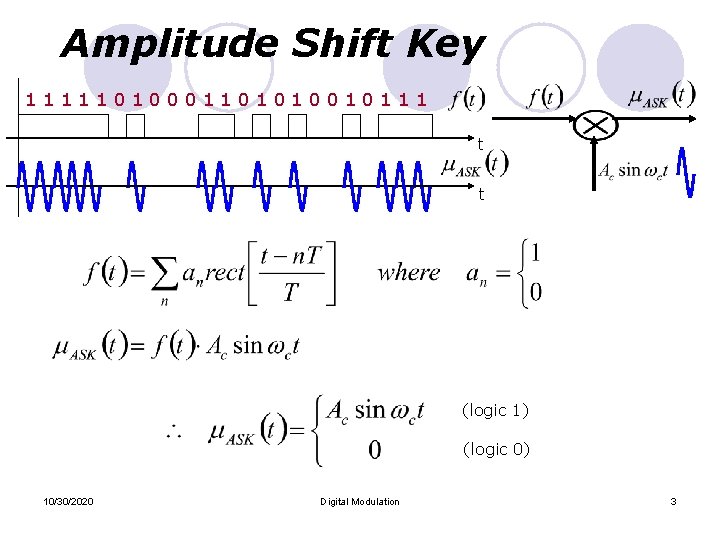

Amplitude Shift Key 11111010001101010010111 t t (logic 1) (logic 0) 10/30/2020 Digital Modulation 3

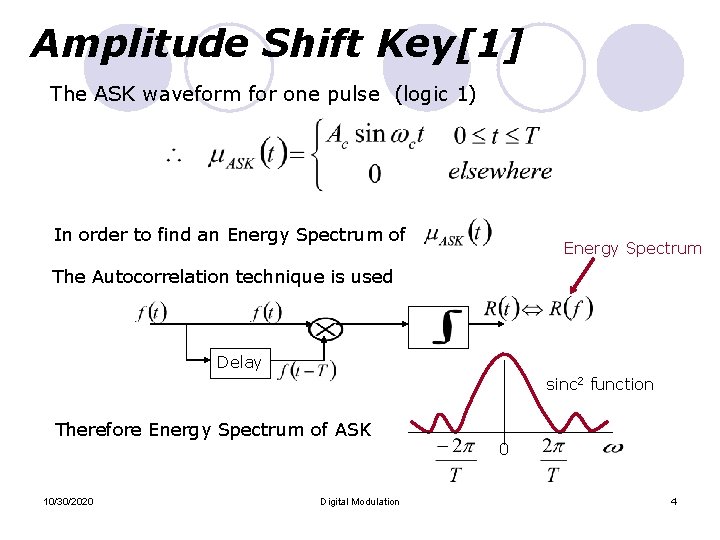

Amplitude Shift Key[1] The ASK waveform for one pulse (logic 1) In order to find an Energy Spectrum of Energy Spectrum The Autocorrelation technique is used Delay sinc 2 function Therefore Energy Spectrum of ASK 10/30/2020 Digital Modulation 0 4

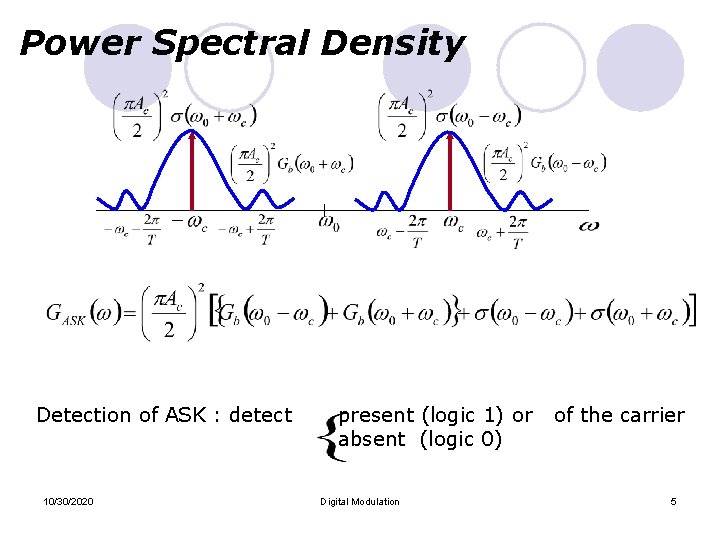

Power Spectral Density Detection of ASK : detect 10/30/2020 present (logic 1) or absent (logic 0) Digital Modulation of the carrier 5

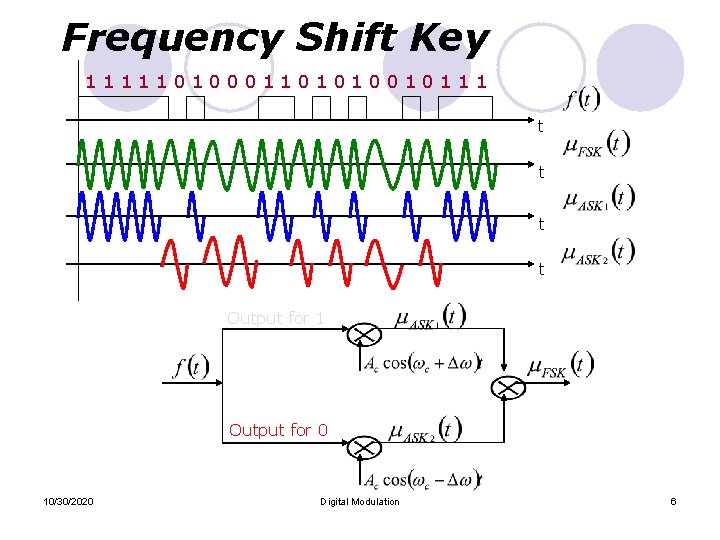

Frequency Shift Key 11111010001101010010111 t t Output for 1 Output for 0 10/30/2020 Digital Modulation 6

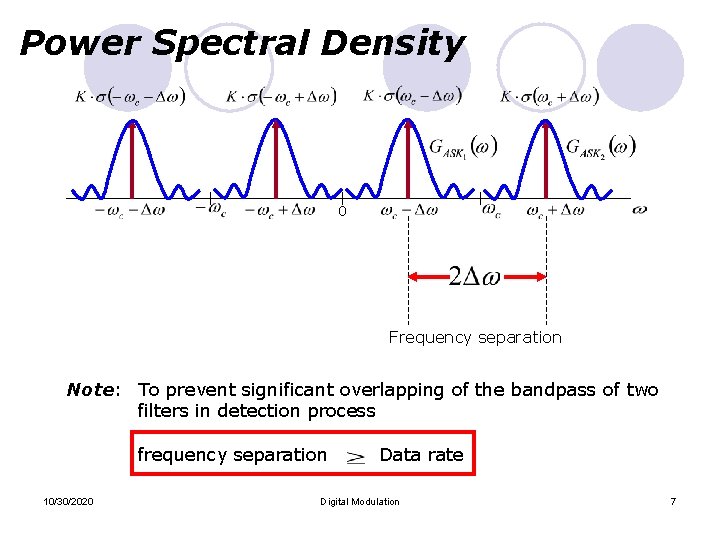

Power Spectral Density 0 Frequency separation Note: To prevent significant overlapping of the bandpass of two filters in detection process frequency separation 10/30/2020 Data rate Digital Modulation 7
Power Spectral Density[1] The Actual shape of Power Spectral Density of FSK Detection of FSK Bandpass Filter is used to detect f 1 (1) and f 2 (0) In general for frequency separation; ; 10/30/2020 or Digital Modulation where m is an integer 8

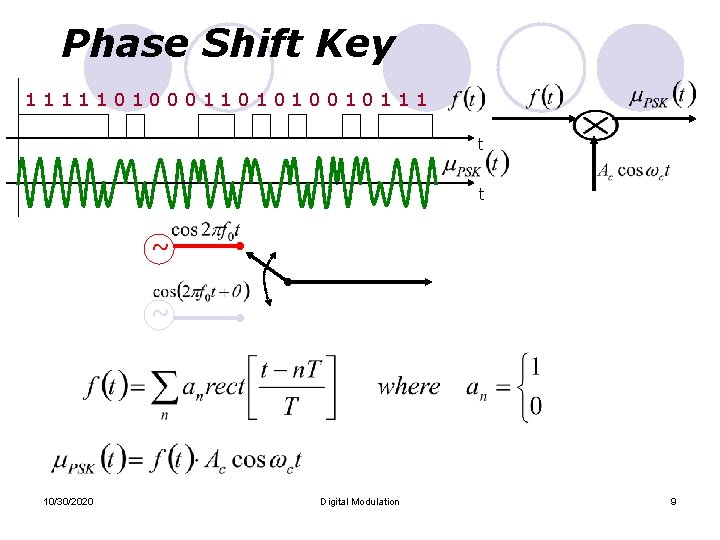

Phase Shift Key 11111010001101010010111 t t ~ ~ 10/30/2020 Digital Modulation 9
Power Spectral Density 10/30/2020 Digital Modulation 10
Detection of PSK Phase Reversal Key (PRK) Since information is in the phase, only synchronous detection is possible Receiver: To data detection Matched filter detection carrier Synchronize (coherent) carrier Local oscillator e. g. Crystal oscillator known as Voltage Control Oscillator VCO 10/30/2020 Digital Modulation 11
