Digital Logic Lecture 3 Binary Arithmetic By Zyad

Digital Logic Lecture 3 Binary Arithmetic By Zyad Dwekat The Hashemite University Computer Engineering Department

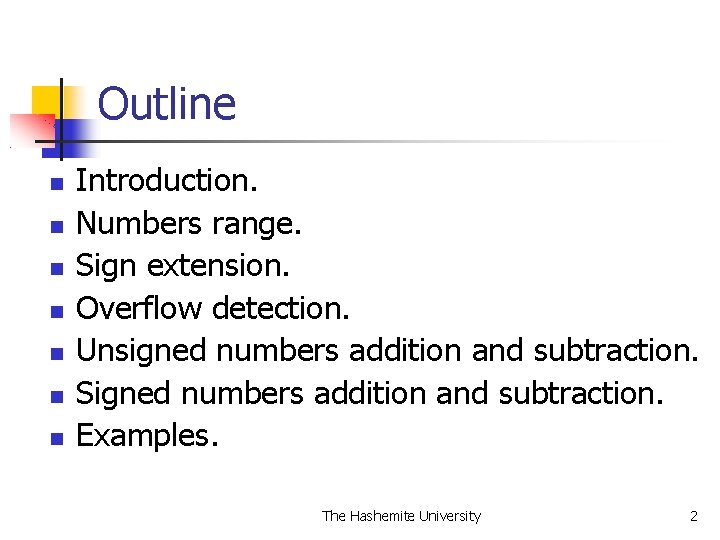

Outline Introduction. Numbers range. Sign extension. Overflow detection. Unsigned numbers addition and subtraction. Signed numbers addition and subtraction. Examples. The Hashemite University 2

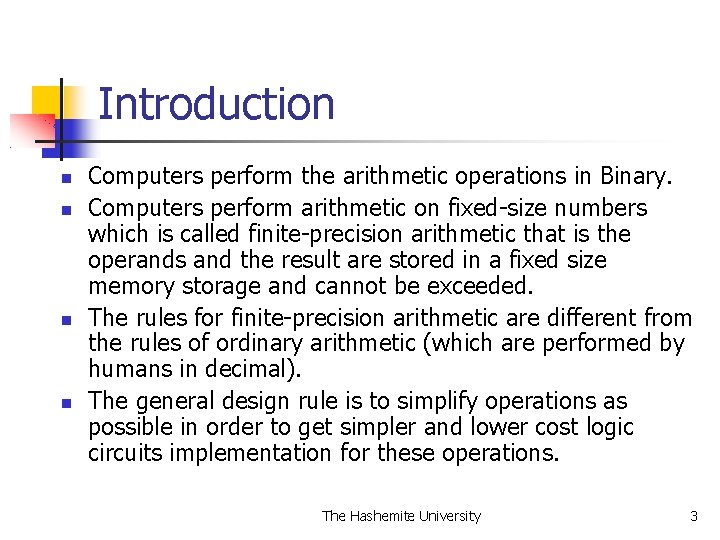

Introduction Computers perform the arithmetic operations in Binary. Computers perform arithmetic on fixed-size numbers which is called finite-precision arithmetic that is the operands and the result are stored in a fixed size memory storage and cannot be exceeded. The rules for finite-precision arithmetic are different from the rules of ordinary arithmetic (which are performed by humans in decimal). The general design rule is to simplify operations as possible in order to get simpler and lower cost logic circuits implementation for these operations. The Hashemite University 3

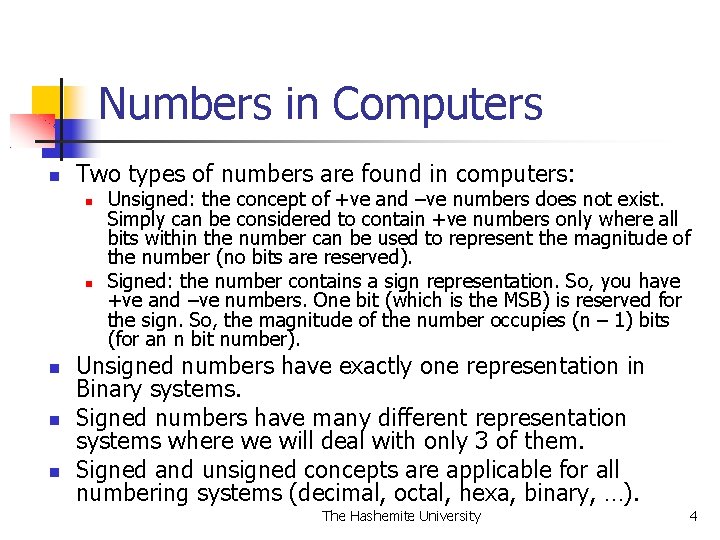

Numbers in Computers Two types of numbers are found in computers: Unsigned: the concept of +ve and –ve numbers does not exist. Simply can be considered to contain +ve numbers only where all bits within the number can be used to represent the magnitude of the number (no bits are reserved). Signed: the number contains a sign representation. So, you have +ve and –ve numbers. One bit (which is the MSB) is reserved for the sign. So, the magnitude of the number occupies (n – 1) bits (for an n bit number). Unsigned numbers have exactly one representation in Binary systems. Signed numbers have many different representation systems where we will deal with only 3 of them. Signed and unsigned concepts are applicable for all numbering systems (decimal, octal, hexa, binary, …). The Hashemite University 4

Signed Binary Numbers In decimal system the sign is represented using – and + symbols. However, such symbols cannot be used by hardware where every thing must be binary (either 0 or 1). So, the MSB of a binary number is reserved for the sign (i. e. sign bit): 0 +ve number. 1 -ve number. The Hashemite University 5

Signed Binary Numbers Representation Signed-magnitude system: the MSB represents the sign, the remaining bits represent the number value (the value is the same as in unsigned numbers). Negates the number by reversing its sign. Hard to be used for binary operations in computers. Signed-complement system: the MSB gives an indication about the sign but not reserved for it. Negates a number by taking its complement (either 1’s or 2’s complement). Taking the complement of the positive number includes the sign bit which becomes 1 (-ve) in all cases. Convenient to be used by computers (actually the 2’s complement is the most common). The Hashemite University 6

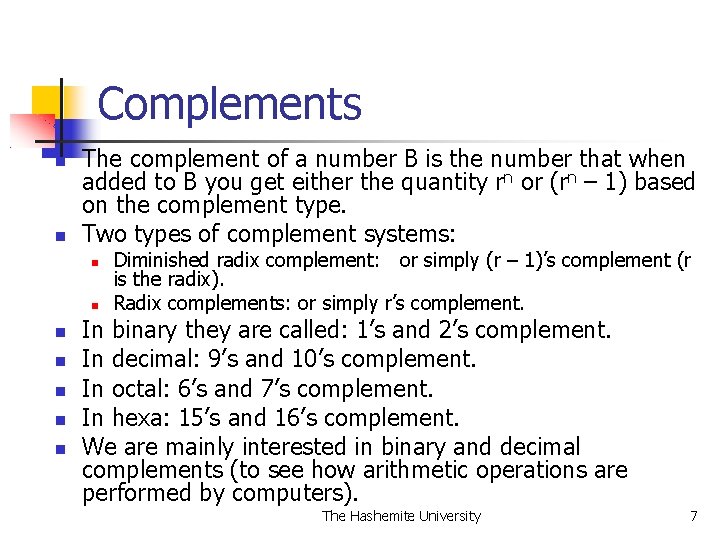

Complements The complement of a number B is the number that when added to B you get either the quantity rn or (rn – 1) based on the complement type. Two types of complement systems: Diminished radix complement: or simply (r – 1)’s complement (r is the radix). Radix complements: or simply r’s complement. In binary they are called: 1’s and 2’s complement. In decimal: 9’s and 10’s complement. In octal: 6’s and 7’s complement. In hexa: 15’s and 16’s complement. We are mainly interested in binary and decimal complements (to see how arithmetic operations are performed by computers). The Hashemite University 7

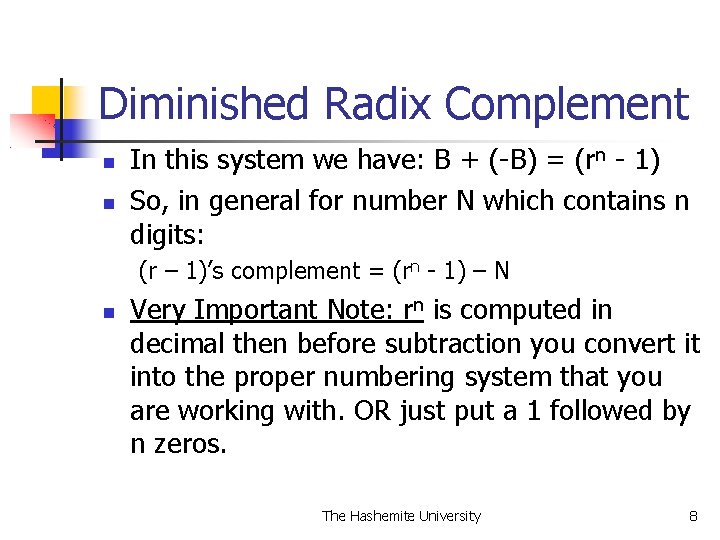

Diminished Radix Complement In this system we have: B + (-B) = (rn - 1) So, in general for number N which contains n digits: (r – 1)’s complement = (rn - 1) – N Very Important Note: rn is computed in decimal then before subtraction you convert it into the proper numbering system that you are working with. OR just put a 1 followed by n zeros. The Hashemite University 8

Binary 1’s Complement – Simple Rule Simply invert each bit in the binary number: 1 0 and 0 1 Examples: Number 1’s complement 011010001 01 100101110 10 The Hashemite University 9

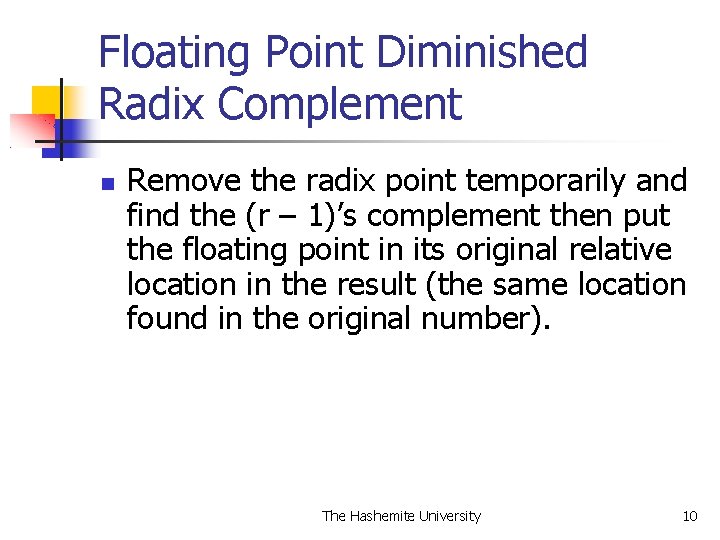

Floating Point Diminished Radix Complement Remove the radix point temporarily and find the (r – 1)’s complement then put the floating point in its original relative location in the result (the same location found in the original number). The Hashemite University 10

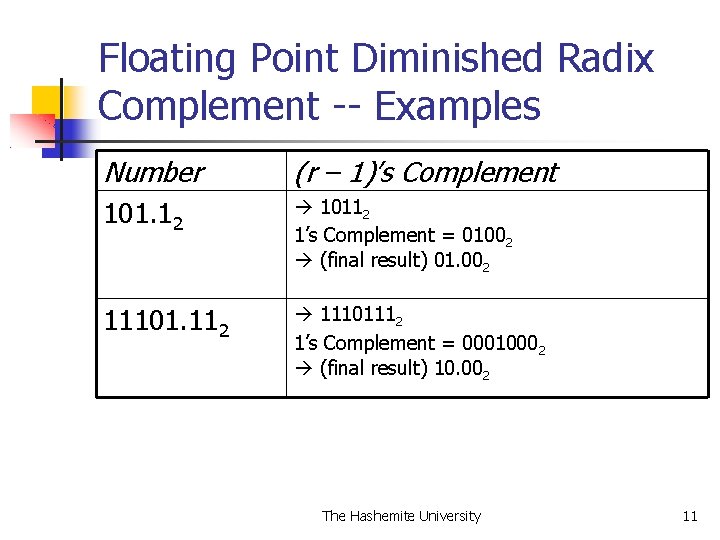

Floating Point Diminished Radix Complement -- Examples Number (r – 1)’s Complement 101. 12 10112 1’s Complement = 01002 (final result) 01. 002 11101. 112 11101112 1’s Complement = 00010002 (final result) 10. 002 The Hashemite University 11

Radix Complement In this system we have: B + (-B) = rn So, for number N which contains n digits: r’s complement = rn – N So: r’s complement = 1 + (r - 1)’s complement The rule of rn calculations is the same as in the (r-1)’s complement. Special rule for 2’s complement in Binary: Start from the LSB and leave all 0’s without change in addition to the first 1 you encounter. After that invert all remaining bits (0 1 and 1 0). For floating point apply the same rule used by (r – 1)’s complement: Remove the radix point temporarily and find the r’s complement then put the floating point in its original relative location the result. The in Hashemite University 12

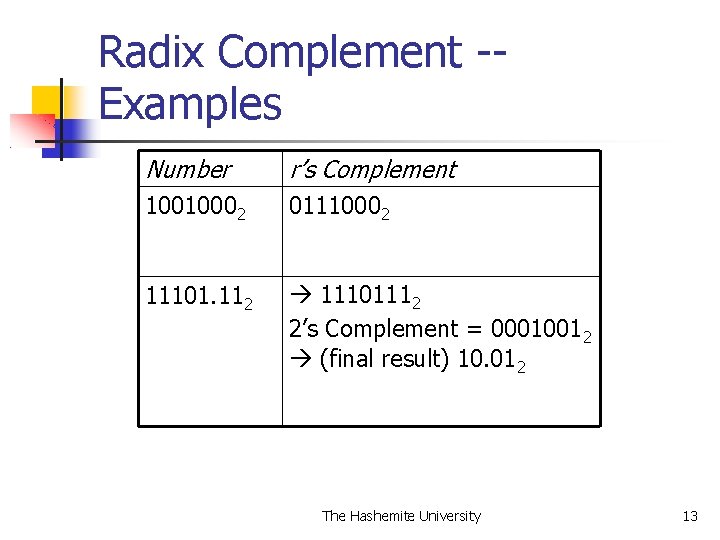

Radix Complement -Examples Number r’s Complement 10010002 01110002 11101. 112 11101112 2’s Complement = 00010012 (final result) 10. 012 The Hashemite University 13

Remember. . . Negative of the negative is positive. So, applying complement twice for a number you return to the original number (none complemented one). The Hashemite University 14

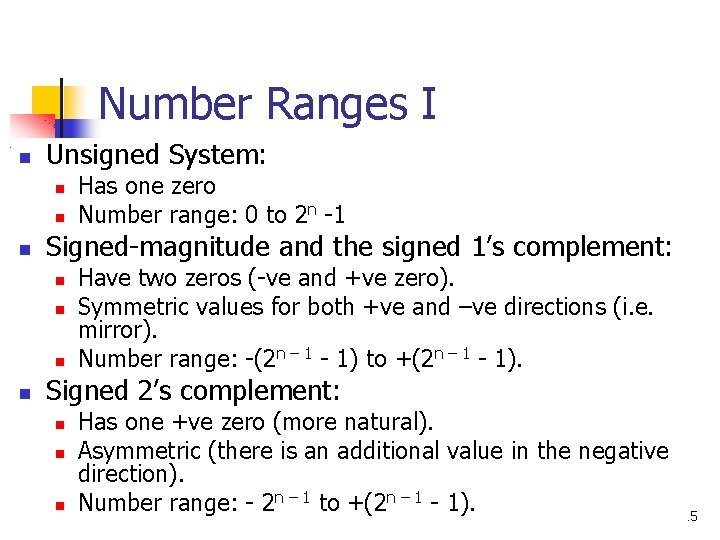

Number Ranges I Unsigned System: Signed-magnitude and the signed 1’s complement: Has one zero Number range: 0 to 2 n -1 Have two zeros (-ve and +ve zero). Symmetric values for both +ve and –ve directions (i. e. mirror). Number range: -(2 n – 1 - 1) to +(2 n – 1 - 1). Signed 2’s complement: Has one +ve zero (more natural). Asymmetric (there is an additional value in the negative direction). n – 1 - 1). Number range: - 2 n – 1 to +(2 The Hashemite University 15

Number Ranges II Note that: The number of values that can be represented by an n bit number = 2 n (same for signed and unsigned numbers) The Hashemite University 16

Number Format and Arithmetic Operations In life we are working with: We need special representation for floating point numbers since computers deals with fixed size numbers represented in binary. Many standards exist to represent real numbers in binary, e. g. NIST, IEEE 754 standard. Arithmetic operations: Integer numbers: no fractions. Real numbers: a floating point exists. Addition. Subtraction. Multiplication. Division. In this lecture we will deal with addition and subtraction (only) for signed and unsigned Integer numbers and floating point numbers in ordinary representation (contain radix point as we write in daily life). The Hashemite University 17

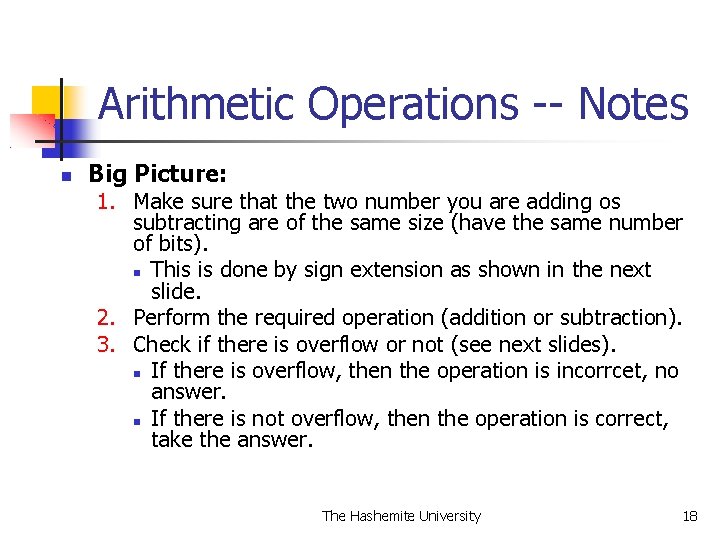

Arithmetic Operations -- Notes Big Picture: 1. Make sure that the two number you are adding os subtracting are of the same size (have the same number of bits). This is done by sign extension as shown in the next slide. 2. Perform the required operation (addition or subtraction). 3. Check if there is overflow or not (see next slides). If there is overflow, then the operation is incorrcet, no answer. If there is not overflow, then the operation is correct, take the answer. The Hashemite University 18

Sign Extension Concept I If you are given the following two unsigned numbers to be added which they are not of equal number of bits what will you do? 11101 + 00111010 Sol: Remember in the unsigned system there is no –ve numbers. So, to reserve the value of the number you must add zeros to the left of the number (since they have no value) So it becomes 00011101 The Hashemite University 19

Sign Extension Concept II If you are given the following two signed numbers (using the 2’s complement) to be added which they are not of equal number of bits what will you do? 11101 + 00111010 Sol: 11101 is a –ve number since MSB = 1. you must extend the sign bit to reserve the sign of the number. So it becomes 11111101 The Hashemite University 20

Overflow Arithmetic operation may not obtain the correct answer in some cases. This happens when the result is out of range that the reserved bits can represent. For example, when 8 -bit binary code is used to represent a number in the 2’s complement system, the range of numbers that can be represented is from -128 to +127. If the result of an operation lies outside this range, overflow occurs. Overflow occurs because of the finite precision arithmetic of the computer hardware. Computers checks for overflow and set a flag in case of over flow. The user can check this flag to know the current overflow status. The Hashemite University 21

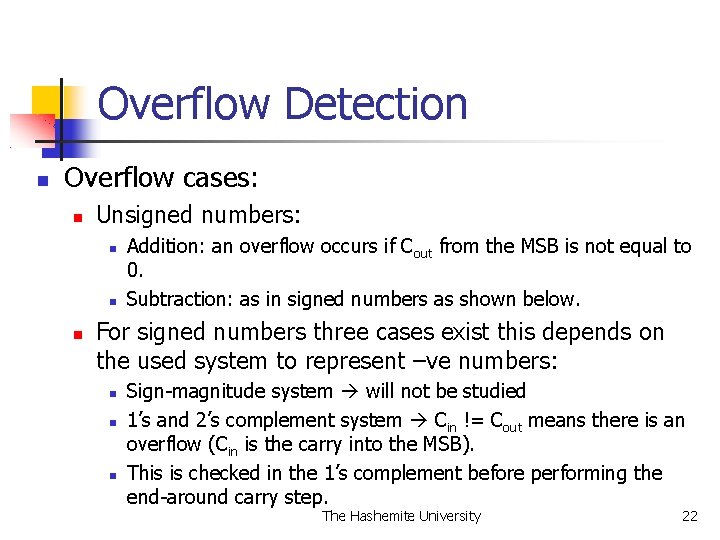

Overflow Detection Overflow cases: Unsigned numbers: Addition: an overflow occurs if Cout from the MSB is not equal to 0. Subtraction: as in signed numbers as shown below. For signed numbers three cases exist this depends on the used system to represent –ve numbers: Sign-magnitude system will not be studied 1’s and 2’s complement system Cin != Cout means there is an overflow (Cin is the carry into the MSB). This is checked in the 1’s complement before performing the end-around carry step. The Hashemite University 22

Binary Addition and subtraction We will study them as follows: Unsigned Addition and subtraction: deal with unsigned number systems. Signed Addition and subtraction: deal with signed number systems both 1’s and 2’s complement systems. The Hashemite University 23

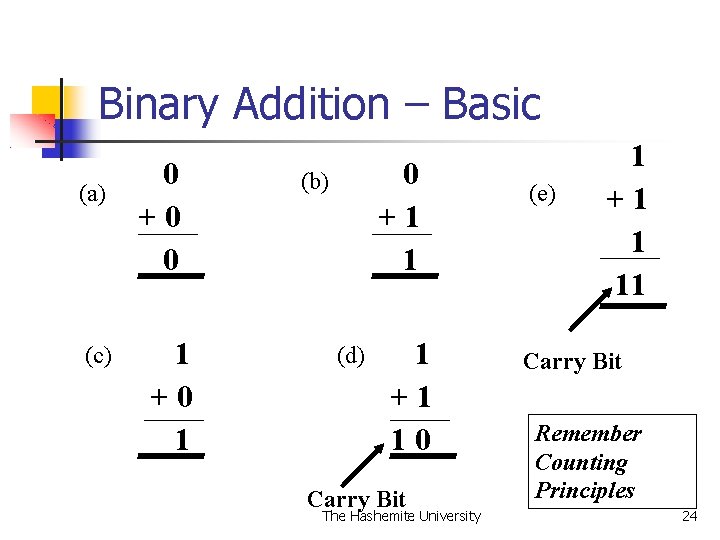

Binary Addition – Basic (a) (c) 0 +0 0 1 +0 1 0 +1 1 (b) (d) 1 +1 10 Carry Bit The Hashemite University (e) 1 +1 1 11 Carry Bit Remember Counting Principles 24

Unsigned Binary Addition -Examples All calculations are right, no overflow, (Cout = 0)!! 1011 + 1100 10111 (a) (d) 0101 + 1001 1110 (b) 1010 + 0100 1110 (c) 1011 + 0101 10000 1001 + 001011000101 (e) The Hashemite University 25

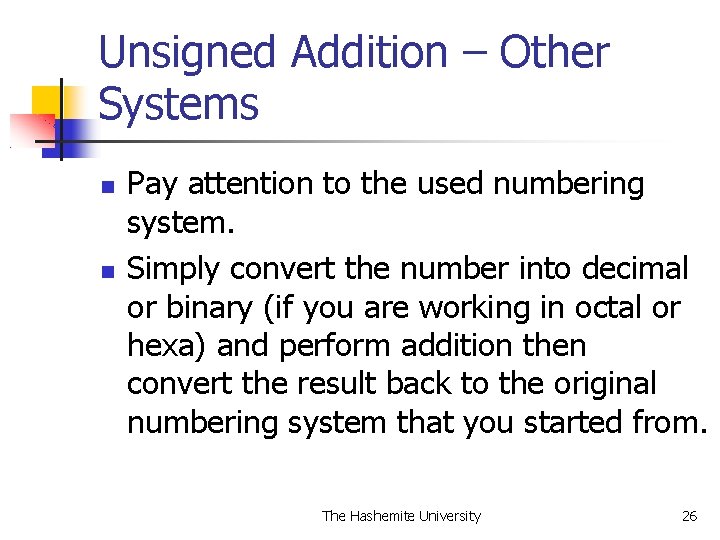

Unsigned Addition – Other Systems Pay attention to the used numbering system. Simply convert the number into decimal or binary (if you are working in octal or hexa) and perform addition then convert the result back to the original numbering system that you started from. The Hashemite University 26

Unsigned Binary Subtraction I All subtraction operations can be converted into addition by taking complements (to reserve the simplicity rule): A – B = A + (-B) Remember we are dealing with unsigned numbers (no –ve numbers). So, (-B) in the above example is the complement of B not the –ve quantity of B. Such general rule is applied for all numbering systems. The Hashemite University 27

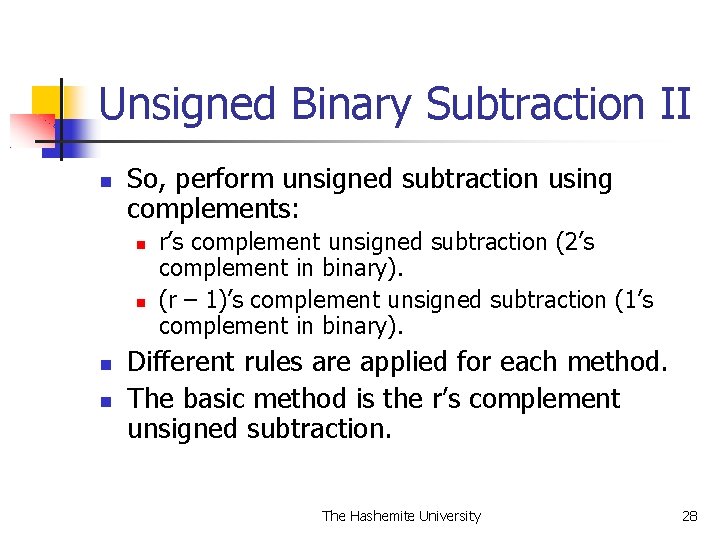

Unsigned Binary Subtraction II So, perform unsigned subtraction using complements: r’s complement unsigned subtraction (2’s complement in binary). (r – 1)’s complement unsigned subtraction (1’s complement in binary). Different rules are applied for each method. The basic method is the r’s complement unsigned subtraction. The Hashemite University 28

r’s Complement Unsigned Subtraction To subtract M – N: Find the r’s complement of N and add it to M. If a carry out produced then it must be discarded which means that M >= N. If no carry out produced this means that M < N, in this case the result of the subtraction is – (N – M), i. e. –ve of the difference. So, find the r’s complement of the result and place a – sign in front of it. The Hashemite University 29

Examples I Ex. 1: Compute 2510 – 2510 using 2’s complement, n = 8. 000110012 = (2510) + 111001112 = (-2510) -------------100002 = (010) discard The calculation is right, no overflow, (Cin = Cout)!! The Hashemite University 30

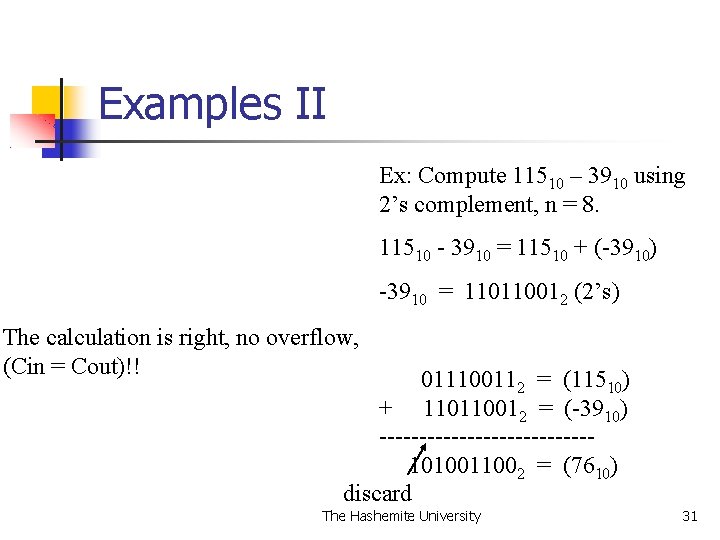

Examples II Ex: Compute 11510 – 3910 using 2’s complement, n = 8. 11510 - 3910 = 11510 + (-3910) -3910 = 110110012 (2’s) The calculation is right, no overflow, (Cin = Cout)!! 011100112 = (11510) + 110110012 = (-3910) -------------1010011002 = (7610) discard The Hashemite University 31

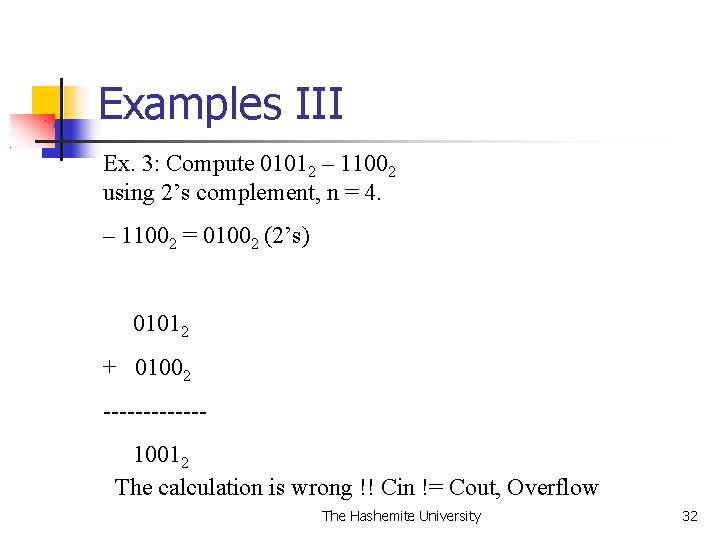

Examples III Ex. 3: Compute 01012 – 11002 using 2’s complement, n = 4. – 11002 = 01002 (2’s) 01012 + 01002 ------10012 The calculation is wrong !! Cin != Cout, Overflow The Hashemite University 32

Examples IV Ex. 4: Compute 00012 – 01102 using 2’s complement, n = 4. – 01102 = 10102 (2’s) 00012 + 10102 The calculation is right, no overflow, (Cin = Cout)!! ------10112 => no carry out The answer is the 2’s complement of 1011= - (0101) The Hashemite University 33

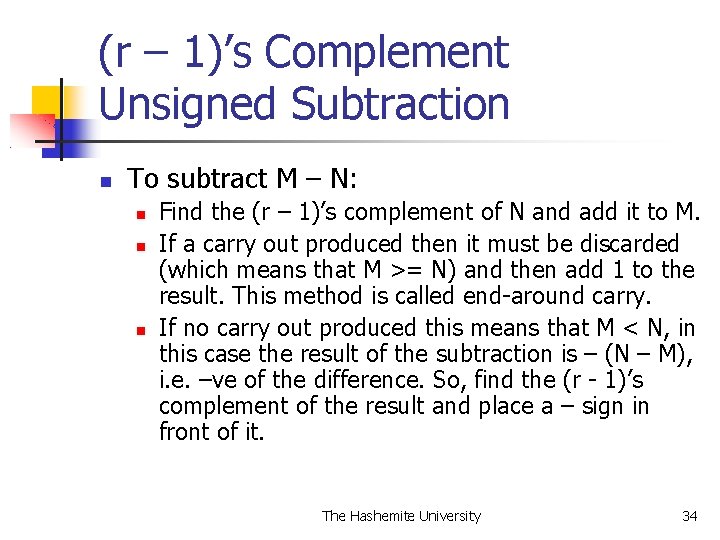

(r – 1)’s Complement Unsigned Subtraction To subtract M – N: Find the (r – 1)’s complement of N and add it to M. If a carry out produced then it must be discarded (which means that M >= N) and then add 1 to the result. This method is called end-around carry. If no carry out produced this means that M < N, in this case the result of the subtraction is – (N – M), i. e. –ve of the difference. So, find the (r - 1)’s complement of the result and place a – sign in front of it. The Hashemite University 34

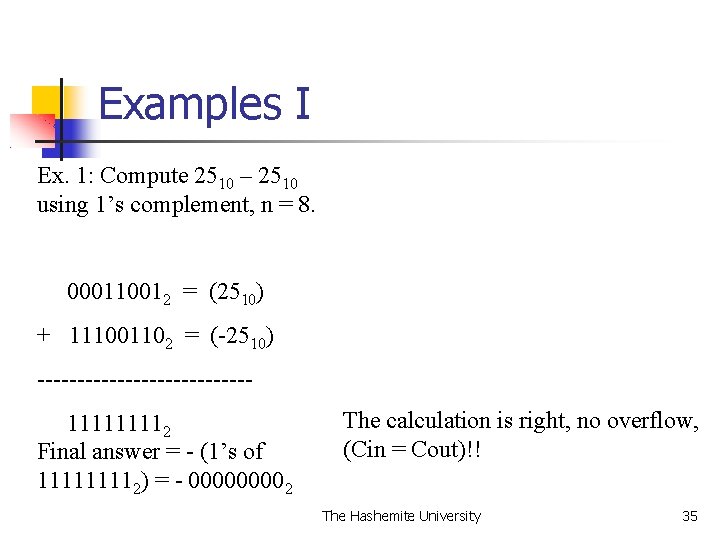

Examples I Ex. 1: Compute 2510 – 2510 using 1’s complement, n = 8. 000110012 = (2510) + 111001102 = (-2510) -------------11112 Final answer = - (1’s of 11112) = - 00002 The calculation is right, no overflow, (Cin = Cout)!! The Hashemite University 35

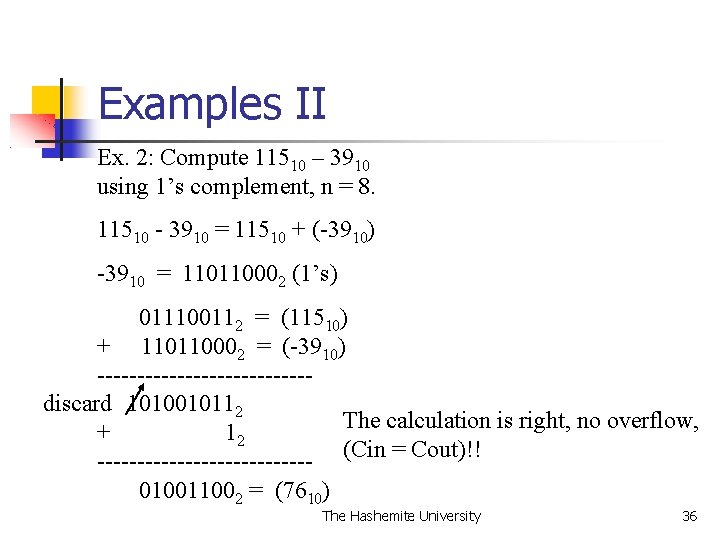

Examples II Ex. 2: Compute 11510 – 3910 using 1’s complement, n = 8. 11510 - 3910 = 11510 + (-3910) -3910 = 110110002 (1’s) 011100112 = (11510) + 110110002 = (-3910) -------------discard 1010010112 The calculation is right, no overflow, + 12 (Cin = Cout)!! -------------010011002 = (7610) The Hashemite University 36

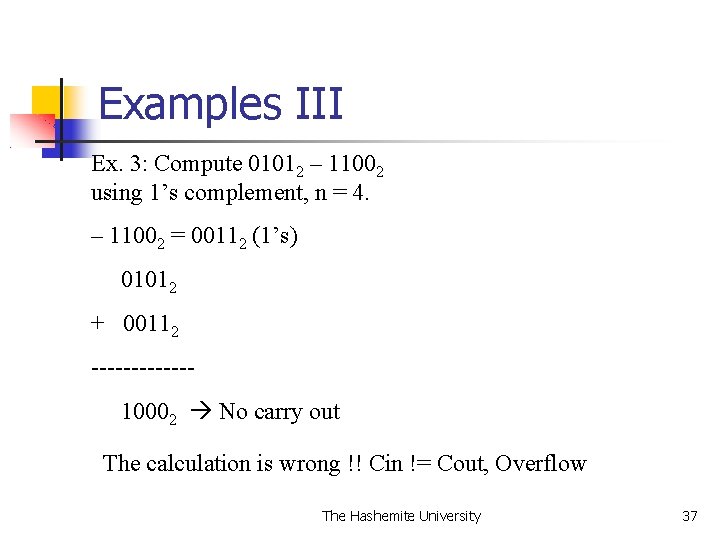

Examples III Ex. 3: Compute 01012 – 11002 using 1’s complement, n = 4. – 11002 = 00112 (1’s) 01012 + 00112 ------10002 No carry out The calculation is wrong !! Cin != Cout, Overflow The Hashemite University 37

Example IV Ex. 4: Compute 112 – 10. 112 using 2’s complement where n = 8. – 00000010. 112 = 11111101. 012 (2’s) 00000011. 002 + 11111101. 012 ------discard 10000. 012 The calculation is right, no overflow, (Cin = Cout)!! The Hashemite University 38

Examples V Ex. 5: Compute 00012 – 01102 using 1’s complement, n = 4. – 01102 = 10012 (1’s) 00012 + 10012 The calculation is right, no overflow, (Cin = Cout)!! ------10102 => no carry out The answer is the 1’s complement of 1011= - (0100) The Hashemite University 39

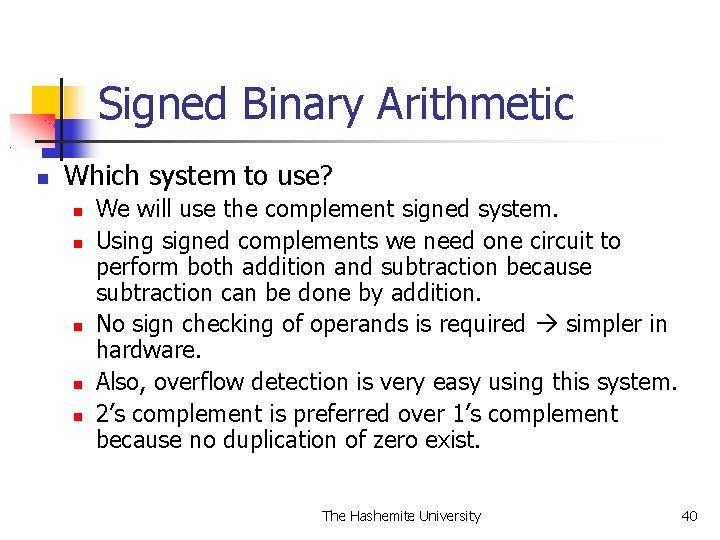

Signed Binary Arithmetic Which system to use? We will use the complement signed system. Using signed complements we need one circuit to perform both addition and subtraction because subtraction can be done by addition. No sign checking of operands is required simpler in hardware. Also, overflow detection is very easy using this system. 2’s complement is preferred over 1’s complement because no duplication of zero exist. The Hashemite University 40

2’s Complement Signed Binary Addition Represent –ve numbers in 2’s complement (if not already in binary). Add numbers and if a carry out obtained discard it. If the result is –ve (i. e. the MSB is 1) then it is in the 2’s complement form. The Hashemite University 41

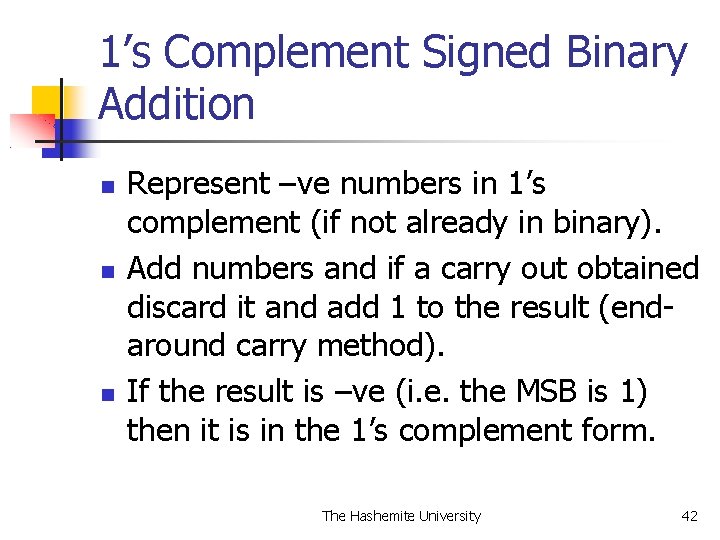

1’s Complement Signed Binary Addition Represent –ve numbers in 1’s complement (if not already in binary). Add numbers and if a carry out obtained discard it and add 1 to the result (endaround carry method). If the result is –ve (i. e. the MSB is 1) then it is in the 1’s complement form. The Hashemite University 42

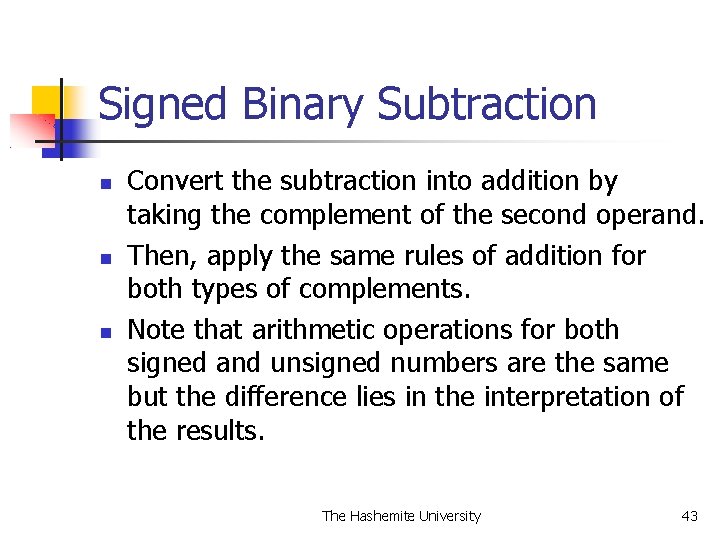

Signed Binary Subtraction Convert the subtraction into addition by taking the complement of the second operand. Then, apply the same rules of addition for both types of complements. Note that arithmetic operations for both signed and unsigned numbers are the same but the difference lies in the interpretation of the results. The Hashemite University 43

Example I Find the following using 2’s complement (signed): 115 - 39 = 115 + (-39) Second: perform subtraction using 2’s complement: First: convert into binary 01110011 = (115) 115(10) = 01110011(2) (2‘s) + 11011001 = (-39) -39(10) = 11011001(2) (2’s) -------------discard 101001100 = (76) The calculation is right, no overflow, (Cin = Cout)!! The Hashemite University 44

Example II Find the following using 2’s complement (signed): 68 + 39 Second: add using 2’s complement: 0100 = (68) First: convert into binary: + 01100011 = (99) 68(10) = 0100(2) (2‘s) -------------- 99(10) = 01100011(2) (2’s) 10100111 = (-89) The calculation is wrong !! Cin != Cout The actual answer (i. e. 167) exceeds the largest limit (i. e. 127) =>OVERFLOW The Hashemite University 45

Example III Find the following using 2’s complement (signed): -78 - 52 = (-78) + (-52) Second: subtract using 2’s complement : 10110010 = (-78) First: convert into binary: + 1100 = (-52) -78(10) = 10110010(2) (2‘s) -------------- -52(10) = 1100(2) (2’s) discard 101111110 = (126) The calculation is wrong !! Cin != Cout overflow The Hashemite University 46

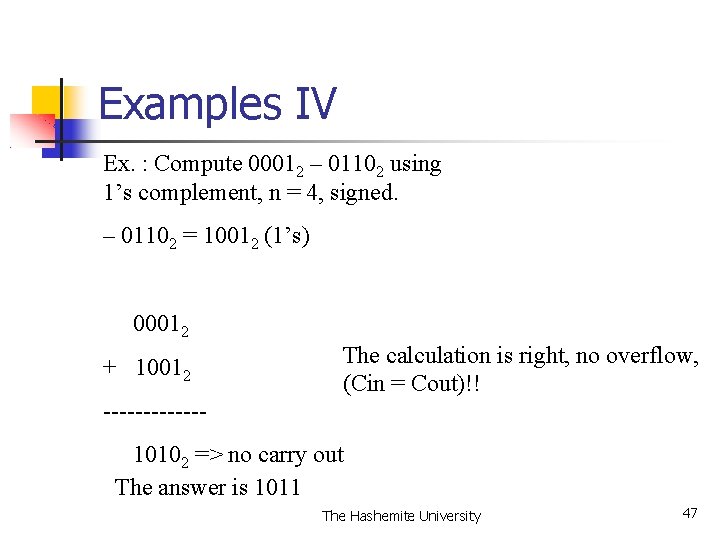

Examples IV Ex. : Compute 00012 – 01102 using 1’s complement, n = 4, signed. – 01102 = 10012 (1’s) 00012 + 10012 The calculation is right, no overflow, (Cin = Cout)!! ------10102 => no carry out The answer is 1011 The Hashemite University 47

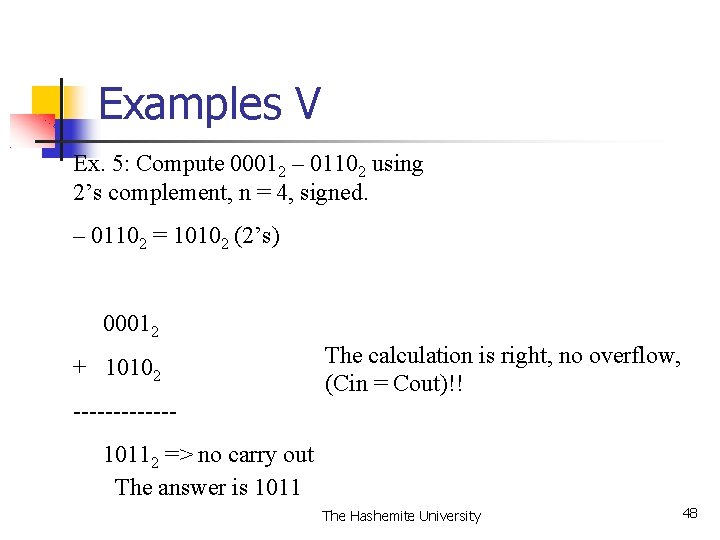

Examples V Ex. 5: Compute 00012 – 01102 using 2’s complement, n = 4, signed. – 01102 = 10102 (2’s) 00012 + 10102 The calculation is right, no overflow, (Cin = Cout)!! ------10112 => no carry out The answer is 1011 The Hashemite University 48

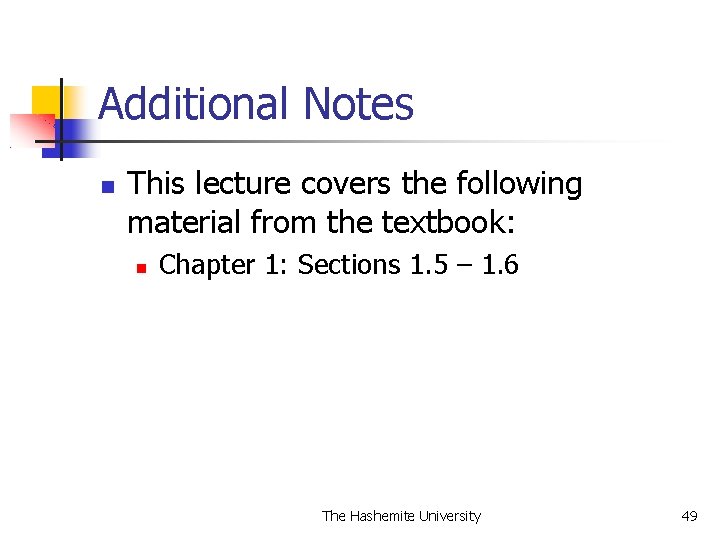

Additional Notes This lecture covers the following material from the textbook: Chapter 1: Sections 1. 5 – 1. 6 The Hashemite University 49
