Digital Library Architecture and Technology Outline DL architecture

Digital Library Architecture and Technology

Outline DL architecture ¢ Building blocks of DLs ¢ DL models ¢ Components of DLs ¢ DL open source software ¢ Modern features in digital library architectures ¢ 2

Introduction ¢ ¢ ¢ 3 DLs contain a variety of materials, technologies, services and standards The Web itself, LIS centres as well as database providers and vendors are all examples of information services that can play a role in DLs Digital library architectures provide a view of the underlying structures and frameworks on which DLs are built

Conceptual design of a digital library E-journals Search interfaces Online databases Search interfaces Remote digital libraries Search interfaces Library resources WWW Search engines& directories Local digital library Search interface OPACs Digital library interface Users 4 Chowdhury (2002) Introduction to digital libraries…

Components of a DL system Arms (1997) names the following components for digital libraries: ¢ User interfaces ¢ Repository ¢ Handle system ¢ Search system 5

6 Arms et al. An Architecture for Information in Digital Libraries. D-Lib Magazine, February 1997.

User interfaces User interface for end-users to get access to the library and its collections ¢ User interface for librarians and system administrators who manage collections ¢ 7

8

Repository ¢ ¢ 9 Repositories store and manage digital objects and other information. A large digital library may have many repositories of various types, including modern repositories, legacy databases, and Web servers. The repository access protocol (RAP). Is used to recognize the rights and permissions that need to be satisfied before a client can access a digital object.

Handle system ¢ ¢ 10 Handles are general purpose identifiers that can be used to identify digital objects, over long periods of time and to manage materials stored in any repository or database. DOI: Digital Object Identifiers Example: 10. 1234/NP 5678 10. 5678/ISBN-0 -7645 -4889 -4 Persistent Uniform Resource Locator (PURL) developed by OCLC – names the location of an object

11

Search system ¢ ¢ ¢ 12 There will be many indexes and catalogs in a digital library that can be searched to discover information before retrieving it from a repository. These indexes may be independently managed and support a wide range of protocols. Databases, information retrieval systems, and content management systems are examples

CRADDL architecture ¢ 13 Cornell Reference Architecture for Distributed Digital Libraries (CRADDL - pronounced "cradle"), a set of components that form the core of a digital library infrastructure.

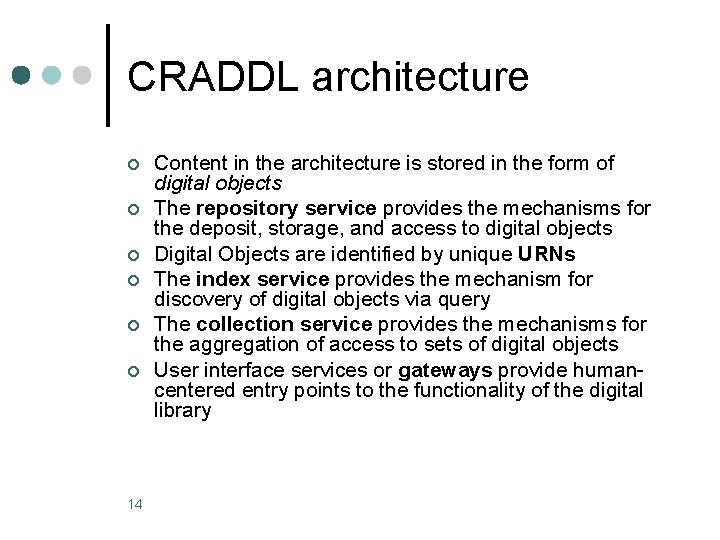

CRADDL architecture ¢ ¢ ¢ 14 Content in the architecture is stored in the form of digital objects The repository service provides the mechanisms for the deposit, storage, and access to digital objects Digital Objects are identified by unique URNs The index service provides the mechanism for discovery of digital objects via query The collection service provides the mechanisms for the aggregation of access to sets of digital objects User interface services or gateways provide humancentered entry points to the functionality of the digital library

15 CRADDL services

Components of a Digital Library Collection Services Name Service User Interface Gateway Persistent NAMES Index Services Digital Objects 16 Repository Services

Alexandria DL architecture One of the six projects funded under the Digital Libraries Initiative (DLI), ¢ A digital library of geospatial information, based at the University of California, Santa Barbara ¢ Several databases, gazetteers and thesaurus ¢ Sophisticated architecture ¢ 17

18 Alexandria Digital Library

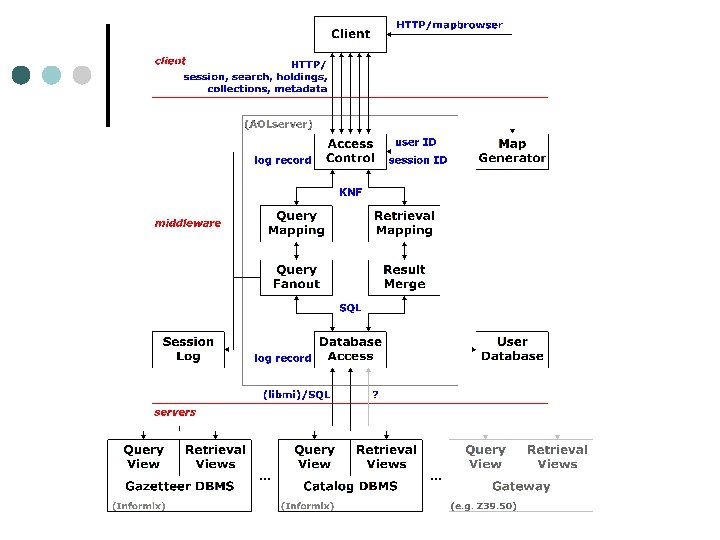

Alexandria DL architecture ¢ A three-tier model consisting of: Servers l Middleware l Clients l 19

Alexandria DL architecture Servers: maintain collections of metadata describing the library’s holdings and for implementing query and retrieval mechanisms ¢ Middleware: performs standard service on these collections ¢ Clients: search sessions, list the library collections, retrieve metadata, and holdings ¢ 20

21

22

DL open source software Greenstone ¢ Fedora ¢ D-space ¢ Eprint ¢ 23

Greenstone An open-source multilingual application developed by the New Zealand Digital Library Project at the University of Waikato ¢ Developed and distributed in cooperation with UNESCO and the Human Info NGO. ¢ 24

Greenstone features Accessible through web browsers ¢ Full text and fielded search ¢ Browsing facilities ¢ Facility to add DC metadata ¢ Multimedia collections ¢ Can support millions of documents ¢ Collections can be published on CDROM ¢ 25

Fedora ¢ ¢ ¢ 26 Flexible tools for managing and delivering digital content. Jointly developed by Cornell University and the University of Virginia Library National Science Digital Library (NSDL) uses Fedora It supports the DC metadata format It can run on My. SQL and Oracle

DSpace digital repository system ¢ ¢ ¢ 27 Jointly developed by MIT Libraries and Hewlett-Packard Labs Stores, indexes, preserves, and distributes digital research material. Various applications: Institutional Repositories, Learning Object Repositories (LORs), e. Theses , Electronic Records Management (ERM), Digital Preservation, Publishing

EPrints ¢ ¢ 28 Was developed at the University of Southampton, released in late 2000 The objective was to facilitate open access to peer-reviewed research and scholarly literature EPrints serves as an archive for other electronic documents such as images and audio. Currently installed in more than 241 institution.

Modern Features in Digital Library Architectures 29

Social networking sites Social networking, bookmarking and tagging ¢ Reviews ¢ Recommendation features ¢ Citation and reference linking ¢ Bibliometric tools ¢ 30

share Bookmark Tag Write reviews Hull, D. , Pettifer, S. R. , and Kell, D. B. (2008). Defrosting the digital library: Bibliographic tools for the next generation web. PLo. S Comput Biol, 4(10): e 1000204+.

Tag 1 Tag 2 Tag 3 Users interact with resources and create tags Tag 1 Tag 2 Tag 3

Videoblogging and sharing Photo sharing Social networks Social Tagging Environment Bookmarking Slide sharing Academic bookmarking

34

35

36

37

38

39

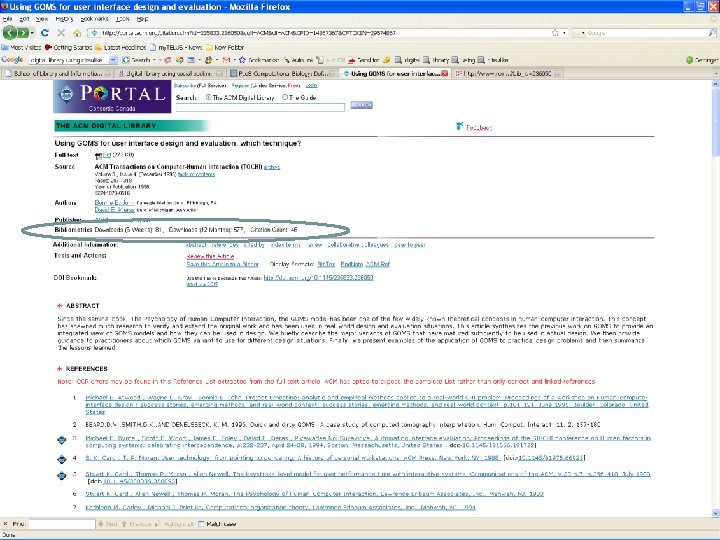

Citation linking 40

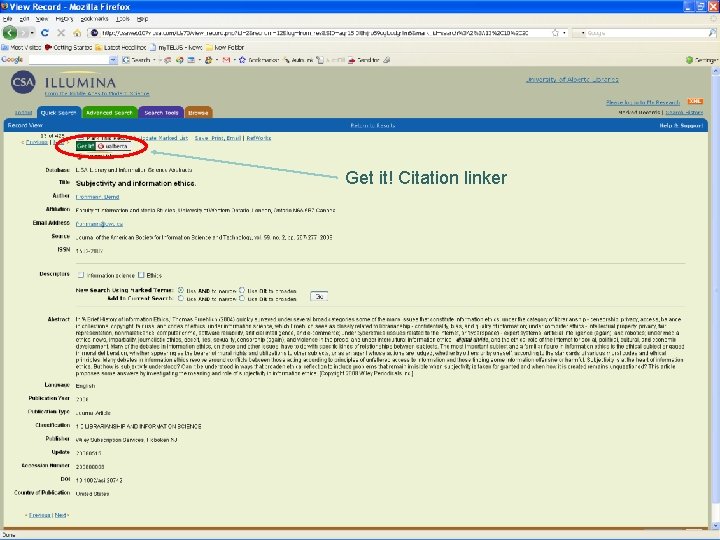

Get it! Citation linker 41

42

Examples ¢ ¢ Greenstone: http: //www. greenstone. org/examples Fedora: l l ¢ DSpace l l l ¢ U of A: http: //repository. library. ualberta. ca/dspace/index. jsp U of Wolverhampton(UK) : http: //wlv. openrepository. com/wlv/ Queen’s University: https: //qspace. library. queensu. ca EPrints l l l 43 Tufts University: http: //dl. tufts. edu/ University of Viginia: http: //www. lib. virginia. edu/digital/collections/ British Library: http: //sherpa. bl. uk/ E-LIS: http: //eprints. rclis. org/ History and Theory of Psychology: http: //htpprints. yorku. ca/
