Digital Home www planet com tw Copyright PLANET
- Slides: 28
Digital Home www. planet. com. tw Copyright © PLANET Technology Corporation. All rights reserved.
Introduction l Digital Home Solution l Product Overview l Features & Comparison l Roadmap www. planet. com. tw 2 / 28

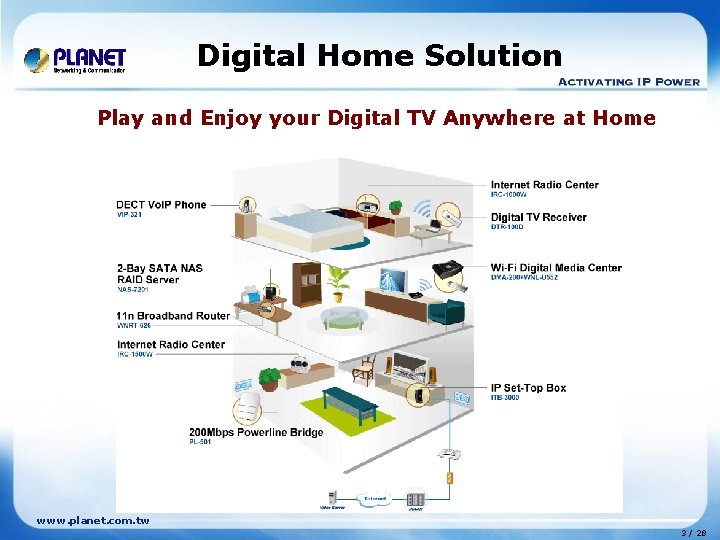

Digital Home Solution Play and Enjoy your Digital TV Anywhere at Home www. planet. com. tw 3 / 28
Product Overview www. planet. com. tw
Product Overview Model Description l DTR-100 D USB 2. 0 Digital TV Receiver (DVB-T) l DTR-100 DB USB 2. 0 Digital TV Receiver (ISDB-T) l DMA-200 l ITB-3000 Digital Media Center (HDMI, DLNA, Multi–Language) IP Set-Top Box (Vo. D, Full HD TV [1080 p]) www. planet. com. tw 5 / 28
Features DTR-100 D USB 2. 0 Digital TV Receiver (DVB-T) Ø Product Feature n Compliant Digital Video Broadcasting- Terrestrial Standard (ETS 300 744) n Complaint USB 2. 0 n Real Time Digital Video Recording (MPEG- 2) DTR-100 D (DVB-T) n HDTV Quality n Includes Antenna / Remote Controller Ø Utility Feature n Schedule Recoding n Support Time-Shifting / EPG / Teletext / Subtitle n Snap Shot in JPEG format n Multi-Channel Preview n Multiple 10 countries language www. planet. com. tw 6 / 28
Features DTR-100 DB USB 2. 0 Digital TV Receiver (ISDB-T) Ø Product Feature n Watch Digital TV on your PC/NB n Fully Resizable TV (Up to Full Screen) n ISDB-T, 1 Segment QVGA format by H. 264/ AVC (ISO/IEC 14496 -10) n MPEG-2 AAC (ISO/IEC 13818 -7) n Compliant with USB Specification Rev 2. 0 Ø DTR-100 DB (ISDB-T) Utility Feature n Real Time & Schedule Digital Video Recording n EPG & Subtitle (L-EIT Standard) n BML (Broadcasting Markup Language) & Time-Shifting n Channel auto scan & Image Snapshots (JPG, BMP) n Multiple language (English, Portuguese) www. planet. com. tw 7 / 28
Features DMA-200 Digital Media Center Ø Built in HDMI / Composite (CVBS) / S-Video / Component video output Ø Built in coaxial digital audio output Ø Throughput up to 10 / 1000 Mbps linked with Ethernet network cable Ø Instant access video, music, and photo on External USB devices via a built-in USB 2. 0 connector Ø UPn. P AV and DLNA (Digital Living Network Alliance) compliant for maximum compatibility Ø Support DHCP and Fixed IP for easily connects to your home networking Ø Multi-Media format / Playlist on TV Ø Multi–Language Function Ø Internet radio on stereo system Ø Surfing Internet on TV Simply Ø Bit Torrent Downloading DMA-200 (HDMI, LDNA) www. planet. com. tw 8 / 28
Application Share Digital Media over Home Network www. planet. com. tw 9 / 28
Application Multi-applications with PC and UPn. P devices My Network Neighborhood Digital Web Surfing Media Server Internet Radio BT Download You. Tube …. . USB DLNA UPn. P AV www. planet. com. tw 10 / 28
Product Comparison PLANET DMA-200 Zyxel DMA-1000 D-Link DPG-1200 Model Hardware Ethernet ports 1 x 10/1000 Mbps Wireless External USB Wi-Fi NIC (IEEE 802. 11 b/g/n) - IEEE 802. 11 g 1 x USB 2. 0 host - Networking Storage 1 x 10/100 Mbps Video Output Composite RCA Video x 1 S-Video x 1 HDMI x 1 VGA Video (D-Sub) x 1 Component Video x 1 Composite A/V x 1 Audio Output Audio RCA L/R x 1 S/PDIF (Coaxial) x 1 Audio RCA L/R x 1 HDMI– 1080 P S-Video– 720 p HDMI – 720 p Composite/S-Video– 576 i I/O Max Resolution Video – 720 x 576 Photo – 1280 x 720 Remote control V V V Mouse/Keyboard V - - www. planet. com. tw 11 / 28

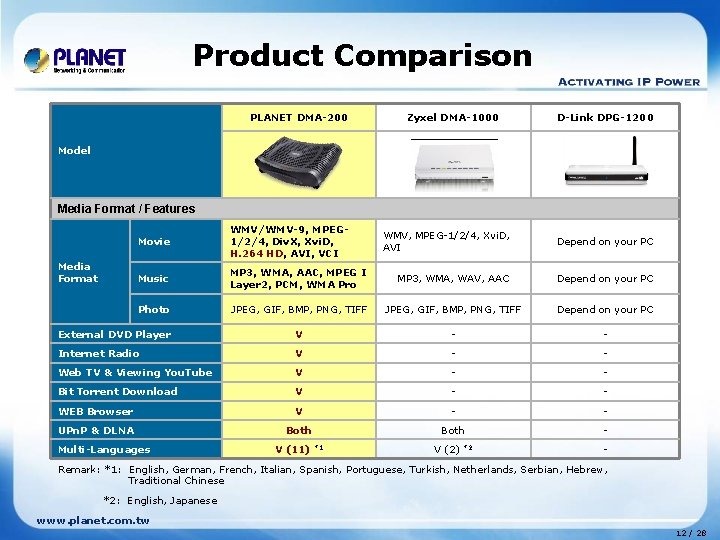

Product Comparison PLANET DMA-200 Zyxel DMA-1000 D-Link DPG-1200 Model Media Format / Features Movie WMV/WMV-9, MPEG 1/2/4, Div. X, Xvi. D, H. 264 HD, AVI, VCI Music Photo WMV, MPEG-1/2/4, Xvi. D, AVI Depend on your PC MP 3, WMA, AAC, MPEG I Layer 2, PCM, WMA Pro MP 3, WMA, WAV, AAC Depend on your PC JPEG, GIF, BMP, PNG, TIFF Depend on your PC External DVD Player V - - Internet Radio V - - Web TV & Viewing You. Tube V - - Bit Torrent Download V - - WEB Browser V - - UPn. P & DLNA Both - Media Format Multi-Languages V (11) *1 V (2) *2 - Remark: *1: English, German, French, Italian, Spanish, Portuguese, Turkish, Netherlands, Serbian, Hebrew, Traditional Chinese *2: English, Japanese www. planet. com. tw 12 / 28
Features ITB-3000 W High Definition IP Set-Top Box Ø Video-on-Demand multicast IPTV Ø UPn. P and DLNA compliant Ø Built in Full HD HDMI / Composite (CVBS) / S-Video / Component video output Ø Built in coaxial digital audio output Ø Throughput up to 10 / 1000 Mbps linked with Ethernet network cable Ø Electronic Program Guide and Digital rights management Ø Personal Video Recording Ø Surfing Internet on TV Simply ITB-3000 (Full HD TV [1080 P]) www. planet. com. tw 13 / 28
Features DECT Phone www. planet. com. tw
DECT Phones Product Overview Model DECT Voice AP Router DECT Phone VIP-462 DG VIP-321 1 FXS, 1 PSTN, 1 DECT 2 2 LAN 4 1 WAN 1 1 V (IEEE 802. 11 b/g) - V V Item Voice Interface Vo. IP voice Channel Ethernet Wireless NAT IP Sharing www. planet. com. tw 15 / 28
Features VIP-462 DG 802. 11 g SIP DECT Vo. IP Router Ø SIP 2. 0 (RFC 3261) compliant Ø DECT and GAP compatible Ø Base can register up to 5 DECT handsets Ø 802. 11 g 54 Mbps WLAN AP support Ø NAT firewall, SPI, Qo. S, DMZ/Virtual server Ø DECT Intercom call during external call , call transfer and three-way telephone meeting between handsets Ø 100 hours standby time, 10 hours talking time Ø DECT transmission up to 50 m indoor / 300 m outdoor VIP-462 DG, DCT-100 (FXS x 1, PSTN x 1, DECT x 1) www. planet. com. tw 16 / 28
Features VIP-321 DECT Vo. IP Phone Ø SIP 2. 0 (RFC 3261) compliant Ø Graphical display backlight LCD for DECT handsets Ø Base can register up to 5 DECT handsets Ø Up to 2 concurrent Vo. IP calls Ø G. 723. 1 / G. 729 ab / G. 711 voice codec Ø PPPo. E/ DHCP/ Fixed IP allocation Ø DECT Intercom call during external call, call transfer, call waiting, call forward and threeway telephone meeting between handsets Ø 100 hours standby time, 10 hours talking time Ø DECT transmission up to 50 m indoor / 300 m outdoor VIP-321 (PSTN x 1, DECT x 1) www. planet. com. tw 17 / 28

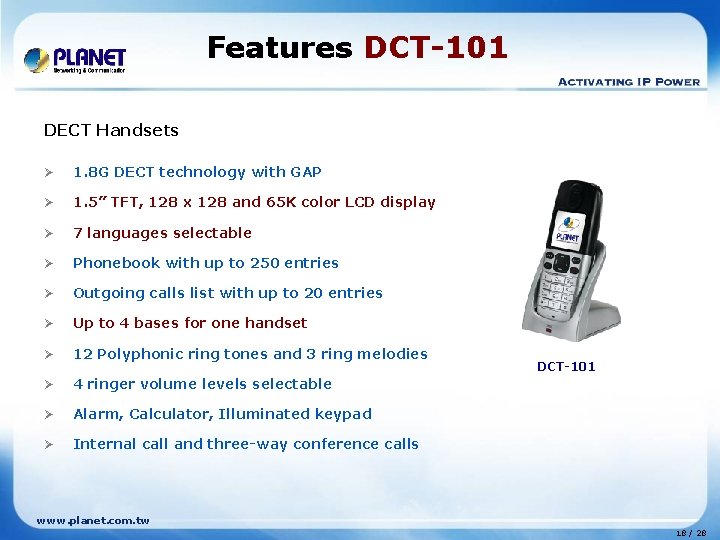

Features DCT-101 DECT Handsets Ø 1. 8 G DECT technology with GAP Ø 1. 5” TFT, 128 x 128 and 65 K color LCD display Ø 7 languages selectable Ø Phonebook with up to 250 entries Ø Outgoing calls list with up to 20 entries Ø Up to 4 bases for one handset Ø 12 Polyphonic ring tones and 3 ring melodies Ø 4 ringer volume levels selectable Ø Alarm, Calculator, Illuminated keypad Ø Internal call and three-way conference calls DCT-101 www. planet. com. tw 18 / 28
DECT Phone Application www. planet. com. tw 19 / 28
Features Home. Plug www. planet. com. tw
Features Powerline Model USB to Powerline Network Adapter Powerline to Ethernet Bridge Home. Plug AV PL-104 U PL-420 PL-201 PL-501 Plastic Direct Attached Power Cord Direct Attached 1 4 1 1 56 -bit DES encryption 128 -bit AES encryption 14 Mbps 85 Mbps 200 Mbps Feature Housing Power Connection Type Network LAN Interface (10/100 Mbps RJ-45) Powerline Encryption Data Rate www. planet. com. tw 21 / 28
Features PL-501 200 M Powerline Ethernet Bridge Ø Direct attached to power outlets Ø Home. Plug AV compliant Ø Co-existence with Home. Plug 1. 0 and Home. Plug 1. 0 Turbo Ø Connect 10/100 Ethernet network to Powerline network Ø Up to 200 Mbps data rate on the powerline Ø Up to 200 meters between powerline nodes Ø 128 -Bit AES link Encryption for security and reliability Ø Built-in Qo. S Ø Throughout the whole house, just use your power circuit to access the Internet or PC network Ø 64 bridged devices per station Ø IGMP snooping for multicast to multiple un-cast mapping PL-501 www. planet. com. tw 22 / 28
Product Comparison PLANET PL-501 AZTech HL 108 E Netgear HDX 101 Intellon INT 6400 Intellon INT 6000 DS 2 Host connecting type Ethernet Host connecting port 1 x RJ-45 Direct Attached 200 Mbps Co-Exists with 14/85 Mbps V V - Security V V V Qo. S V V - Home use Model Chipset Power connecting type Speed Application www. planet. com. tw 23 / 28
Features PL-201 85 M Powerline Ethernet Bridge Ø Direct attached to power outlets Ø Home. Plug Powerline Specification 1. 0 Turbo compliant Ø Connects 10/100 Ethernet network to Powerline network Ø Up to 85 Mbps data rate on the powerline Ø Up to 200 meters between powerline nodes Ø 56 -bit DES encryption to ensure data security and reliability Ø Support High-speed Internet and DVD-quality video streaming PL-201 www. planet. com. tw 24 / 28
Application l Turn existing home/office’s power lines into 85 or 200 Mbps LAN 85 Mbps 200 Mbps www. planet. com. tw 25 / 28
Features PL-420 85 M Powerline to Ethernet Bridge with 4 -Port Switch Ø Home. Plug Powerline Specification 1. 0. 1 compliant Ø Up to 85 Mbps bandwidth over standard home power lines Ø Estimates range of 300 meters in wall power line Ø Worry-free passing through circuit breakers Ø Easy to manage by connection manager software (Utility) Ø IEEE 802. 3 / IEEE 802. 3 u Computer interface compliant Ø Network interface supports 10 Base-T / 100 Base-TX and Home. Plug Powerline Ø Plug-and-Play Installation Ø Internal Power Adapter for Power Supply Ø Utility supports Win 98 SE / ME / 2 K / XP and Mac OS 9 / 10 PL-420 Rear Panel LAN 100 ~ 240 V AC Power www. planet. com. tw 26 / 28
Features PL-104 U Powerline USB Adapter Ø Direct attached to power outlets Ø Fully comply with Home. Plug Powerline Alliance Specification 1. 0 Ø Up to 14 Mbps bandwidth on powerline interface Ø Up to 90 meters between powerline nodes Ø The high sensitivity allows the powerline signal to pass even there is a power meter between two nodes Ø 56 -bit DES encryption to ensure data security and reliability Ø Easy to use Windows-based security key configuration utility PL-104 U www. planet. com. tw 27 / 28
www. planet. com. tw
