DIGITAL HALFTONING Sasan Gooran Digital Halftoning Digital Images
- Slides: 47
DIGITAL HALFTONING Sasan Gooran Digital Halftoning

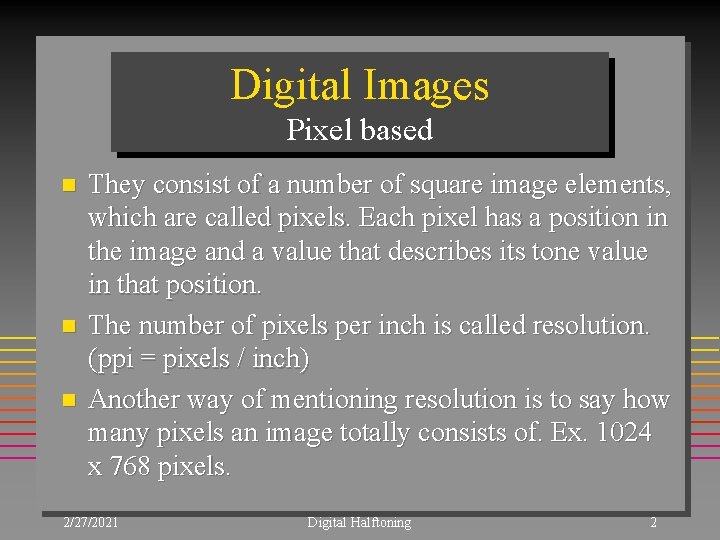

Digital Images Pixel based n n n They consist of a number of square image elements, which are called pixels. Each pixel has a position in the image and a value that describes its tone value in that position. The number of pixels per inch is called resolution. (ppi = pixels / inch) Another way of mentioning resolution is to say how many pixels an image totally consists of. Ex. 1024 x 768 pixels. 2/27/2021 Digital Halftoning 2
Digital Images Pixel based n Bit depth: Number of bits that are used in order to represent the tone value in computer. Commonly we use 256 levels of tone, i. e. Bit depth = 8. 2/27/2021 Digital Halftoning 3
Digital Images How much memory? bit/pixel n n n Line 1 Grayscale 8 Indexed color 8 RGB 3*8=24 CMYK 4*8=32 2/27/2021 2 tones 256 colors 256^3=16. 7 millions colors 256^4=4. 3 billions colors Digital Halftoning 4
Halftoning n Because printing is generally not able to reproduce different tones of a color, the original image has to be transformed to a binary image. This is called halftoning. 2/27/2021 Digital Halftoning 5
Halftoning Prepress 2/27/2021 Con-tone Image Halftoned Halftoning Image Digital Halftoning Print 6
Halftone cell Halftone dot The fractional area of the cell covered with ink is decided by the pixel value. (Or by the mean of the pixel values if the small square shown in the image to the left consists of more than one pixel). 2/27/2021 Digital Halftoning 7

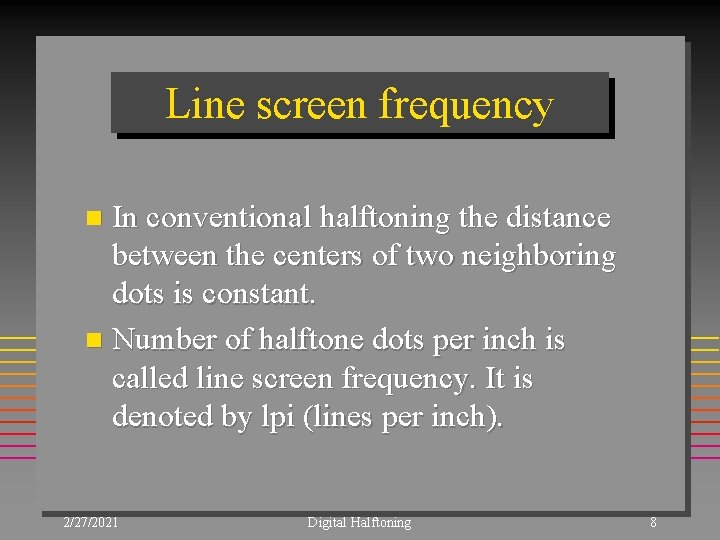

Line screen frequency In conventional halftoning the distance between the centers of two neighboring dots is constant. n Number of halftone dots per inch is called line screen frequency. It is denoted by lpi (lines per inch). n 2/27/2021 Digital Halftoning 8
Line screen frequency & Resolution Micro dot Resolution: number of micro dots per inch (dpi) Halftone cell In this case: 17 levels of gray 2/27/2021 Digital Halftoning 9
Levels of gray Ex, 600 dpi and 100 lpi gives 37 levels of gray Ex, 600 dpi and 75 lpi gives 65 levels of gray Ex, 600 dpi and 50 lpi gives 145 levels of gray Which one to choose? ? 2/27/2021 Digital Halftoning 10
lpi & ppi When scanning an image, for practical reasons and for better reproduction, you normally choose a ppi that is twice as high as lpi. n A sampling factor of 1. 5 is acceptable in most cases. n A sampling factor higher than 2 is unnecessary. n 2/27/2021 Digital Halftoning 11
Lpi & ppi Ex. If your original image is (24 x 36 mm) and you want the printed image to be (80 x 120) mm when lpi = 133, you should choose a ppi around 887 lines/inch. 2/27/2021 Digital Halftoning 12
AM and FM Halftoning n AM (Amplitude Modulated) Halftoning – The size of the dots varies while their frequency is kept constant. The darker the gray tone the bigger the dot. n FM (Frequency Modulated) Halftoning – The size of the dots is constant. Their frequency (number) is changed. The darker the gray tone the more the number of micro dots. 2/27/2021 Digital Halftoning 13
AM and FM Halftoning 2/27/2021 Digital Halftoning 14

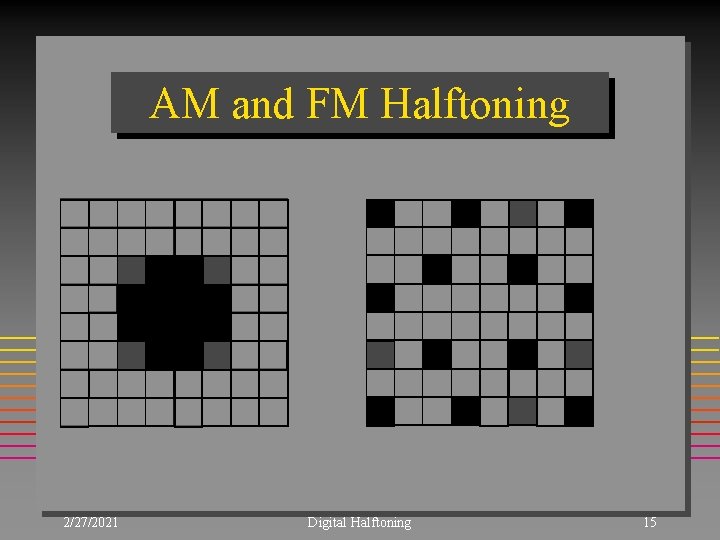

AM and FM Halftoning 2/27/2021 Digital Halftoning 15

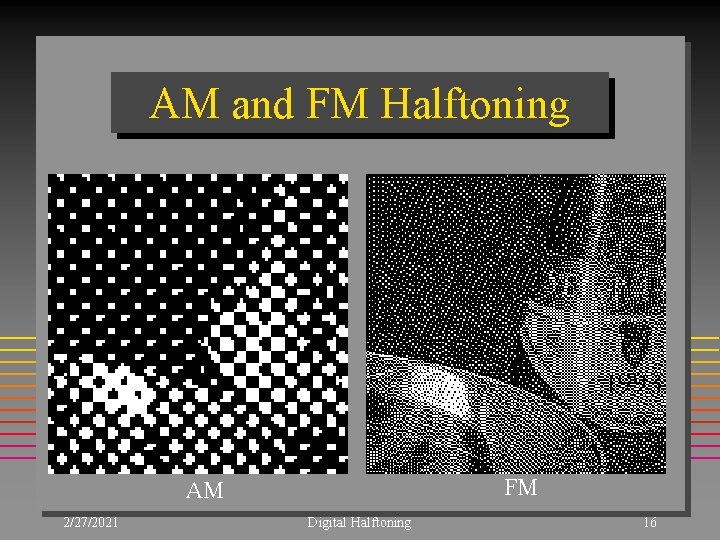

AM and FM Halftoning FM AM 2/27/2021 Digital Halftoning 16
Thresholding 0. 6 1 0. 3 0. 2 Original Image 0 Threshold matrix Halftoned Image This threshold matrix represents 10 levels of gray. 2/27/2021 Digital Halftoning 17

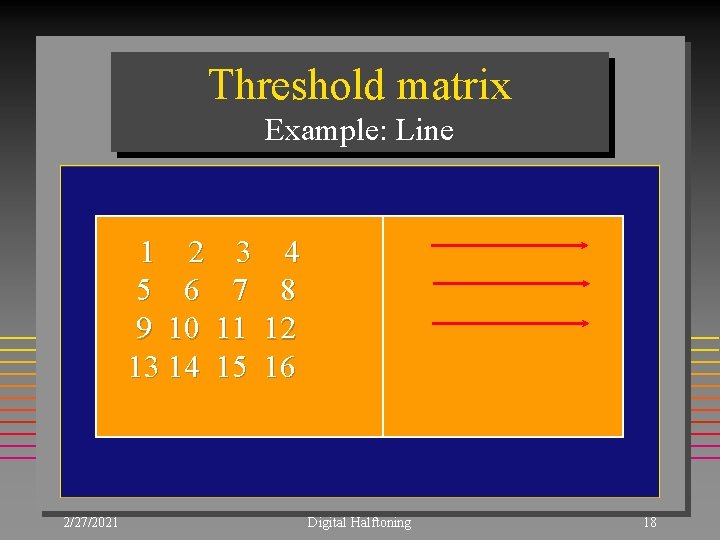

Threshold matrix Example: Line 1 2 5 6 9 10 13 14 2/27/2021 3 7 11 15 4 8 12 16 Digital Halftoning 18
Threshold Matrix Example: spiral 1 12 11 10 2/27/2021 2 13 16 9 3 14 15 8 4 5 6 7 Digital Halftoning 19

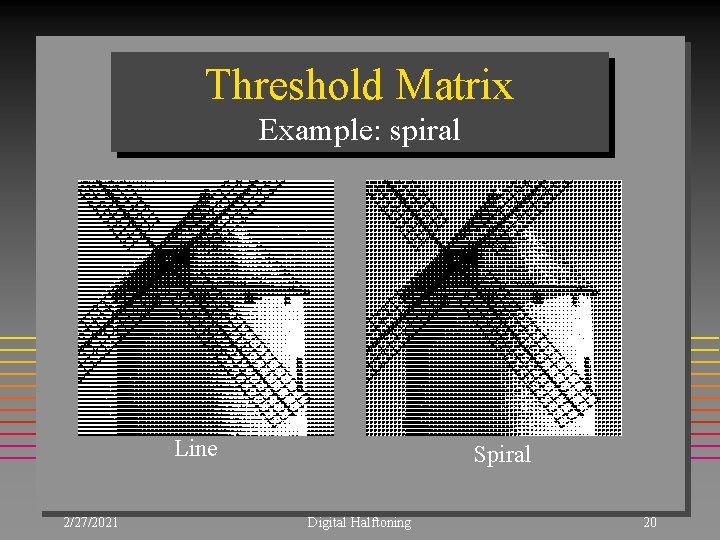

Threshold Matrix Example: spiral Line 2/27/2021 Spiral Digital Halftoning 20

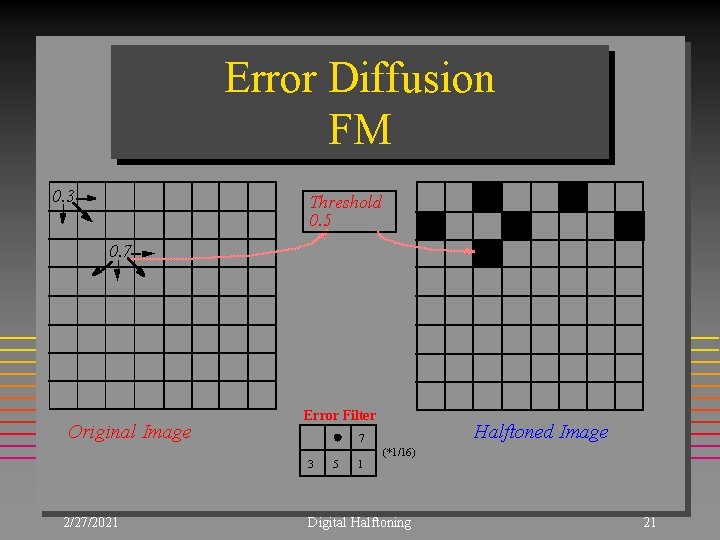

Error Diffusion FM 0. 3 Threshold 0. 5 0. 7 Original Image Error Filter 3 2/27/2021 Halftoned Image 7 5 1 (*1/16) Digital Halftoning 21
Error Diffusion FM 2/27/2021 Digital Halftoning 22
Hybrid Halftoning Example 1 n AM+FM – Homogeneous parts by AM – Details by FM 2/27/2021 Digital Halftoning 23
Hybrid Halftoning Example 1 2/27/2021 Digital Halftoning 24
Hybrid Halftoning Example 2 Some printing methods are not able to produce the dots sufficiently small. n Ex. Flexography. n 5. 2% 2/27/2021 Digital Halftoning 25
Hybrid Halftoning Example 2 n Utilize a FM method for the highlights and shadows using the smallest possible dot. n Use an AM method for the rest of the image. 2/27/2021 Digital Halftoning 26
Hybrid halftoning Example 2 AM Hybrid 2/27/2021 Digital Halftoning 27
Hybrid Halftoning Example 2 AM 2/27/2021 Hybrid Digital Halftoning 28
Hybrid Halftoning AM 2/27/2021 Hybrid Digital Halftoning 29
Hybrid Halftoning Hybrid, The FM method is Error diffusion 2/27/2021 Hybrid, The FM method is. . . Digital Halftoning 30
Color Mixing (Additive) 2/27/2021 Digital Halftoning 31
Color Mixing (Subtractive) 2/27/2021 Digital Halftoning 32
Color Mixing n Three primary colors n n n 2/27/2021 CYAN (C) MAGENTA (M) YELLOW (Y) Digital Halftoning 33
Color Mixing n Three secondary colors n n n 2/27/2021 RED (R, MY) GREEN (G, CY) BLUE (B, CM) Digital Halftoning 34
Color Mixing n And Black 2/27/2021 n BLACK (K, CMY) Digital Halftoning 35
3 -Color Print Original 2/27/2021 Digital Halftoning 36
AM Halftone Konventionellt raster 2/27/2021 Digital Halftoning 37

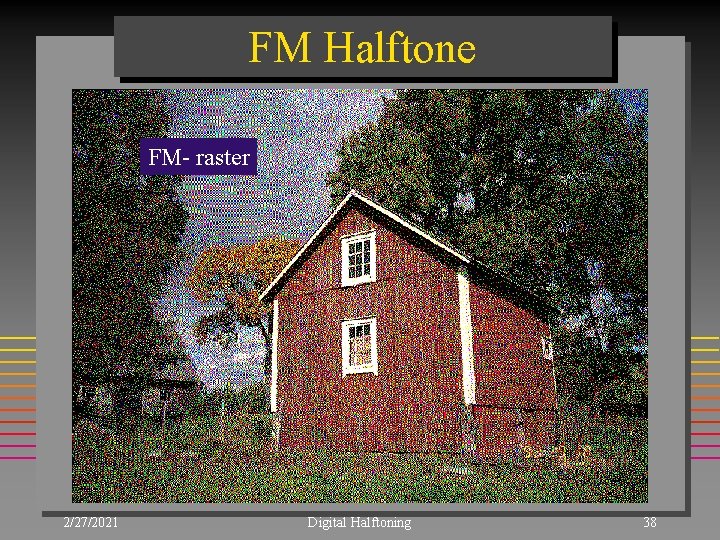

FM Halftone FM- raster 2/27/2021 Digital Halftoning 38
AM Halftone, same angle for C, M, Y & K 2/27/2021 Digital Halftoning 39
AM Halftone, same angle for C & M Miss-registration Correct registration 2/27/2021 Position error Digital Halftoning 40
AM Halftone, same angle for C & M Miss-registration Correct registration Angle error Moiré pattern 2/27/2021 Digital Halftoning 41
AM Halftone, different angles for C, M, Y & K 15, 75, 0 and 45 degrees 2/27/2021 Digital Halftoning 42
Rosette Pattern 2/27/2021 Digital Halftoning 43
Rosette Pattern 2/27/2021 Digital Halftoning 44
FM (Stochastic) Halftone, 4 -color print “Moiré pattern” and “Rosette pattern” disappear 2/27/2021 Digital Halftoning 45
NUEGEBAUER’S Equations X, Y, Z are the tristimulus values for the average color of a surface ai is the fractional area covered by color Xi, Yi, Zi 2/27/2021 Digital Halftoning 46

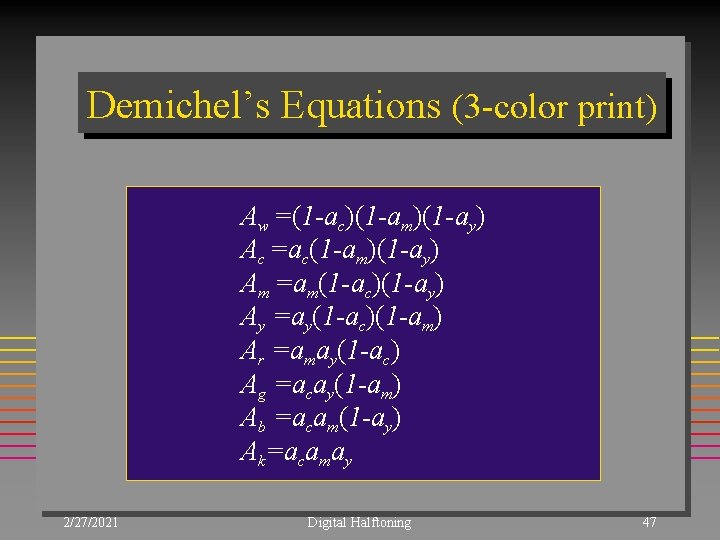

Demichel’s Equations (3 -color print) Aw =(1 -ac)(1 -am)(1 -ay) Ac =ac(1 -am)(1 -ay) Am =am(1 -ac)(1 -ay) Ay =ay(1 -ac)(1 -am) Ar =amay(1 -ac) Ag =acay(1 -am) Ab =acam(1 -ay) Ak=acamay 2/27/2021 Digital Halftoning 47
