Digital Elevation Model (DEM) Data Sources That You Can Get Easily

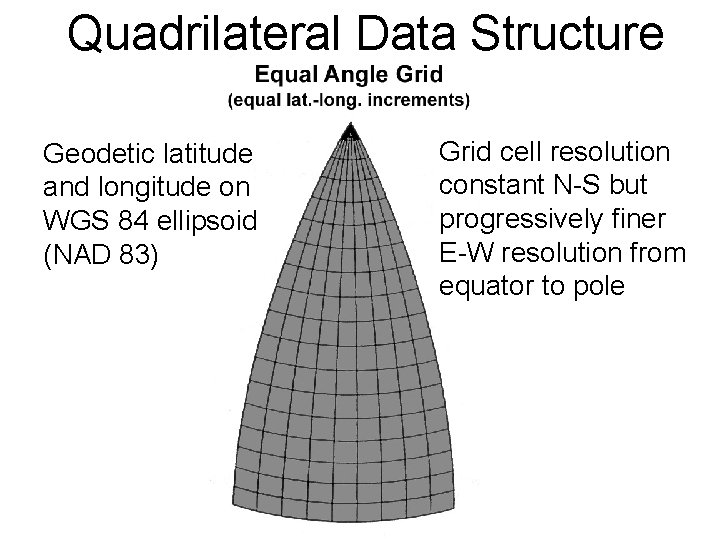

Quadrilateral Data Structure Geodetic latitude and longitude on WGS 84 ellipsoid (NAD 83) Grid cell resolution constant N-S but progressively finer E-W resolution from equator to pole

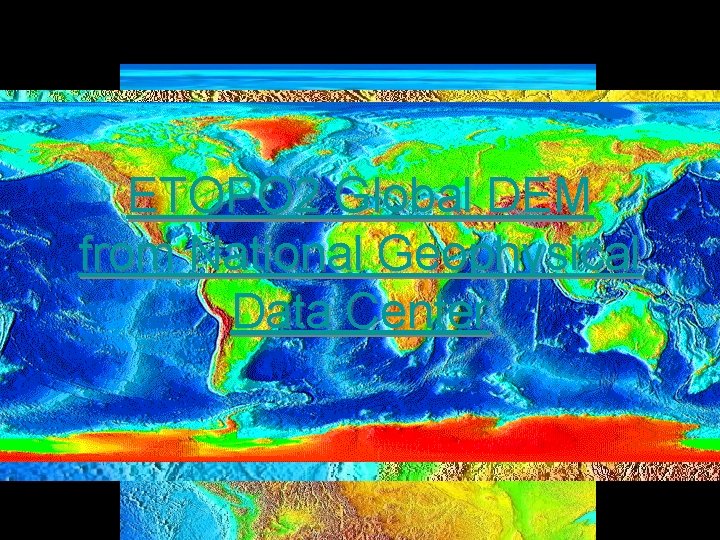

ETOPO 2 Global DEM from National Geophysical Data Center

Technical Specifications (0, 0) Row Major Order (10799, 0) 2 -byte signed. Land integer data Worldwide And 5400 Elevation rows by 10800 Sea Data columns In Meters 116, 640, 000 byte dataset (3. 7 x 3. 7 km cells at equator) (0, 5399) (10799, 5399)

Clean. TOPO 2

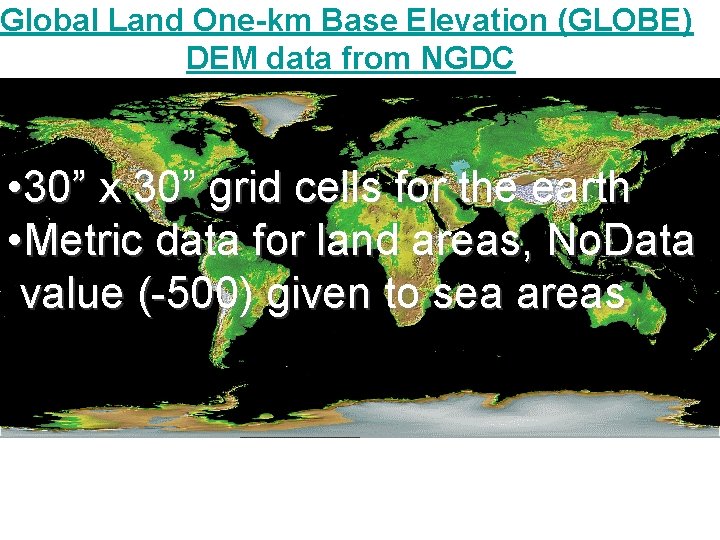

Global Land One-km Base Elevation (GLOBE) DEM data from NGDC • 30” x 30” grid cells for the earth • Metric data for land areas, No. Data value (-500) given to sea areas

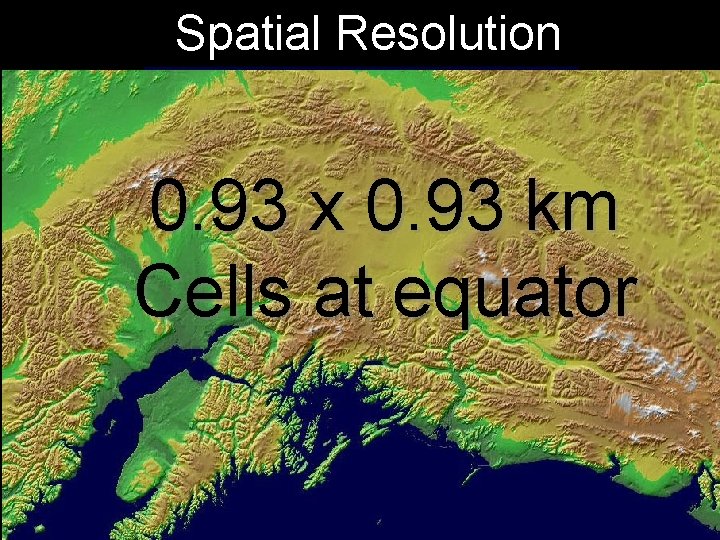

Spatial Resolution 0. 93 x 0. 93 km Cells at equator

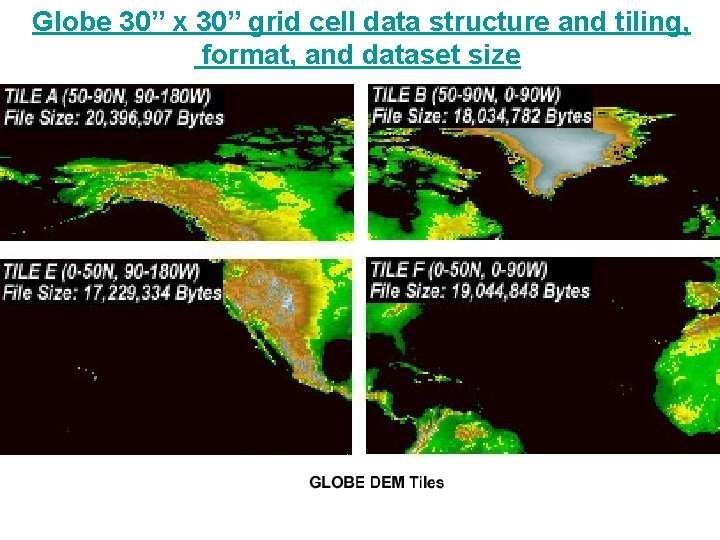

Globe 30” x 30” grid cell data structure and tiling, format, and dataset size

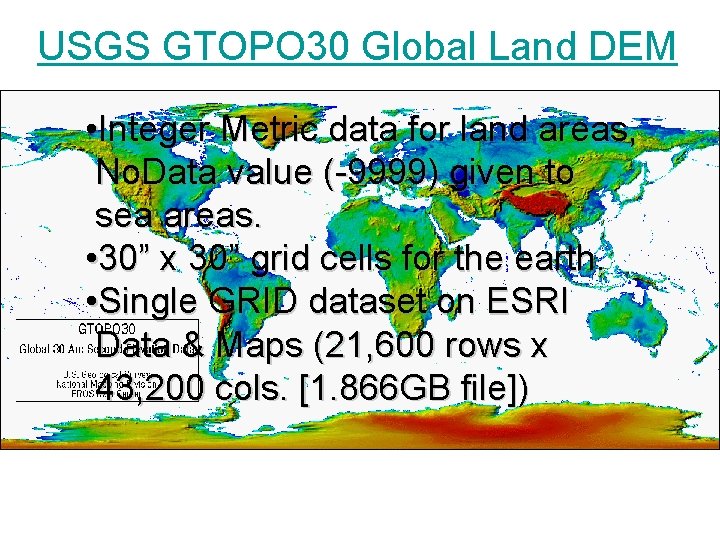

USGS GTOPO 30 Global Land DEM • Integer Metric data for land areas, No. Data value (-9999) given to sea areas. • 30” x 30” grid cells for the earth. • Single GRID dataset on ESRI Data & Maps (21, 600 rows x 43, 200 cols. [1. 866 GB file])

USGS Version Has 33 Tiles

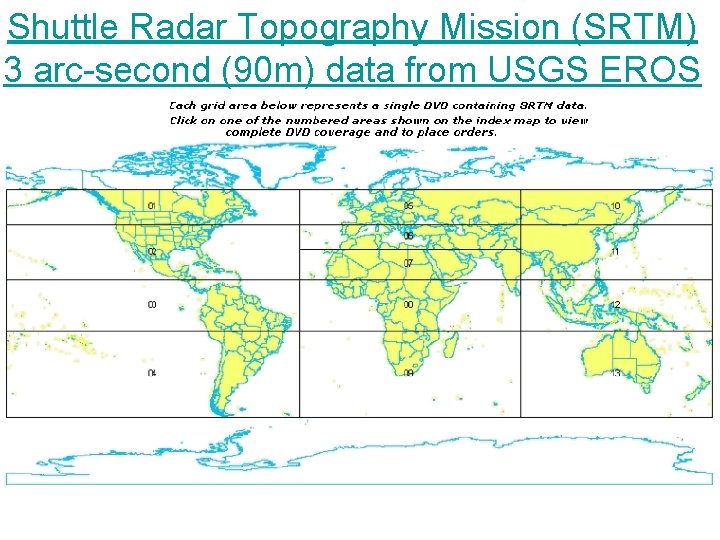

Shuttle Radar Topography Mission (SRTM) 3 arc-second (90 m) data from USGS EROS

Each grid is divided into 1 degree tiles (1200 x 1200) for land areas Grid 2

• Data are First Reflective Returns • Data Completeness Problems

Voids are Data are Filled in ESRI Compressed Maps and Data From 34 GB to 90 m SRTM Dataset 4. 33 GB

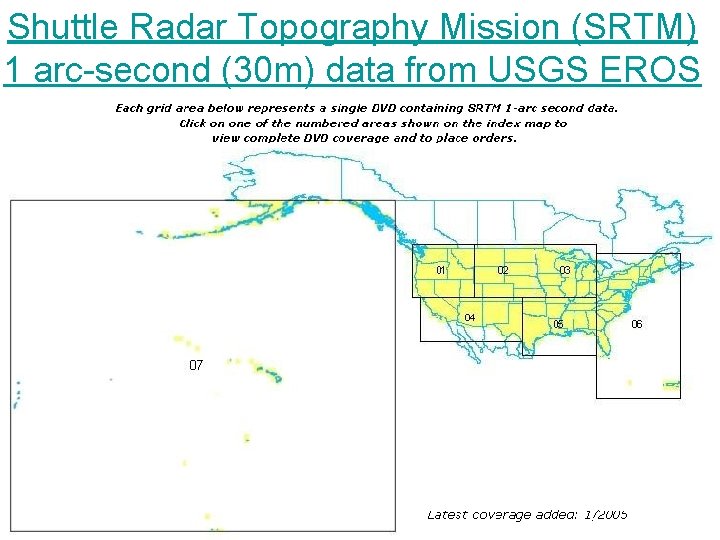

Shuttle Radar Topography Mission (SRTM) 1 arc-second (30 m) data from USGS EROS

Each grid is divided into 1 degree tiles (1200 x 1200) for land areas Grid 4

SRTM Data are also available from The National Map Seamless Server

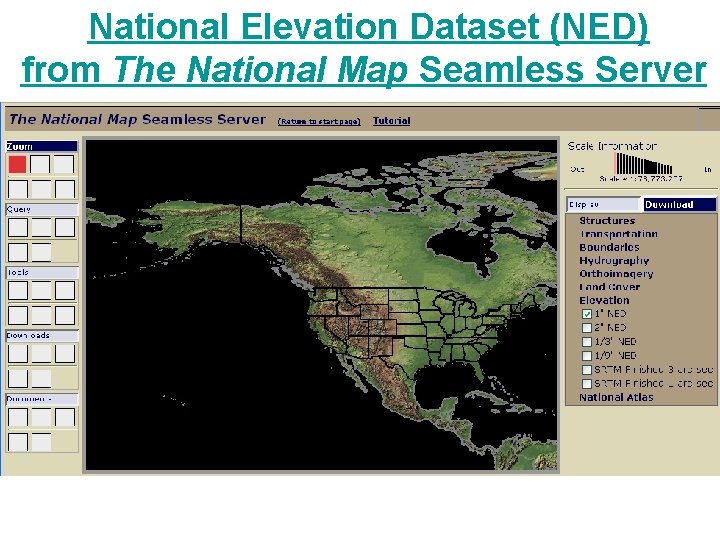

National Elevation Dataset (NED) from The National Map Seamless Server

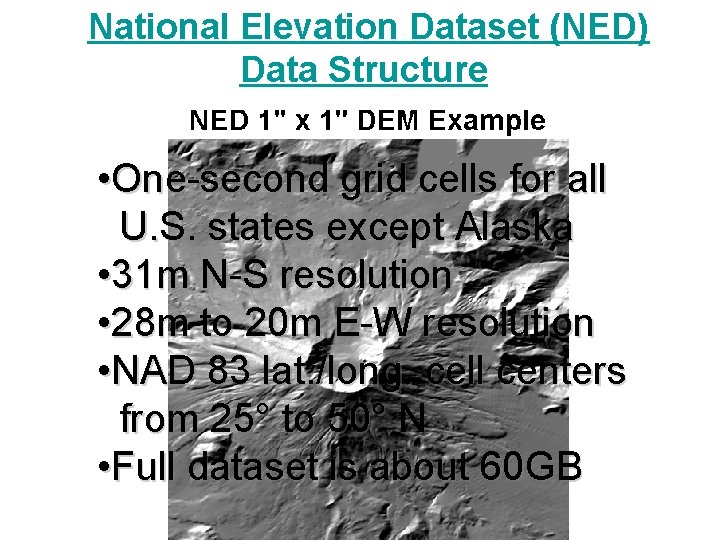

National Elevation Dataset (NED) Data Structure • One-second grid cells for all U. S. states except Alaska • 31 m N-S resolution • 28 m to 20 m E-W resolution • NAD 83 lat. /long. cell centers from 25° to 50° N • Full dataset is about 60 GB

Two-second Grid For Alaska • NAD 83 lat. /long. cell centers • 62 m N-S resolution • 38 m to 21 m E-W resolution from 52° to 70° N

National Elevation Dataset (NED) Data Format and Tiling Scheme

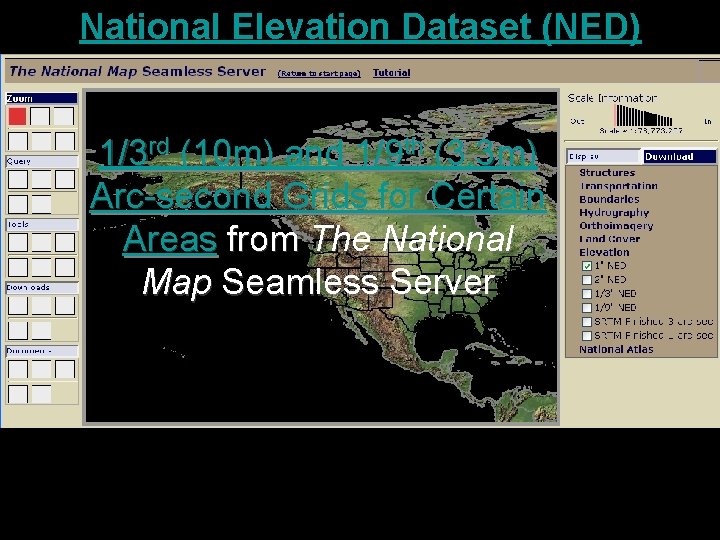

National Elevation Dataset (NED) 1/3 rd (10 m) and 1/9 th (3. 3 m) Arc-second Grids for Certain Areas from The National Map Seamless Server

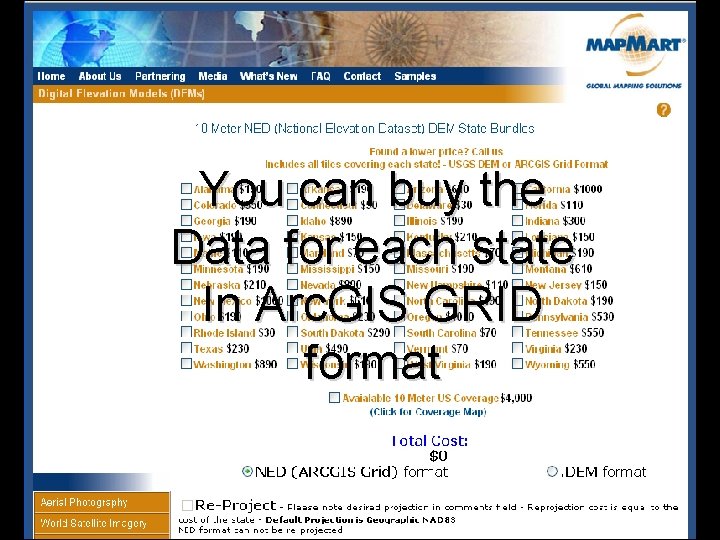

You can buy the Data for each state In Arc. GIS GRID format

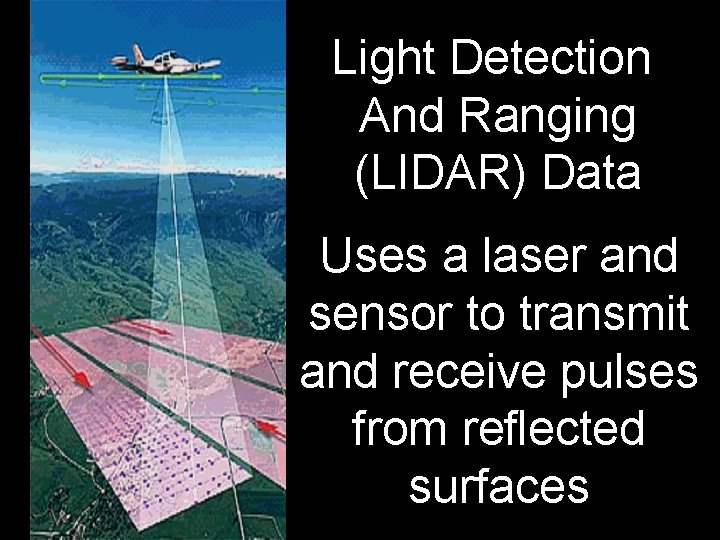

Light Detection And Ranging (LIDAR) Data Uses a laser and sensor to transmit and receive pulses from reflected surfaces

Post processing of the return. LIDAR data produces DEMs a highly accurate available only. DEM, for typically with 1 areas meter small local spatial resolution.

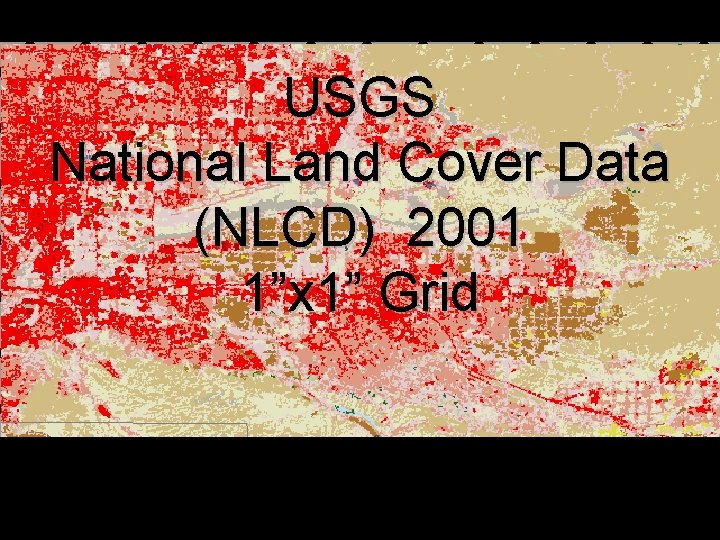

USGS National Land Cover Data (NLCD) 2001 1”x 1” Grid

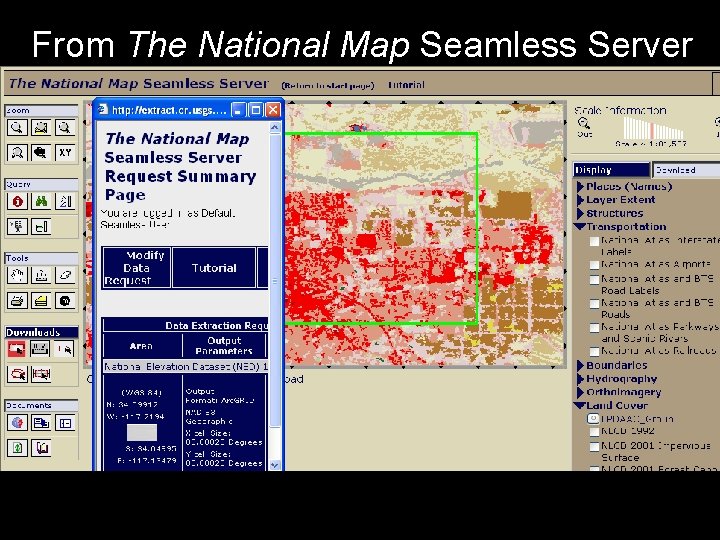

From The National Map Seamless Server
