Digital Electronics Chapter 4 Combinational Logic Terminology Combinational

Digital Electronics

Chapter 4 Combinational Logic

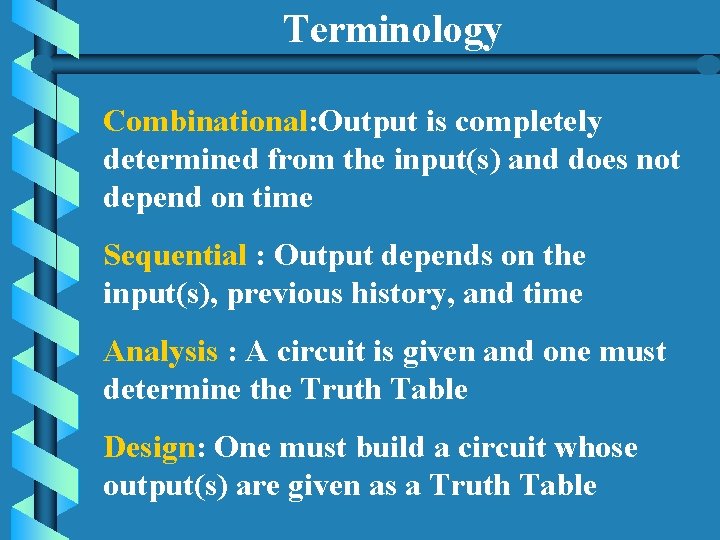

Terminology Combinational: Output is completely determined from the input(s) and does not depend on time Sequential : Output depends on the input(s), previous history, and time Analysis : A circuit is given and one must determine the Truth Table Design: One must build a circuit whose output(s) are given as a Truth Table

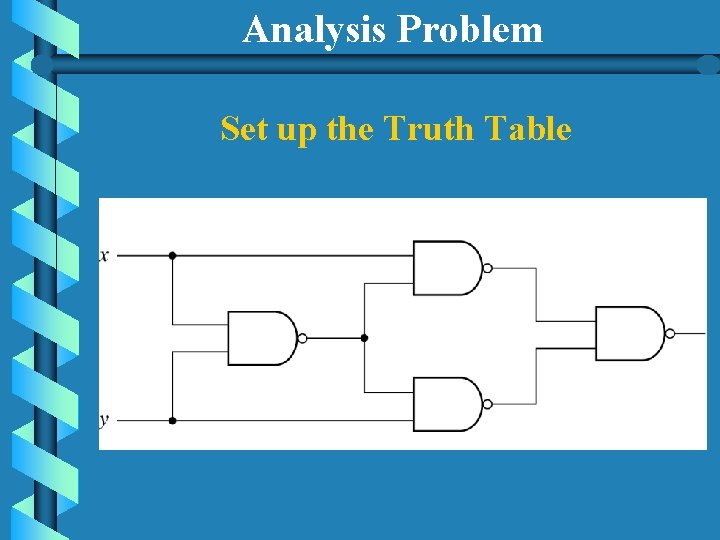

Analysis Problem Set up the Truth Table

Analysis: Truth Table x y F 0 0 1 1 1 0

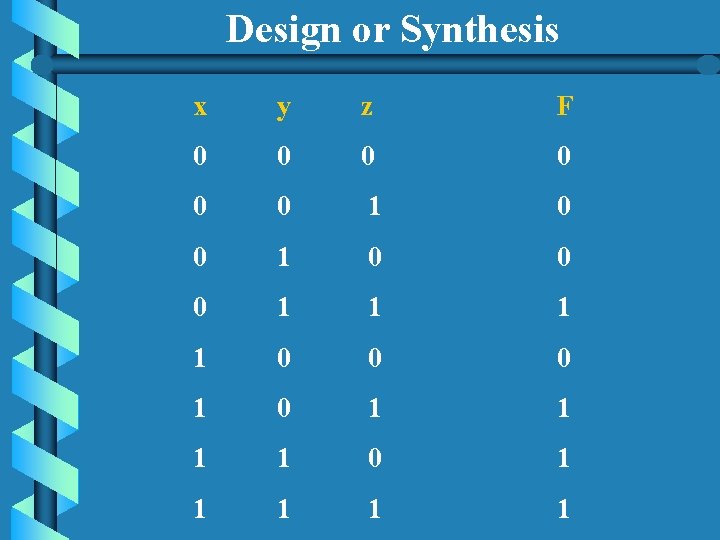

Design or Synthesis x y z F 0 0 0 1 1 0 0 0 1 1 1 1 0 1 1 1

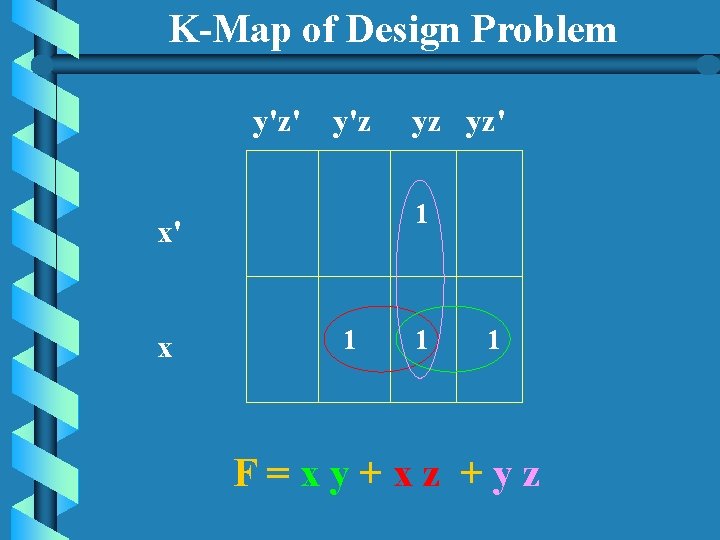

K-Map of Design Problem y'z' y'z 1 x' x yz yz' 1 1 1 F=xy+xz +yz

Final Circuit Design F=xy+xz+yz

Binary Adder Half Adder Truth Table x y C S 0 0 0 1 1 0

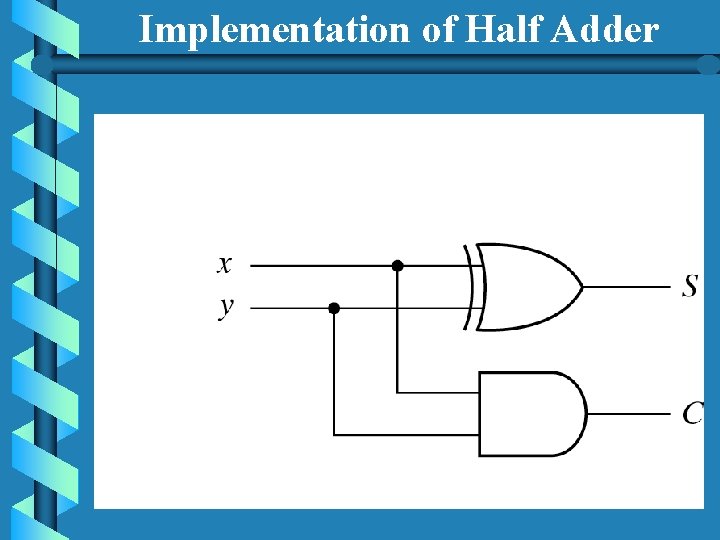

Implementation of Half Adder

Full Adder x y z C S 0 0 0 0 1 0 1 0 1 1 1 0 0 0 1 1 0 1 1 1

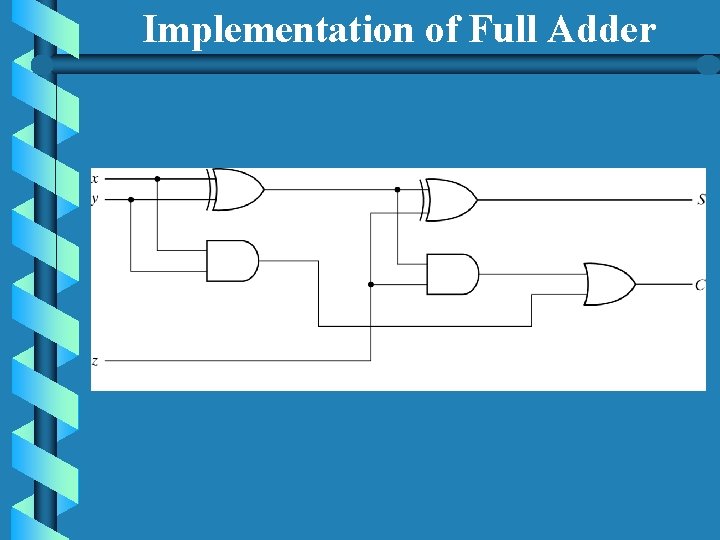

Implementation of Full Adder

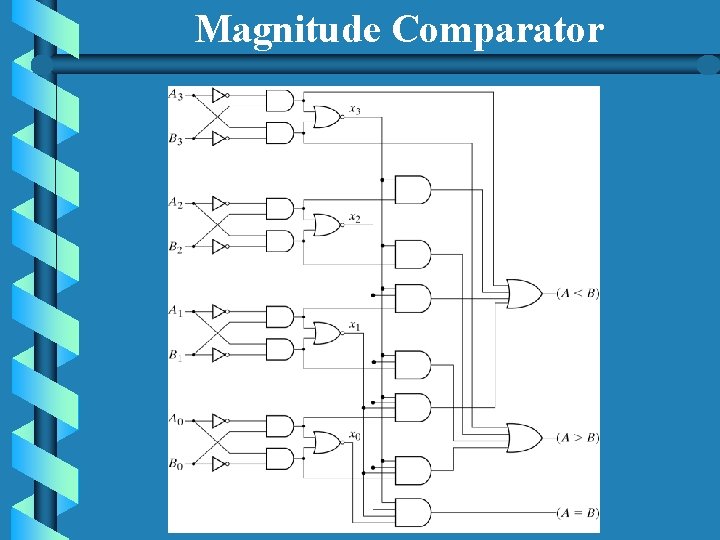

Magnitude Comparator

Comparator Theory x is generated from XNOR and equals 1 if the two bits are equal A = B if all the x’s are equal A > B if the corresponding bit is greater as long as the previous bits are equal A < B if the corresponding bit is smaller as long as the previous bits are equal

3 -to-8 Line Decoder

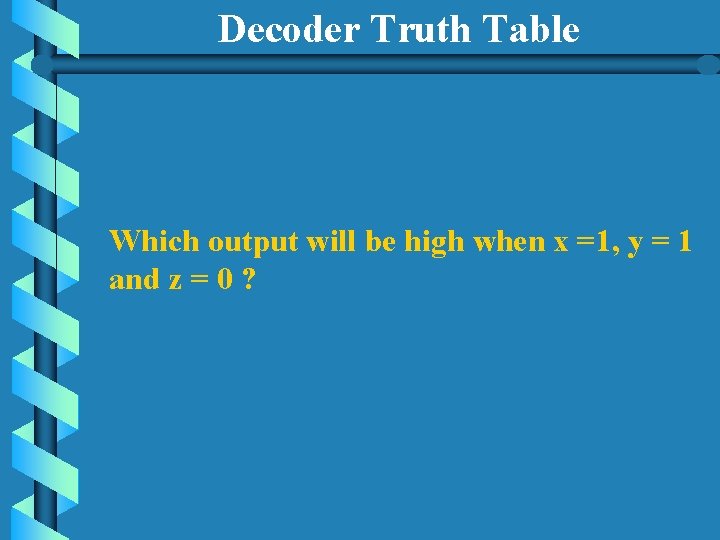

Decoder Truth Table Which output will be high when x =1, y = 1 and z = 0 ?

Decoder Truth Table Only line 6 will be high. The other 7 lines will be low.

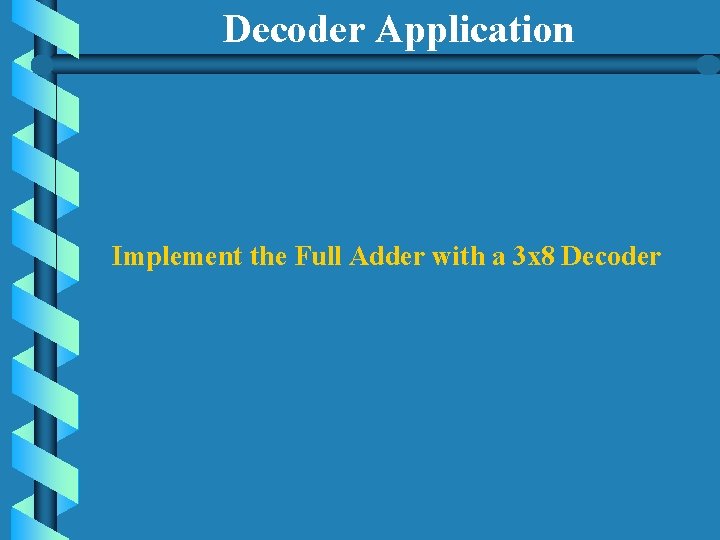

Decoder Application Implement the Full Adder with a 3 x 8 Decoder

Full Adder using 3 x 8 Decoder

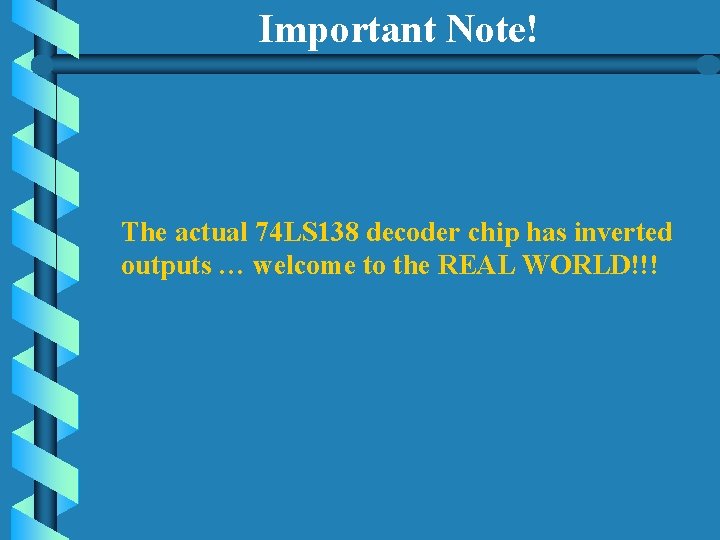

Important Note! The actual 74 LS 138 decoder chip has inverted outputs … welcome to the REAL WORLD!!!

Multiplexer A multiplexer is a combinational circuit that selects binary information from one of many input lines and directs it to a single output line.

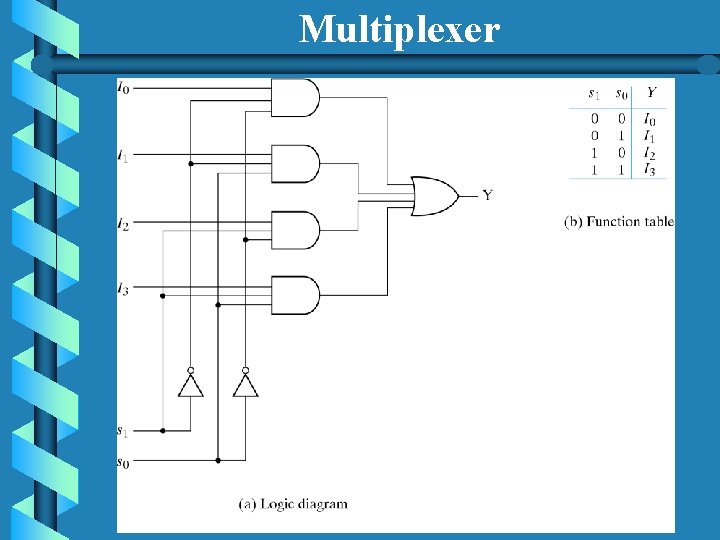

Multiplexer

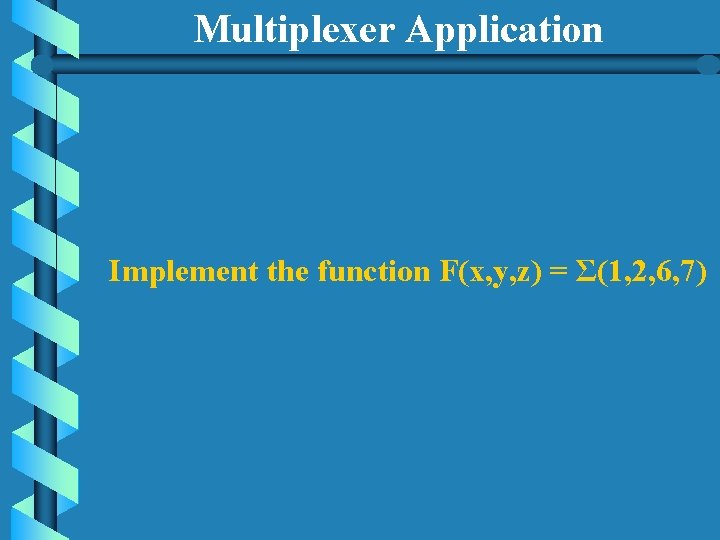

Multiplexer Application Implement the function F(x, y, z) = Σ(1, 2, 6, 7)

F(x, y, z) = Σ(1, 2, 6, 7) with a multiplexer

VHDL // A 2 x 4 Decoder with enable E module my_decoder (A, B, E, D); input A, B, E; output [0: 3] D; assign D[0] = ~(~A & ~B & ~E), D[1] = ~(~A & B & ~E), D[2] = ~(A & ~B & ~E), D[3] = ~(A & B & ~E); endmodule

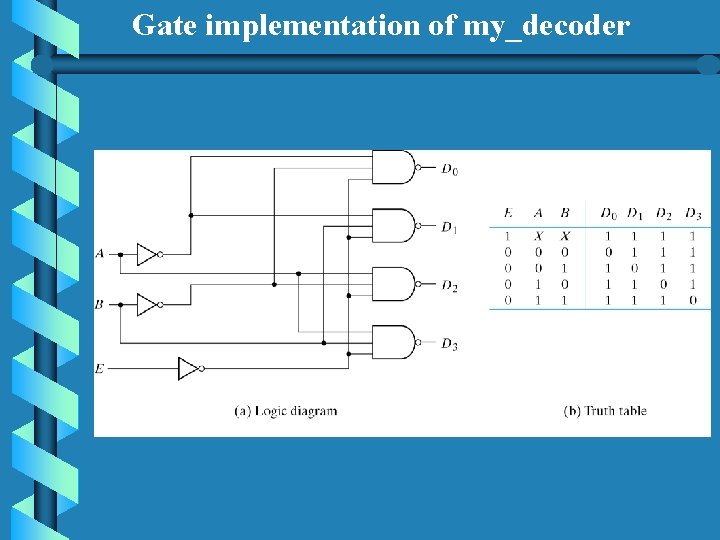

Gate implementation of my_decoder

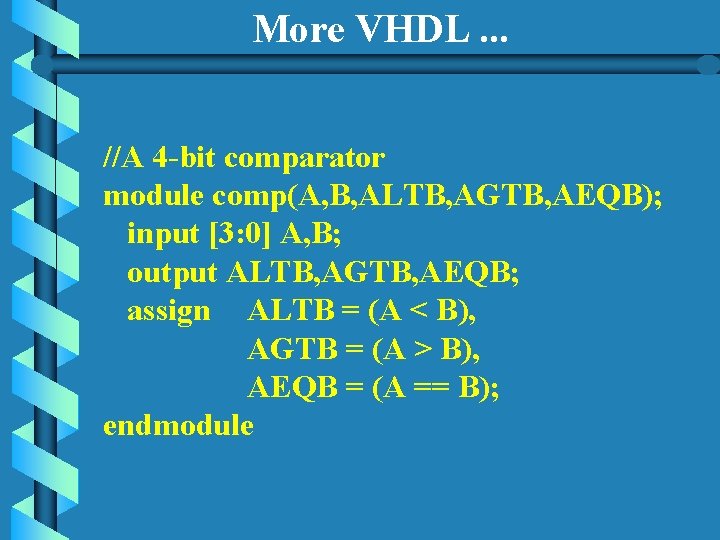

More VHDL. . . //A 4 -bit comparator module comp(A, B, ALTB, AGTB, AEQB); input [3: 0] A, B; output ALTB, AGTB, AEQB; assign ALTB = (A < B), AGTB = (A > B), AEQB = (A == B); endmodule

That’s All Folks!
