Digital Design with VHDL Presented by Amir Masoud

Digital Design with VHDL Presented by: Amir Masoud Gharehbaghi Email: amgh@mehr. sharif. edu

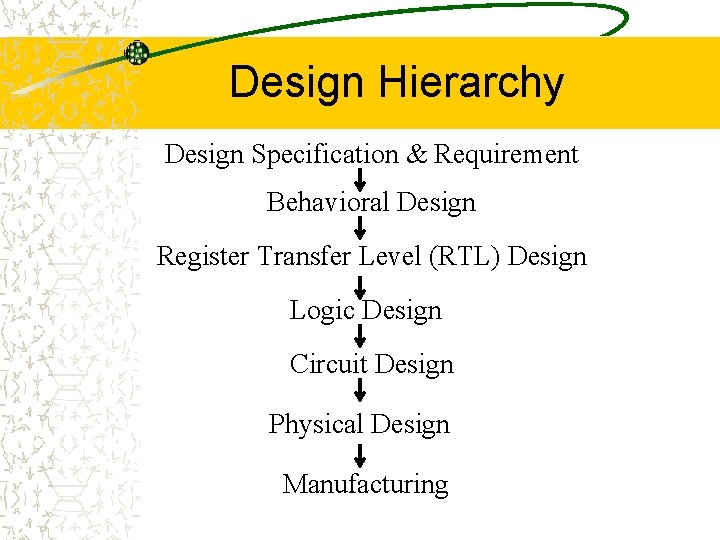

Design Hierarchy Design Specification & Requirement Behavioral Design Register Transfer Level (RTL) Design Logic Design Circuit Design Physical Design Manufacturing

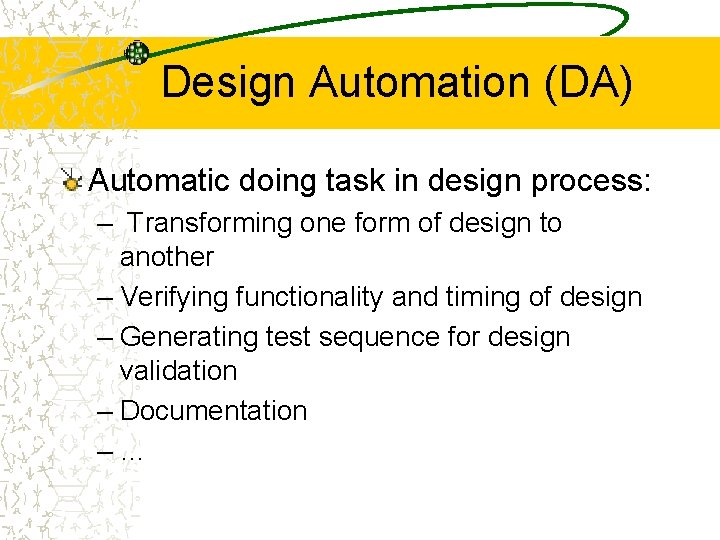

Design Automation (DA) Automatic doing task in design process: – Transforming one form of design to another – Verifying functionality and timing of design – Generating test sequence for design validation – Documentation –…

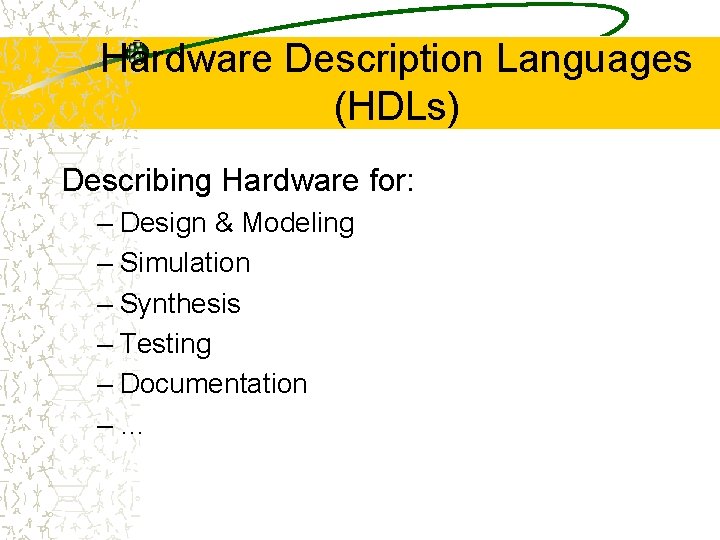

Hardware Description Languages (HDLs) Describing Hardware for: – Design & Modeling – Simulation – Synthesis – Testing – Documentation –…

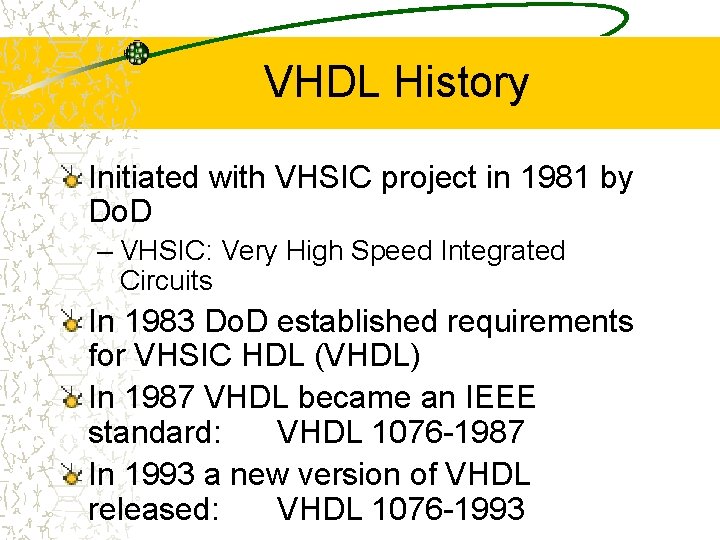

VHDL History Initiated with VHSIC project in 1981 by Do. D – VHSIC: Very High Speed Integrated Circuits In 1983 Do. D established requirements for VHSIC HDL (VHDL) In 1987 VHDL became an IEEE standard: VHDL 1076 -1987 In 1993 a new version of VHDL released: VHDL 1076 -1993

VHDL Specifications Designing in Various Levels of Abstraction: from Behavioral to Gate Level Support for Design Hierarchy (Structural Design) Library Support of Generic Design Timing Control Concurrent & Sequential Statements Type Declaration. .

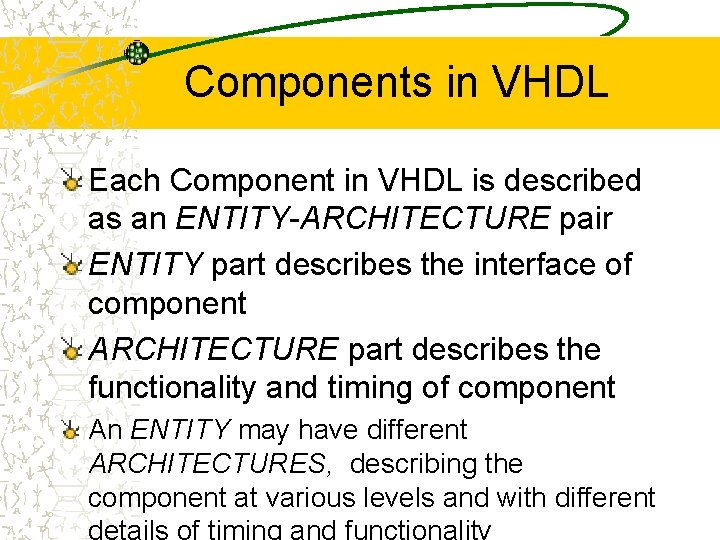

Components in VHDL Each Component in VHDL is described as an ENTITY-ARCHITECTURE pair ENTITY part describes the interface of component ARCHITECTURE part describes the functionality and timing of component An ENTITY may have different ARCHITECTURES, describing the component at various levels and with different

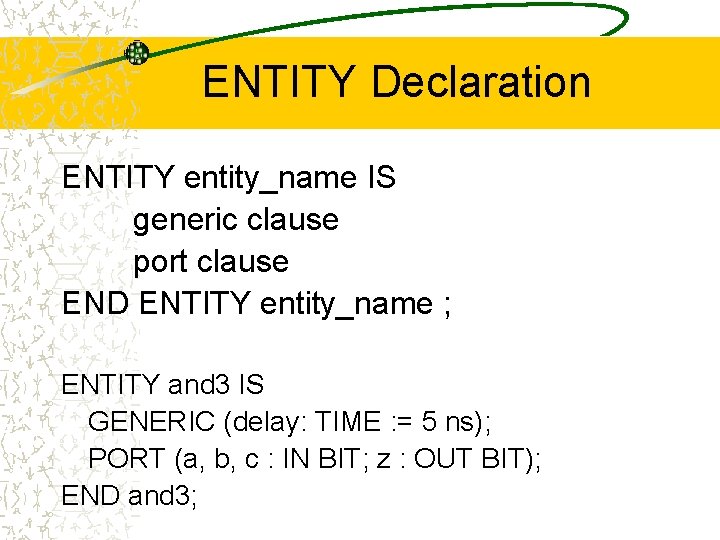

ENTITY Declaration ENTITY entity_name IS generic clause port clause END ENTITY entity_name ; ENTITY and 3 IS GENERIC (delay: TIME : = 5 ns); PORT (a, b, c : IN BIT; z : OUT BIT); END and 3;

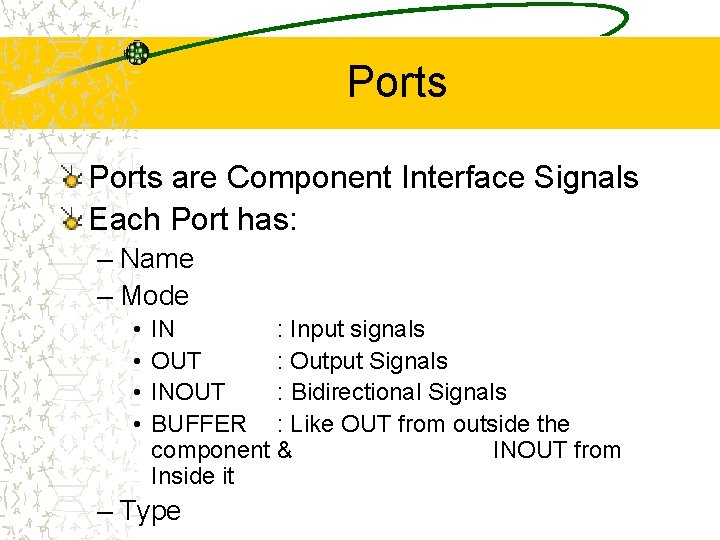

Ports are Component Interface Signals Each Port has: – Name – Mode • • IN : Input signals OUT : Output Signals INOUT : Bidirectional Signals BUFFER : Like OUT from outside the component & INOUT from Inside it – Type

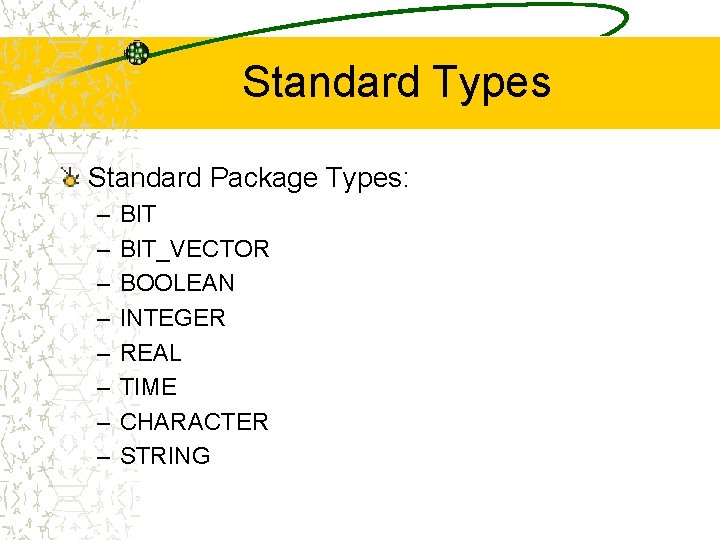

Standard Types Standard Package Types: – – – – BIT_VECTOR BOOLEAN INTEGER REAL TIME CHARACTER STRING

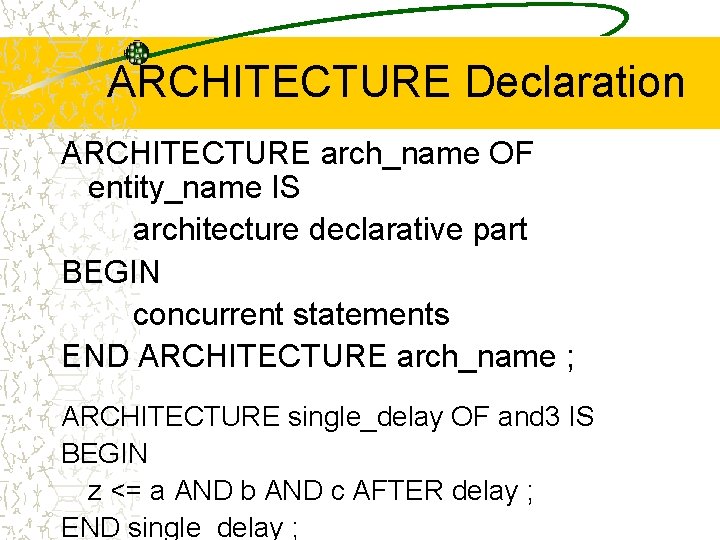

ARCHITECTURE Declaration ARCHITECTURE arch_name OF entity_name IS architecture declarative part BEGIN concurrent statements END ARCHITECTURE arch_name ; ARCHITECTURE single_delay OF and 3 IS BEGIN z <= a AND b AND c AFTER delay ; END single_delay ;

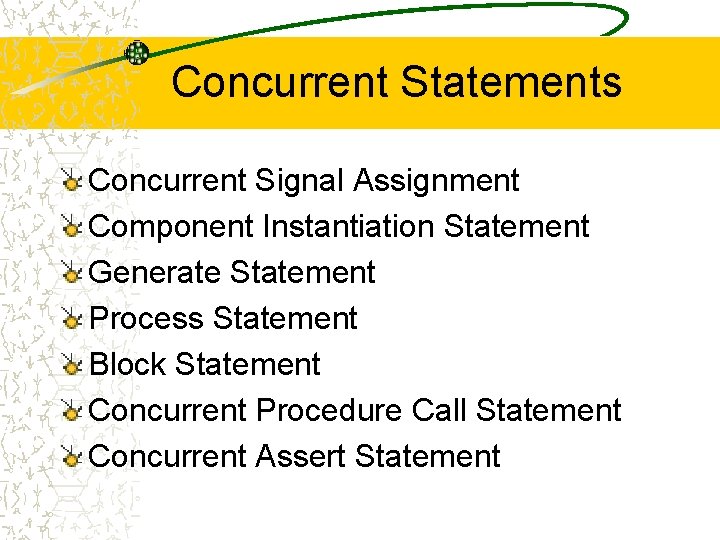

Concurrent Statements Concurrent Signal Assignment Component Instantiation Statement Generate Statement Process Statement Block Statement Concurrent Procedure Call Statement Concurrent Assert Statement

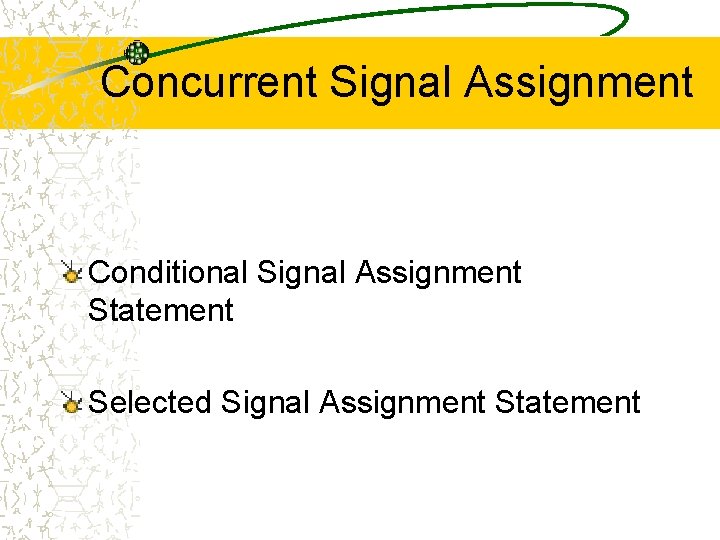

Concurrent Signal Assignment Conditional Signal Assignment Statement Selected Signal Assignment Statement

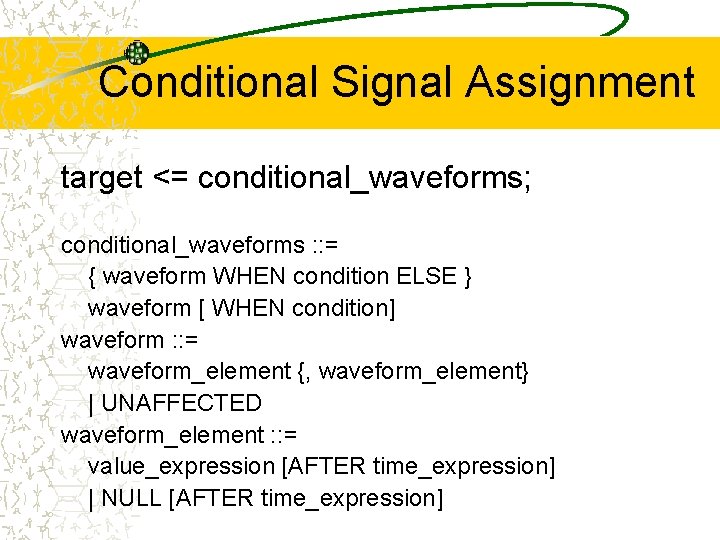

Conditional Signal Assignment target <= conditional_waveforms; conditional_waveforms : : = { waveform WHEN condition ELSE } waveform [ WHEN condition] waveform : : = waveform_element {, waveform_element} | UNAFFECTED waveform_element : : = value_expression [AFTER time_expression] | NULL [AFTER time_expression]

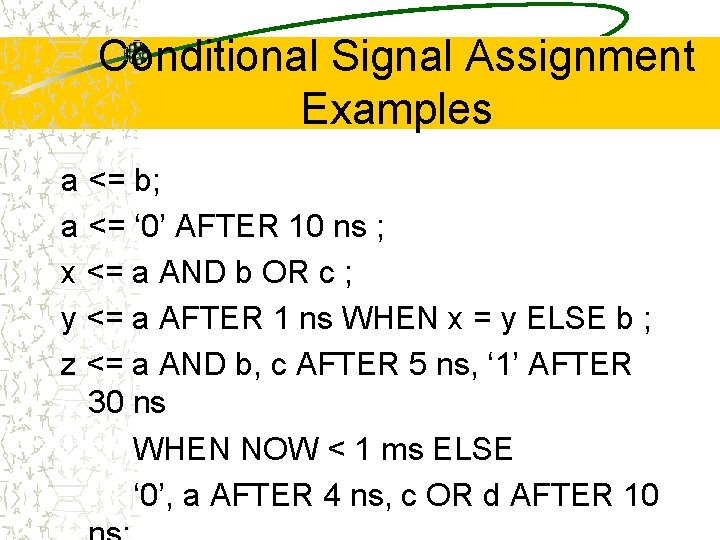

Conditional Signal Assignment Examples a <= b; a <= ‘ 0’ AFTER 10 ns ; x <= a AND b OR c ; y <= a AFTER 1 ns WHEN x = y ELSE b ; z <= a AND b, c AFTER 5 ns, ‘ 1’ AFTER 30 ns WHEN NOW < 1 ms ELSE ‘ 0’, a AFTER 4 ns, c OR d AFTER 10

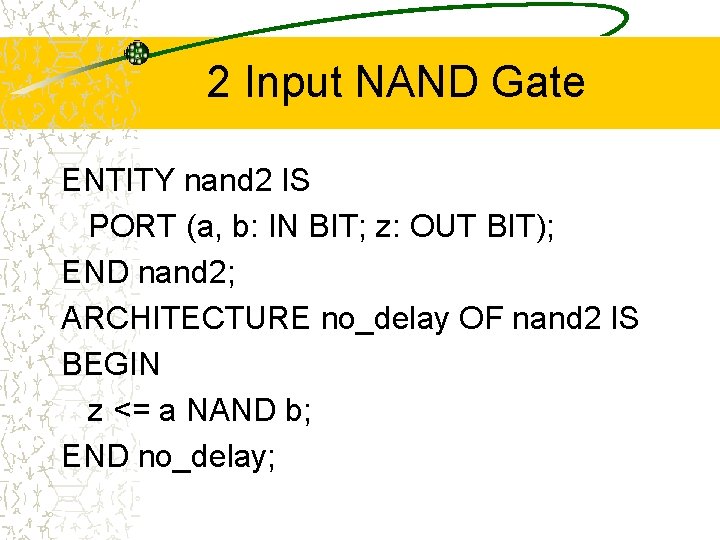

2 Input NAND Gate ENTITY nand 2 IS PORT (a, b: IN BIT; z: OUT BIT); END nand 2; ARCHITECTURE no_delay OF nand 2 IS BEGIN z <= a NAND b; END no_delay;

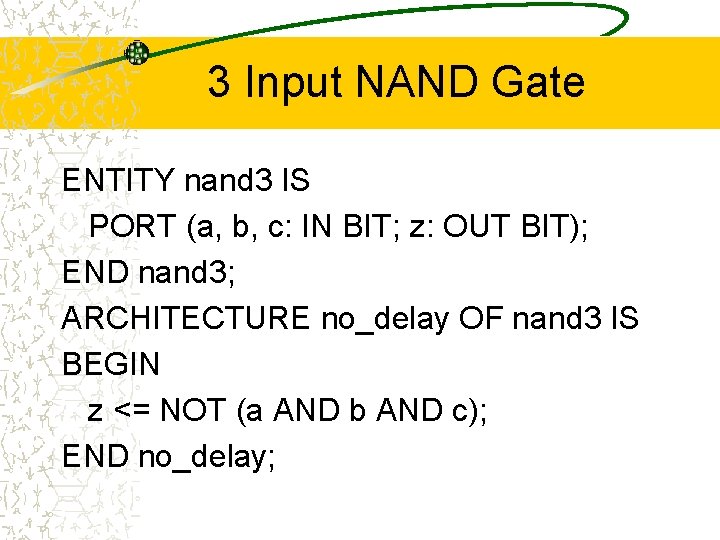

3 Input NAND Gate ENTITY nand 3 IS PORT (a, b, c: IN BIT; z: OUT BIT); END nand 3; ARCHITECTURE no_delay OF nand 3 IS BEGIN z <= NOT (a AND b AND c); END no_delay;

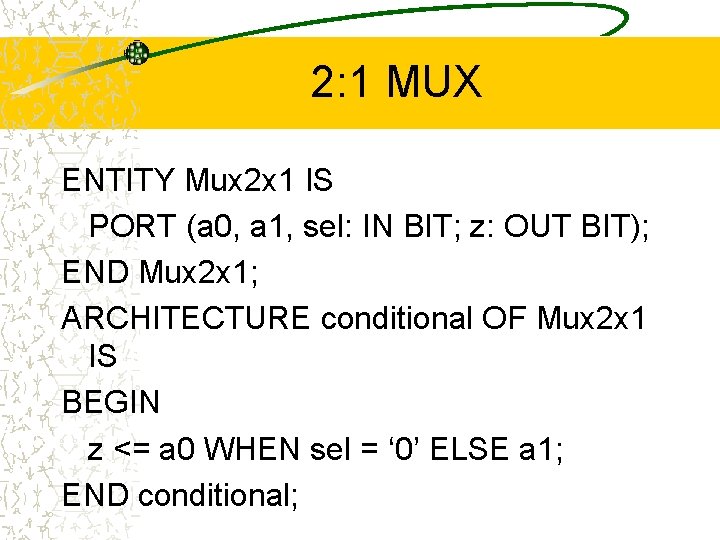

2: 1 MUX ENTITY Mux 2 x 1 IS PORT (a 0, a 1, sel: IN BIT; z: OUT BIT); END Mux 2 x 1; ARCHITECTURE conditional OF Mux 2 x 1 IS BEGIN z <= a 0 WHEN sel = ‘ 0’ ELSE a 1; END conditional;

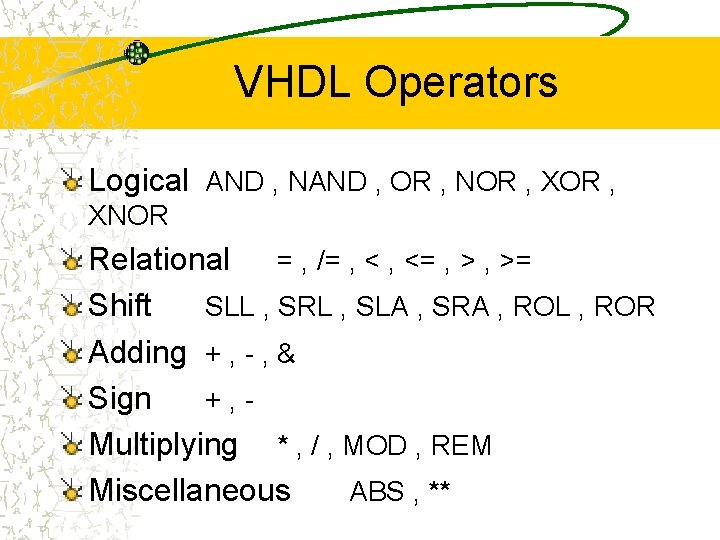

VHDL Operators Logical AND , NAND , OR , NOR , XNOR Relational = , /= , <= , >= Shift SLL , SRL , SLA , SRA , ROL , ROR Adding + , - , & Sign +, Multiplying * , / , MOD , REM Miscellaneous ABS , **

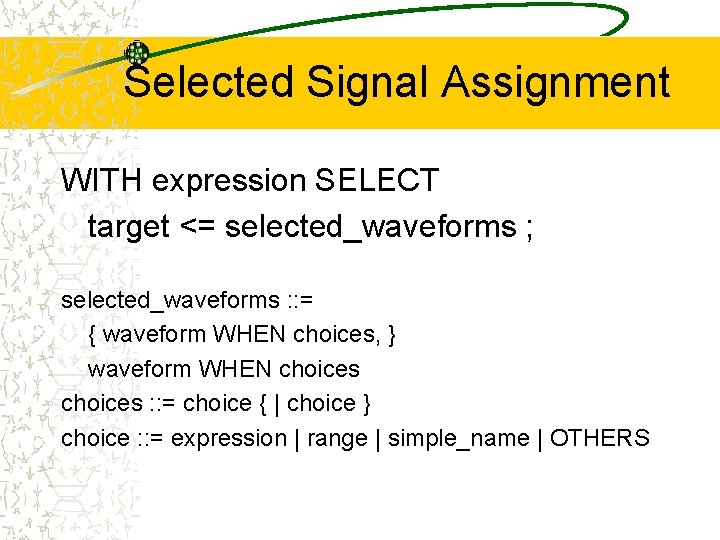

Selected Signal Assignment WITH expression SELECT target <= selected_waveforms ; selected_waveforms : : = { waveform WHEN choices, } waveform WHEN choices : : = choice { | choice } choice : : = expression | range | simple_name | OTHERS

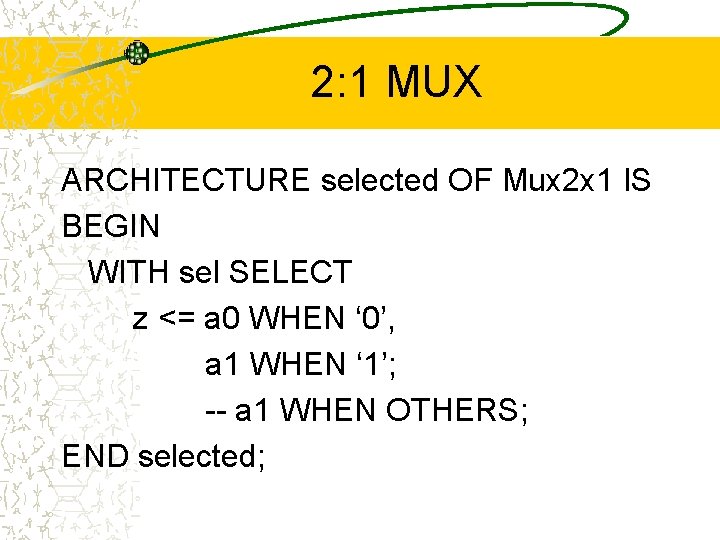

2: 1 MUX ARCHITECTURE selected OF Mux 2 x 1 IS BEGIN WITH sel SELECT z <= a 0 WHEN ‘ 0’, a 1 WHEN ‘ 1’; -- a 1 WHEN OTHERS; END selected;

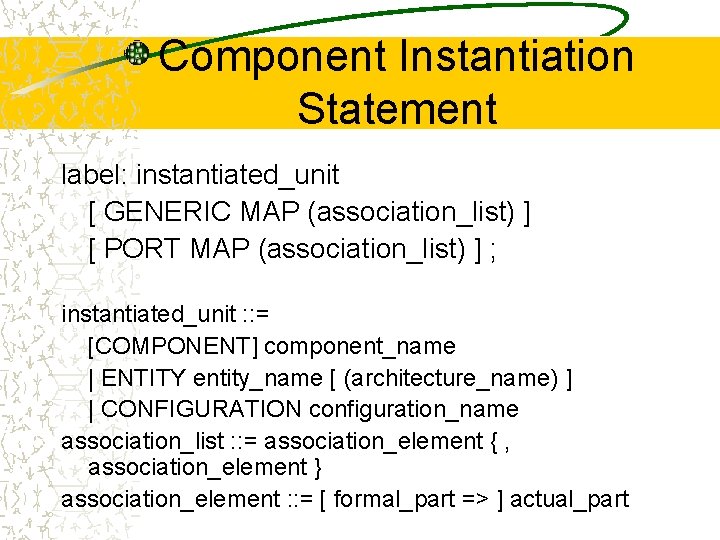

Component Instantiation Statement label: instantiated_unit [ GENERIC MAP (association_list) ] [ PORT MAP (association_list) ] ; instantiated_unit : : = [COMPONENT] component_name | ENTITY entity_name [ (architecture_name) ] | CONFIGURATION configuration_name association_list : : = association_element { , association_element } association_element : : = [ formal_part => ] actual_part

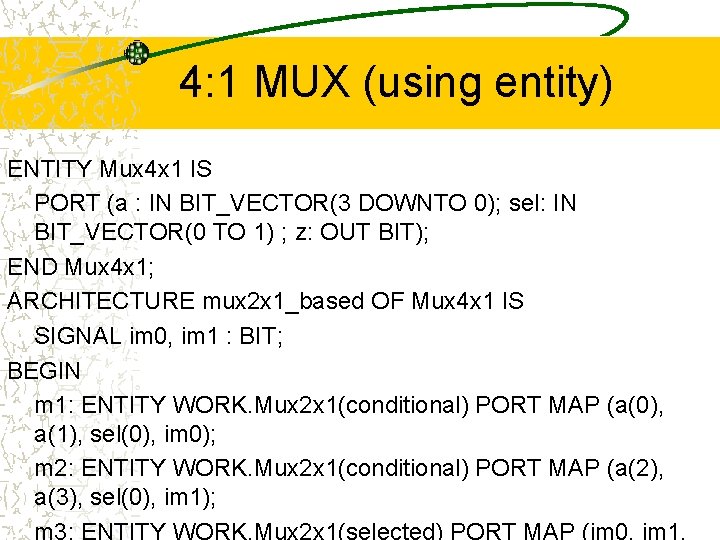

4: 1 MUX (using entity) ENTITY Mux 4 x 1 IS PORT (a : IN BIT_VECTOR(3 DOWNTO 0); sel: IN BIT_VECTOR(0 TO 1) ; z: OUT BIT); END Mux 4 x 1; ARCHITECTURE mux 2 x 1_based OF Mux 4 x 1 IS SIGNAL im 0, im 1 : BIT; BEGIN m 1: ENTITY WORK. Mux 2 x 1(conditional) PORT MAP (a(0), a(1), sel(0), im 0); m 2: ENTITY WORK. Mux 2 x 1(conditional) PORT MAP (a(2), a(3), sel(0), im 1); m 3: ENTITY WORK. Mux 2 x 1(selected) PORT MAP (im 0, im 1,

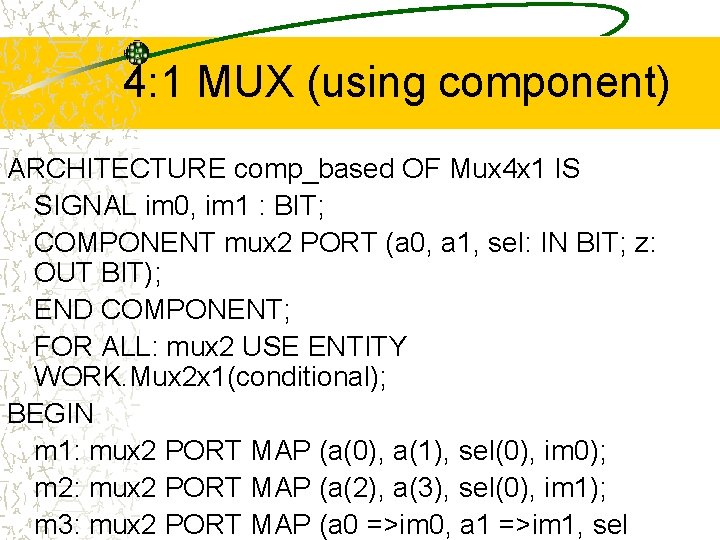

4: 1 MUX (using component) ARCHITECTURE comp_based OF Mux 4 x 1 IS SIGNAL im 0, im 1 : BIT; COMPONENT mux 2 PORT (a 0, a 1, sel: IN BIT; z: OUT BIT); END COMPONENT; FOR ALL: mux 2 USE ENTITY WORK. Mux 2 x 1(conditional); BEGIN m 1: mux 2 PORT MAP (a(0), a(1), sel(0), im 0); m 2: mux 2 PORT MAP (a(2), a(3), sel(0), im 1); m 3: mux 2 PORT MAP (a 0 =>im 0, a 1 =>im 1, sel

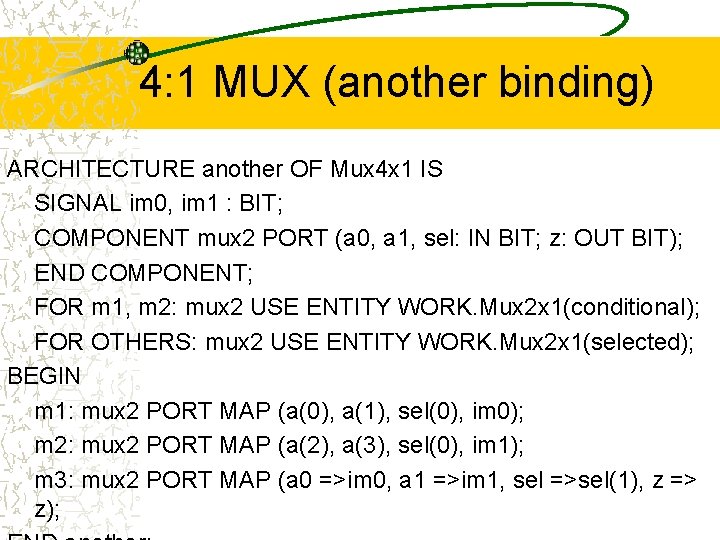

4: 1 MUX (another binding) ARCHITECTURE another OF Mux 4 x 1 IS SIGNAL im 0, im 1 : BIT; COMPONENT mux 2 PORT (a 0, a 1, sel: IN BIT; z: OUT BIT); END COMPONENT; FOR m 1, m 2: mux 2 USE ENTITY WORK. Mux 2 x 1(conditional); FOR OTHERS: mux 2 USE ENTITY WORK. Mux 2 x 1(selected); BEGIN m 1: mux 2 PORT MAP (a(0), a(1), sel(0), im 0); m 2: mux 2 PORT MAP (a(2), a(3), sel(0), im 1); m 3: mux 2 PORT MAP (a 0 =>im 0, a 1 =>im 1, sel =>sel(1), z => z);

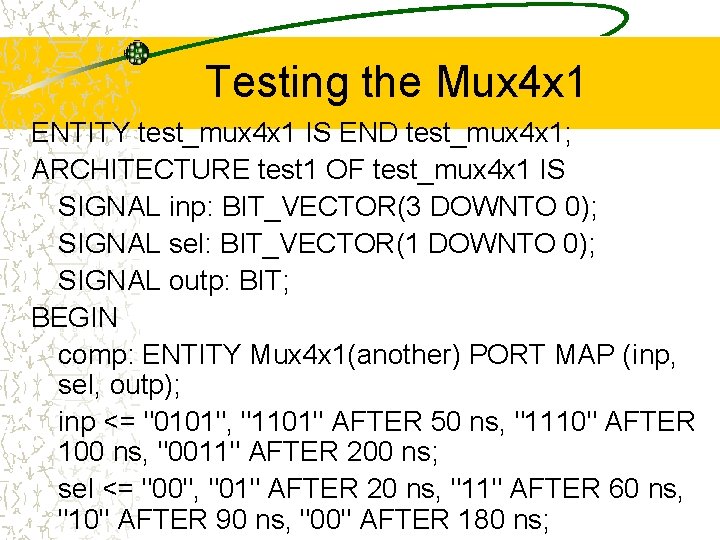

Testing the Mux 4 x 1 ENTITY test_mux 4 x 1 IS END test_mux 4 x 1; ARCHITECTURE test 1 OF test_mux 4 x 1 IS SIGNAL inp: BIT_VECTOR(3 DOWNTO 0); SIGNAL sel: BIT_VECTOR(1 DOWNTO 0); SIGNAL outp: BIT; BEGIN comp: ENTITY Mux 4 x 1(another) PORT MAP (inp, sel, outp); inp <= "0101", "1101" AFTER 50 ns, "1110" AFTER 100 ns, "0011" AFTER 200 ns; sel <= "00", "01" AFTER 20 ns, "11" AFTER 60 ns, "10" AFTER 90 ns, "00" AFTER 180 ns;
