Digital Circuits 2 1 Digital Circuits 2 2

  • Slides: 24
Download presentation

代數結構的假說 Digital Circuits 2 -1

代數結構的假說 Digital Circuits 2 -1

代數結構的假說 Digital Circuits 2 -2

代數結構的假說 Digital Circuits 2 -2

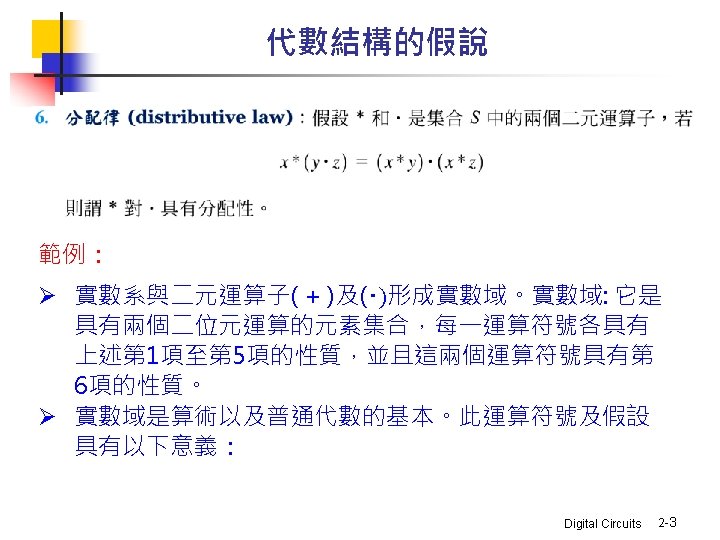

代數結構的假說 Digital Circuits 2 -4

代數結構的假說 Digital Circuits 2 -4

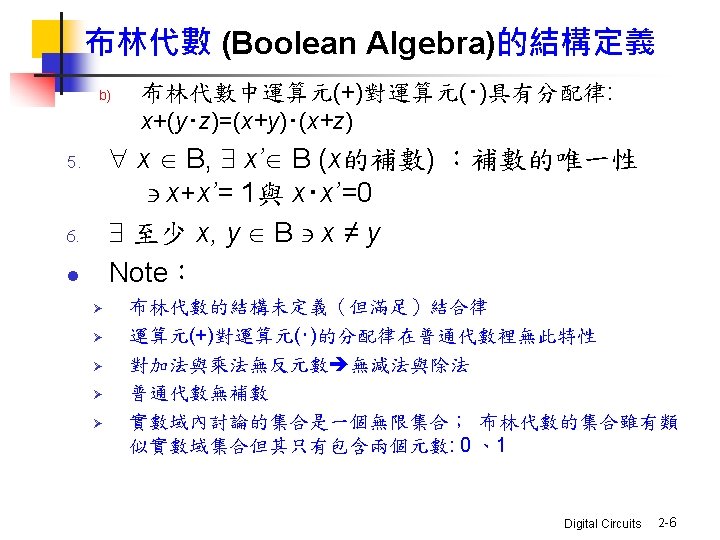

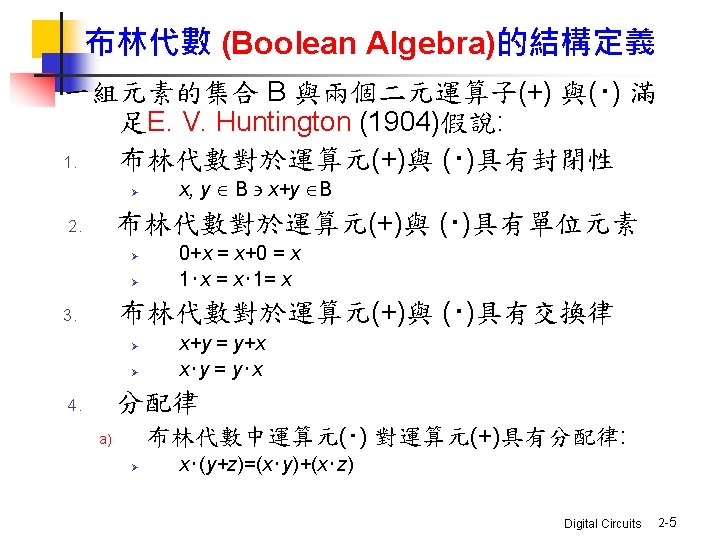

布林代數的基本定理證明 n 定理 1(a): x+x = x DUALITY 由假說: 2(b) 5(a) 4(b) 5(b) 2(a)

布林代數的基本定理證明 n 定理 1(a): x+x = x DUALITY 由假說: 2(b) 5(a) 4(b) 5(b) 2(a) n 定理1(b): x．x = x – xx = x x + 0 = xx + xx' = x (x + x') =x 1 =x 2(a) 5(b) 4(a) 5(a) 2(b) DUALITY – x+x = (x+x) 1 = (x+x) (x+x') = x+xx' = x+0 =x Digital Circuits 2 -11

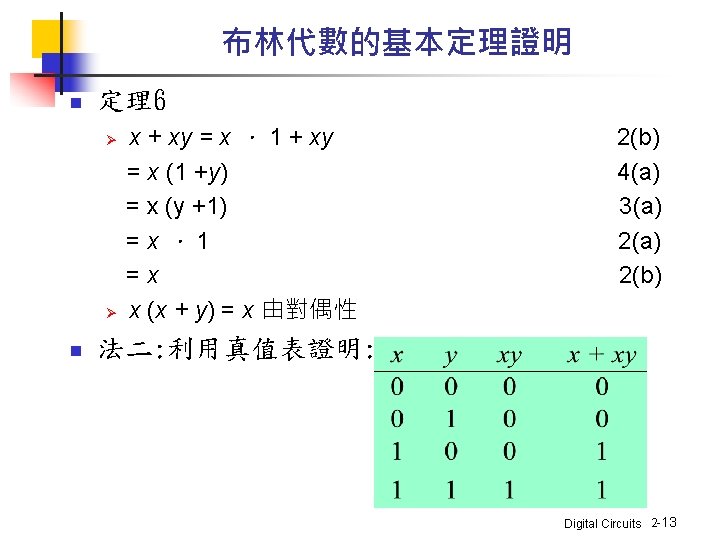

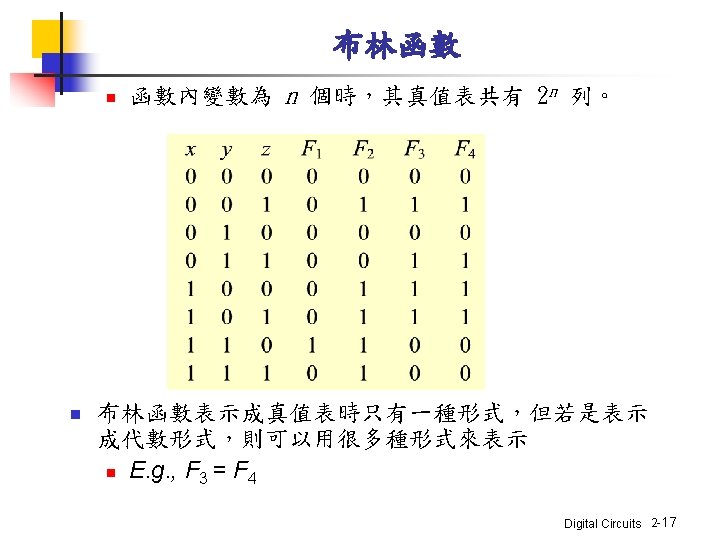

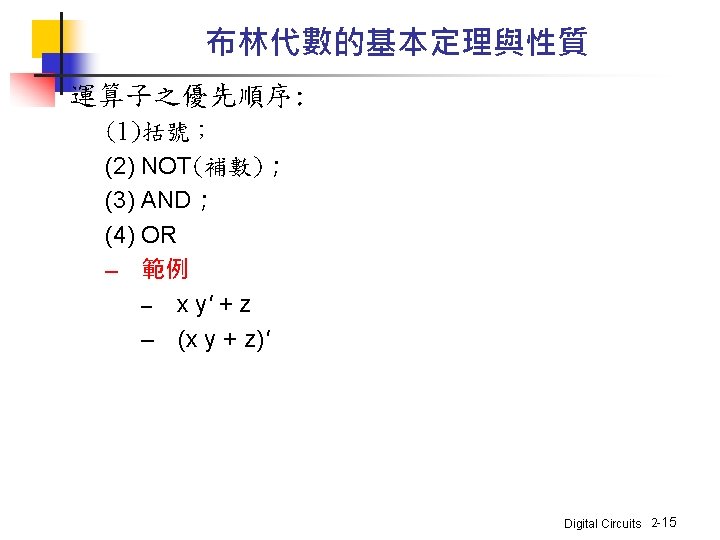

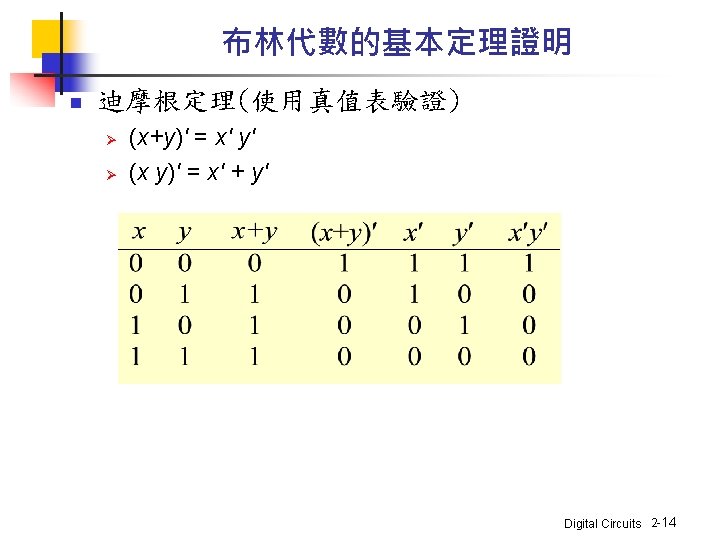

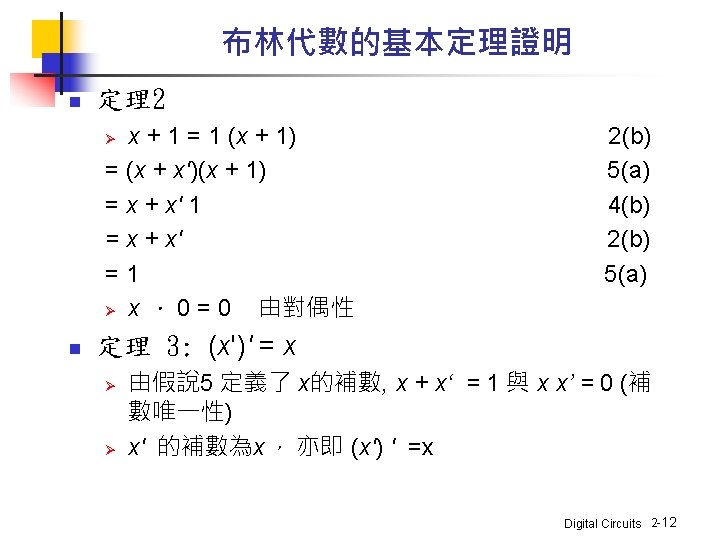

一個函數的補數 範例2 -2 Digital Circuits 2 -22

一個函數的補數 範例2 -2 Digital Circuits 2 -22

一個函數的補數 範例2 -3 Digital Circuits 2 -23

一個函數的補數 範例2 -3 Digital Circuits 2 -23
