Digital Audio What do we mean by digital

Digital Audio What do we mean by “digital”? How do we produce, process, and playback? Why is physics important? What are the limitations and possibilities?

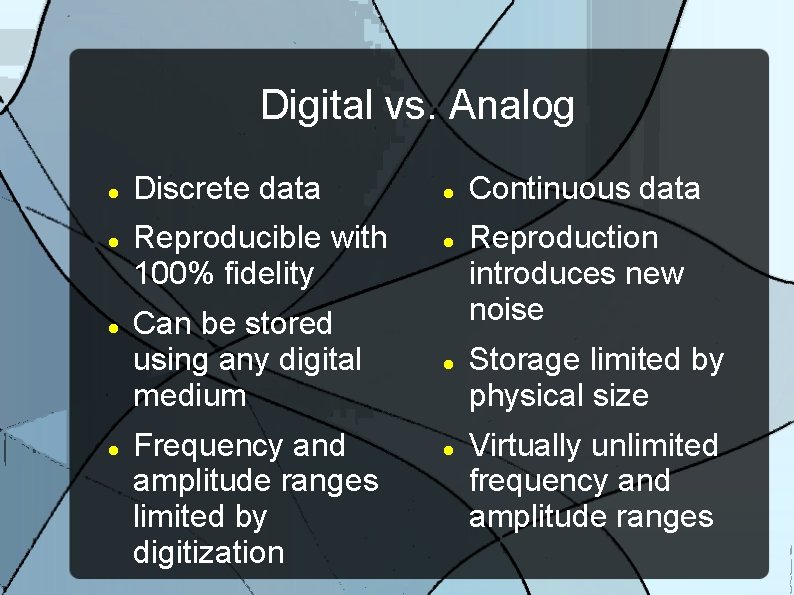

Digital vs. Analog Discrete data Reproducible with 100% fidelity Can be stored using any digital medium Frequency and amplitude ranges limited by digitization Continuous data Reproduction introduces new noise Storage limited by physical size Virtually unlimited frequency and amplitude ranges

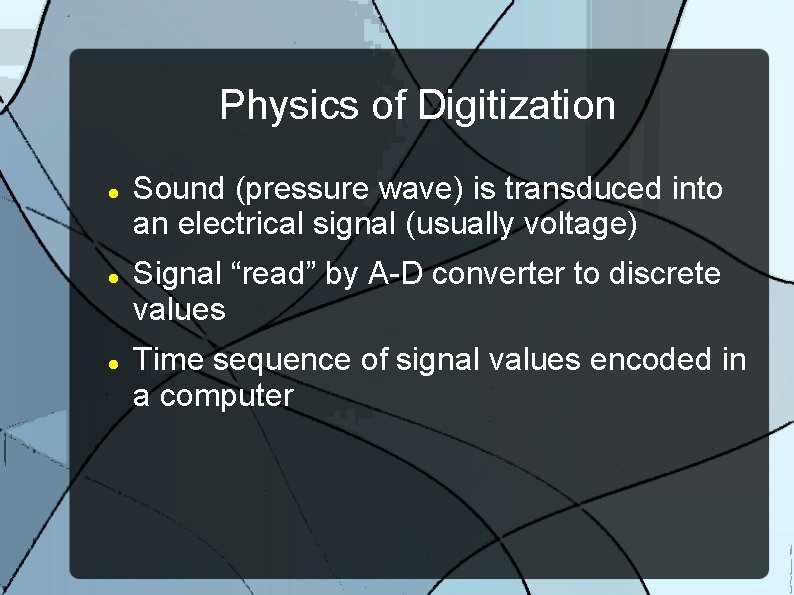

Physics of Digitization Sound (pressure wave) is transduced into an electrical signal (usually voltage) Signal “read” by A-D converter to discrete values Time sequence of signal values encoded in a computer

Sampling Basics Sample Rate: Frequency interval of the time sequence of encoded values Sample Depth (or Bit Depth): Number of bits used to encode each value Bit Rate = (Sample Rate) x (Bit Depth) For example, “CD Quality” audio is 44. 1 k. Hz at 16 bits = 7. 065 E 5 bps per channel, or 1411 kbps total

Sample Rate (Sample Frequency) Sample Period = 0. 5 s Sample Rate = 1/0. 5 s = 2 Hz

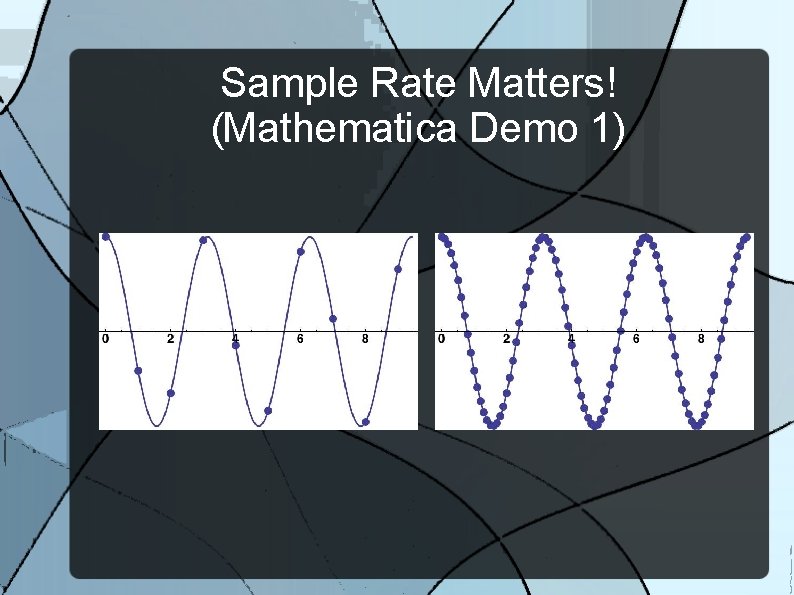

Sample Rate Matters! (Mathematica Demo 1)

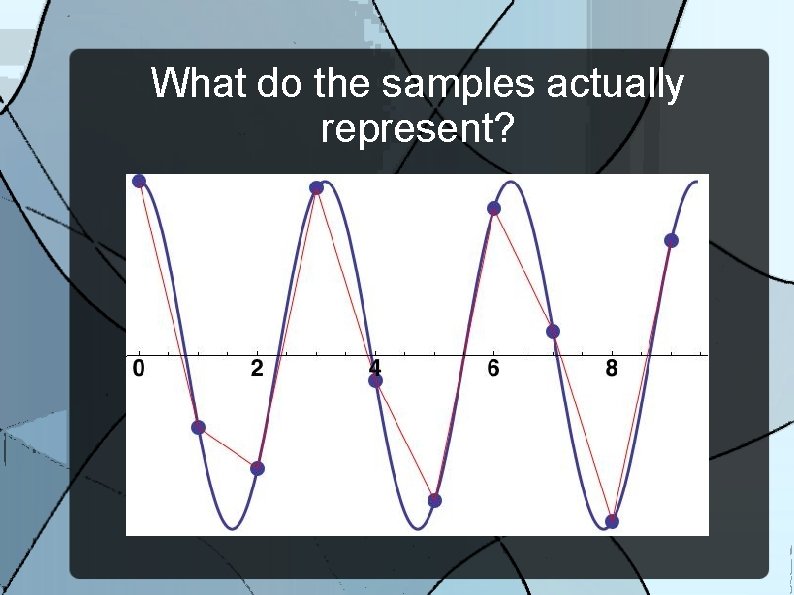

What do the samples actually represent?

Nyquist-Shannon Sampling Theorem “If a function x(t) contains no frequencies higher than B, it is completely determined by giving its ordinates at a series of points spaced 1/(2 B) seconds apart. ” A necessary condition for digitizing a signal so that it can be faithfully reconstructed is that the sample rate is at least twice as high as the highest frequency present in the signal.

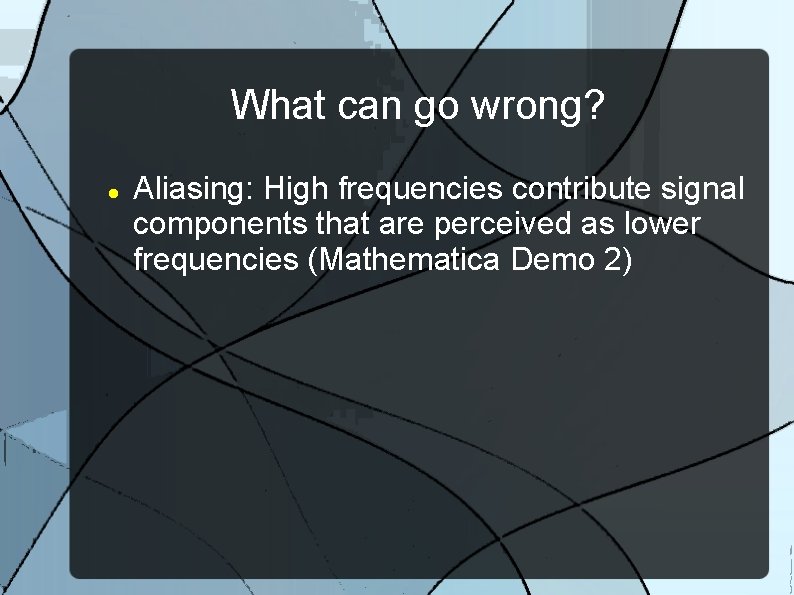

What can go wrong? Aliasing: High frequencies contribute signal components that are perceived as lower frequencies (Mathematica Demo 2)

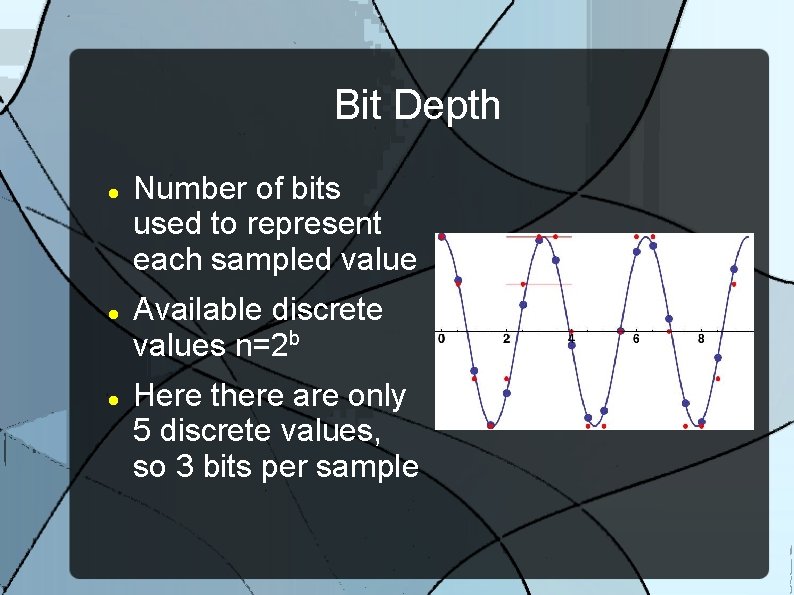

Bit Depth Number of bits used to represent each sampled value Available discrete values n=2 b Here there are only 5 discrete values, so 3 bits per sample

Dynamic Range Ability to represent small and large amplitude signals in the same scheme Clipping: Large signals are cut off, introducing high harmonics Masking: Small signals are “drowned out”

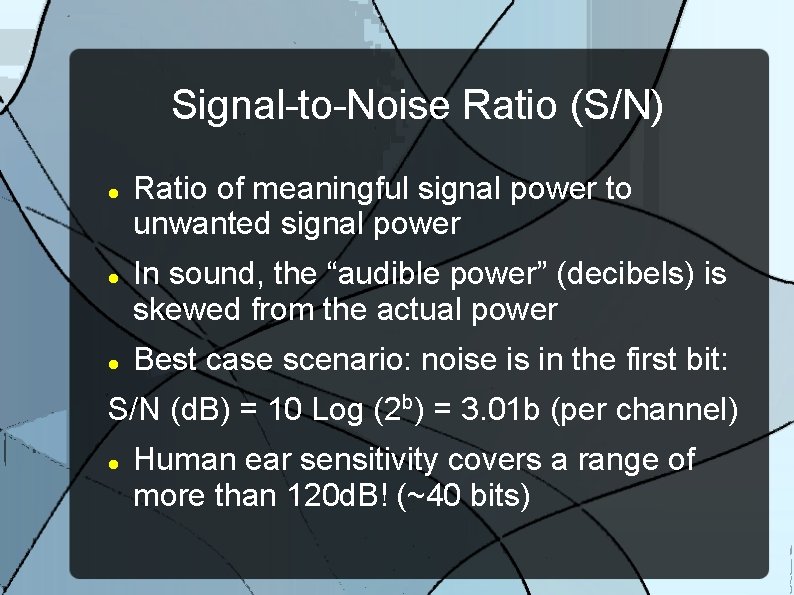

Signal-to-Noise Ratio (S/N) Ratio of meaningful signal power to unwanted signal power In sound, the “audible power” (decibels) is skewed from the actual power Best case scenario: noise is in the first bit: S/N (d. B) = 10 Log (2 b) = 3. 01 b (per channel) Human ear sensitivity covers a range of more than 120 d. B! (~40 bits)

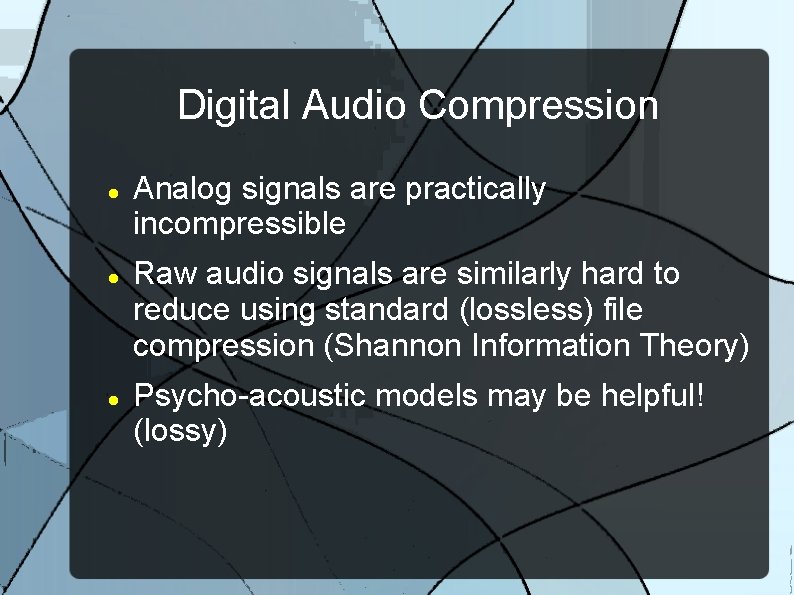

Digital Audio Compression Analog signals are practically incompressible Raw audio signals are similarly hard to reduce using standard (lossless) file compression (Shannon Information Theory) Psycho-acoustic models may be helpful! (lossy)

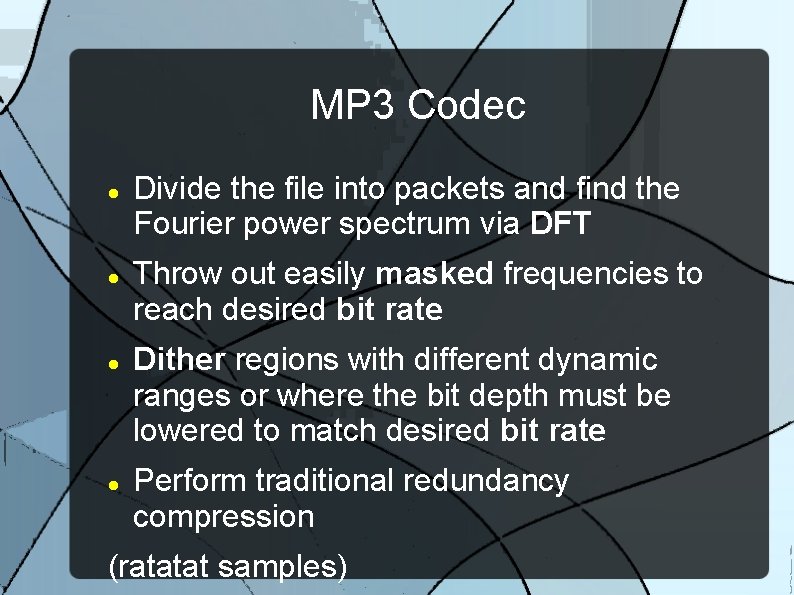

MP 3 Codec Divide the file into packets and find the Fourier power spectrum via DFT Throw out easily masked frequencies to reach desired bit rate Dither regions with different dynamic ranges or where the bit depth must be lowered to match desired bit rate Perform traditional redundancy compression (ratatat samples)

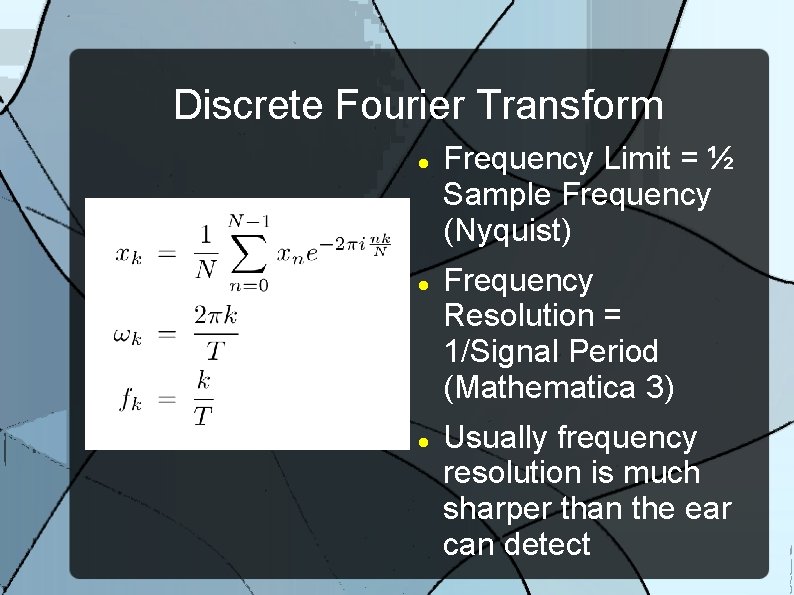

Discrete Fourier Transform Frequency Limit = ½ Sample Frequency (Nyquist) Frequency Resolution = 1/Signal Period (Mathematica 3) Usually frequency resolution is much sharper than the ear can detect

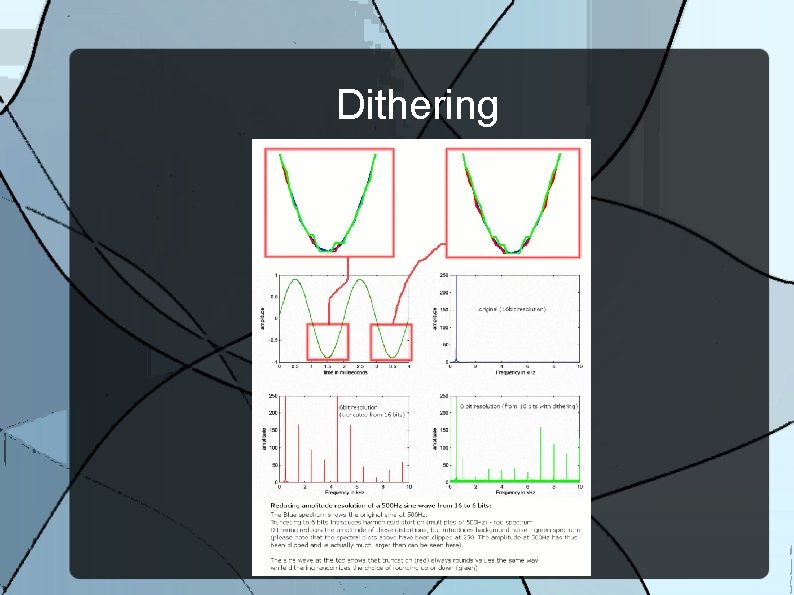

Dithering

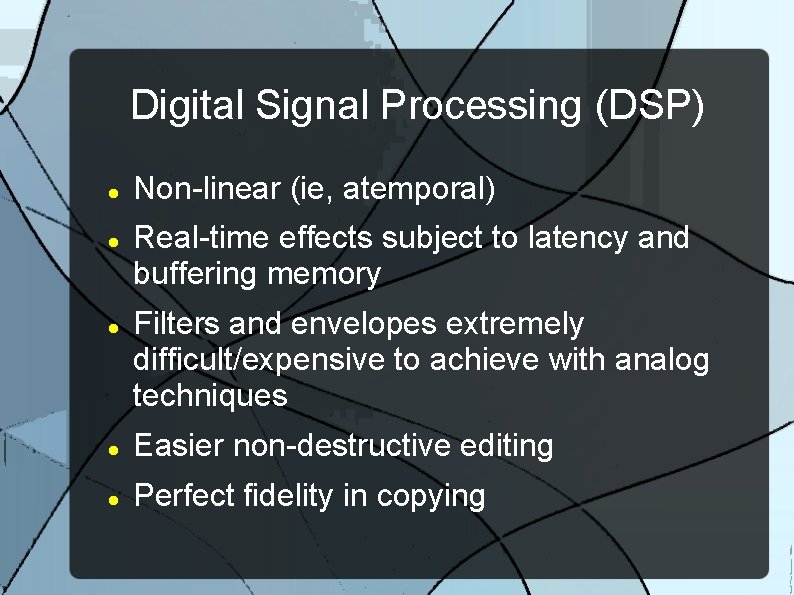

Digital Signal Processing (DSP) Non-linear (ie, atemporal) Real-time effects subject to latency and buffering memory Filters and envelopes extremely difficult/expensive to achieve with analog techniques Easier non-destructive editing Perfect fidelity in copying

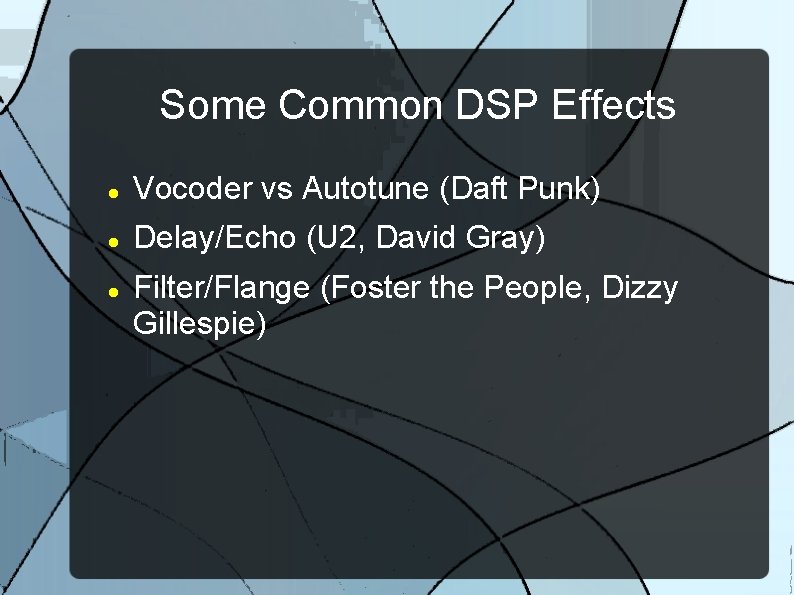

Some Common DSP Effects Vocoder vs Autotune (Daft Punk) Delay/Echo (U 2, David Gray) Filter/Flange (Foster the People, Dizzy Gillespie)

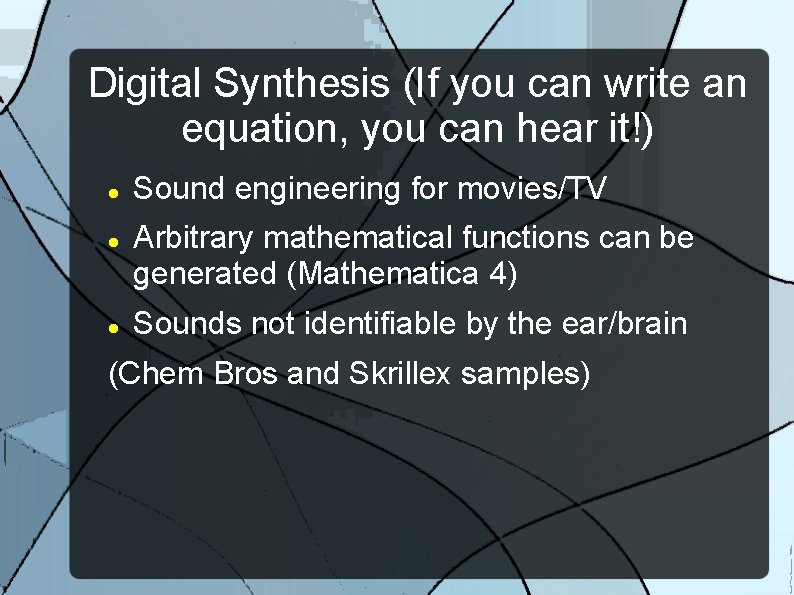

Digital Synthesis (If you can write an equation, you can hear it!) Sound engineering for movies/TV Arbitrary mathematical functions can be generated (Mathematica 4) Sounds not identifiable by the ear/brain (Chem Bros and Skrillex samples)
