Digital Audio at the Limit Observed DAC behavior

Digital Audio at the Limit Observed DAC behavior Bob Smith Sound. Smith Labs

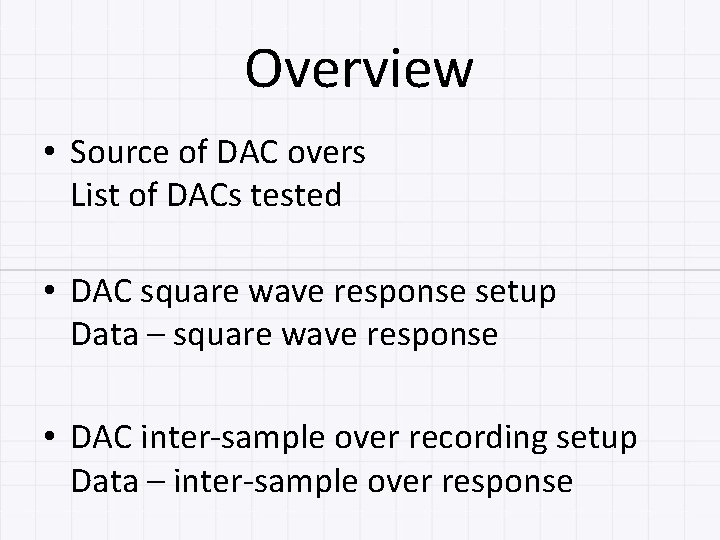

Overview • Source of DAC overs List of DACs tested • DAC square wave response setup Data – square wave response • DAC inter-sample over recording setup Data – inter-sample over response

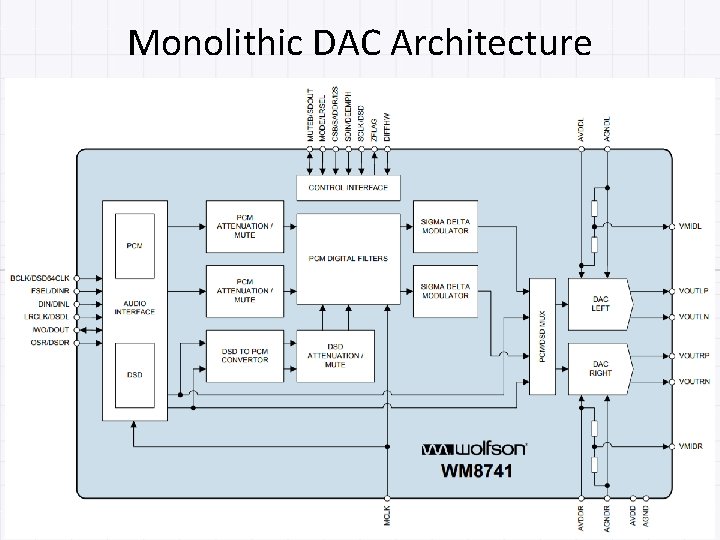

Monolithic DAC Architecture

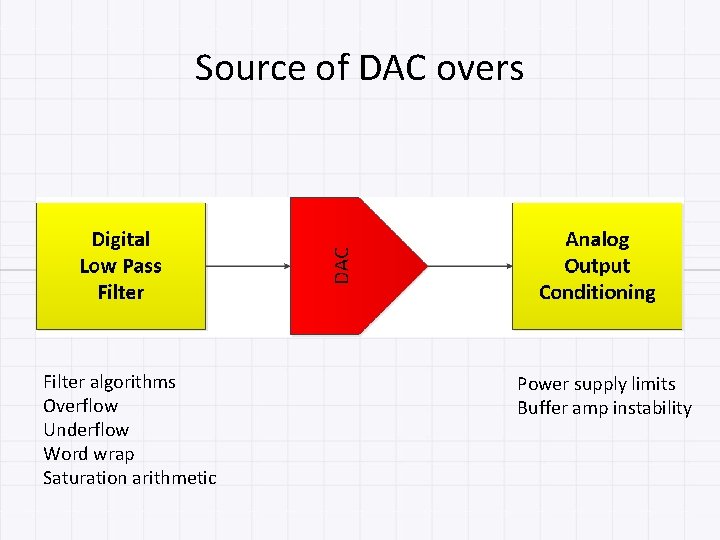

Source of DAC overs Filter algorithms Overflow Underflow Word wrap Saturation arithmetic Power supply limits Buffer amp instability

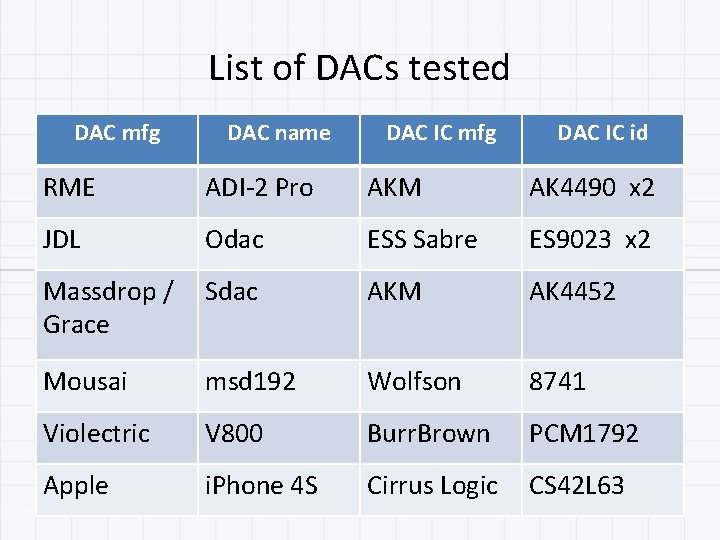

List of DACs tested DAC mfg DAC name DAC IC mfg DAC IC id RME ADI-2 Pro AKM AK 4490 x 2 JDL Odac ESS Sabre ES 9023 x 2 Massdrop / Grace Sdac AKM AK 4452 Mousai msd 192 Wolfson 8741 Violectric V 800 Burr. Brown PCM 1792 Apple i. Phone 4 S Cirrus Logic CS 42 L 63

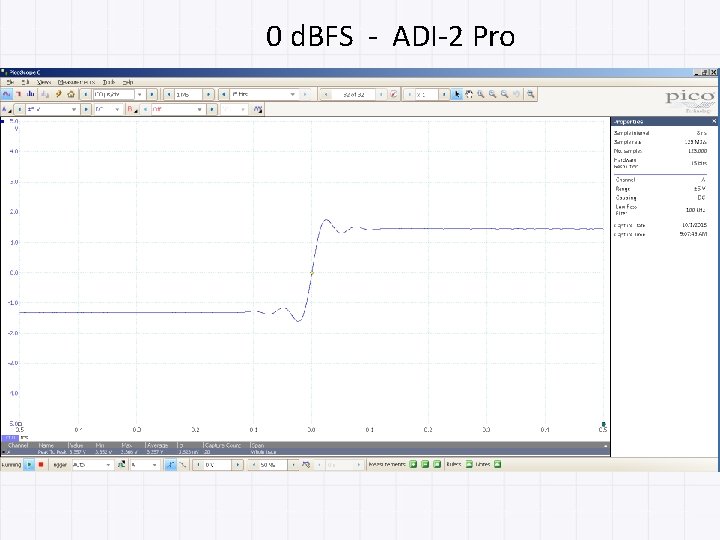

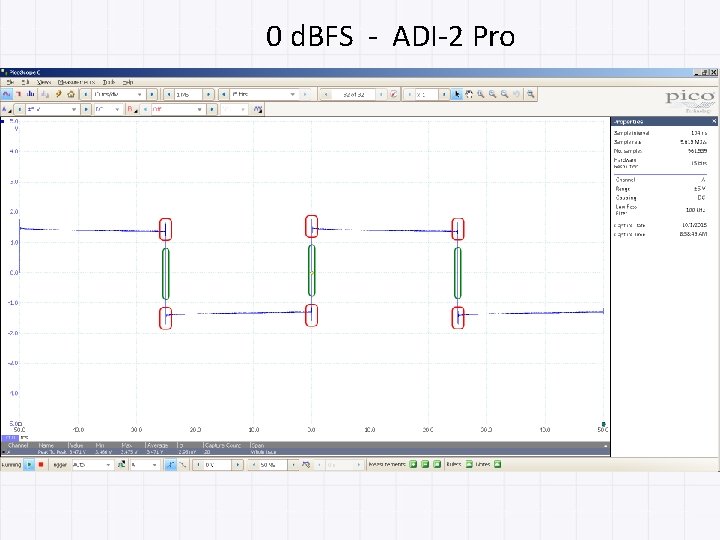

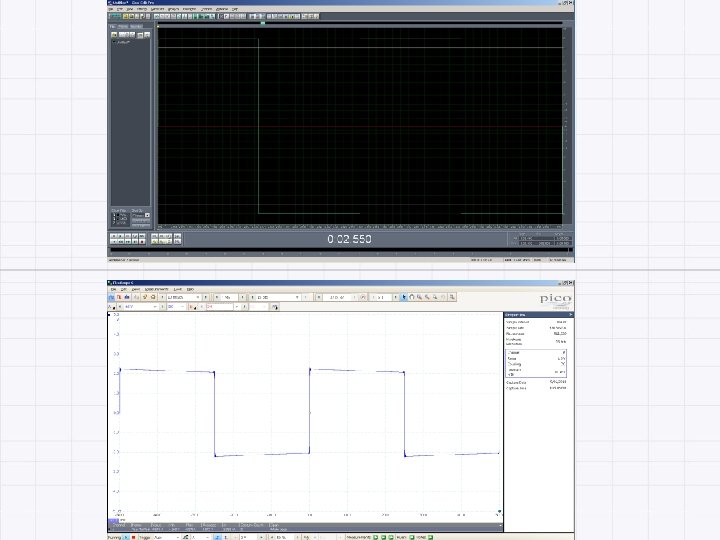

0 d. BFS - ADI-2 Pro

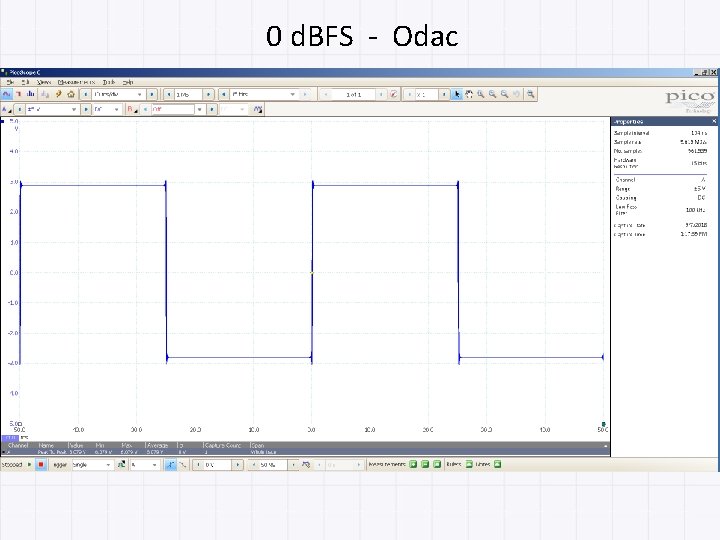

0 d. BFS - Odac

-3 d. BFS - Odac

0 d. BFS - Odac

-3 d. BFS - Odac

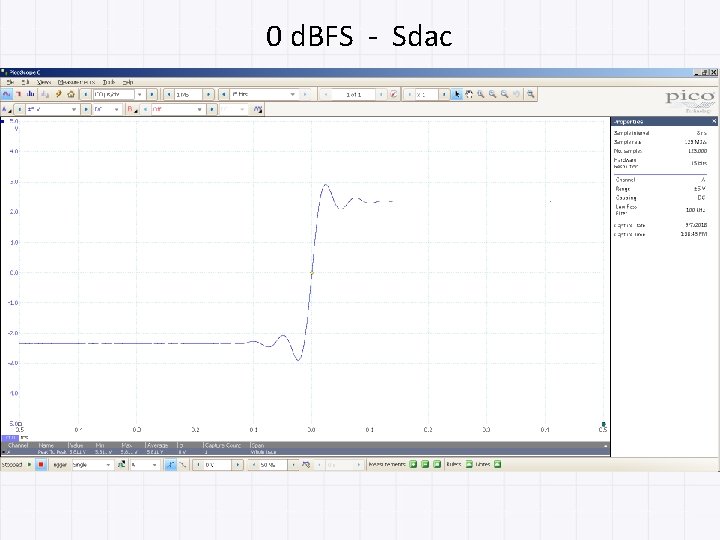

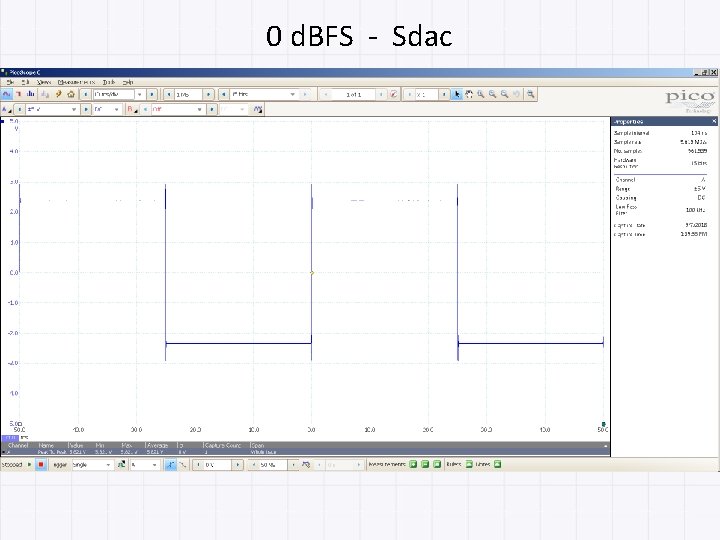

0 d. BFS - Sdac

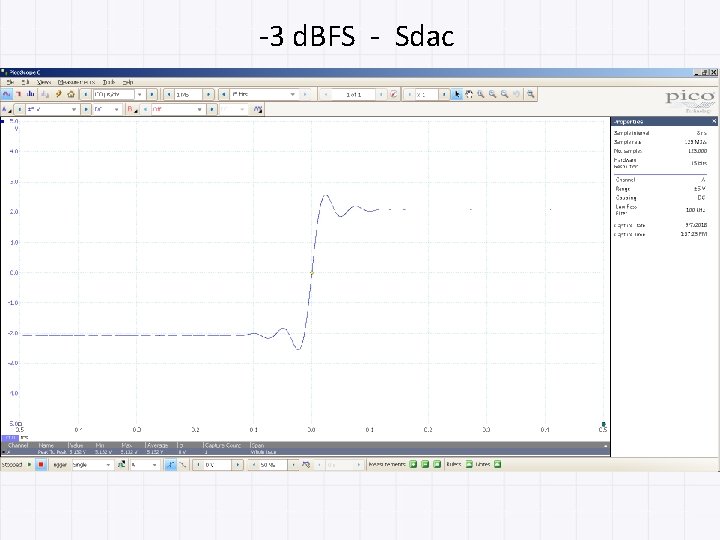

-3 d. BFS - Sdac

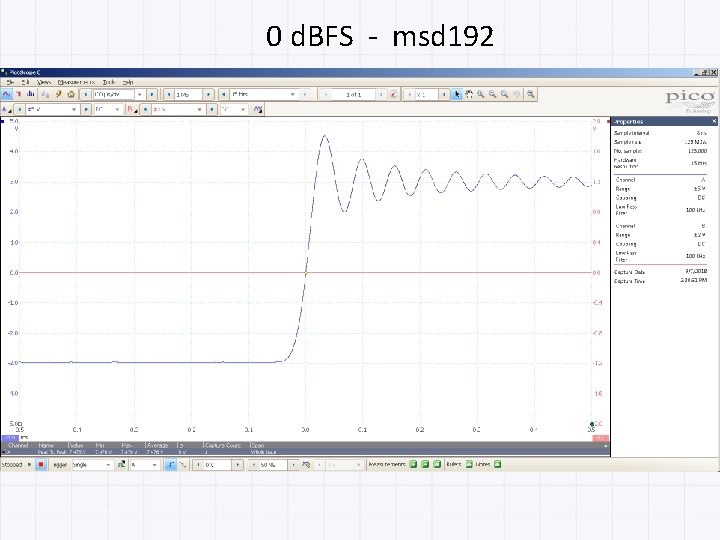

0 d. BFS - msd 192

0 d. BFS - V 800

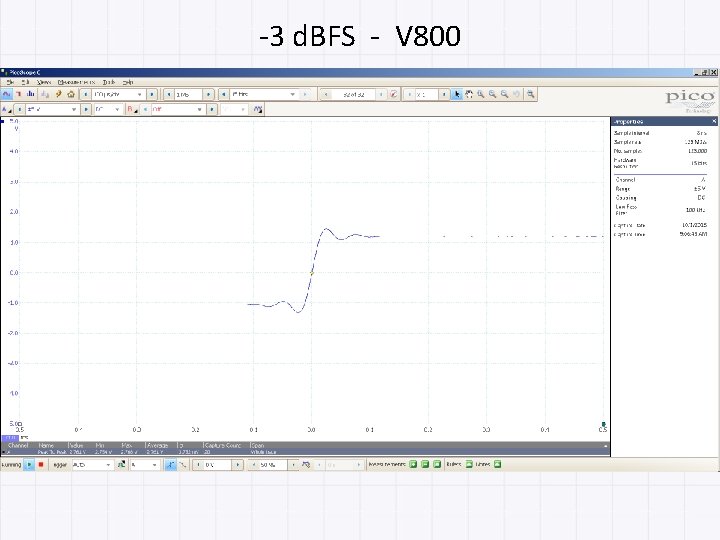

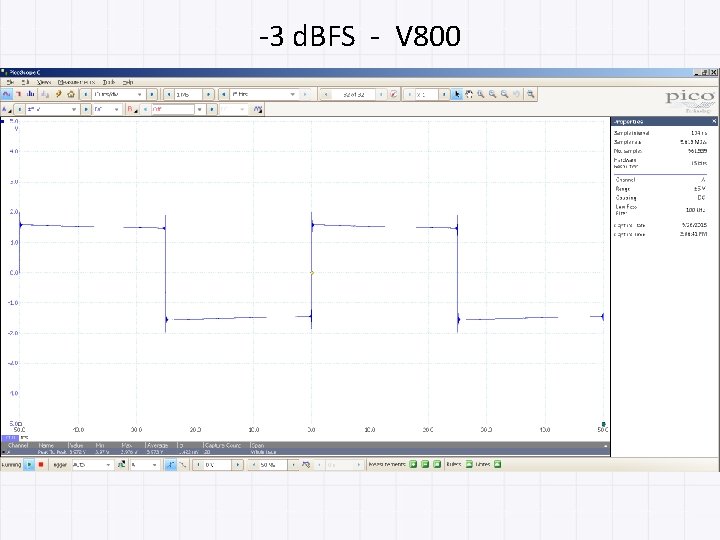

-3 d. BFS - V 800

0 d. BFS - V 800

-3 d. BFS - V 800

0 d. BFS - i. Phone 4 S

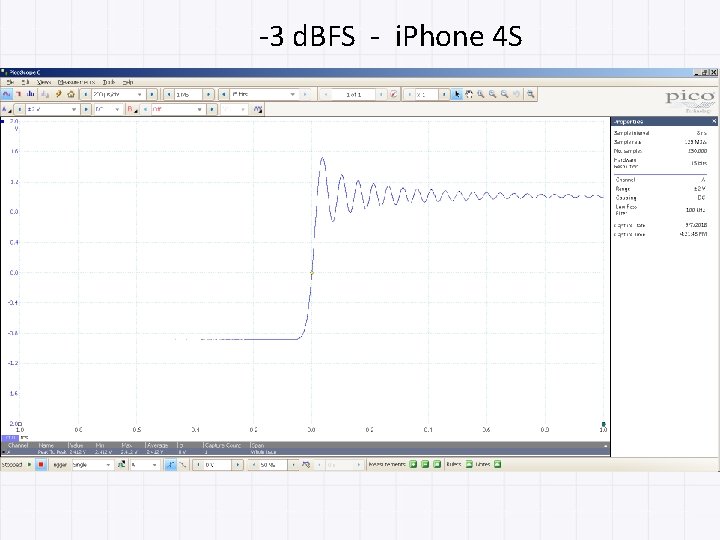

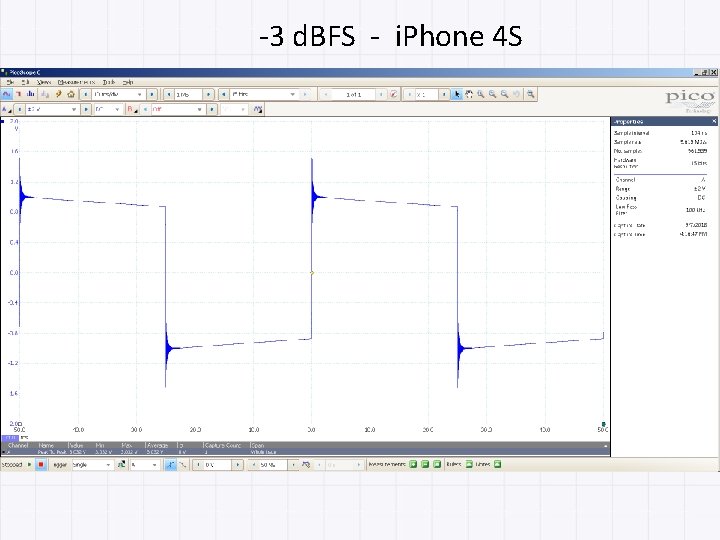

-3 d. BFS - i. Phone 4 S

0 d. BFS - i. Phone 4 S

-3 d. BFS - i. Phone 4 S

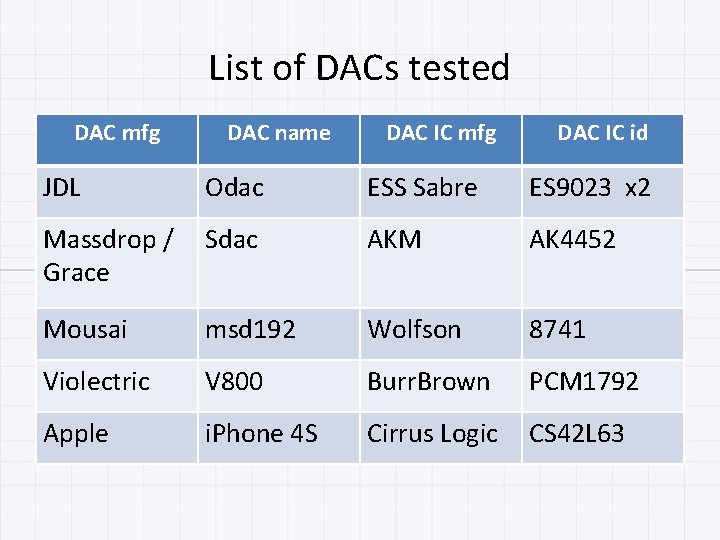

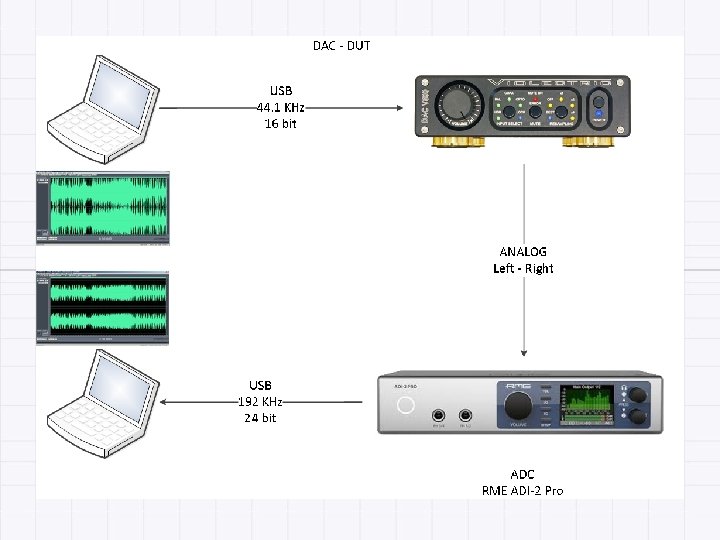

List of DACs tested DAC mfg DAC name DAC IC mfg DAC IC id JDL Odac ESS Sabre ES 9023 x 2 Massdrop / Grace Sdac AKM AK 4452 Mousai msd 192 Wolfson 8741 Violectric V 800 Burr. Brown PCM 1792 Apple i. Phone 4 S Cirrus Logic CS 42 L 63

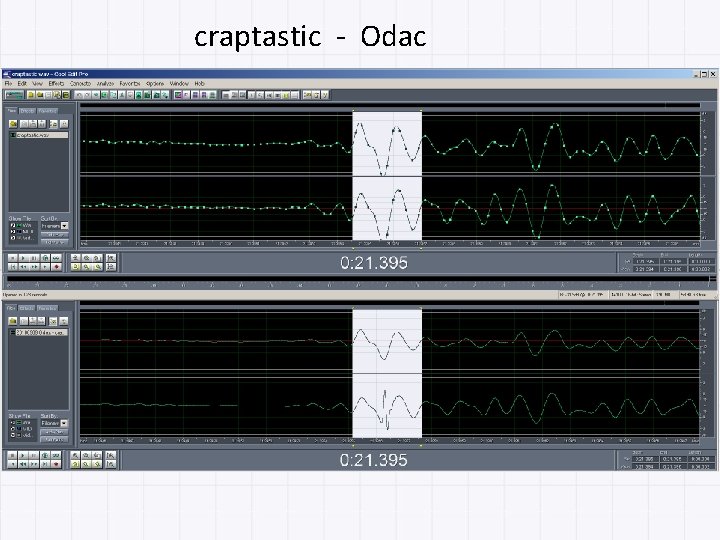

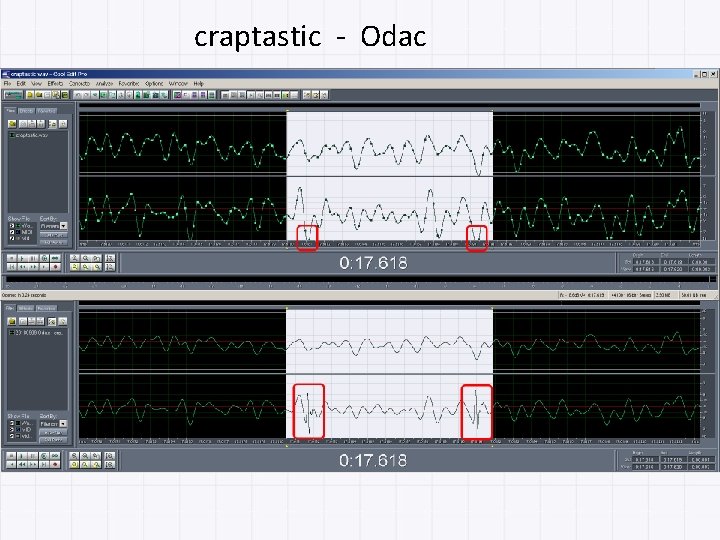

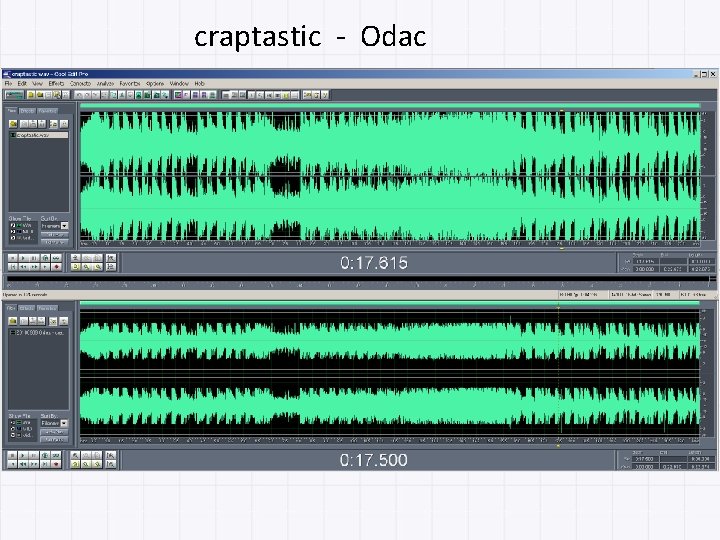

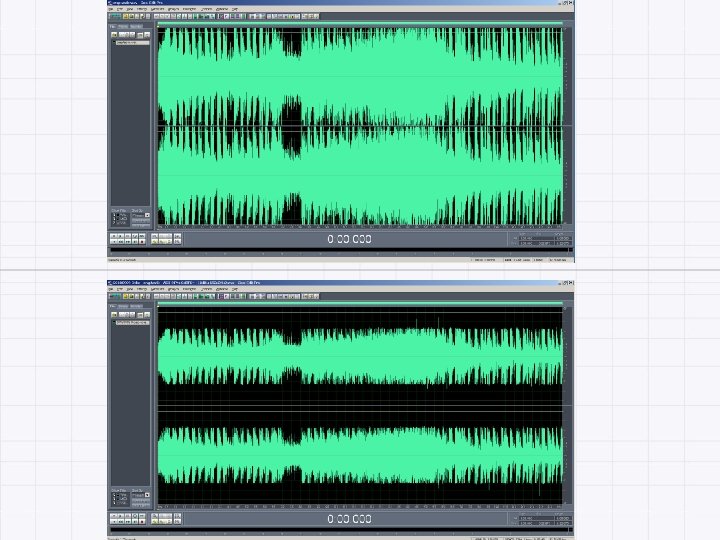

craptastic - Odac

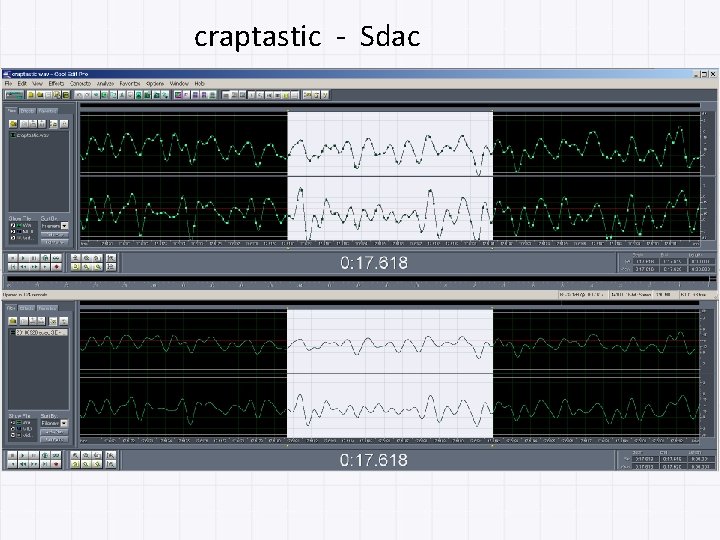

craptastic - Sdac

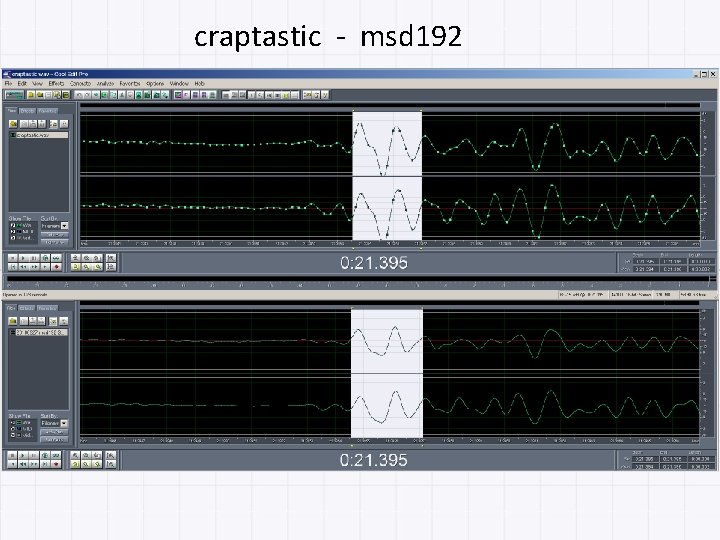

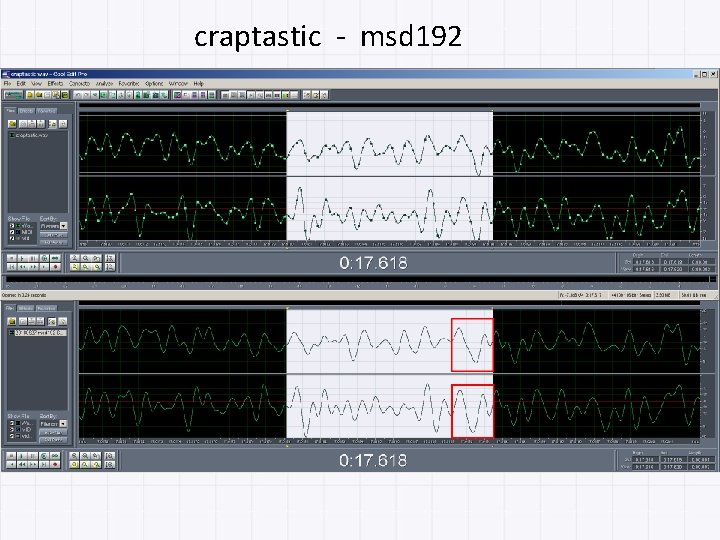

craptastic - msd 192

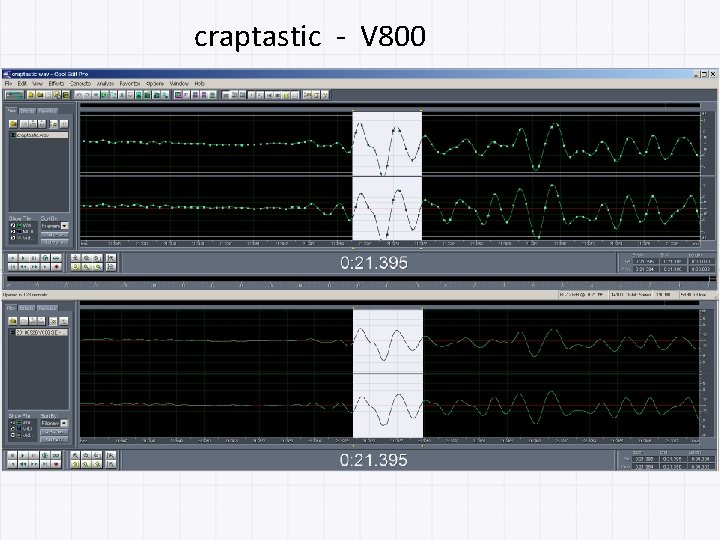

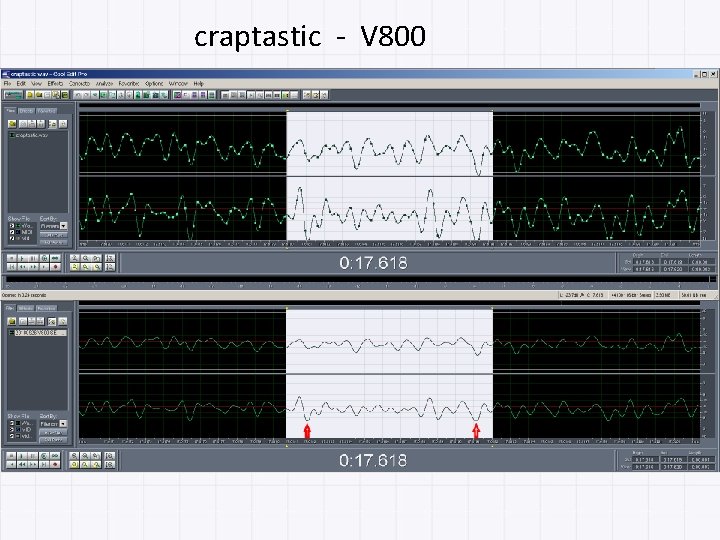

craptastic - V 800

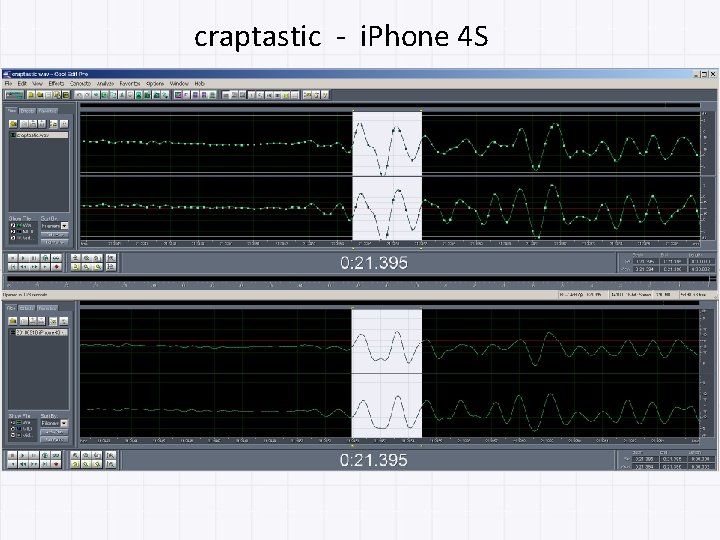

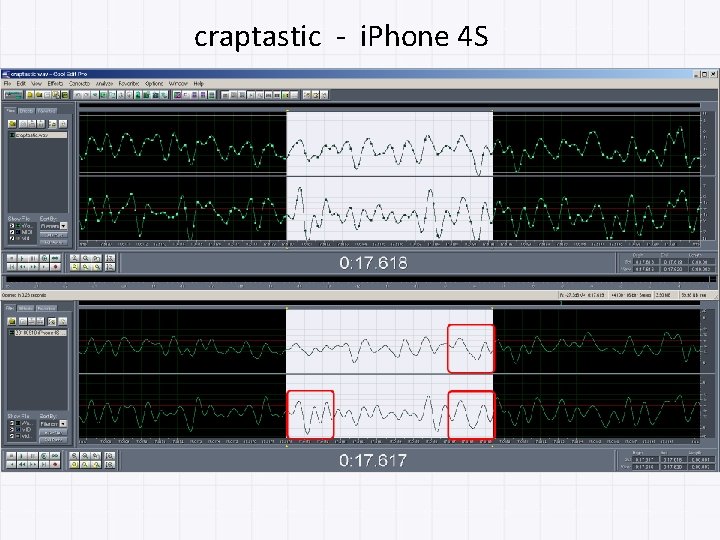

craptastic - i. Phone 4 S

craptastic - Odac

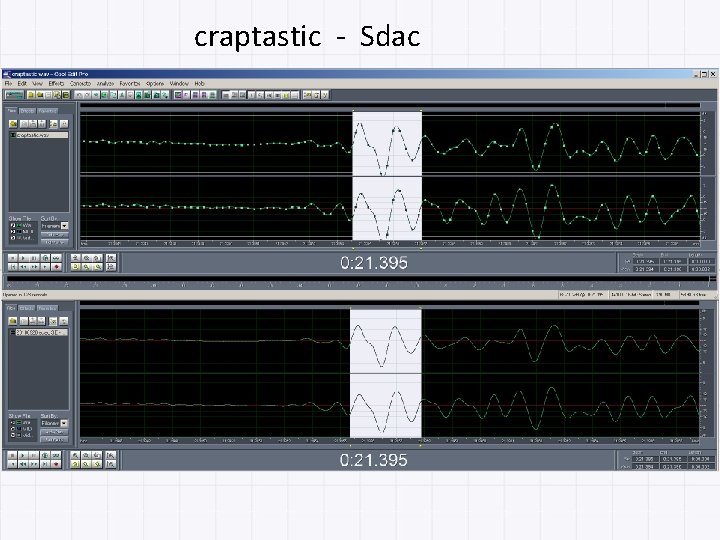

craptastic - Sdac

craptastic - msd 192

craptastic - V 800

craptastic - i. Phone 4 S

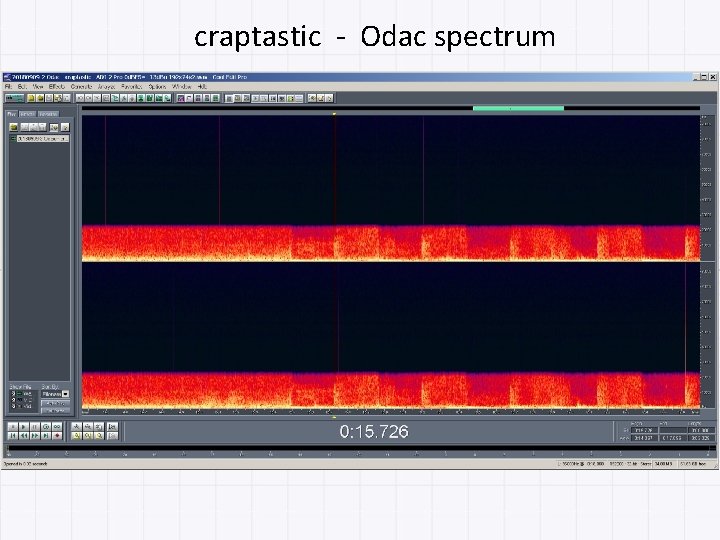

craptastic - Odac spectrum

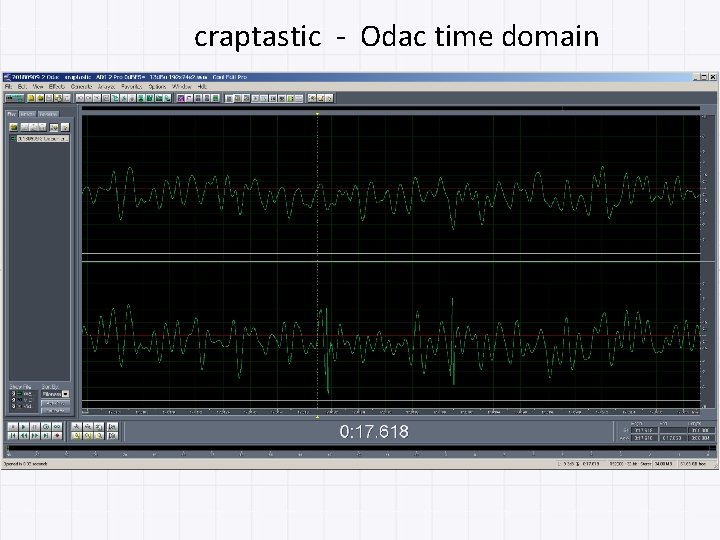

craptastic - Odac time domain

craptastic - Odac spectrum

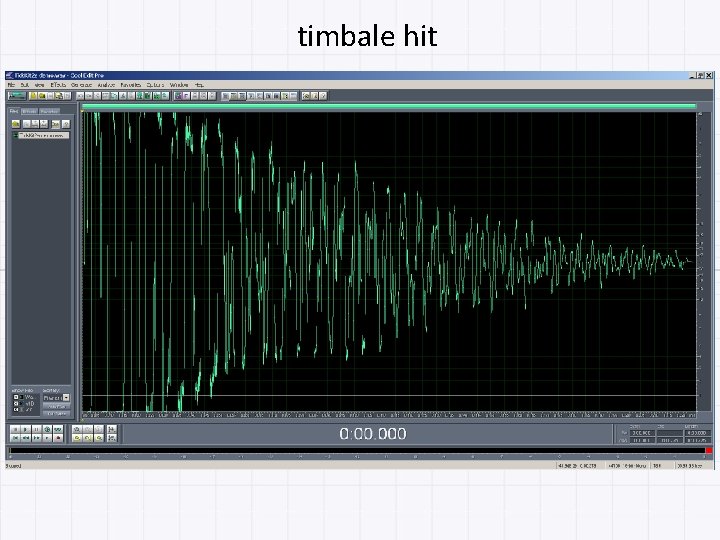

timbale hit

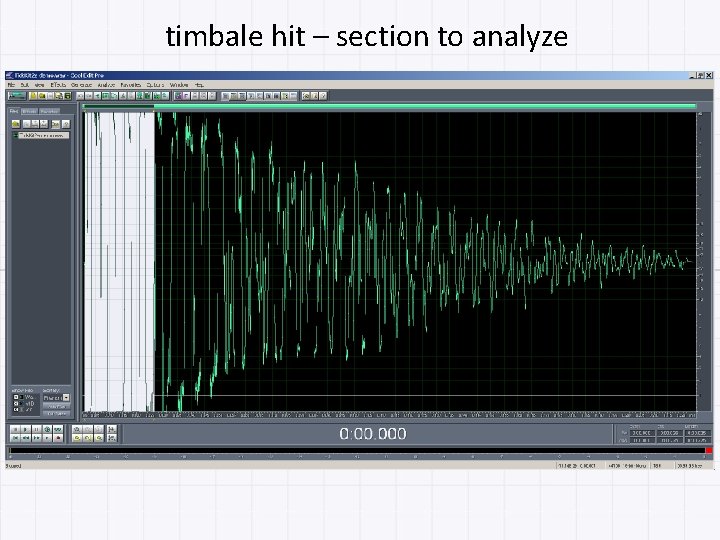

timbale hit – section to analyze

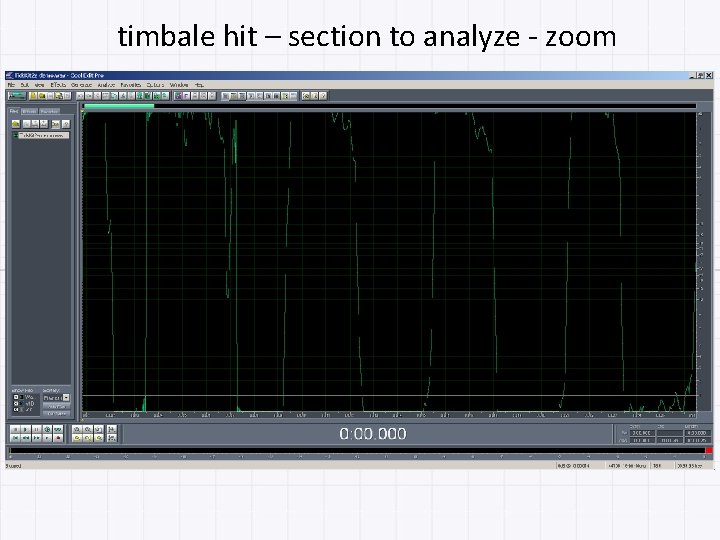

timbale hit – section to analyze - zoom

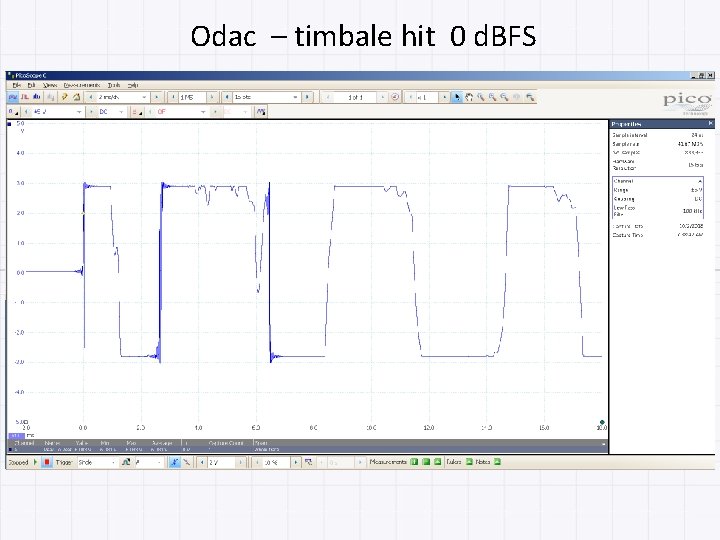

Odac – timbale hit 0 d. BFS

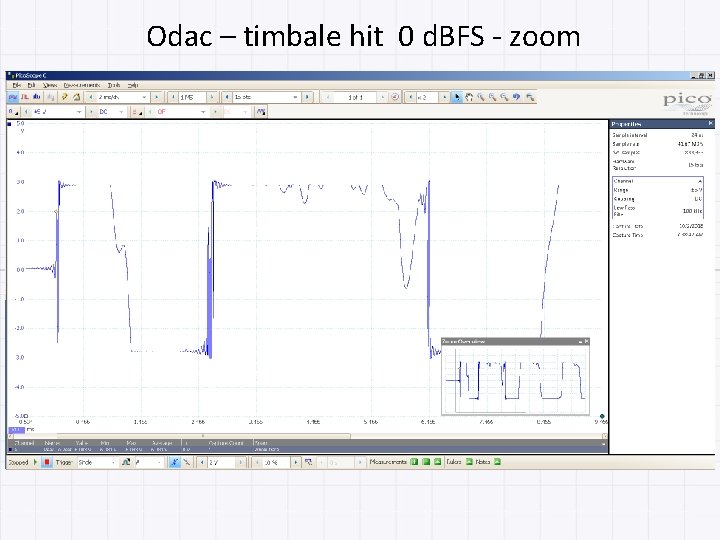

Odac – timbale hit 0 d. BFS - zoom

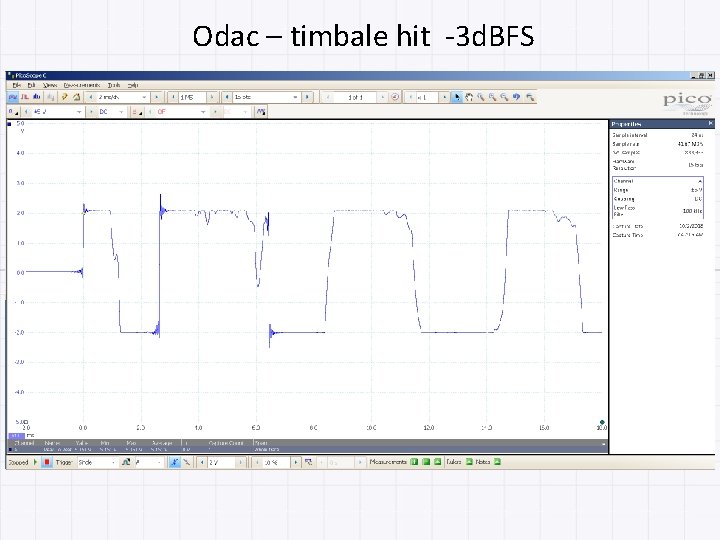

Odac – timbale hit -3 d. BFS

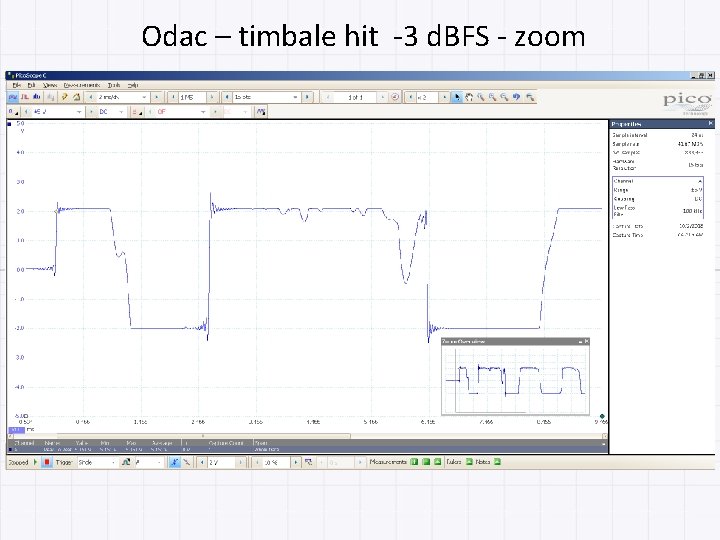

Odac – timbale hit -3 d. BFS - zoom

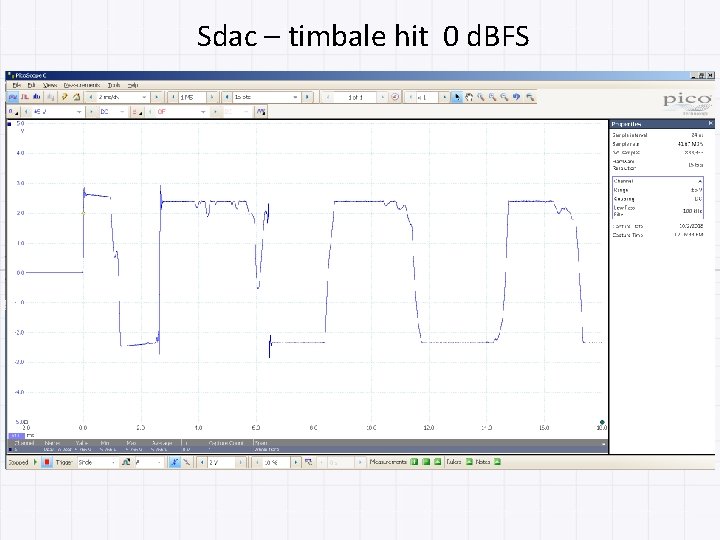

Sdac – timbale hit 0 d. BFS

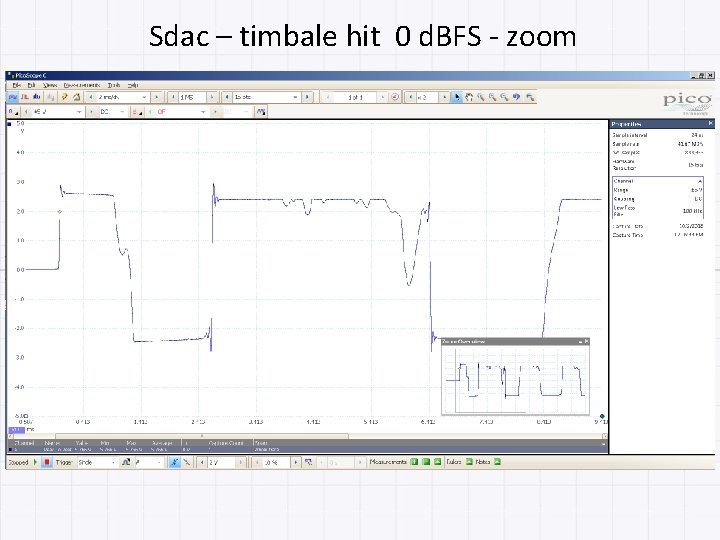

Sdac – timbale hit 0 d. BFS - zoom

Sdac – timbale hit -3 d. BFS

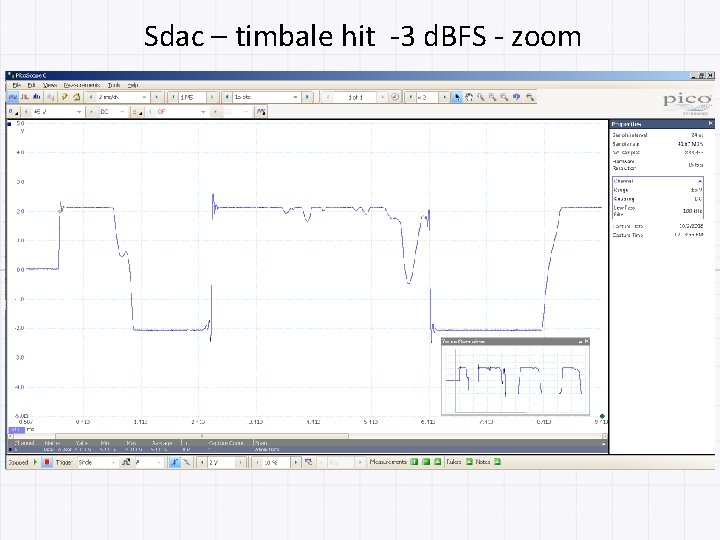

Sdac – timbale hit -3 d. BFS - zoom

Odac – timbale hit -3 d. BFS - zoom

Odac – timbale hit 0 d. BFS - zoom

Sdac – timbale hit 0 d. BFS - zoom

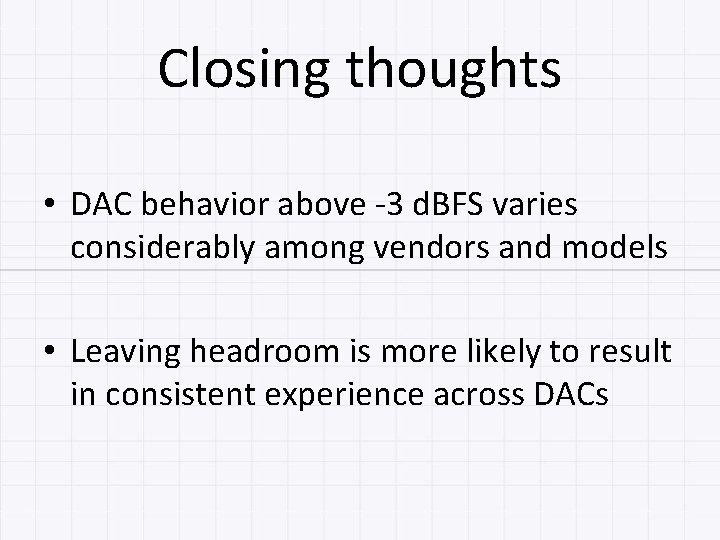

Closing thoughts • DAC behavior above -3 d. BFS varies considerably among vendors and models • Leaving headroom is more likely to result in consistent experience across DACs
