Digimap’s Ordnance Survey Collection What can I do with Roam? • View current OS maps • Customise your map: – Add annotations – Select map features – Select different basemap – Add hillshading • Measure lines and shapes • Save map within Roam • Import your own map data – points, lines or polygons • Print A 4 – A 0

Save within Digimap, Print A 4 -A 0 Map Content, Map Information Roam Search, Map tools, Overlays, Basemaps Zoom in/out, 14 fixed scale map views of different OS maps

Content Look at all Roam features: 1. Helvellyn – Search, navigate, select map features, measure, add hillshading 2. Archaeological dig site – Change basemap, add polygon & label, save, print 3. Carlisle Flood Warning areas – Import your own map data

Map 1 – Helvellyn • Place name search • Zoom out • Map Content: only want to display water and land features • Measure shape • Overlays – add hillshading

Search • Can pan/zoom to your location, or use Search • Tab 1: place name/ road / postcode • Tab 2: British National Grid reference or Lat/Long

Place name Gazetteer • Place name search uses the OS 1: 50000 Scale Gazetteer • Same database that is used on the Landranger Maps

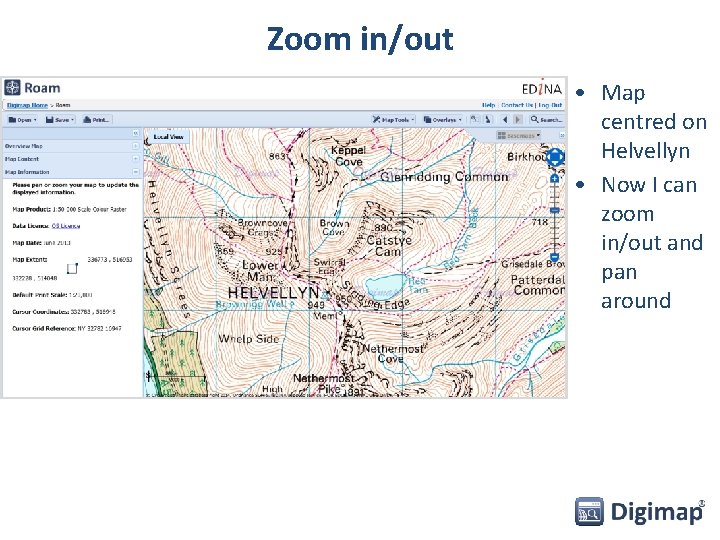

Zoom in/out • Map centred on Helvellyn • Now I can zoom in/out and pan around

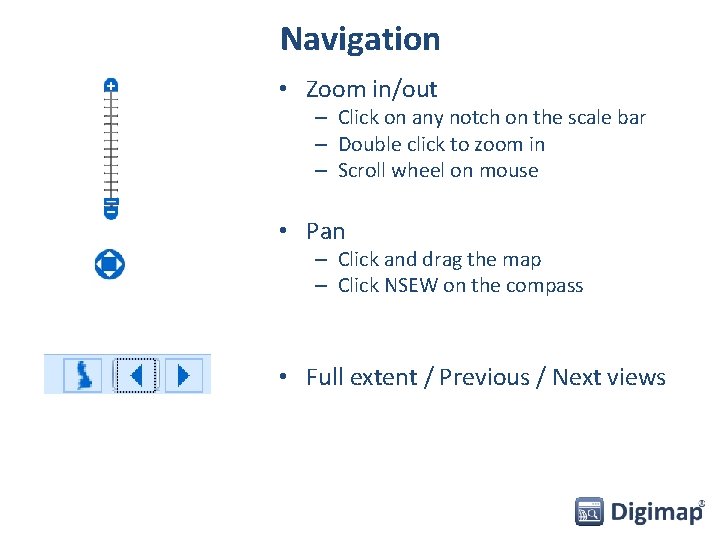

Navigation • Zoom in/out – Click on any notch on the scale bar – Double click to zoom in – Scroll wheel on mouse • Pan – Click and drag the map – Click NSEW on the compass • Full extent / Previous / Next views

Zoomed out to Metropolitan View

Map Information Details: • Map product • Data licence – 2 possibilities: – OS Licence (Digimap licence, educational use only) – OS Open. Data (wider use permitted, see OS Open Data website for full details) • Date of creation by OS • Default print scale • Grid references

Map Content • On this map, we are only displaying land water features • Removed roads, boundaries, tourist features etc

Map Content • Feature selection available in 8 of Roam’s 14 views • Unavailable when you are viewing a raster map - when unavailable, you will see the message ‘View has no layer selection’ • TIP: check the basemaps for alternative maps where feature selection may be possible

Raster v Vector map data • Raster map data is a matrix of cells (or pixels) in a grid: – scanned maps, digital aerial photographs, satellite images, digital pictures. – geo-referenced, geographic coordinates of the location added. – useful as background for displaying other data. • Vector map data stores data on individual map features e. g. – Points such as train stations. – Lines such as railway tracks and rivers. – Polygons such as buildings or fields. – We can view, query and analyse vector map data.

Measurements • Available under Map tools • Measure distances or areas • Not possible to save the measurements or print on your map

Hillshading • Will be other overlays available in future

Map 2 – Archaeological dig site • Search using a postcode • Zoom in • Add a polygon and a label • Basemaps • Print • Save options

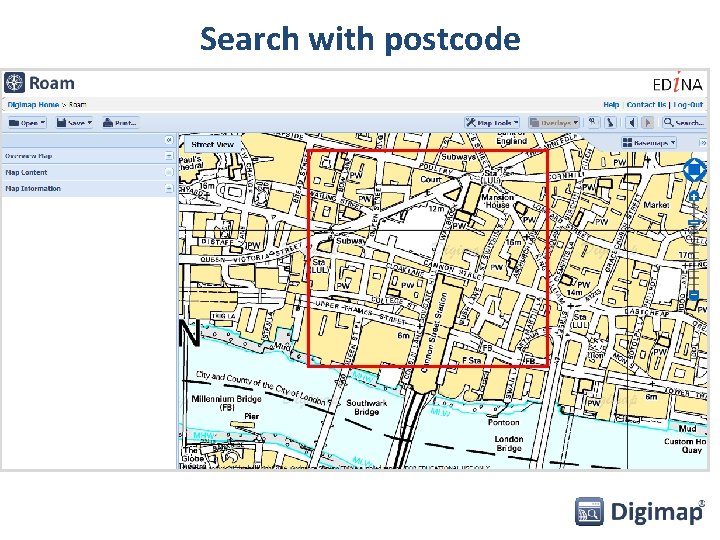

Search with postcode

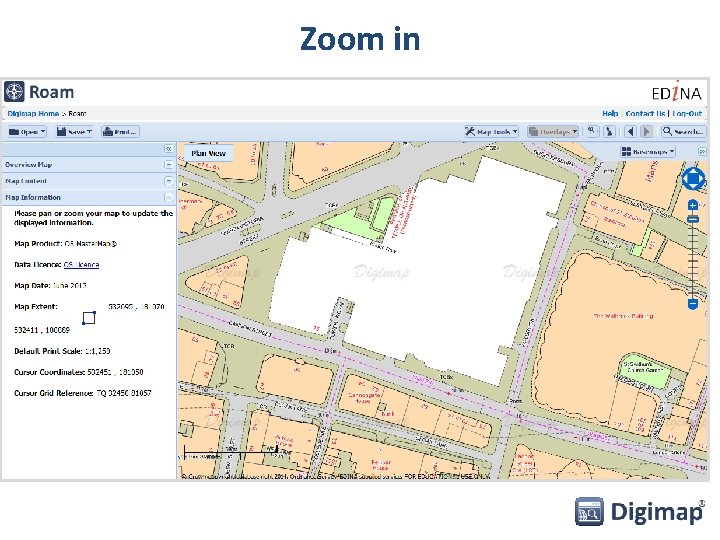

Zoom in

Basemaps • Basemaps offer maps at same scale, in a different cartographic style • Available in several of Roam’s map views: – – • Plan, Building and Detailed Street, Neighbourhood District City, Metropolitan Tip: in Street and Neighbourhood views, switching basemap means you can select features in Map Content…default is raster map, some of basemaps are vector.

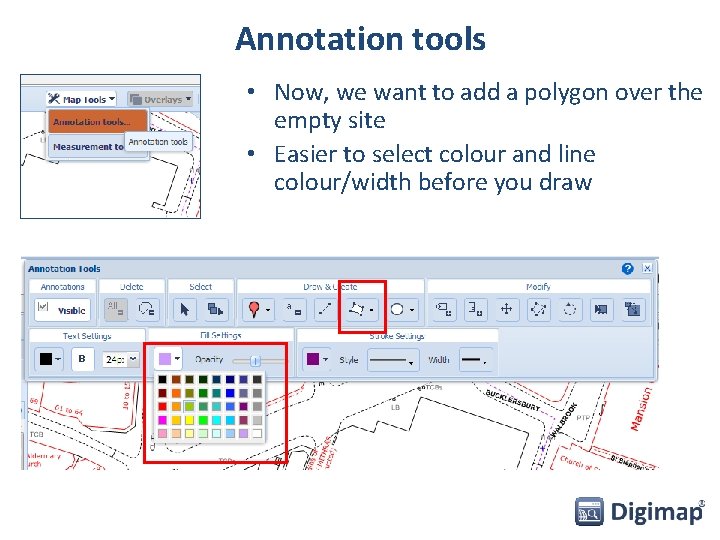

Annotation tools • Now, we want to add a polygon over the empty site • Easier to select colour and line colour/width before you draw

Adding polygon • Click once on each point • Double click at last point to close it

Label the polygon • Two options: 1. add standalone label, 2. add label to the polygon (if you move polygon, label moves with it) • Again, easier to select font options before adding label

Add Measurement Label

Print

Print Note 2 tabs: 1. Content shows type of map 2. Layout shows area covered by map (changes if select different scale or paper size)

Map and legend • If you select Add Legend option, receive a zip file • Zip file contains 2 PDF files, map and legend

PDF print example

Legend extract

Save • Save > My Maps saves your map within Digimap – No limit to number of maps you can save – Available as long as your registration remains active • Open > My Maps to retrieve your saved maps

Display annotation in another Roam

Display annotations in another Roam

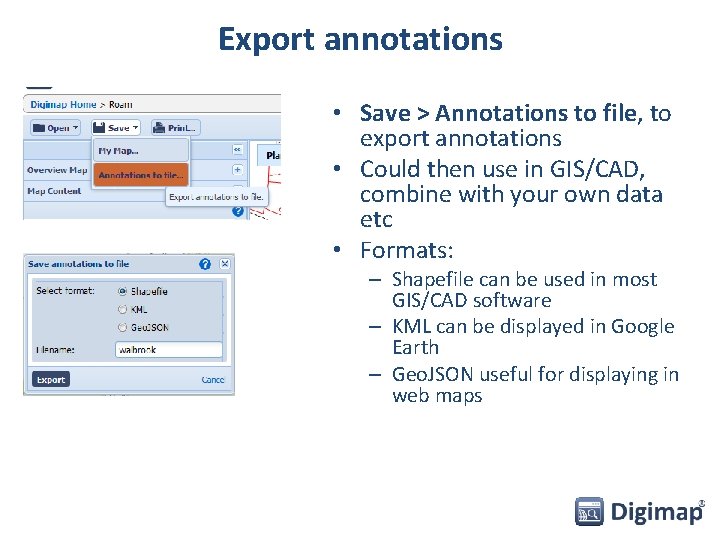

Export annotations • Save > Annotations to file, to export annotations • Could then use in GIS/CAD, combine with your own data etc • Formats: – Shapefile can be used in most GIS/CAD software – KML can be displayed in Google Earth – Geo. JSON useful for displaying in web maps

Map 3 – Carlisle Flood areas • Import the flood warning area polygons • Change basemap • Map Content • Label the rivers

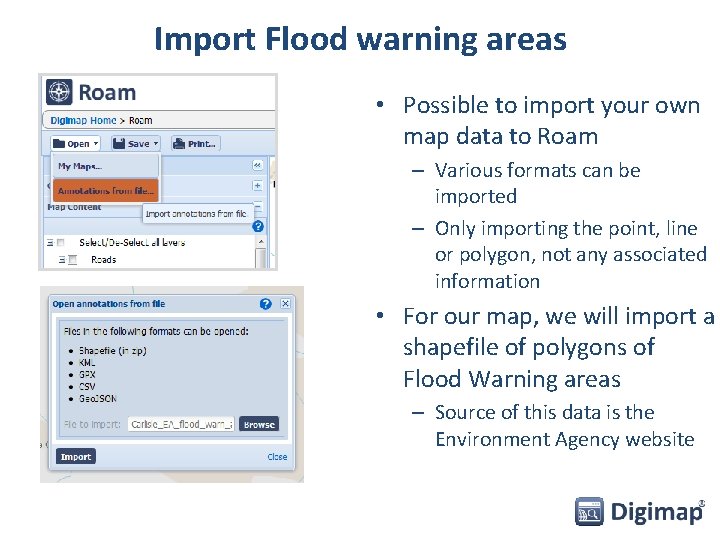

Import Flood warning areas • Possible to import your own map data to Roam – Various formats can be imported – Only importing the point, line or polygon, not any associated information • For our map, we will import a shapefile of polygons of Flood Warning areas – Source of this data is the Environment Agency website

Map displaying imported file

Zoom out to District View

Map Content, basemap, labels for rivers

Resources • Chat tool – users can chat to staff in office hours. Well used. • Digimap Resource centre: – Working to streamline and organise. – New You. Tube videos. • What do you need?

Training • We can run a course at your institution. • Materials to run your own workshops available in Digimap Resource Centre:
