DIFFUSION TENSOR IMAGING Marija Cauchi and Kenji Yamamoto

DIFFUSION TENSOR IMAGING Marija Cauchi and Kenji Yamamoto

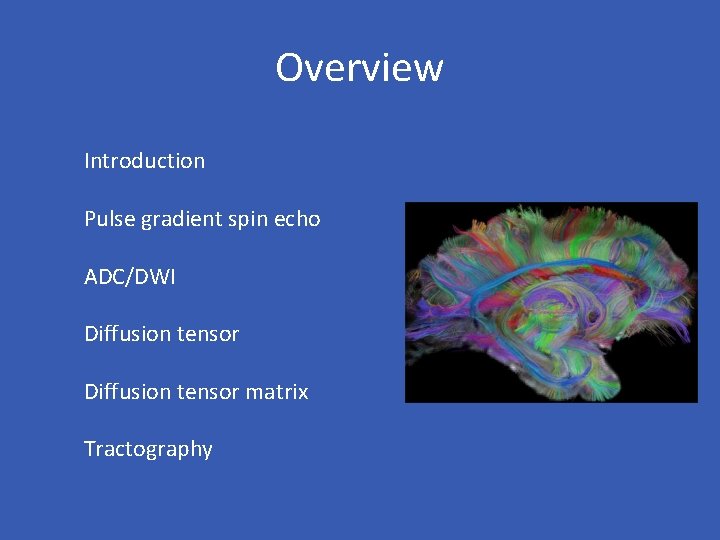

Overview Introduction Pulse gradient spin echo ADC/DWI Diffusion tensor matrix Tractography

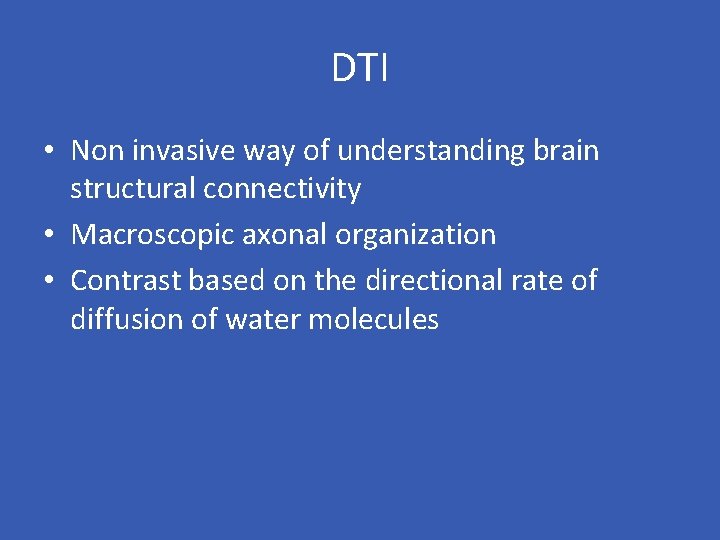

DTI • Non invasive way of understanding brain structural connectivity • Macroscopic axonal organization • Contrast based on the directional rate of diffusion of water molecules

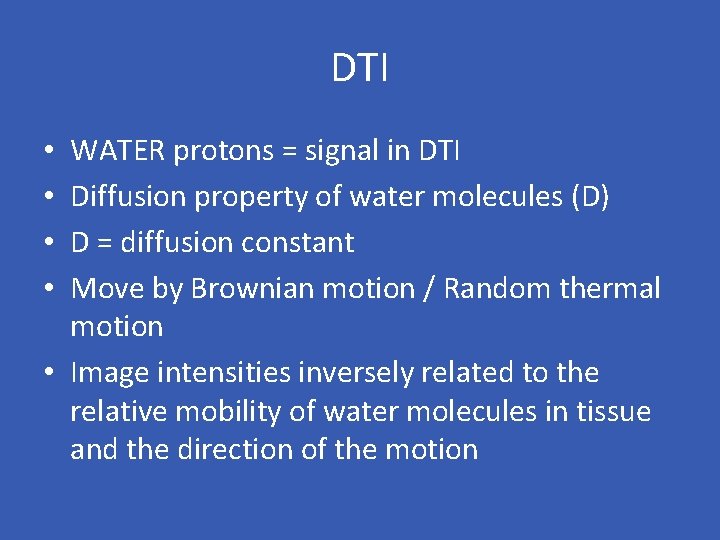

DTI WATER protons = signal in DTI Diffusion property of water molecules (D) D = diffusion constant Move by Brownian motion / Random thermal motion • Image intensities inversely related to the relative mobility of water molecules in tissue and the direction of the motion • •

Brownian motion of water molecule Rosenbloom et al

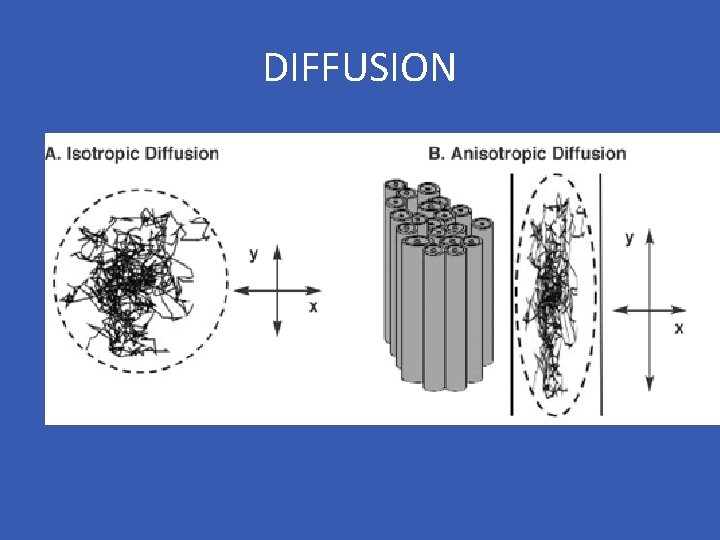

DIFFUSION

Pulsed Gradient Spin-echo

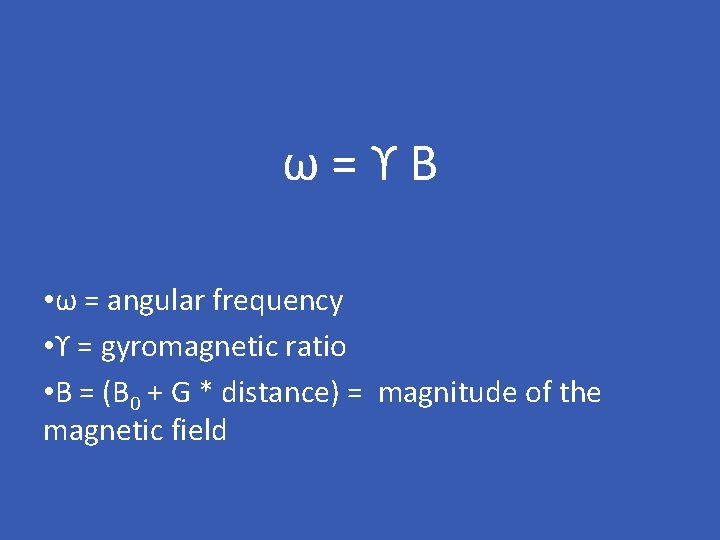

ω=ϒB • ω = angular frequency • ϒ = gyromagnetic ratio • B = (B 0 + G * distance) = magnitude of the magnetic field

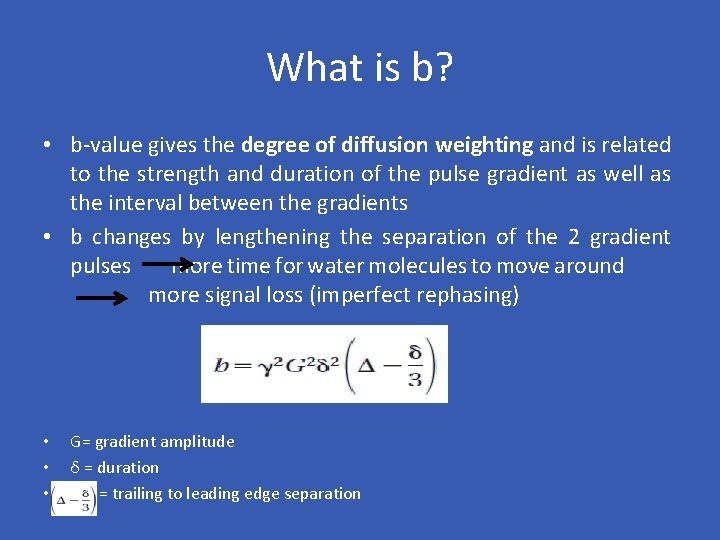

What is b? • b-value gives the degree of diffusion weighting and is related to the strength and duration of the pulse gradient as well as the interval between the gradients • b changes by lengthening the separation of the 2 gradient pulses more time for water molecules to move around more signal loss (imperfect rephasing) • • • G= gradient amplitude δ = duration = trailing to leading edge separation

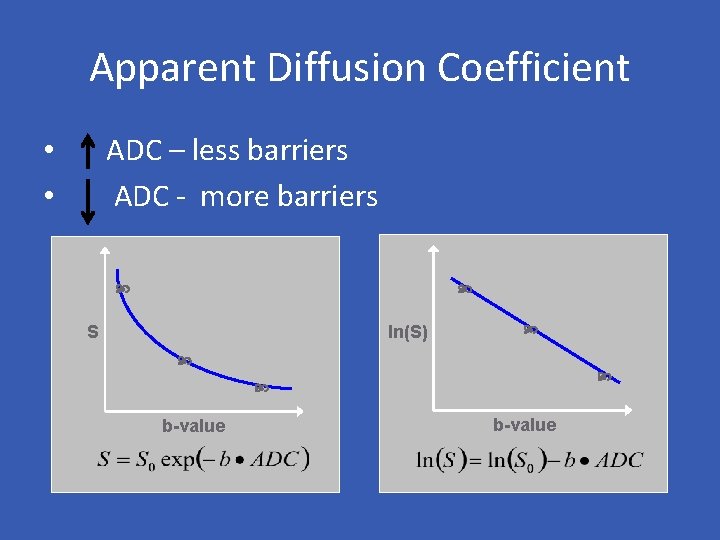

Apparent Diffusion Coefficient ADC – less barriers ADC - more barriers • • ln(S) S b-value

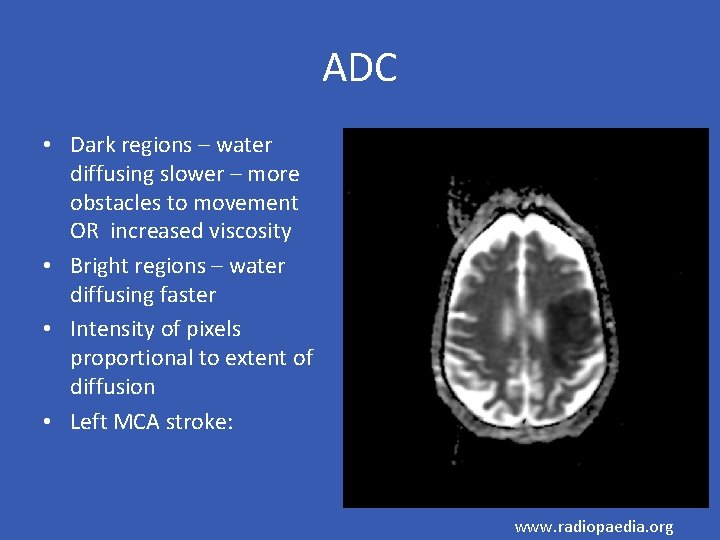

ADC • Dark regions – water diffusing slower – more obstacles to movement OR increased viscosity • Bright regions – water diffusing faster • Intensity of pixels proportional to extent of diffusion • Left MCA stroke: www. radiopaedia. org

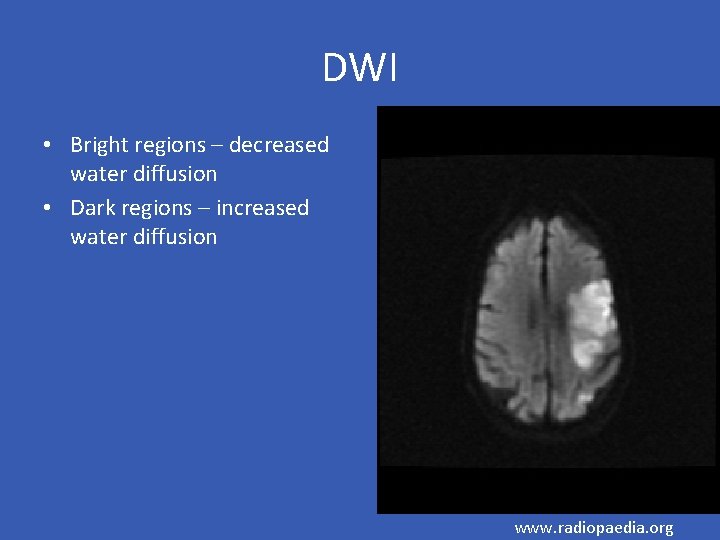

DWI • Bright regions – decreased water diffusion • Dark regions – increased water diffusion www. radiopaedia. org

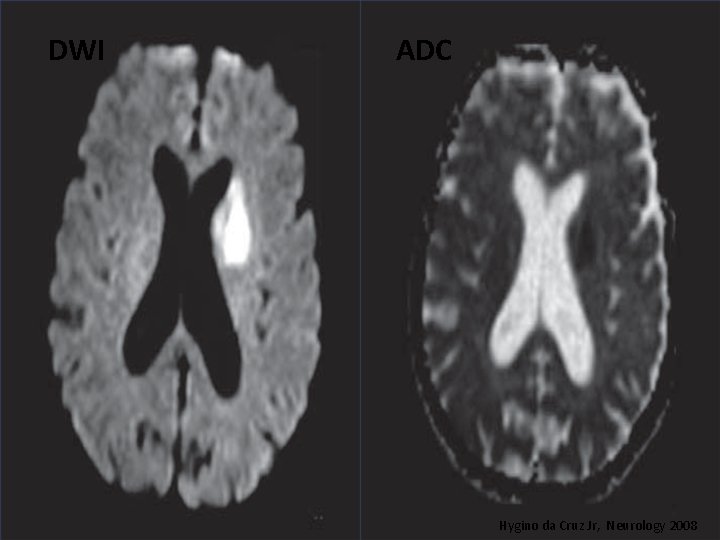

DWI ADC Hygino da Cruz Jr, Neurology 2008

Colour FA map • Colour coding of the diffusion data according to the principal direction of diffusion • red - transverse axis (x-axis) • blue – superior-inferior (z -axis) • green – anterior-posterior axis (y-axis) • Intensity of the colour is proportional to the fractional anisotropy

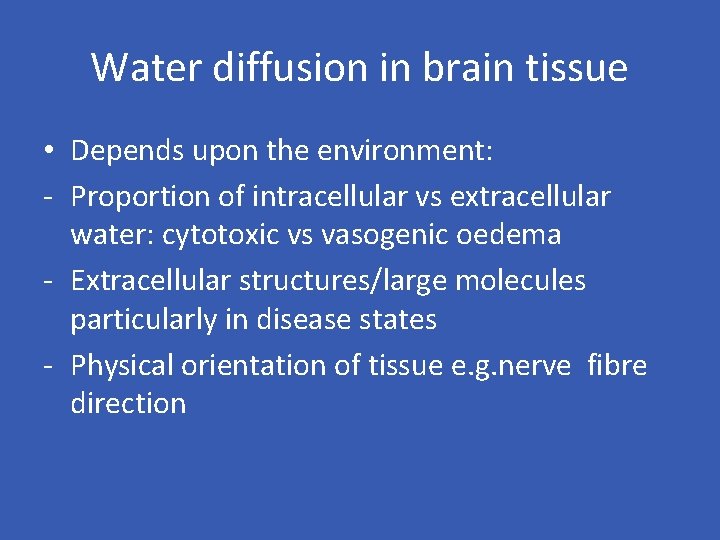

Water diffusion in brain tissue • Depends upon the environment: - Proportion of intracellular vs extracellular water: cytotoxic vs vasogenic oedema - Extracellular structures/large molecules particularly in disease states - Physical orientation of tissue e. g. nerve fibre direction

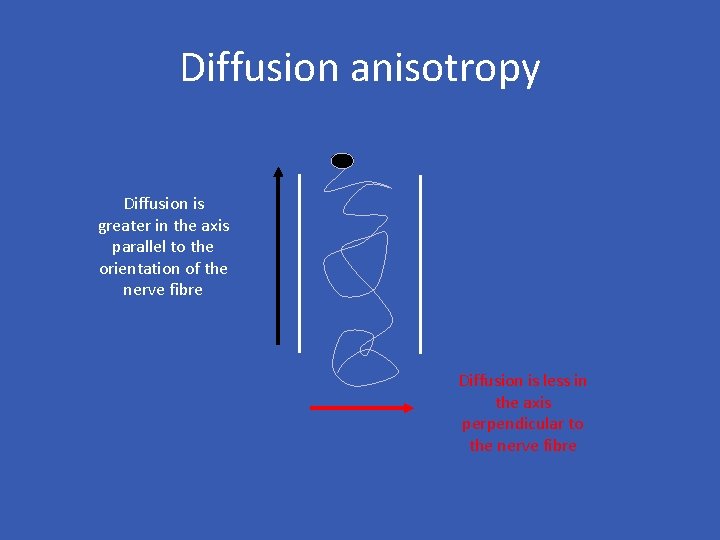

Diffusion anisotropy Diffusion is greater in the axis parallel to the orientation of the nerve fibre Diffusion is less in the axis perpendicular to the nerve fibre

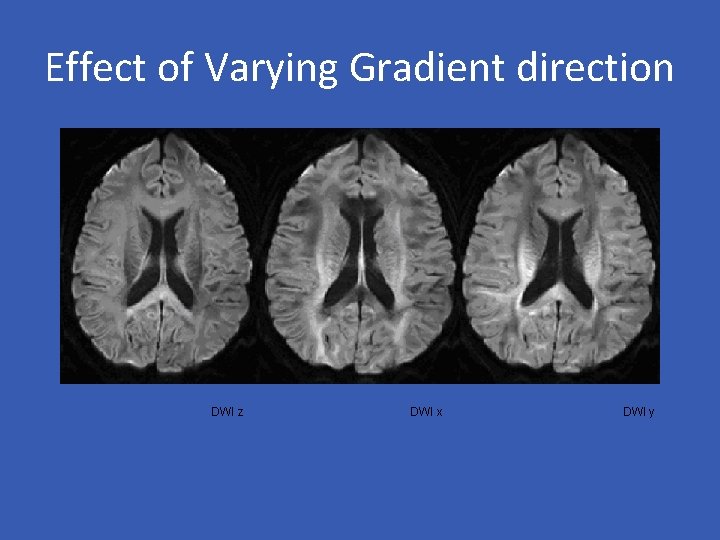

Effect of Varying Gradient direction DWI z DWI x DWI y

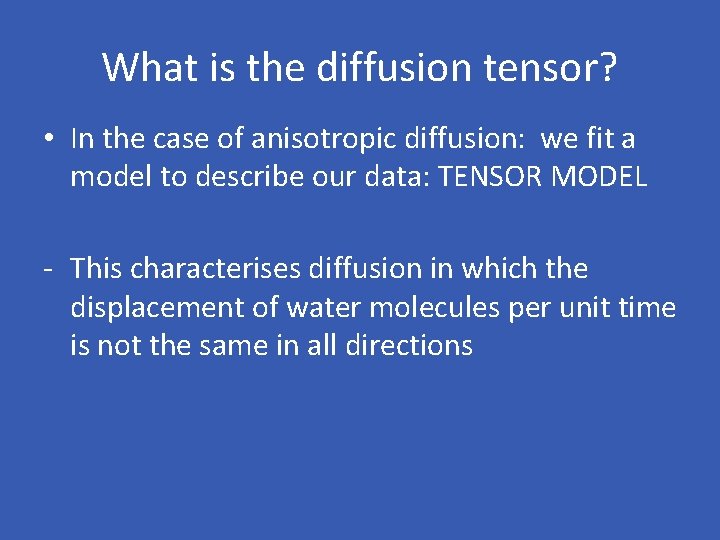

What is the diffusion tensor? • In the case of anisotropic diffusion: we fit a model to describe our data: TENSOR MODEL - This characterises diffusion in which the displacement of water molecules per unit time is not the same in all directions

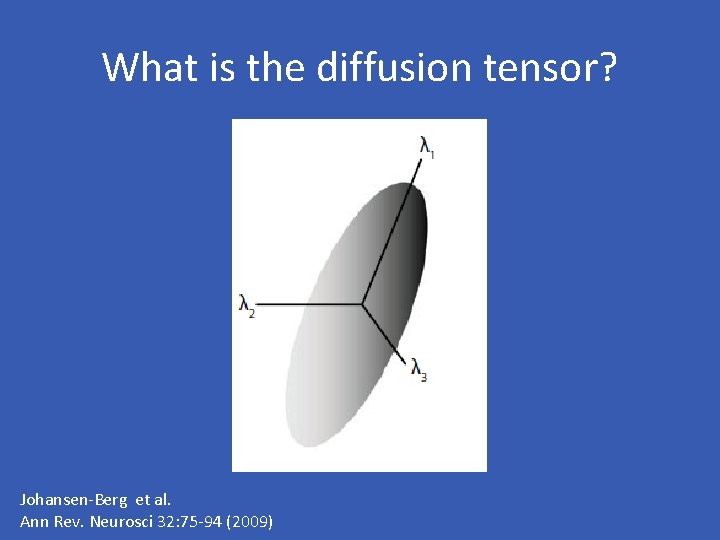

What is the diffusion tensor? Johansen-Berg et al. Ann Rev. Neurosci 32: 75 -94 (2009)

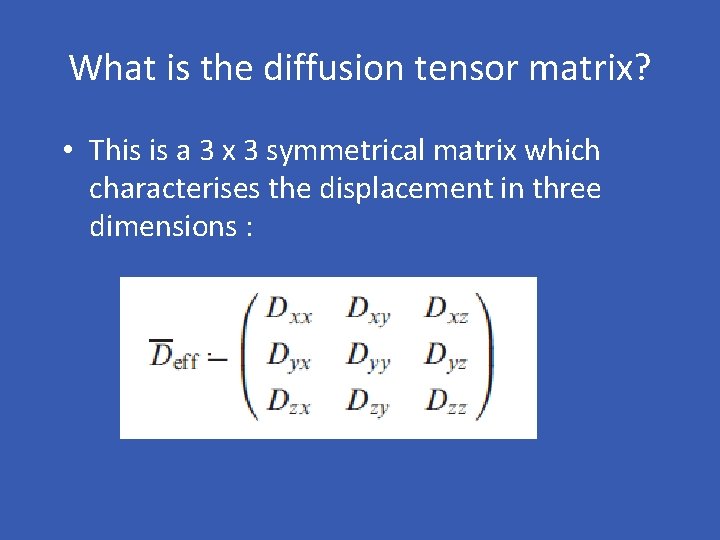

What is the diffusion tensor matrix? • This is a 3 x 3 symmetrical matrix which characterises the displacement in three dimensions :

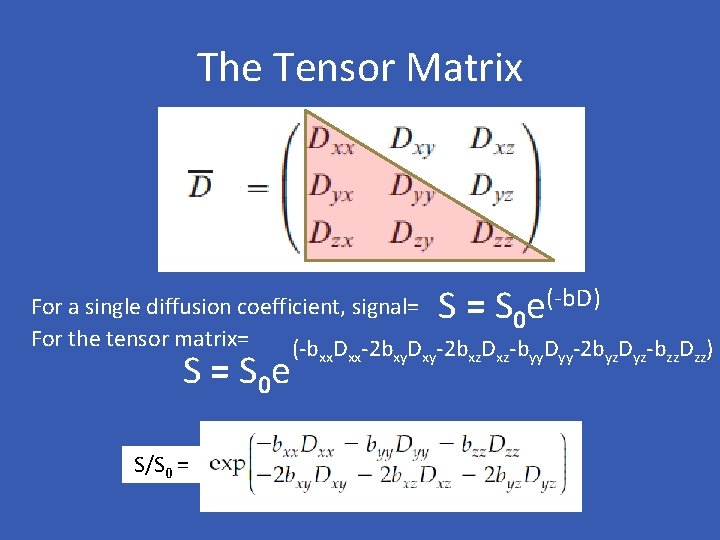

The Tensor Matrix S=S e (-b. D) For a single diffusion coefficient, signal= 0 For the tensor matrix= (-bxx. Dxx-2 bxy. Dxy-2 bxz. Dxz-byy. Dyy-2 byz. Dyz-bzz. Dzz) S = S 0 e S/S 0 =

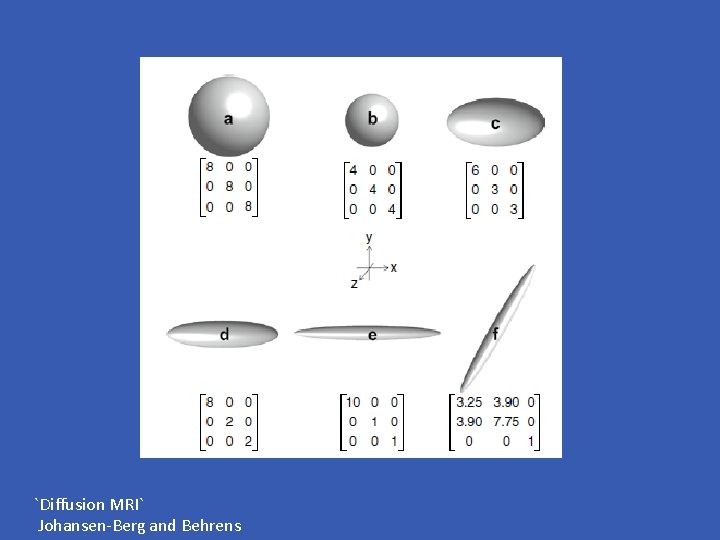

`Diffusion MRI` Johansen-Berg and Behrens

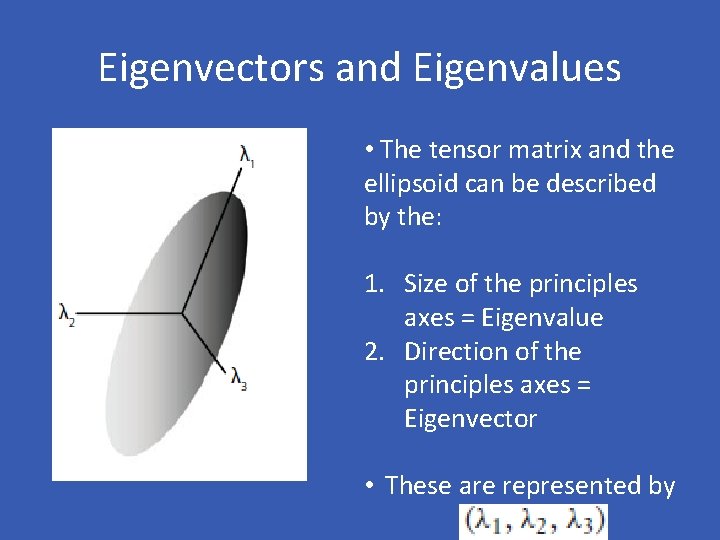

Eigenvectors and Eigenvalues • The tensor matrix and the ellipsoid can be described by the: 1. Size of the principles axes = Eigenvalue 2. Direction of the principles axes = Eigenvector • These are represented by

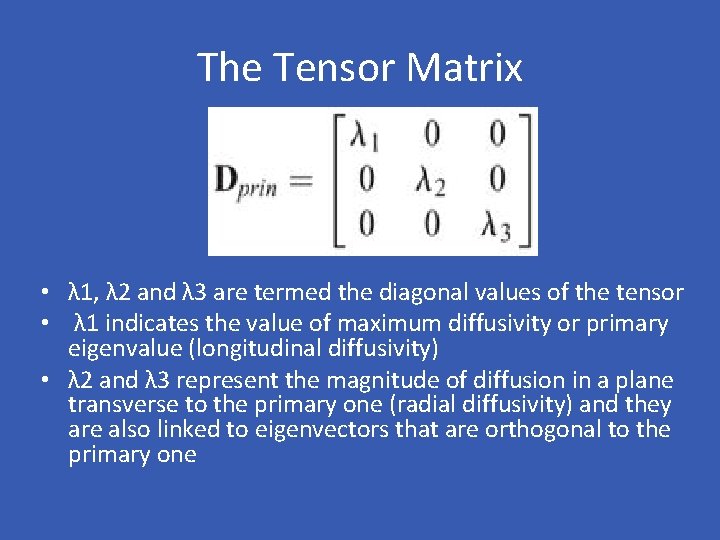

The Tensor Matrix • λ 1, λ 2 and λ 3 are termed the diagonal values of the tensor • λ 1 indicates the value of maximum diffusivity or primary eigenvalue (longitudinal diffusivity) • λ 2 and λ 3 represent the magnitude of diffusion in a plane transverse to the primary one (radial diffusivity) and they are also linked to eigenvectors that are orthogonal to the primary one

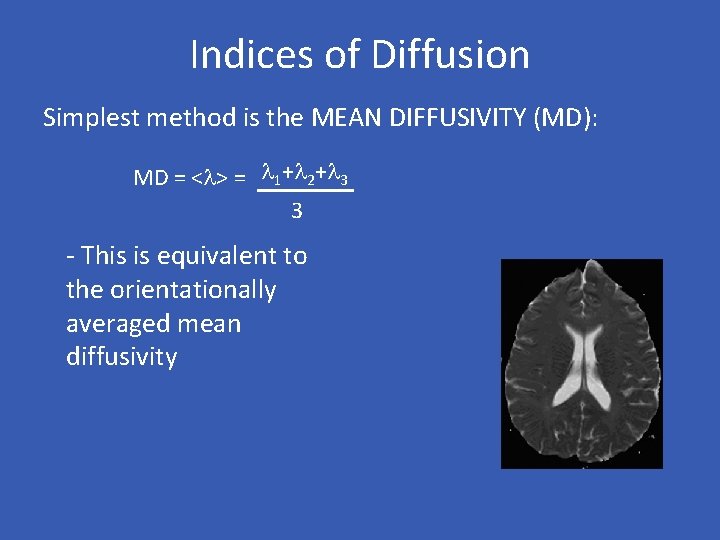

Indices of Diffusion Simplest method is the MEAN DIFFUSIVITY (MD): MD = <l> = l 1+l 2+l 3 3 - This is equivalent to the orientationally averaged mean diffusivity

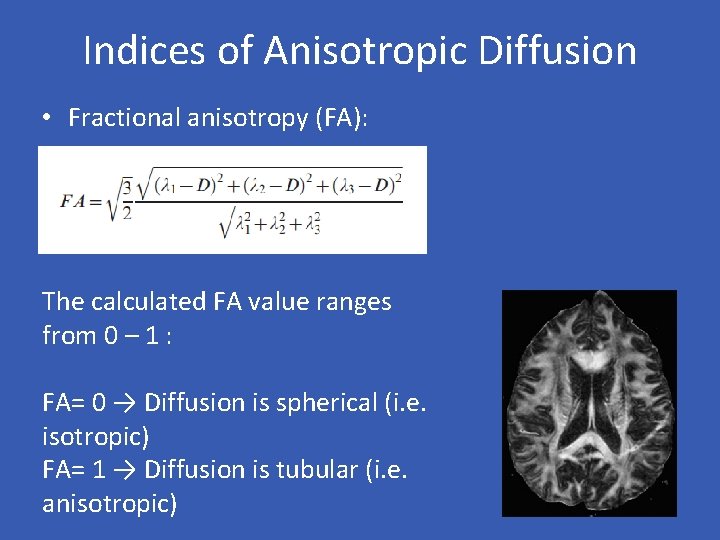

Indices of Anisotropic Diffusion • Fractional anisotropy (FA): The calculated FA value ranges from 0 – 1 : FA= 0 → Diffusion is spherical (i. e. isotropic) FA= 1 → Diffusion is tubular (i. e. anisotropic)

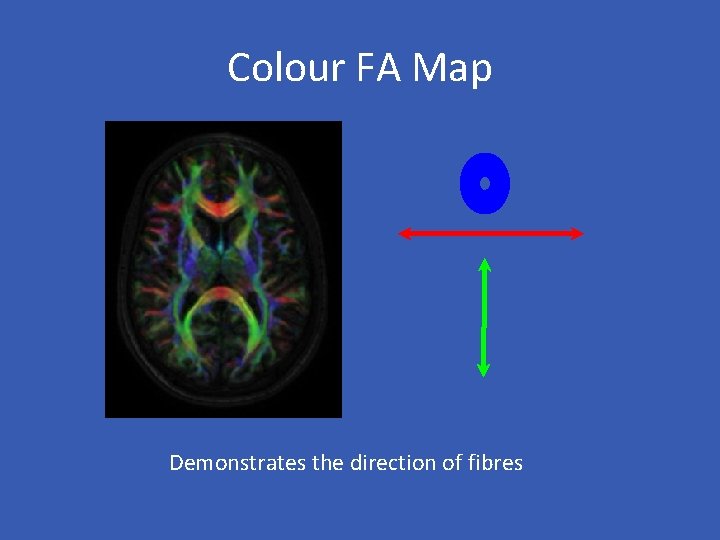

Colour FA Map Demonstrates the direction of fibres

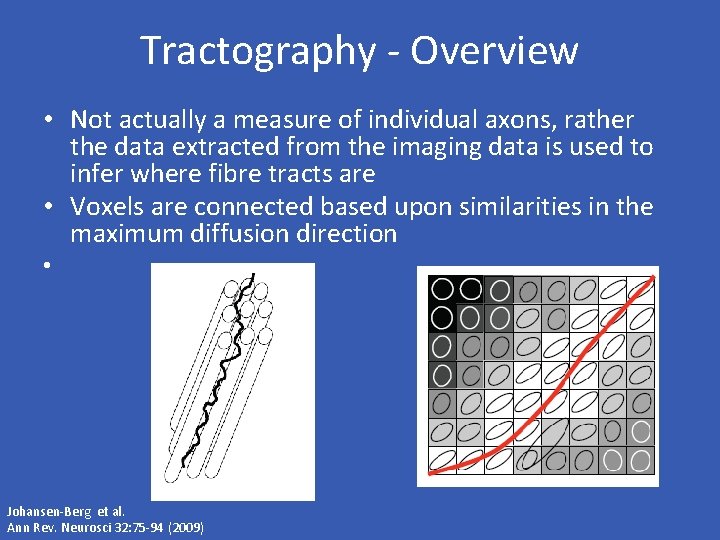

Tractography - Overview • Not actually a measure of individual axons, rather the data extracted from the imaging data is used to infer where fibre tracts are • Voxels are connected based upon similarities in the maximum diffusion direction • Johansen-Berg et al. Ann Rev. Neurosci 32: 75 -94 (2009)

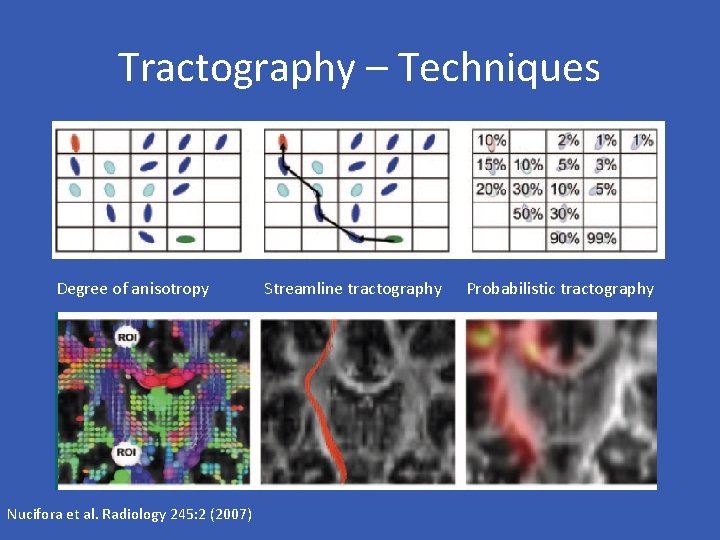

Tractography – Techniques Degree of anisotropy Nucifora et al. Radiology 245: 2 (2007) Streamline tractography Probabilistic tractography

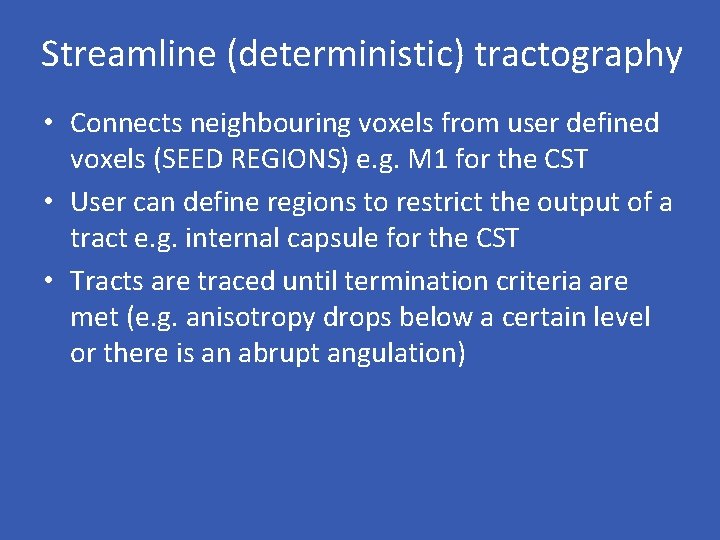

Streamline (deterministic) tractography • Connects neighbouring voxels from user defined voxels (SEED REGIONS) e. g. M 1 for the CST • User can define regions to restrict the output of a tract e. g. internal capsule for the CST • Tracts are traced until termination criteria are met (e. g. anisotropy drops below a certain level or there is an abrupt angulation)

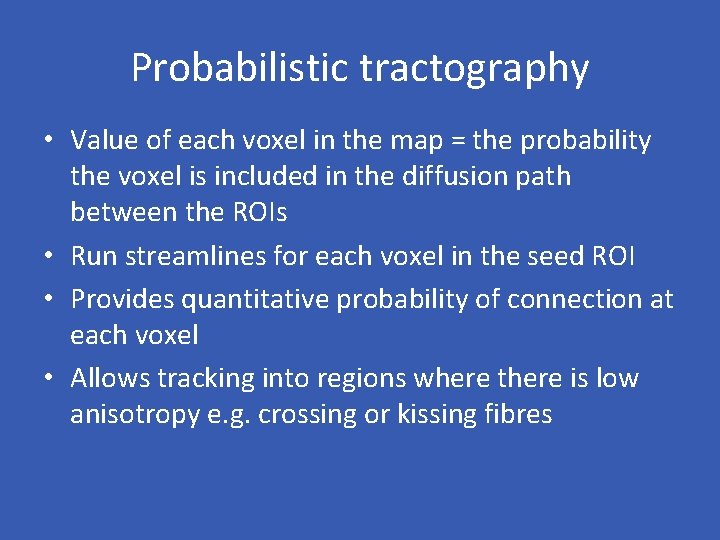

Probabilistic tractography • Value of each voxel in the map = the probability the voxel is included in the diffusion path between the ROIs • Run streamlines for each voxel in the seed ROI • Provides quantitative probability of connection at each voxel • Allows tracking into regions where there is low anisotropy e. g. crossing or kissing fibres

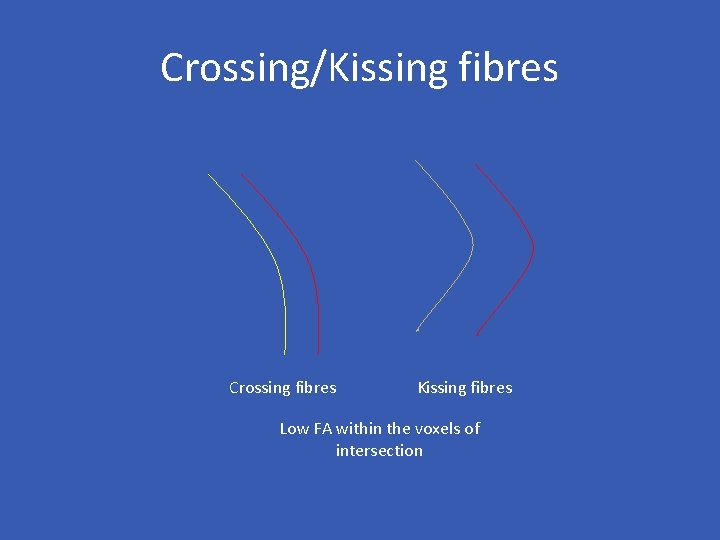

Crossing/Kissing fibres Crossing fibres Kissing fibres Low FA within the voxels of intersection

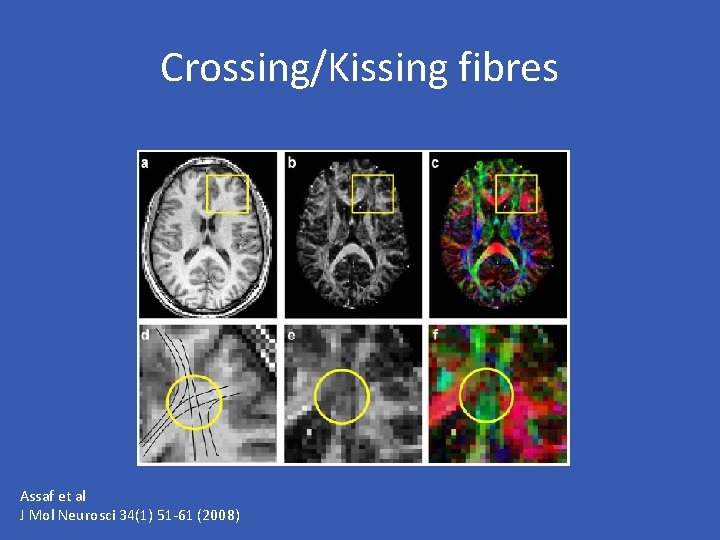

Crossing/Kissing fibres Assaf et al J Mol Neurosci 34(1) 51 -61 (2008)

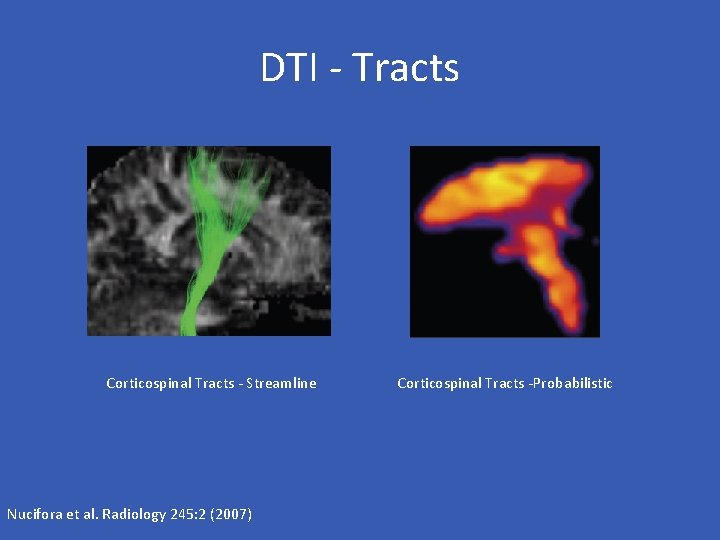

DTI - Tracts Corticospinal Tracts - Streamline Nucifora et al. Radiology 245: 2 (2007) Corticospinal Tracts -Probabilistic
