Differentiation from First Principles Learning Objective to understand

Differentiation from First Principles Learning Objective: to understand that differentiation is the process for calculating the gradient of a curve. The rate of change can be calculated from first principles by considering the limit of the function at any one point.

Rates of change distance (m) This graph shows the distance that a car travels over a period of 5 seconds. The gradient of the graph tells us the rate at which the distance changes 40 with respect to time. 0 time (s) 5 In other words, the gradient tells us the speed of the car. The car in this example is travelling at a constant speed since the gradient is the same at every point on the graph.

Rates of change distance (m) In most situations, however, the speed will not be constant and the distance–time graph will be curved. For example, this graph shows the distance–time graph as the car moves off from rest. The speed of the car, and therefore the gradient, changes as you move 0 time (s) along the curve. To find the rate of change in speed we need to find the gradient of the curve. The process of finding the rate at which one variable changes with respect to another is called differentiation. In most situations this involves finding the gradient of a curve.

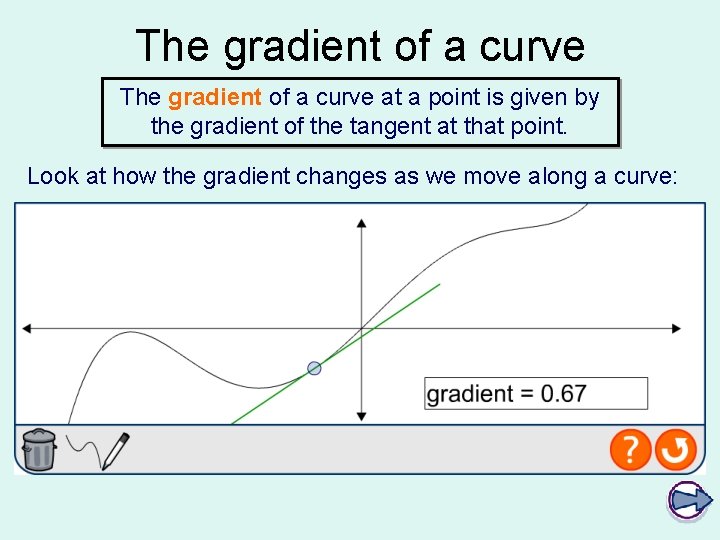

The gradient of a curve at a point is given by the gradient of the tangent at that point. Look at how the gradient changes as we move along a curve:

Differentiation from first principles Suppose we want to find the gradient of a curve at a point A. We can add another point B on the line close to point A. δx represents a small change in x and δy represents a small change in y. As point B moves closer to point A, the gradient of the chord AB gets closer to the gradient of the tangent at A.

Differentiation from first principles We can write the gradient of the chord AB as: As B gets closer to A, δx gets closer to 0 and to the value of the gradient of the tangent at A. gets closer δx can’t actually be equal to 0 because we would then have division by 0 and the gradient would then be undefined. Instead we must consider the limit as δx tends to 0. This means that δx becomes infinitesimal without actually becoming 0.

Differentiation from first principles If A is the point (3, 9) on the curve y = x 2 and B is another point close to (3, 9) on the curve, we can write the coordinates of B as (3 + δx, (3 + δx)2). The gradient of chord AB is: B(3 + δx, (3 + δx)2) δy A(3, 9) δx

Differentiation from first principles At the limit where δx → 0, 6 + δx → 6. We write this as: 6 So the gradient of the tangent to the curve y = x 2 at the point (3, 9) is 6. Let’s apply this method to a general point on the curve y = x 2. If we let the x-coordinate of a general point A on the curve y = x 2 be x, then the y-coordinate will by x 2. So, A is the point (x, x 2). If B is another point close to A(x, x 2) on the curve, we can write the coordinates of B as (x + δx, (x + δx)2).

Differentiation from first principles The gradient of chord AB is: B(x + δx, (x + δx)2) δy A(x, x 2) δx

The gradient function So the gradient of the tangent to the curve y = x 2 at the general point (x, y) is 2 x. 2 x is often called the gradient function or the derived function of y = x 2. If the curve is written using function notation as y = f(x), then the derived function can be written as f ′(x). So, if: f(x) = x 2 Then: f ′(x) = 2 x This notation is useful if we want to find the gradient of f(x) at a particular point. For example, the gradient of f(x) = x 2 at the point (5, 25) is: f ′(5) = 2 × 5 = 10

Now we shall differentiate y = x 3 from first principles:

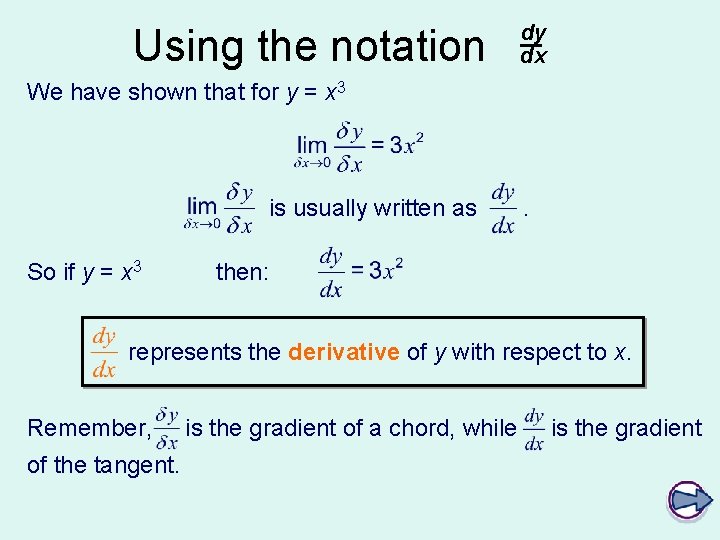

Using the notation dy dx We have shown that for y = x 3 is usually written as So if y = x 3 . then: represents the derivative of y with respect to x. Remember, of the tangent. is the gradient of a chord, while is the gradient

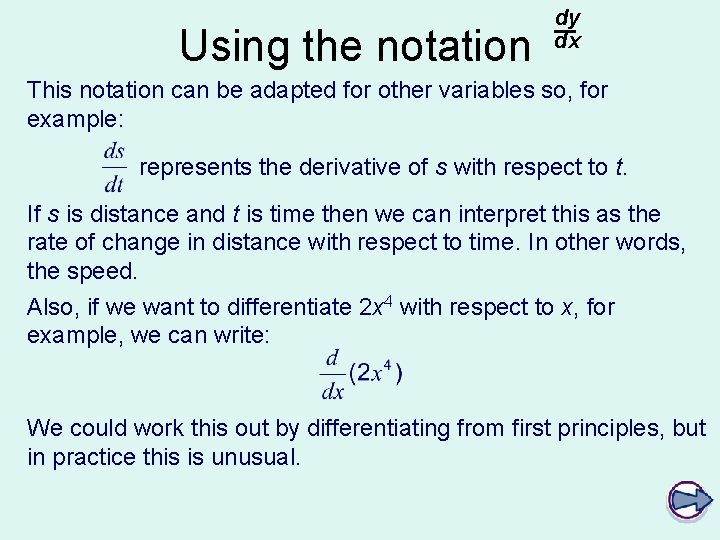

Using the notation dy dx This notation can be adapted for other variables so, for example: represents the derivative of s with respect to t. If s is distance and t is time then we can interpret this as the rate of change in distance with respect to time. In other words, the speed. Also, if we want to differentiate 2 x 4 with respect to x, for example, we can write: We could work this out by differentiating from first principles, but in practice this is unusual.

Task 1 Differentiate from first principles 1. y = x 4 2. y = 1/x
