Differential diagnosis in narrow QRS complex tachycardias Hosted
- Slides: 15
Differential diagnosis in narrow QRS complex tachycardias Hosted by DR Adrian Baranchuk MD FACC and DR Kevin Michael MBCB MPhil MD Presentation

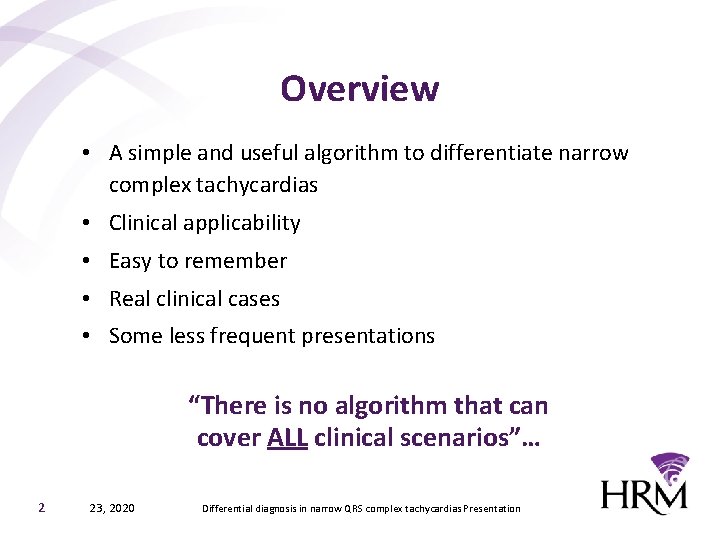

Overview • A simple and useful algorithm to differentiate narrow complex tachycardias • Clinical applicability • Easy to remember • Real clinical cases • Some less frequent presentations “There is no algorithm that can cover ALL clinical scenarios”… 2 23, 2020 Differential diagnosis in narrow QRS complex tachycardias Presentation
Algorithm 3 Questions: 1. Narrow vs. Wide 2. Regular vs. Irregular 3. Where is the P-Wave 3 23, 2020 Differential diagnosis in narrow QRS complex tachycardias Presentation

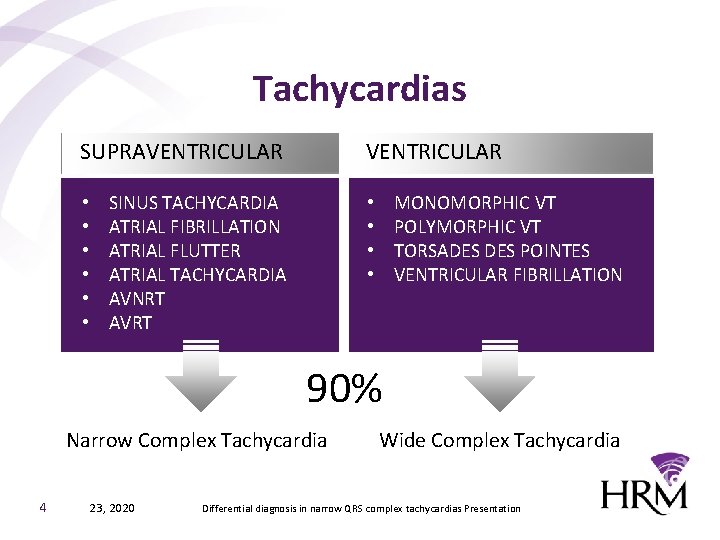

Tachycardias VENTRICULAR SUPRAVENTRICULAR • • • SINUS TACHYCARDIA ATRIAL FIBRILLATION ATRIAL FLUTTER ATRIAL TACHYCARDIA AVNRT AVRT MONOMORPHIC VT POLYMORPHIC VT TORSADES POINTES VENTRICULAR FIBRILLATION • • 90% Narrow Complex Tachycardia 4 23, 2020 Wide Complex Tachycardia Differential diagnosis in narrow QRS complex tachycardias Presentation
Algorithm Narrow Complex Tachycardia Regular - P after QRS No P waves P before QRS + AVNRT ST Irregular Atrial Fibrillation RP<PR JT AVNRT - AVRT LAT Saw tooth RP>PR Atypical AVNRT A Flutter 5 23, 2020 A. Flutter w/variab. con. Differential diagnosis in narrow QRS complex tachycardias Presentation
Sinus tachycardia Electrical alternans Low qrs voltage CASE 1 Cardiac Tamponade • • • 6 23, 2020 Differential diagnosis in narrow QRS complex tachycardias Presentation
CASE 2 Low Atrial Tachycardia • - P-wave inf. Leads • - P-wave in lead I • Activation caudocranial left to right Negative P-waves in inferior leads 7 23, 2020 Differential diagnosis in narrow QRS complex tachycardias Presentation
CASE 3 Atrial Flutter • Saw tooth • Think in AFL if HR 150 bpm @ rest!!! • CSM: variable conduction 8 23, 2020 Differential diagnosis in narrow QRS complex tachycardias Workshop
CASE 4 Sinus Tachycardia 9 23, 2020 VAGAL MANEUVERS • SVT: “all or none” • A Flutter: ↑ degree of block • Sinus Tach: slow the rate Differential diagnosis in narrow QRS complex tachycardias Presentation
Regular, narrow complex - retrograde P-waves RP < PR RP < 80 ms CASE 5 Typical AVNRT • • 10 23, 2020 Differential diagnosis in narrow QRS complex tachycardias Presentation
CASE 6 Orthodromic AVRT 11 23, 2020 • • Regular, narrow complex - retrograde P-waves RP < PR RP < 80 ms Differential diagnosis in narrow QRS complex tachycardias Presentation
2: 1 AVNRT CASE 7 (Infrequent Presentations) • P-wave in the middle of RR • - retrograde P-waves • Pseudo ‘R-waves 12 23, 2020 Differential diagnosis in narrow QRS complex tachycardias Presentation
“ 2 x 1” Tachycardia • Narrow complex • Slightly irregular • 1 P-wave, 2 QRS CASE 8 P QRS Fast pathway Slow pathway 13 23, 2020 Differential diagnosis in narrow QRS complex tachycardias Presentation
Once Again… Narrow Complex Tachycardia Regular - P after QRS No P waves P before QRS + AVNRT ST Irregular Atrial Fibrillation RP<PR JT AVNRT - AVRT LAT Saw tooth RP>PR Atypical AVNRT A Flutter 14 23, 2020 A. Flutter w/variab. con. Differential diagnosis in narrow QRS complex tachycardias Presentation
www. HRMx. org www. doctorsfixinghearts. com 15 23, 2020 Differential diagnosis in narrow QRS complex tachycardias Presentation
