Different Sizes Different Forces Different Problems Diffusion A

Different Sizes, Different Forces, Different Problems

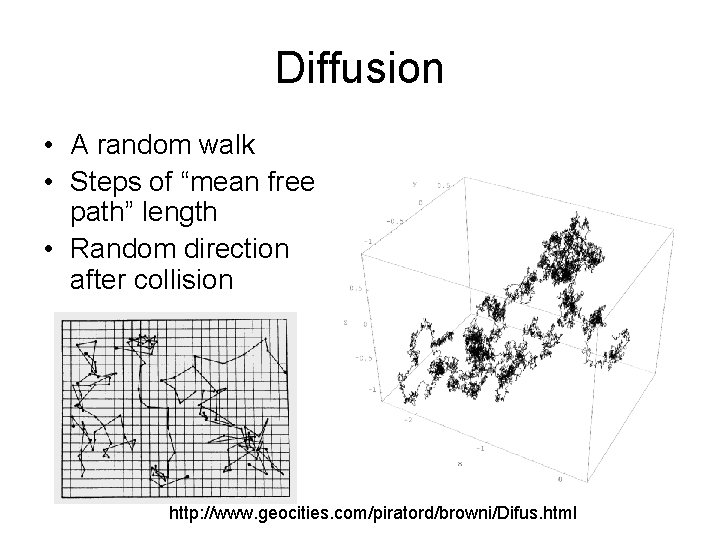

Diffusion • A random walk • Steps of “mean free path” length • Random direction after collision http: //www. geocities. com/piratord/browni/Difus. html

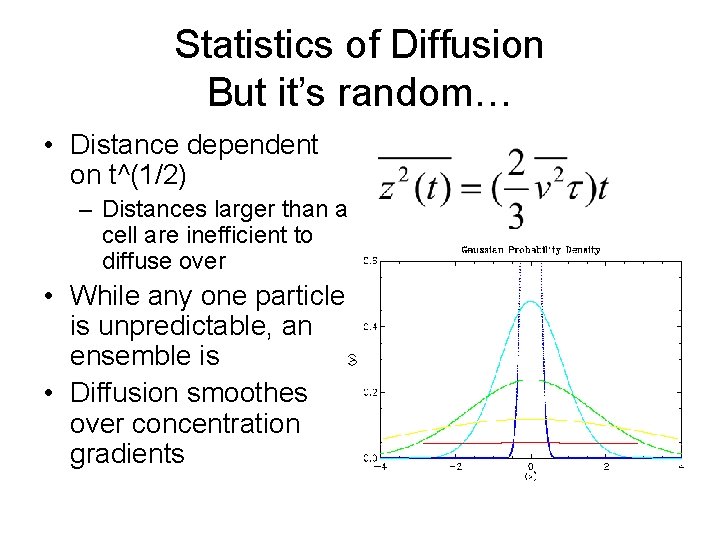

Statistics of Diffusion But it’s random… • Distance dependent on t^(1/2) – Distances larger than a cell are inefficient to diffuse over • While any one particle is unpredictable, an ensemble is • Diffusion smoothes over concentration gradients

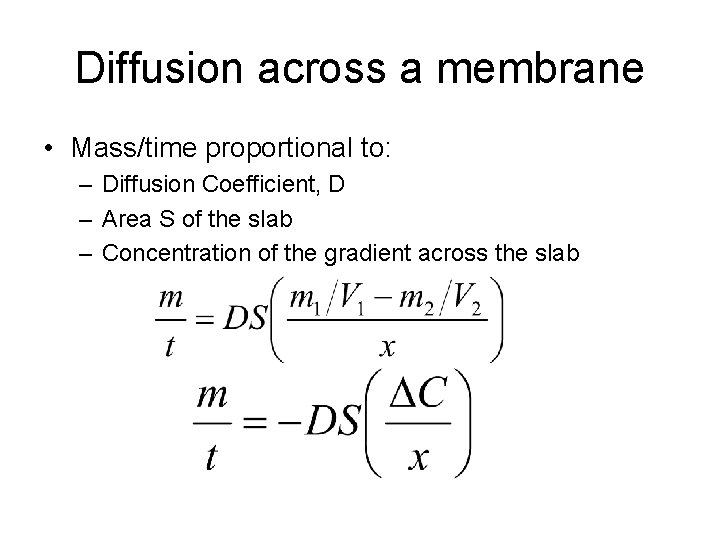

Diffusion across a membrane • Mass/time proportional to: – Diffusion Coefficient, D – Area S of the slab – Concentration of the gradient across the slab

Diffusion Values http: //www. nanomedicine. com/NMI/Tables/3. 3. jpg

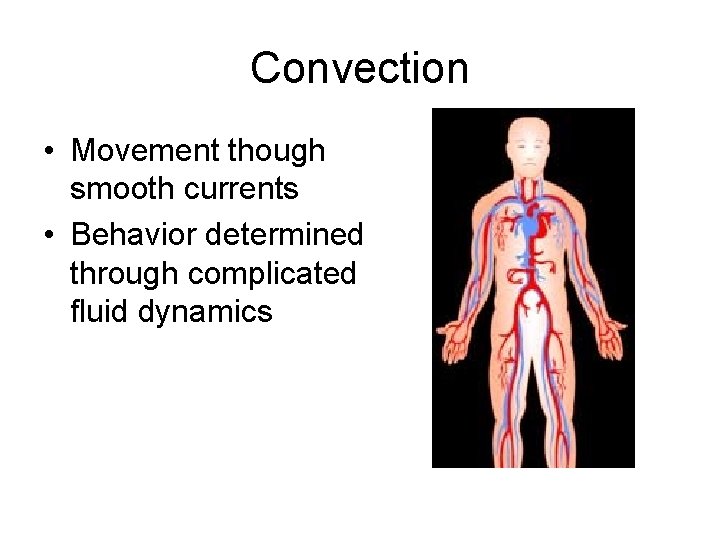

Convection • Movement though smooth currents • Behavior determined through complicated fluid dynamics

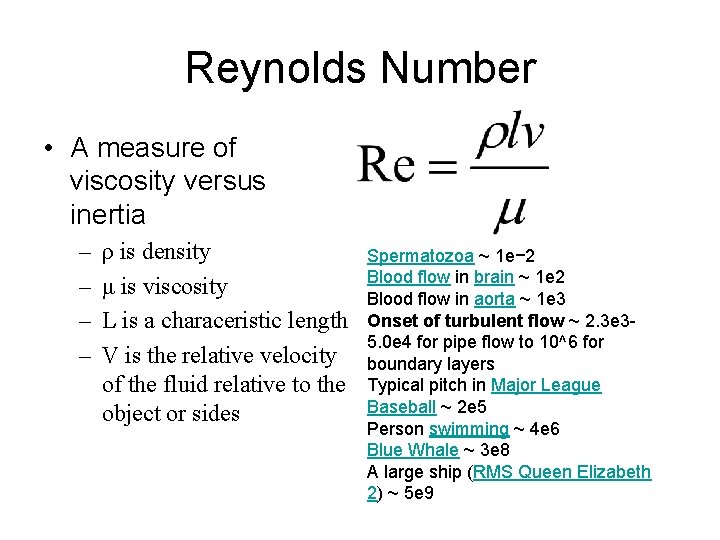

Reynolds Number • A measure of viscosity versus inertia – – ρ is density μ is viscosity L is a characeristic length V is the relative velocity of the fluid relative to the object or sides Spermatozoa ~ 1 e− 2 Blood flow in brain ~ 1 e 2 Blood flow in aorta ~ 1 e 3 Onset of turbulent flow ~ 2. 3 e 35. 0 e 4 for pipe flow to 10^6 for boundary layers Typical pitch in Major League Baseball ~ 2 e 5 Person swimming ~ 4 e 6 Blue Whale ~ 3 e 8 A large ship (RMS Queen Elizabeth 2) ~ 5 e 9

http: //www. aanda. org/index. php? op tion=article&acce ss=standard&Ite mid=129&url=/art icles/aa/full/2006/ 19/aa 449905. right. html

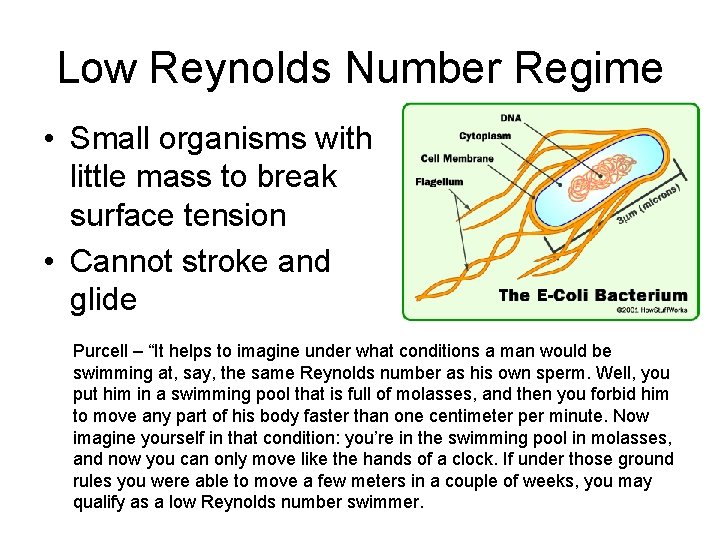

Low Reynolds Number Regime • Small organisms with little mass to break surface tension • Cannot stroke and glide Purcell – “It helps to imagine under what conditions a man would be swimming at, say, the same Reynolds number as his own sperm. Well, you put him in a swimming pool that is full of molasses, and then you forbid him to move any part of his body faster than one centimeter per minute. Now imagine yourself in that condition: you’re in the swimming pool in molasses, and now you can only move like the hands of a clock. If under those ground rules you were able to move a few meters in a couple of weeks, you may qualify as a low Reynolds number swimmer.

High Reynolds Number • Turbulent, irreversible flow • Fast forward pushes dominate slow backwards pushes http: //www 2. icfd. co. jp/menu 1/highreynolds/highre. html

Surface Tension • In water, attractive force between molecules • On Surface, attractive force in, no force out • Liquids minimize surfaces • Order l – Cross sectional areas go as l 2 – But, Distances get further apart as things get bigger

Gravity • Order l 3 • Cross sectional areas go as l 2 • Gravity become increasingly important to big things

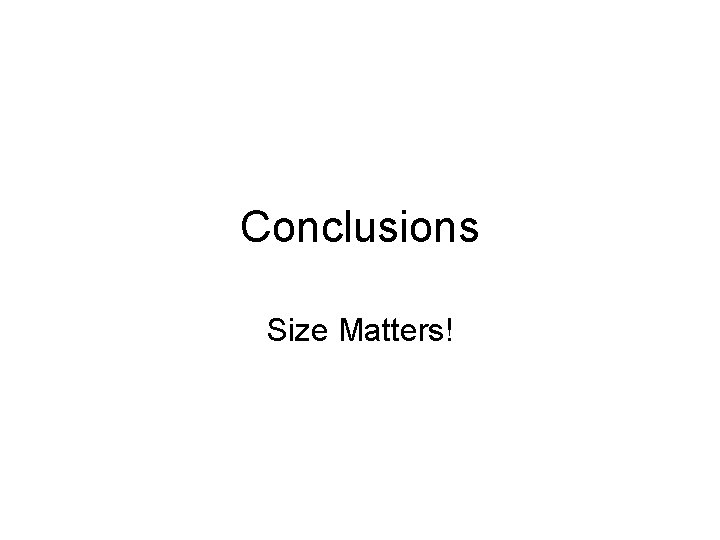

Conclusions Size Matters!
