DICOM INTERNATIONAL CONFERENCE & SEMINAR Oct 9 -11, 2010 Rio de Janeiro, Brazil Building a DICOM Library in C# Victor Derks GE Healthcare
Contents Introduction Design Goals Inception Approach and Effort Design Challenges Character Encoding DICOM C-STORE on a Wide Area Network (WAN) DICOM Operations on a Wide Area Network Conclusions Recommendations
Introduction Microsoft. NET Platform Group within GE Healthcare – Provide Microsoft. NET components to applications teams – Internal DICOM library is a one of these components – The preferred programming language of our group is C#
Design Goals Requirements: – DICOM File I/O – DICOM Communication Focus Areas: – Internationalization – Service Oriented Architecture – Easy to use for C# programmers
Inception Started in 2007 building prototypes: – Wrap existing C++ internal implementation in. NET layer? – Create new C# implementation? Findings: –. NET C++ Memory Management Models are conflicting – Mixed solution doesn’t work well due to high interaction between the layers – No option to leverage new. NET patterns: • Asynchronous Programming Model • Thread pool
Approach and Effort Test Driven Development (TDD): – DICOM Standard defines expected behavior – 50% of these unit tests check for bad cases – About 2000 unit tests Name GE DICOM Library (C#) Lines Of Code 34, 637 Lines Of Test Code 33, 707 Comparable Open Source: Clear. Canvas (C#) 87, 738 Dcm 4 che 2. 0. 24 (Java) 40, 954 Pixel. Med 20100912 (Java) 86, 864 Note: Lines Of Code counted with CLOC 1. 52. Average is 60 K Lines.
Design Challenge 1: Character Encoding
DICOM Character Sets • Originally only support for ASCII (IR-6) • 1993: Latin 12345, Arabic, Hebrew, Cyrillic, Greek, Japanese, . . • 1999 2000: Thai, Korean • 2003: UTF 8 (ISO_IR 192), but this is an option • Most modern applications use internally UTF 16 Unicode strings (C++ . NET Java) • . NET provides standard text encoders: – UTF 8 – Many code page based encoders
Text Conversions Input (decoding) Read and convert DICOM text values to. NET strings. DICOM values decode . NET Strings encode DICOM values Output (encode) Many use cases require text updates to the DICOM data. For example Patient Information Reconciliation. Output would be easy if all DICOM systems would support UTF 8…
Legacy Character Set Encoding Steps needed to serialize DICOM text data to an output device that doesn’t support UTF 8 – Application needs to define encoding method – Application needs to define allowed character sets and preferred order – Library needs to scan all characters – Library computes required character sets and serialize data Recommendation: design / use systems that support UTF 8
Design Challenge 2: DICOM C-STORE on a Wide Area Network
C-STORE on a WAN: Intro • Historically most DICOM communication is on a local network • Trend is to store images in regional and national DICOM data centers • Wide Area Network (WAN): – Bandwidth: 1 Mbit/s up to 1 Gbit/s – Round Trip Time (RTT) : 10 ms up to 1 s for satellite connections
C-STORE Example: Sending a study of 2000 compressed instances of 125 Kbyte on a local network – Bandwidth = 100 Mbit/s, Round Trip Time = 1 ms, – N * (Tx + Trtt) = 27 seconds Sending same study on a Wide Area Network – Bandwidth = 100 Mbit/s, Round Trip Time = 200 ms, – N * (Tx + Trtt) = 425 seconds vs 27 seconds: 15 times slower!
C-STORE on a WAN: Root Cause Local: WAN: 1 92 % 1 6% Solutions (within the Standard): – Open more connections – Supports DICOM Asynchronous Operations (PS 3. 7 Annex D. 3. 3. 3)

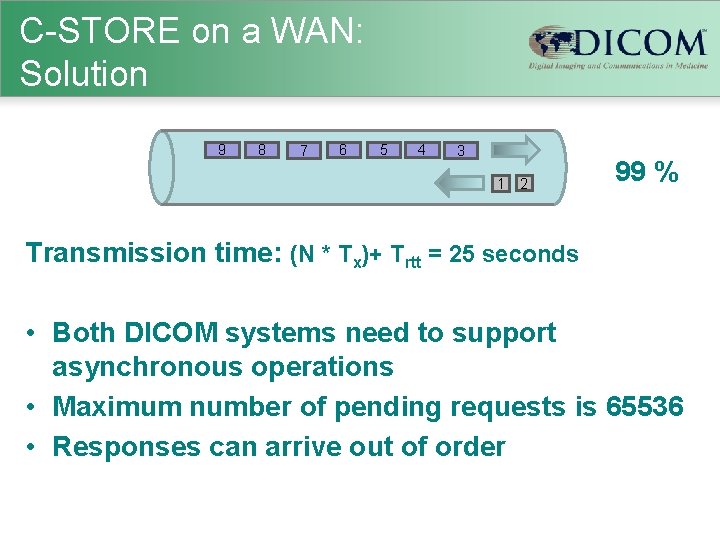

C-STORE on a WAN: Solution 9 8 7 6 5 4 3 1 2 99 % Transmission time: (N * Tx)+ Trtt = 25 seconds • Both DICOM systems need to support asynchronous operations • Maximum number of pending requests is 65536 • Responses can arrive out of order
Design Challenge 3: DICOM Operations on a Wide Area Network
DICOM Operations on a WAN • Same WAN sample configuration: – Round Trip Time = 200 ms – Secure DICOM (TLS) • Connection Establishment is slow Name Time TCP / IP Handshake 200 ms TLS / SSL Handshake 400 ms DICOM Handshake 200 ms DICOM Request Response 200 ms • TCP / IP Protocol: slow start algorithm
DICOM Association pool • Pooling is automatic • Pool will reuse a suitable open association • If no association available, pool will open a new association • Auto learning which presentation contexts are required • Number of open associations is managed • Associations are closed after idle timeout • Compatible with Asynchronous Operations • CP-948: C-STORE sub operations (Std 2008)
Conclusions • Conclusions – Having a GE DICOM library in. NET allows us to quickly adapt to changes in the Standard. – We have seen good performance –. NET provides a rich set of libraries which makes it relatively easy to develop DICOM applications
Recommendations • Recommendations – Use the Microsoft. NET Guidelines to ensure a library is consistent with. NET (Fx. Cop) – Use UTF 8 as the default character encoding • Great if DICOM Standard would make this required in the future (roadmap) – To be Internet / Wide Area Network ready: • Support Asynchronous Operations • Support re-use of open DICOM associations
