Diagonals Worksheet A The worksheet is in a

Diagonals – Worksheet A The worksheet is in a 2 sizes.

Printing To print handouts from slides Select the slide from the left. Then click: File > Print > ‘Print Current Slide’ To print multiple slides Click on a section title to highlight all those slides, or press ‘Ctrl’ at the same time as selecting slides to highlight more than one. Then click: File > Print > ‘Print Selection’ To print double-sided handouts Highlight both slides before using ‘Print Selection’. Choose ‘Print on Both Sides’ and ‘Flip on Short Edge’.

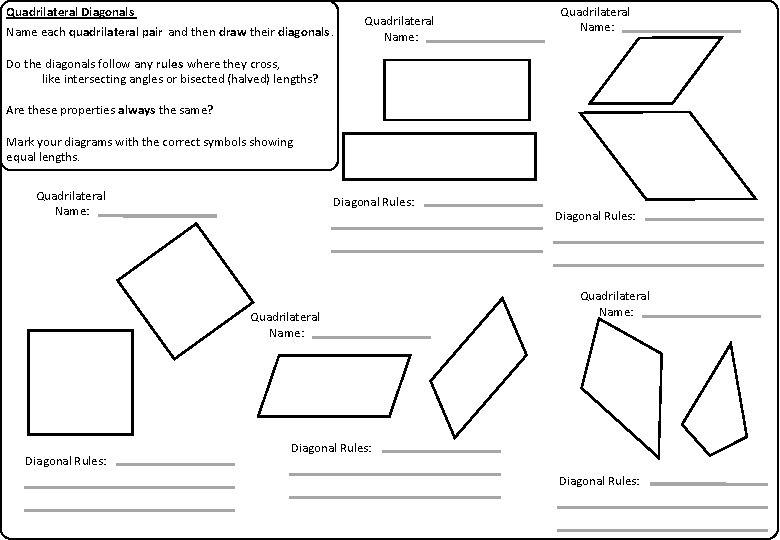

Quadrilateral Diagonals Name each quadrilateral pair and then draw their diagonals. Quadrilateral Name: Do the diagonals follow any rules where they cross, like intersecting angles or bisected (halved) lengths? Are these properties always the same? Mark your diagrams with the correct symbols showing equal lengths. Quadrilateral Name: Diagonal Rules: Quadrilateral Name: Diagonal Rules:

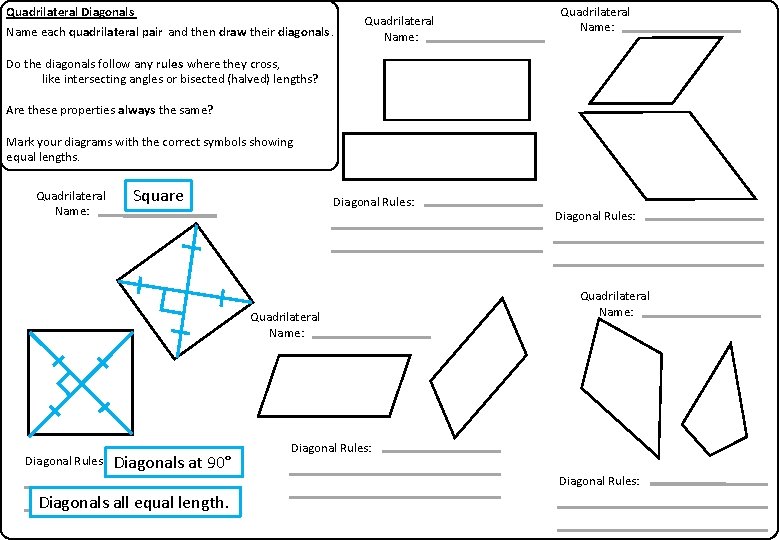

Quadrilateral Diagonals Name each quadrilateral pair and then draw their diagonals. Quadrilateral Name: Do the diagonals follow any rules where they cross, like intersecting angles or bisected (halved) lengths? Are these properties always the same? Mark your diagrams with the correct symbols showing equal lengths. Quadrilateral Name: Square Diagonal Rules: Quadrilateral Name: Diagonal Rules: Diagonals at 90° Diagonals all equal length. Diagonal Rules: Quadrilateral Name: Diagonal Rules:

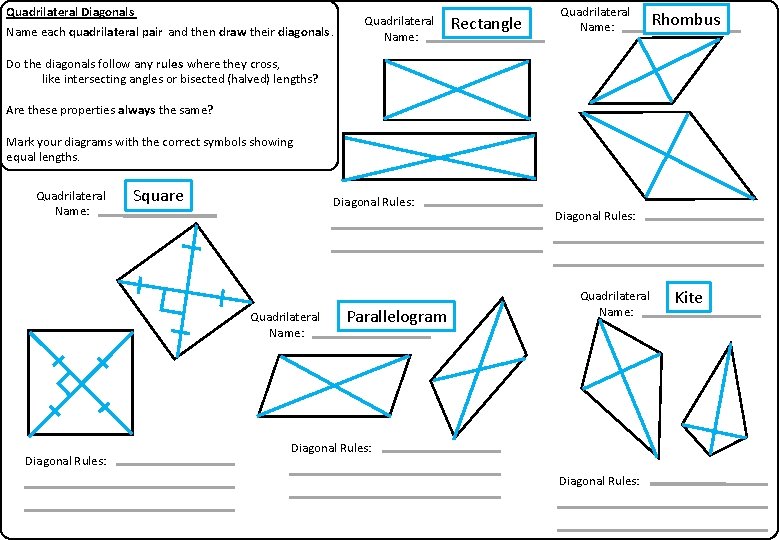

Quadrilateral Diagonals Name each quadrilateral pair and then draw their diagonals. Quadrilateral Name: Rectangle Quadrilateral Name: Rhombus Do the diagonals follow any rules where they cross, like intersecting angles or bisected (halved) lengths? Are these properties always the same? Mark your diagrams with the correct symbols showing equal lengths. Quadrilateral Name: Square Diagonal Rules: Quadrilateral Name: Diagonal Rules: Parallelogram Diagonal Rules: Quadrilateral Name: Diagonal Rules: Kite

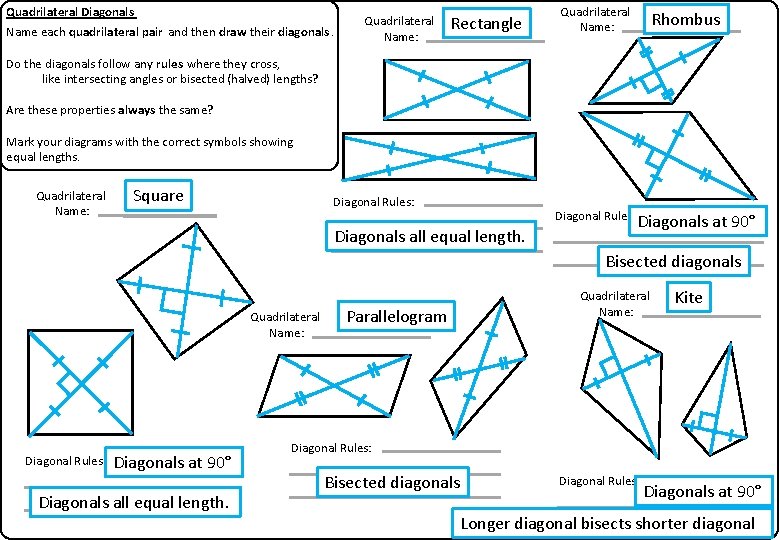

Quadrilateral Diagonals Name each quadrilateral pair and then draw their diagonals. Quadrilateral Name: Rectangle Quadrilateral Name: Rhombus Do the diagonals follow any rules where they cross, like intersecting angles or bisected (halved) lengths? Are these properties always the same? Mark your diagrams with the correct symbols showing equal lengths. Quadrilateral Name: Square Diagonal Rules: Diagonals all equal length. Diagonals at 90° Bisected diagonals Quadrilateral Name: Diagonal Rules: Diagonals at 90° Diagonals all equal length. Parallelogram Quadrilateral Name: Kite Diagonal Rules: Bisected diagonals Diagonal Rules: Diagonals at 90° Longer diagonal bisects shorter diagonal
