Diagnostics/Common Optics: Priorities, Engineering LUSI WBS 1. 5 Yiping Feng – DCO Lead Scientist Eliazar Ortiz – DCO Lead Engineer DCO Engineering Staff June 03, 2009 Diagnostics/Common Optics: Priorities, Engineering June 9, 2009 Eliazar Ortiz ortize@slac. stanford. edu
Acknowledgment • DCO Engineering Staff – Tim Montagne • • Profile/wavefront monitor Intensity-position monitor Harmonic rejection mirror – Marc Campell • Attenuator • X-ray focusing lens – Richard Jackson • Slits system • Pulse picker Diagnostics/Common Optics: Priorities, Engineering June 9, 2009 2 2 Eliazar Ortiz ortize@slac. stanford. edu
Outline • Distribution • Diagnostics Status – Profile Monitor – Profile-Intensity Monitor – Intensity-Position Monitor • Common Optics Status – Slits – Attenuator & Pulse Picker – X-Ray Focusing Lens • Summary Diagnostics/Common Optics: Priorities, Engineering June 9, 2009 3 3 Eliazar Ortiz ortize@slac. stanford. edu
Components Distribution • Components locations – Distributed throughout the XPP, CXI, and XCS instruments, including X-ray transport tunnel MEE el Near Experimental Hall a X-r s ran T y nn Tu t r po CXI Endstation XCS Endstation XPP Endstation EL LS LC F ray Far Experimental Hall X- SXR AMO Diagnostics/Common Optics: Priorities, Engineering June 9, 2009 4 4 Eliazar Ortiz ortize@slac. stanford. edu
Components Distribution Diagnostics/Optics XPP CXI Total Location Profile Monitor Wavefront Monitor XCS Total Location 3 1 in Hutch 2 2 in Hutch 3 (combined with Intensity monitor) - - Intensity Monitor Total Location 3 2 in Hutch 5 1 in Hutch 5 (combined with Intensity monitor) 6 4 in XRT (combined with Intensity monitor) 2 in Hutch 4 (combined with Intensity monitor) 12 1 Hutch 5 - - 1 2 Hutch 3 (combined with Profile monitor) 1 Hutch 5 (combined with Profile monitor) 6 4 in XRT (combined with profile monitor) 2 in Hutch 4 (combined with Profile monitor) 9 Intensity-Position Monitor 3 1 in Hutch 2 2 in Hutch 3 2 Hutch 5 6 4 in XRT 2 in Hutch 4 11 X-Ray Focusing Lenses 1 Hutch 3 2 Hutch 5 1 XRT 4 Slit System 3 1 double slit system in Hutch 3 1 single slit system in Hutch 2 4 Hutch 5 7 2 double slit systems in XRT 2 single slit systems in XRT 3 single slit systems in Hutch 4 14 Attenuators-Filters 1 Hutch 3 1 XRT 1 Hutch 4 3 Pulse Picker 1 Hutch 3 1 XRT 1 Hutch 4 3 Harmonic Rejection Mirrors 1 Hutch 3 - - 1 Hutch 4 2 Total 15 Diagnostics/Common Optics: Priorities, Engineering June 9, 2009 15 5 29 5 59 Eliazar Ortiz ortize@slac. stanford. edu
DCO Overall Status • An example in XPP FDR Complete Intensityposition FDR Complete Intensity/ profile RFP Sent out Slits Be-focusing lens FDR in June Pulse picker /Attenuator FDR Complete Harmonic rejection PDR in June *There are 15 diagnostics/common optics components in XPP Diagnostics/Common Optics: Priorities, Engineering June 9, 2009 6 6 Eliazar Ortiz ortize@slac. stanford. edu
Diagnostics Status 100 mm travel linear stage with smart motor Diode Electronics (Charge sensitive amplification) • Profile & Intensity Monitor Status Optical CCD Camera – PM and IM collocated in same chamber when applicable – FDR completed April 2009 – Commonality for all Monitors Hollow shaft for cable routing Motorized zoom lens Quartz window Brazed chamber • Chamber • 6 DOF Alignment Stands • Stages YAG: Ce screen – Same design for wavefront monitor LC LS • w/o intensity monitor • Attenuation needed Be am 6 DOF Stand Diagnostics/Common Optics: Priorities, Engineering June 9, 2009 7 7 45º mirror Diode Assy. Eliazar Ortiz ortize@slac. stanford. edu

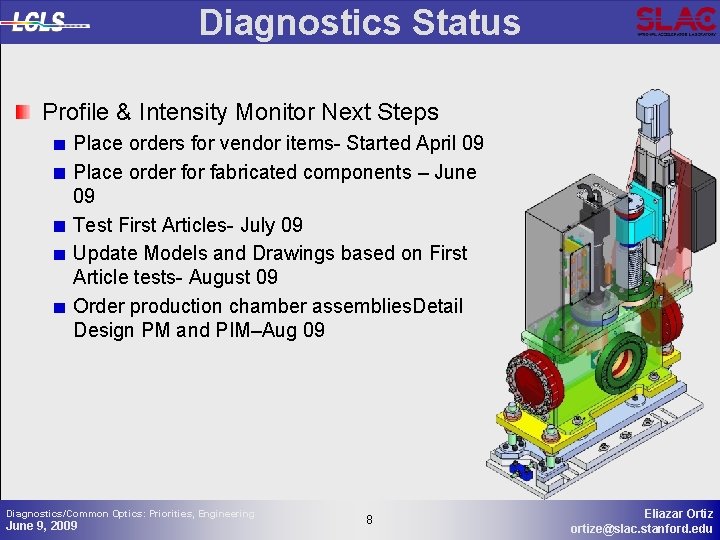

Diagnostics Status Profile & Intensity Monitor Next Steps Place orders for vendor items- Started April 09 Place order for fabricated components – June 09 Test First Articles- July 09 Update Models and Drawings based on First Article tests- August 09 Order production chamber assemblies. Detail Design PM and PIM–Aug 09 Diagnostics/Common Optics: Priorities, Engineering June 9, 2009 8 8 Eliazar Ortiz ortize@slac. stanford. edu
Diagnostics Status • Intensity-Position Monitor 4 -channel Diode Electronics – FDR completed April 2009 – Commonality for all Monitors (Charge sensitive amplification) Hollow shaft for cable routing • Chamber • 6 DOF Alignment Stands • Stages Be target changer 100 mm travel linear stages with smart motor Roller Stages Smart Motor for Xaxis motion* LCL S Be am Be targets 4 -Diode Assy. (inclined in y for uniform response) Brazed chamber 6 DOF Stand *IPM needs calibration in both x & y directions Diagnostics/Common Optics: Priorities, Engineering June 9, 2009 9 9 Eliazar Ortiz ortize@slac. stanford. edu

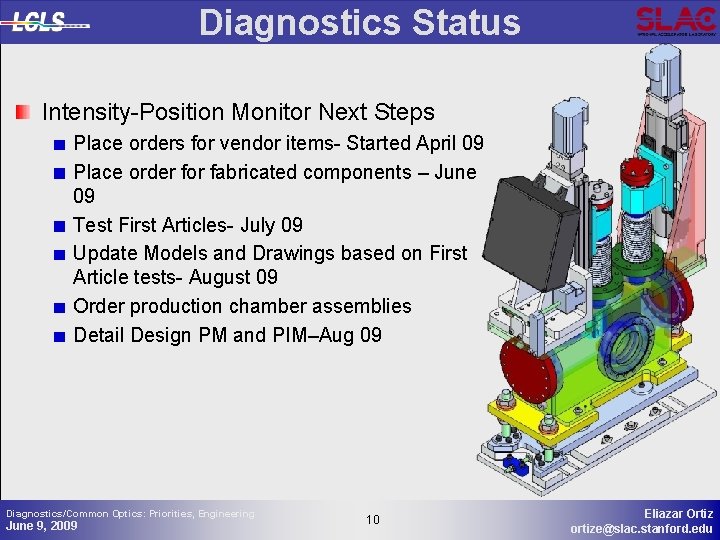

Diagnostics Status Intensity-Position Monitor Next Steps Place orders for vendor items- Started April 09 Place order for fabricated components – June 09 Test First Articles- July 09 Update Models and Drawings based on First Article tests- August 09 Order production chamber assemblies Detail Design PM and PIM–Aug 09 Diagnostics/Common Optics: Priorities, Engineering June 9, 2009 10 10 Eliazar Ortiz ortize@slac. stanford. edu
Common Optics Double blades configuration • Slits System – UHV compatible – Low-z & high-z blades – Single/Double configurations (4 sets of blades) High-Z Low-Z Pink beam Single blades configuration (2 sets of blades) Mono beam Blades/ blade mounts High-Z Rigid Stand w/o DOF Optical encoder Blade Form Factor Diagnostics/Common Optics: Priorities, Engineering June 9, 2009 11 11 Eliazar Ortiz ortize@slac. stanford. edu

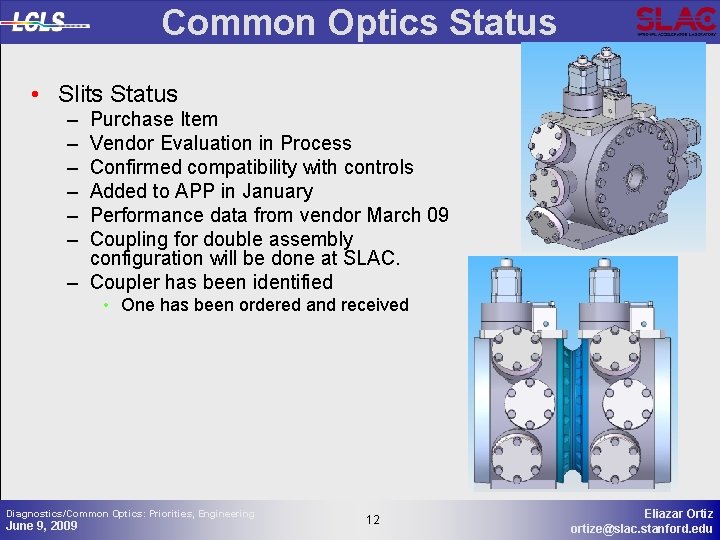

Common Optics Status • Slits Status – – – Purchase Item Vendor Evaluation in Process Confirmed compatibility with controls Added to APP in January Performance data from vendor March 09 Coupling for double assembly configuration will be done at SLAC. – Coupler has been identified • One has been ordered and received Diagnostics/Common Optics: Priorities, Engineering June 9, 2009 12 12 Eliazar Ortiz ortize@slac. stanford. edu

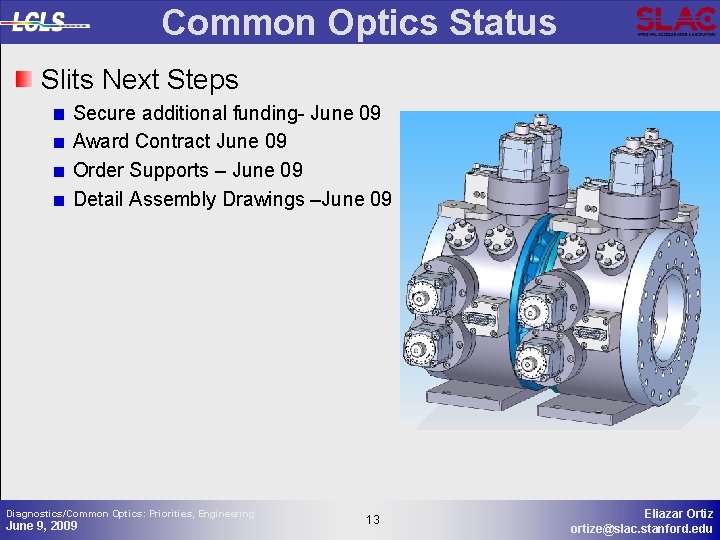

Common Optics Status Slits Next Steps Secure additional funding- June 09 Award Contract June 09 Order Supports – June 09 Detail Assembly Drawings –June 09 Diagnostics/Common Optics: Priorities, Engineering June 9, 2009 13 13 Eliazar Ortiz ortize@slac. stanford. edu
Common Optics Status • Attenuator-Pulse Picker Status – Combined attenuator and pulse picker – Commercial pulse-picker packaged into same chamber – Final Design Review Completed Si filters – Chamber shared with 6” Rotating flanges Attenuator – Test Program 50 mm travel linear stage with smart motor Hollow shaft for cable routing Lens LC LS Be am Optical CCD Camera Motorized actuators • Blade coating for attenuator filters • PP performance with coated View port blade Pulse-picker 6 DOF Stand – Shared Design • 6 DOF Alignment Stands • Stage Diagnostics/Common Optics: Priorities, Engineering June 9, 2009 14 14 Eliazar Ortiz ortize@slac. stanford. edu

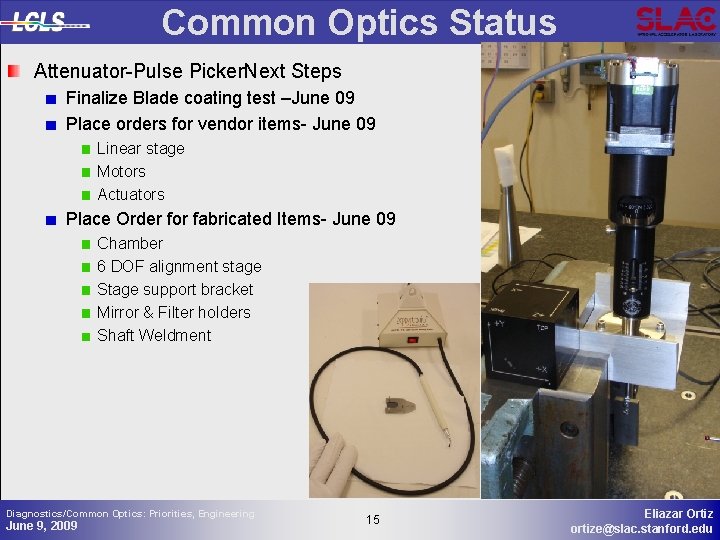

Common Optics Status Attenuator-Pulse Picker. Next Steps Finalize Blade coating test –June 09 Place orders for vendor items- June 09 Linear stage Motors Actuators Place Order for fabricated Items- June 09 Chamber 6 DOF alignment stage Stage support bracket Mirror & Filter holders Shaft Weldment Diagnostics/Common Optics: Priorities, Engineering June 9, 2009 15 15 Eliazar Ortiz ortize@slac. stanford. edu
Common Optics Status • X-Ray Focusing Lenses Status – Commonality with Monitors • Chamber • 6 DOF Alignment Stands • Stages Accommodates 3 different lens configurations – Final Design Review- June 09 LC LS Be a m Actuator design similar to IPM Quick lens stack removal Chamber similar to monitors 6 DOF Stand Z-axis translation stage (± 200 mm) XPP only Diagnostics/Common Optics: Priorities, Engineering June 9, 2009 Lens Holder 16 16 Eliazar Ortiz ortize@slac. stanford. edu
Common Optics Status • X-Ray Focusing Lenses Next Steps Be lenses – Order lens holder parts for validation test- May 09 – Issue award for lenses- Aug 09 – Order other vendor Items- July 09 B. Lengeler et al. , J. Synchrotron Rad. , 6, 1153 -1167 (1999). • Linear Stages • Motors Diagnostics/Common Optics: Priorities, Engineering June 9, 2009 17 17 Eliazar Ortiz ortize@slac. stanford. edu

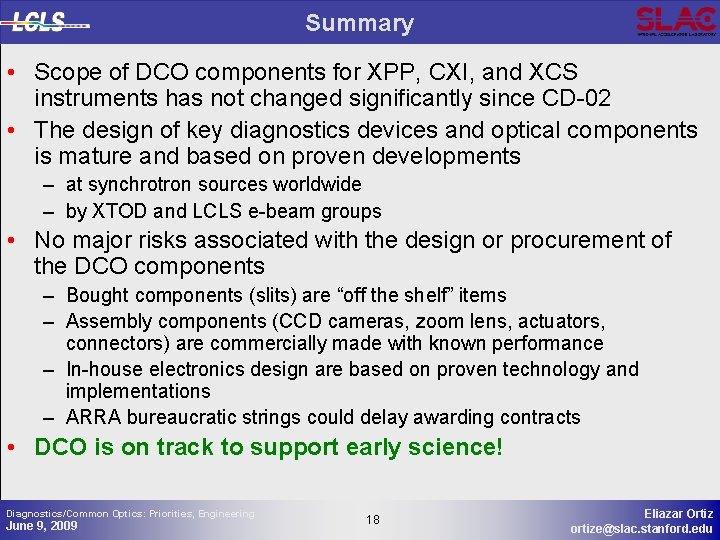

Summary • Scope of DCO components for XPP, CXI, and XCS instruments has not changed significantly since CD-02 • The design of key diagnostics devices and optical components is mature and based on proven developments – at synchrotron sources worldwide – by XTOD and LCLS e-beam groups • No major risks associated with the design or procurement of the DCO components – Bought components (slits) are “off the shelf” items – Assembly components (CCD cameras, zoom lens, actuators, connectors) are commercially made with known performance – In-house electronics design are based on proven technology and implementations – ARRA bureaucratic strings could delay awarding contracts • DCO is on track to support early science! Diagnostics/Common Optics: Priorities, Engineering June 9, 2009 18 18 Eliazar Ortiz ortize@slac. stanford. edu
Backup Diagnostics/Common Optics: Priorities, Engineering June 9, 2009 19 19 Eliazar Ortiz ortize@slac. stanford. edu
Overview • DCO will provide to all LUSI instruments – Common diagnostics for measuring FEL properties • • Transverse beam profile Incident beam intensity Beam positions and pointing Wavefield measurement at focus – Common Optical components for performing FEL manipulations • • • Beam size definition and clean-up Attenuation Pulse pattern selection and/or repetition rate reduction Isolation of fundamental from high order harmonics Focusing Monochromatization* *Engineering of mono is now managed by the XCS team Diagnostics/Common Optics: Priorities, Engineering June 9, 2009 20 20 Eliazar Ortiz ortize@slac. stanford. edu

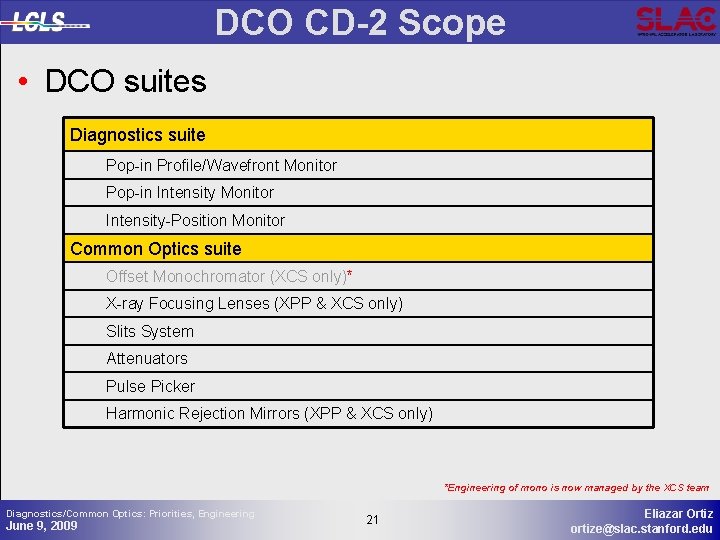

DCO CD-2 Scope • DCO suites Diagnostics suite Pop-in Profile/Wavefront Monitor Pop-in Intensity Monitor Intensity-Position Monitor Common Optics suite Offset Monochromator (XCS only)* X-ray Focusing Lenses (XPP & XCS only) Slits System Attenuators Pulse Picker Harmonic Rejection Mirrors (XPP & XCS only) *Engineering of mono is now managed by the XCS team Diagnostics/Common Optics: Priorities, Engineering June 9, 2009 21 21 Eliazar Ortiz ortize@slac. stanford. edu
Global Physics Requirements • Physics requirements remained same as CD-2 and were based on characteristics of LCLS FEL – Ultra short pulses ~ 100 fs, and rep. rate of 120 Hz – Pulse energy 2 m. J, peak power ~ 20 GW, ave. power ~. 24 W – Fully coherent in transverse directions ~ expected to be predominantly TEM 00* – Exhibiting intrinsic intensity, temporal, spatial, timing fluctuations on per-pulse basis†, i. e. , LCLS Expected Fluctuations Pulse intensity fluctuations Position & pointing jitter (x, y, a, b) Source point jitter (z) ~ 30 % (in contrast to synchrotron where fluctuation is Poisson limited) ~ 10 % of beam diameter ~ 10 % of beam divergence ~5 m (leads to variations in apparent source size, or focal point location if focused) • Higher order Laguerre-Gaussian modes possible but negligible †FEL amplification process based on SASE from noise Diagnostics/Common Optics: Priorities, Engineering June 9, 2009 22 22 Eliazar Ortiz ortize@slac. stanford. edu

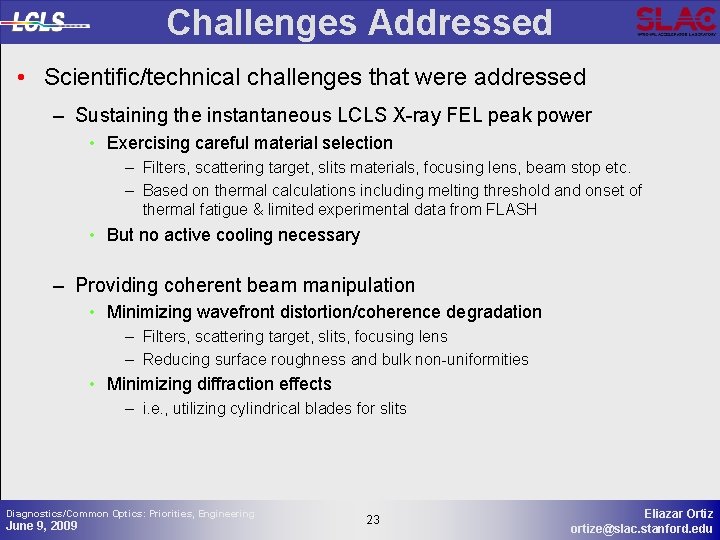

Challenges Addressed • Scientific/technical challenges that were addressed – Sustaining the instantaneous LCLS X-ray FEL peak power • Exercising careful material selection – Filters, scattering target, slits materials, focusing lens, beam stop etc. – Based on thermal calculations including melting threshold and onset of thermal fatigue & limited experimental data from FLASH • But no active cooling necessary – Providing coherent beam manipulation • Minimizing wavefront distortion/coherence degradation – Filters, scattering target, slits, focusing lens – Reducing surface roughness and bulk non-uniformities • Minimizing diffraction effects – i. e. , utilizing cylindrical blades for slits Diagnostics/Common Optics: Priorities, Engineering June 9, 2009 23 23 Eliazar Ortiz ortize@slac. stanford. edu

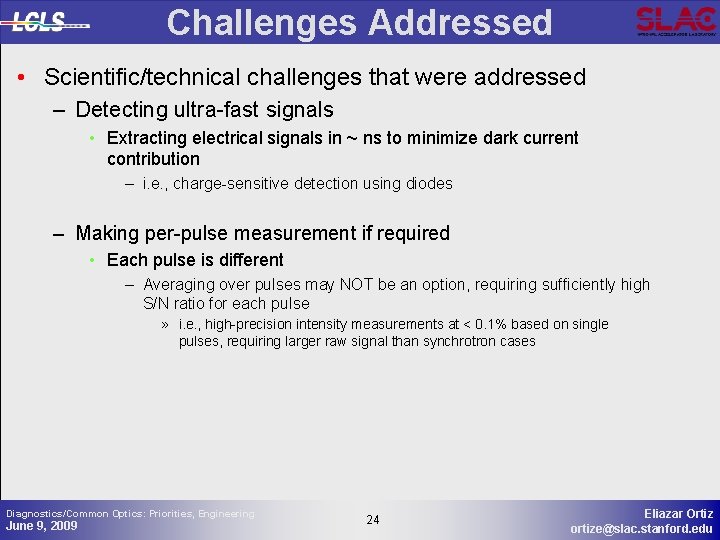

Challenges Addressed • Scientific/technical challenges that were addressed – Detecting ultra-fast signals • Extracting electrical signals in ~ ns to minimize dark current contribution – i. e. , charge-sensitive detection using diodes – Making per-pulse measurement if required • Each pulse is different – Averaging over pulses may NOT be an option, requiring sufficiently high S/N ratio for each pulse » i. e. , high-precision intensity measurements at < 0. 1% based on single pulses, requiring larger raw signal than synchrotron cases Diagnostics/Common Optics: Priorities, Engineering June 9, 2009 24 24 Eliazar Ortiz ortize@slac. stanford. edu

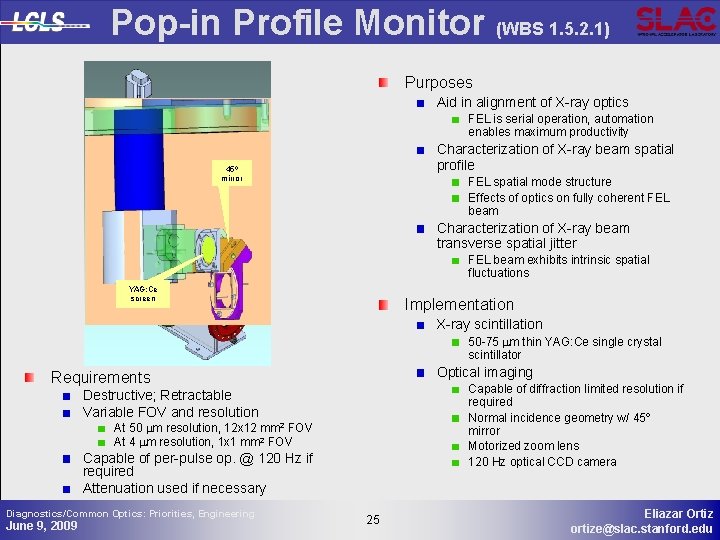

Pop-in Profile Monitor (WBS 1. 5. 2. 1) Purposes Aid in alignment of X-ray optics FEL is serial operation, automation enables maximum productivity Characterization of X-ray beam spatial profile 45º mirror FEL spatial mode structure Effects of optics on fully coherent FEL beam Characterization of X-ray beam transverse spatial jitter FEL beam exhibits intrinsic spatial fluctuations YAG: Ce screen Implementation X-ray scintillation 50 -75 mm thin YAG: Ce single crystal scintillator Optical imaging Requirements Capable of diffraction limited resolution if required Normal incidence geometry w/ 45º mirror Motorized zoom lens 120 Hz optical CCD camera Destructive; Retractable Variable FOV and resolution At 50 mm resolution, 12 x 12 mm 2 FOV At 4 mm resolution, 1 x 1 mm 2 FOV Capable of per-pulse op. @ 120 Hz if required Attenuation used if necessary Diagnostics/Common Optics: Priorities, Engineering June 9, 2009 25 25 Eliazar Ortiz ortize@slac. stanford. edu
Pop-in Intensity Monitor (WBS 1. 5. 2. 2) Purposes Aid in alignment of X-ray optics FEL is serial operation, automation enables maximum productivity Simple point detector for physics measurements In cases where 2 D X-ray detector is not suitable Implementation Direct X-ray detection using Si diodes Advantageous in cases of working w/ spontaneous or mono beams Capable of high quantum efficiency (> 90% at 8. 3 ke. V) Si diode 100 – 500 mm depletion thickness Using charge sensitive amplification Requirements Applicable to pulsed FEL Commercially available Large working area (catch-all) easily available simplifying alignment procedure Destructive; Retractable Relative accuracy < 1% Working dynamic range 100 Large sensor area 20 x 20 mm 2 Per-pulse op. @ 120 Hz Attenuation used if necessary Diagnostics/Common Optics: Priorities, Engineering June 9, 2009 26 26 Eliazar Ortiz ortize@slac. stanford. edu

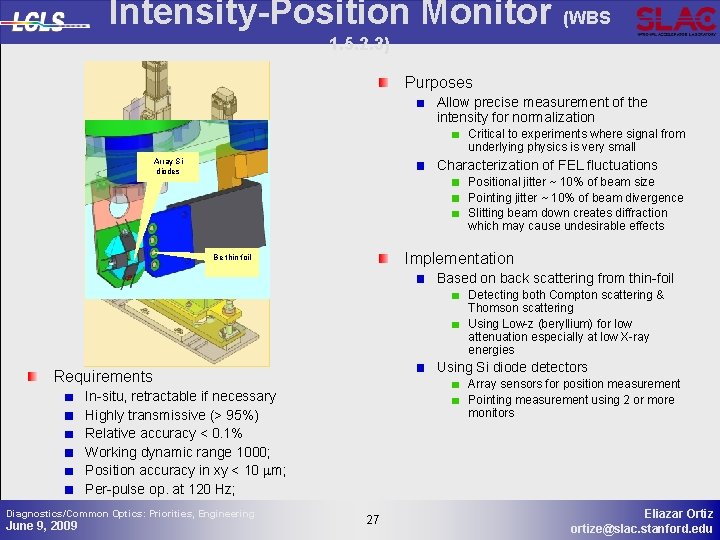

Intensity-Position Monitor (WBS 1. 5. 2. 3) Purposes Allow precise measurement of the intensity for normalization Critical to experiments where signal from underlying physics is very small Characterization of FEL fluctuations Array Si diodes Positional jitter ~ 10% of beam size Pointing jitter ~ 10% of beam divergence Slitting beam down creates diffraction which may cause undesirable effects Be thin foil Implementation Based on back scattering from thin-foil Detecting both Compton scattering & Thomson scattering Using Low-z (beryllium) for low attenuation especially at low X-ray energies Using Si diode detectors Requirements Array sensors for position measurement Pointing measurement using 2 or more monitors In-situ, retractable if necessary Highly transmissive (> 95%) Relative accuracy < 0. 1% Working dynamic range 1000; Position accuracy in xy < 10 mm; Per-pulse op. at 120 Hz; Diagnostics/Common Optics: Priorities, Engineering June 9, 2009 27 27 Eliazar Ortiz ortize@slac. stanford. edu

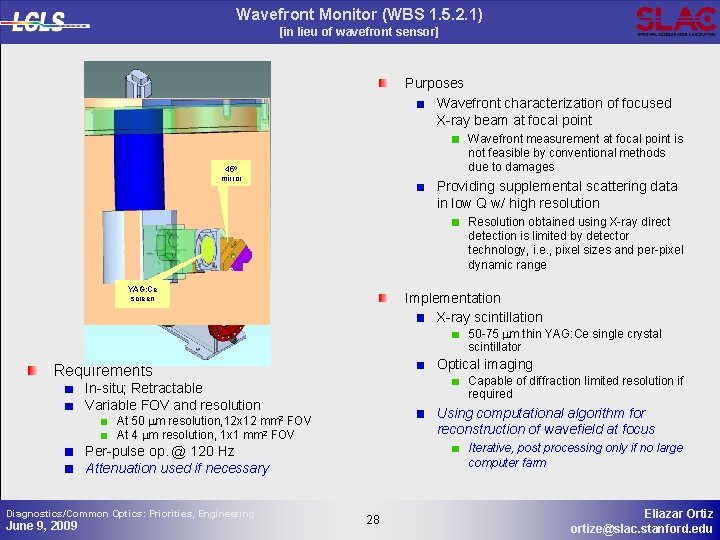

Wavefront Monitor (WBS 1. 5. 2. 1) [in lieu of wavefront sensor] Purposes Wavefront characterization of focused X-ray beam at focal point Wavefront measurement at focal point is not feasible by conventional methods due to damages 45º mirror Providing supplemental scattering data in low Q w/ high resolution Resolution obtained using X-ray direct detection is limited by detector technology, i. e. , pixel sizes and per-pixel dynamic range YAG: Ce screen Implementation X-ray scintillation 50 -75 mm thin YAG: Ce single crystal scintillator Optical imaging Requirements Capable of diffraction limited resolution if required In-situ; Retractable Variable FOV and resolution Using computational algorithm for reconstruction of wavefield at focus At 50 mm resolution, 12 x 12 mm 2 FOV At 4 mm resolution, 1 x 1 mm 2 FOV Iterative, post processing only if no large computer farm Per-pulse op. @ 120 Hz Attenuation used if necessary Diagnostics/Common Optics: Priorities, Engineering June 9, 2009 28 28 Eliazar Ortiz ortize@slac. stanford. edu
X-ray Focusing Lenses (WBS 1. 5. 3. 2) Purposes Increase the X-ray fluence at the sample Produce small spot size in cases where slits do not work due to diffraction, Be Lens stack i. e. , sample too far from slits Be lenses Implementation Based on refractive lenses concept* Concave shape due to X-ray refractive index 1 -d+ib Using Beryllium to minimize attenuation In-line focus Simpler than KB systems no diff. orders as in Fresnel lens Chromatic Con: re-positioning of focal point Pro: Providing harmonic isolation if aperture used Requirements Produce variable spot size Some attenuation at very low X-ray energies ~ 2 ke. V For XPP instrument 2 -10 mm in focus 40 -60 mm out-of-focus Minimize wavefront distortion and coherence degradation Withstand FEL full flux Diagnostics/Common Optics: Priorities, Engineering June 9, 2009 *B. Lengeler, et al, J. Synchrotron Rad. (1999). 6, 1153 -1167 29 29 Eliazar Ortiz ortize@slac. stanford. edu

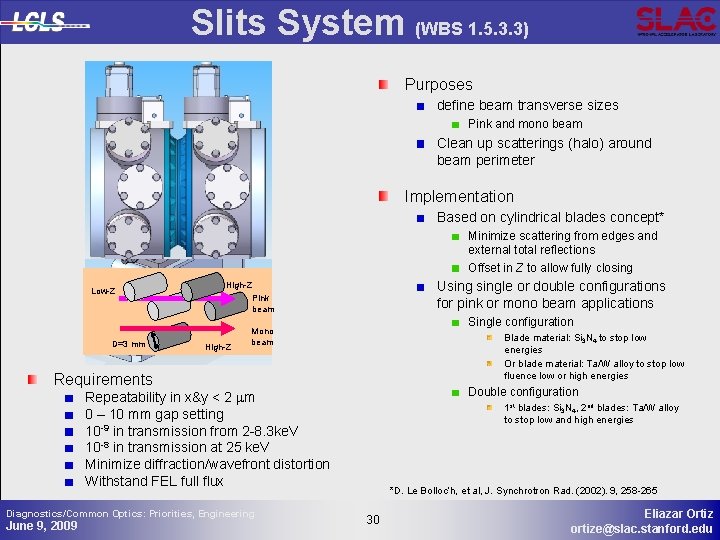

Slits System (WBS 1. 5. 3. 3) Purposes define beam transverse sizes Pink and mono beam Clean up scatterings (halo) around beam perimeter Implementation Based on cylindrical blades concept* Minimize scattering from edges and external total reflections Offset in Z to allow fully closing Low-Z D=3 mm Usingle or double configurations for pink or mono beam applications High-Z Pink beam High-Z Single configuration Mono beam Blade material: Si 3 N 4 to stop low energies Or blade material: Ta/W alloy to stop low fluence low or high energies Requirements Repeatability in x&y < 2 mm 0 – 10 mm gap setting 10 -9 in transmission from 2 -8. 3 ke. V 10 -8 in transmission at 25 ke. V Minimize diffraction/wavefront distortion Withstand FEL full flux Diagnostics/Common Optics: Priorities, Engineering June 9, 2009 Double configuration 1 st blades: Si 3 N 4, 2 nd blades: Ta/W alloy to stop low and high energies *D. Le Bolloc’h, et al, J. Synchrotron Rad. (2002). 9, 258 -265 30 30 Eliazar Ortiz ortize@slac. stanford. edu
Attenuator/Filters (WBS 1. 5. 3. 4) Purposes Reduce incident X-ray flux Sample damage Detector saturation Diagnostic saturation Alignment of optics and diagnostics Implementation Using Si wafers of various thicknesses Highly polished to minimize wavefront distortion & coherence degradation For a given attenuation, use one wafer whenever possible Commercially available (< 1 nm rms roughness) For energies < 6 ke. V in NEH-3 and in pink beam Requirements Employing a pre-attenuator, i. e. , LCLS XTOD gas/solid attenuators 108 attenuation at 8. 3 ke. V attenuation at 24. 9 ke. V 3 steps per decade for > 6 ke. V Minimize wavefront distortion and coherence degradation Withstand unfocused flux 104 Diagnostics/Common Optics: Priorities, Engineering June 9, 2009 31 31 Eliazar Ortiz ortize@slac. stanford. edu

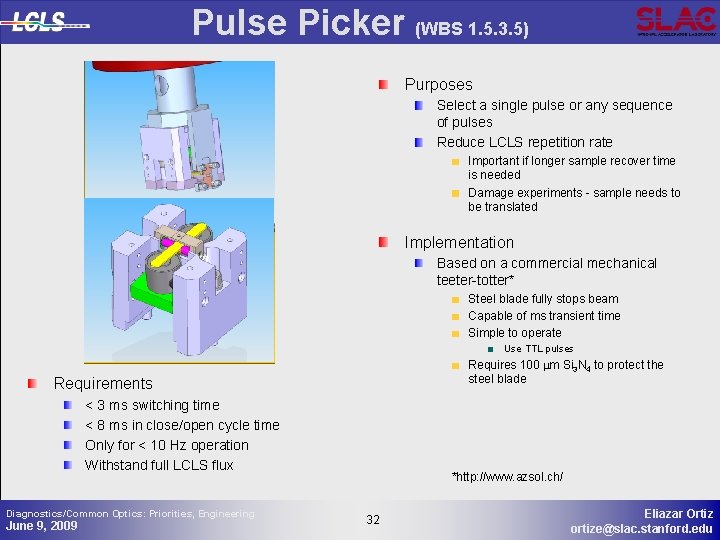

Pulse Picker (WBS 1. 5. 3. 5) Purposes Select a single pulse or any sequence of pulses Reduce LCLS repetition rate Important if longer sample recover time is needed Damage experiments - sample needs to be translated Implementation Based on a commercial mechanical teeter-totter* Steel blade fully stops beam Capable of ms transient time Simple to operate Use TTL pulses Requires 100 mm Si 3 N 4 to protect the steel blade Requirements < 3 ms switching time < 8 ms in close/open cycle time Only for < 10 Hz operation Withstand full LCLS flux Diagnostics/Common Optics: Priorities, Engineering June 9, 2009 *http: //www. azsol. ch/ 32 32 Eliazar Ortiz ortize@slac. stanford. edu

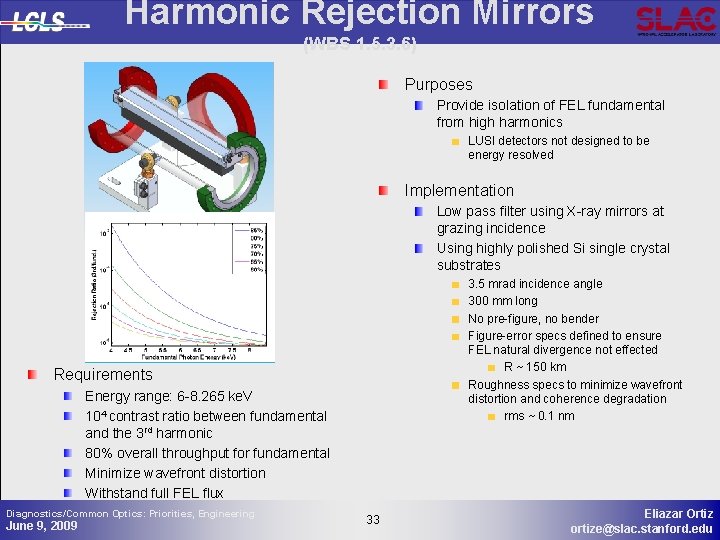

Harmonic Rejection Mirrors (WBS 1. 5. 3. 6) Purposes Provide isolation of FEL fundamental from high harmonics LUSI detectors not designed to be energy resolved Implementation Low pass filter using X-ray mirrors at grazing incidence Using highly polished Si single crystal substrates A B 3. 5 mrad incidence angle 300 mm long No pre-figure, no bender Figure-error specs defined to ensure FEL natural divergence not effected R ~ 150 km Roughness specs to minimize wavefront distortion and coherence degradation rms ~ 0. 1 nm C Requirements Energy range: 6 -8. 265 ke. V 104 contrast ratio between fundamental and the 3 rd harmonic 80% overall throughput for fundamental Minimize wavefront distortion Withstand full FEL flux Diagnostics/Common Optics: Priorities, Engineering June 9, 2009 33 33 Eliazar Ortiz ortize@slac. stanford. edu

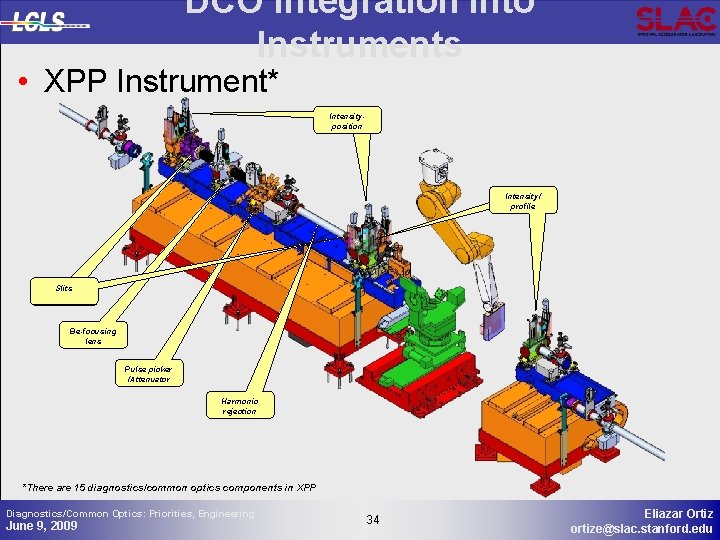

DCO Integration into Instruments • XPP Instrument* Intensityposition Intensity/ profile Slits Be-focusing lens Pulse picker /Attenuator Harmonic rejection *There are 15 diagnostics/common optics components in XPP Diagnostics/Common Optics: Priorities, Engineering June 9, 2009 34 34 Eliazar Ortiz ortize@slac. stanford. edu

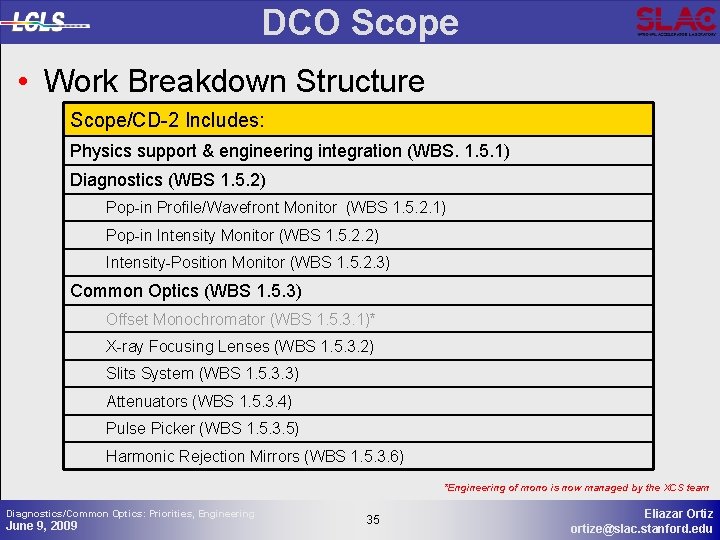

DCO Scope • Work Breakdown Structure Scope/CD-2 Includes: Physics support & engineering integration (WBS. 1. 5. 1) Diagnostics (WBS 1. 5. 2) Pop-in Profile/Wavefront Monitor (WBS 1. 5. 2. 1) Pop-in Intensity Monitor (WBS 1. 5. 2. 2) Intensity-Position Monitor (WBS 1. 5. 2. 3) Common Optics (WBS 1. 5. 3) Offset Monochromator (WBS 1. 5. 3. 1)* X-ray Focusing Lenses (WBS 1. 5. 3. 2) Slits System (WBS 1. 5. 3. 3) Attenuators (WBS 1. 5. 3. 4) Pulse Picker (WBS 1. 5. 3. 5) Harmonic Rejection Mirrors (WBS 1. 5. 3. 6) *Engineering of mono is now managed by the XCS team Diagnostics/Common Optics: Priorities, Engineering June 9, 2009 35 35 Eliazar Ortiz ortize@slac. stanford. edu
Device/Component Counts • Total device/component counts Diagnostics/Optics XPP CXI XCS Total Pop-in Profiler/ Wavefront Monitor (WBS 1. 5. 2. 1) 3 2 6 11 Pop-in Intensity Monitor (WBS 1. 5. 2. 2) 2 2 6 10 Intensity-Position Monitor (WBS 1. 5. 2. 3) 3 2 6 11 1 Offset Monochromator* (WBS 1. 5. 3. 1) 1 X-Ray Focusing Lenses (WBS 1. 5. 3. 2) 1 2 1 4 Slits System (WBS 1. 5. 3. 3) 3 4 7 14 Attenuators/Filters (WBS 1. 5. 3. 4) 1 1 1 3 Pulse Picker (WBS 1. 5. 3. 5) 1 1 1 3 Harmonic Rejection Mirrors (WBS 1. 5. 3. 6) 1 1 2 Total 15 30 60 15 *Engineering of mono is now managed by the XCS team Diagnostics/Common Optics: Priorities, Engineering June 9, 2009 36 36 Eliazar Ortiz ortize@slac. stanford. edu
Progress Since CD-2 • DCO progress CD-2 status (Aug. 08) (Apr. 09) Pop-in Profiler/ Wavefront Monitor PRD release FDR complete PRD release FDR in May Pop-in Intensity Monitor PRD release FDR complete Intensity-Position Monitor PRD release FDR complete Offset Monochromator* PRD in work APR on Apr. 23 X-Ray Focusing Lenses PRD release PDR complete Slits System PRD release RFP sent Attenuators/Filters PRD release FDR complete Pulse Picker PRD release FDR complete Harmonic Rejection Mirrors PRD release PDR in June Diagnostics/Optics *Engineering of mono is now managed by the XCS team Diagnostics/Common Optics: Priorities, Engineering June 9, 2009 37 37 Eliazar Ortiz ortize@slac. stanford. edu
Cost 36% 64% Diagnostics/Common Optics: Priorities, Engineering June 9, 2009 38 38 Eliazar Ortiz ortize@slac. stanford. edu

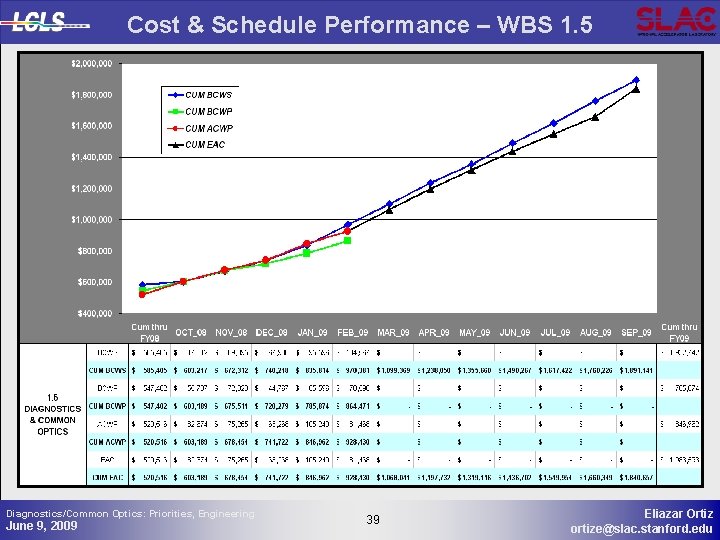

Cost & Schedule Performance – WBS 1. 5 Diagnostics/Common Optics: Priorities, Engineering June 9, 2009 39 39 Eliazar Ortiz ortize@slac. stanford. edu
Project Critical Path • DCO has one design effort and multiple procurements to support the Instrument requirements. • The project is monitoring strings of activities with the least float – Items on the critical path are: • XFLS Procurement Preps (14 day float, start May 2010) • HRM Procurement Preps (19 day float, start Oct 2010) – Activities to monitor from falling on the critical path: Diagnostics/Common Optics: Priorities, Engineering June 9, 2009 Eliazar Ortiz 40 40 • Check and Approve Dwgs PP (24 day float, ortize@slac. stanford. edu start
Major Milestones Diagnostics/Common Optics: Priorities, Engineering June 9, 2009 41 41 Eliazar Ortiz ortize@slac. stanford. edu
Procurement Schedule Diagnostics/Common Optics: Priorities, Engineering June 9, 2009 42 42 Eliazar Ortiz ortize@slac. stanford. edu
