Diagnostic microbiology lecture 10 THE GRAM NEGATIVE COCCI

Diagnostic microbiology lecture: 10 THE GRAM NEGATIVE COCCI Abed El. Kader Elottol MSc. Microbiology 2010 1

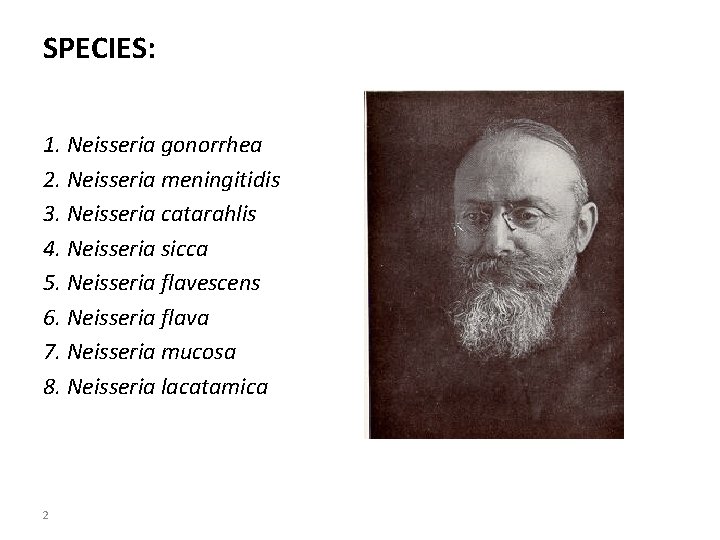

SPECIES: 1. Neisseria gonorrhea 2. Neisseria meningitidis 3. Neisseria catarahlis 4. Neisseria sicca 5. Neisseria flavescens 6. Neisseria flava 7. Neisseria mucosa 8. Neisseria lacatamica 2

Neisseria gonorrhea 3

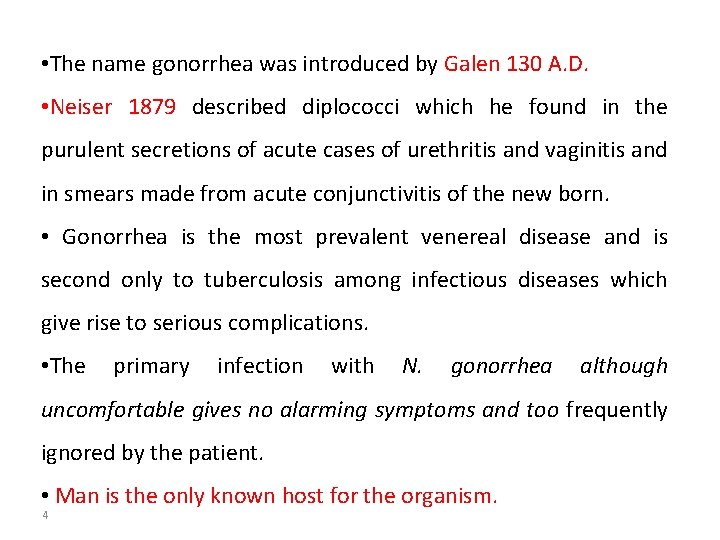

• The name gonorrhea was introduced by Galen 130 A. D. • Neiser 1879 described diplococci which he found in the purulent secretions of acute cases of urethritis and vaginitis and in smears made from acute conjunctivitis of the new born. • Gonorrhea is the most prevalent venereal disease and is second only to tuberculosis among infectious diseases which give rise to serious complications. • The primary infection with N. gonorrhea although uncomfortable gives no alarming symptoms and too frequently ignored by the patient. • Man is the only known host for the organism. 4

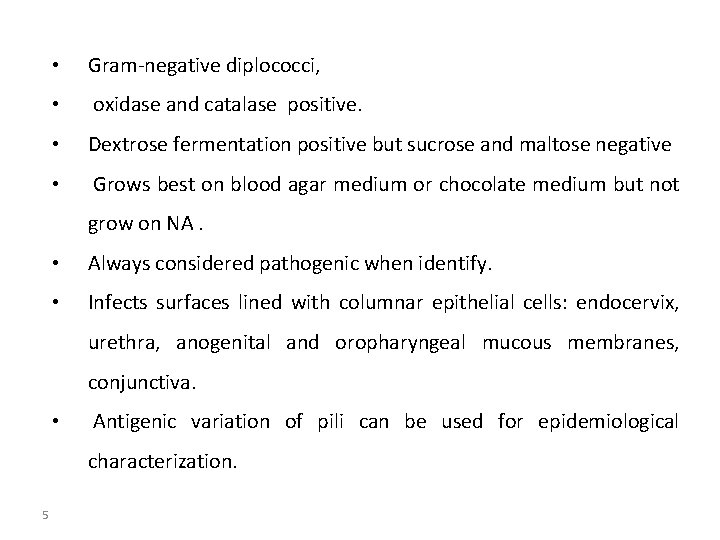

• Gram-negative diplococci, • oxidase and catalase positive. • Dextrose fermentation positive but sucrose and maltose negative • Grows best on blood agar medium or chocolate medium but not grow on NA. • Always considered pathogenic when identify. • Infects surfaces lined with columnar epithelial cells: endocervix, urethra, anogenital and oropharyngeal mucous membranes, conjunctiva. • Antigenic variation of pili can be used for epidemiological characterization. 5

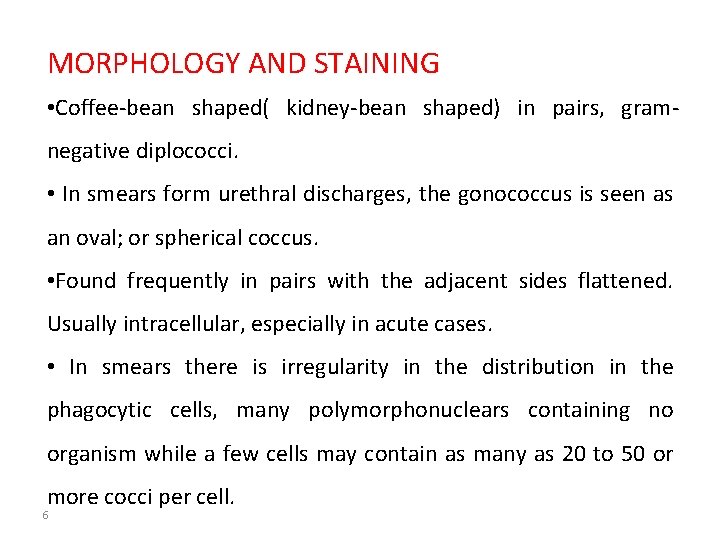

MORPHOLOGY AND STAINING • Coffee-bean shaped( kidney-bean shaped) in pairs, gramnegative diplococci. • In smears form urethral discharges, the gonococcus is seen as an oval; or spherical coccus. • Found frequently in pairs with the adjacent sides flattened. Usually intracellular, especially in acute cases. • In smears there is irregularity in the distribution in the phagocytic cells, many polymorphonuclears containing no organism while a few cells may contain as many as 20 to 50 or more cocci per cell. 6

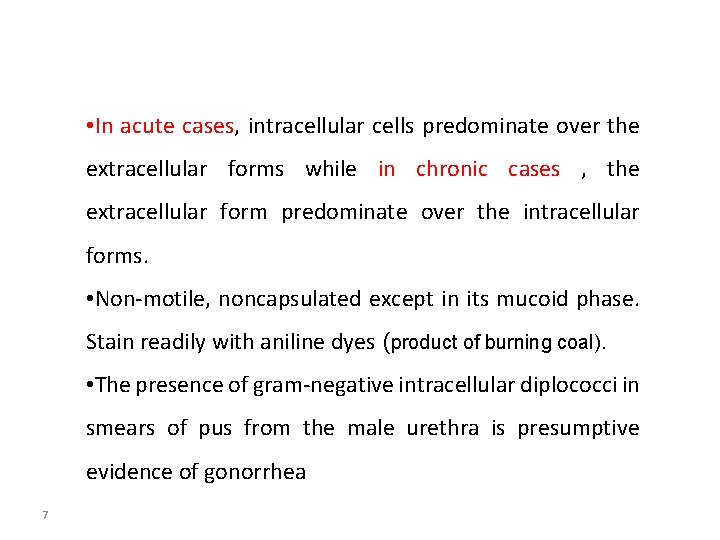

• In acute cases, intracellular cells predominate over the extracellular forms while in chronic cases , the extracellular form predominate over the intracellular forms. • Non-motile, noncapsulated except in its mucoid phase. Stain readily with aniline dyes (product of burning coal). • The presence of gram-negative intracellular diplococci in smears of pus from the male urethra is presumptive evidence of gonorrhea 7

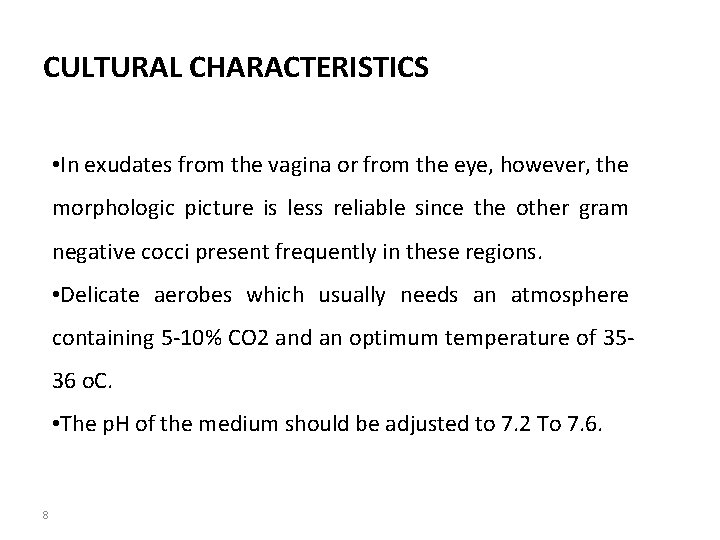

CULTURAL CHARACTERISTICS • In exudates from the vagina or from the eye, however, the morphologic picture is less reliable since the other gram negative cocci present frequently in these regions. • Delicate aerobes which usually needs an atmosphere containing 5 -10% CO 2 and an optimum temperature of 3536 o. C. • The p. H of the medium should be adjusted to 7. 2 To 7. 6. 8

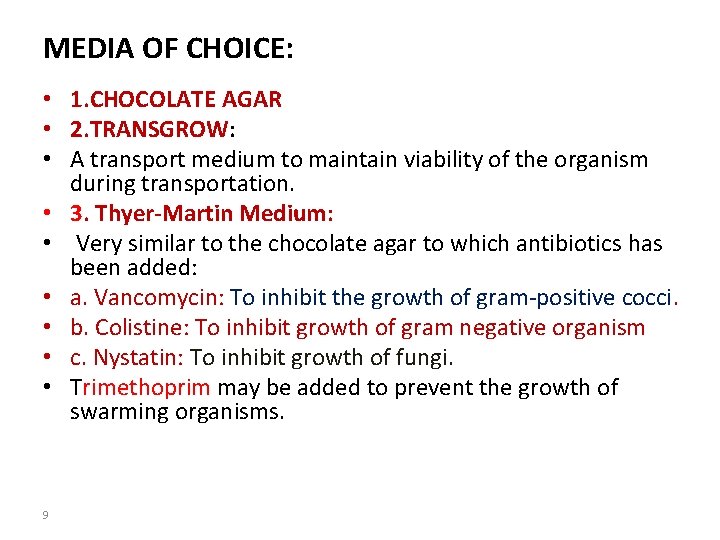

MEDIA OF CHOICE: • 1. CHOCOLATE AGAR • 2. TRANSGROW: • A transport medium to maintain viability of the organism during transportation. • 3. Thyer-Martin Medium: • Very similar to the chocolate agar to which antibiotics has been added: • a. Vancomycin: To inhibit the growth of gram-positive cocci. • b. Colistine: To inhibit growth of gram negative organism • c. Nystatin: To inhibit growth of fungi. • Trimethoprim may be added to prevent the growth of swarming organisms. 9

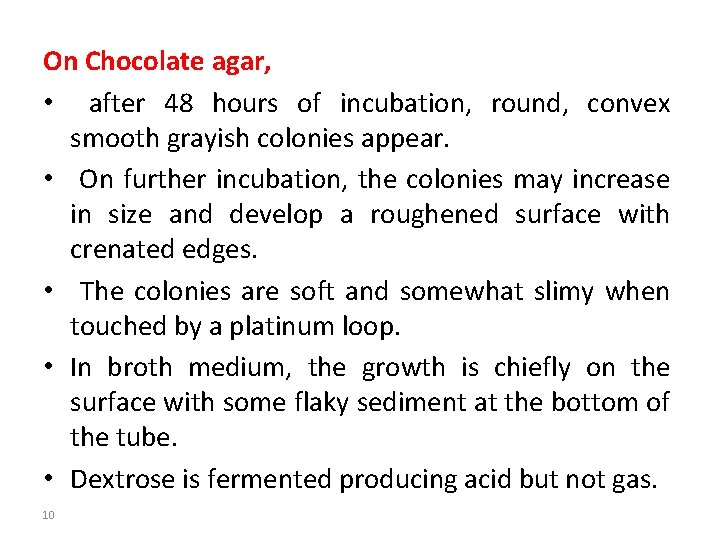

On Chocolate agar, • after 48 hours of incubation, round, convex smooth grayish colonies appear. • On further incubation, the colonies may increase in size and develop a roughened surface with crenated edges. • The colonies are soft and somewhat slimy when touched by a platinum loop. • In broth medium, the growth is chiefly on the surface with some flaky sediment at the bottom of the tube. • Dextrose is fermented producing acid but not gas. 10

On Thayer-Martin Agar (Medium of choice): After 20 hours of incubation at 35 -36 o. C in a candle jar, typical colonies appear small translucent, raised, moist gray white colonies with entire to lobate margins. Usually they are mucoid and tends to come off as whole colonies when fished from the agar surface. 11

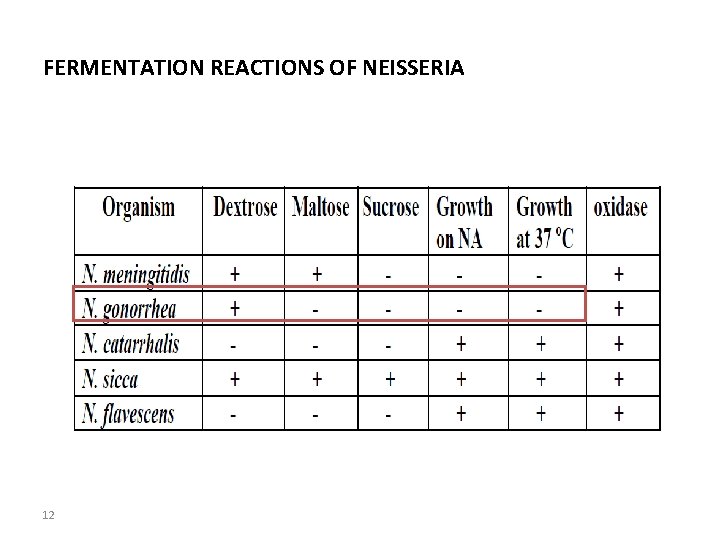

FERMENTATION REACTIONS OF NEISSERIA 12

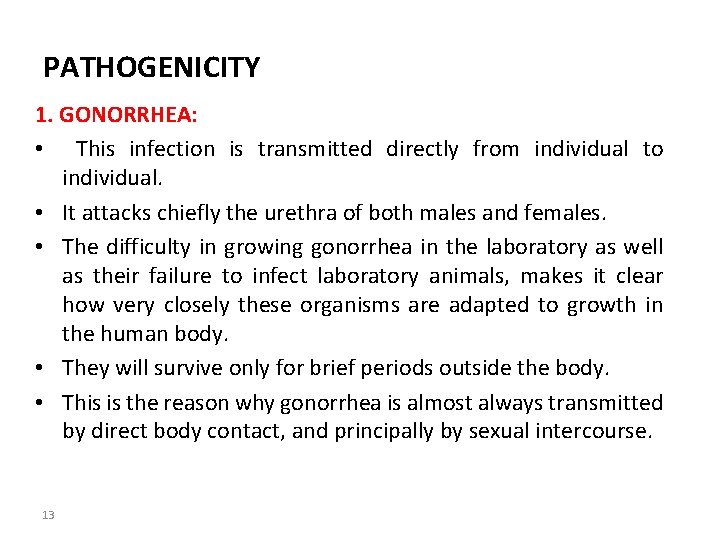

PATHOGENICITY 1. GONORRHEA: • This infection is transmitted directly from individual to individual. • It attacks chiefly the urethra of both males and females. • The difficulty in growing gonorrhea in the laboratory as well as their failure to infect laboratory animals, makes it clear how very closely these organisms are adapted to growth in the human body. • They will survive only for brief periods outside the body. • This is the reason why gonorrhea is almost always transmitted by direct body contact, and principally by sexual intercourse. 13

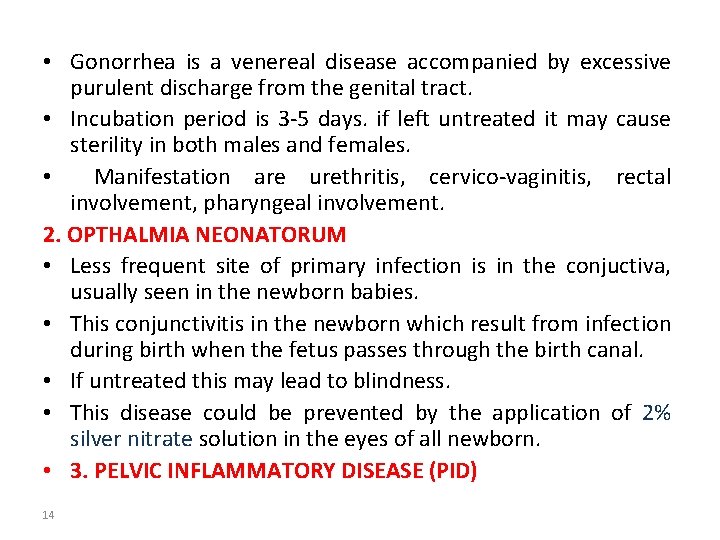

• Gonorrhea is a venereal disease accompanied by excessive purulent discharge from the genital tract. • Incubation period is 3 -5 days. if left untreated it may cause sterility in both males and females. • Manifestation are urethritis, cervico-vaginitis, rectal involvement, pharyngeal involvement. 2. OPTHALMIA NEONATORUM • Less frequent site of primary infection is in the conjuctiva, usually seen in the newborn babies. • This conjunctivitis in the newborn which result from infection during birth when the fetus passes through the birth canal. • If untreated this may lead to blindness. • This disease could be prevented by the application of 2% silver nitrate solution in the eyes of all newborn. • 3. PELVIC INFLAMMATORY DISEASE (PID) 14

15

DIAGNOSIS: 1. Specimen: • Vaginal swab and material obtained from males by prostatic massage or urethral swab. 2. Stained smears: • Smears from suspected cases will reveal gram negative diplococci, coffee-bean shaped. • Recovery of gram-negative diplococci extracellular or intracellular may be of a diagnostic value for male patient but usually are not in case the patient is female. • This must be confirmed by culture and biochemical identification of the species. 16

17

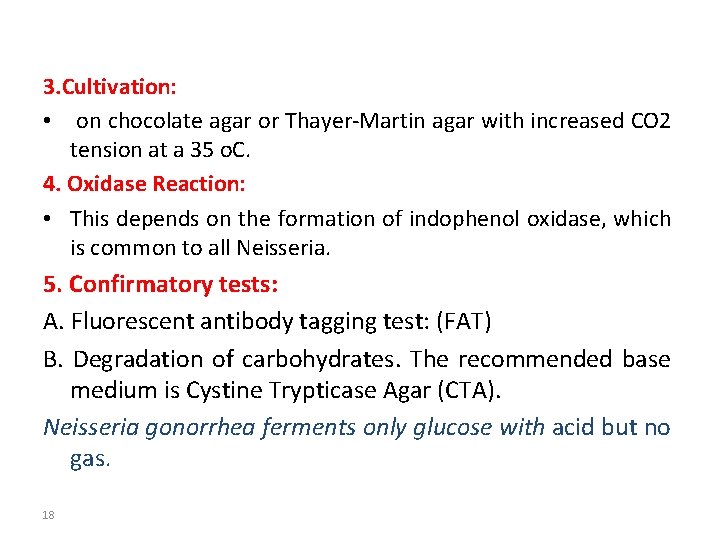

3. Cultivation: • on chocolate agar or Thayer-Martin agar with increased CO 2 tension at a 35 o. C. 4. Oxidase Reaction: • This depends on the formation of indophenol oxidase, which is common to all Neisseria. 5. Confirmatory tests: A. Fluorescent antibody tagging test: (FAT) B. Degradation of carbohydrates. The recommended base medium is Cystine Trypticase Agar (CTA). Neisseria gonorrhea ferments only glucose with acid but no gas. 18

19

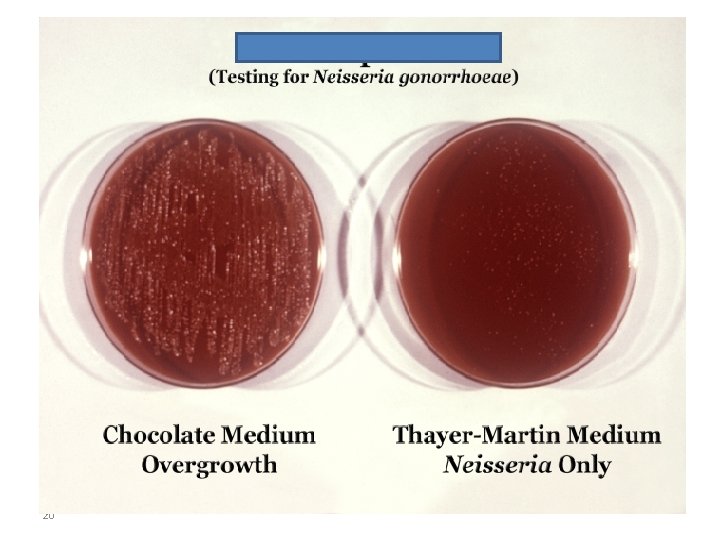

20

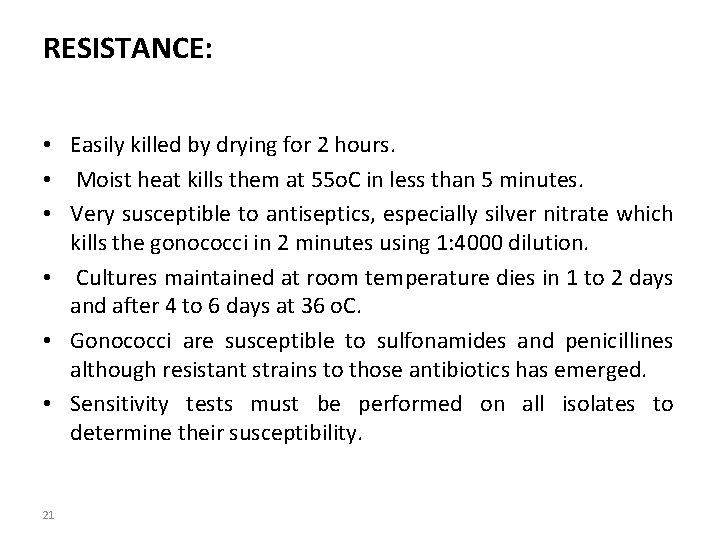

RESISTANCE: • Easily killed by drying for 2 hours. • Moist heat kills them at 55 o. C in less than 5 minutes. • Very susceptible to antiseptics, especially silver nitrate which kills the gonococci in 2 minutes using 1: 4000 dilution. • Cultures maintained at room temperature dies in 1 to 2 days and after 4 to 6 days at 36 o. C. • Gonococci are susceptible to sulfonamides and penicillines although resistant strains to those antibiotics has emerged. • Sensitivity tests must be performed on all isolates to determine their susceptibility. 21

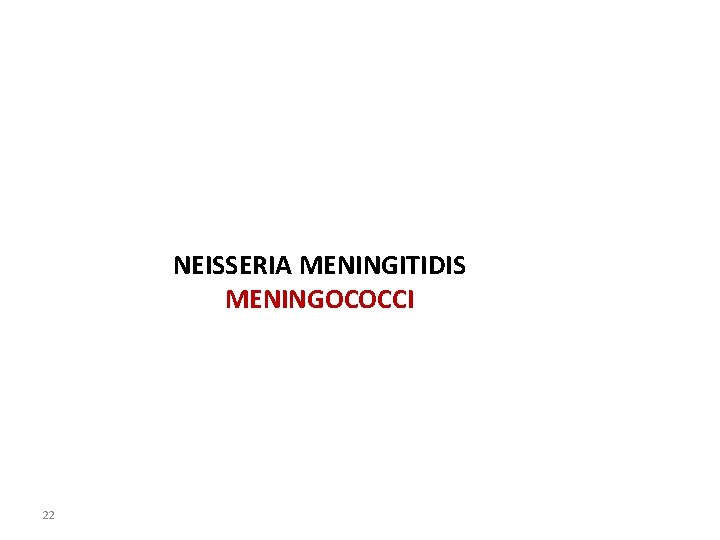

NEISSERIA MENINGITIDIS MENINGOCOCCI 22

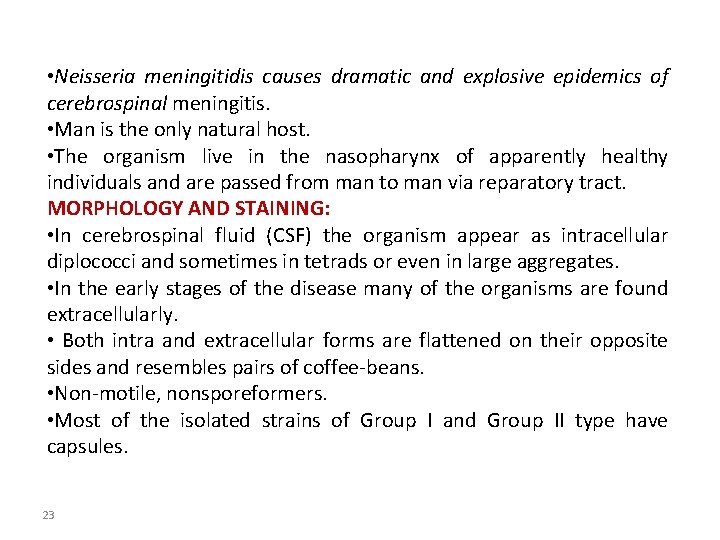

• Neisseria meningitidis causes dramatic and explosive epidemics of cerebrospinal meningitis. • Man is the only natural host. • The organism live in the nasopharynx of apparently healthy individuals and are passed from man to man via reparatory tract. MORPHOLOGY AND STAINING: • In cerebrospinal fluid (CSF) the organism appear as intracellular diplococci and sometimes in tetrads or even in large aggregates. • In the early stages of the disease many of the organisms are found extracellularly. • Both intra and extracellular forms are flattened on their opposite sides and resembles pairs of coffee-beans. • Non-motile, nonsporeformers. • Most of the isolated strains of Group I and Group II type have capsules. 23

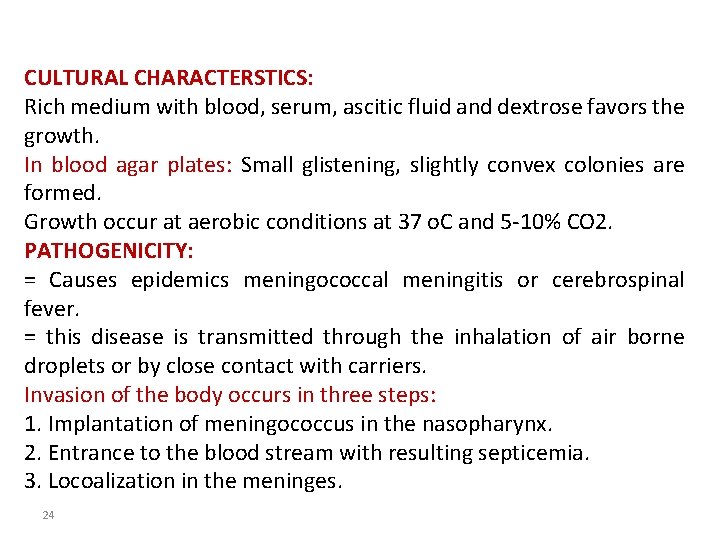

CULTURAL CHARACTERSTICS: Rich medium with blood, serum, ascitic fluid and dextrose favors the growth. In blood agar plates: Small glistening, slightly convex colonies are formed. Growth occur at aerobic conditions at 37 o. C and 5 -10% CO 2. PATHOGENICITY: = Causes epidemics meningococcal meningitis or cerebrospinal fever. = this disease is transmitted through the inhalation of air borne droplets or by close contact with carriers. Invasion of the body occurs in three steps: 1. Implantation of meningococcus in the nasopharynx. 2. Entrance to the blood stream with resulting septicemia. 3. Locoalization in the meninges. 24

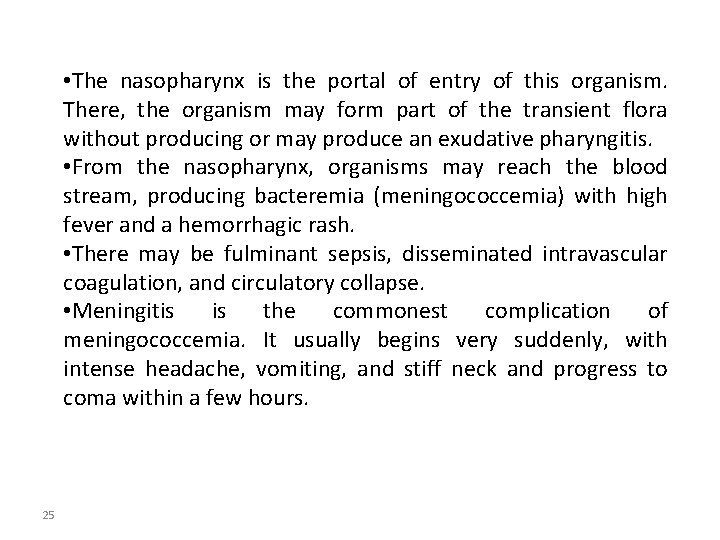

• The nasopharynx is the portal of entry of this organism. There, the organism may form part of the transient flora without producing or may produce an exudative pharyngitis. • From the nasopharynx, organisms may reach the blood stream, producing bacteremia (meningococcemia) with high fever and a hemorrhagic rash. • There may be fulminant sepsis, disseminated intravascular coagulation, and circulatory collapse. • Meningitis is the commonest complication of meningococcemia. It usually begins very suddenly, with intense headache, vomiting, and stiff neck and progress to coma within a few hours. 25

26

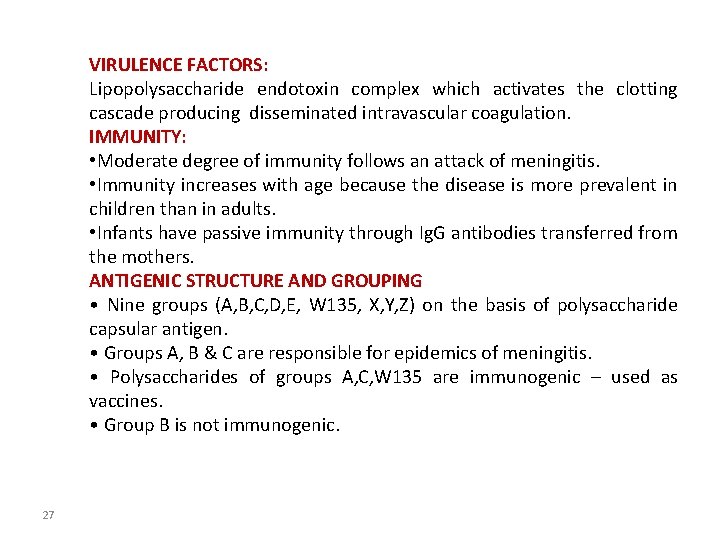

VIRULENCE FACTORS: Lipopolysaccharide endotoxin complex which activates the clotting cascade producing disseminated intravascular coagulation. IMMUNITY: • Moderate degree of immunity follows an attack of meningitis. • Immunity increases with age because the disease is more prevalent in children than in adults. • Infants have passive immunity through Ig. G antibodies transferred from the mothers. ANTIGENIC STRUCTURE AND GROUPING • Nine groups (A, B, C, D, E, W 135, X, Y, Z) on the basis of polysaccharide capsular antigen. • Groups A, B & C are responsible for epidemics of meningitis. • Polysaccharides of groups A, C, W 135 are immunogenic – used as vaccines. • Group B is not immunogenic. 27

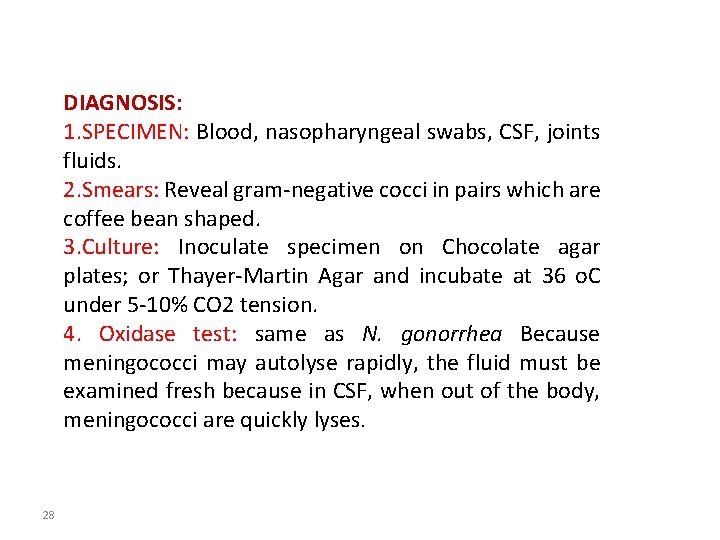

DIAGNOSIS: 1. SPECIMEN: Blood, nasopharyngeal swabs, CSF, joints fluids. 2. Smears: Reveal gram-negative cocci in pairs which are coffee bean shaped. 3. Culture: Inoculate specimen on Chocolate agar plates; or Thayer-Martin Agar and incubate at 36 o. C under 5 -10% CO 2 tension. 4. Oxidase test: same as N. gonorrhea Because meningococci may autolyse rapidly, the fluid must be examined fresh because in CSF, when out of the body, meningococci are quickly lyses. 28

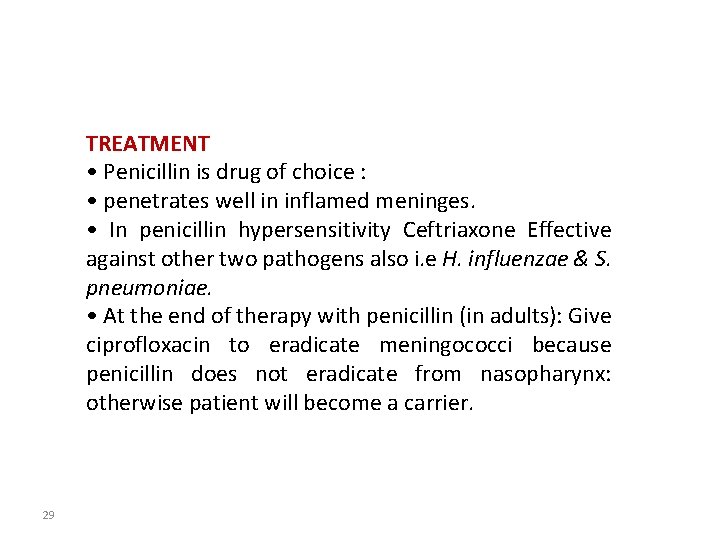

TREATMENT • Penicillin is drug of choice : • penetrates well in inflamed meninges. • In penicillin hypersensitivity Ceftriaxone Effective against other two pathogens also i. e H. influenzae & S. pneumoniae. • At the end of therapy with penicillin (in adults): Give ciprofloxacin to eradicate meningococci because penicillin does not eradicate from nasopharynx: otherwise patient will become a carrier. 29

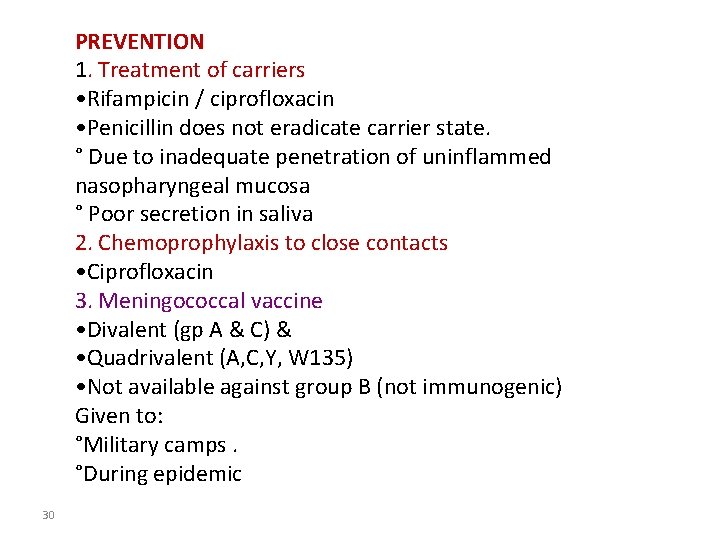

PREVENTION 1. Treatment of carriers • Rifampicin / ciprofloxacin • Penicillin does not eradicate carrier state. ° Due to inadequate penetration of uninflammed nasopharyngeal mucosa ° Poor secretion in saliva 2. Chemoprophylaxis to close contacts • Ciprofloxacin 3. Meningococcal vaccine • Divalent (gp A & C) & • Quadrivalent (A, C, Y, W 135) • Not available against group B (not immunogenic) Given to: °Military camps. °During epidemic 30

DIFFERENCES BETWEEN GONOCOCCUS AND MENINGOCOCCUS 1. Gonococcus grow more slowly, forms smaller colonies. 2. Gonococcus produces acid in glucose only, while meningococcus produces acid in both glucose and maltose. 3. Gonococcus is less toxic to mice and guinea pigs than meningococcus. SIMILARITIES BETWEEN GONOCOCCUS AND MENINGOCOCCUS 1. Both are strict parasite and causes diseases only for man 2. They may show little differences in resistance to injurious agents. 3. Their distribution in the inflammatory exudates is the same. 4. They grow on artificial media with a little differences. 31

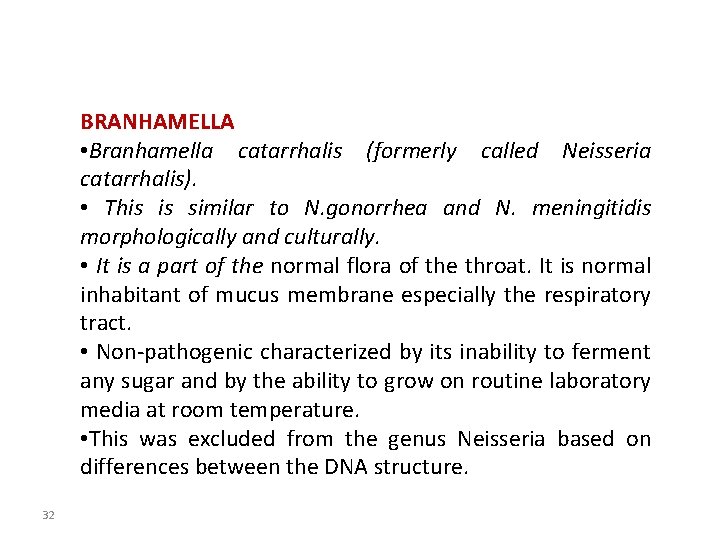

BRANHAMELLA • Branhamella catarrhalis (formerly called Neisseria catarrhalis). • This is similar to N. gonorrhea and N. meningitidis morphologically and culturally. • It is a part of the normal flora of the throat. It is normal inhabitant of mucus membrane especially the respiratory tract. • Non-pathogenic characterized by its inability to ferment any sugar and by the ability to grow on routine laboratory media at room temperature. • This was excluded from the genus Neisseria based on differences between the DNA structure. 32

THE END 33
