Diagnosis of Myocardial InfarctionIschemia with Bundle Branch Blocks

Diagnosis of Myocardial Infarction/Ischemia with Bundle Branch Blocks Mark I. Langdorf, MD, MHPE, FACEP, FAAEM, RDMS Chair and Associate Residency Director Medical Director Department of Emergency Medicine University of California, Irvine

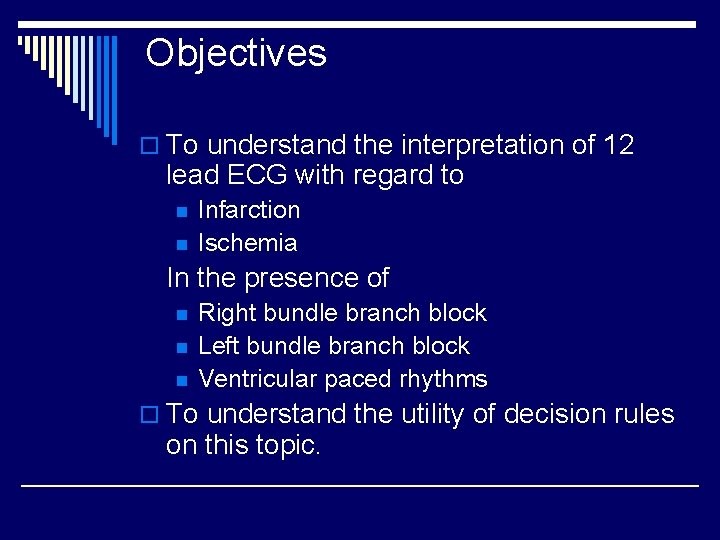

Objectives o To understand the interpretation of 12 lead ECG with regard to n n Infarction Ischemia In the presence of n n n Right bundle branch block Left bundle branch block Ventricular paced rhythms o To understand the utility of decision rules on this topic.

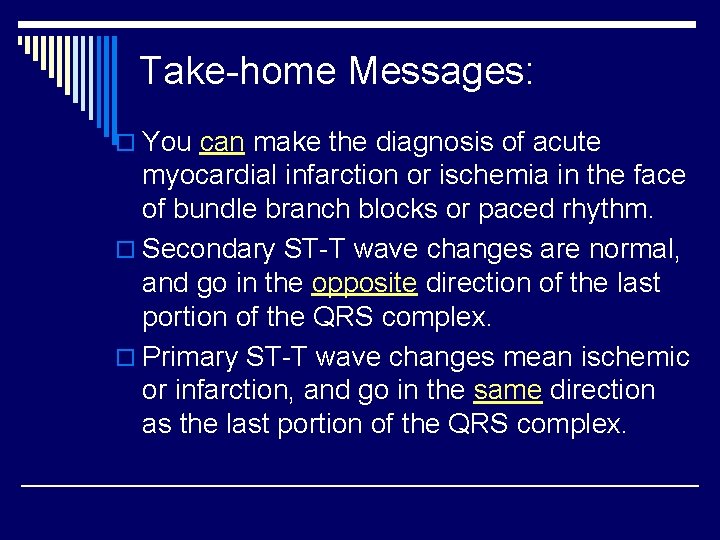

Take-home Messages: o You can make the diagnosis of acute myocardial infarction or ischemia in the face of bundle branch blocks or paced rhythm. o Secondary ST-T wave changes are normal, and go in the opposite direction of the last portion of the QRS complex. o Primary ST-T wave changes mean ischemic or infarction, and go in the same direction as the last portion of the QRS complex.

Take-home Messages: o Left bundle branch block that is new or not known to be old, in the setting of a clinical picture of MI, likely indicates infarction. o Reperfusion therapy is recommended. o Serial ECGs may clarify the situation. o Immediate angiogram is preferred.

Cardiac Conduction System Bachmann’s bundle Sinus node Internodal pathways AV node Bundle of His Left bundle branch Posterior division Anterior division Right bundle branch Purkinje fibers

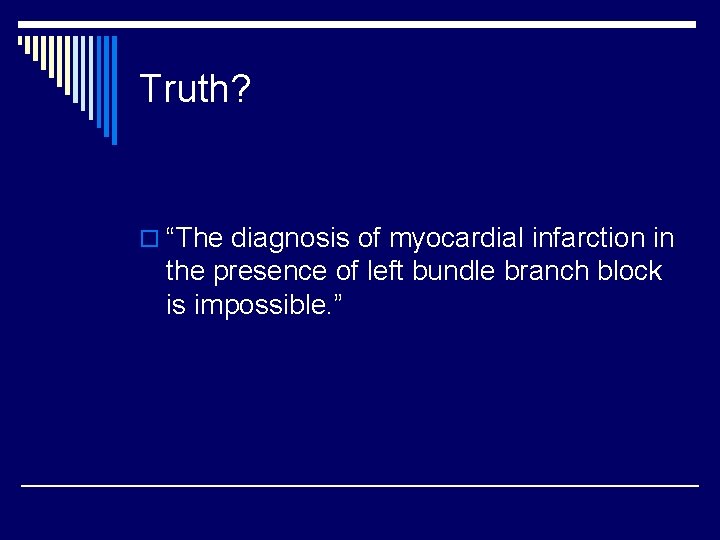

Truth? o “The diagnosis of myocardial infarction in the presence of left bundle branch block is impossible. ”

Partially true… o True: Diagnosis of completed Mi in left bundle branch block is difficult n n Q waves may be present with LBBB in the precordial leads without anterior infarction. ST segment elevation can be hidden in the usual repolarization changes. o But, Q waves in two contiguous lateral leads suggest completed MI o R wave regression from V 1 -V 4 suggests transmural necrosis.

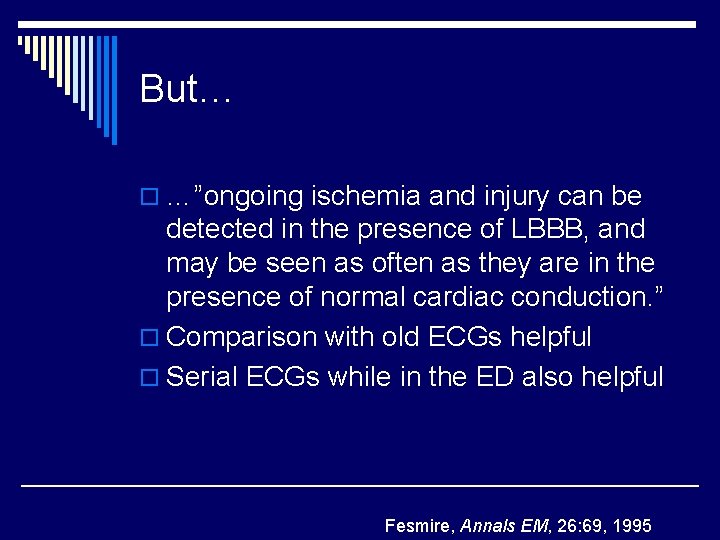

But… o …”ongoing ischemia and injury can be detected in the presence of LBBB, and may be seen as often as they are in the presence of normal cardiac conduction. ” o Comparison with old ECGs helpful o Serial ECGs while in the ED also helpful Fesmire, Annals EM, 26: 69, 1995

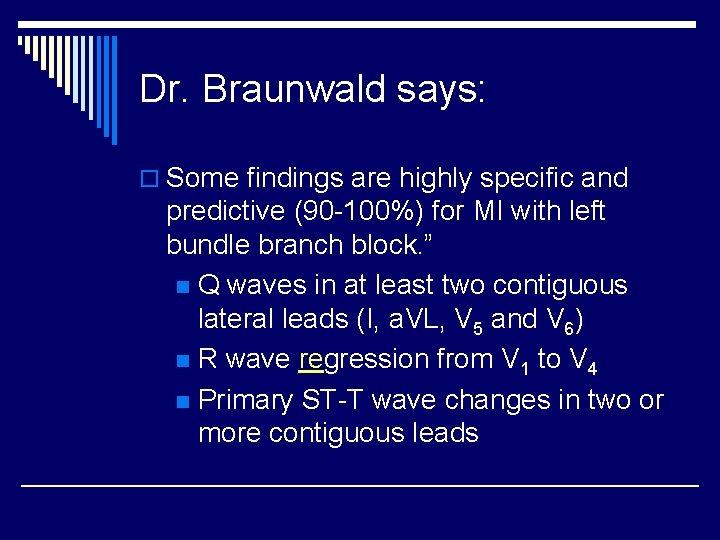

Dr. Braunwald says: o Some findings are highly specific and predictive (90 -100%) for MI with left bundle branch block. ” n Q waves in at least two contiguous lateral leads (I, a. VL, V 5 and V 6) n R wave regression from V 1 to V 4 n Primary ST-T wave changes in two or more contiguous leads

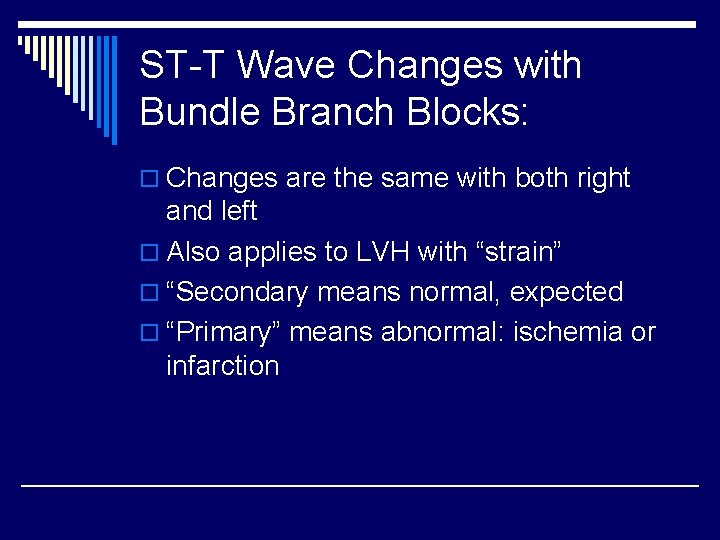

ST-T Wave Changes with Bundle Branch Blocks: o Changes are the same with both right and left o Also applies to LVH with “strain” o “Secondary means normal, expected o “Primary” means abnormal: ischemia or infarction

J point ST segment Terminal portion of QRS

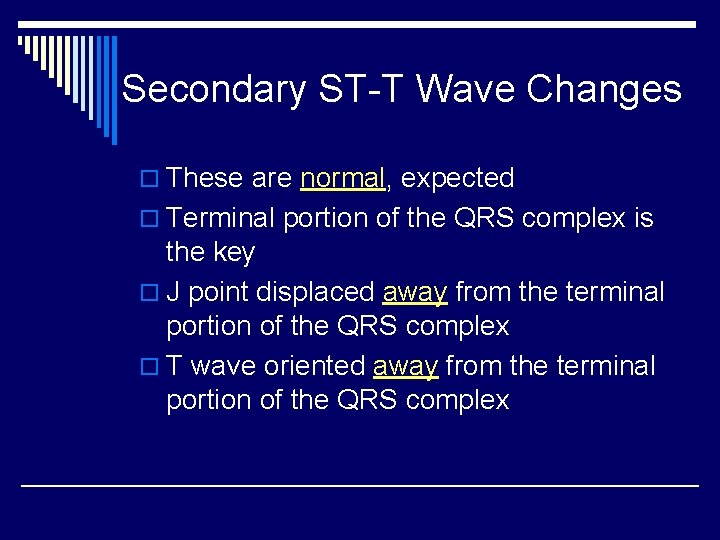

Secondary ST-T Wave Changes o These are normal, expected o Terminal portion of the QRS complex is the key o J point displaced away from the terminal portion of the QRS complex o T wave oriented away from the terminal portion of the QRS complex

Primary ST-T Wave Changes o “Primary” = abnormal, not a result of BBB o ST elevation still means injury or infarction o ST depression still means ischemia o Exceptions: Prinzmetal’s angina: reversible ST elevation n ST depression/T wave inversion can represent infarction: “sub-endocardial” or “non-Q wave. ” n

Primary ST-T Wave Changes o Must be in two contiguous leads o Inferior: II and a. VF n III and a. VF n not II and III o Septal: V 1 and V 2 o Anterior: V 3 and V 4 o Lateral: V 5, V 6, I and a. VL (high lateral) n

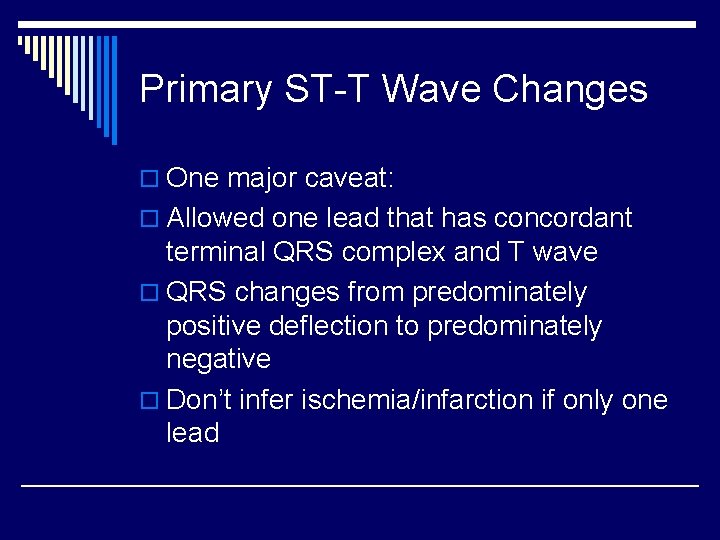

Primary ST-T Wave Changes o One major caveat: o Allowed one lead that has concordant terminal QRS complex and T wave o QRS changes from predominately positive deflection to predominately negative o Don’t infer ischemia/infarction if only one lead

Concept of Dis/Concordance o Refers to whether the last portion of the QRS complex goes in the same or different direction as the T wave o Discordance=good o Concordance=bad

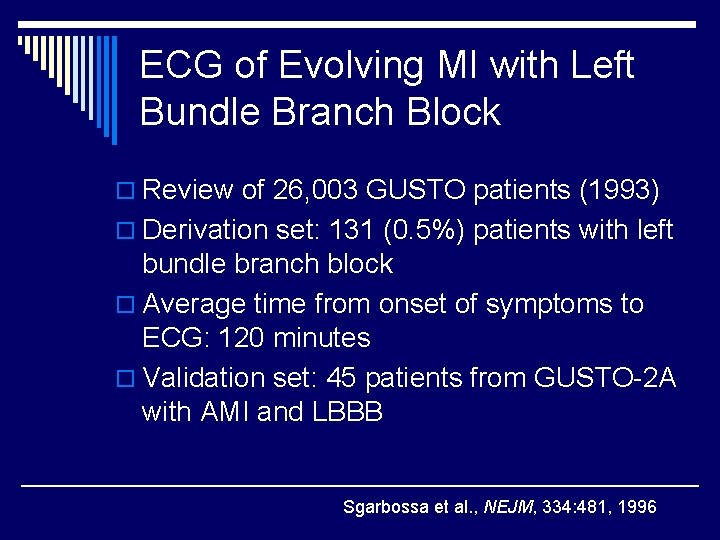

ECG of Evolving MI with Left Bundle Branch Block o Review of 26, 003 GUSTO patients (1993) o Derivation set: 131 (0. 5%) patients with left bundle branch block o Average time from onset of symptoms to ECG: 120 minutes o Validation set: 45 patients from GUSTO-2 A with AMI and LBBB Sgarbossa et al. , NEJM, 334: 481, 1996

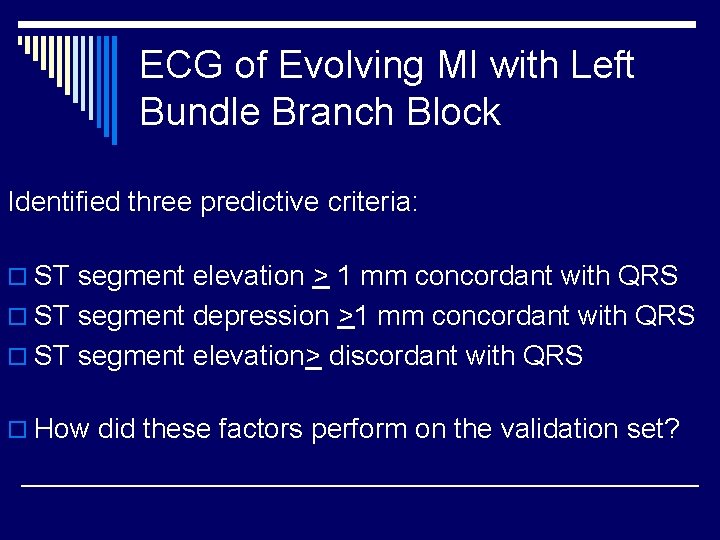

ECG of Evolving MI with Left Bundle Branch Block Identified three predictive criteria: o ST segment elevation > 1 mm concordant with QRS o ST segment depression >1 mm concordant with QRS o ST segment elevation> discordant with QRS o How did these factors perform on the validation set?

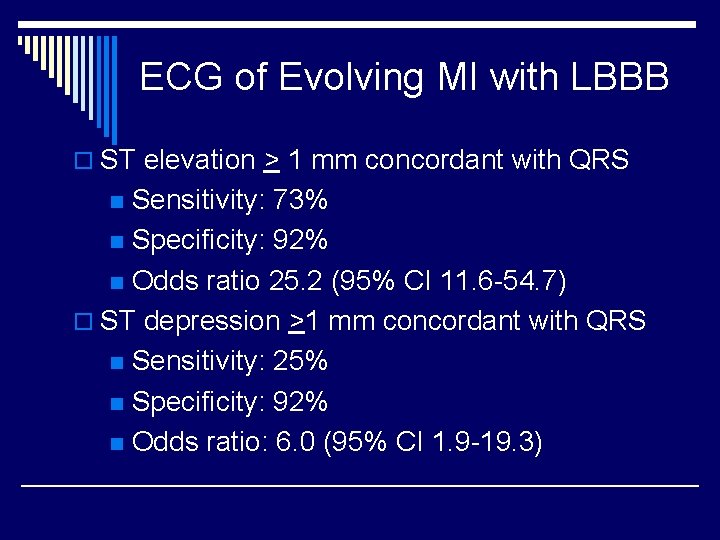

ECG of Evolving MI with LBBB o ST elevation > 1 mm concordant with QRS Sensitivity: 73% n Specificity: 92% n Odds ratio 25. 2 (95% CI 11. 6 -54. 7) o ST depression >1 mm concordant with QRS n Sensitivity: 25% n Specificity: 92% n Odds ratio: 6. 0 (95% CI 1. 9 -19. 3) n

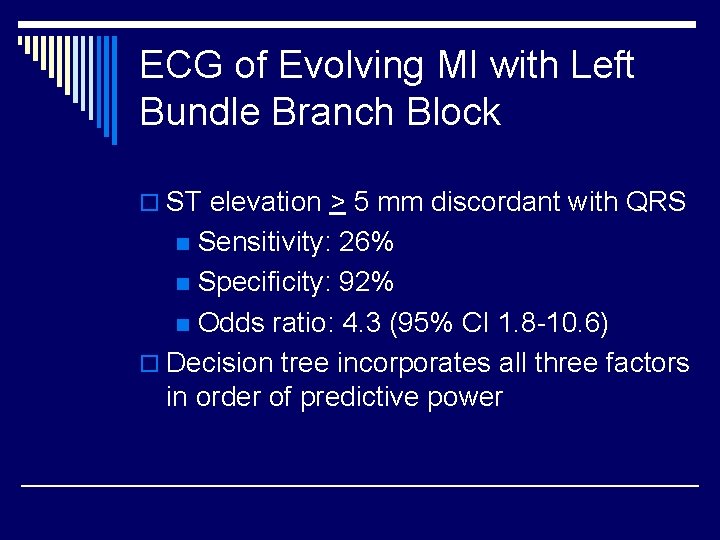

ECG of Evolving MI with Left Bundle Branch Block o ST elevation > 5 mm discordant with QRS Sensitivity: 26% n Specificity: 92% n Odds ratio: 4. 3 (95% CI 1. 8 -10. 6) o Decision tree incorporates all three factors in order of predictive power n

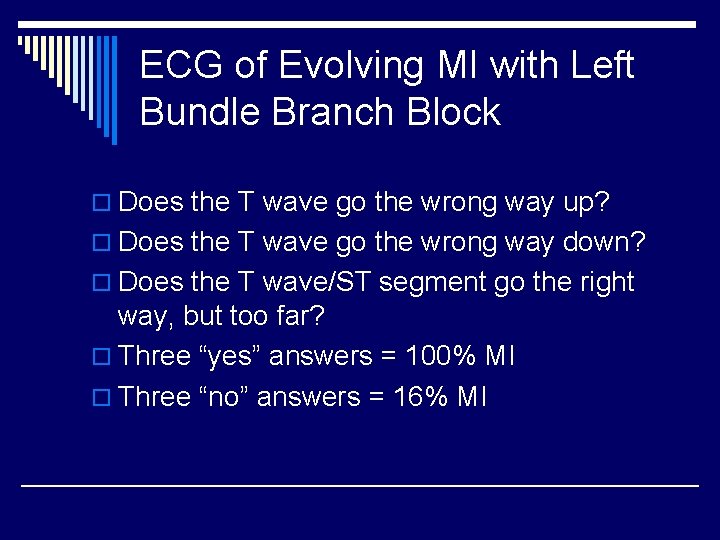

ECG of Evolving MI with Left Bundle Branch Block o Does the T wave go the wrong way up? o Does the T wave go the wrong way down? o Does the T wave/ST segment go the right way, but too far? o Three “yes” answers = 100% MI o Three “no” answers = 16% MI

Probability of MI % 100 92 93 88 100 66 50 16

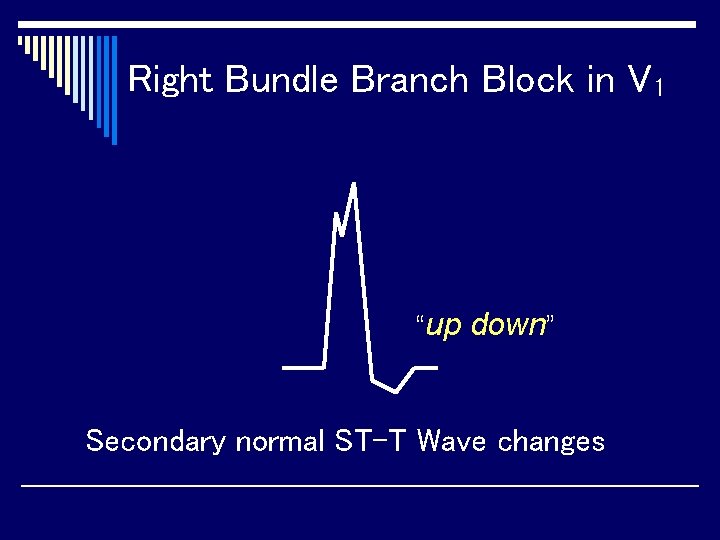

Right Bundle Branch Block in V 1 “up down” Secondary normal ST-T Wave changes

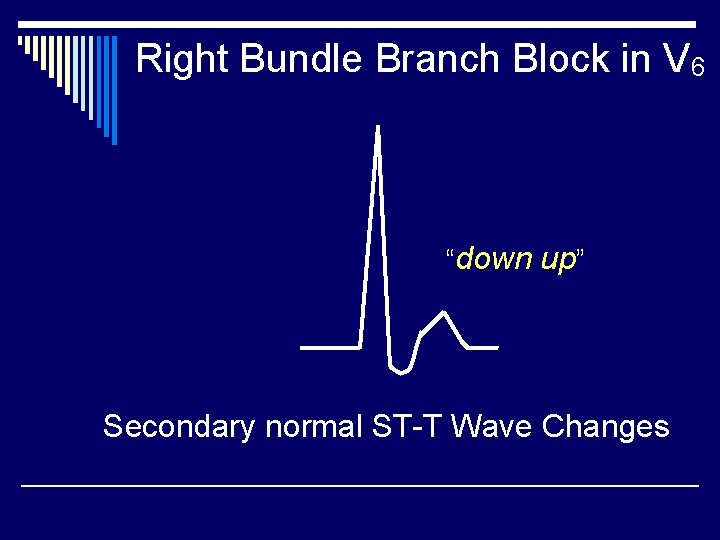

Right Bundle Branch Block in V 6 “down up” Secondary normal ST-T Wave Changes

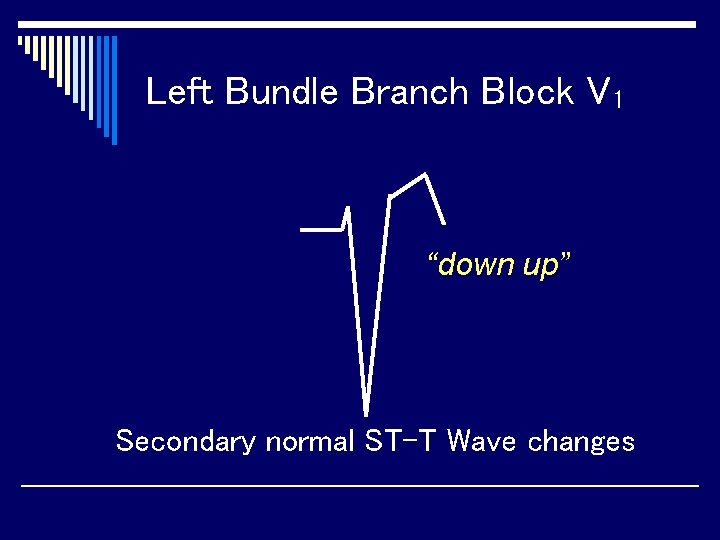

Left Bundle Branch Block V 1 “down up” Secondary normal ST-T Wave changes

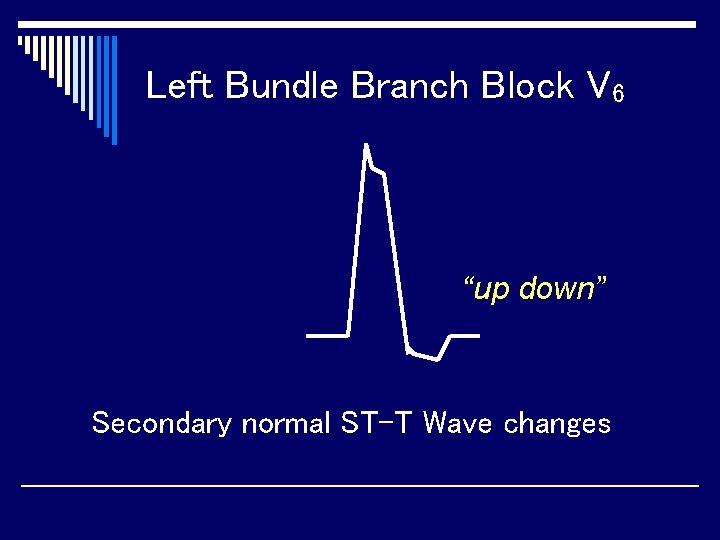

Left Bundle Branch Block V 6 “up down” Secondary normal ST-T Wave changes

Right Bundle Branch Block V 1 “up up” Primary Infarction ST-T Wave changes

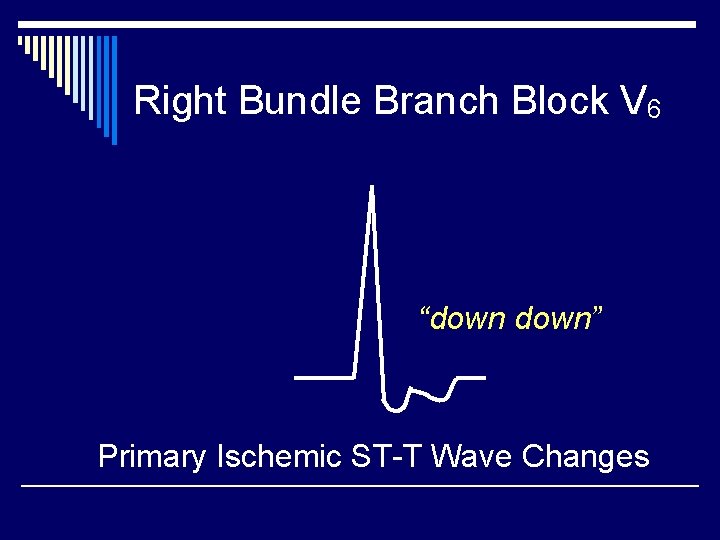

Right Bundle Branch Block V 6 “down” Primary Ischemic ST-T Wave Changes

Left Bundle Branch Block V 1 “down” Primary Ischemic ST-T Wave Changes

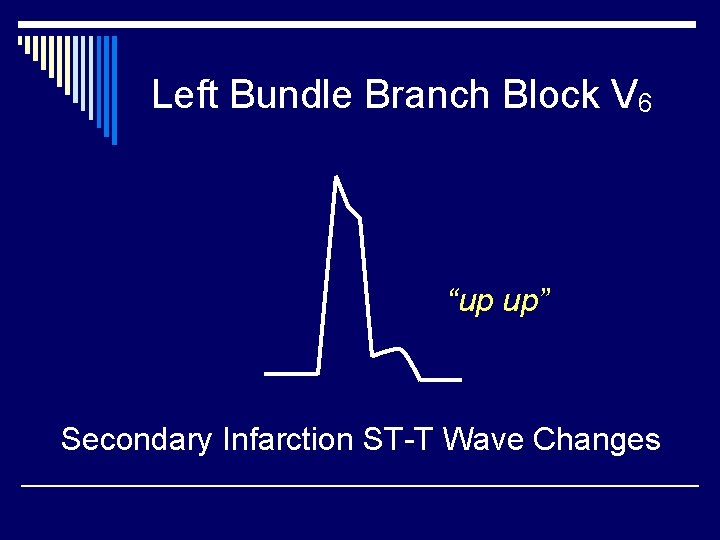

Left Bundle Branch Block V 6 “up up” Secondary Infarction ST-T Wave Changes

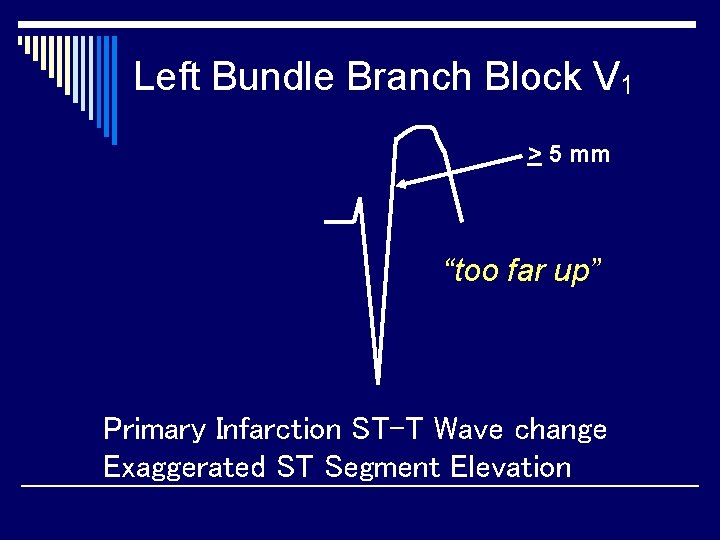

Left Bundle Branch Block V 1 > 5 mm “too far up” Primary Infarction ST-T Wave change Exaggerated ST Segment Elevation

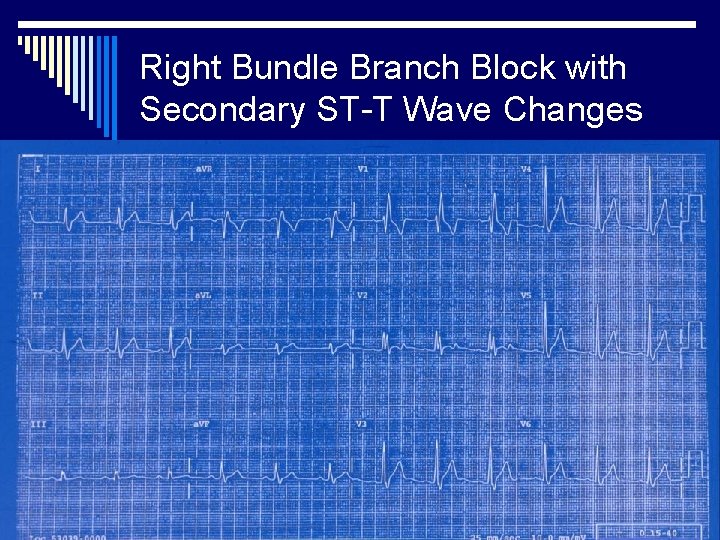

Right Bundle Branch Block with Secondary ST-T Wave Changes

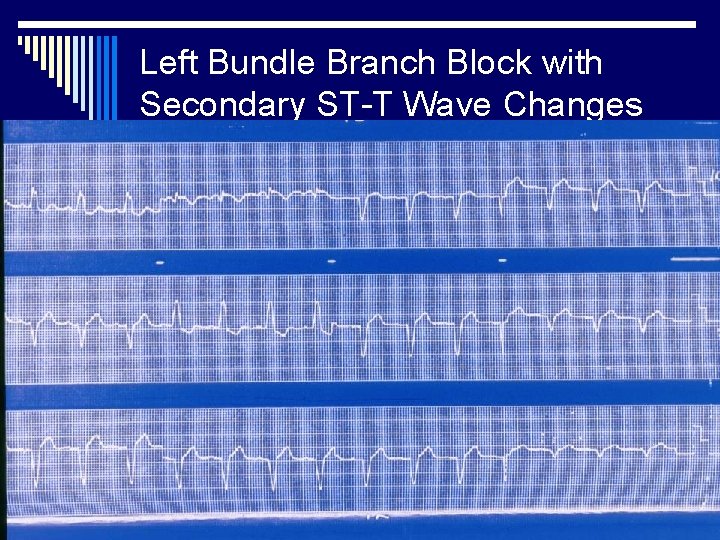

Left Bundle Branch Block with Secondary ST-T Wave Changes

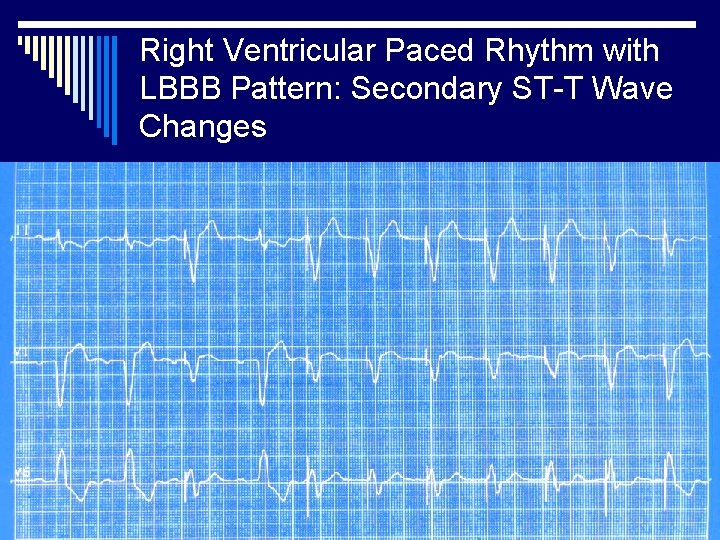

Right Ventricular Paced Rhythm with LBBB Pattern: Secondary ST-T Wave Changes

RBBB with Anteroseptal Ischemia

RBBB with Anteroseptal Infarction

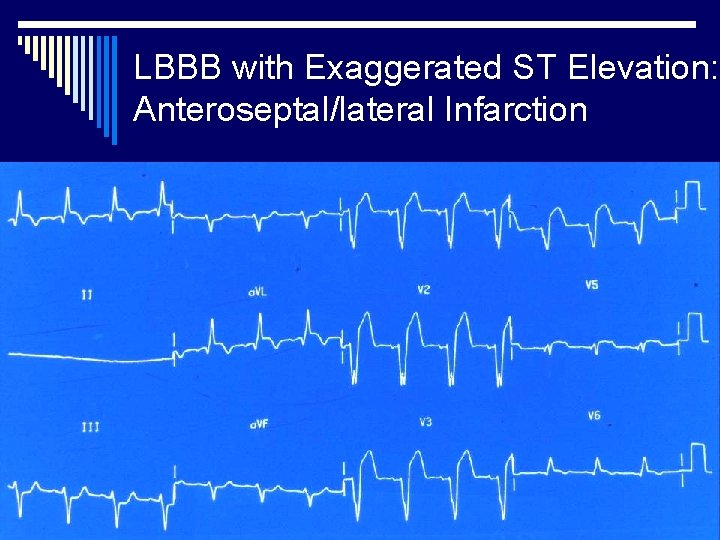

LBBB with Exaggerated ST Elevation: Anteroseptal/lateral Infarction

LBBB with Lateral Infarction

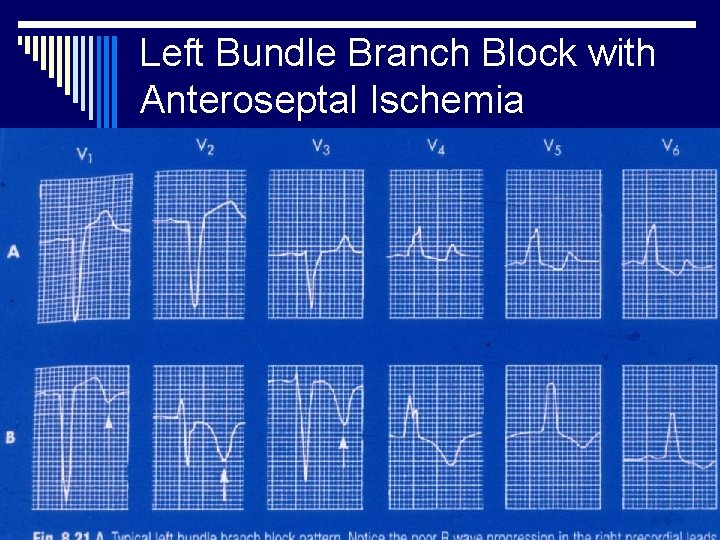

Left Bundle Branch Block with Anteroseptal Ischemia

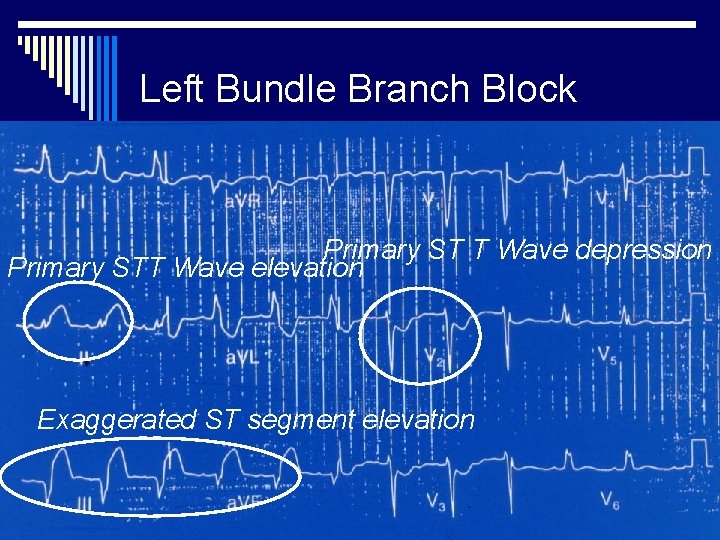

Left Bundle Branch Block Primary ST T Wave depression Primary STT Wave elevation Exaggerated ST segment elevation

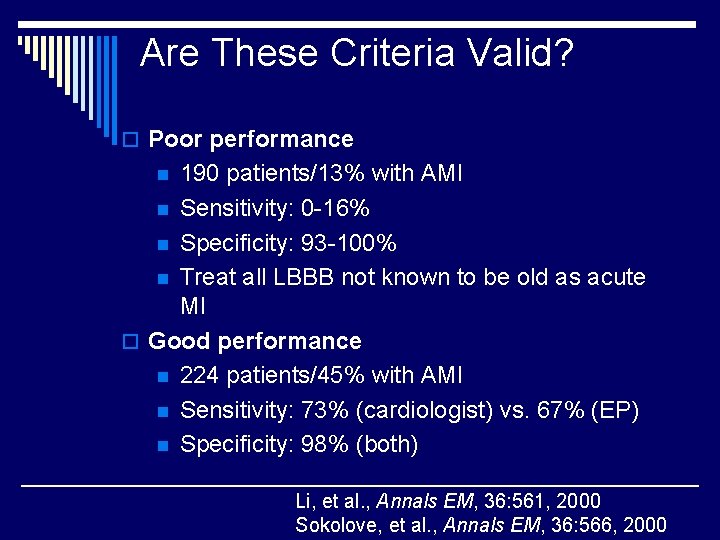

Are These Criteria Valid? o Poor performance 190 patients/13% with AMI n Sensitivity: 0 -16% n Specificity: 93 -100% n Treat all LBBB not known to be old as acute MI o Good performance n 224 patients/45% with AMI n Sensitivity: 73% (cardiologist) vs. 67% (EP) n Specificity: 98% (both) n Li, et al. , Annals EM, 36: 561, 2000 Sokolove, et al. , Annals EM, 36: 566, 2000

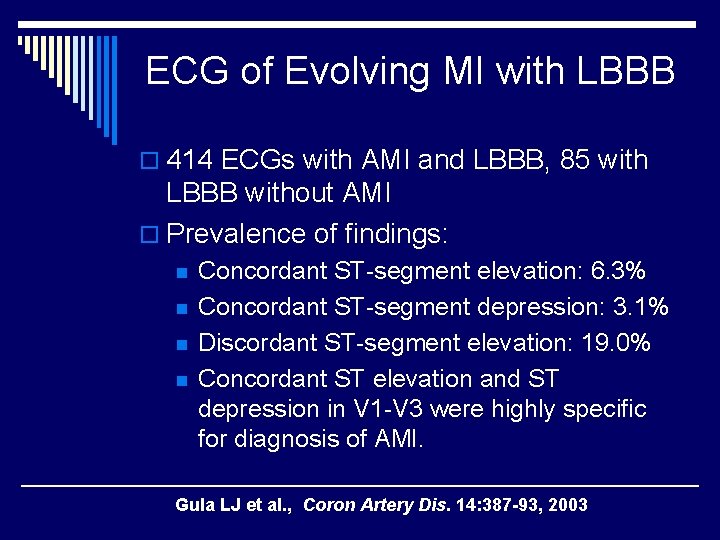

ECG of Evolving MI with LBBB o 414 ECGs with AMI and LBBB, 85 with LBBB without AMI o Prevalence of findings: n n Concordant ST-segment elevation: 6. 3% Concordant ST-segment depression: 3. 1% Discordant ST-segment elevation: 19. 0% Concordant ST elevation and ST depression in V 1 -V 3 were highly specific for diagnosis of AMI. Gula LJ et al. , Coron Artery Dis. 14: 387 -93, 2003

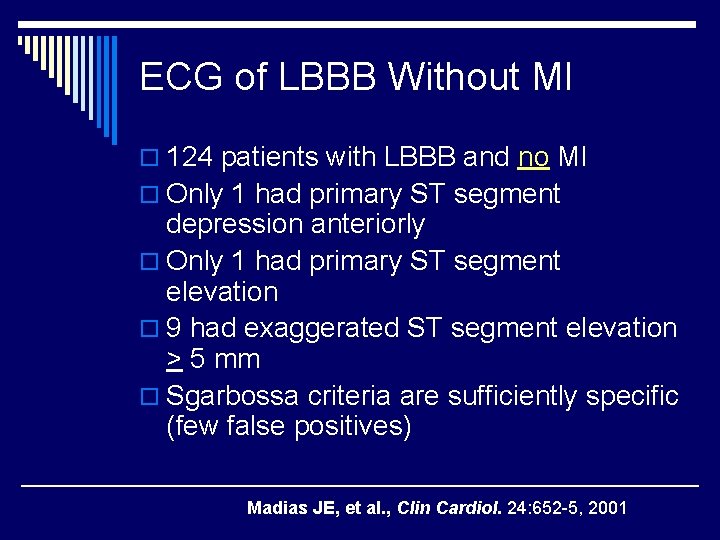

ECG of LBBB Without MI o 124 patients with LBBB and no MI o Only 1 had primary ST segment depression anteriorly o Only 1 had primary ST segment elevation o 9 had exaggerated ST segment elevation > 5 mm o Sgarbossa criteria are sufficiently specific (few false positives) Madias JE, et al. , Clin Cardiol. 24: 652 -5, 2001

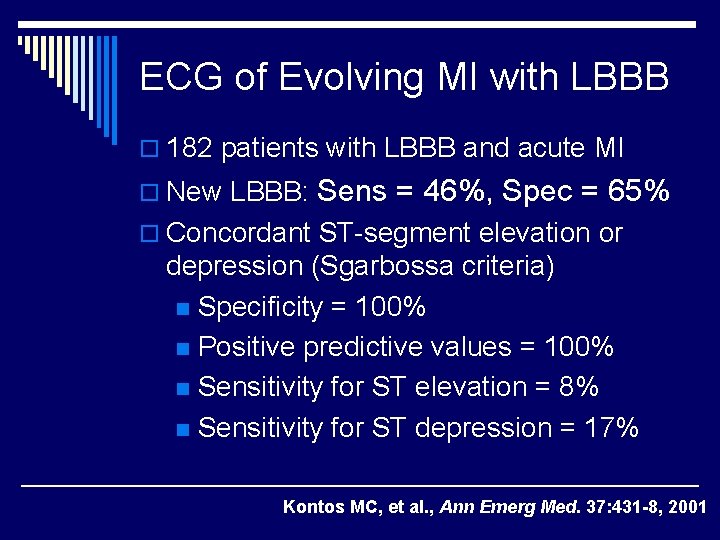

ECG of Evolving MI with LBBB o 182 patients with LBBB and acute MI o New LBBB: Sens = 46%, Spec = 65% o Concordant ST-segment elevation or depression (Sgarbossa criteria) n Specificity = 100% n Positive predictive values = 100% n Sensitivity for ST elevation = 8% n Sensitivity for ST depression = 17% Kontos MC, et al. , Ann Emerg Med. 37: 431 -8, 2001

ECG of Evolving MI with LBBB o Of patients with acute MI and LBBB, the LBBB was NEW (from their MI) in only 46%. o If we only treated NEW LBBB, we’d miss treating 54% of patients who needed it. o Conversely, only 65% of patients with NEW LBBB actually had MI. o So, if we treated everyone with new LBBB and chest pain we’d treat 35% unnecessarily.

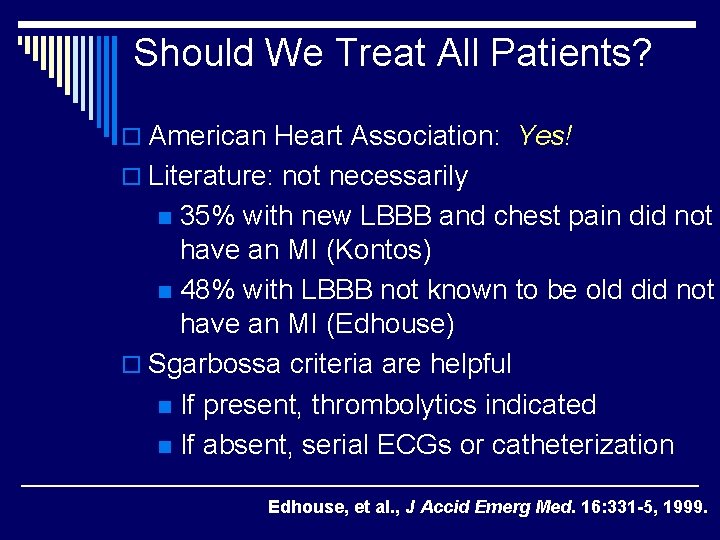

Should We Treat All Patients? o American Heart Association: Yes! o Literature: not necessarily 35% with new LBBB and chest pain did not have an MI (Kontos) n 48% with LBBB not known to be old did not have an MI (Edhouse) o Sgarbossa criteria are helpful n If present, thrombolytics indicated n If absent, serial ECGs or catheterization n Edhouse, et al. , J Accid Emerg Med. 16: 331 -5, 1999.

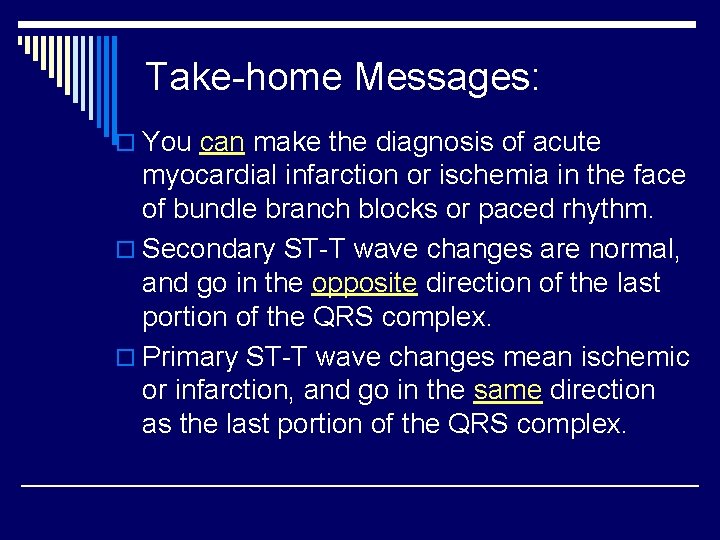

Take-home Messages: o You can make the diagnosis of acute myocardial infarction or ischemia in the face of bundle branch blocks or paced rhythm. o Secondary ST-T wave changes are normal, and go in the opposite direction of the last portion of the QRS complex. o Primary ST-T wave changes mean ischemic or infarction, and go in the same direction as the last portion of the QRS complex.

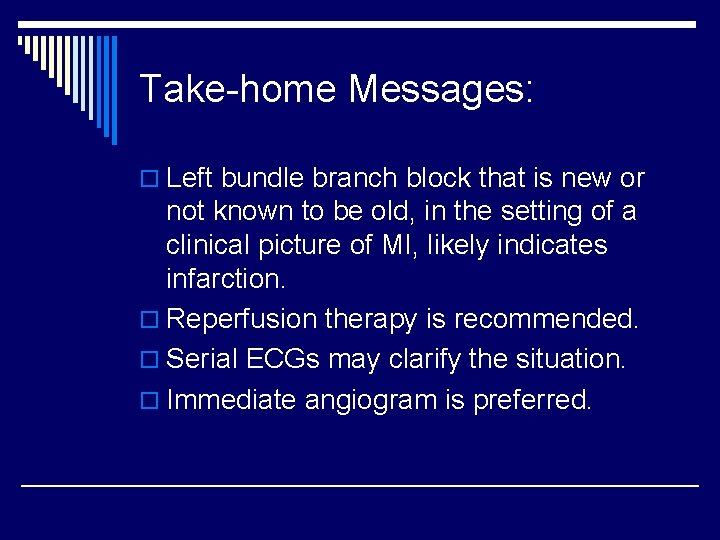

Take-home Messages: o Left bundle branch block that is new or not known to be old, in the setting of a clinical picture of MI, likely indicates infarction. o Reperfusion therapy is recommended. o Serial ECGs may clarify the situation. o Immediate angiogram is preferred.
