DF 1331 Enhanced Distributed RTU Dongfang Electronics Information

DF 1331 Enhanced Distributed RTU Dongfang Electronics Information Industry Co. Ltd.

Some honors and ISO 9001 Certificate v State Enterprise Technology Center v State Working Station for Postdoctoral Scientific Research v Top 100 Electronic Enterprises in China v Director Agency of China Electricity Council v Prominent Contribution Enterprise for Management in China

Outstanding technical features Why should I choose DF 1331? Full series of functional units Flexible system configurations Biggest market share Long stable running experience Professional technical service Continuous improving&upgrading Software in windows environment

Brief review on Dong. Fang’s RTU developing process DF 1331 second fully upgrade DF 1331 first fully upgrade 1998 DF 1331 RTU FDK 1200 2002 1996 WDF-10 1995 WDF-8 1993 WDF-7 DCF-5 1987 1992 DF 1331 RTU have been sold out for more than 3000 sets, Win the first grade award by Information Industry Ministry in 1999.

DF 1331 Market information DF 1331 has the biggest market share in China, and it was put into the market in 1996. More than 3000 sets of DF 1331 are running in substations or power plants all over china and overseas, and more than 300 power companies have become its customer. Typical users: Beijing Power Company, Shanghai Power Company, Tianjin Power Company, Chongqing Power Company, Hangzhou Power Company, Fuzhou Power Company , Changsha Power Company, Shangdong Province Ultra-high Voltage Power Bureau, etc.

Applications DF 1331 Enhanced Distributed Remote Terminal Unit Unmanned Substation Automation System Supervisory and Control for Large and Medium Scale Substations Fitted for Substation Integration Automation Power Plant Automation System

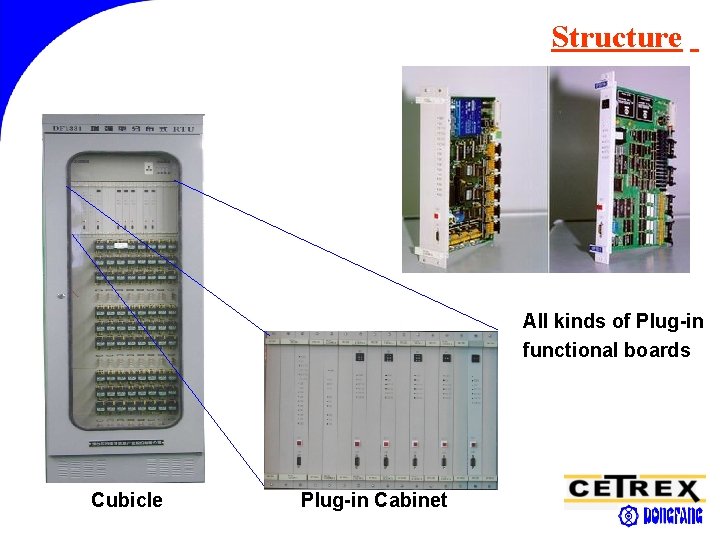

Structure All kinds of Plug-in functional boards Cubicle Plug-in Cabinet

Schematic Block Diagram

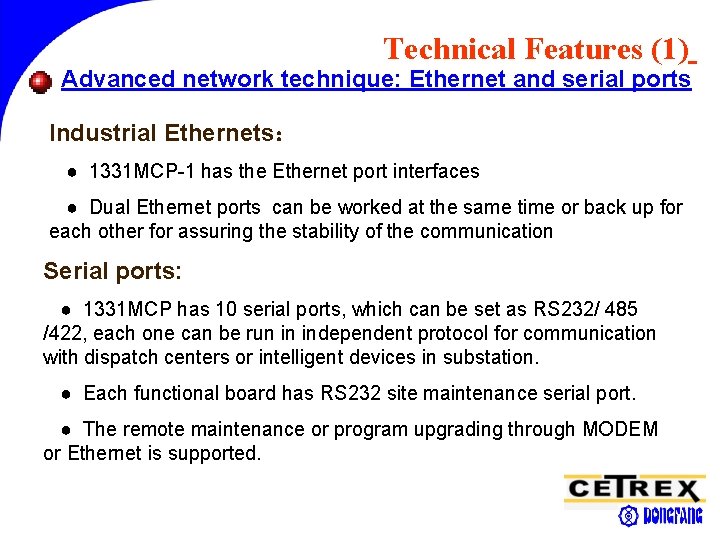

Technical Features (1) Advanced network technique: Ethernet and serial ports Industrial Ethernets： ● 1331 MCP-1 has the Ethernet port interfaces ● Dual Ethernet ports can be worked at the same time or back up for each other for assuring the stability of the communication Serial ports: ● 1331 MCP has 10 serial ports, which can be set as RS 232/ 485 /422, each one can be run in independent protocol for communication with dispatch centers or intelligent devices in substation. ● Each functional board has RS 232 site maintenance serial port. ● The remote maintenance or program upgrading through MODEM or Ethernet is supported.

Technical Features (2) High Capacity Micro-processors of all Boards a) The CPU of the main communication processor unit adopts international standard PC/104 module (ISO 1966. 1), which is 80486 100 MHz and has strong process ability and is easy for upgrading. 4 M electronic disk is used for the storage of program and data. Its MTBF is nearly 20 years. b) The CPU of all the functional boards is Intel 80196 16 bits micro-processor, which assure the process ability of all the I/O units

Technical Features (3) Full series of functional boards & distributed mounted IEDs 1) Main Communication Processor Unit --1331 MCP-1 2) MODEM Mounting board -----1331 MD 3) DC analog input board -----1331 AI 4) Digital input board ----- 1331 DI 5) Control output board (Digital Output) ----- 1331 DO 6) Display keyboard unit ----- 1331 LCD 7) AC analog signal sampling board ----1331 ACAI 8) Globe Position System clock board ---- 1331 GPS 9) Power supply unit---- 1331 PW 10) Intelligent Electronics Devices----DF 1725, DF 1725 A

Technical Features (4) All Boards can be plugged in or out with system power on In the cabinet of DF 1331, it is electrically isolated among all the boards and also between the boards and the site connections. There are no direct electrical connection among them. The electrical-magnetic isolation, electrical-optical isolation, and so on have been considered thoroughly in the design. Each board can be plugged in or out when the system in running without damage to anything. This design increases the stability of the whole system and makes it convenient for the site debug and maintenance.

Technical Features (5) Convenient for Connection with all kinds of Systems v A 1331 MCP has 10 serial ports and also Ethernet ports, and all of them can be expanded for more. Each communication port can be set in different protocols for connection with all kinds of intelligent systems such as dispatch center, or protection relays, meters or GPS etc in substation to form the Substation Automation System. v Abundant protocols library available in DF 1331 system, such as IEC 60870 -5 -101, IEC 60870 -5 -102, IEC 60870 -5 -103, IEC 60870 -5 -104, DNP, CDT 92, CDT 85, RP 570, RP 571, 8890, U 4 F, MB 88, MODBUS, SCI 1801 V 6, ISA, LFP, XT 9702 etc.

Technical Features (6) Convenient Local and Remote Maintenance Functions You can program the RTU with the provided maintenance software in a portable computer on site or even a thousand miles away through the public telephone net or Internet. You can do all the things remotely as you can in the substation. Many things can be solved in your office. No erase or write to the EPROM is needed. With the remote maintenance function, our support technician can also help you to keep the DF 1331 running in the correct mode.

Technical Features (7) Support Mixed Modes of Analog Signal Sampling The 1331 AI board is designed for the DC analog sampling with a very high accuracy. 1331 ACAI AC analog input boards designed for flexible sampling of the AC signal without transducers with very high accuracy and stability. All the current inputs can be set flexibly with different voltage inputs for the calculation of power. It can be set to start high speed sampling for each channel at a rate of 64 to 128 points per cycle for the display and analysis of the waveforms and calculation to the 31 st harmonic.

Technical Features (8) Dual MCP Hot-backup mode improves the reliability v In some special requested applications , such as in some ultra-high voltage substations or plants, dual 1331 MCP can be configured as the dual main communication processors of the system. These two MCP units work in the hot backup mode for each other. One is the main processor, the other works in hot backup mode, that is, they have the same configuration parameters and same application software and data base are synchronized with the main one. As there are some faults occurs in the main one, the backup one will be take placed as the main processor. v Dual MCPs backup, dual serial ports backup , dual Ethernets backup.

Technical Features (9) PSOS--Embedded Real Time Operation System Optional v 1331 MCP-1 units and the IEDs have the PSOS embedded real time operation system. PSOS system is specially designed for ultra-high reliability and real time quality industrial control system, its cores had been certificated by FAA and FDA, and which had been used in Boeing airplanes. v PSOS system provides many kinds of standard protocol packages, such as TCP/IP, PPP, X 25 etc, and that make it easy for DF 1331 system to connect with many kinds of LAN (local area net) or WAN.

Technical Features (10) High level EMC Capacity v Many new technologies on the Electro Magnetic Compatibility are adopted in the DF 1331 system, and it passed most of the IEC 61000 -4 IV class test standards set. v DF 1331 has good shielding and grounding structure, and at the same time, it has thorough consideration for ventilation and heat loss and anti tropical climate to ensure the long term stability working.

Technical Features (11) Some other Designs for High Reliability v DF 1331 adopts unique ‘long password lock’ technique and current-limitation technique and some other techniques which assure that even in the worst situation, no wrong control output will occur. v Anti chattering design is adopted in the digital input sampling software and anti interference design is adopted in DI hardware. v Thorough self test functions are available. v Dual power supply automatic switch design in the power supply unit, AC or DC power supply are all permitted.

Main Functional Boards Introduction 1331 MCP Main Communication Processor Unit Data process and communication center of the system, with 2 FDKbus network interfaces for managing all other functional boards, with 10 serial ports for communication with dispatch centers or intelligent devices. 1331 MD-1 MODEM Mounting Board For installation of 1～ 3 channels 1331 TJ MODEM, which are used for modulation of digital channels to analog channels. 1331 AI Analog Input Board 64 DC voltage signals or 32 DC current signals sampling, sampling range: 0～± 10 V, 0～± 5 V, 0～ 20 m. A, 0～ 10 m. A, 4～ 20 m. A 1331 DI Digital Input Board 64 channels of state or pulse signals sampling, SOE distinguish rate 1～ 2 ms, input signal voltage 24 VDC/ 48 VDC/ 110 VDC/220 VDC

Main Functional Boards Introduction 1331 DO Control Output Board 16 channel trip/close control output 1331 ACAI AC Analog input Board 40 direct input AC signal sample channels can sample 8 circuits full electrical parameters in 3 meters modes or 12 circuits full electrical parameters in 2 meters mode when working in common VT mode. 1331 AO Analog Output Board 4 channels analog signals outputs and 2 BCD codes channels output. 1331 GPS Satellite Clock Synchronous Board Provide standard time signal from the GPS receiver unit to the DF 1331 system. 1331 PW Power Supply Unit Provide power supply to the DF 1331 cabinet and all the functional boards; has the dual AC/DC power supply automatically switch function. Others…

Full series of terminal units 1331 DIT-220 1331 AIT 1331 DIT-24 1331 CUT 1331 VOT 1331 DOT

Maintenance, installation and configuration software in a familiar windows environment

Typical Configuration Proposals (1) One Cubicle fulfill all the S&C functions All AI (DC or AC) All DI (state or pulse) Control Output to CB Analog output for set points Especially suitable for the 6 k. V~35 k. V terminal S/Ss, with the intelligent Recloser and the Subsectioner and fuses, the traditional relays can be cancelled in substation. Then with ‘four remote functions’ DF 1331 RTU it can be formed a brief and complete suburban low and middle voltage substation automation system.

Typical Configuration Proposals (2) With station layer computers It is a typical proposal for substation automation system, which is especially suitable for the improvement of the substation automation system with few persons on duty.

Improved DF 1331 RTU 1331 PSU-110 1331 PSU-48 1331 PSU-30 1331 LCD 1331 MCB 1331 DI 1331 DO 1331 DCAI 1331 AIO 1331 GPS 1331 MCU 1331 IRU

Technical Support Information Dispatch Automation Division of Dongfang Electronics takes the responsibility of the SCADA and RTU development and service through the value added reseller Cetrex in Sweden. Cetrex has access to 186 technicians, among them there are 11 doctors, 72 masters and 103 bachelors. All installation drawing is made with autocad software and saved in dwg files. Technician Cake form Chart Statistic Time: Oct. 2001

Contact Us 4 Telephone： 08 -382572 4 Mobilephone: 073 -9397272 4 Email: daniel@cetrex. se
