Development of the Veins Dr Shivarama Bhat Learning

Development of the Veins Dr. Shivarama Bhat

Learning objectives • • • Fate of vitelline veins Fate of umbilical veins Fate of cardinal veins Development of inferior venacava Anomalies in major veins Foetal circulation

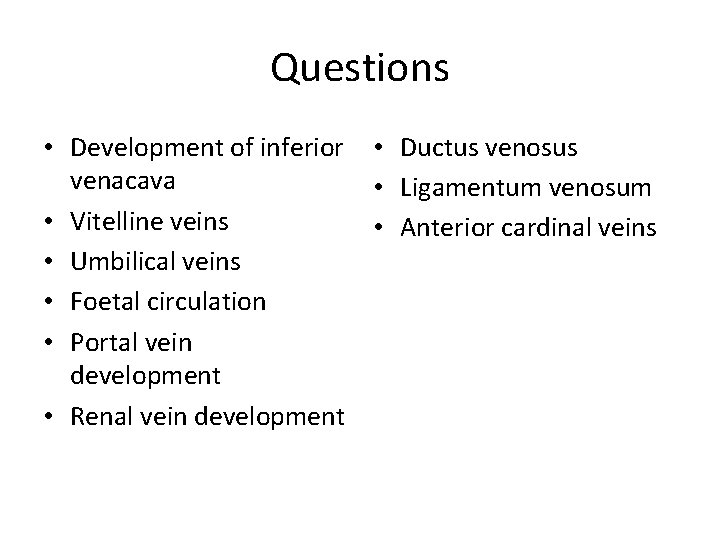

Questions • Development of inferior • Ductus venosus venacava • Ligamentum venosum • Vitelline veins • Anterior cardinal veins • Umbilical veins • Foetal circulation • Portal vein development • Renal vein development

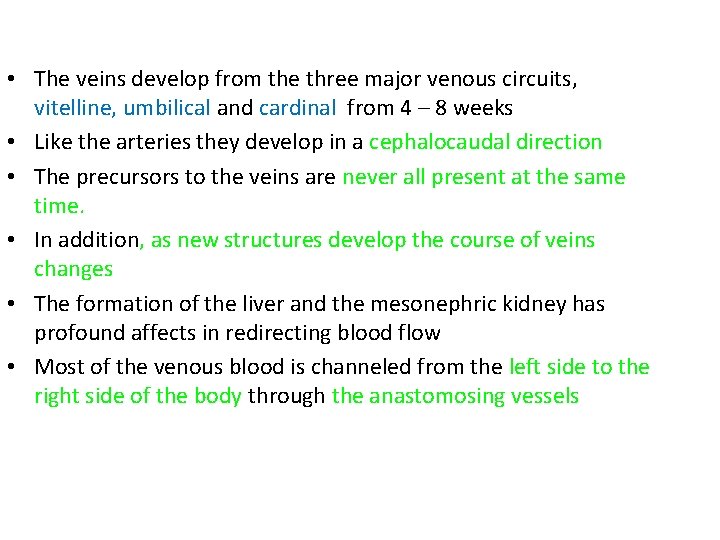

• The veins develop from the three major venous circuits, vitelline, umbilical and cardinal from 4 – 8 weeks • Like the arteries they develop in a cephalocaudal direction • The precursors to the veins are never all present at the same time. • In addition, as new structures develop the course of veins changes • The formation of the liver and the mesonephric kidney has profound affects in redirecting blood flow • Most of the venous blood is channeled from the left side to the right side of the body through the anastomosing vessels

Development of the Veins • In a 4 weeks embryo, three paired veins open into the tubular heart: § Vitelline veins, returning deoxygenated blood from the yolk sac § Umbilical veins, bringing oxygenated blood from the placenta. § Common cardinal veins, returning deoxygenated blood from the body of the embryo

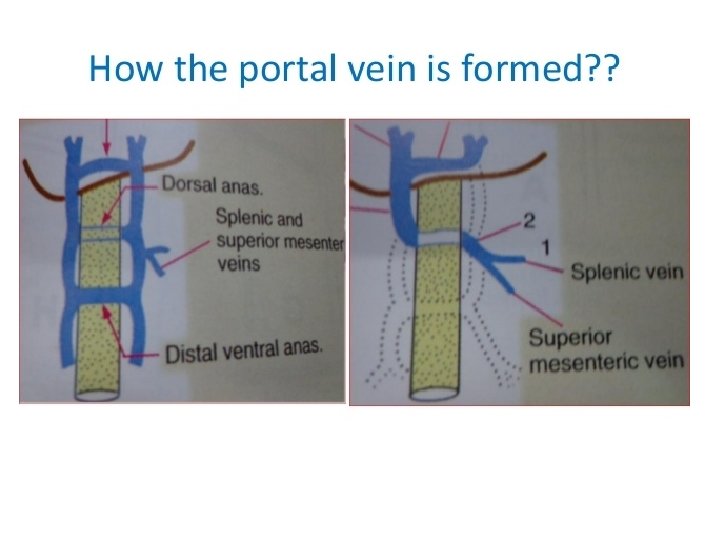

Vitelline Veins • Pass through the septum transversum and drain into the sinus venosus • In relation to the liver developing within the septum transversum, the vitelline veins are divided into: § Pre-hepatic part: forms anastomosis around the duodenum which later on gives rise to the portal vein

§ Hepatic part: interrupted by the liver cords, forms an extensive vascular network called the hepatic sinusoides § Post-hepatic part: § Left vein disappears § Right vein forms the: § Hepatic veins & § Hepatic segment of inferior vena cava

Umbilical Veins • Bring oxygenated blood from the placenta • Initially run on each side of the developing liver and drain into the sinus venosus • As the liver grows, the umbilical veins loose their connection with heart and open into the liver • The right vein disappears by the end of the embryonic period. The left vein persists

• A wide channel, the ductus venosus, appears through the substance of liver to connect the left umbilical vein with the inferior vena cava After birth: v The left umbilical vein obliterate to form the ligamentum teres of the liver v The ductus venosus obliterate to form the ligamentum venosum

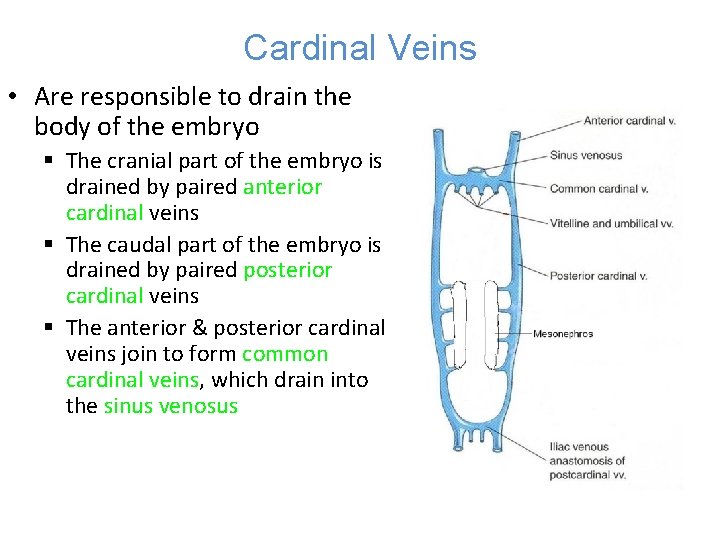

Cardinal Veins • Are responsible to drain the body of the embryo § The cranial part of the embryo is drained by paired anterior cardinal veins § The caudal part of the embryo is drained by paired posterior cardinal veins § The anterior & posterior cardinal veins join to form common cardinal veins, which drain into the sinus venosus

Anterior Cardinal Veins • Become connected by an oblique anastomosis which shunts blood from left to right • This anastomosing channel becomes the left brachiocephalic vein • Left anterior cardinal vein § Cranial part: becomes the left internal jugular vein § Caudal part: degenerates

• Right anterior cardinal vein § Cranial part: (cranial to the 7 th intersegmental vein) becomes the right internal jugular vein § Middle part: gives rise to the right brachiocephalic vein § Caudal part of right anterior cardinal vein and the right common cardinal vein form the superior vena cava

Posterior Cardinal Veins • Drain the caudal part of the body of embryo including the developing mesonephros and largely disappear with this transitory kidneys. • Caudally the two veins get connected by an anastomosing channel that directs the blood from the left to the right vein

• Gradually the posterior cardinal veins are replaced by two new veins: subcardinal & supracardinal

• The adult derivatives of the posterior cardinal veins are the: § Root of the azygos vein & § Common iliac veins

Subcardinal Veins • Appear before the supracardinal veins • Become connected: § To each other by the subcardinal anastomosis § With the posterior cardinal veins through the mesonephros § With supracardinal veins through subsupracardinal anastomosis

• The adult derivatives of the subcardinal veins are the: § Stem of the left renal vein § Suprarenal veins § Gonadal veins § Prerenal segment of IVC

Supracardinal Veins • Last pair of veins to develop • Appear lateral to the subcardinal veins • Become connected at both ends, to the posterior cardinal veins • Get disrupted in the region of the kidney

• Cranial to the kidney: § An anastomosis develops between the two veins shunting blood from the left to the right vein § Anterior connection of the left vein with the posterior cardinal vein disappears § Gives rise to azygos and hemiazygos veins • Caudal to the kidney: § Left vein degenerates § Right vein forms postrenal segment of IVC

Development of Superior Vena Cava • SVC is derived from the: § Caudal part of the right anterior cardinal vein & § Right common cardinal vein

Development of Azygos Veins • Azygos vein is derived from the: § Cranial part of the right supracardinal vein & § Terminal part of the right posterior cardinal vein • Hemiazygos vein is derived from the cranial part of the left supra-cardinal vein

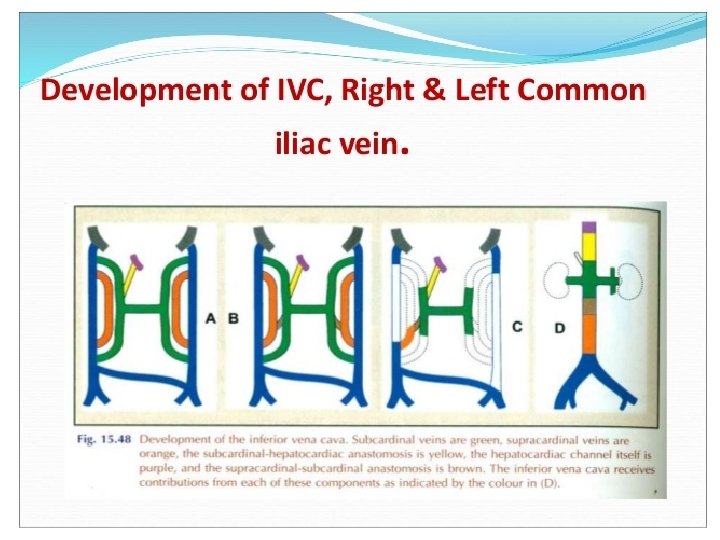

Development of Inferior Vena Cava • The IVC develops during a series of changes in the primordial veins • Composed of: l Hepatic segment derived from the right vitelline vein l Prerenal segment derived from the right subcardinal vein l Renal segment derived from the subcardinalsupracardinal anastomosis l Postrenal segment derived from the right supr-acardinal vein

Anomalies of the Venous System • Persistent left SVC (double SVC): is the most common defect • Left SVC • Absence of IVC • Double IVC

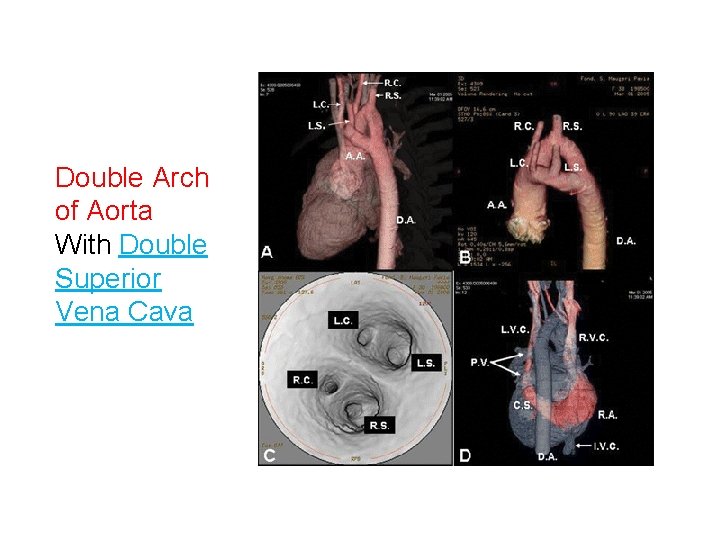

Double Arch of Aorta With Double Superior Vena Cava

Fetal Circulation & Changes at Birth

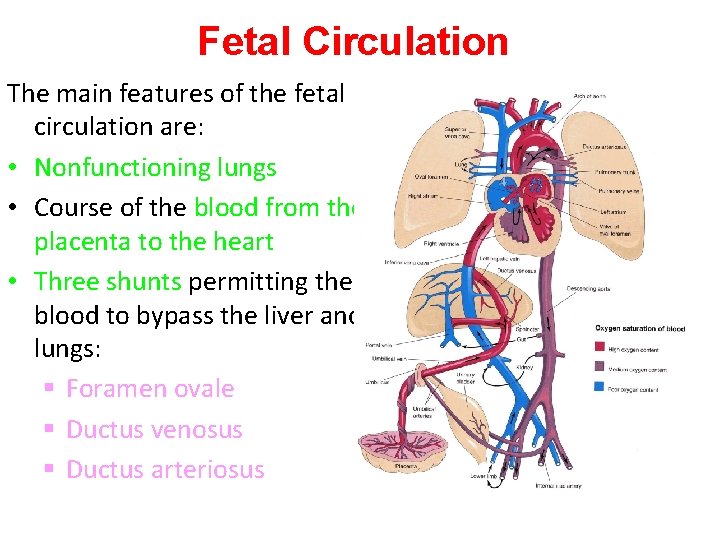

Fetal Circulation The main features of the fetal circulation are: • Nonfunctioning lungs • Course of the blood from the placenta to the heart • Three shunts permitting the blood to bypass the liver and lungs: § Foramen ovale § Ductus venosus § Ductus arteriosus

• The oxygenated blood from the placenta reaches the fetus by umbilical vein • Most of the blood bypasses the liver through the ductus venosus, although little blood enters the liver • In the inferior vena cava, the oxygenated blood mixes with the deoxygenated blood arriving from the fetus

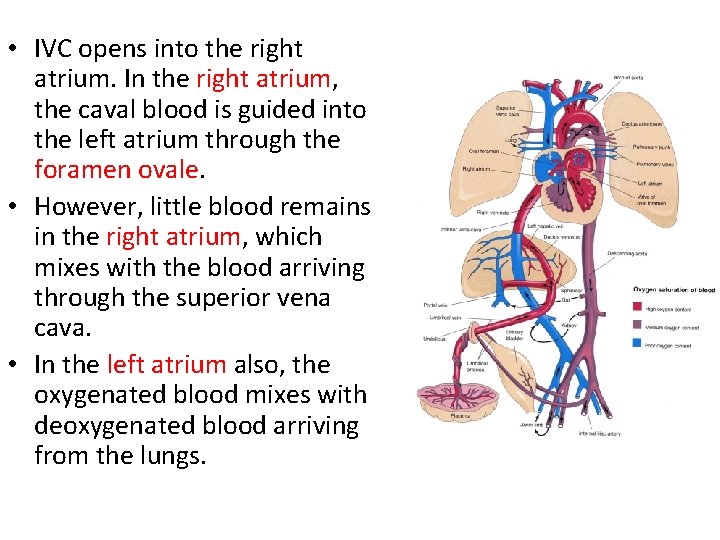

• IVC opens into the right atrium. In the right atrium, the caval blood is guided into the left atrium through the foramen ovale. • However, little blood remains in the right atrium, which mixes with the blood arriving through the superior vena cava. • In the left atrium also, the oxygenated blood mixes with deoxygenated blood arriving from the lungs.

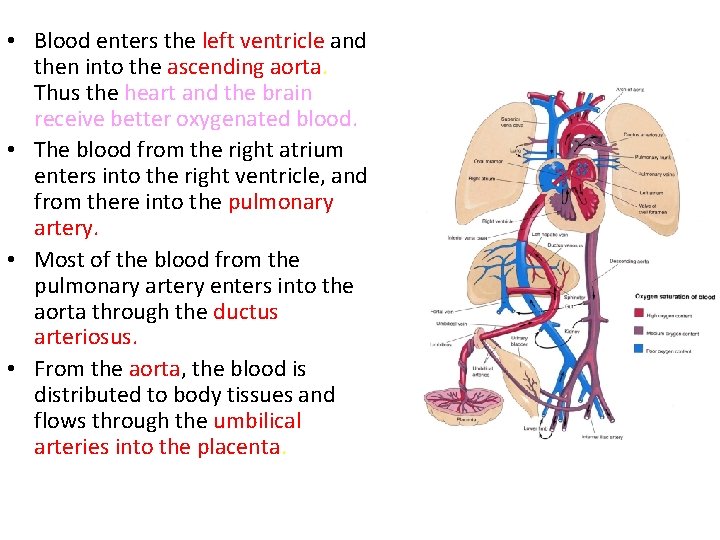

• Blood enters the left ventricle and then into the ascending aorta. Thus the heart and the brain receive better oxygenated blood. • The blood from the right atrium enters into the right ventricle, and from there into the pulmonary artery. • Most of the blood from the pulmonary artery enters into the aorta through the ductus arteriosus. • From the aorta, the blood is distributed to body tissues and flows through the umbilical arteries into the placenta.

• The blood circulating in the fetal arterial system is not fully oxygenated • There is mixing of oxygenated and deoxygenated blood in the: I. Liver sinusoids II. Inferior vena cava III. Right atrium IV. Left atrium V. Descending aorta. V IV III II I

What happens at birth? Oh… let me take a deep breath… and then everything will be OK

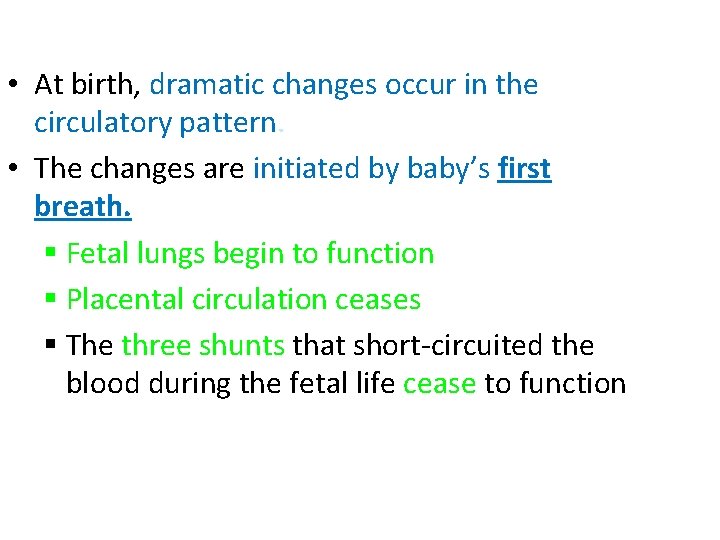

• At birth, dramatic changes occur in the circulatory pattern. • The changes are initiated by baby’s first breath. § Fetal lungs begin to function § Placental circulation ceases § The three shunts that short-circuited the blood during the fetal life cease to function

Neonatal Circulation 1. The infant’s lungs begin to function: § The lungs inflate, which tends to draw blood from the right ventricle. § Oxygenated blood from the lungs passes through pulmonary veins to left atrium. The increased pressure in the left atrium results in closure of the foramen ovale. effectively separating the two atria. § This also increases blood flow to the lungs as blood entering the right atrium can no longer bypass the right ventricle, which pumps it into the pulmonary artery and on to the lungs.

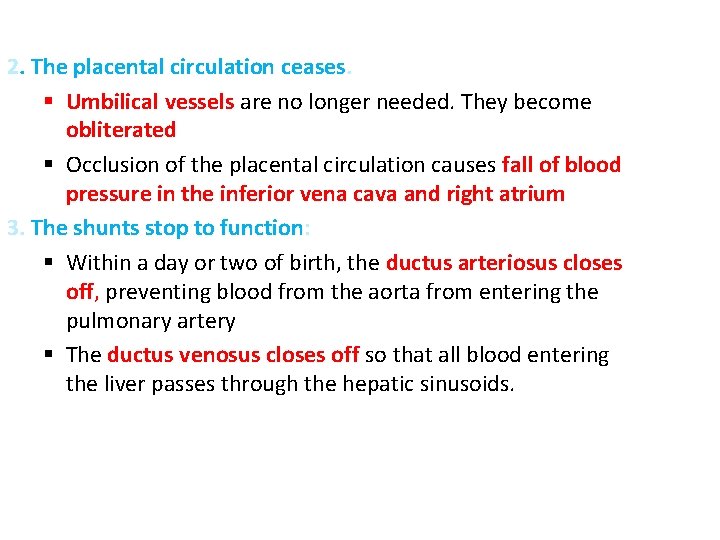

2. The placental circulation ceases. § Umbilical vessels are no longer needed. They become obliterated § Occlusion of the placental circulation causes fall of blood pressure in the inferior vena cava and right atrium 3. The shunts stop to function: § Within a day or two of birth, the ductus arteriosus closes off, preventing blood from the aorta from entering the pulmonary artery § The ductus venosus closes off so that all blood entering the liver passes through the hepatic sinusoids.

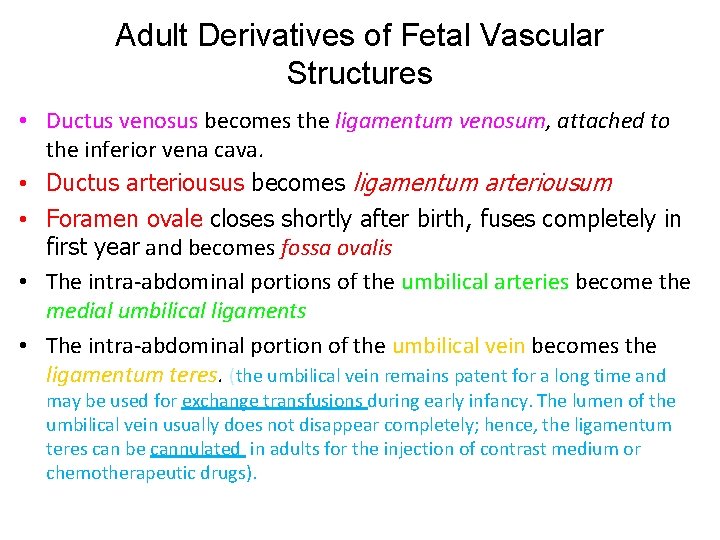

Adult Derivatives of Fetal Vascular Structures • Ductus venosus becomes the ligamentum venosum, attached to the inferior vena cava. • Ductus arteriousus becomes ligamentum arteriousum • Foramen ovale closes shortly after birth, fuses completely in first year and becomes fossa ovalis • The intra-abdominal portions of the umbilical arteries become the medial umbilical ligaments • The intra-abdominal portion of the umbilical vein becomes the ligamentum teres. (the umbilical vein remains patent for a long time and may be used for exchange transfusions during early infancy. The lumen of the umbilical vein usually does not disappear completely; hence, the ligamentum teres can be cannulated in adults for the injection of contrast medium or chemotherapeutic drugs).

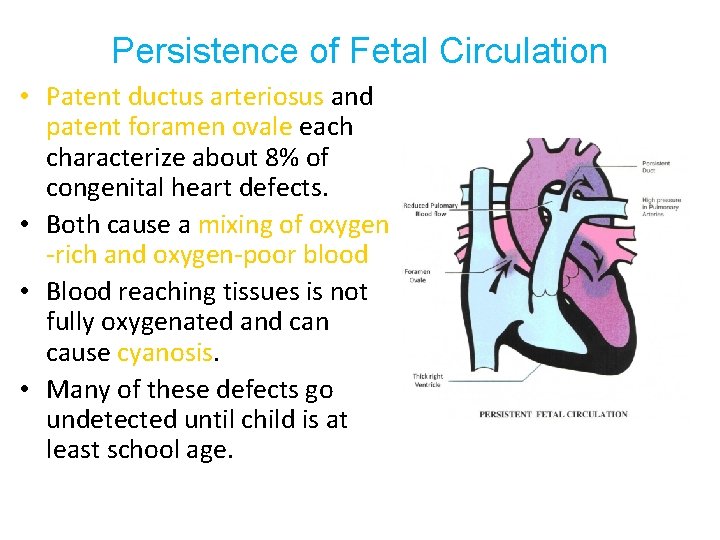

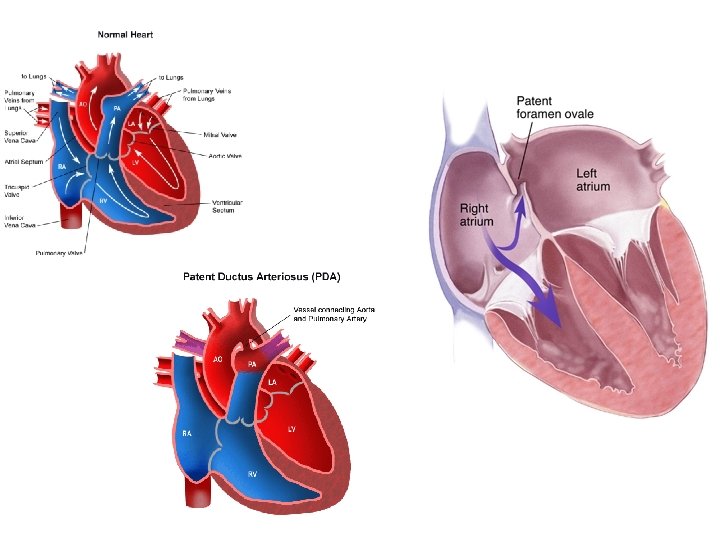

Persistence of Fetal Circulation • Patent ductus arteriosus and patent foramen ovale each characterize about 8% of congenital heart defects. • Both cause a mixing of oxygen -rich and oxygen-poor blood • Blood reaching tissues is not fully oxygenated and can cause cyanosis. • Many of these defects go undetected until child is at least school age.
