Development of master curricula for natural disasters risk management in Western Balkan countries The Geotechnical Laboratory Ernesto Cascone University of Messina – Department of Engineering, ITALY Workshop on Training of teaching staff for innovative teaching methods Messina, 19 -21 September 2017 Project number: 573806 -EPP-1 -2016 -1 -RS-EPPKA 2 -CBHE-JP "This project has been funded with support from the European Commission. This publication reflects the views only of the author, and the Commission cannot be held responsible for any use which may be made of the information contained therein"

YOU ARE GOING TO SEE… STANDARD EQUIPMENT FOR • SOIL CLASSIFICATION AND IDENTIFICATION • OEDOMETRIC TESTS • DIRECT SHEAR TESTS • TRIAXIAL COMPRESSION TESTS

YOU ARE GOING TO SEE… EQUIPMENT FOR CYCLIC AND DYNAMIC TESTS on standard soil samples (38 -50 mm) Resonant column and cyclic torsional shear test Low frequency cyclic triaxial test on “large” soil samples (70 -150 mm) Resonant column and cyclic torsional shear test Cyclic triaxial test (fmax = 5 Hz) Cyclic simple shear test Bender elements test

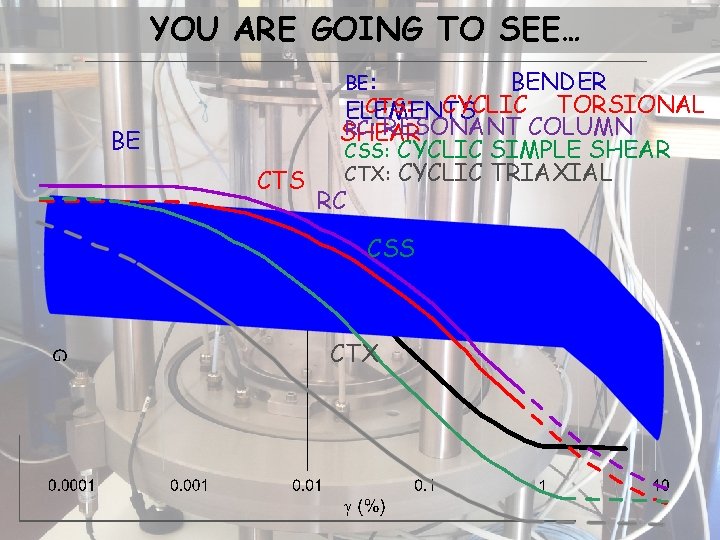

YOU ARE GOING TO SEE… BE CTS BE: BENDER CTS: CYCLIC TORSIONAL ELEMENTS RC: RESONANT COLUMN SHEAR CSS: CYCLIC SIMPLE SHEAR CTX: CYCLIC TRIAXIAL RC CSS CTX

YOU ARE GOING TO SEE… EQUIPMENT FOR MONOTONIC TESTS on “large” soil samples Direct shear test 300 x 300 mm Stress path controlled triaxial test d=200 mm on “standard” soil samples High pressure (10 Mpa) stress path controlled triaxial tests

YOU ARE GOING TO SEE… d 200 (TX; TD 300) d 150 (CTX) d 100 (RC; CTX; CTS; CSS) d 70 (RC; CTX; CTS) d 50 (RC; CTX; CTS; CSS) d 38 (RC; CTX; CTS)

YOU ARE GOING TO SEE… MORPHOMETRIC CHARACTERIZATION Shape Size Sphericity = PEQPC/Preal d. EQPC Preal Aspect ratio = Fmin/Fmax PEQPC Convexity = A/(A+B)

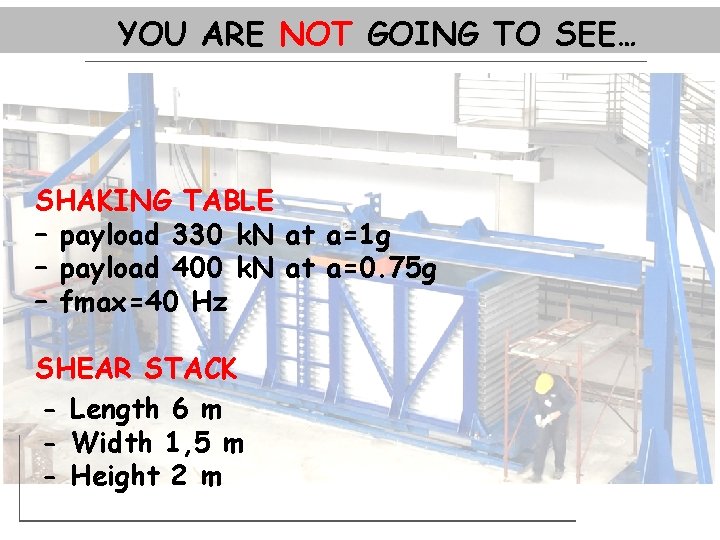

YOU ARE NOT GOING TO SEE… SHAKING TABLE – payload 330 k. N at a=1 g – payload 400 k. N at a=0. 75 g – fmax=40 Hz SHEAR STACK - Length 6 m - Width 1, 5 m - Height 2 m

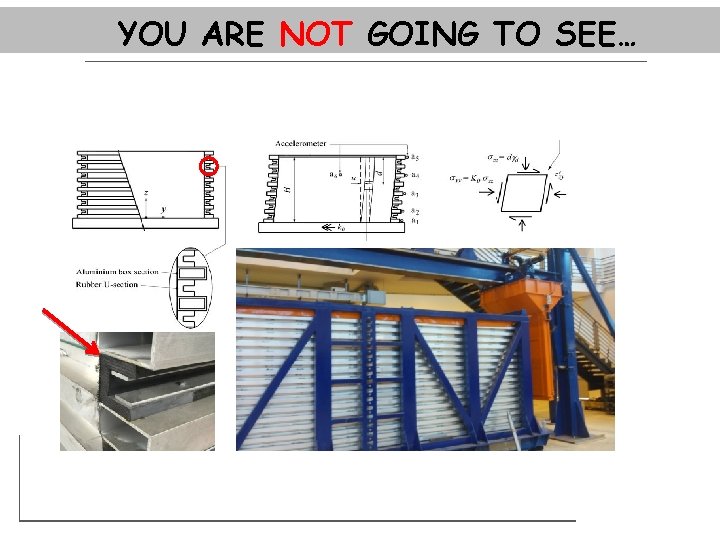

YOU ARE NOT GOING TO SEE…

CERISI-EUROLAB is the lab of CERISI (Centro di Eccellenza per la Ricerca e l’Innovazione su Strutture e Infrastrutture di grandi dimensioni) of the University of Messina (Funding 22, 1 Millions euro)

ANTI-SEISMIC DEVICE (ASD) TEST FACILITY

EUROLAB “MOVING MOUSE” Fatigue tests on cables and staycables Maximum load (MN) Specimen Max length (m) EMPA Zurich 30 7 TUM Munich - 7 LCPC Nantes 24 16 TU Wien 20 - EUROLAB 34, 3 22

PSEUDOSTATIC AND DYNAMIC TESTS 2 contrast frames, strong wall Set of static and dynamic actuators

“QUICK” DYNAMIC STRUCTURAL IDENTIFICATION Radar interferometer for static and dinamic monitoring of bridges and buildings
