DEVELOPMENT OF COMPUTER VISION BASED FACE TRACKING MEASUREMENT FOR SITTING ERGONOMICS Tommi Lintilä, Valtteri Hyvärinen, Reijo Kariniemi, Anjan KC, Lassi Nurmi, Taina Liukkonen, Seija Viinikka, Panu Kiviluoma, Aku Korhonen & Petri Kuosmanen

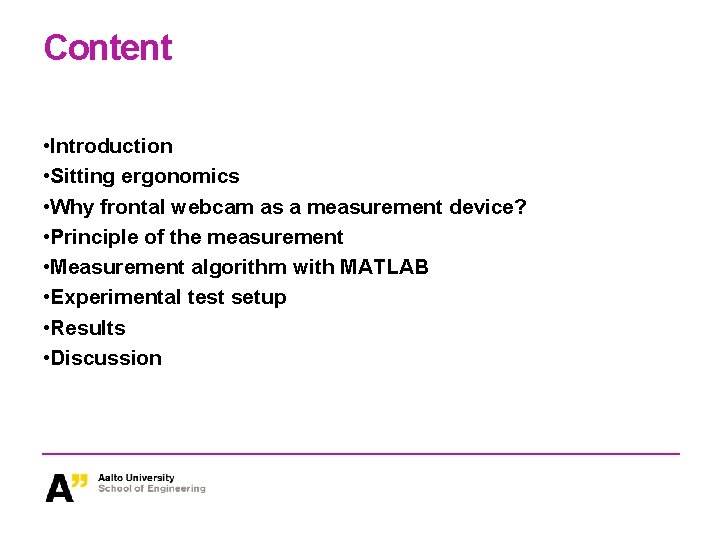

Content • Introduction • Sitting ergonomics • Why frontal webcam as a measurement device? • Principle of the measurement • Measurement algorithm with MATLAB • Experimental test setup • Results • Discussion

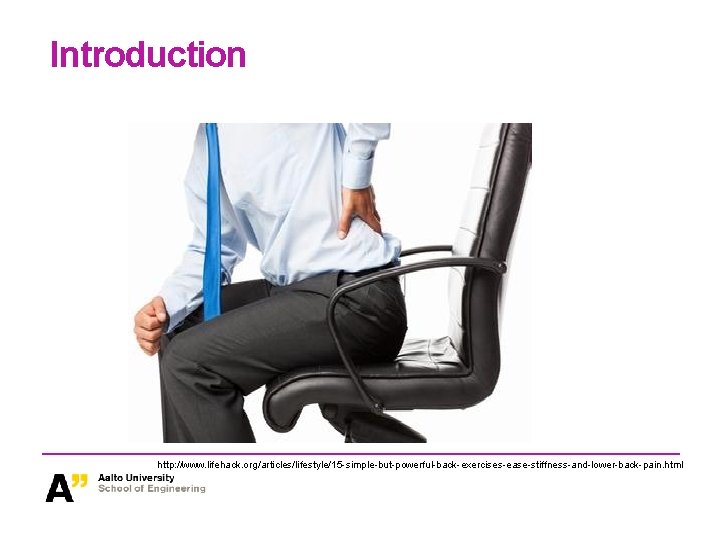

Introduction http: //www. lifehack. org/articles/lifestyle/15 -simple-but-powerful-back-exercises-ease-stiffness-and-lower-back-pain. html

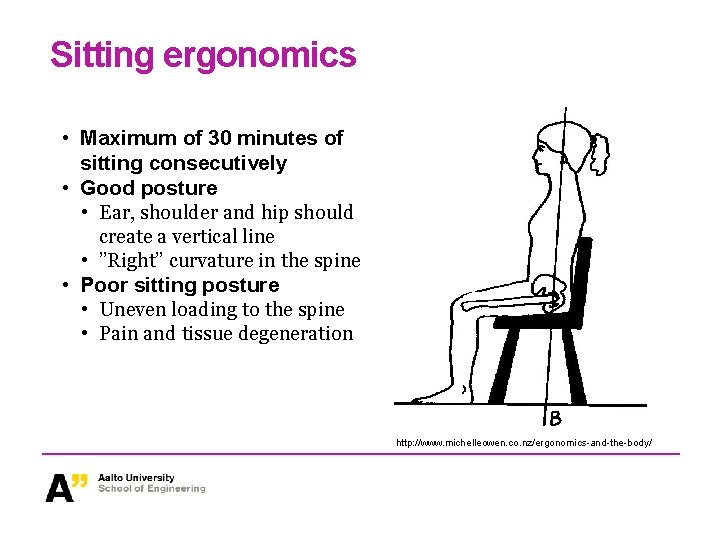

Sitting ergonomics • Maximum of 30 minutes of sitting consecutively • Good posture • Ear, shoulder and hip should create a vertical line • ”Right” curvature in the spine • Poor sitting posture • Uneven loading to the spine • Pain and tissue degeneration http: //www. michelleowen. co. nz/ergonomics-and-the-body/

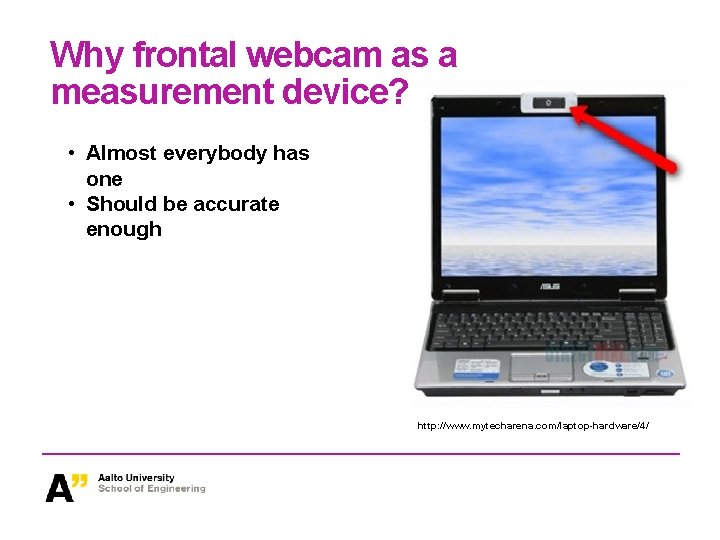

Why frontal webcam as a measurement device? • Almost everybody has one • Should be accurate enough http: //www. mytecharena. com/laptop-hardware/4/
Principle of the measurement • Head position tells something about the overall posture. • The approach is to use incremental measurement of the head position http: //www. wellwest. co. nz/img/sitting-posture. jpg
Measurement algorithm with MATLAB Coordinates of the head Good initial posture Slouching forward Side leaning Standing up Slouching down

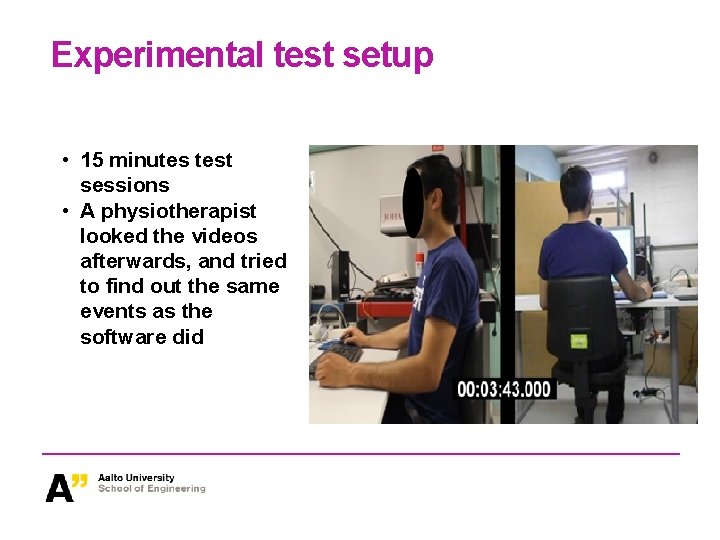

Experimental test setup • 15 minutes test sessions • A physiotherapist looked the videos afterwards, and tried to find out the same events as the software did

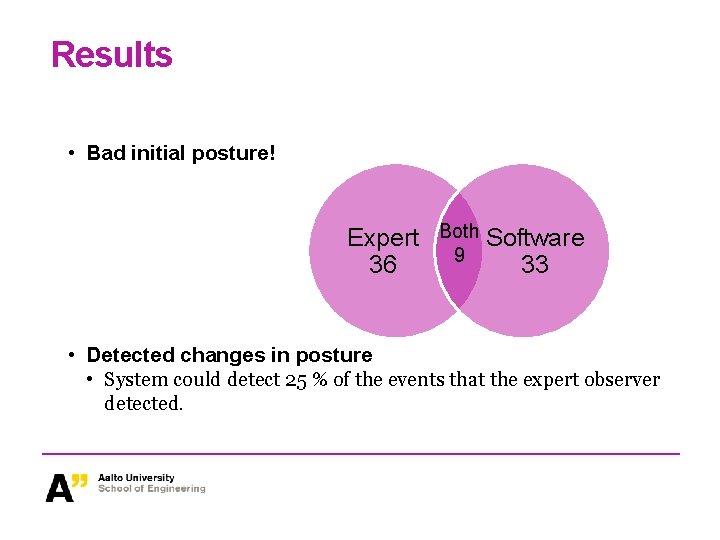

Results • Bad initial posture! Expert 36 Both 9 Software 33 • Detected changes in posture • System could detect 25 % of the events that the expert observer detected.

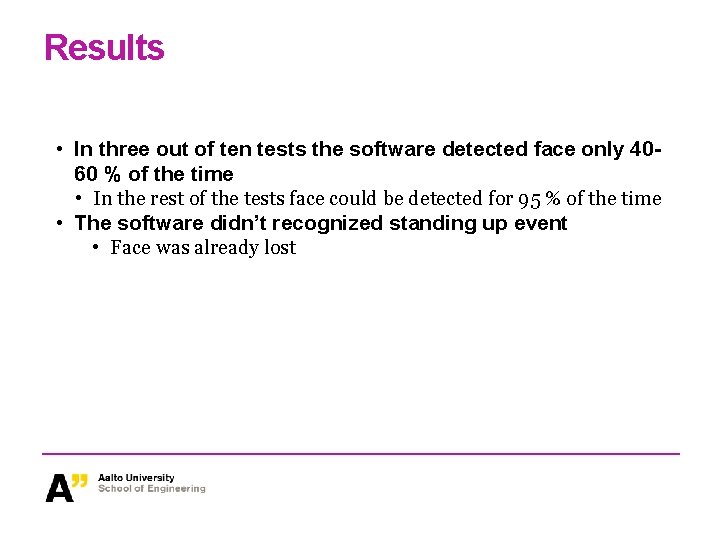

Results • In three out of ten tests the software detected face only 4060 % of the time • In the rest of the tests face could be detected for 95 % of the time • The software didn’t recognized standing up event • Face was already lost

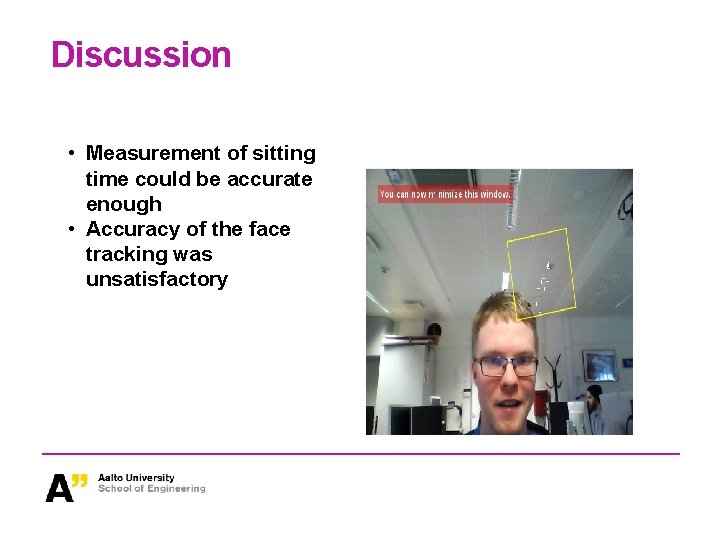

Discussion • Measurement of sitting time could be accurate enough • Accuracy of the face tracking was unsatisfactory

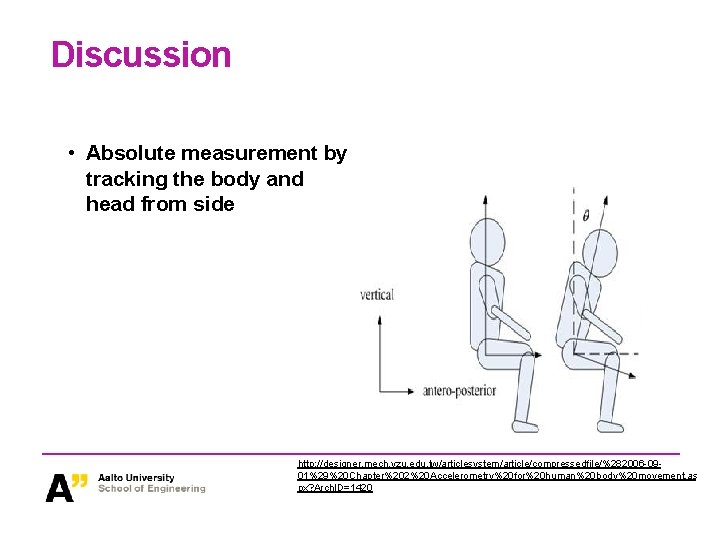

Discussion • Absolute measurement by tracking the body and head from side http: //designer. mech. yzu. edu. tw/articlesystem/article/compressedfile/%282006 -0901%29%20 Chapter%202%20 Accelerometry%20 for%20 human%20 body%20 movement. as px? Arch. ID=1420
Thank you!
