Development of a HighResolution Global Soil Depth Dataset
Development of a High-Resolution Global Soil Depth Dataset Jon D. Pelletier Geosciences Dept. , University of Arizona Deliverable: gridded high-resolution global data for soil depth/depth-tobedrock from 0 -50 m. Four grids will be produced: Average hillslope soil depth within each 1 km pixel, average valley bottom soil depth, fraction of each pixel that is hillslope, fraction that is valley bottom/wetland. Land surface will be divided into: upland hillslopes, upland valley bottoms, and lowlands. Different soil depth estimation methods for each.
Lowlands and upland valley bottoms will be mapped globally at 1 km/pixel and 30 m/pixel based on a geomorphic method which identifies all topography within a prescribed elevation difference from the valley bottom that increases with increasing drainage area. In areas that are wetlands at 1 km/pixel scale, soil depth will be > 50 m.
On U. S. uplands, soil depth is a function of hillslope curvature, mean annual precipitation, and geology. Geomorphic models calibrated with CONUS-Soil data provide a basis for estimating upland soil depth for validation against European Soil Database and prediction worldwide at 30 m/pixel.

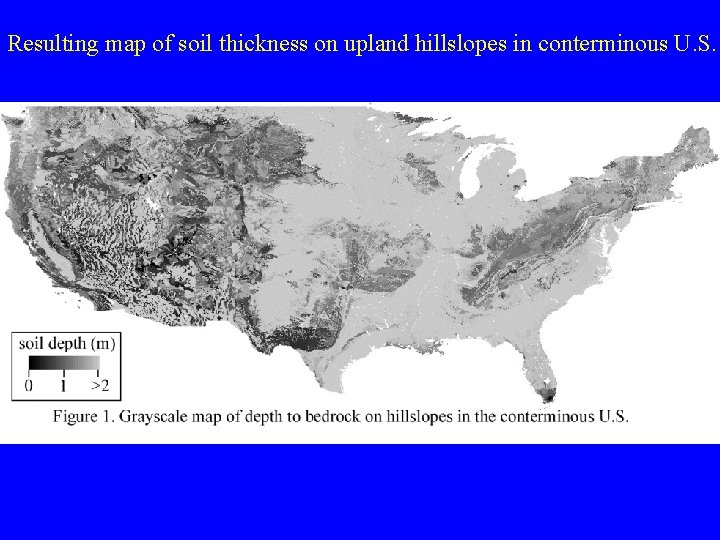

Resulting map of soil thickness on upland hillslopes in conterminous U. S.

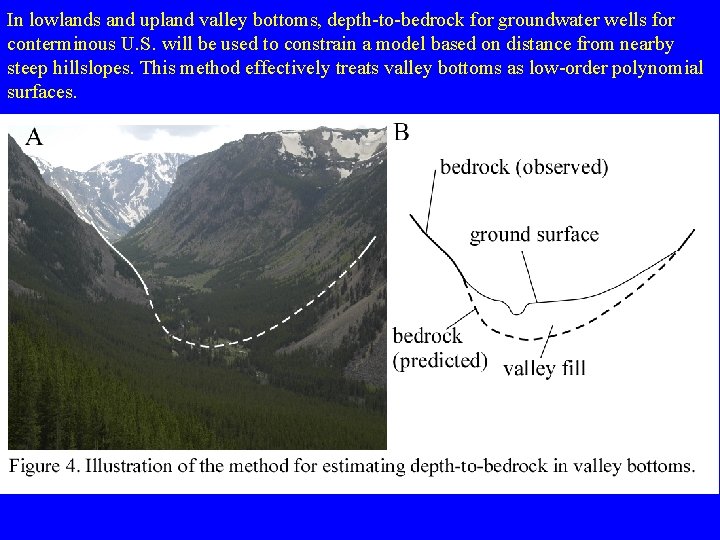

In lowlands and upland valley bottoms, depth-to-bedrock for groundwater wells for conterminous U. S. will be used to constrain a model based on distance from nearby steep hillslopes. This method effectively treats valley bottoms as low-order polynomial surfaces.
Work flow:
