Developing a CIMBased Architecture for Distribution Grid Model
Developing a CIM-Based Architecture for Distribution Grid Model Data Management European CIM User Group Meeting Ljubljana, Slovenia June 7, 2018 Pat Brown Technical Executive, EPRI

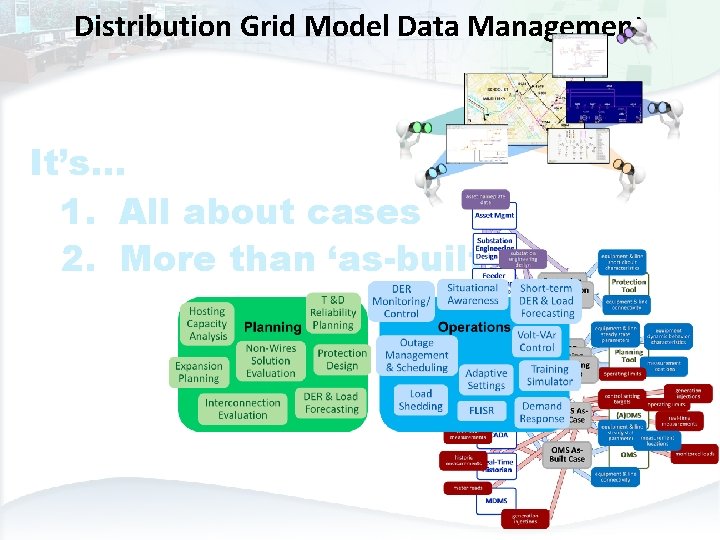

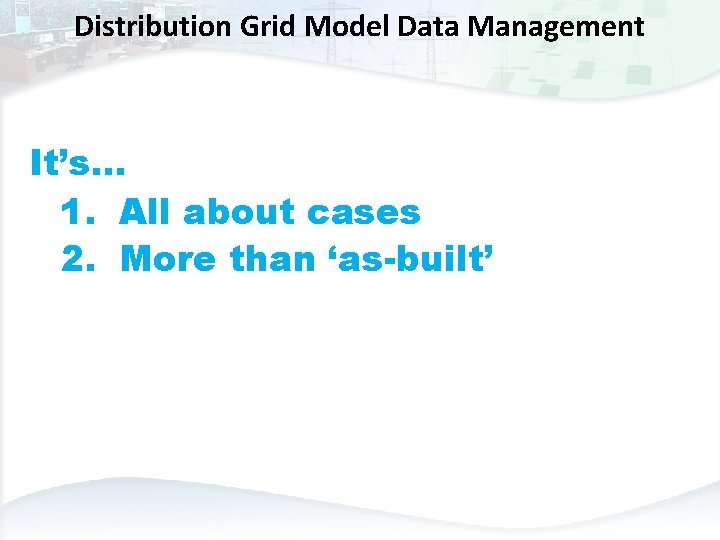

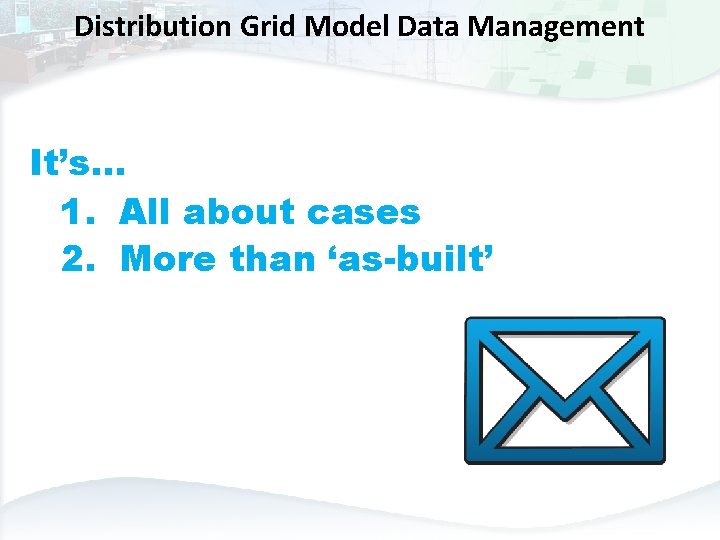

Distribution Grid Model Data Management It’s… 1. All about cases 2. More than ‘as-built’

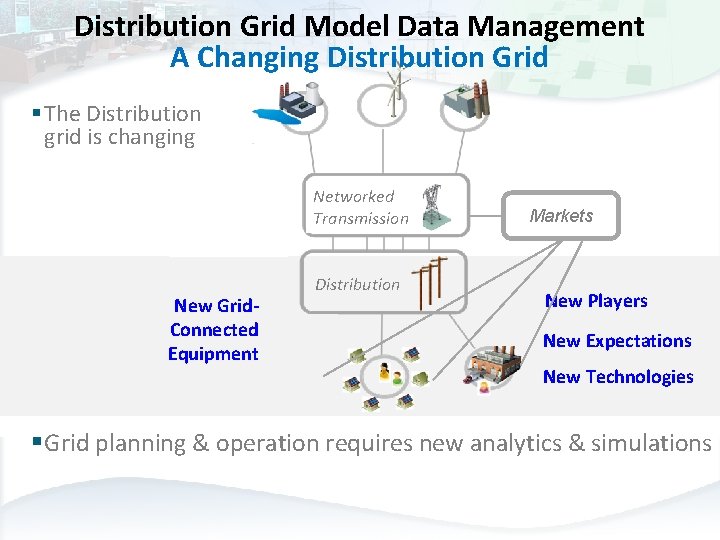

Distribution Grid Model Data Management A Changing Distribution Grid § The Distribution grid is changing Networked Transmission New Grid. Connected Equipment Distribution Markets New Players New Expectations New Technologies § Grid planning & operation requires new analytics & simulations

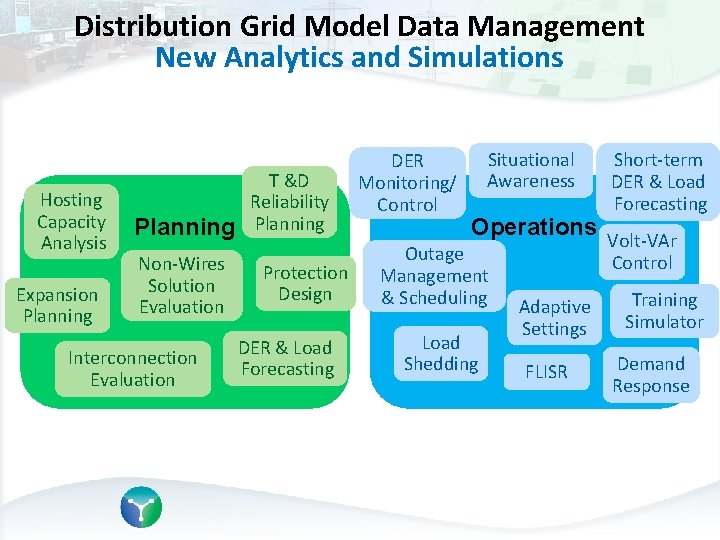

Distribution Grid Model Data Management New Analytics and Simulations T &D Reliability Planning Hosting Capacity Planning Analysis Non-Wires Models, methods, and tools to Protection support Solution asset and resource Design Expansion Evaluation planning functions to ensure the Planning safe, reliable, and efficient DER & Load Interconnection modern system. Forecasting Evaluation DER Monitoring/ Control Situational Awareness Operations Short-term DER & Load Forecasting Volt-VAr Outage Control Monitoring, controls, automation Management technologies and tools to & Scheduling Training optimize and. Adaptive ensure the safe, Simulator Settings secure, Load and reliable operation of the modern system. Demand Shedding FLISR Response
Distribution Grid Model Data Management New Analytics and Simulations • What do those ‘future applications’ do? – Execute power flow-based simulations (network analysis functions) • What do those ‘future applications’ need? – Network (grid) model data: Data representing a simplified view of the electrical grid, including equipment, its electrical behavior and its connectivity, as well as its operating state at a moment in time, that is sufficient to describe a starting point for network analysis.

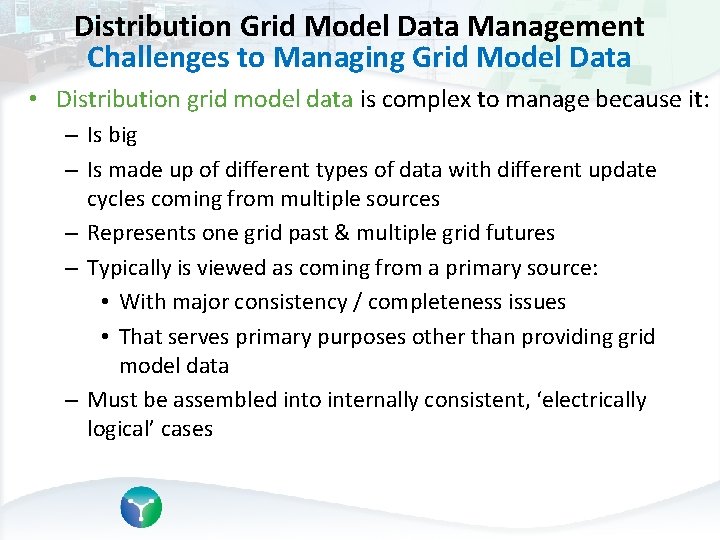

Distribution Grid Model Data Management Challenges to Managing Grid Model Data • Distribution grid model data is complex to manage because it: – Is big – Is made up of different types of data with different update cycles coming from multiple sources – Represents one grid past & multiple grid futures – Typically is viewed as coming from a primary source: • With major consistency / completeness issues • That serves primary purposes other than providing grid model data – Must be assembled into internally consistent, ‘electrically logical’ cases

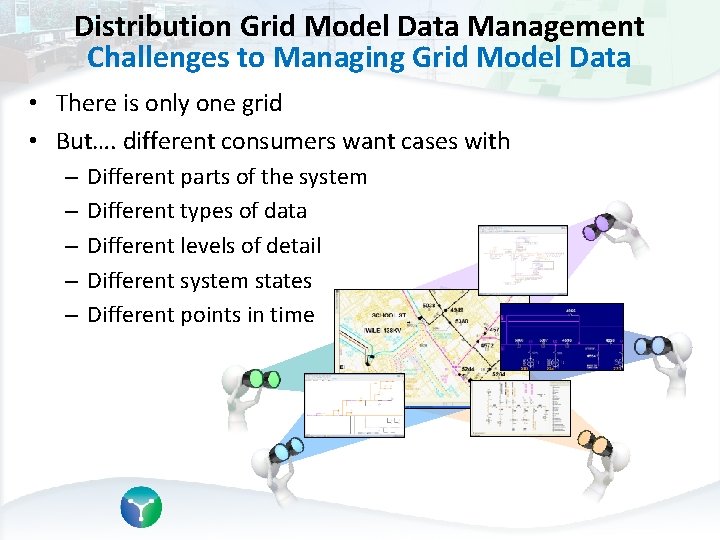

Distribution Grid Model Data Management Challenges to Managing Grid Model Data • There is only one grid • But…. different consumers want cases with – – – Different parts of the system Different types of data Different levels of detail Different system states Different points in time

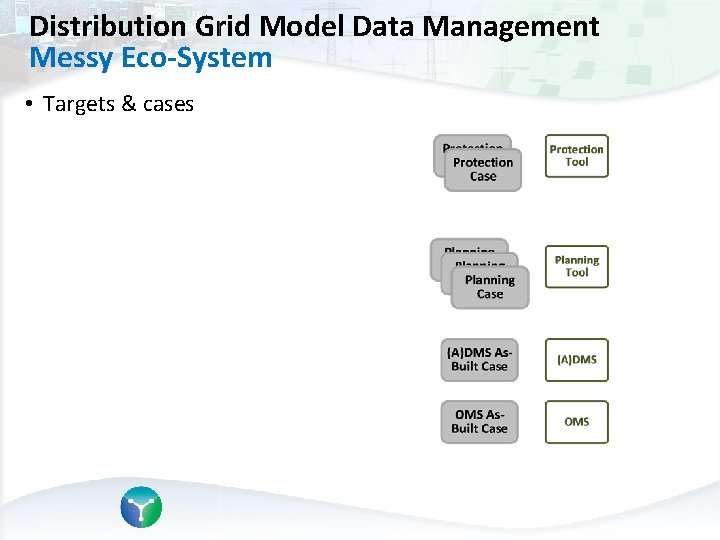

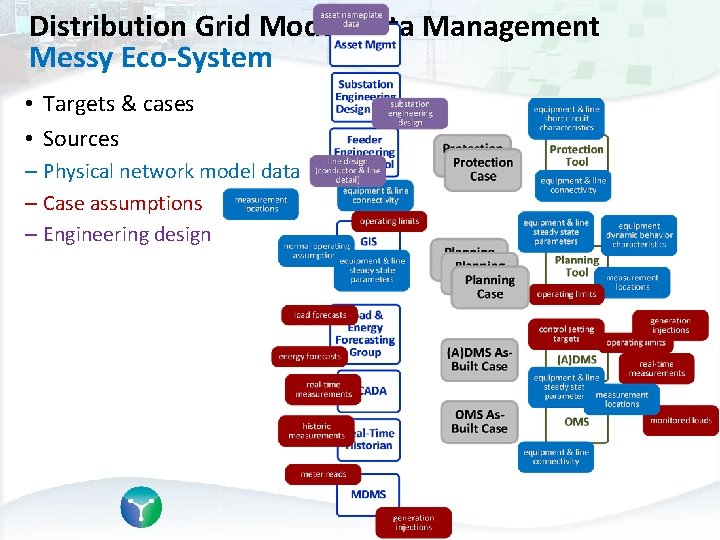

Distribution Grid Model Data Management Messy Eco-System • Targets & cases • Sources – Physical network model data – Case assumptions – Engineering design • ………. . …………. . . • … ……………. …

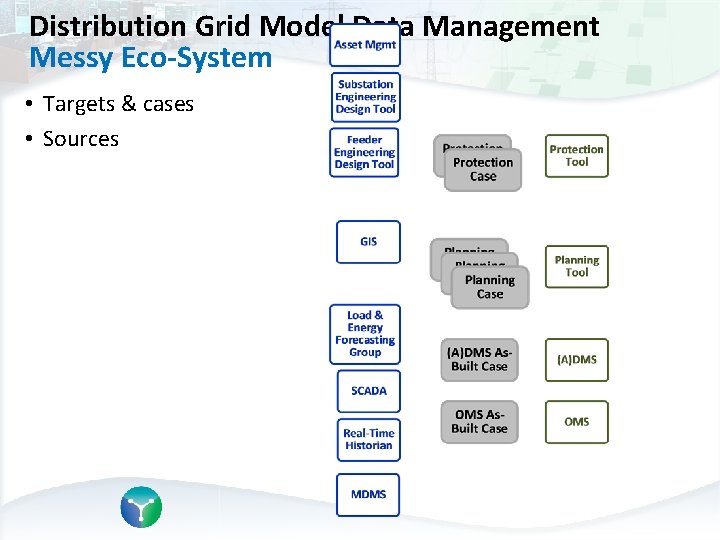

Distribution Grid Model Data Management Messy Eco-System • Targets & cases • Sources – Physical network model data – Case assumptions – Engineering design • ………. . …………. . . • … ……………. …
Distribution Grid Model Data Management Messy Eco-System • Targets & cases • Sources – Physical network model data – Case assumptions – Engineering design • ………. . …………. . . • … ……………. …

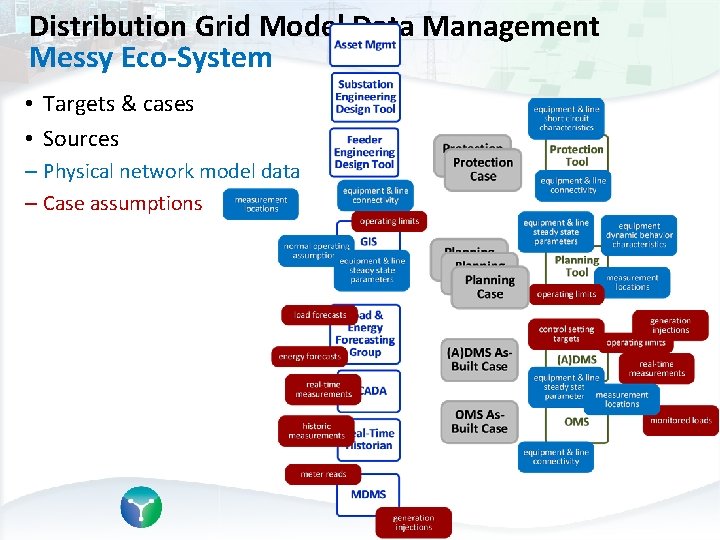

Distribution Grid Model Data Management Messy Eco-System • Targets & cases • Sources – Physical network model data – Case assumptions – Engineering design • ………. . …………. . . • … ……………. …
Distribution Grid Model Data Management Messy Eco-System • Targets & cases • Sources – Physical network model data – Case assumptions – Engineering design • ………. . …………. . . • … ……………. …

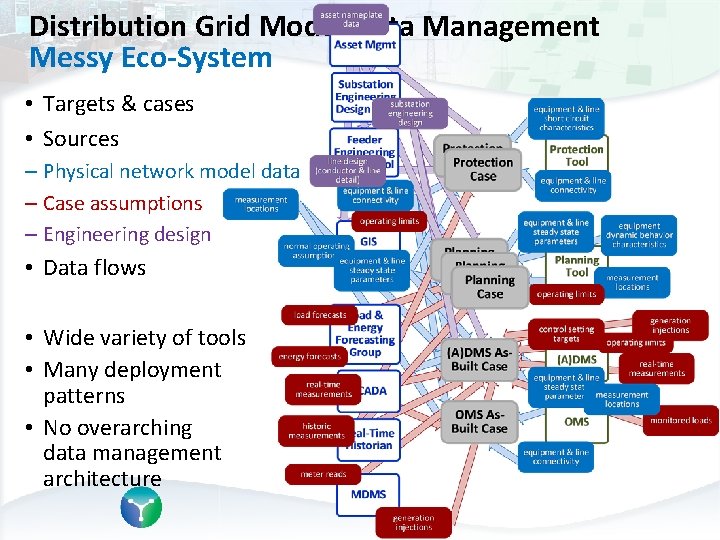

Distribution Grid Model Data Management Messy Eco-System • Targets & cases • Sources – Physical network model data – Case assumptions – Engineering design • Data flows • Wide variety of tools • Many deployment patterns • No overarching data management architecture
Distribution Grid Model Data Management To Summarize So Far… • Distribution utilities will deploy new analytics and simulations • Many of which require accurate grid model data • That is difficult to manage • We have a messy starting point • With drivers that are increasing and increasingly urgent • So…. the time to do something is now "The best time to plant a tree was 20 years ago. The second best time is now. “ - Chinese proverb
Distribution Grid Model Data Management EPRI Distribution GIS & Grid Model Data Mgmt Project • Goals – Define industry architecture for Distribution grid model data management – Promote industry understanding of grid model data management and vendor product support for it – Provide participating utilities with actionable strategies for improving GIS data and grid model data derived from it – Advance the data exchange standards to fully support Distribution grid models

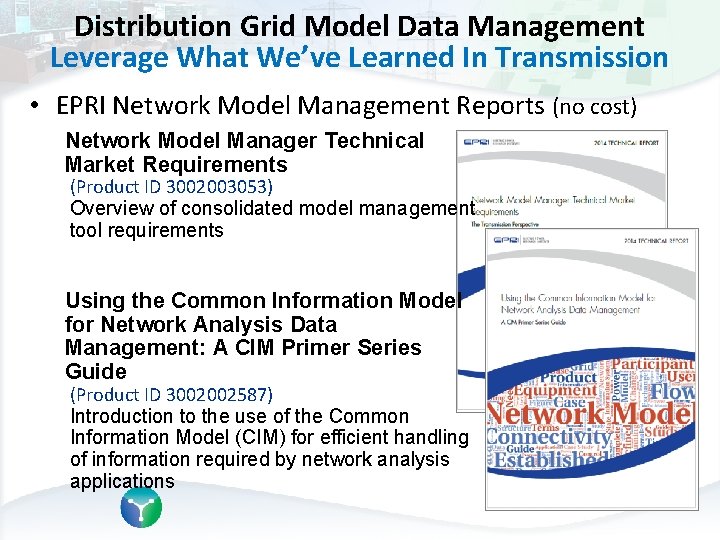

Distribution Grid Model Data Management Leverage What We’ve Learned In Transmission • EPRI Network Model Management Reports (no cost) Network Model Manager Technical Market Requirements Market (Product Requirements ID 3002003053) (Product Overview. IDof 3002003053) consolidated model management tool requirements Overview of consolidated model management tool requirements Using the Common Information Model for Network Analysis Management: A CIM Primer Series Guide Using the. Data Common Information Model (Product ID 3002002587) for Network Analysis Data Introduction to the use of. Primer the Common Management: A CIM Series. Information Model (CIM) for efficient handling of information required by network analysis Guide applications (Product ID 3002002587) Introduction to the use of the Common Information Model (CIM) for efficient handling of information required by network analysis applications

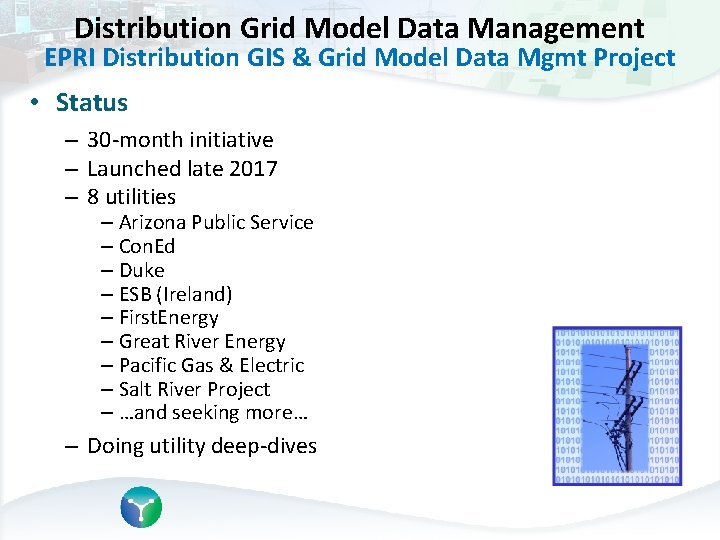

Distribution Grid Model Data Management EPRI Distribution GIS & Grid Model Data Mgmt Project • Status – 30 -month initiative – Launched late 2017 – 8 utilities – Arizona Public Service – Con. Ed – Duke – ESB (Ireland) – First. Energy – Great River Energy – Pacific Gas & Electric – Salt River Project – …and seeking more… – Doing utility deep-dives

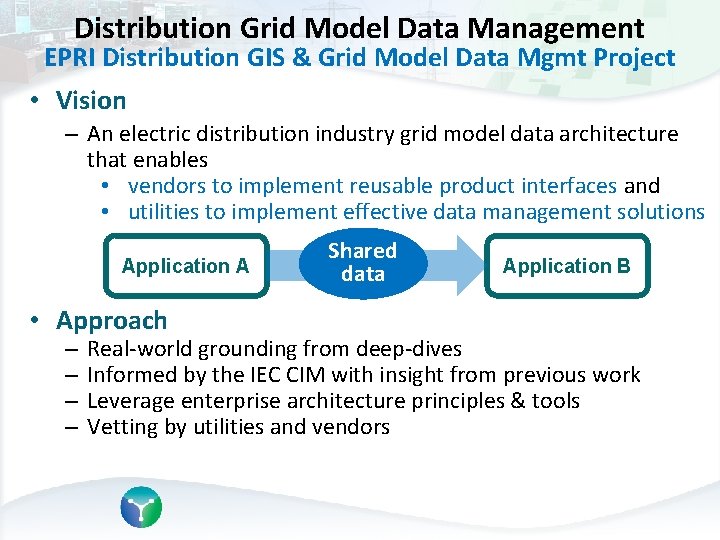

Distribution Grid Model Data Management EPRI Distribution GIS & Grid Model Data Mgmt Project • Vision – An electric distribution industry grid model data architecture that enables • vendors to implement reusable product interfaces and • utilities to implement effective data management solutions Application A • Approach – – Shared data Application B Real-world grounding from deep-dives Informed by the IEC CIM with insight from previous work Leverage enterprise architecture principles & tools Vetting by utilities and vendors

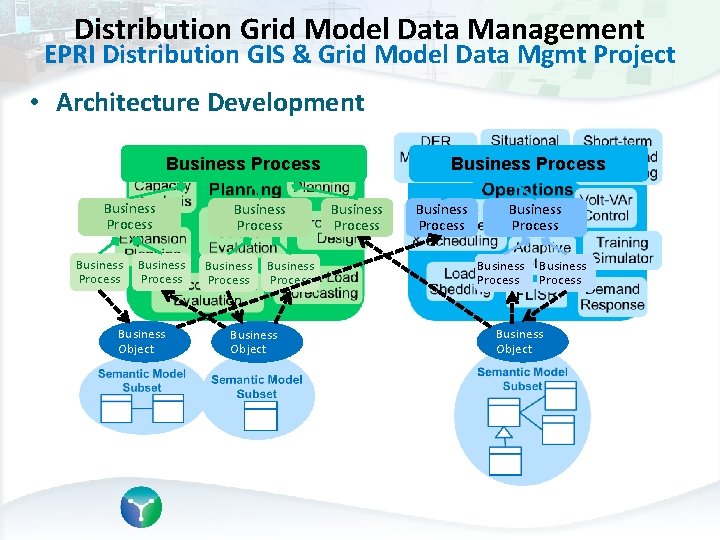

Distribution Grid Model Data Management EPRI Distribution GIS & Grid Model Data Mgmt Project • Architecture Development Business Process Business Process Business Object Business Process Business Process Business Object

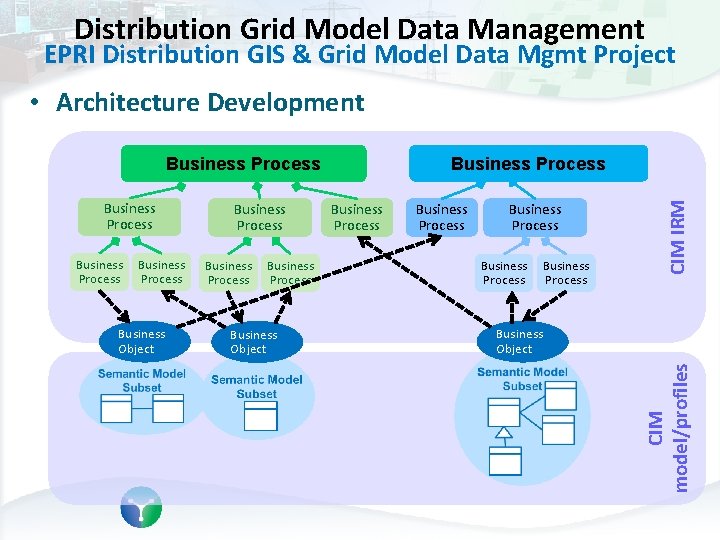

Distribution Grid Model Data Management EPRI Distribution GIS & Grid Model Data Mgmt Project • Architecture Development Business Process Business Object Business Process Business Process Business Object CIM model/profiles Business Process CIM IRM Business Process

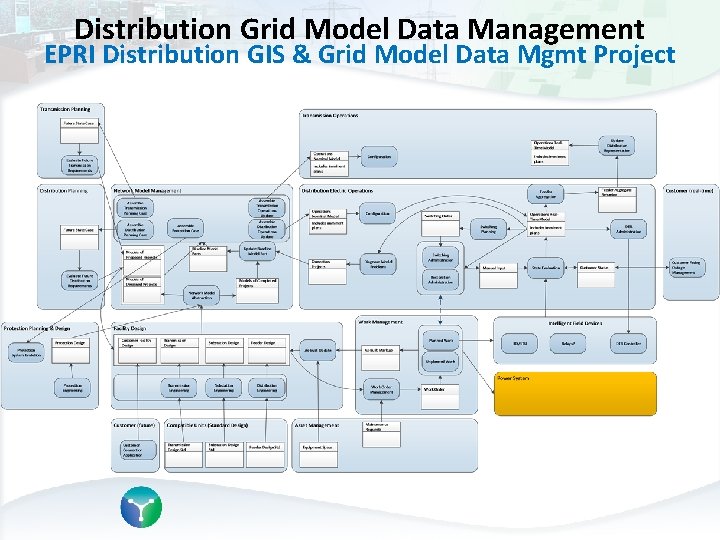

Distribution Grid Model Data Management EPRI Distribution GIS & Grid Model Data Mgmt Project

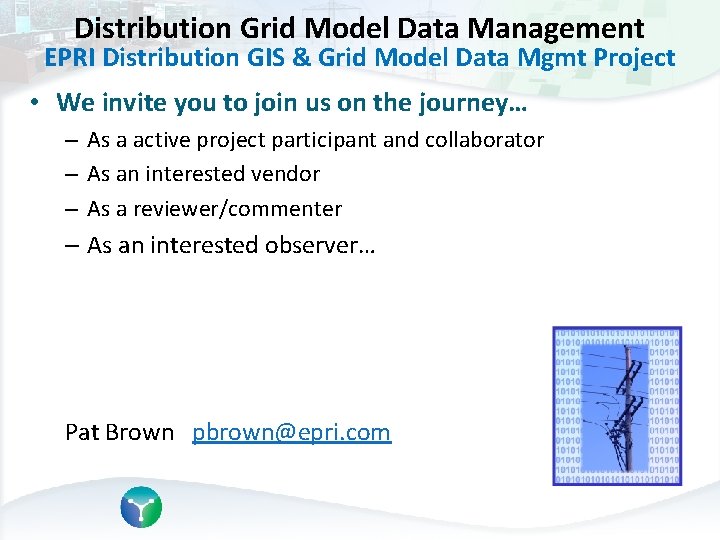

Distribution Grid Model Data Management EPRI Distribution GIS & Grid Model Data Mgmt Project • We invite you to join us on the journey… – As a active project participant and collaborator – As an interested vendor – As a reviewer/commenter – As an interested observer… Pat Brown pbrown@epri. com
Distribution Grid Model Data Management It’s… 1. All about cases 2. More than ‘as-built’
Distribution Grid Model Data Management Questions? Comments?
Distribution Grid Model Data Management To Summarize So Far… • Distribution utilities will deploy new analytics and simulations • Many of which require accurate grid model data • That is difficult to manage

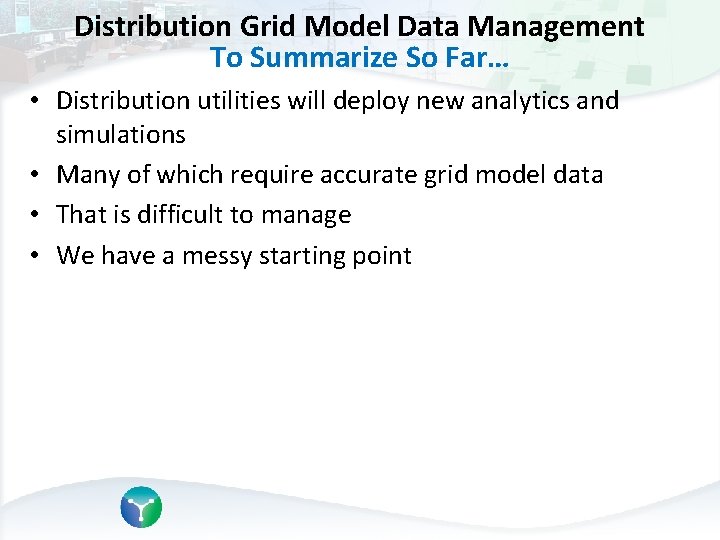

Distribution Grid Model Data Management To Summarize So Far… • Distribution utilities will deploy new analytics and simulations • Many of which require accurate grid model data • That is difficult to manage • We have a messy starting point
Distribution Grid Model Data Management It’s… 1. All about cases 2. More than ‘as-built’
