DEV 402 Extending the ASP. NET Runtime Jurgen Postelmans Microsoft Regional Director Be. Lux U 2 U

Agenda Role of the Http. Runtime What is the Http. Runtime The Http. Context class Extending the Http. Runtime Http. Modules Global. asax Http. Handlers Hosting the Http. Runtime

demo Using Http. Modules and Http. Handlers

Role of the Http Runtime Pluggable, modular architecture Caching, Security, State Management…. Ability to customize and extend ASP. NET Example: Perform dynamic authorization Example: Take over. xml file extension Reduce need for C/C++ ISAPIs Goal: You can do everything in ASP. NET Use any managed language, including VB. NET

ASP. NET Architecture Inside IIS 5. 0 INETINFO. EXE (IIS 5. 0) aspnet_isapi. dll http: //www. foo. com/bar. aspx ASPNET_WP. EXE Worker Process Named pipes HTTP Request Handler

ASP. NET Architecture Inside IIS 5. 0 App. Pool 1 App. Pool 2 INETINFO WAS metabase Worker Process ASP. NET Filters User Mode Kernel Mode HTTP. SYS

Http Runtime Architecture. asmx . aspx . ashx Session. State Http. Context Http. Runtime Http. Handlers Process Boundary External Session Authentication Output. Cache Http. Modules Cache

Http. Context Everything you needed to know about the current ASP. NET Request but where afraid to ask

About Http. Context The glue that ties the pipeline together Encapsulates all request specific data Instance created for each request System. Web. Http. Context “flows” throughout request lifetime Developers can add to Http. Context. Items collection Objects then flowed throughout request Exposed via static Http. Context. Current Code must be running on original thread

Http. Context Properties Name Type Description Current Http. Context for the current request Application Http. Application. State Appliction-wide property bag Application. Instance Http. Application Context (Modules) Session Http. Session. State Per-client session state Request Http. Request The HTTP Request Response Http. Response The HTTP Response User IPrincipal information Handler IHttp. Handler HTTP Handler that will dispatch the call Items IDictionary Per-request property bag Server Http. Server. Utility URL cracking/sub handlers Error Exception First error occured during processing

demo Using Http. Context

Implementing Http. Modules Participate in every ASP. NET request

Http. Modules Enables developers to: Extend the HTTP Pipeline Examine and modify HTTP Requests Used by ASP. NET: External Session State Http. Module Forms Authentication Http. Module Output Cache Http. Module ….

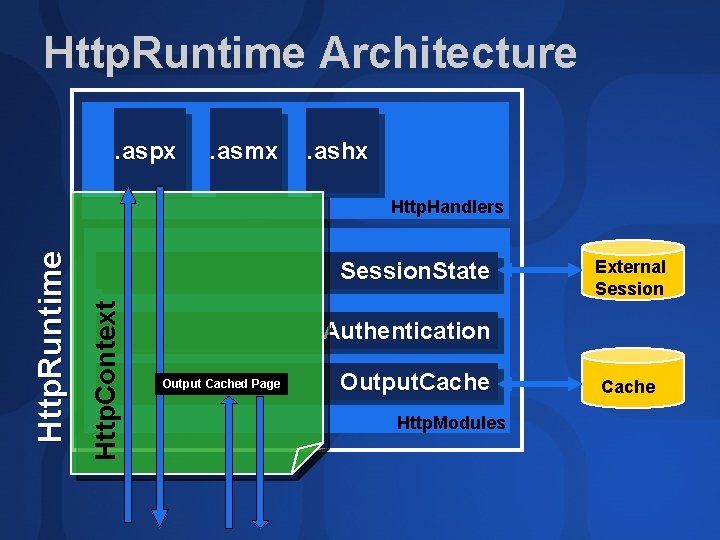

Http. Runtime Architecture. aspx . asmx . ashx Session. State Http. Context Http. Runtime Http. Handlers External Session Authentication Output Cached Page Output. Cache Http. Modules Cache

Http. Modules What Are Interception Events? Request participation Methods called at specific stages of request Http. Response available Terminate processing of request Http. Application. Complete. Request() Response. End()

Per-Request Application Events Begin. Request Authenticate. Request Authorize. Request Resolve. Request. Cache Aquire. Request. State Pre. Request. Handler. Execute Handler Execution Post. Request. Handler. Execute Release. Request. State Update. Request. Cache End. Request

Creating an Http. Module Class must implement interface: System. Web. IHttp. Module public interface IHttp. Module { public void Init(Http. Application application); public void Dispose(); } Init() Called when module is created Register delegates for runtime events Dispose()

Registering an Http. Module 1. 2. Compile into. NET assembly Deploy Into application’s bin directory or Register in the GAC 3. Register in configuration: <configuration> <system. web> <http. Modules> <add name=“friendly name” type=“class, assembly“ /> </http. Modules> </system. web> </configuration>

Modules vs Global. asax Functionality of global. asax and modules overlap Global. asax supports extra events like Application_Start and Application_End Session_Start and Session_End

demo Writing Modules

Implementing Http. Handlers Taking control of the request target

What are Http. Handlers ? Are the endpoint for a request They actually process the request and generate the response (HTML, XML, …) Similar to ISAPI Extensions Examples: ASP. NET Page Handler (*. aspx) ASP. NET Service Handler (*. asmx) Server-Side XSL Transformer (*. xml) Dynamic image generation

Creating an Http. Handler Class must implement interface: System. Web. IHttp. Handler public interface IHttp. Handler { public void Process. Request(Http. Context context); public bool Is. Reusable(); } Process. Request() ‘Main’ method of the handler Is. Reusable { get; } Indicates whether pooling is supported

Registering an Http. Handler 1. 2. Compile into. NET assembly Deploy Into application’s bin directory or Register in the GAC 3. Register in configuration: <configuration> <system. web> <http. Handlers> <add verb="*" path="myfile. myext" type="class, assembly" /> </http. Handlers> </system. web> </configuration> 4. Important: Extension must be mapped in IIS

demo Writing Handler

demo Writing an Asynchronous Handler

Hosting the Http. Runtime

ASP. NET Hosting Http. Runtime is a clean abstraction Enable non-IIS hosting scenarios System. Web. Hosting namespace Scenarios: Pre-generation of. htm for dynamic pages ASP. NET Cassini server (XP Home) See http: //www. asp. net/Projects/Cassini/ Download/Default. aspx? tabindex=0&tabid=1 for sample source

demo Hosting ASP. NET

Community Resources http: //www. microsoft. com/communities/default. mspx Most Valuable Professional (MVP) http: //www. mvp. support. microsoft. com/ Newsgroups Converse online with Microsoft Newsgroups, including Worldwide http: //www. microsoft. com/communities/newsgroups/default. mspx User Groups Meet and learn with your peers http: //www. microsoft. com/communities/usergroups/default. mspx

Suggested Reading And Resources The tools you need to put technology to work! TITLE Microsoft® ASP. NET Programming with Microsoft Visual C#®. NET Version 2003 Step By Step: 0 -7356 -1935 -6 Available Today Microsoft Press books are 20% off at the Tech. Ed Bookstore Also buy any TWO Microsoft Press books and get a FREE T-Shirt
