Determinacy and Stability of Structures Theory of Structure

Determinacy and Stability of Structures Theory of Structure - I SWEDISH COLLEGE OF ENGG & TECH , WAH CANTT

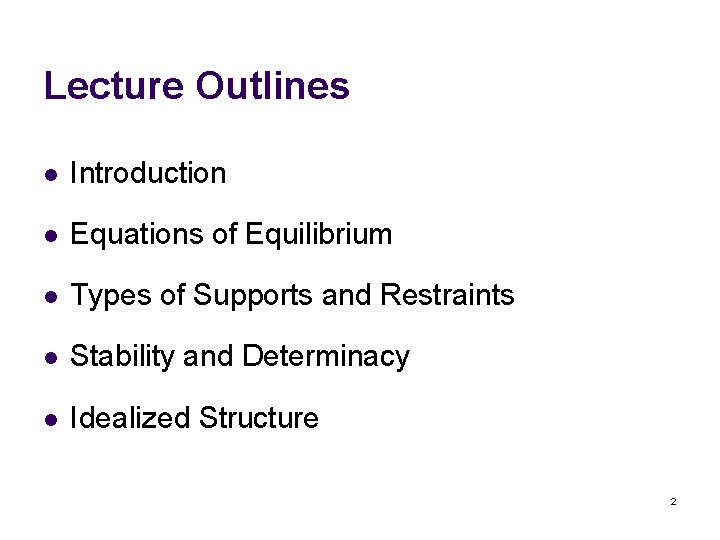

Lecture Outlines l Introduction l Equations of Equilibrium l Types of Supports and Restraints l Stability and Determinacy l Idealized Structure 2

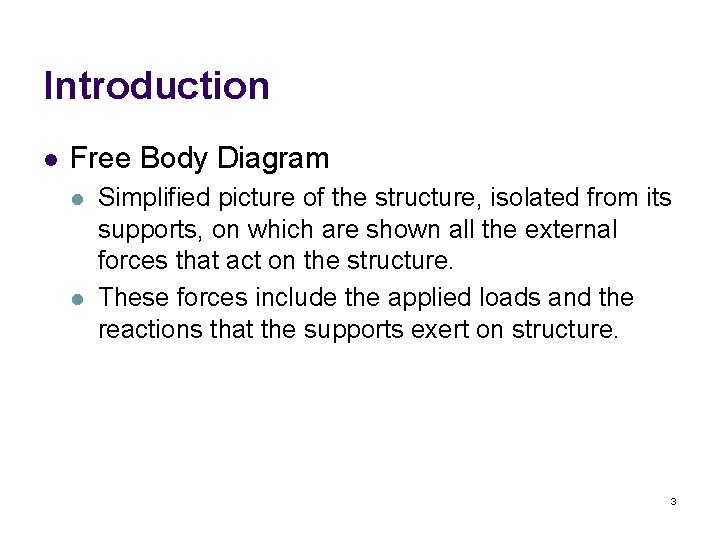

Introduction l Free Body Diagram l l Simplified picture of the structure, isolated from its supports, on which are shown all the external forces that act on the structure. These forces include the applied loads and the reactions that the supports exert on structure. 3

FREE BODY DIAGRAM 4

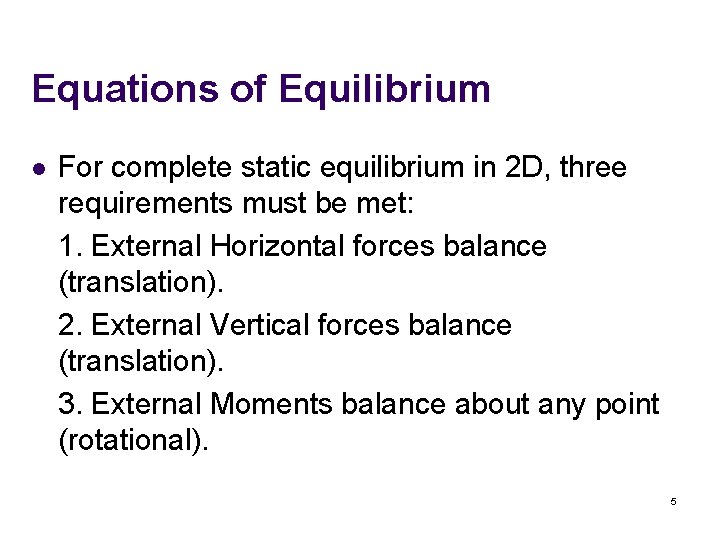

Equations of Equilibrium l For complete static equilibrium in 2 D, three requirements must be met: 1. External Horizontal forces balance (translation). 2. External Vertical forces balance (translation). 3. External Moments balance about any point (rotational). 5

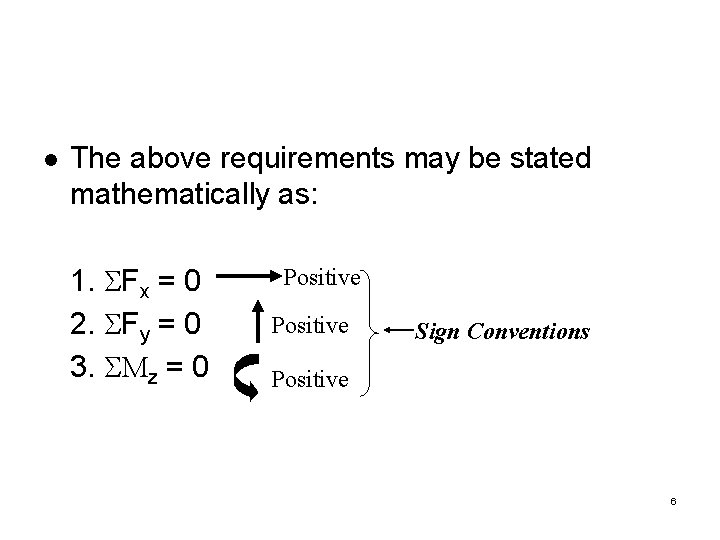

l The above requirements may be stated mathematically as: 1. SFx = 0 2. SFy = 0 3. SMz = 0 Positive Sign Conventions Positive 6

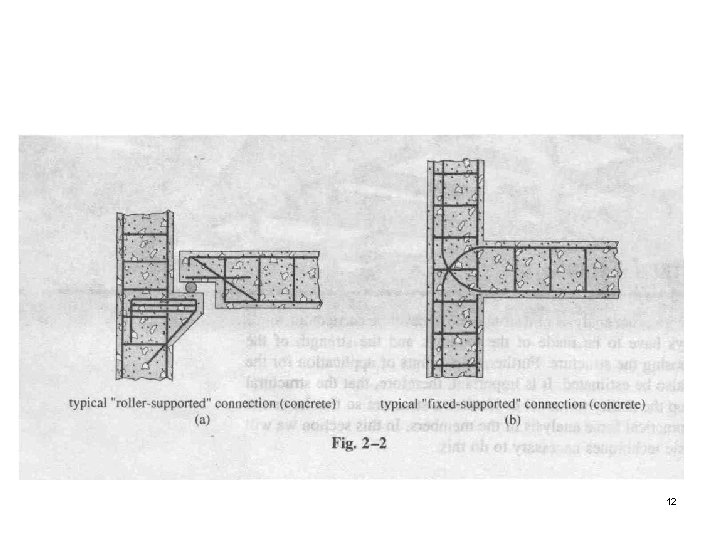

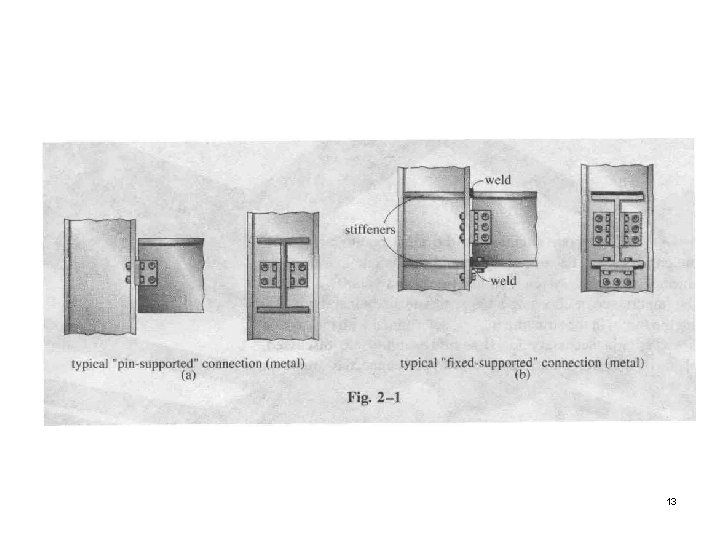

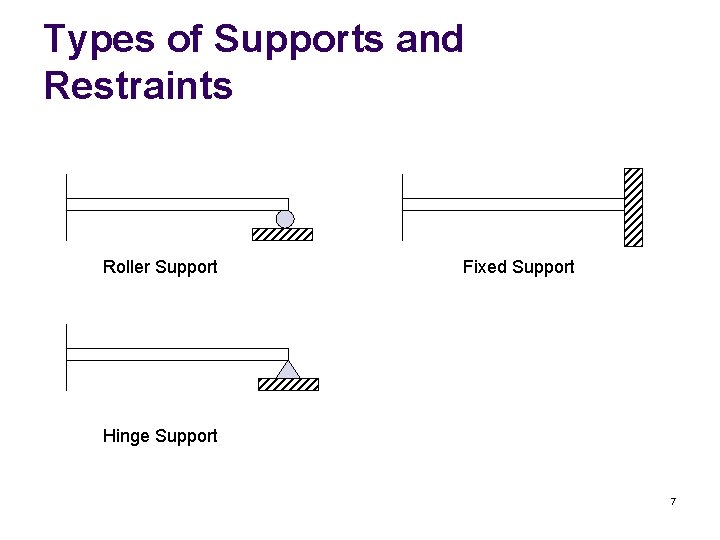

Types of Supports and Restraints Roller Support Fixed Support Hinge Support 7

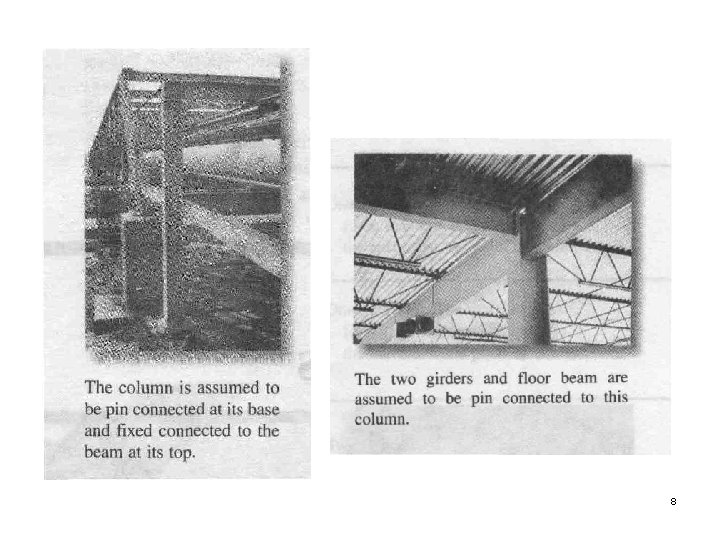

8

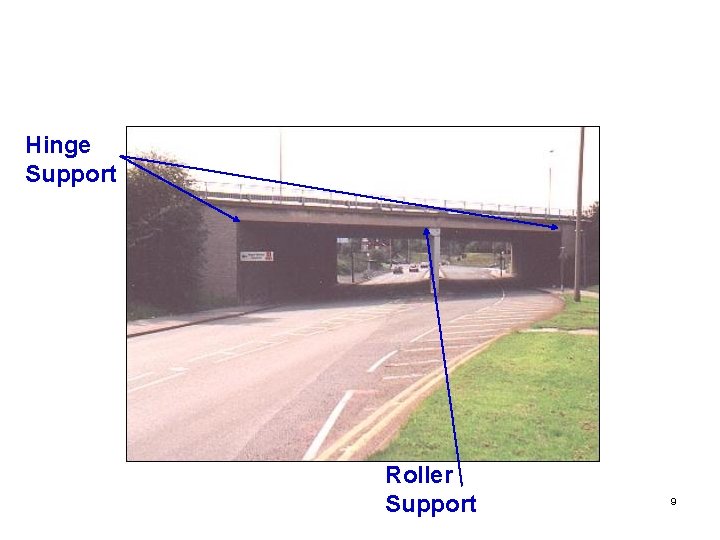

Hinge Support Roller Support 9

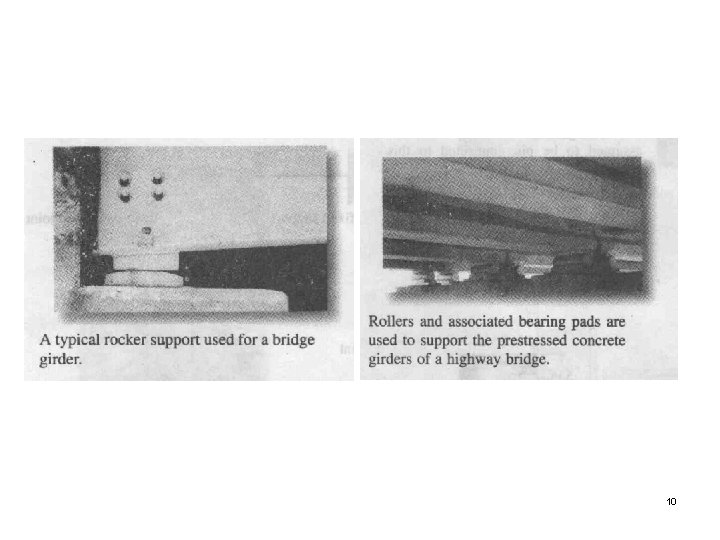

10

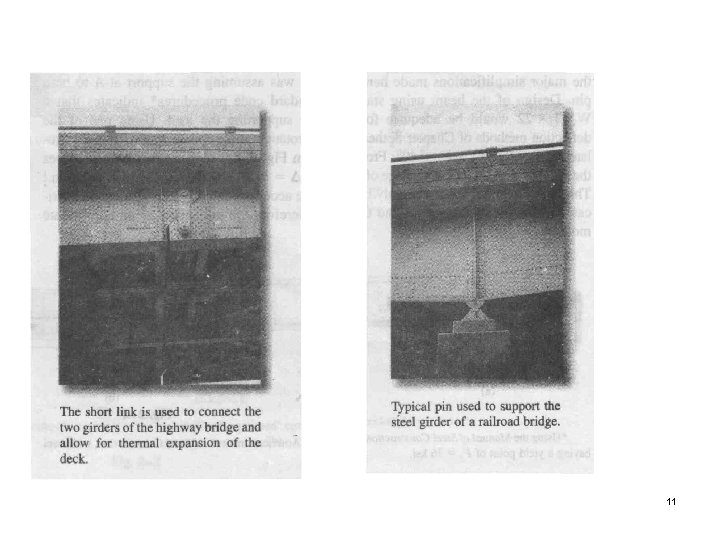

11

12

13

Stability and Determinacy l Determinate Structure l A structure for which all the unknown reactions can be determined using the equations of equilibrium is referred to as a determinate structure. 14

Determinate Structure 15

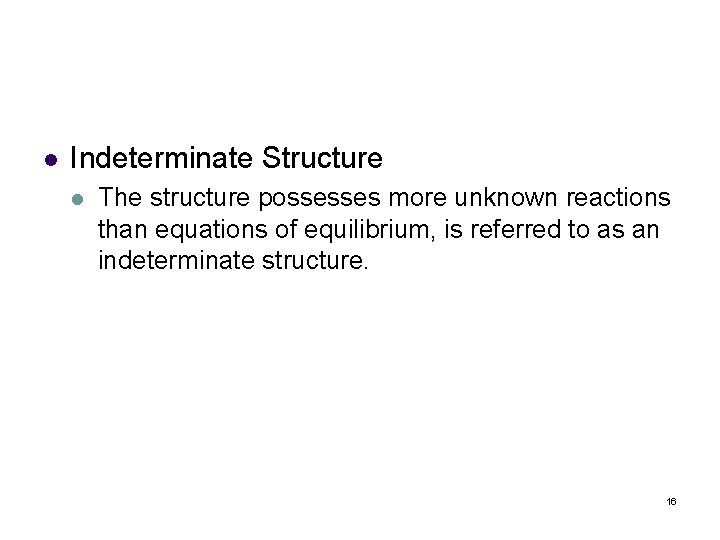

l Indeterminate Structure l The structure possesses more unknown reactions than equations of equilibrium, is referred to as an indeterminate structure. 16

Indeterminate Structure 17

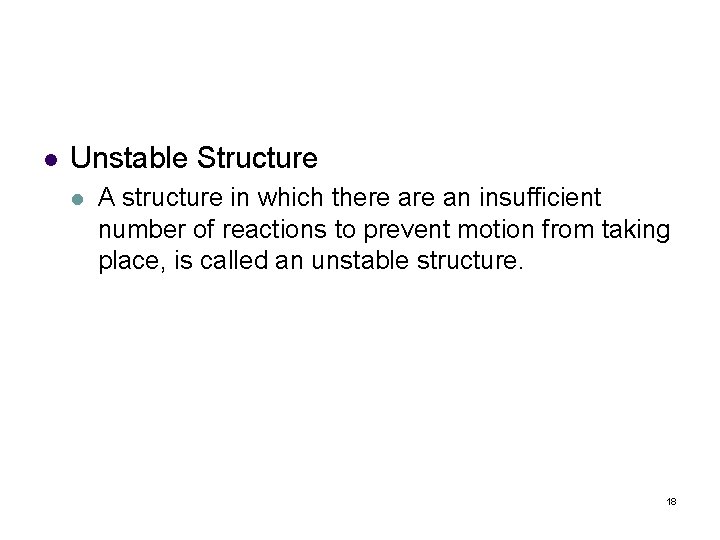

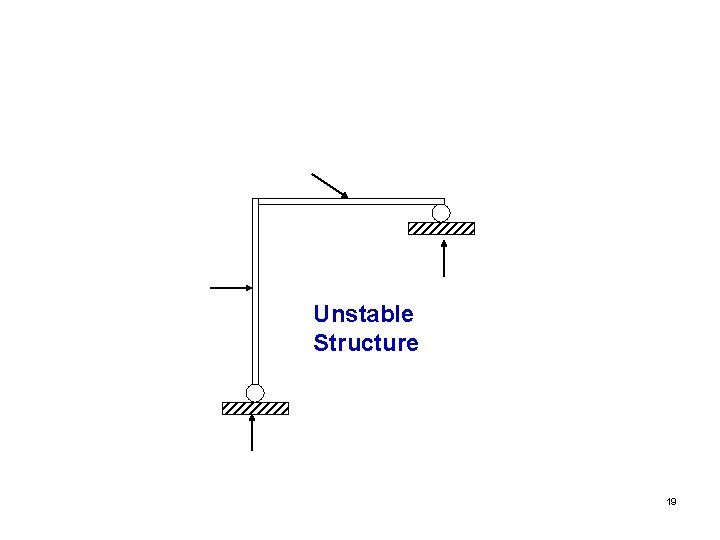

l Unstable Structure l A structure in which there an insufficient number of reactions to prevent motion from taking place, is called an unstable structure. 18

Unstable Structure 19

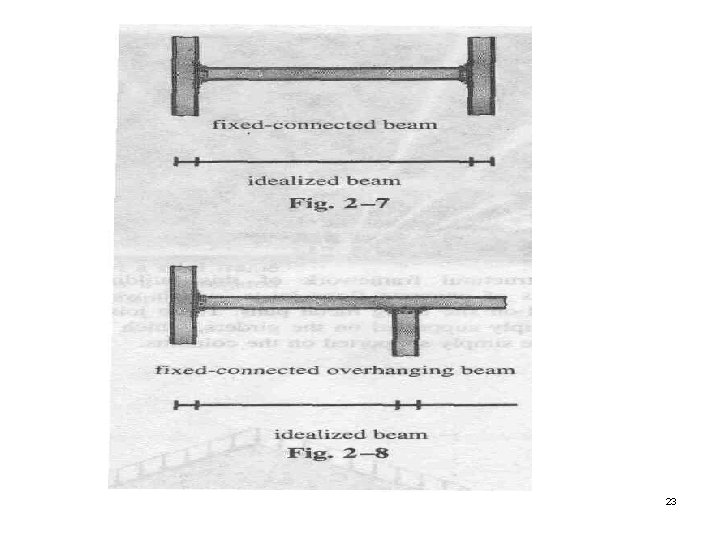

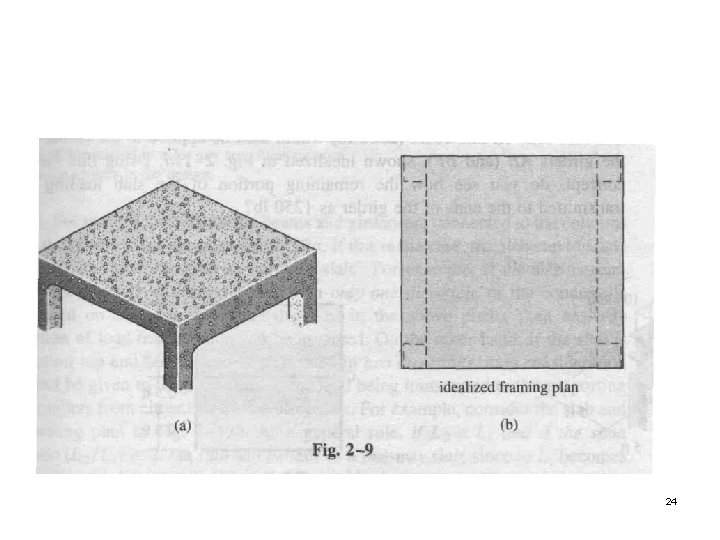

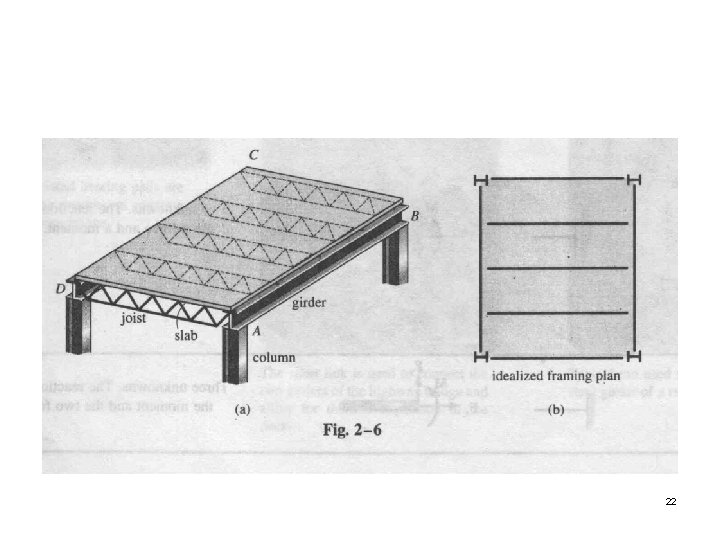

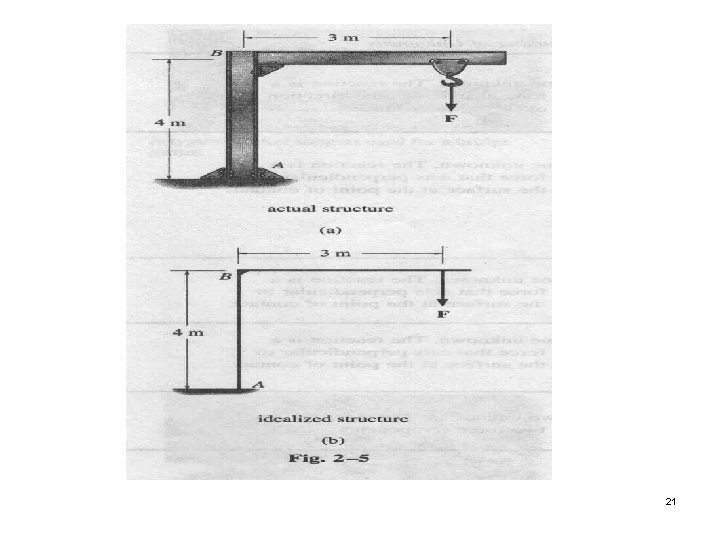

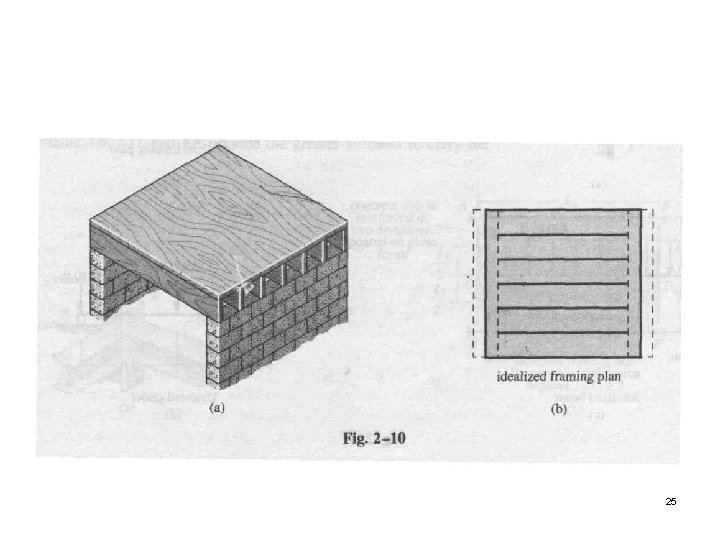

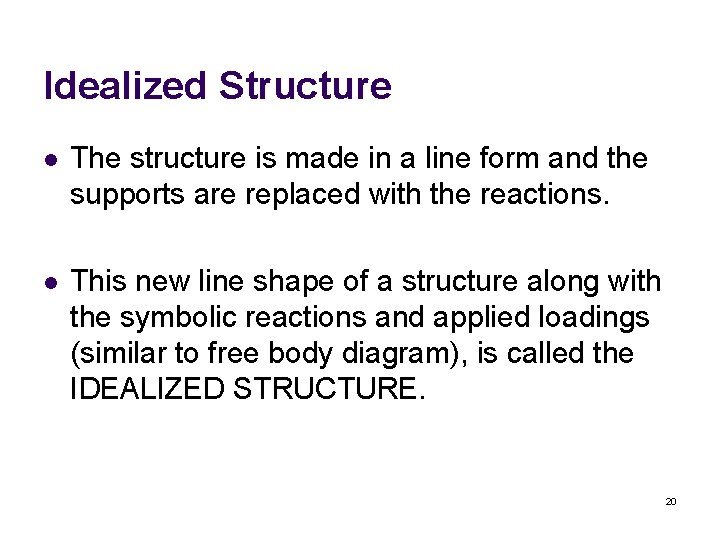

Idealized Structure l The structure is made in a line form and the supports are replaced with the reactions. l This new line shape of a structure along with the symbolic reactions and applied loadings (similar to free body diagram), is called the IDEALIZED STRUCTURE. 20

21

22

23

24

25
