Detector Technologies Ltd Detector Technologies Ltd DTec was

Detector Technologies Ltd

Detector Technologies Ltd • D-Tec was created from two companies, Intelligent Security and AD Holdings (Dedicated Micros) with the sole purpose to further market and develop the technology of detecting fires through the use of CCTV cameras • The technology foundation for Video Smoke Detection was created back in 1996 and the product is continually being refined and enhanced. • From being the pioneers of Video Smoke Detection we have continued to be the World market leaders with continual design and development • D-Tec is a small ‘High Tech’company yet international with distribution networks in Australasia, USA, Africa, Middle and Far East as well as Europe

Itinerary • • • Factors affecting fire detection Background to the Nature of Fire and how it develops Cameras and Lens calculation Positioning of cameras Architecture of VSD and Fire. Vu Benefits of VSD & Fire. Vu over conventional fire detection Typical Applications Regions of operation Latest VSD projects Approvals and Awards Future developments

Lets begin ‘Video Smoke Detection’ first appeared on Tomorrow's World programme back in 1997.

Factors Affecting Fire Detection • Detection Type • Access • Room Height • Ex / Toxic Areas • Thermal Barriers • Acceptability of False Alarms • Area of Coverage • Internal/External • Airflow Rate • Alarm Management • Remote Signalling

Fire Development

Smoke/Heat Movement SD Flame 20 m+ Beam 25 m Smoke 10. 5 m Heat 6 m Thermal Barrier

Conventional Area Of Detection T H E R M A L B A R R I E R Smoke Cools & Reaches Thermal Barrier VSD Area Of Detection Smoke Falls Smoke Rises Fire Starts Smoke Falls

Three Dimensional Thinking • Camera can detect anywhere in the field of view • Lens designates the viewing area

Lens Calculation Methodology • The web makes this task simple • The wider angle the lens the smaller objects appear in the distance

Images demonstrate different camera lenses -The wider the lens angle the smaller objects appear in the distance

Positioning Cameras Effectively

System Architecture Multiplexer Monitor

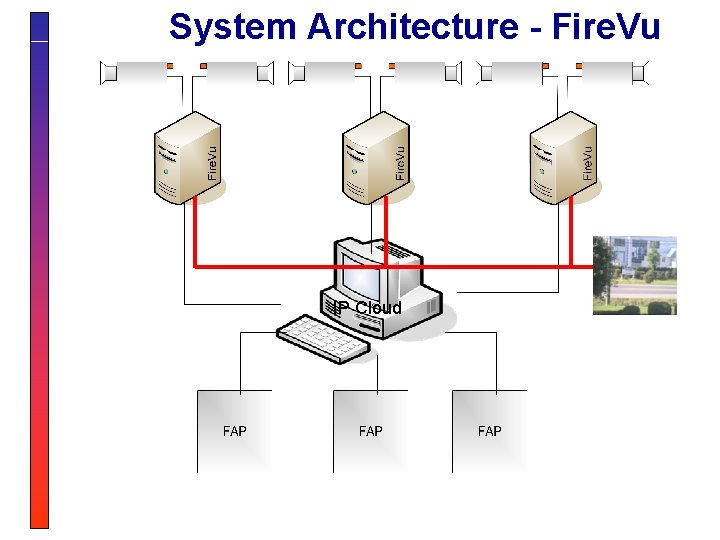

System Architecture - Fire. Vu IP Cloud

Benefits of VSD over Conventional Fire Detection • Detection at Source • Visual Verification • Large Area of Detection • Zoning • Ability to “Look” in • Use of Existing Cameras • DETECTS WHERE NOTHING ELSE IS SUITABLE

Benefits of Fire. Vu • Remote monitoring • Visual Memory File • Pre and post alarm video clips • On line diagnostics • On line maintenance / testing • Software Based System • System data management • DETECTS WHERE NOTHING ELSE IS SUITABLE

Typical Applications • Historic Buildings • High Value Areas • Power Generation Halls • Telecommunications • Large Open Areas • Production areas • Warehouses • Aircraft Hangers • Atria • Shopping Centres • Tunnels • Transportation • Cold-stores • External

Regions of Operation

Latest VSD Projects • Genoa – Ventimiglia Road Tunnels (Italy) • QANTAS aircraft hangers (Australia) • Shah Diniz Oil Refinery (Azerbaijan) • London Underground (U. K. ) • Ford & Nissan Car Manufacturing Plants • Airbus Hangers (U. A. E. & Oman) • Phosphorous Plant (Australia) • US Navy • Airbus & Boeing On-board aircraft (Germany & U. S. A. ) • Network Rail - Euston Station • Swiss-Re Head Office

Visy Recycling Plants - Australia

Collaroo Coal Power Station - Australia

Check Out the Air Filters on That !

Asgard Platform North Sea - Statoil

Stratford Market Depot London Underground

Imperia Test Tunnel

Boeing Construction Hanger Seattle

Approvals & Awards

Future Developments • Flame • Central Station • Pan Tilt Zoom (PTZ) • Fish-Eye Lens • 360° • Web Enabled Camera • Gas

Summary • Offers many advantages over and above other detection devices • Offers detection in environments considered impractical or impossible • Shares CCTV Systems thus can offer cost savings. • Flexibility within the software to allow ‘engineered solution’ and ultimately reduce spurious alarm activations.

Detector Technologies Ltd Detector Technologies Limited Turner House, 9 – 10 Mill Lane Alton, Hampshire GU 34 2 QG Tel: 0870 4581517 Fax: 0870 4581518 Email: info@dtec-fire. com Website: www. dtec-fire. com
