Detect failures reliably Able to stand multiple failures
• Detect failures reliably • Able to stand multiple failures • Unified solution • Easy to configure, manage, and monitor • Reuse existing investments • SAN/DAS environments • Allow using HA hardware resources • Fast seamless failover
SQL Server HA/DR Technologies Failover Cluster Instances (for servers) Availability Groups (for groups of databases) Pre-existent New Server failover Multi-database Failover Useful in consolidation scenarios Shared storage (SAN / SMB) Depends on storage redundancy Failover takes 30 s to couple of minutes Server restart SQL instance is replica for one FCI Passive secondary nodes DBs that app depends on Direct attached storage Log synchronization Failover takes less than 30 seconds Secondary replicas are online SQL instance hosts replicas for one or more AG replicas Active Secondary Replicas
Enhancements in SQL Server 2012

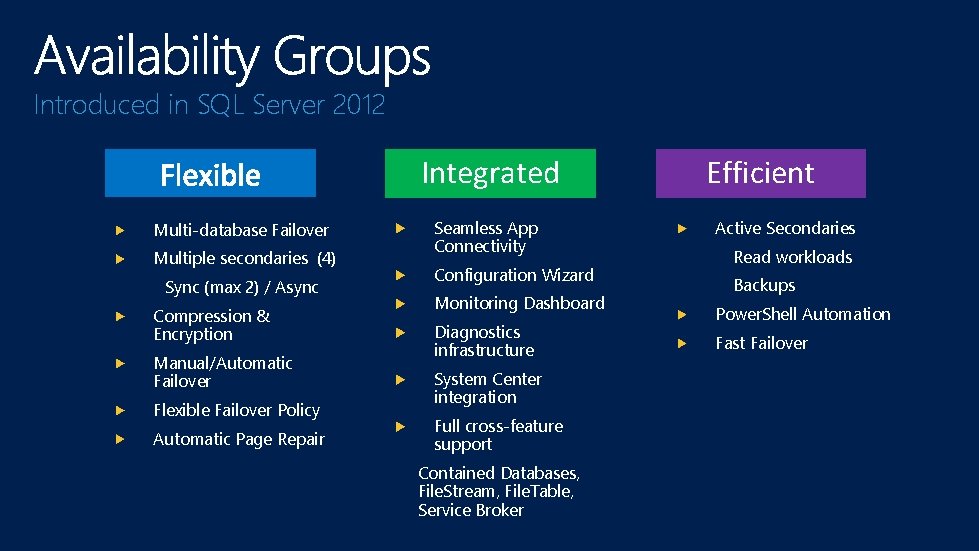

Introduced in SQL Server 2012 Integrated Multi-database Failover Multiple secondaries (4) Sync (max 2) / Async Compression & Encryption Manual/Automatic Failover Flexible Failover Policy Automatic Page Repair Seamless App Connectivity Configuration Wizard Monitoring Dashboard Diagnostics infrastructure System Center integration Full cross-feature support Contained Databases, File. Stream, File. Table, Service Broker Efficient Active Secondaries Read workloads Backups Power. Shell Automation Fast Failover

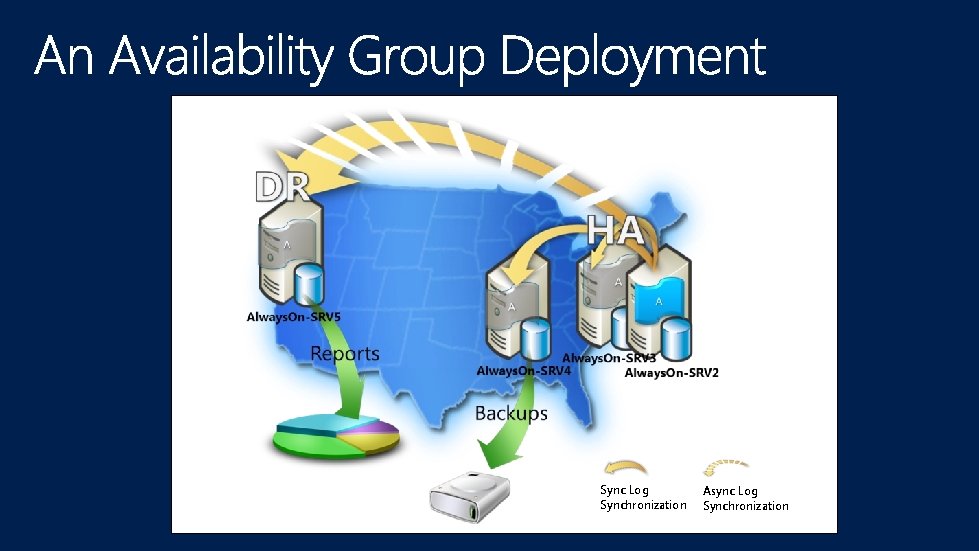

Sync Log Synchronization Async Log Synchronization
SQL Server HA/DR Technologies Availability Groups (for groups of databases) Pre-existent Increased Number of Secondaries Server failover Useful in. Availability consolidationof scenarios Increased Readable Secondaries Shared storage (SAN / SMB) Add. Depends Azure Replica Wizard on storage redundancy Failover takes minutes Server restart Multi-node instance Enhanced Passive secondary nodes Failover Cluster Instances (for servers) Support for Windows New Cluster Shared Volumes Multi-database Failover DBs that app depends on Direct attached storage Log synchronization Failover takes seconds D i a g n. Secondary o s t i c sreplicas are online Multiple Secondary Replicas Active Secondary Replicas
Increased Number of Secondaries • Single technology to configure / manage • Higher throughput (~7 x) than Replication • Reduce query latency in geo-distributed environments • Scale-out read workloads • Max 2 sync secondaries for high availability • Secondary delay depends on network latency and I/O: ~1 s within data center, ~5 s between data centers

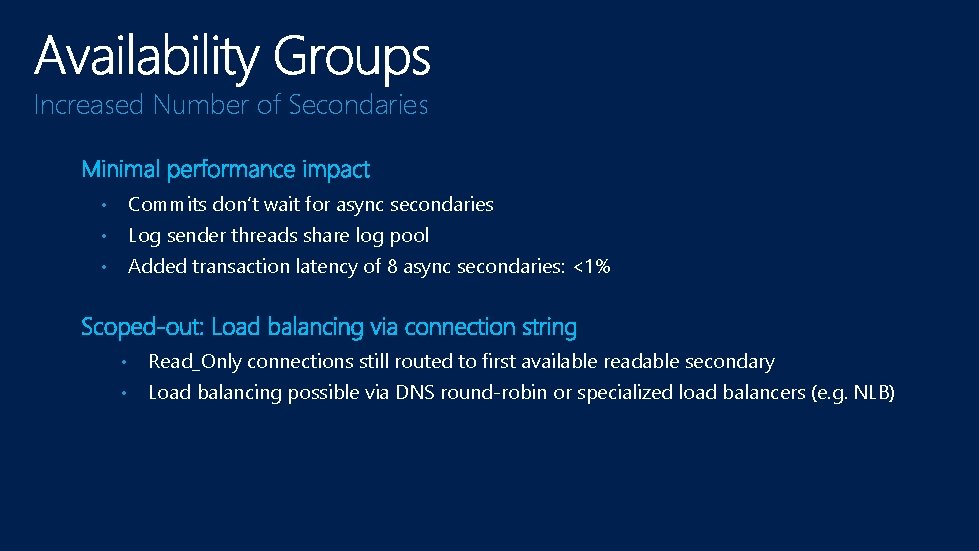

Increased Number of Secondaries • Commits don’t wait for async secondaries • Log sender threads share log pool • Added transaction latency of 8 async secondaries: <1% • Read_Only connections still routed to first available readable secondary • Load balancing possible via DNS round-robin or specialized load balancers (e. g. NLB)
Increased Readable Secondaries Availability • Geo-distributed environments (e. g. failure/upgrade of network equipment, ISP failures) • Hybrid (on-premise to Azure) deployments • Readable secondaries remain available during “Resolving” state • Requires direct connections to readable secondaries (Read-only routing not supported yet) • Replica state and last commit time available in DMV/Dashboard

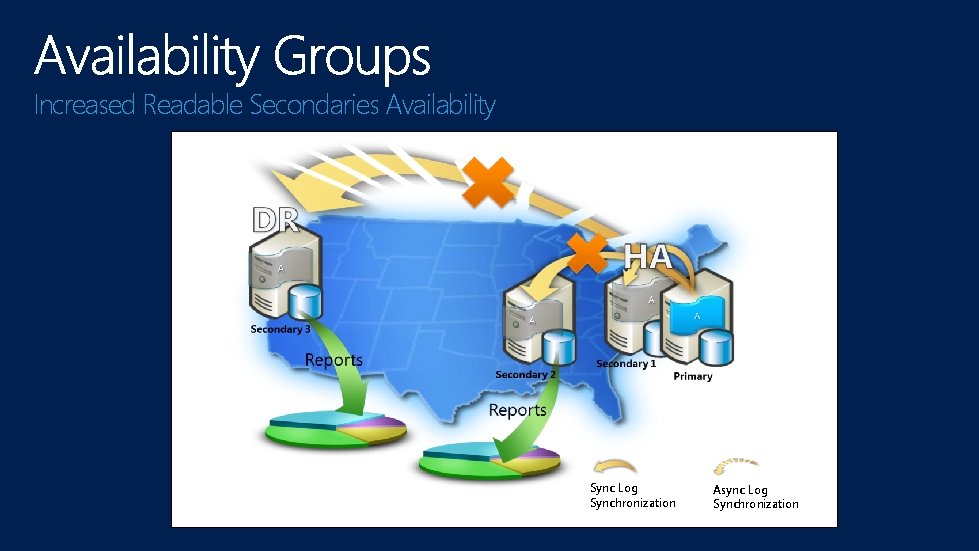

Increased Readable Secondaries Availability Sync Log Synchronization Async Log Synchronization
Increased Readable Secondaries Availability

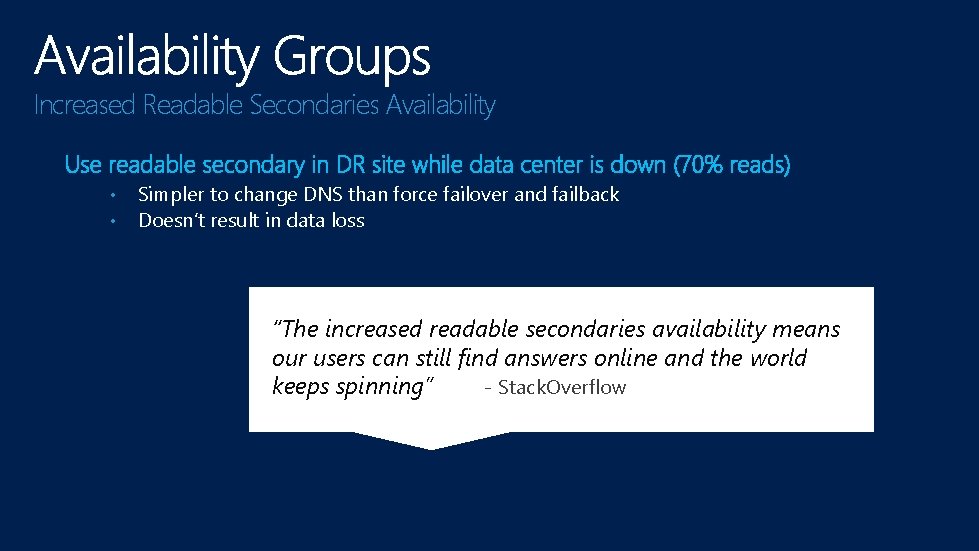

Increased Readable Secondaries Availability • • Simpler to change DNS than force failover and failback Doesn’t result in data loss “The increased readable secondaries availability means our users can still find answers online and the world keeps spinning” - Stack. Overflow

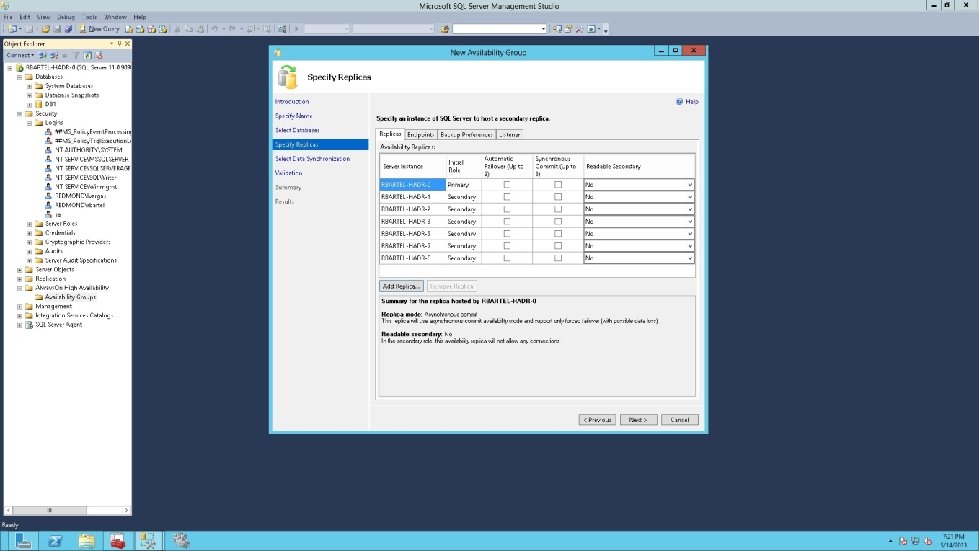

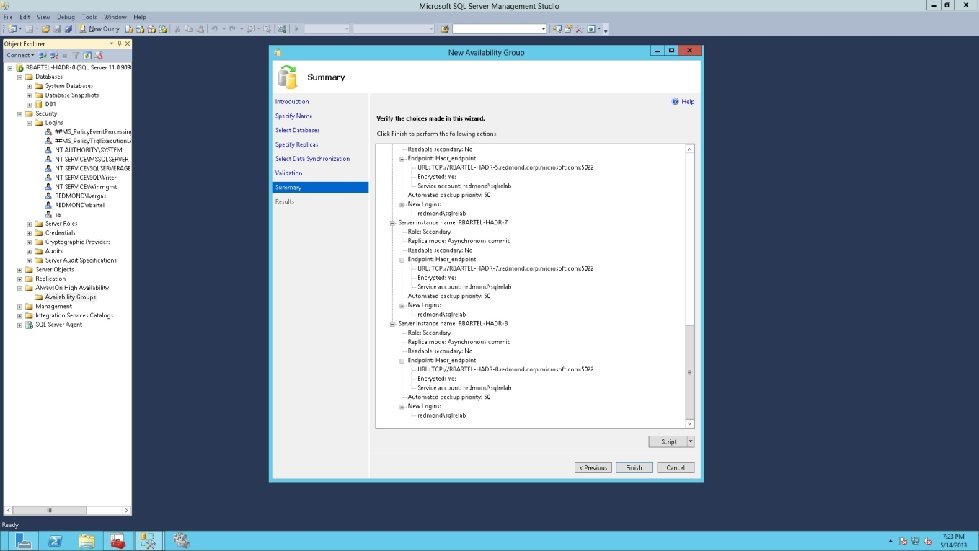

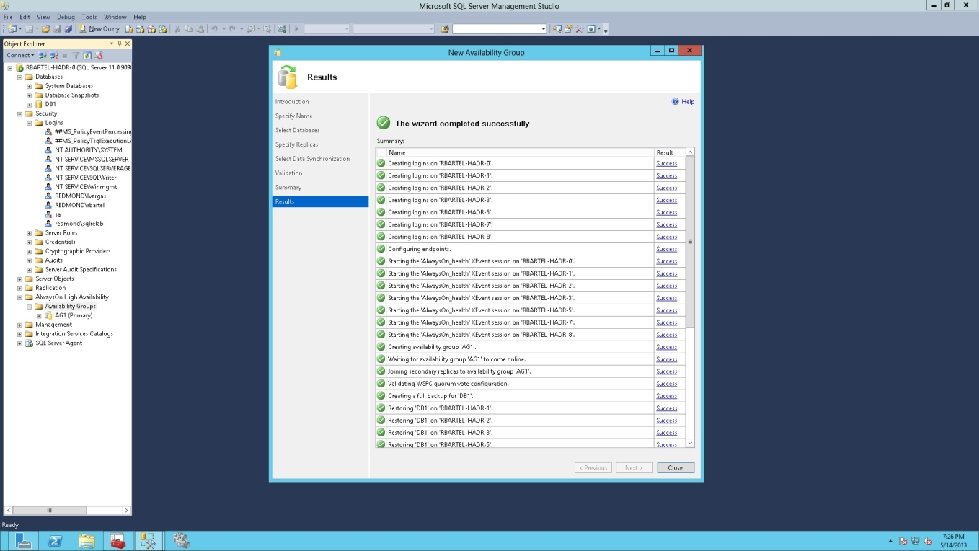

Add Azure Replica Wizard • Site rent + maintenance, hardware, Ops • Offload read workloads • Offload backups (policy compliance) • Disaster recovery • West US, East Asia, Southeast Asia, North Europe, West Europe • Latency / political considerations

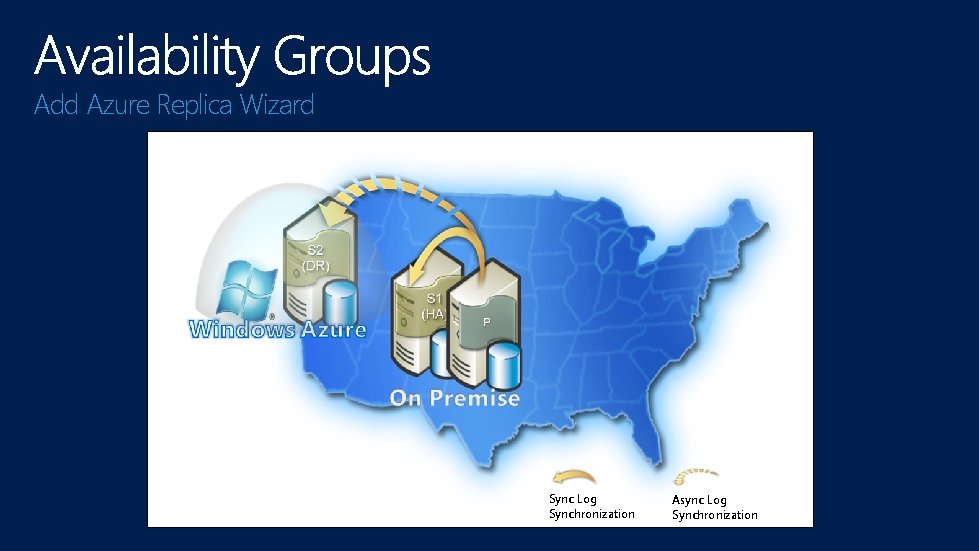

Add Azure Replica Wizard Sync Log Synchronization Async Log Synchronization

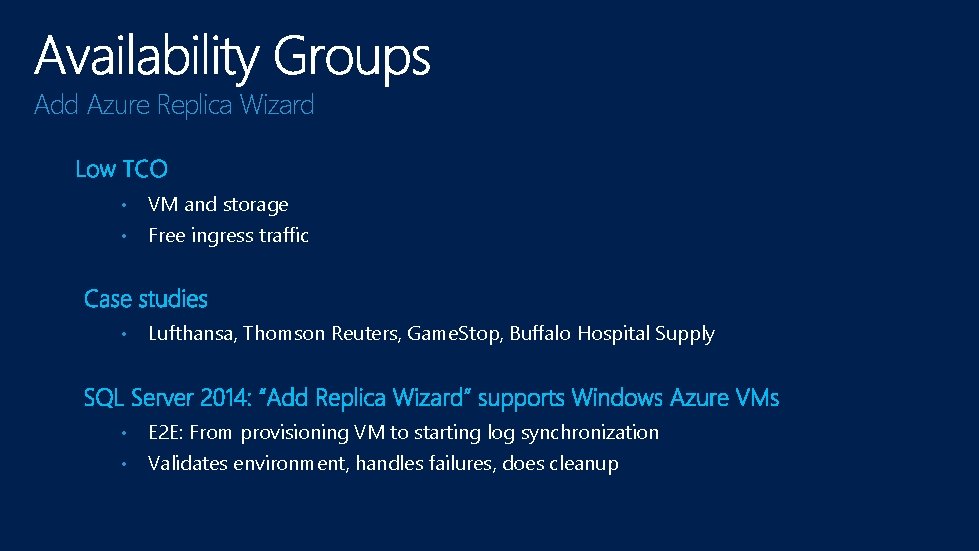

Add Azure Replica Wizard • VM and storage • Free ingress traffic • Lufthansa, Thomson Reuters, Game. Stop, Buffalo Hospital Supply • E 2 E: From provisioning VM to starting log synchronization • Validates environment, handles failures, does cleanup
Enhanced Diagnostics • Simplify troubleshooting & prevent issues • Based on feedback from customers & CSS
Enhanced Diagnostics Title Component Show in XEL output in UTC (not adjusted to client SSMS computer) Showtimestamps in XEL output in UTC adjusted to client computer) XEvents Viewer Warning about log synchronization behavior when primary replica is async Dashboard System function Is. Primary. Replica(database_name) System function Add AG name (and replica name and DB name if relevant) to many more XEvents to allow better data correlation between the logs Report major HADRON Manager transitions to Always. On XEvent session XEvents Add Replica name context to connection established error log entry Error Log XEvents Dump output from sys. dm_hadr_database_replica_states to SQLtoerror when Dumprelevant output from sys. dm_hadr_database_replica_states SQLlog error log XEvents replicas change to resolving state when replicas change to resolving state Add new error message to detect AG startup failure when quorum is forced Error Log Separate error msg 41142 (replica can't become primary) - raised for twofor importantly Separate error msg 41142 (replica become primary) - raised two different reasons importantly different reasons Always. On Functions/DMVs should also support FCIs where applicable Improve the CREATE AG error message “AG already exists”, to say “It’s possible that a previous DROP AG operation, executed during cluster quorum loss, didn’t delete the AG from the cluster. If so, please retry the DROP operation” Remove FCI setup dependency on cluster. exe (deprecated) – Use Powershell Error Log DMVs Error Message e. . r o m 3 and 1 Error Log

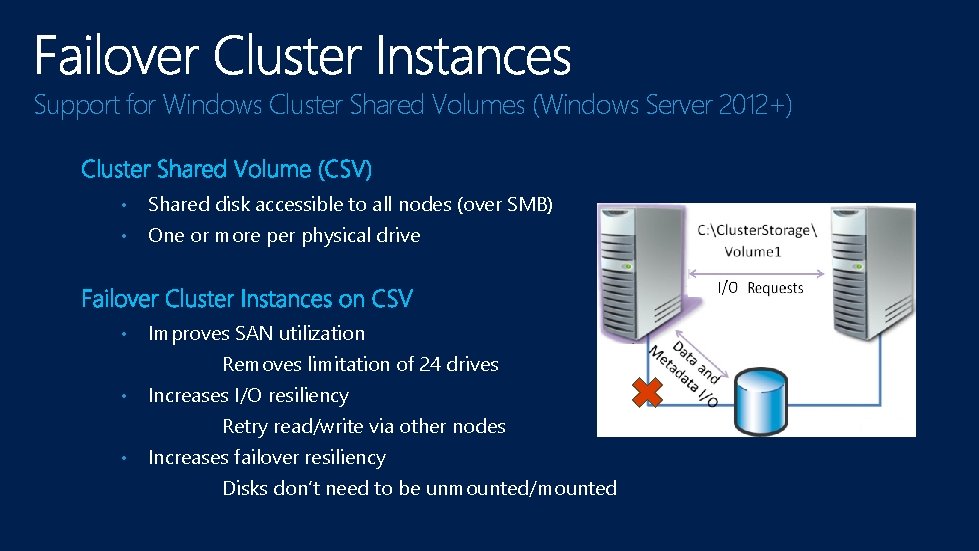

Support for Windows Cluster Shared Volumes (Windows Server 2012+) • Shared disk accessible to all nodes (over SMB) • One or more per physical drive • Improves SAN utilization Removes limitation of 24 drives • Increases I/O resiliency Retry read/write via other nodes • Increases failover resiliency Disks don’t need to be unmounted/mounted
Support for Windows Cluster Shared Volumes (Windows Server 2012+)

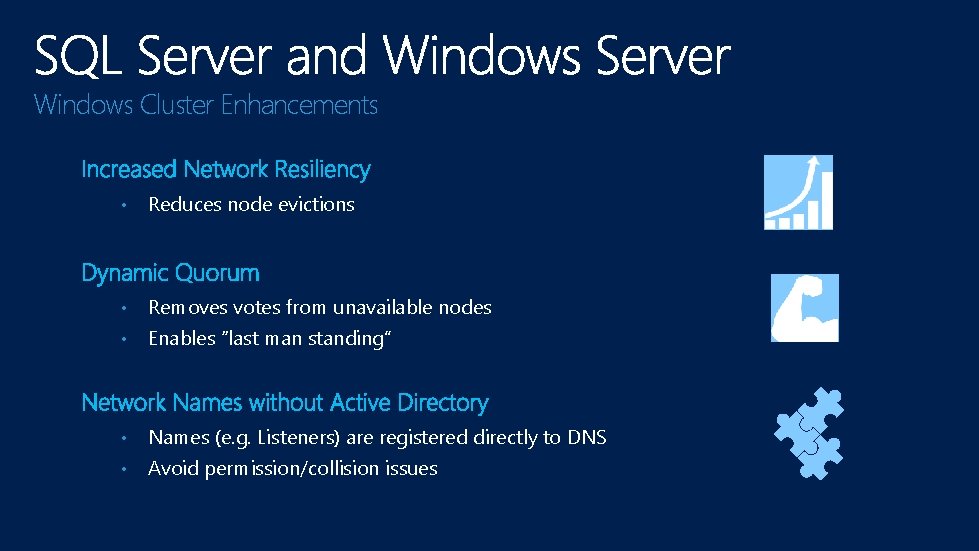

Windows Cluster Enhancements • Reduces node evictions • Removes votes from unavailable nodes • Enables “last man standing” • Names (e. g. Listeners) are registered directly to DNS • Avoid permission/collision issues
