Detailed Electrical Generator Design Build of Materials Description

Detailed Electrical Generator Design

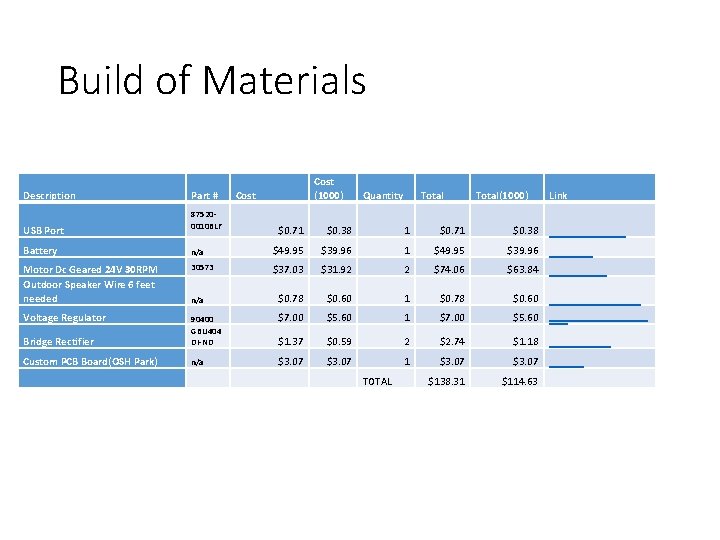

Build of Materials Description USB Port Part # 875200010 BLF Cost (1000) Cost Quantity Total(1000) $0. 71 $0. 38 1 $0. 71 $0. 38 Link http: //www. mouser. com/Product. Detail/FCI/87520 -0010 BLF/? qs=x 6 Ej. Vpvq. MVP/2 to 87 x 7 cd. Q== Battery n/a $49. 95 $39. 96 1 $49. 95 $39. 96 http: //www. adafruit. com/products/1566#Description Motor Dc Geared 24 V 30 RPM Outdoor Speaker Wire 6 feet needed 30573 $37. 03 $31. 92 2 $74. 06 $63. 84 http: //www. digikey. com/product-detail/en/30573/CRA 206 -ND/186746 n/a $0. 78 $0. 60 1 $0. 78 $0. 60 http: //www. amazon. com/Cables-Waterproof-Speaker-sequential-markings/dp/B 008 J 4 XCB 8/ref=pd_sim_sbs_e_1 Voltage Regulator $7. 00 $5. 60 1 $7. 00 $5. 60 http: //www. prodctodc. com/dc-35 v 30 v-to-40 v 30 v-converter-auto-boost-buck-voltage-regulators-power-supply-module-p 67. html#. Uq. A 3 Is. RDuz 6 Bridge Rectifier 90400 GBU 404 DI-ND $1. 37 $0. 59 2 $2. 74 $1. 18 http: //www. digikey. com/product-detail/en/GBU 404 DI-ND/278605 Custom PCB Board(OSH Park) n/a $3. 07 1 $3. 07 http: //oshpark. com/orders/new/78 avpdqg $138. 31 $114. 63 TOTAL

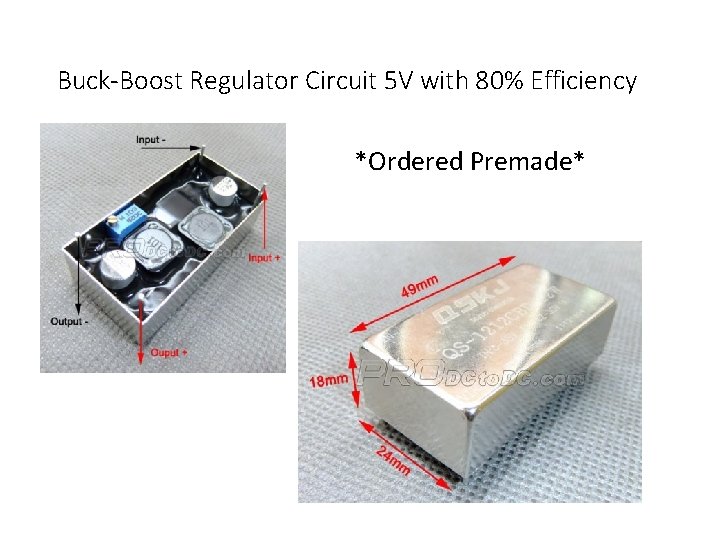

Buck-Boost Regulator Circuit 5 V with 80% Efficiency *Ordered Premade*

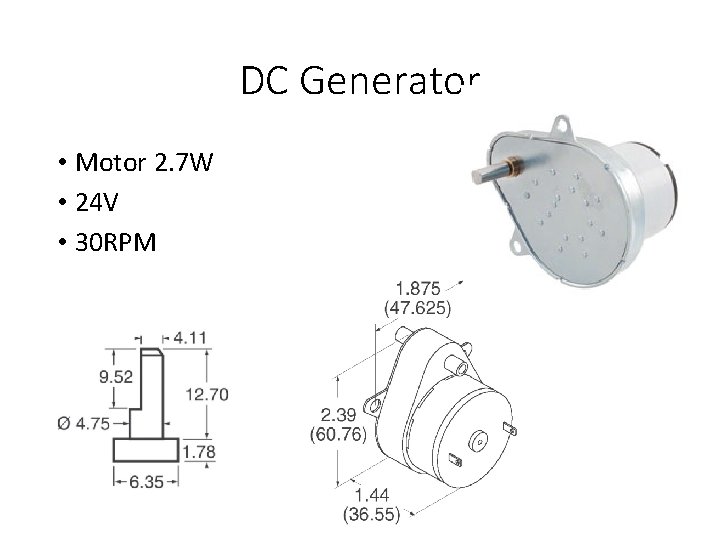

DC Generator • Motor 2. 7 W • 24 V • 30 RPM

Battery with Battery Protection • 10, 000 m. Ah @ 5 V Outputs up 2 A Draws up to 1 A • Dimensions: 2. 9" x 1" x 4. 9" / 72 mm x 24 mm x 125 mm • Weight: 300 g • 80% Effecant

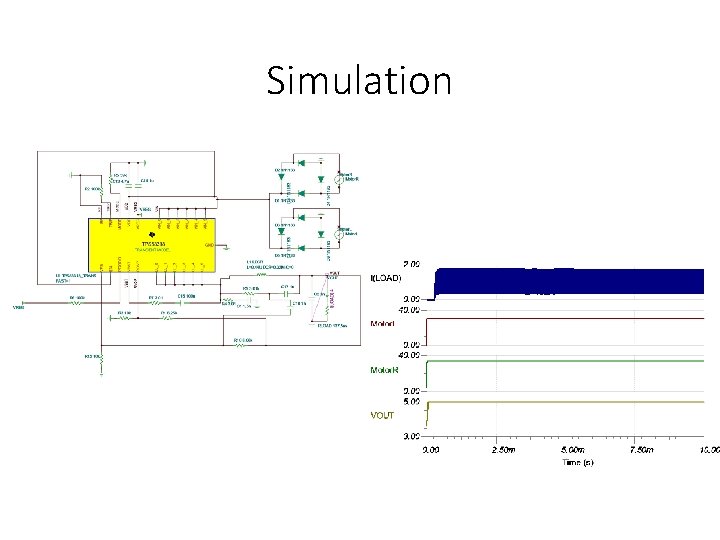

Simulation

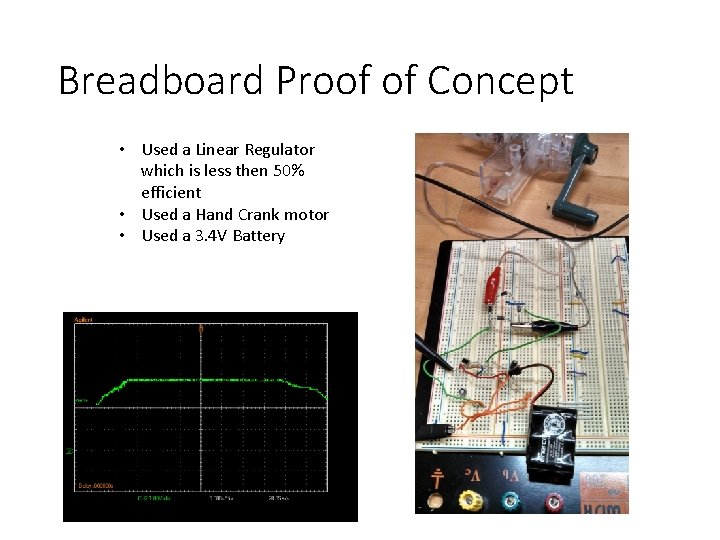

Breadboard Proof of Concept • Used a Linear Regulator which is less then 50% efficient • Used a Hand Crank motor • Used a 3. 4 V Battery

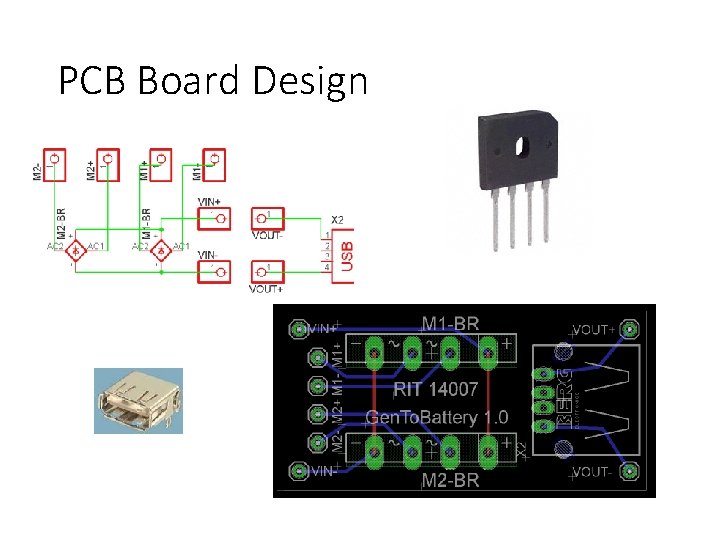

PCB Board Design

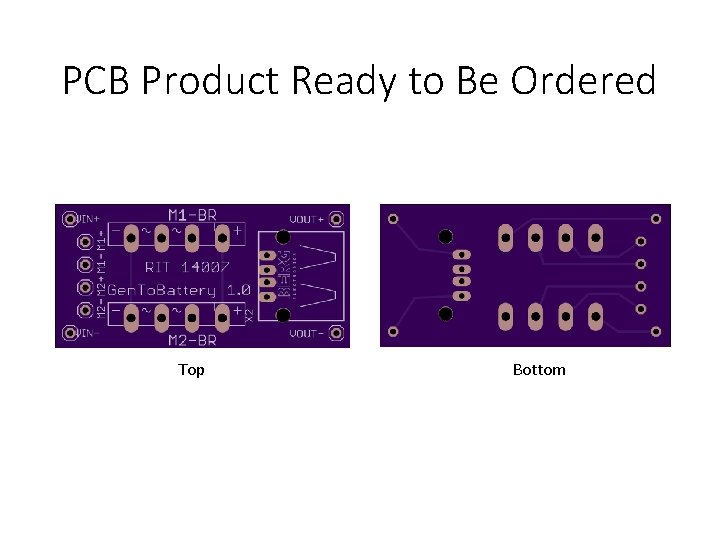

PCB Product Ready to Be Ordered Top Bottom

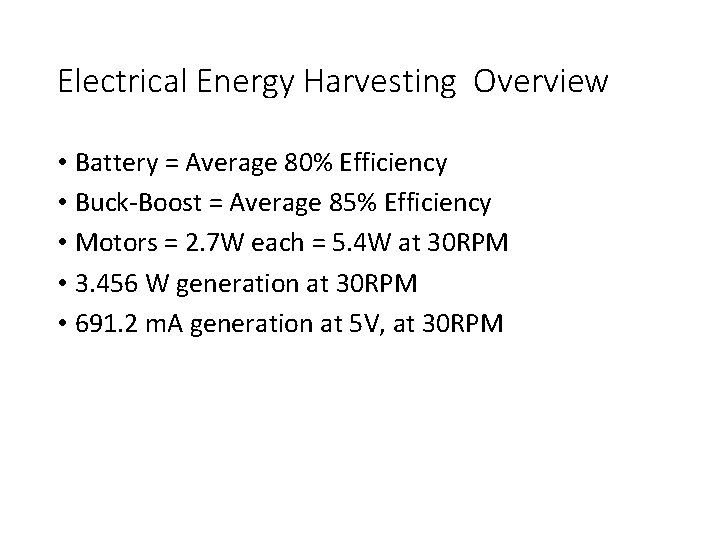

Electrical Energy Harvesting Overview • Battery = Average 80% Efficiency • Buck-Boost = Average 85% Efficiency • Motors = 2. 7 W each = 5. 4 W at 30 RPM • 3. 456 W generation at 30 RPM • 691. 2 m. A generation at 5 V, at 30 RPM

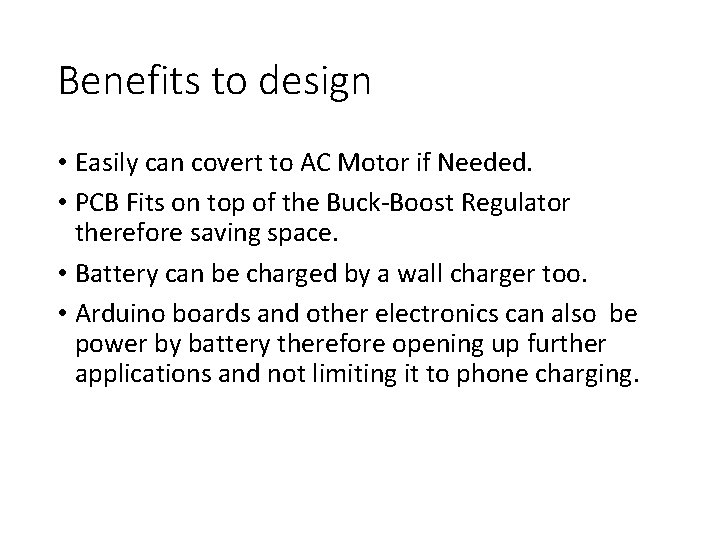

Benefits to design • Easily can covert to AC Motor if Needed. • PCB Fits on top of the Buck-Boost Regulator therefore saving space. • Battery can be charged by a wall charger too. • Arduino boards and other electronics can also be power by battery therefore opening up further applications and not limiting it to phone charging.
