Designing High Power Single Frequency Fiber Lasers Dmitriy Churin Course OPTI-521 1

Overview –What is a single frequency laser –Applications of single frequency lasers – Identifying the limitation of the fiber single frequency lasers – Stimulated Brillouin Scattering – Gradient of temperature of the fiber –Applying strain to the fiber and choice of the epoxy 2

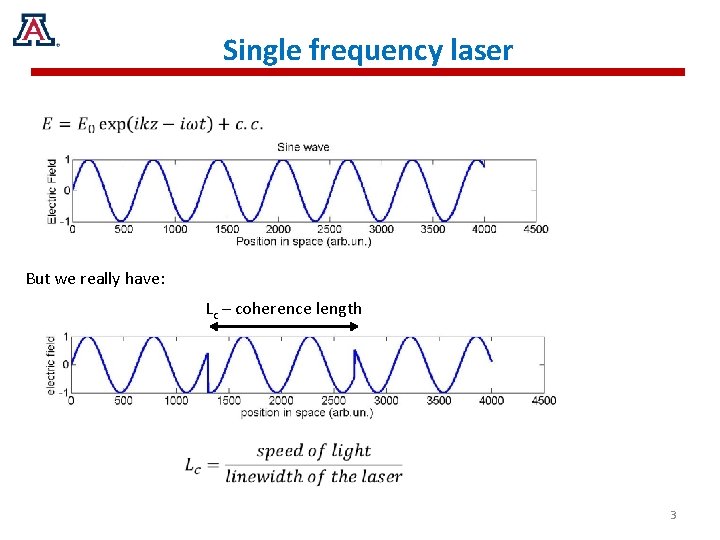

Single frequency laser But we really have: Lc – coherence length 3

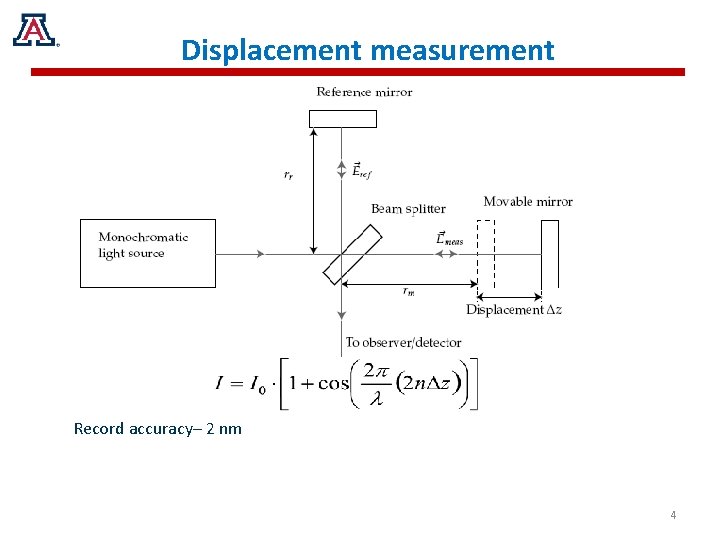

Displacement measurement Record accuracy– 2 nm 4

Velocity measurement Doppler effect: POLYTEC Velocimeter: Dimensions, mm Wavelength Laser power Working distance [mm] Min. velocity [m/min] Max. velocity [m/min] 300 x 120 x 110 690 nm max. 25 m. W 200 1, 500 0. 3 2. 11 875 6, 211 5

Laser Atom Cooling Rubidium atoms: 2 mm Six laser beams converge from three orthogonal directions to slow the atoms that happen to pass through the volume where the beams intersect. To hold and trap the atoms in this region, a magnetic induction field is created by two coils positioned on either side of the overlap volume. 6

Acoustic Vibration Measurements ~1 m. W DFB fiber laser 7

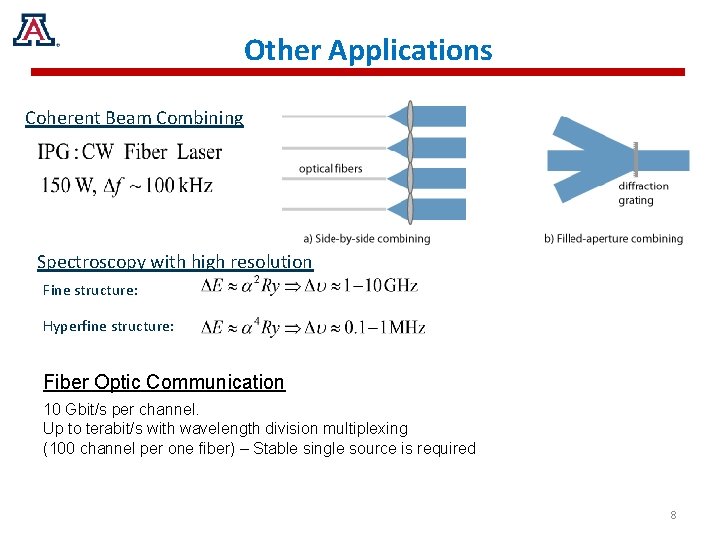

Other Applications Coherent Beam Combining Spectroscopy with high resolution Fine structure: Hyperfine structure: Fiber Optic Communication 10 Gbit/s per channel. Up to terabit/s with wavelength division multiplexing (100 channel per one fiber) – Stable single source is required 8

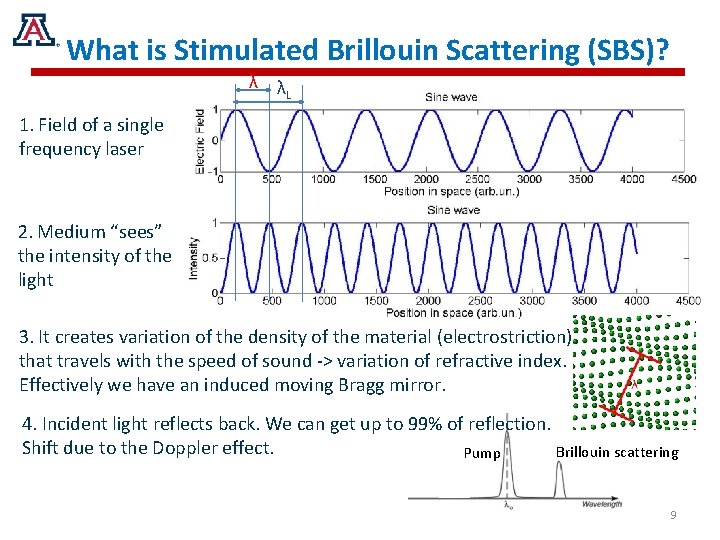

What is Stimulated Brillouin Scattering (SBS)? λ λ L 1. Field of a single frequency laser 2. Medium “sees” the intensity of the light 3. It creates variation of the density of the material (electrostriction) that travels with the speed of sound -> variation of refractive index. Effectively we have an induced moving Bragg mirror. 4. Incident light reflects back. We can get up to 99% of reflection. Shift due to the Doppler effect. Brillouin scattering Pump 9

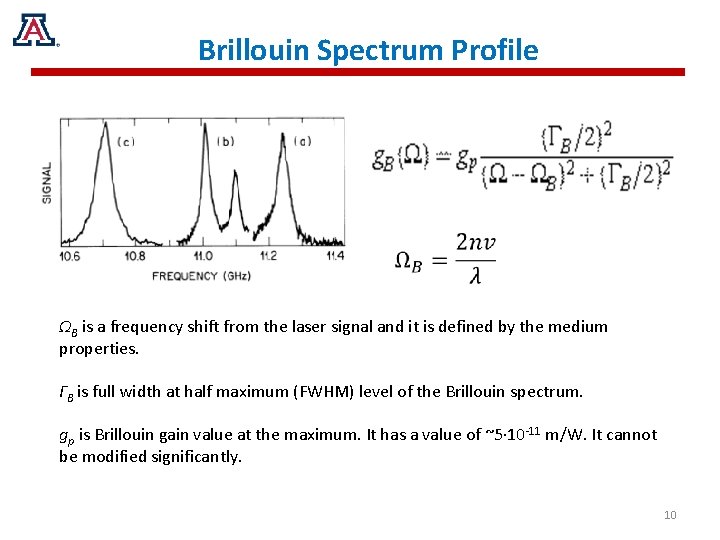

Brillouin Spectrum Profile ΩB is a frequency shift from the laser signal and it is defined by the medium properties. ΓB is full width at half maximum (FWHM) level of the Brillouin spectrum. gp is Brillouin gain value at the maximum. It has a value of ~5· 10 -11 m/W. It cannot be modified significantly. 10

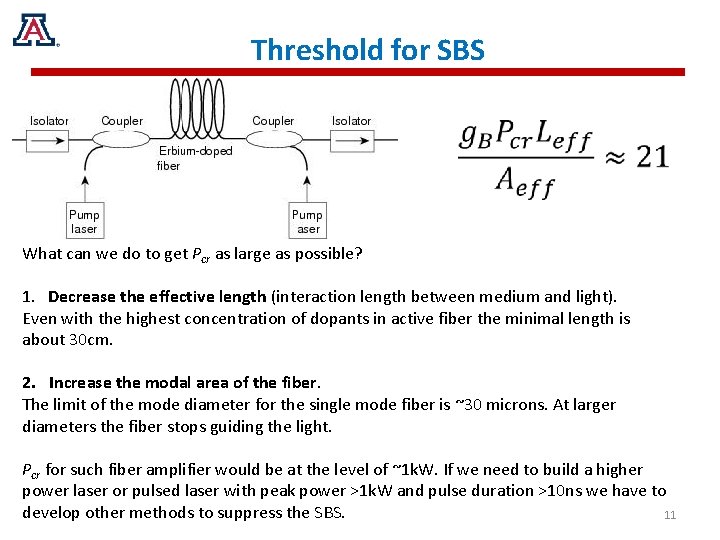

Threshold for SBS What can we do to get Pcr as large as possible? 1. Decrease the effective length (interaction length between medium and light). Even with the highest concentration of dopants in active fiber the minimal length is about 30 cm. 2. Increase the modal area of the fiber. The limit of the mode diameter for the single mode fiber is ~30 microns. At larger diameters the fiber stops guiding the light. Pcr for such fiber amplifier would be at the level of ~1 k. W. If we need to build a higher power laser or pulsed laser with peak power >1 k. W and pulse duration >10 ns we have to develop other methods to suppress the SBS. 11

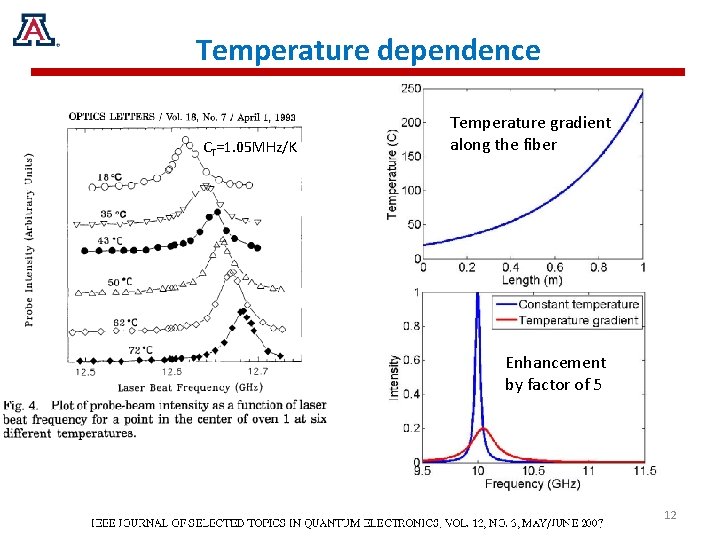

Temperature dependence CT=1. 05 MHz/K Temperature gradient along the fiber Enhancement by factor of 5 12

Applying strain to the fiber Split into 6 individual fibers with 1/6 of the total length CS=0. 464 GHz/% 13

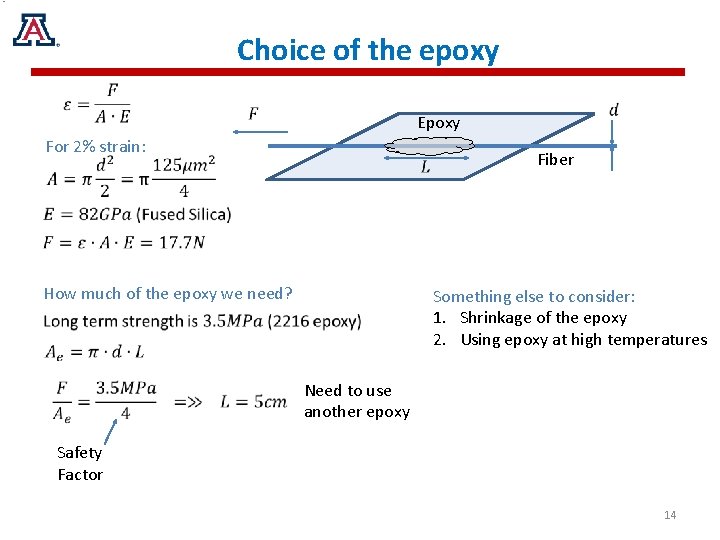

Choice of the epoxy Epoxy For 2% strain: Fiber How much of the epoxy we need? Something else to consider: 1. Shrinkage of the epoxy 2. Using epoxy at high temperatures Need to use another epoxy Safety Factor 14

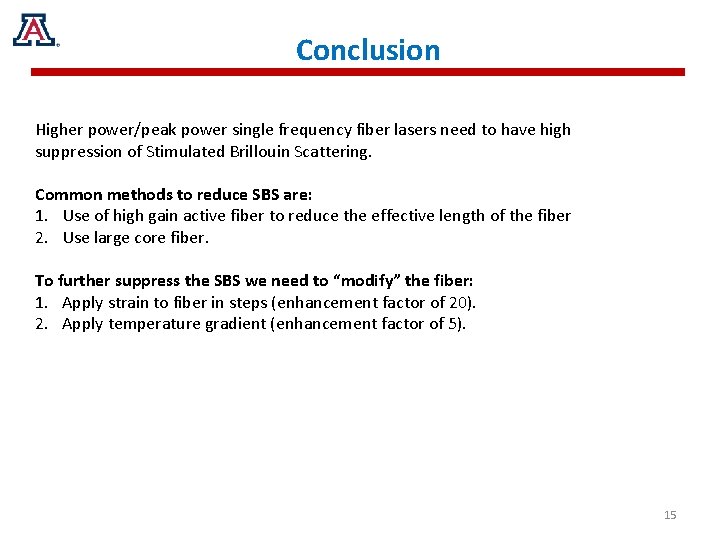

Conclusion Higher power/peak power single frequency fiber lasers need to have high suppression of Stimulated Brillouin Scattering. Common methods to reduce SBS are: 1. Use of high gain active fiber to reduce the effective length of the fiber 2. Use large core fiber. To further suppress the SBS we need to “modify” the fiber: 1. Apply strain to fiber in steps (enhancement factor of 20). 2. Apply temperature gradient (enhancement factor of 5). 15

Thank you 16

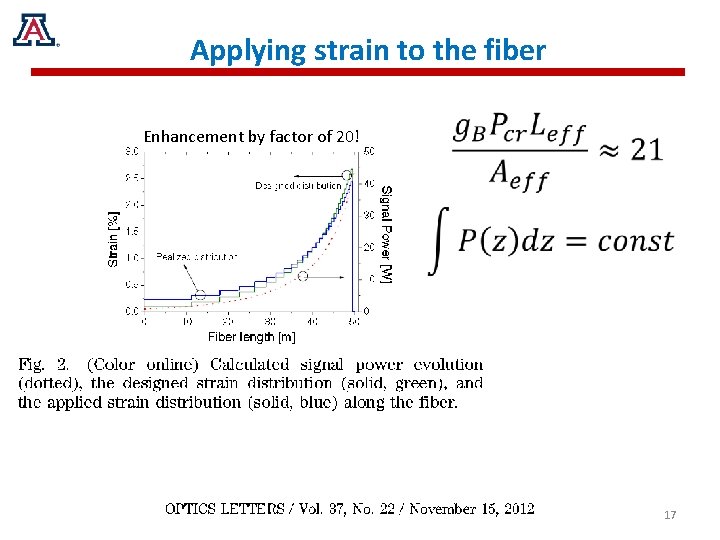

Applying strain to the fiber Enhancement by factor of 20! 17
