Designing a Middleware Server for Abstract Database Connection

Key Concepts Abstraction of the database connection layer. u Encryption of client – server communication. u Compression of data sent from server to client. u u u Hiding the underlying implementation from the client by providing an easy to use interface. Remote controlling the server. Modifying Server parameters without the need to stop it.

Design Stages ØDesigning the Server Side. ØDesigning the Client Side. ØDeveloping protocol. a common communication

Designing the Server Side ØDesigning reusability. ØProviding ØFinding flexible server configuration. the Right Adapter to serve the client. ØProviding ØUsing easily replaceable modules and increasing telnet based remote control. a profiler to increase efficiency.

Main Server Modules Ø The Server Adapter Ø The Server Worker Thread ØThe Ø Ø Adapters Manager The Connection Pool Encryption Streams

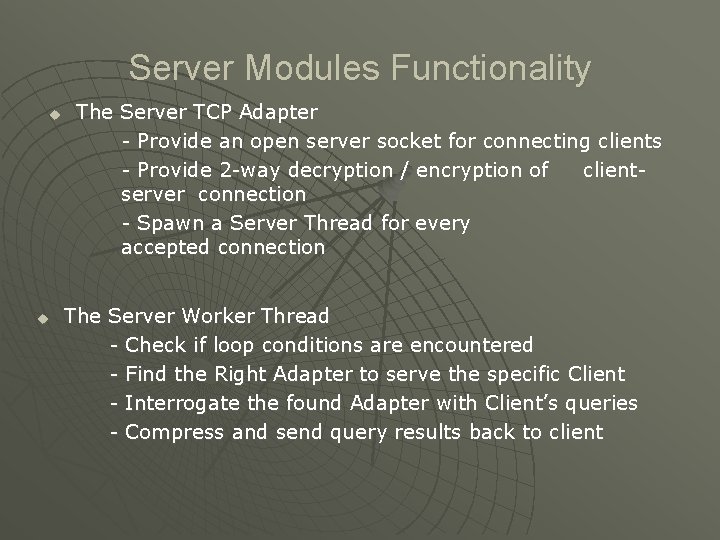

Server Modules Functionality u u The Server TCP Adapter - Provide an open server socket for connecting clients - Provide 2 -way decryption / encryption of clientserver connection - Spawn a Server Thread for every accepted connection The Server Worker Thread - Check if loop conditions are encountered - Find the Right Adapter to serve the specific Client - Interrogate the found Adapter with Client’s queries - Compress and send query results back to client

u u u Adapter Manager - Holds all available adapter types for a server. TCP Adapter - Is used by a DBAbstract Server to connect to another server of the same kind in order to solve client’s request. - Can use different Encryption keys/algorithms for incoming/outgoing connection streams - Provides a permanent connection through which queries can be issued and results can be obtained DB Adapter - Resolves a client request to a specific database - Loads a specific driver for the permanent database connection - Provides a pooled connection to the client - Solving client’s SQL queries from the database

Server Modules Design Adapter Manager Server Thread Ask For Right Adapter Spawn a Thread Encrypt/Decrypt Connection Streams Server TCP Adapter Encryption/Decryption Stream

Connection Pool Modules u u Connection Manager Broker -Provides means to obtain a connection from the pool. -Has a worker thread which keeps pooled connections alive and closes unused connections to minimum from time to time. Connection Manager -Manages a list of all available pools. -Provides a way to globally address all connection pools. Connection Pool -Manages a list of pooled connections. Pooled Connection -A reusable connection to the database

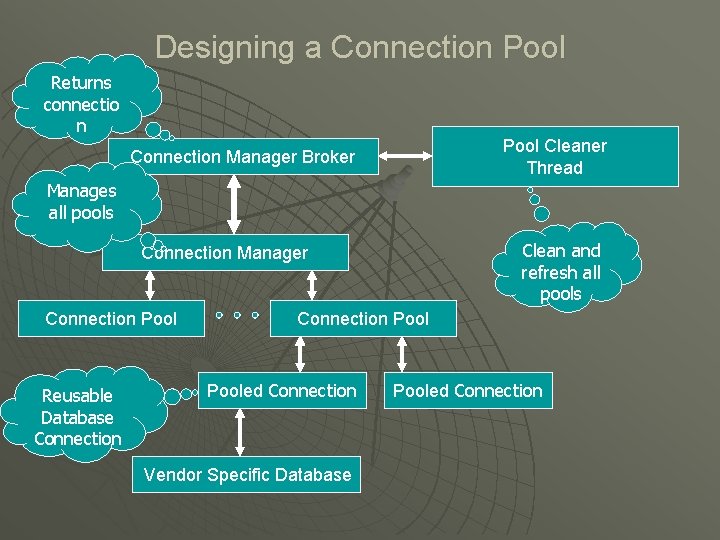

Designing a Connection Pool Returns connectio n Pool Cleaner Thread Connection Manager Broker Manages all pools Clean and refresh all pools Connection Manager Connection Pool Reusable Database Connection Pooled Connection Vendor Specific Database Pooled Connection

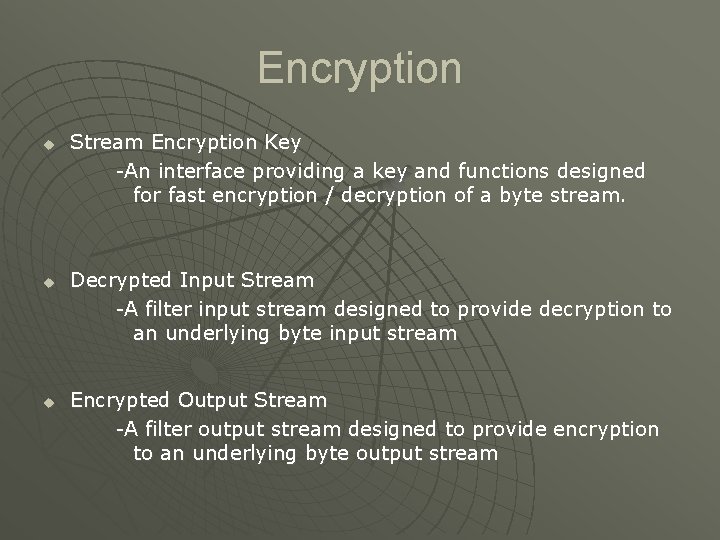

Encryption u u u Stream Encryption Key -An interface providing a key and functions designed for fast encryption / decryption of a byte stream. Decrypted Input Stream -A filter input stream designed to provide decryption to an underlying byte input stream Encrypted Output Stream -A filter output stream designed to provide encryption to an underlying byte output stream

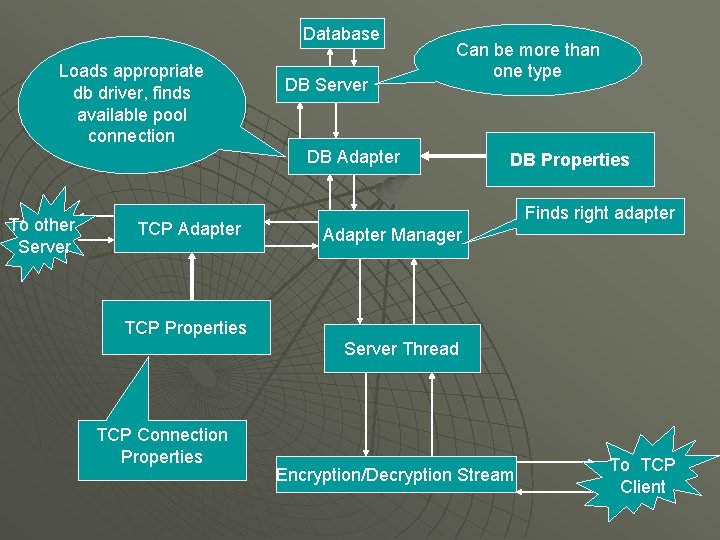

Database Loads appropriate db driver, finds available pool connection DB Server Can be more than one type DB Adapter To other Server TCP Adapter DB Properties Finds right adapter Adapter Manager TCP Properties Server Thread TCP Connection Properties Encryption/Decryption Stream To TCP Client

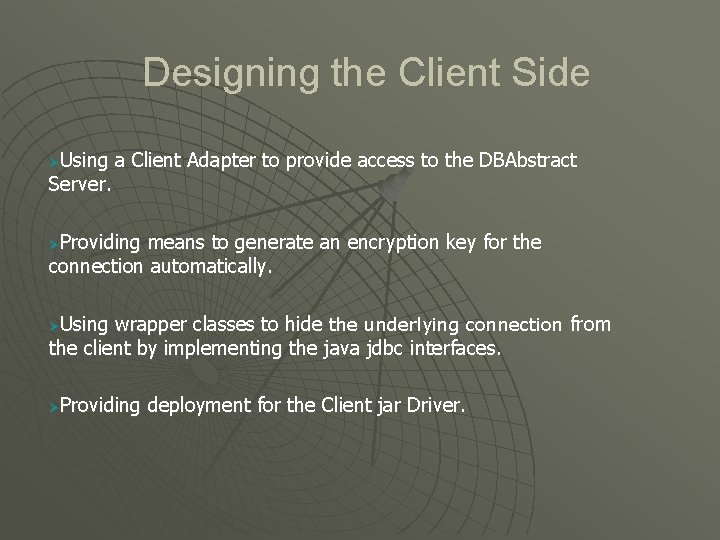

Designing the Client Side ØUsing Server. a Client Adapter to provide access to the DBAbstract ØProviding means to generate an encryption key for the connection automatically. ØUsing wrapper classes to hide the underlying connection from the client by implementing the java jdbc interfaces. ØProviding deployment for the Client jar Driver.

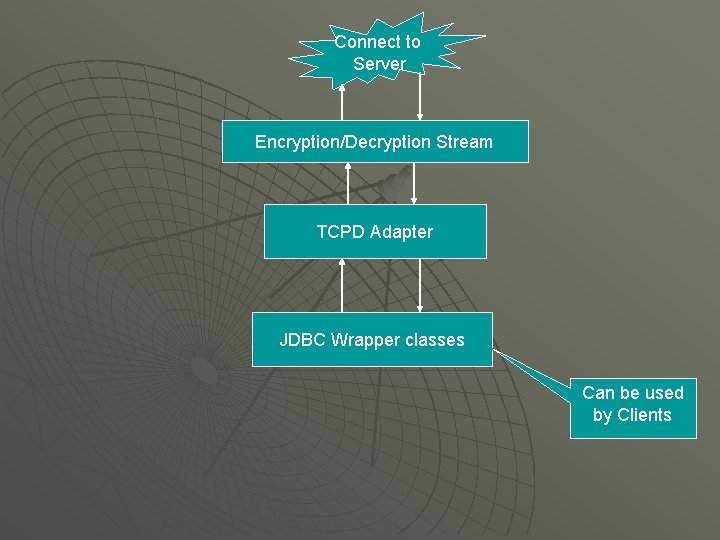

Connect to Server Encryption/Decryption Stream TCPD Adapter JDBC Wrapper classes Can be used by Clients

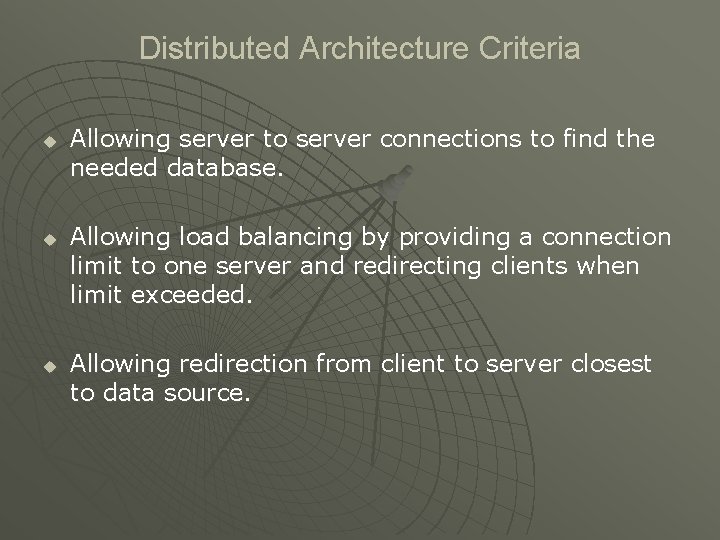

Distributed Architecture Criteria u u u Allowing server to server connections to find the needed database. Allowing load balancing by providing a connection limit to one server and redirecting clients when limit exceeded. Allowing redirection from client to server closest to data source.

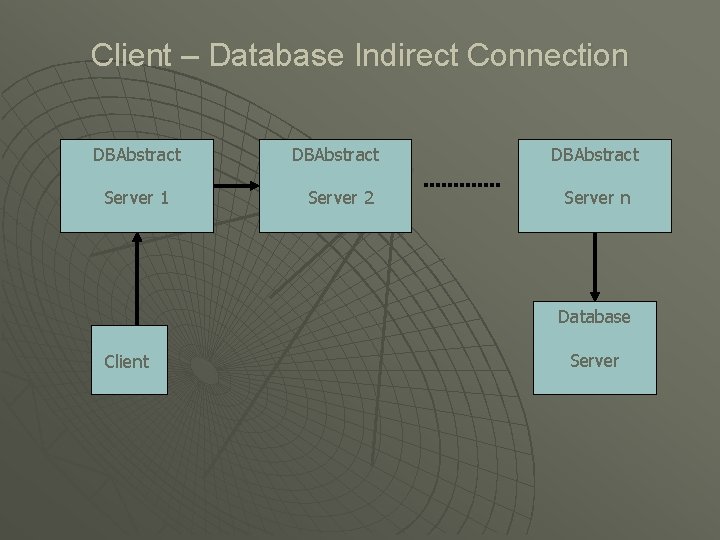

Client – Database Indirect Connection DBAbstract Server 1 DBAbstract Server 2 DBAbstract Server n Database Client Server

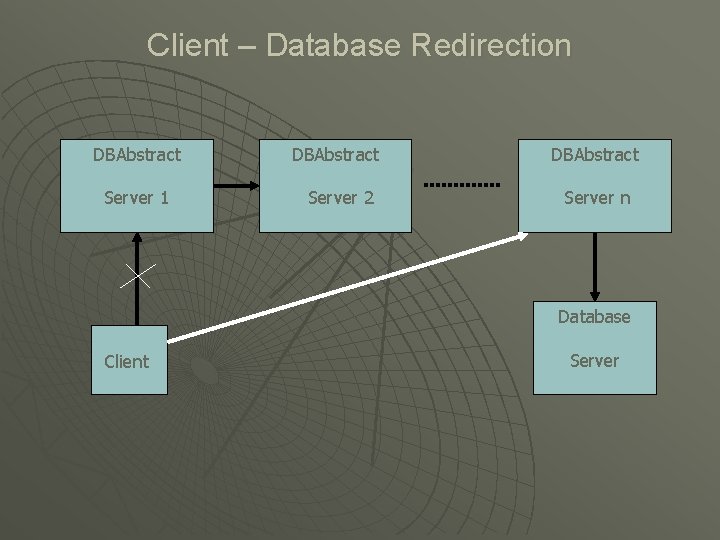

Client – Database Redirection DBAbstract Server 1 DBAbstract Server 2 DBAbstract Server n Database Client Server
