DESIGN SOLUTIONS Smoke Protection at the Elevator Hoistway

This program is registered with the AIA/CES for continuing professional education. As such, it

Learning Objectives building code requirements enclosed elevator lobby alternatives to lobbies unique code requirements

2012 FEMA: asphyxiation leading cause of death -- exceeds burns 3 -to-1

elevator shafts atria Smoke Protection Requirements openings in walls historical renovations

7 exceptions: 4 exceptions to the exception:

air leakage performance a l t e r n a t e m e

Flagler Station Marriott Courtyard "Using the rolling magnetic gasketing system, instead of an enclosed

Thank you for your time! Questions? This concludes the Smoke Guard Continuing Education Systems

Slides: 37

Download presentation

DESIGN SOLUTIONS: Smoke Protection at the Elevator Hoistway

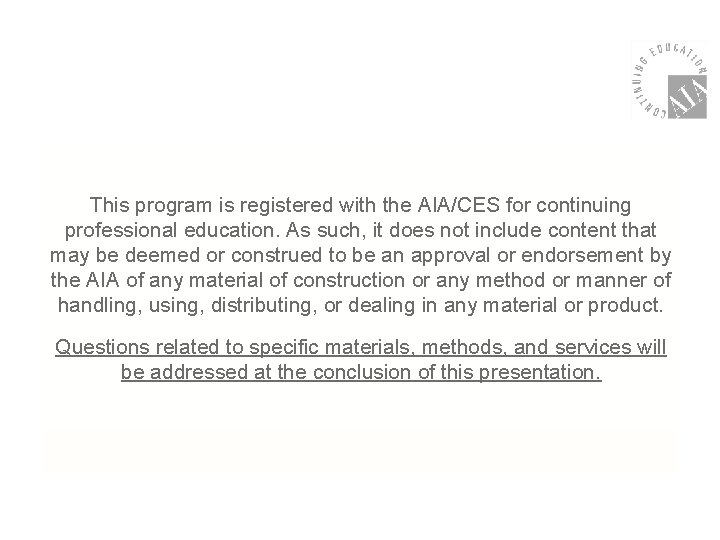

This program is registered with the AIA/CES for continuing professional education. As such, it does not include content that may be deemed or construed to be an approval or endorsement by the AIA of any material of construction or any method or manner of handling, using, distributing, or dealing in any material or product. Questions related to specific materials, methods, and services will be addressed at the conclusion of this presentation.

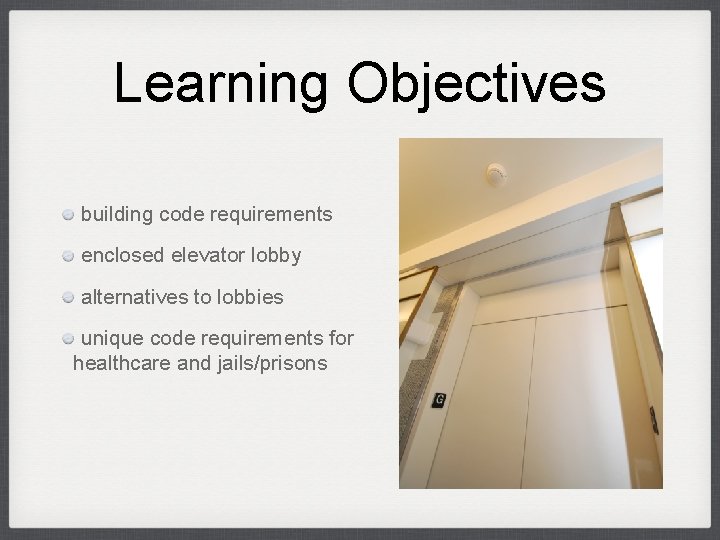

Learning Objectives building code requirements enclosed elevator lobby alternatives to lobbies unique code requirements for healthcare and jails/prisons

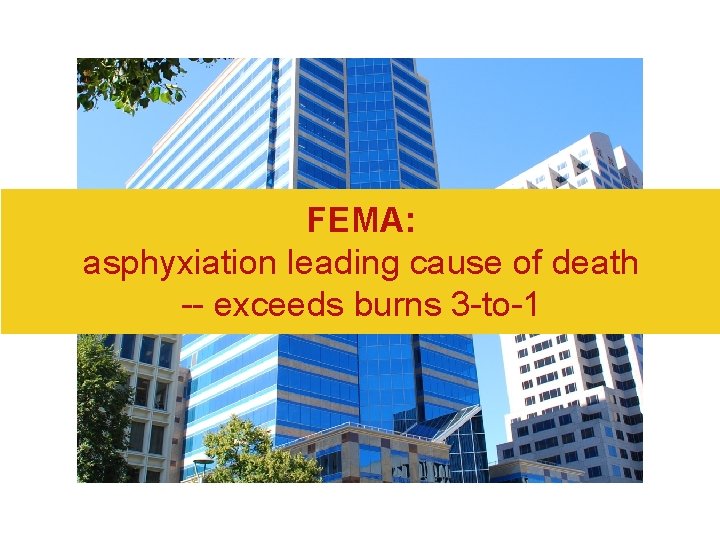

2012 FEMA: asphyxiation leading cause of death -- exceeds burns 3 -to-1

Best Protection? vs. active passive

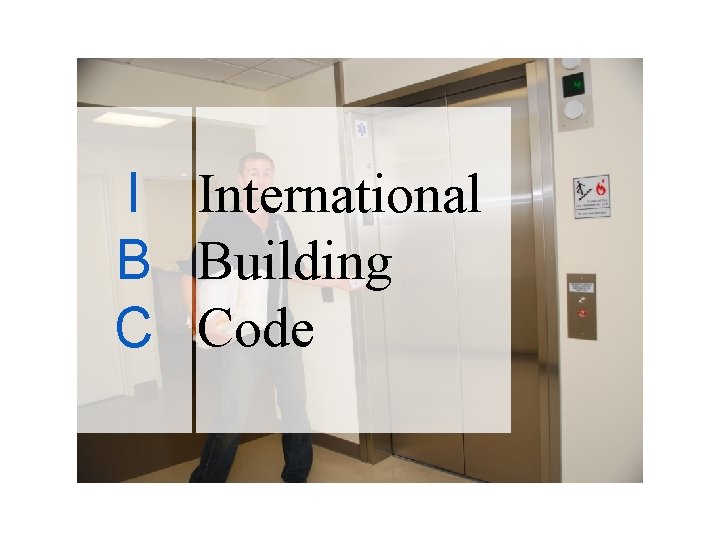

I International B Building C Code

elevator shafts atria Smoke Protection Requirements openings in walls historical renovations

Smoke & Fire in the Elevator Shaft

Enclosed Elevator Lobby

7 exceptions: 1

7 exceptions: 2

7 exceptions: 3

7 exceptions: 4 exceptions to the exception:

7 exceptions: 5 + smoke

7 exceptions: 6

7 exceptions: 7

Alternative Means & Methods

Smoke containment system

Performance

"resist the passage of smoke" 3/8"

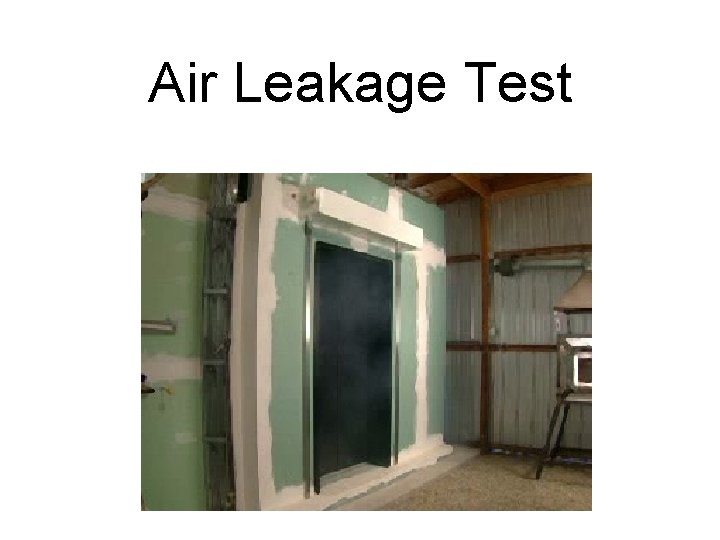

Air Leakage Test

air leakage performance l o b b y

air leakage performance 3

air leakage performance 6

air leakage performance a l t e r n a t e m e t h o d s

life cycle maintenance

cost comparisons

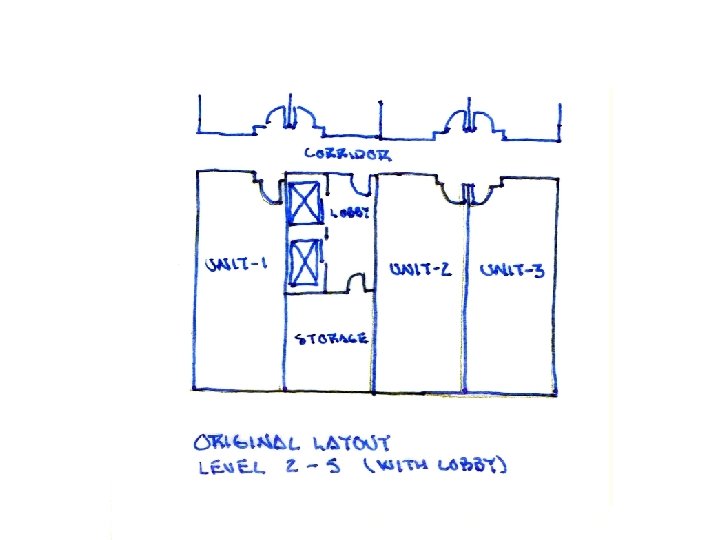

Flagler Station Marriott Courtyard

Flagler Station Marriott Courtyard

Flagler Station Marriott Courtyard "Using the rolling magnetic gasketing system, instead of an enclosed elevator lobby, I was able to dramatically reduce the size of the corridor and redistribute the saved space in ways that made the building more valuable. " Bernardo Sandoval Associate Project Manager, Beame Architectural Partnership

Healthcare and Prisons

Thank you for your time! Questions? This concludes the Smoke Guard Continuing Education Systems Course smokeguard. com 800/574 -0330
