Design Patterns Difficult to describe abstractly Elements Pattern
Design Patterns • Difficult to describe abstractly • Elements: – Pattern Name – Problem to Solve – Solution – Consequences: Results and Trade-Offs • Higher level abstraction than classes

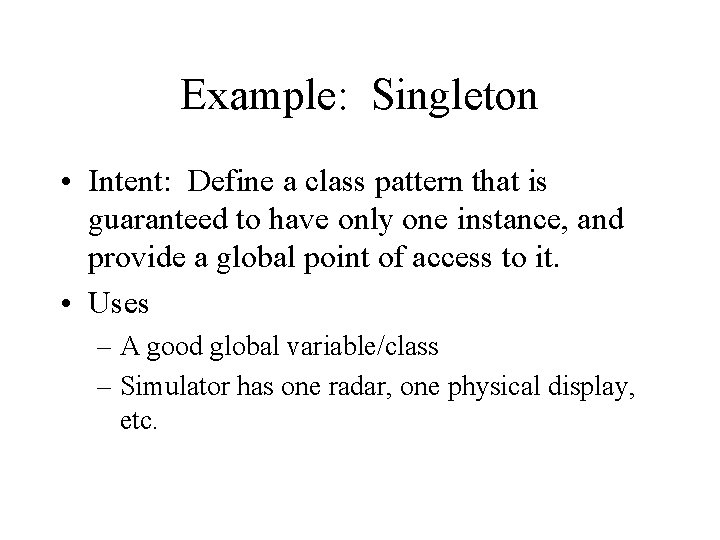

Example: Singleton • Intent: Define a class pattern that is guaranteed to have only one instance, and provide a global point of access to it. • Uses – A good global variable/class – Simulator has one radar, one physical display, etc.
Singleton Implementation Class Singleton { public: static Singleton* Instance(); protected: Singleton(); private: static Singleton* _instance; }; Singleton* Singleton: : Instance = 0; Singleton* Singleton: : Instance() { if (_instance == 0) { _instance = new Singleton; } return _instance; }

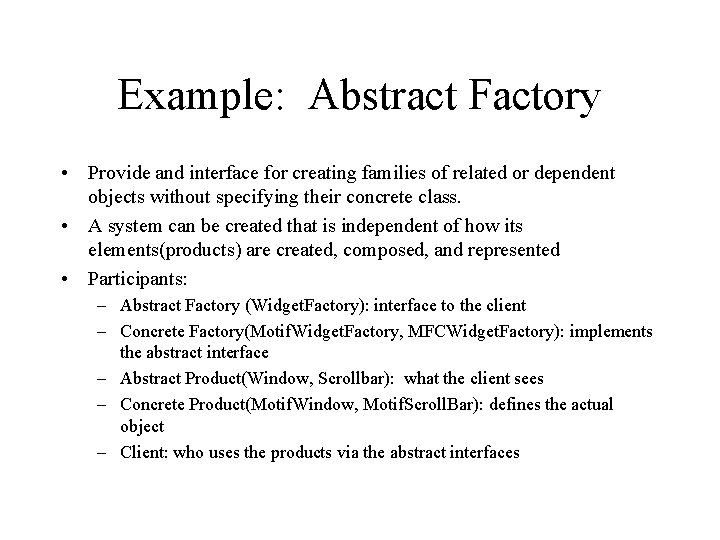

Example: Abstract Factory • Provide and interface for creating families of related or dependent objects without specifying their concrete class. • A system can be created that is independent of how its elements(products) are created, composed, and represented • Participants: – Abstract Factory (Widget. Factory): interface to the client – Concrete Factory(Motif. Widget. Factory, MFCWidget. Factory): implements the abstract interface – Abstract Product(Window, Scrollbar): what the client sees – Concrete Product(Motif. Window, Motif. Scroll. Bar): defines the actual object – Client: who uses the products via the abstract interfaces
Iterator • Goal: Provide a way to sequentially access the elements of an aggregate object without exposing its underlying representation. • Using an iterator, it would be possible to replace an array with a linked list or binary tree • This construct is heavily used in STL
Iterator Implementation Template <class Item> class Iterator { public: virtual void First() = 0; virtual void Next()= 0; virtual bool Is. Done() const = 0; virtual Item Current. Item const = 0; protected: Iterator(); };

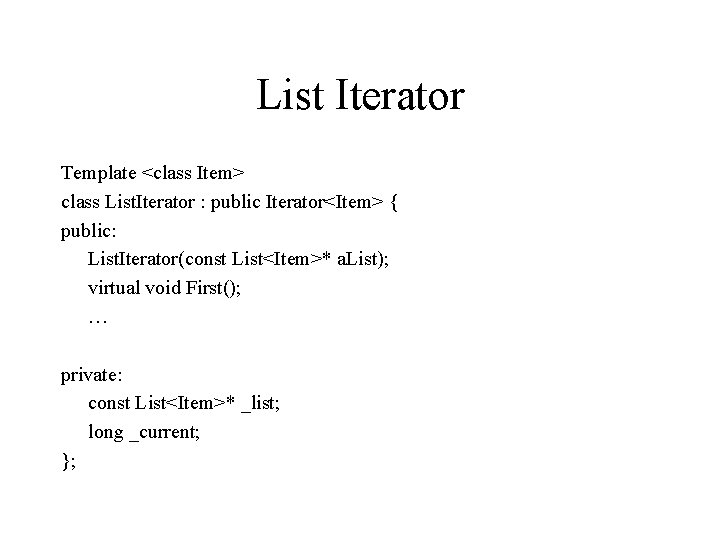

List Iterator Template <class Item> class List. Iterator : public Iterator<Item> { public: List. Iterator(const List<Item>* a. List); virtual void First(); … private: const List<Item>* _list; long _current; };
STL • Standard Template Libaray: Part of C++ • Objects – vector – list – map & multimap – set & multiset – deque (double ended queues) – stack, queue, priority_queue
STL cont’d • All objects have iterators • Generic Algorithms can be done on these objects – for_each, find, count, equal, search, sort, fill, merge, etc.
