Design of Gantry Girders Dr N Subramanian 1
Design of Gantry Girders Dr. N. Subramanian 1

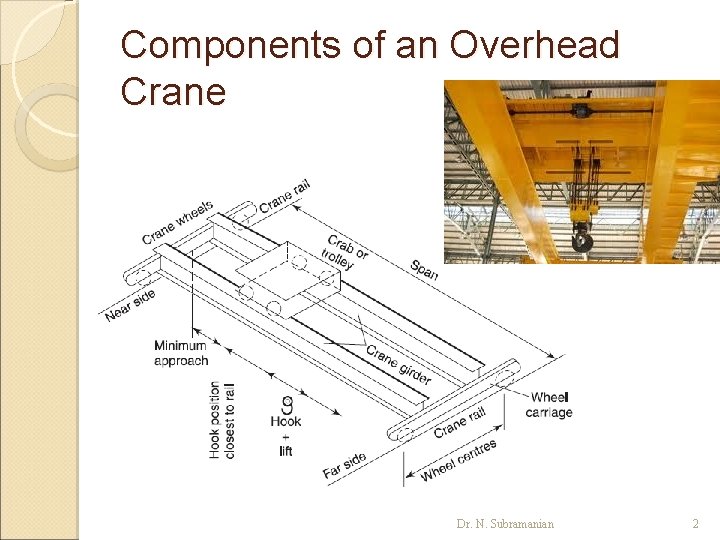

Components of an Overhead Crane Dr. N. Subramanian 2
Crane Notations Dr. N. Subramanian 3
Data For Overhead Cranes Load and other details of crane should be obtained from the manufacturers of cranes. Dr. N. Subramanian 4
Typical Data for 40 t Crane Dr. N. Subramanian 5
Loads on Gantry Girder Dr. N. Subramanian 6
Impact Loads Dr. N. Subramanian 7
Maximum Load Effects Dr. N. Subramanian 8
Max. S. F. , B. M. , and Deflection Dr. N. Subramanian 9
Two Cranes at the Same Span Dr. N. Subramanian 10
Max. BM for Two Cranes At the Same Span Dr. N. Subramanian 11
Limiting Deflection Dr. N. Subramanian 12
Profiles Used for Gantry Girders Dr. N. Subramanian 13
Fatigue Effects Gantry girders are subjected to fatigue effects due to the moving loads. Normally, light and medium duty cranes are not checked for fatigue effects if the number of cycles of load is less than 5 x 106. For heavy duty cranes, the gantry girders are to be checked for fatigue loads. (See also IS: 1024 and IS: 807). Dr. N. Subramanian 14
Fatigue Effects (Cont. ) The fatigue strength is governed by the following factors Number of repetitions of load: In most cases 2 x 106 cycles of repetitions are considered to be the limit of endurance. The ratio of the maximum stress to the minimum stress at a section due to repetitions R = f min / f max Where, f max = maximum stress f min = minimum stress Dr. N. Subramanian 15
Fatigue Strength Curve-IS 800 Dr. N. Subramanian 16
Steps for Design Assume that the lateral load is resisted entirely by the top flange of the beam plus any reinforcing plates, channels etc. and the vertical load is resisted by the combined beam. 1. Find the maximum wheel load: This load is maximum when the trolley is closest to the gantry girder. Increase it for the impact 2. Calculate the maximum bending moment in the gantry girder due to vertical loads. 3. To simplify the calculations, add the maximum bending moment due to dead load to the maximum wheel load moment Dr. N. Subramanian 17
Steps for Design (cont. ) 4. The maximum shear force is calculated. When the gantry is not laterally supported, the following may be used to select a trail section. Zp = M u / f y Zp (trial) = k Zp (k = 1. 40 -1. 50) Economic depth ≈ 1/12 th of the span. Width of flange ≈ 1/40 to 1/30 th of the span 5. The plastic section modulus of the assumed combined section Mp = 2 f y A / 2 = A f y where A is called the plastic modulus Zp Dr. N. Subramanian 18
Steps for Design (cont. ) 6. Check for moment capacity of the whole section (as lateral support is provided at the compression flange) Mcz = βb Zp fy ≤ 1. 2 Ze fy / γm 0 <Mu 7. Check top flange for bending in both the axes using the interaction equation (My / Mndy)+ (M 2/Mndz) ≤ 1. 0 8. If the top (compression) flange is not supported, Check for buckling resistance in the same way as in step 6 but replacing fy with the design bending compressive stress fbd. Dr. N. Subramanian 19
Steps for Design (cont. ) 9. Check web of the girder at points of concentrated load for local buckling or local crushing, and provide load carrying/ bearing stiffeners, if necessary. 10. Check for deflection under working loads Dr. N. Subramanian 20
Allowable Ecc. Of Load and Clamping Rails to Girder Dr. N. Subramanian 21
Column Profiles Dr. N. Subramanian 22
Column Bracket Details -Light Cranes Dr. N. Subramanian 23
Connection at the Top Flange Dr. N. Subramanian 24
Torsion on Column due to Longitudinal Forces Dr. N. Subramanian 25
Gantry Supported on Stepped Column Dr. N. Subramanian 26
Two Adjacent Gantry Supported on Column Dr. N. Subramanian 27
Do not Connect Girder Webs to Columns Dr. N. Subramanian 28
Bracings for Columns Dr. N. Subramanian 29
Crane Stops Dr. N. Subramanian 30
Case Study: Hoan Bridge (Milwaukee Harbor Bridge) Fatigue Fractures in Center Girder E and outside Girder F. These girders collapsed on Dec. 23, 2000 after 26 years of Service Dr. N. Subramanian 31
Example for Fatigue Design Dr. N. Subramanian 32
Example for Fatigue Design (cont. ) Dr. N. Subramanian 33
Example for Fatigue Design (cont. ) Dr. N. Subramanian 34
THANK YOU! Dr. N. Subramanian 35
