Design of Disturbance Rejection Controllers for a Magnetic

Design of Disturbance Rejection Controllers for a Magnetic Suspension System By: Jon Dunlap Advisor: Dr. Winfred K. N. Anakwa Bradley University April 27, 2006

Outline Of Presentation: o o o o Goal System Information Previous Lab Work Preliminary Lab Work Internal Model Principle Design Process Results Conclusion

Goal o o o Multiple Controllers for Multiple Disturbances n Digital Controllers n Created In Simulink n x. PC Target Box Serving as “Controller Container” n Minimize Steady-State Error, Overshoot and Setting Time Act As A Stepping Stone From Previous Work Practical Use in Antenna Stabilization

Method of Choice: n Internal Model Principle o B. A. Francis & W. M. Wonham n o Chi-Tsong Chen n o The Internal Model Principle of Control Theory, 1976 Linear System Theory and Design, 3 rd, 1999 Analogous to an Umbrella

Functional Description o Host PC using Simulink and x. PC software x. PC Target Box with Controllers o Magnetic Suspension System o § Feedback Incorporated 33 -210

Block Diagram

Previous Lab Work o Using Classical Controller n Will It Reject Disturbances?

Previous Lab Work o Results of Classical Controller With Disturbance o Rejected Step Disturbance

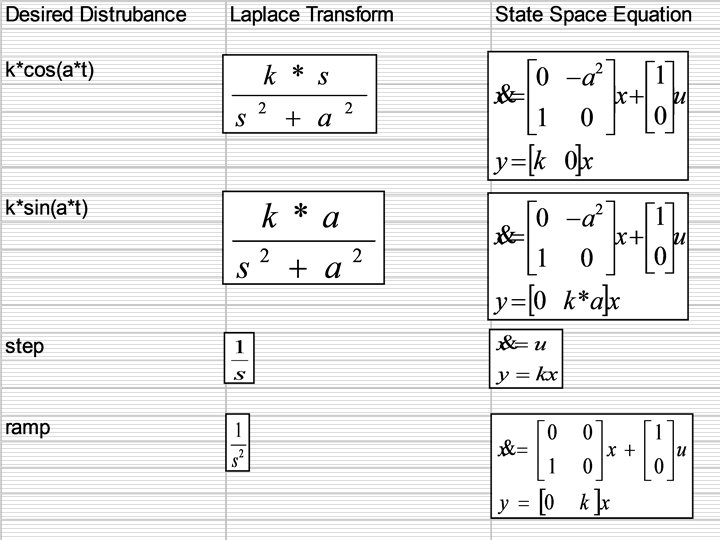

Preliminary Lab Work o o Laplace Transfer Functions Found Disturbance k*Cos(a*T) Later Converted To Discrete Using k*Sin(a*T) Zero-order Hold k-unit step k-unit ramp Laplace Equation

Internal Model Principle o o Uses a Model to Cancel Unstable Poles of Reference and Disturbance Inputs to Provide Asymptotic Tracking and Disturbance Rejection Model Is: Least Common Multiple of Unstable or Zero Continuous Denominator Poles n n n Ramp Disturbance Input = Step Reference Input = Model = P = 0, 0 0 0, 0

Design Approach o Disturbance Removed – Model Inserted n n o o Must Stabilize Plant at all Times Disturbance Should Never Affect Plant Output 3 Known, 2 Unknown A(z)D(z)P(z) + B(z)N(z)

Diophantine Equation o o o A(z)D(z)P(z) + B(z)N(z) = F(z) Want: n Choose Poles to Form F Polynomial o Discrete, Close to 1 Need: n Order of Controller o Order of D(z)P(z) – 1 = Order of Controller n Order of F o 2*(Order of D(z)P(z))-1 = Order of F

Keep In Mind - Account for Model when Implementing Controller o o Controller Order Assumes Denominator without Model Adding Model Increases Order Beyond Designed Value n n Ex. If D(z)P(z)=4, then Controller=3 But Model=2 so Controller Denominator really should be 1

Pole Placement o Ideal Situation n n Tsettle = 60 ms %O. S. = 18 n n n =. 479 W n= Wn= 139. 1788 W n<

Pole Placement Problems and Solution o Complex Poles Give Oscillations Wn < Poles>. 92 o All Poles Close To 1 Is Too Slow o n Speed Up With Poles Closer To Origin Iterative Design Approach Required o Working Poles For Ramp Rejection At: . 9947, . 9716, . 9275, . 9, . 01 F(z) = o

Diophantine Solution o A(z)D(z)P(z) + B(z)N(z) = F(z) o Combine D(z)P(z) to Equal D*(z) o For Each X(z)= o System of Equations To Be Solved Simultaneously n A 0 D*0+B 0 N 0=F 0…An. D*n+Bn. Nn=Fn

Diophantine Solution o Using Previous Example:

Actual Values For Ramp Controller o o o o N(z) = D(z) = P(z) = F(z) = B(z) = A(z)P(z) =

x. PC Simulink Implementation +

Results – Stability 1. 2. 2 V Step Disturbance at 2. 00 V Set Point 5 V/s Ramp Disturbance at 2. 00 V Set Point 1. 2. 2. 042

Results – Tracking 1. 5 V/s Ramp Disturbance 6 Hz. 5 V Peak-Peak Sine Wave Input 5. 98 Hz. 7 V Peak-Peak Sine Wave Output

Conclusion o Problems n n n o Simulation Does Not Match Plant Pole Locations are Hard to Find <300 m. V Error at Start Up Future n n Continue to Implement Sinusoidal and Square Wave Fine Tune Ramp With Better Poles

Questions?

Magnetic Suspension System o o Control and Disturbance Signal Create Current Induces Magnetic Field Suspends Ball Sensor Translates Location into Voltage

x. PC Target Box and Host PC o o o Using ± 10 V ADC and DAC Host Uploads Controller and Commands Process Position Data and Passes Control

Modeling Hybrid Systems “Simulink treats any model that has both continuous and discrete sample times as a hybrid model, presuming that the model has both continuous and discrete states. Solving such a model entails choosing a step size that satisfies both the precision constraint on the continuous state integration and the sample time hit constraint on the discrete states. Simulink meets this requirement by passing the next sample time hit, as determined by the discrete solver, as an additional constraint on the continuous solver. The continuous solver must choose a step size that advances the simulation up to but not beyond the time of the next sample time hit. The continuous solver can take a time step short of the next sample time hit to meet its accuracy constraint but it cannot take a step beyond the next sample time hit even if its accuracy constraint allows it to. ” http: //www. mathworks. com/access/helpdesk/help/toolbox/simulink/ug/f 7 -23387. html
