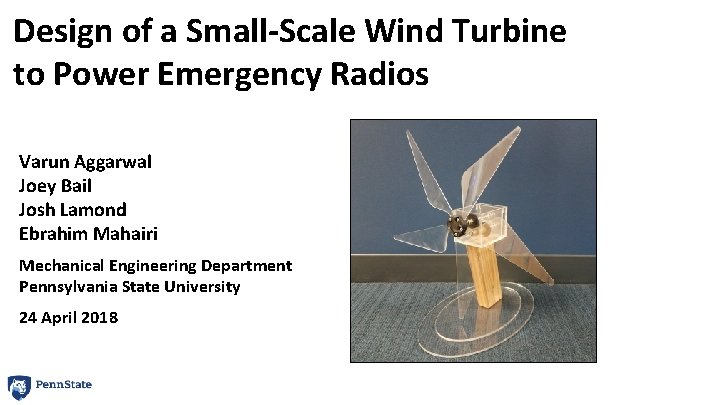

Design of a Small-Scale Wind Turbine to Power Emergency Radios Varun Aggarwal Joey Bail Josh Lamond Ebrahim Mahairi Mechanical Engineering Department Pennsylvania State University 24 April 2018

Our small-scale wind turbine was designed to provide power to natural disaster victims in the Philippines. [nytimes. com] 2

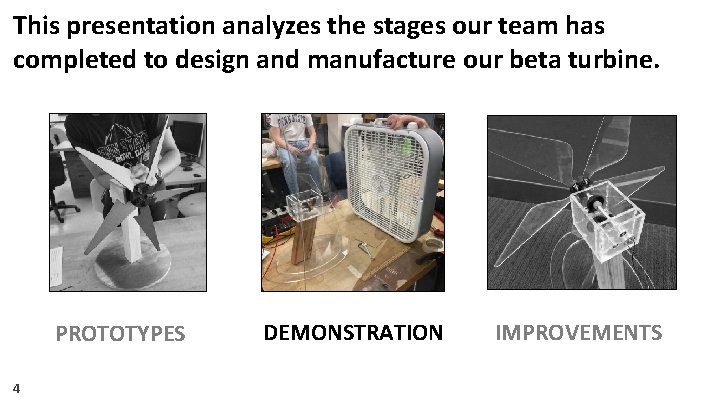

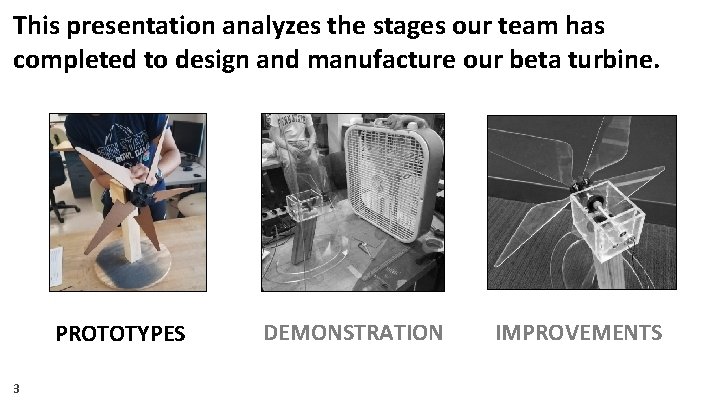

This presentation analyzes the stages our team has completed to design and manufacture our beta turbine. PROTOTYPES 3 DEMONSTRATION IMPROVEMENTS

This presentation analyzes the stages our team has completed to design and manufacture our beta turbine. PROTOTYPES 4 DEMONSTRATION IMPROVEMENTS

This presentation analyzes the stages our team has completed to design and manufacture our beta turbine. PROTOTYPES 5 DEMONSTRATION IMPROVEMENTS

Our team iterated through different prototypes to arrive at our final, beta prototype. 6

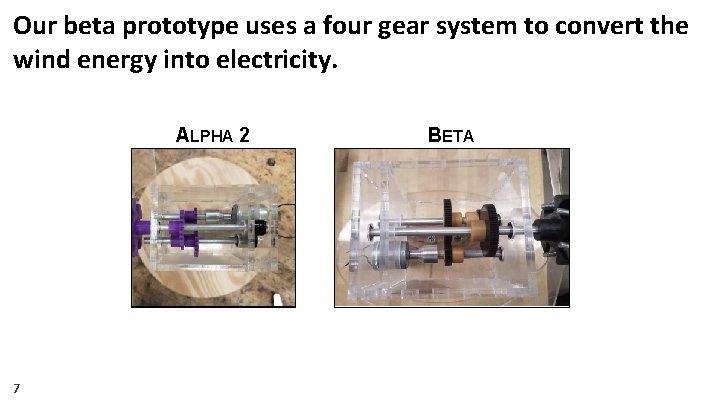

Our beta prototype uses a four gear system to convert the wind energy into electricity. ALPHA 2 7 BETA

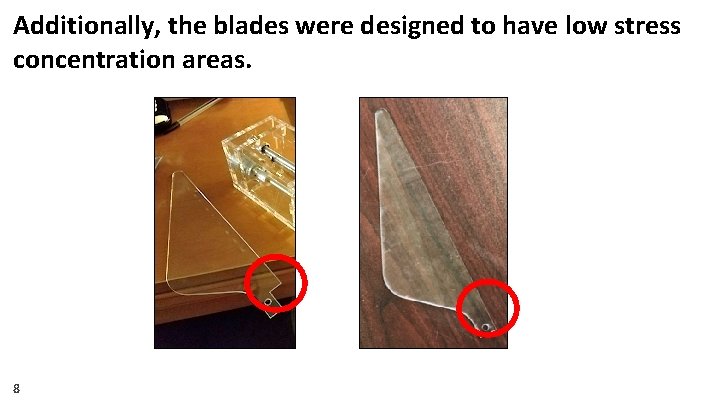

Additionally, the blades were designed to have low stress concentration areas. 8

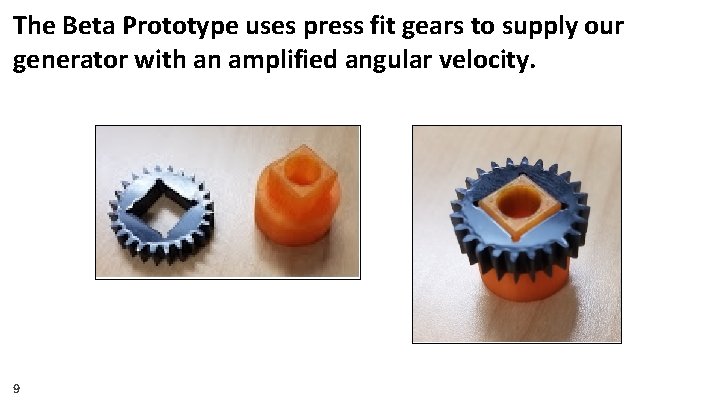

The Beta Prototype uses press fit gears to supply our generator with an amplified angular velocity. 9

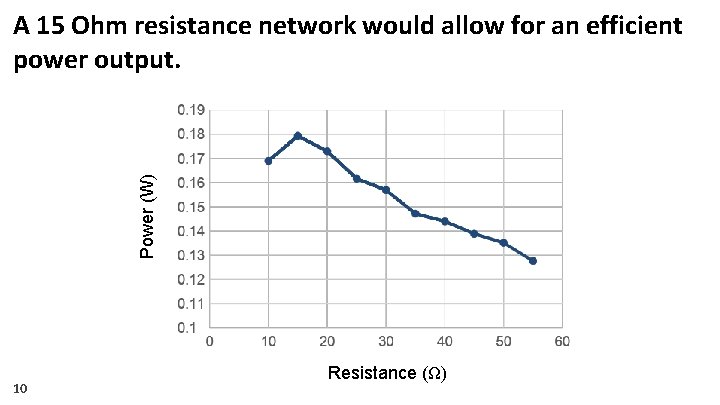

Power (W) A 15 Ohm resistance network would allow for an efficient power output. 10 Resistance (Ω)

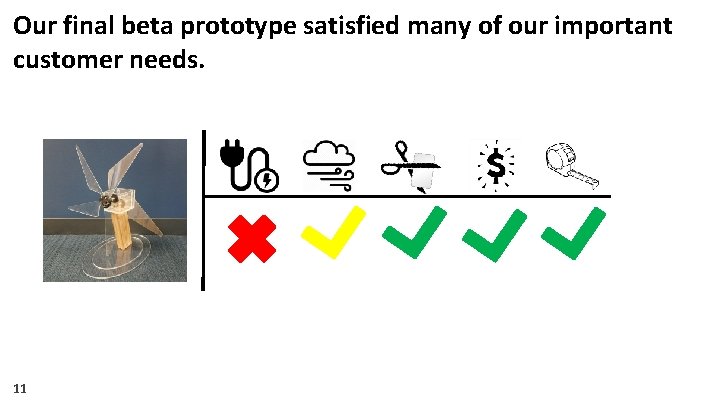

Our final beta prototype satisfied many of our important customer needs. 11

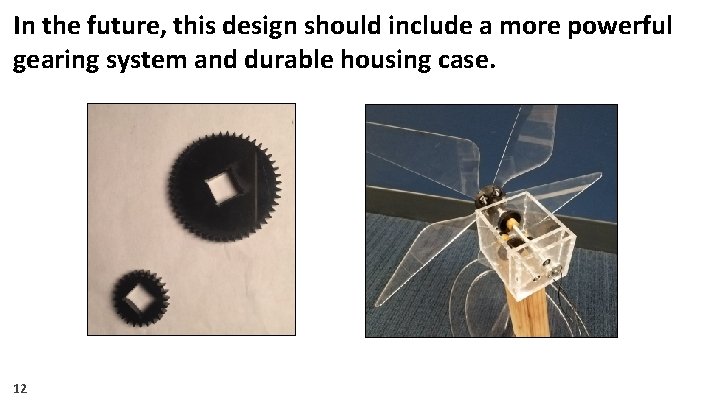

In the future, this design should include a more powerful gearing system and durable housing case. 12
